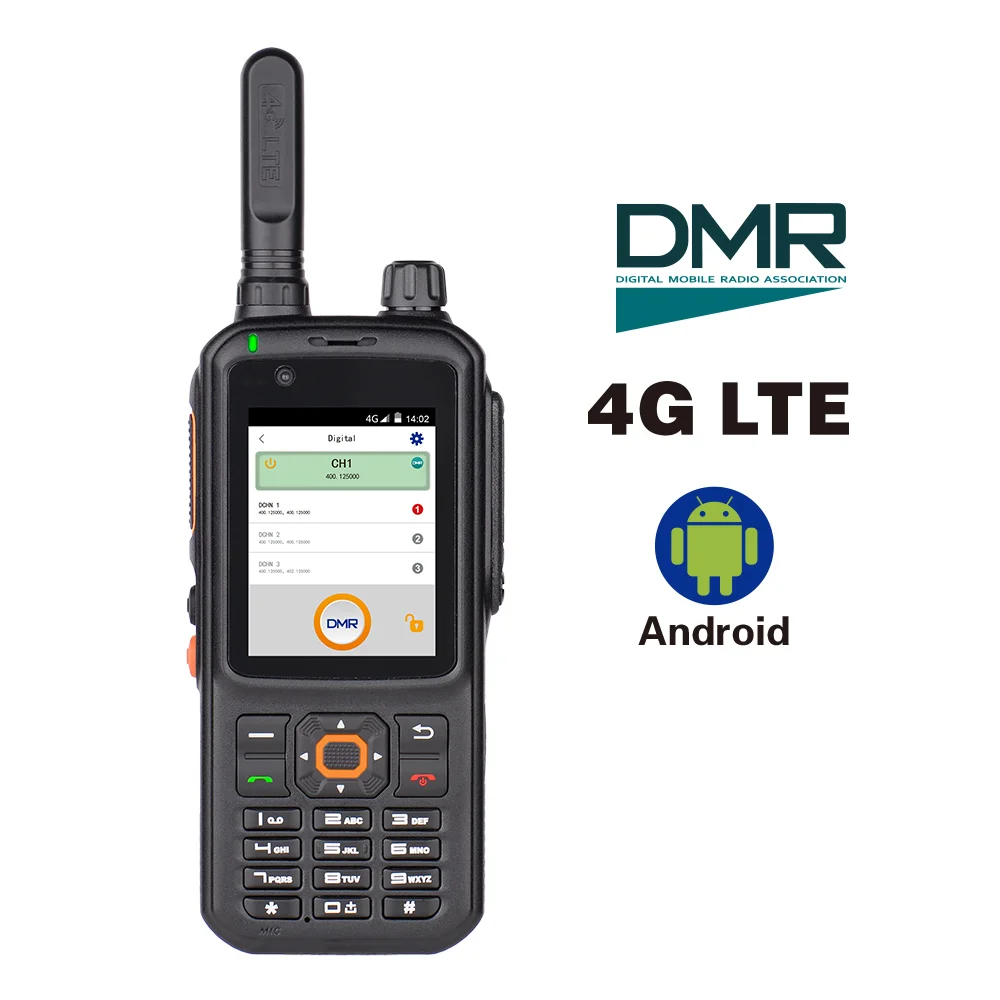

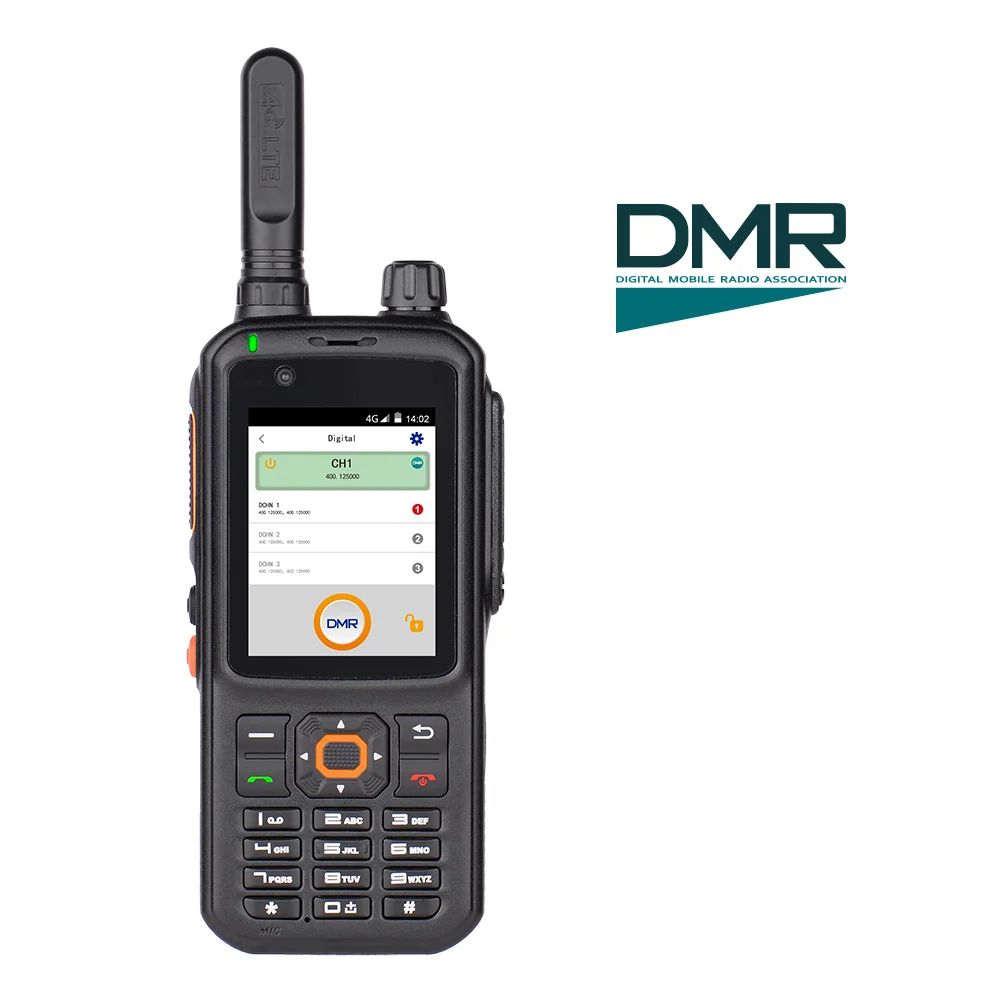

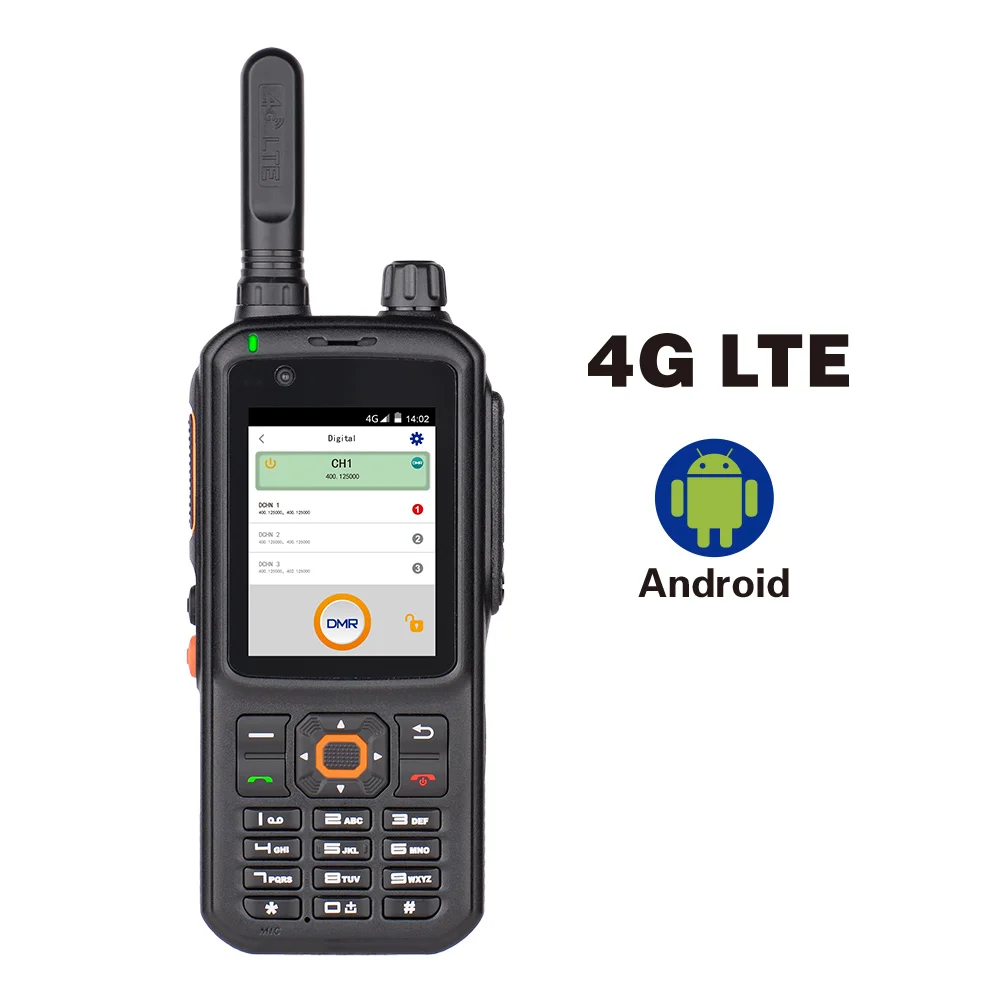

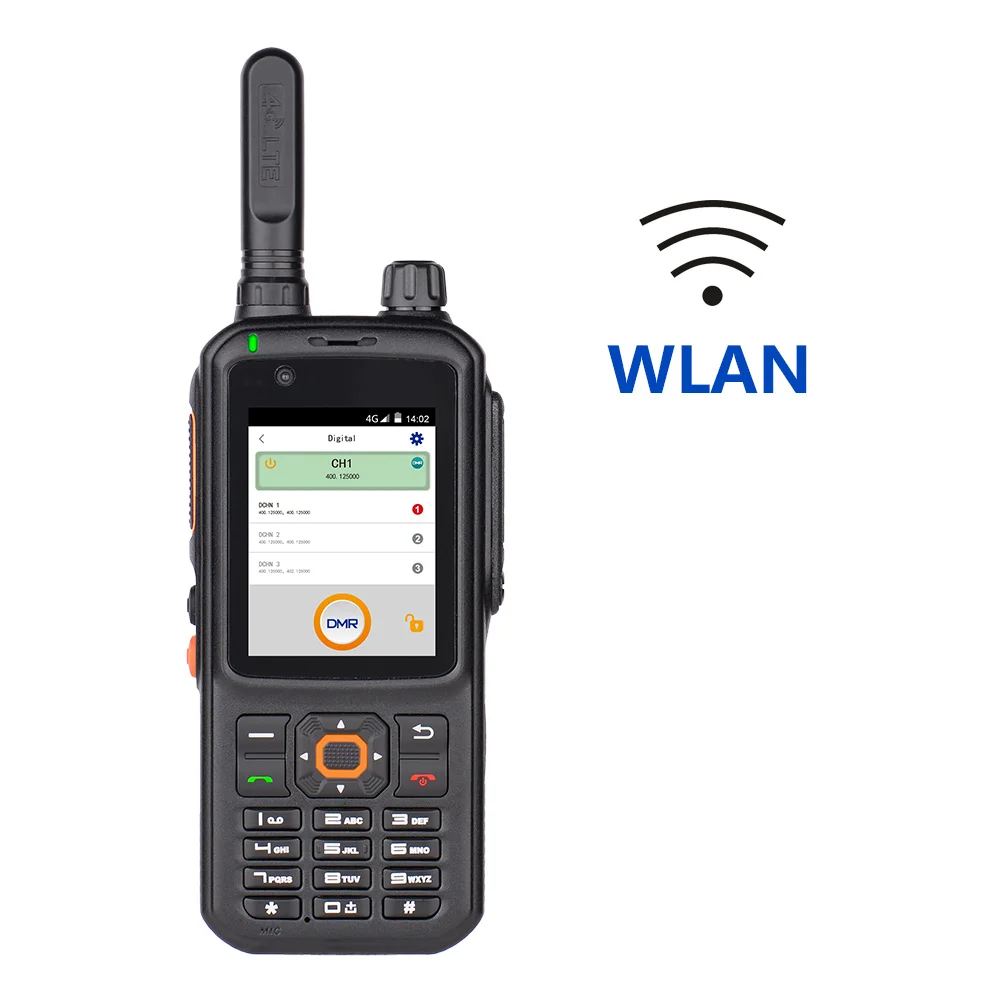

T368 Handheld GSM WCDMA walkie talkie gateway communicators guide digital DMR radio repeater
- Category: >>>
- Supplier: Inrico Technologies Co. Ltd.
Share on (1600523861766):
Product Overview
Description
Technical Specifications
Frequency | ||
Model | Inrico 2W 4W 5W 8W dual band UHF VHF T368 handheld radio DMR & 4G PoC two way radio walkie talkie | |
EU version | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TDD-LTE: B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20/B28a/B28b | |
US version | GSM: B2/B5 WCDMA: B1/B2/B4/B5 FDD-LTE: B1/B2/B4/B5/B7/B12/B13/B17/B28a/B28b | |
Maximum Transmission Power | UMTS2100/1900/850/900: Power Class 3 (+24dBm +1/-3dBm) GSM/GPRS900MHz: Power Class 4 (+33dBm ±2dBm) GSM/GPRS 1800MHz: Power Class 1 (+30dBm ±2dBm) EDGE 900MHz: Power Class E2 (+27dBm ±3dBm) EDGE 1800MHz: Power Class E2 (+26dBm -4/+3dBm LTE B38/B39/B40/B41:Power Class 3(+23dBm±2dBm) LTE B1 B3 B5 B7 B8 B20 28A 28B:Power Class 3(+23dBm±2dBm) | |
Receive Sensitivity | WCDMA2100 : ≤-107dBm WCDMA1900/850/900 : ≤-105dBm GSM850/900/1800/1900 : ≤-102dBm LTE B1/B3: ≤-97dBm LTE B38/B39/B40/B41 :≤-93dBm LTE B5 B7 B8 B20 28A 28B:≤-94dBm | |
Wi-Fi | Operating Band: 2.4G & 5G Standards:IEEE 802.11/b/g/n | |
BT | Version: BT v4.0 with BLE Operation Distance: (Max) 10 meter | |
Locations | GPS，BDS，AGPS | |
Hardware | ||
CPU | MTK6739, 1.2GHz | |
Memory | 1GB（RAM）+ 8GB（ROM） | |
TF Card | Support, up to 32G | |
SIM card slot | Standard SIM card +NANO SIM card,TF card | |
USB Ports | Micro USB 2.0 | |
Interface | M6 Earphone Jack | |
Screen size | 2.4“ G + F touch screen | |
Camera | Front Camera:2.0MP，Rear Camera:13.0MP | |
Microphone | Dual Microphone, Noise reduction | |
Speaker | Ø36mm speaker，8Ω 2W | |
Battery | 6000 mAh | |
Standby Times | POC：22H DMR：45H | |
Communication Times | POC:18H DMR:15H | |
Software | ||
Operation System | Android 7.0 | |
Physical | ||
Dimension (H*W*D) | 140X64X35mm（without Antenna& Belt clip） | |
Weight | ≈300g | |
Working Temperature | -5°C ~ 55°C | |
Storage Temperature | -40°C ~ 80°C | |
Certifications | ||
Protection Level | IP54 | |
Drop | 1.2 Meters | |

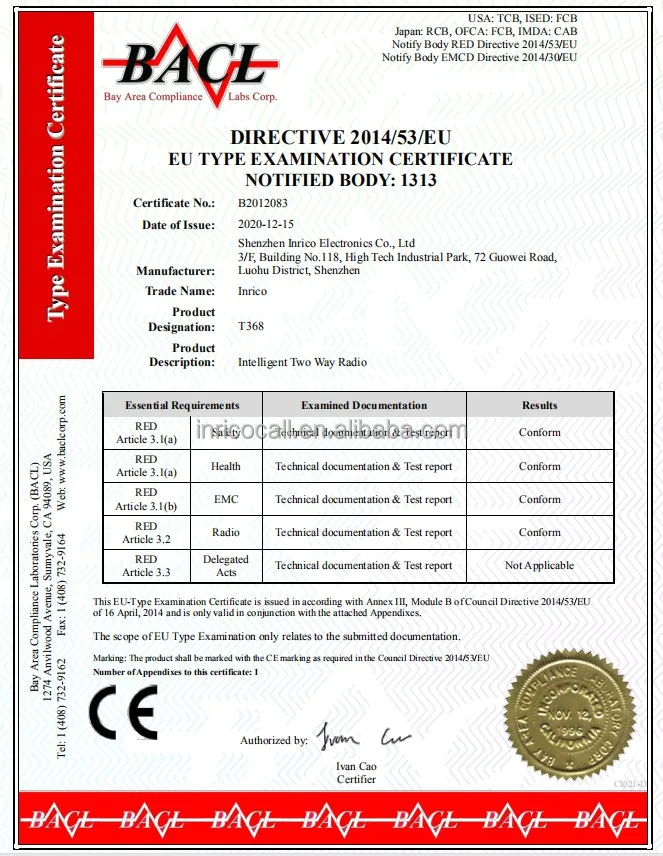

Certificate | CE/FCC/ROHS | |
Products Description
Interface & Button
Rich ports and button can give better user's experience, meanwhile the button function supports customized.

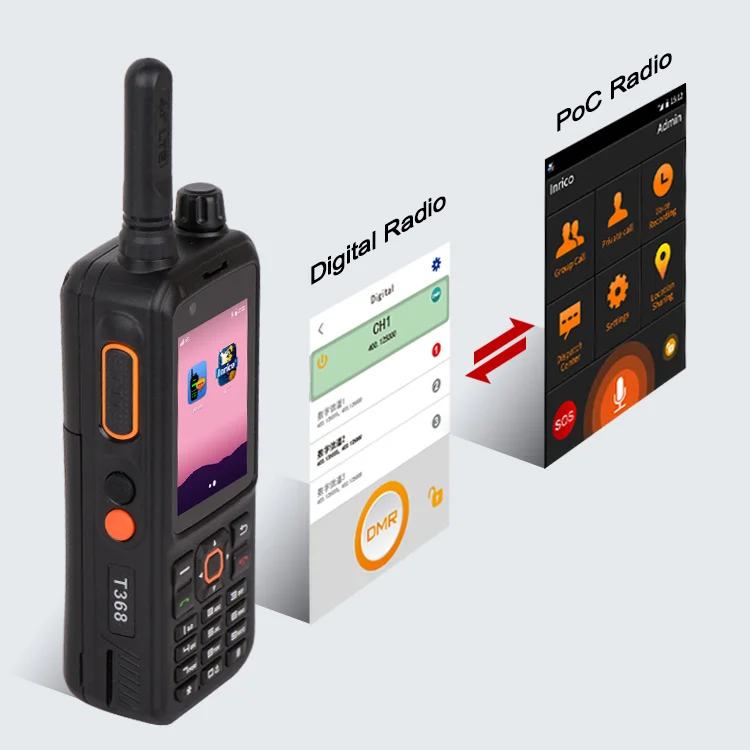

Dual Mode Radio
Breaking traditional idea, broadband and narrowband convergence, to achieve barrier-free communication.

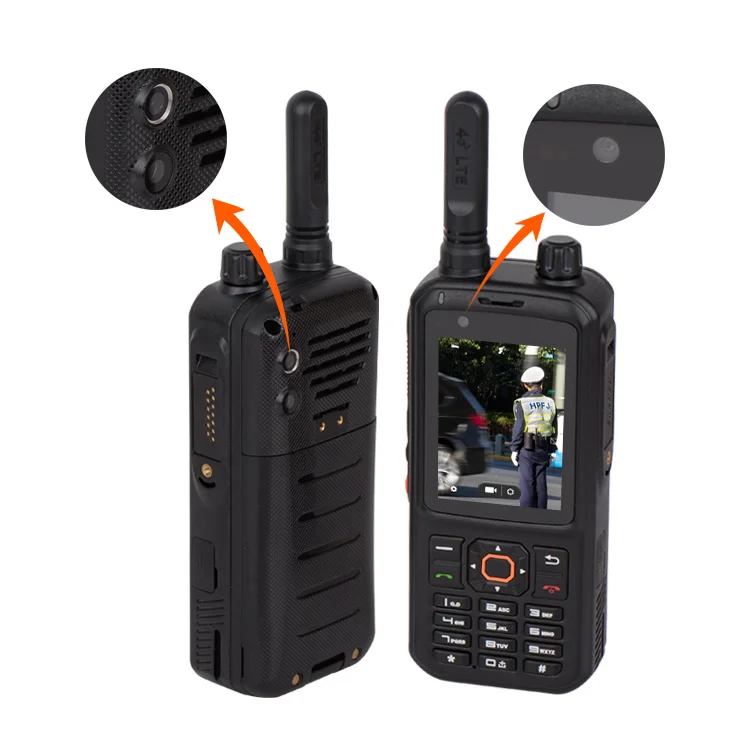

Camera
The front and rear cameras are designed to make daily operation easier whenever photo push is required.

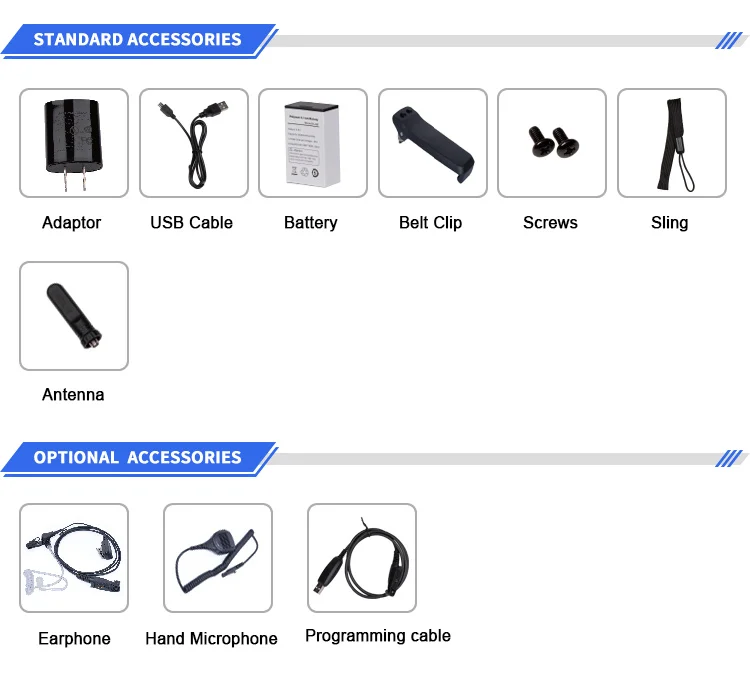

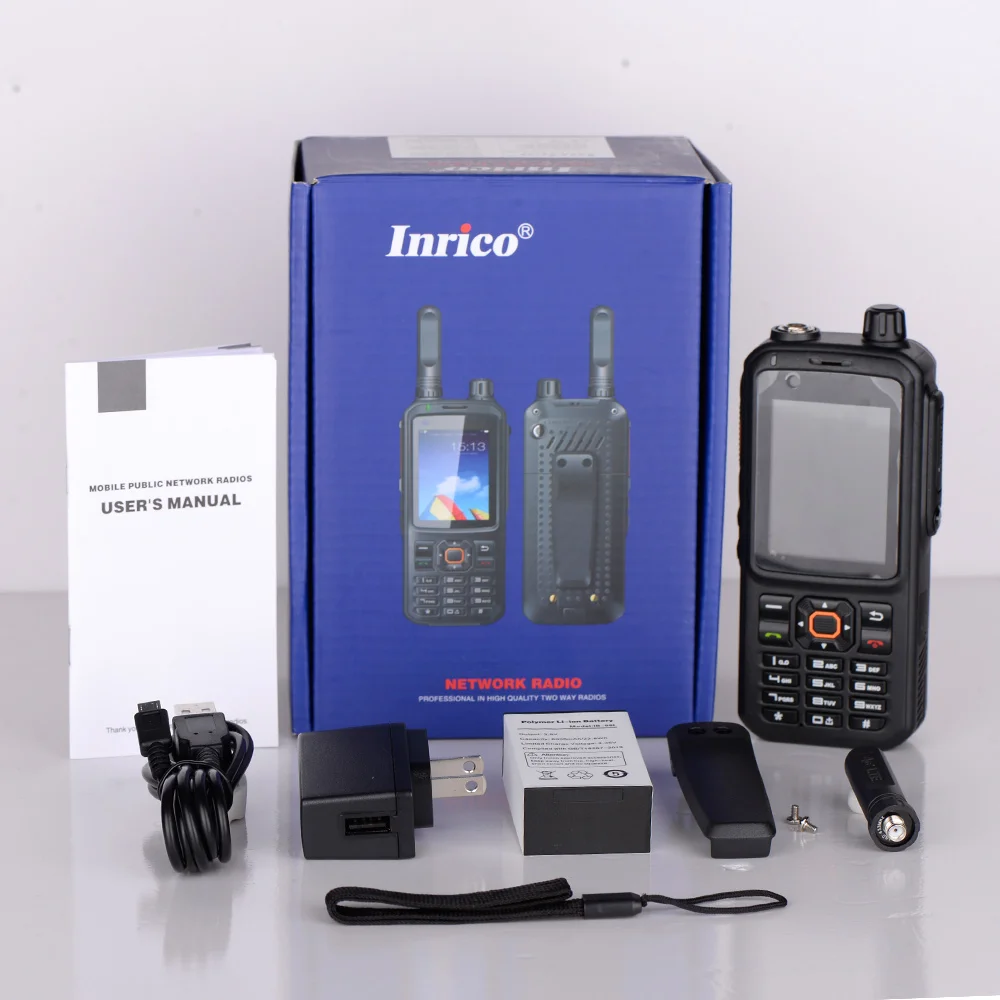

Product Accessories
Shipping & Delivery
Company Profile
FAQ
（1）About the MOQ of Two way radios?
Normal order:MOQ for Inrico brand is 100 units.Sample order: MOQ is 2 units.
（2）How to place a order?
1.Offer needing details (models, quantity, product customized demands, shipment) to us.
2.We will make PI and send it to you.
3.Checking the PI and confirm it, then you pay the payment;
4.We will arrange the production quickly once payment received.
5.Taking photos for mass production, production finish then deliver the goods soon.
6.Send the tracking number to you and track the goods until you receive goods.
（3）Can I have my own logo on the products?(OEM)
Yes, you can put your logo on the products with a required order quantity.Please just send us the information of your Logo.
（4）Can you design one specially?(ODM)
Yes, send us details and a sketch or a picture of your requirements and we will quote you our best price.

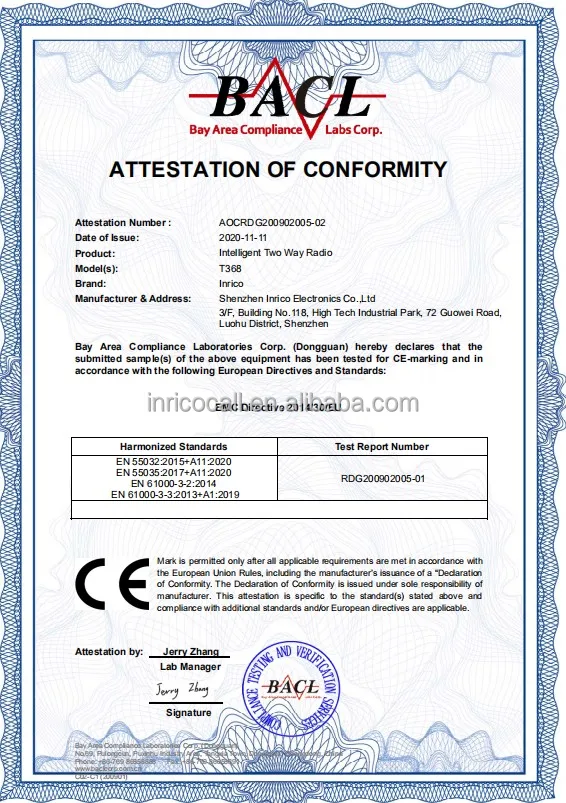

（5）Your products meet CE/ROHS requirements?
Yes, Our products have been ex ported all over the world like America, Europe, Middle East and so on.We get CE, FCC, RoHS, approval for our products.
（6）How long is the warranty?
1.One year warranty for machines,charger and other accessories.
2.Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3.If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
（7）Why Choose Us?
1.Quick response, 24 hours customer service.
2.Excellent pre-sale and after-sale service.
（8）How about our Market?
Our products are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc.And Russia.
