Scodeno unmanaged 2 gigabit SFP 16 port Gigabit POE Ethernet Port Switch industrial POE switch
- Category: >>>
- Supplier: Shenzhen,Scodeno,Technology,Co.,Ltd.
Share on:
Product Overview
Description

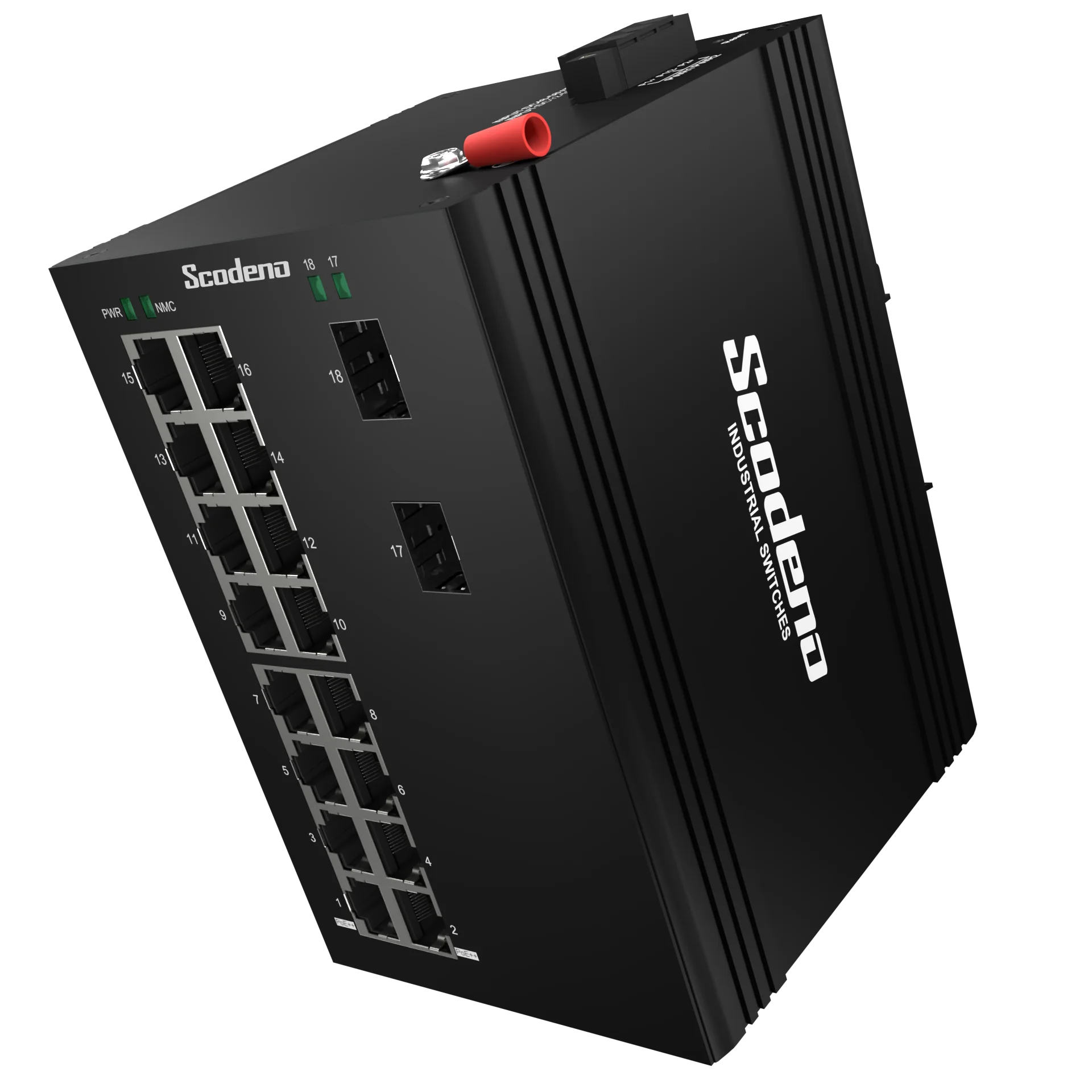

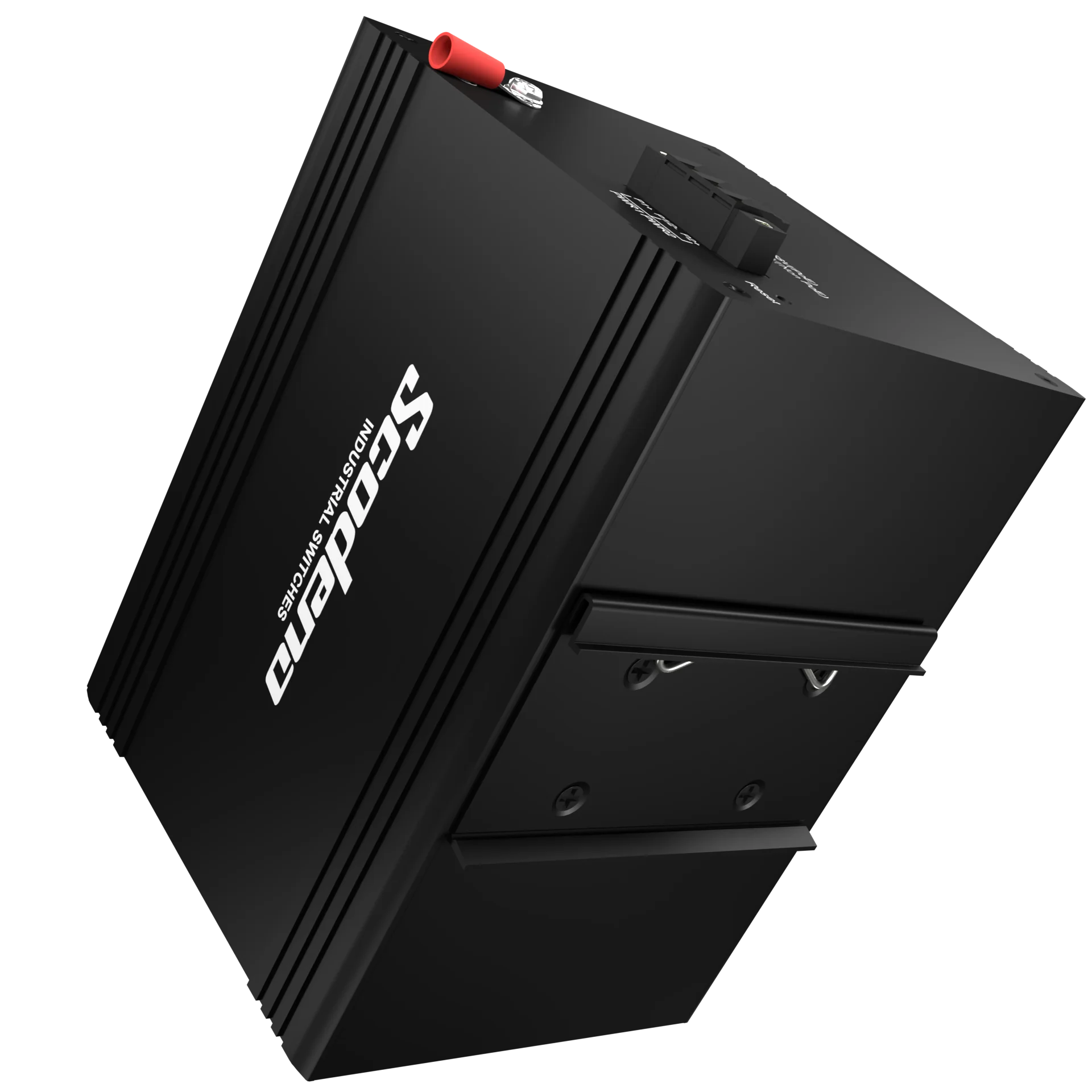

Scodeno unmanaged 2 gigabit SFP 16 port Gigabit POE Ethernet Port Switch industrial POE switch
Product Description
The equipment is 2*1000 Base-X, 16*10/100/1000 Base-T Managed Industrial Ethernet fast switch, through the fanless cooling circuit design, wide range working environment temperature, high protection level and other technologies, provide high / low temperature, lightning protection and other outstanding industrial quality, and integrated switching, safety and various rich protocols, simultaneously supported The public Ethernet multi ring protection technology (ERPS) has greatly enhanced the flexibility of the network and enhanced the reliability and security of the industrial network. It can meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Provider Mode Ports | |
Fixed port | 2*1000 Base-X, 16*10/100/1000 Base-T |
Management Port | Support Console |
Power interface | Phoenix terminal, dual power input |
LED Indicators | PWR,Link/ACT LED |
POE optional | |
Cable Type & Transmission Distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Monomode optical fiber | 20/40/60/80/100KM |
Multimode optical fibre | 550m |
| |
Network Topology | |
Ring topology | Support |
Star topology | Support |
Bus topology | Support |
Tree Topology | Support |
Hybrid topology | Support |
|
|
Electrical Specifications | |
Input voltage | DC12~58V(Non-PoE) |
Total Power consumption | <26W(Non-PoE) |
| |
| |
Convergence | |
ACL | Support ACL 500 Support IP standard ACL Support MAC expand ACL Support IP expand ACL |
QoS | Support QoS re-marking, priority mapping Support SP, WRR queue scheduling Support engress rate-limited, egress rate-limit Support Policy-based QoS |
| |
Management | |
CLI | Support |
Console | Support |
Management IP | Support IPv4/IPv6 |
Telnet/SSH | Support |
WEB management | Support |
SNMP | Support SNMPv1/v2c/v3 |
User Management | Support |
System Log | Support |
Configuration File Download/Upload | Support |
Upgrade Firmware | Support |
Company Information
Partner
FAQ
1) Manufacturer: R&D manufacturer
2) OEM/ODM Service: Support neutral packaging or custom LOGO
3) Lead time: Sample within 2 days, mass order depends on the quantity
4) MOQ: 1pcs also welcome
5) After-service: Max warranty is 5 years, 2 years is free; 7/24 hours online
More details welcome to contact us
