7inch flat touch screen monitor custom modul lcd 800x1280 dots 31 pin MIPI interface 250 nits IPS tft display panel screen
- Category: >>>
- Supplier: Shenzhen Hct Electronics Co. Ltd.
Share on (1600523923177):
Product Overview
Description
Product Description
7 inch tft LCD Display
MX-I70FM31-ILX40
MX-I70FM31-ILX40 is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel and a driving circuit. This TFT LCD has a 7 inch diagonally measured active display area with (800 horizontal by 1280 vertical pixel) resolution.
ITEM | STANDARD VALUES |
LCD Size | 7" |
Resolution | 800 (H) x3(RGB)x 1280 (V) |
TFT Type | IPS |
Interface Type | MIPI |

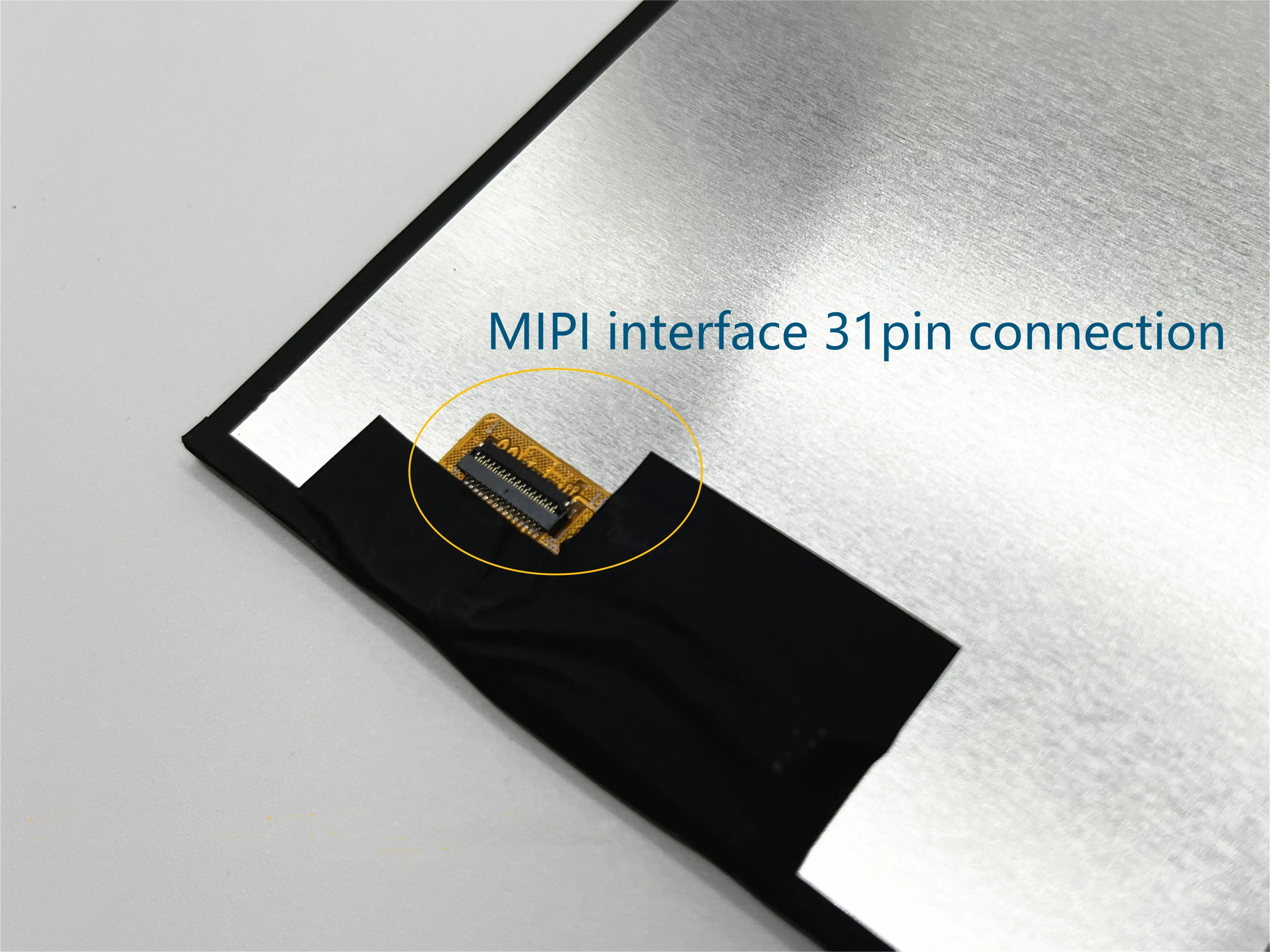

Pin Number | 31 pin |
Outline Dimension | 99.76(H) x 161.6(V) x2.6(D) mm |
Active Area | 94.2 (H) x 150.72(V) mm |
Current for LED Backlight | 120mA |
Voltage for LED Backlight | 9.6V |
Luminance | 250 Nits |
Touch Screen | Without |
LED Life Time | 50000 hours |

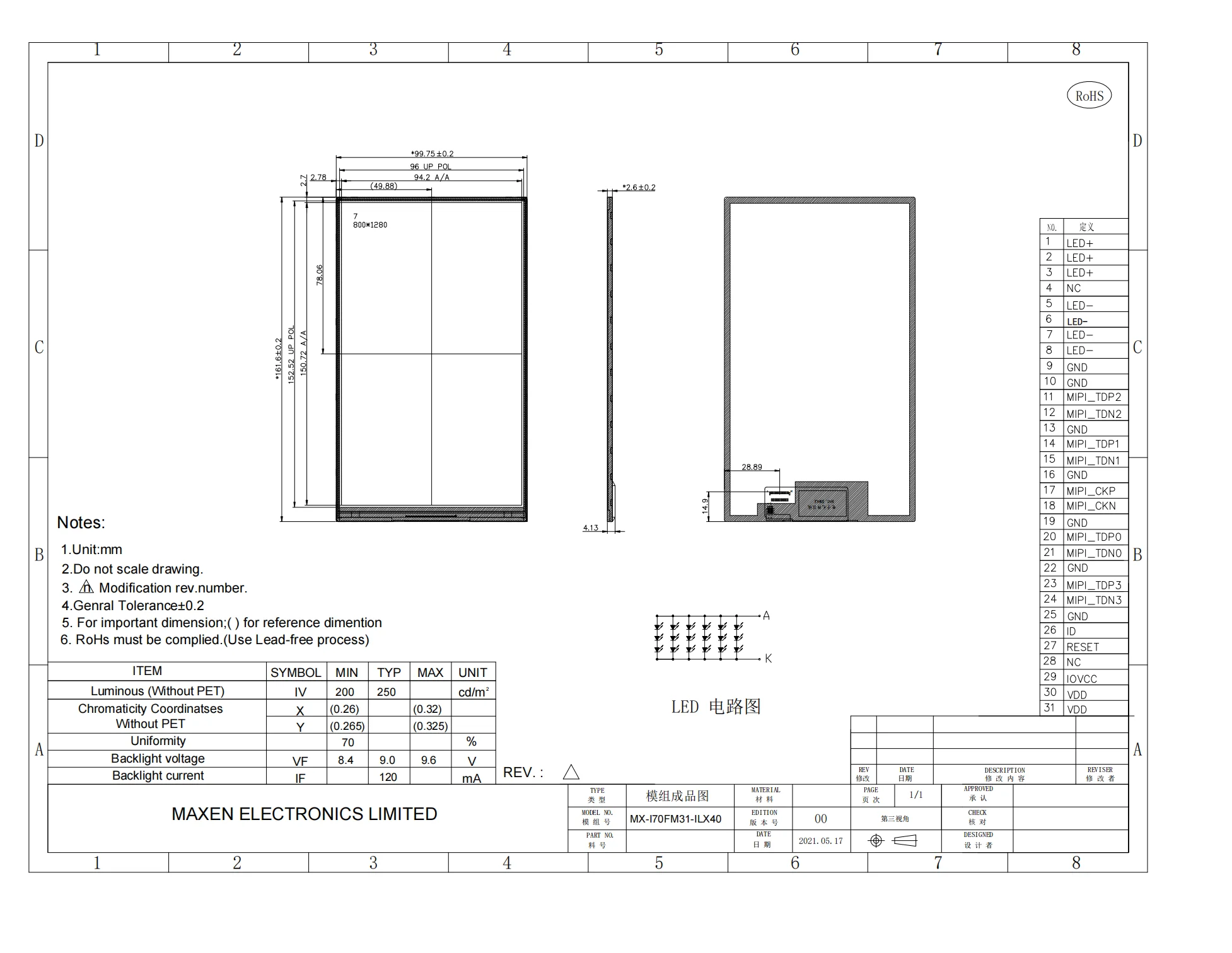

Product Structure

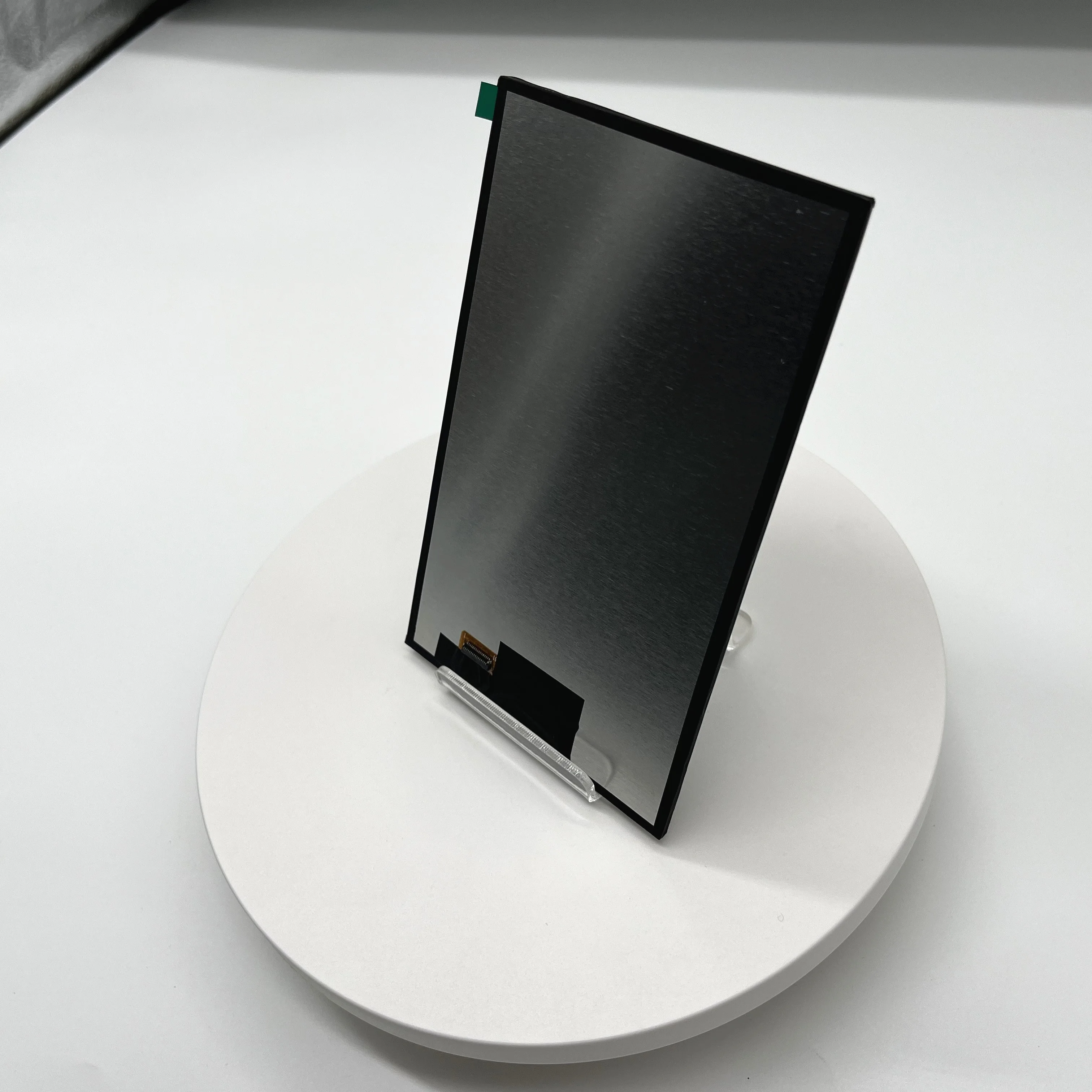

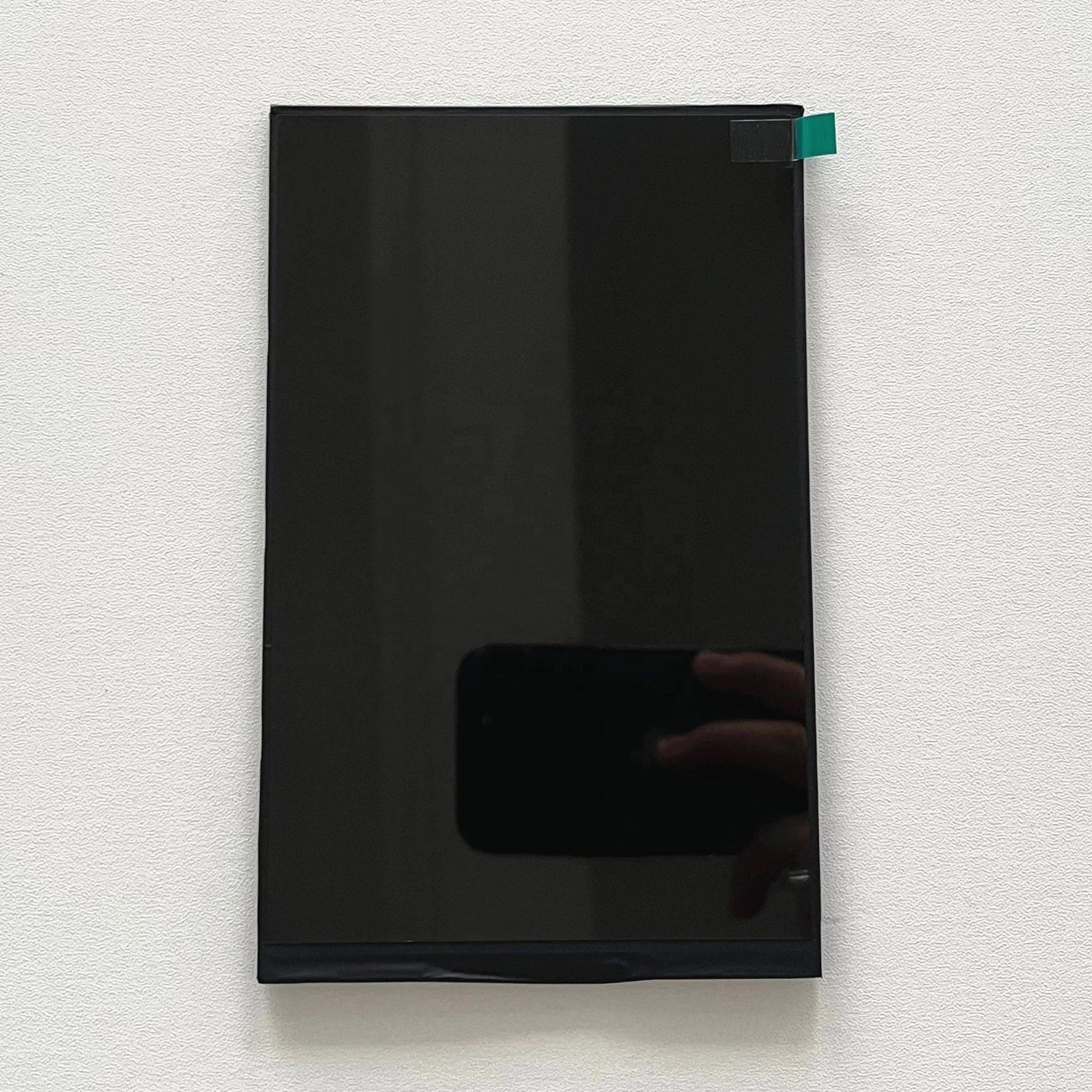

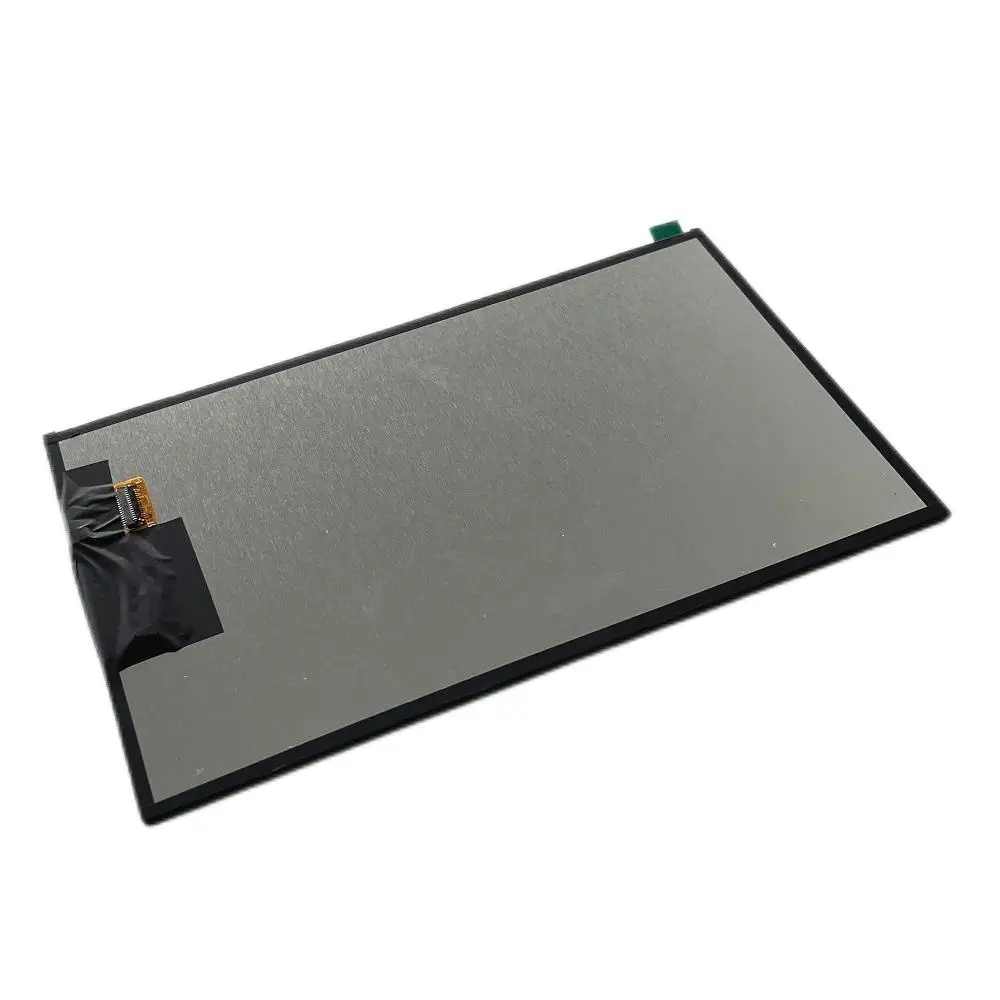

Details Images
Customized Solution
Related Products
Size | Technology | Resolution | Interface | Brightness (Nits, Typ.) | O.D. (WxHxT, mm) | A.A. (WxHxT, mm) | LIFE TIME (Hr, Typ.) |
TN | 320x240 | RGB | 350 | 76.90x63.90x3.26 | 70.08x52.56 | 50,000 | |
TN | 480x272 | RGB | 500 | 105.5x67.2x3.0 | 95.04x53.86 | 50,000 | |
IPS | 800x480 | RGB | 1000 | 105.42x67.07x2.90 | 95.04x53.86 | / | |
TN | 800x480 | RGB | 500 | 120.70x75.90x3.05 | 108.00x64.80 | 50,000 | |
IPS | 800x480 | RGB | 1000 | 120.70x75.90x3.05 | 108.00x64.80 | 50,000 | |
TN | 800x480 | RGB | 300 | 164.9x100.00x3.50 | 154.08x85.92 | / | |
IPS | 1024x600 | LVDS | 1000 | 164.7x100.00x3.50 | 154.214x85.92 | 50,000 | |
TN | 800x600 | RGB | 550 | 183.0x141.0x5.6 | 162.0x121.5 | 50,000 | |
IPS | 800x1280 | MIPI | 280 | 114.6x184.1x2.60 | 107.64x172.22 | 30,000 | |
IPS | 1200x1920 | MIPI | 350 | 115.20x184.45x2.6 | 107.64x172.22 | 30,000 | |
TN | 800x480 | RGB | 250 | 210.7x126.4x3.5 | 198x117.7 | 50,000 | |
IPS | 1024x600 | LVDS | 1000 | 235x143x5.1 | 222.72x125.28 | 50,000 | |
IPS | 800x1280 | MIPI | 450 | 143x228.6x 2.5 | 216.58x135.36 | 50,000 | |
IPS | 1280x800 | LVDS | 400 | 228.2x148.95x2.6 | 216.96x135.6 | / | |
IPS | 1024x768 | LVDS | 600 | 225x174.3x5.6 | 211.2x 158.4 | 50,000 | |
IPS | 1920x1080 | EDP | 400 | 263.4x157.82x 4.5 | 256.32x144.18 | / | |
IPS | 1024x768 | LVDS | 600 | 260.5x 204x8.6 | 245.76x184.32 | 30,000 (Min.) | |
IPS | 1920x1080 | EDP | 300 | 300.26x177.39x2.4 | 293.76x165.24 | 30,000 (Min.) | |
IPS | 1024x768 | LVDS | 350 | 326.5x253.5x9.7 | 304.128x228.096 | 50,000 | |
IPS | 1920x1080 | EDP | 220 | 350.72x204.96x0.8 | 344.16x193.59 | / | |
IPS | 1280x1024 | LVDS | 250 | 358.5x296.5x8.7 | 337.92x270.34 | 30,000 (Min.) | |
IPS | 1280x1024 | LVDS | 250 | 396.0x324.0x9.9 | 374.78x299.83 | 30,000 (Min.) |
Company Profile
Shenzhen HCT Electronics Co., Ltd got more than 12 years' experience in different size of TFT LCD panel and touch screen.
7,000 square meters production area, include 95% 100 to 1000 level dust-free workshop areas. With ISO9001 and ISO14001 certified manufacturer and qualified producer of TS16949.
HCT can meet your diversified needs.
Factory Workshop
Packing & Delivery
FAQ
Q1. What is your product range?
A1: We are 10 years of experience manufacturing TFT LCD and touch screen.
> 2.4" to 32" TFT LCD Module;> Bar type LCD screen up to 48 inch;
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
> High brightness LCD panel custom;
> Capacitive touch screen up to 55";
> 4 wire 5 wire resistive touch screen;
> One-step solution TFT LCD assemble with touch screen.
Q2: Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
> For the LCD display, backlight brightness and FPC cable can be customized;
> For the touch screen, we can custom the whole touch panel like the color, shape, cover thickness and so on according to the customer's requirement.
> NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3. Which applications your products are mainly used for?
A3: Embedded system, Intercom system, Biometric, HMI, Smart home, Robot, Hand-held PDA, after market automotive and etc.
Q4. What's the delivery time?
A4: > For samples order, 2-3weeks;> For mass orders, 4-6weeks.
Q5. Do you provide free samples?
A5: For first time cooperation, samples will be charged, the amount will be returned at the mass order stage.
In regular cooperation, samples are free. Sellers keep the right for any change.
