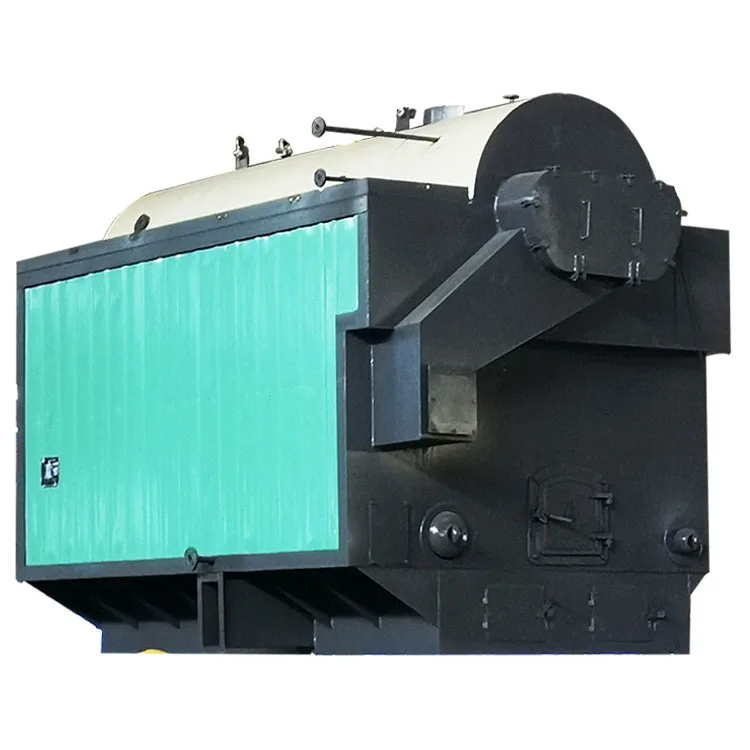

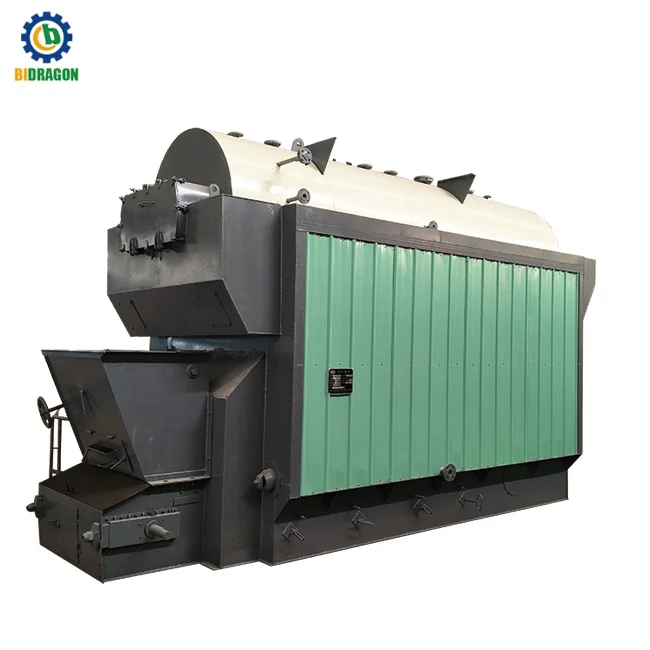

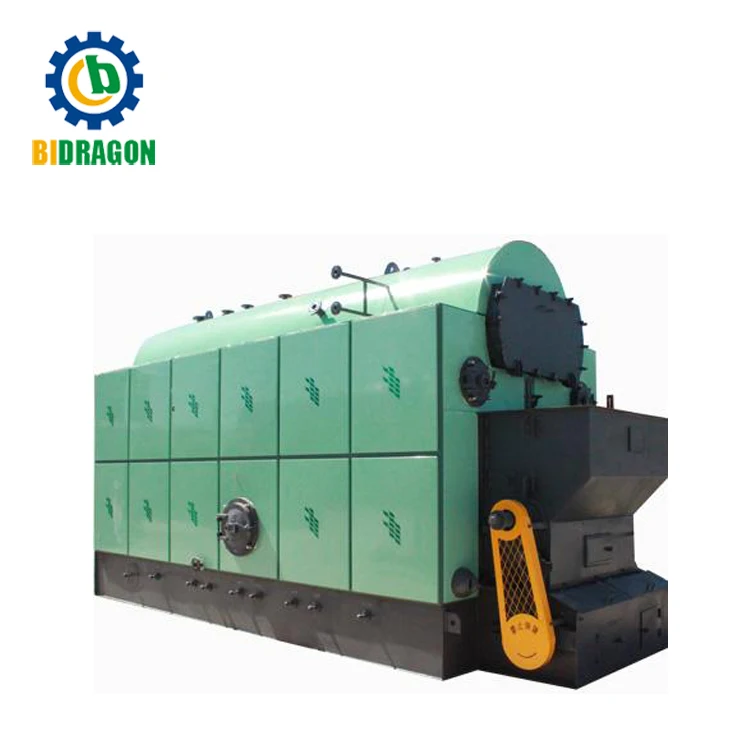

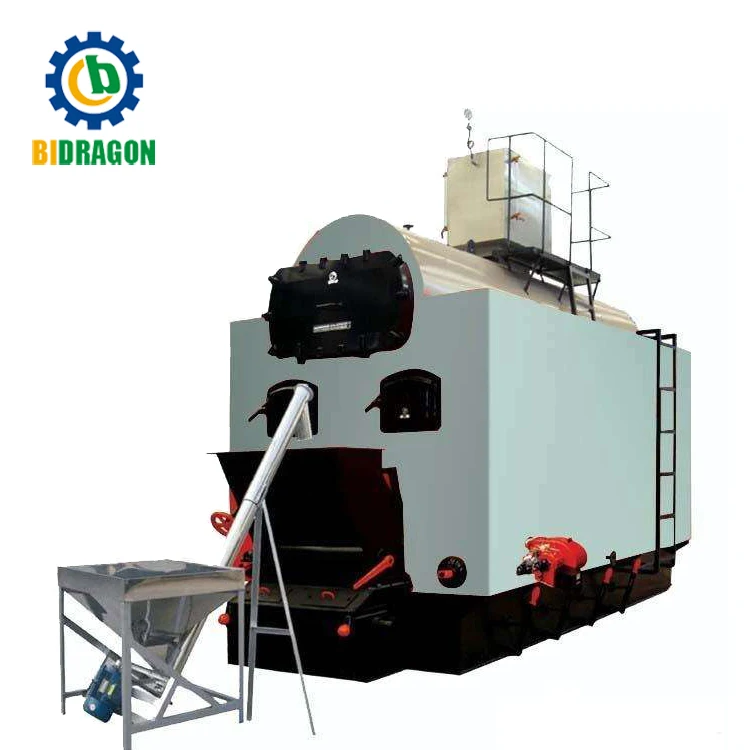

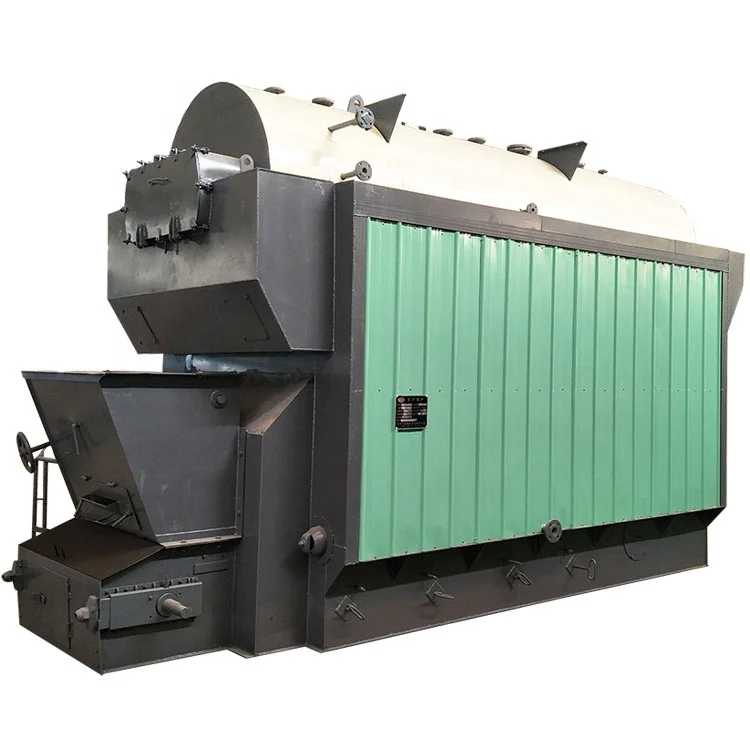

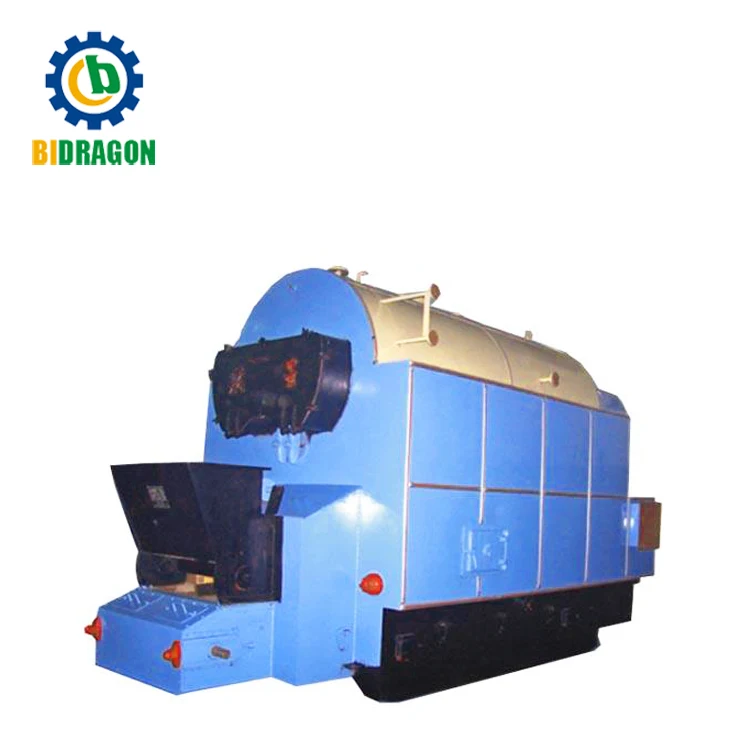

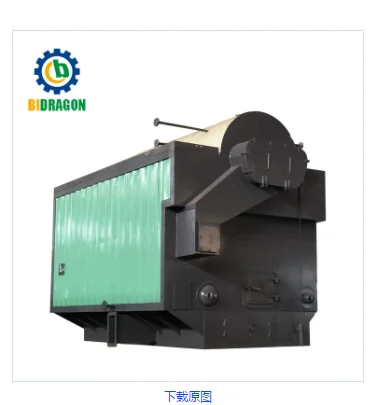

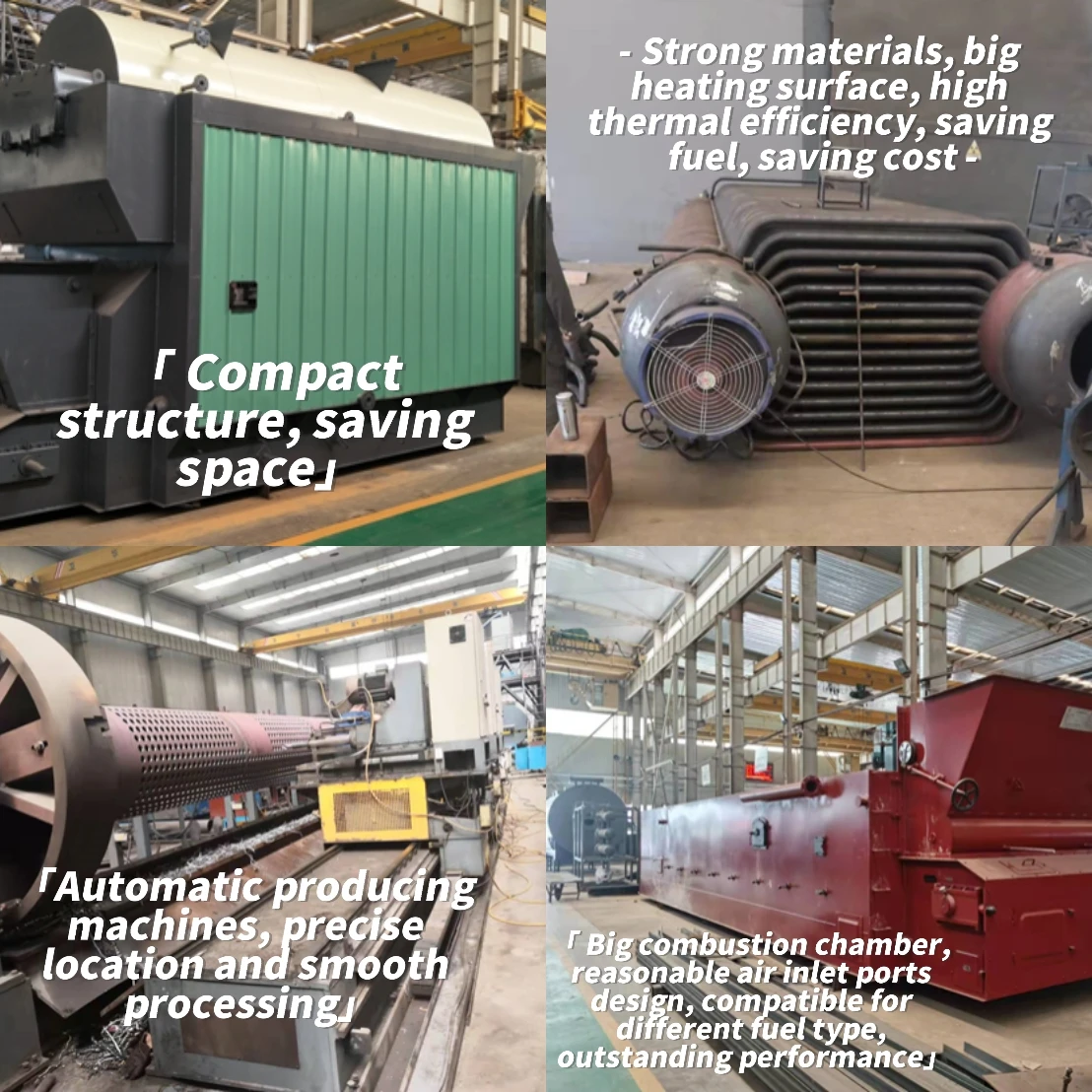

Industrial 2-20T DZL SZL coal biomass fired steam boiler for Manufacturing Plant/ Food&Beverage/textile/paper factory
SZL series vertical dual drums chain grate water tube steam and hot water boiler, adopts quick fitting and assembly structure. The 4-6t/h boiler is of quick fitting tube structure, exit shop after completely assembled, the boiler of 6-35t/h is composed of 2 main components. The upper assembled component is the boiler proper heat absorbing part, and the lower assembled component is of combustion equipment. The former part of the boiler proper is arranged a membrane wall, the upper part of it is connected to boiler cylinder, and its lower part is connected to collective chest, so as to form a combustion room and absorb the radiated heat from the furnace. Its rear part is arranged with dense convection tubes between upper and lower boiler cylinders. The high temperature smog after combustion shall stand for twice returning flushing transversely to the heat accepting surfaces, and shall be introduced to coal saver singly arranged, and flow into duster and exhausted from chimney in the end.

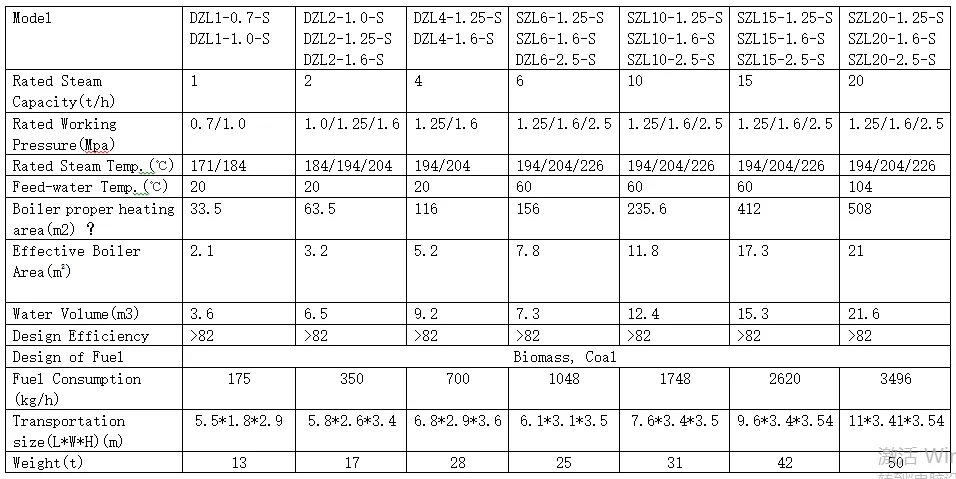

| Hot sale model of steam boiler parameter: |

| Application scope: |
Bidragon industrial oil gas fired steam boiler is widely used in different fileds, including chemical industry, food industry, building material industry, paper mills, packaging plants, garment and textile mills, printing and dyeing plants, hospitals, schools, hotels, government agencies, greenhouses, canneries, wineries, coating plants, swimming pools, washing plants, etc.
![]() | ![]() |

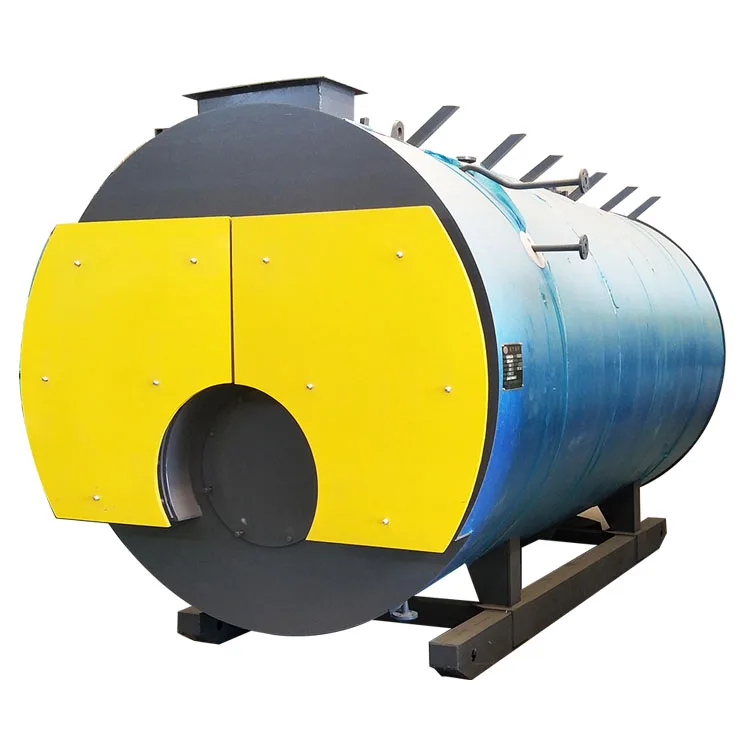

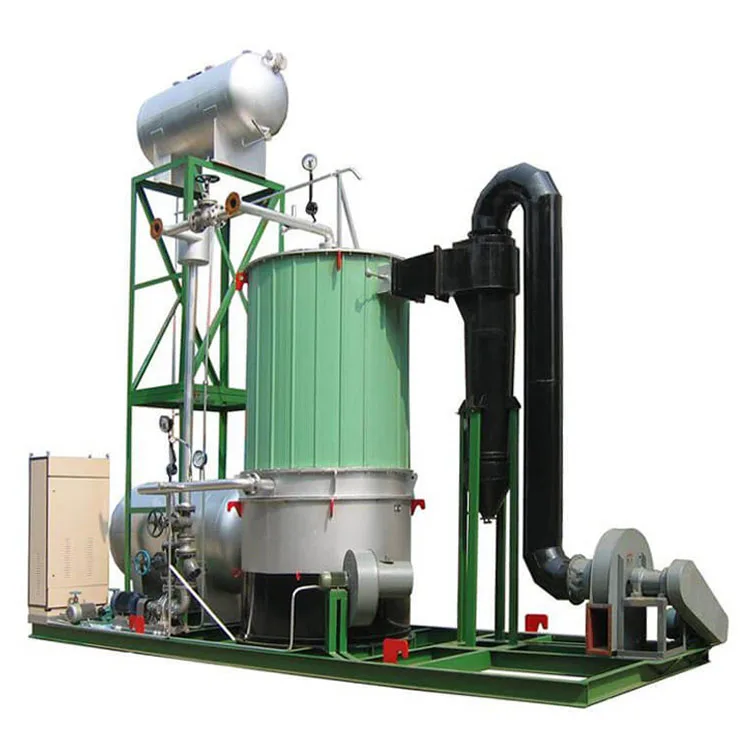

| WNS Oil Gas Fired Steam Boiler | YYQW Hot Oil Boiler System |
![]() | ![]() |
| Coal Biomass Fired Boiler | Small Biomass Boiler |
