Intelligent fan condition monitoring system explosion proof wireless piezoelectric vibration sensor for cement industry
- Category: >>>
- Supplier: Anhui Ronds Science & Technology Incorporated Company
Share on (1600523935806):
Product Overview
Description
Technical Index
RH505 Wireless Vibration&Temperature Sensor | |
Items | Specification |
Vibration Measurement Parameter | |
Vibration Range | ±50 g |
Linearity | 1% |
Frequency Response Range | 2~20kHz(±3dB) Piezo |
Sampling frequency | 1280Hz~51.2kHz |
Temperature Measurement Parameter | |
Temperature Measurment Range | -40～125 ℃ |
Temperature Measurment Accuracy | ±1 ℃ (-40℃～125℃) |
Electrical and Structure Parameter | |
Power Supply | Lithium-thionyl chloride battery 8500mAh |
Power | 0.072W |
Communication Method | 2.4GHz IEEE 802.15.4 |
Transmit Power | 4dBm |
Dimension | 46 × 94 (mm) (Diameter * Height) |
Weight | 188 g |
Environment Parameter | |
Ambient Temperature | -40～70 ℃ |
IP grade | IP68 |
Main Features
○ Built-in antenna
○ Integrate sensor, data acquisition and data transmission
○ Measure vibration and temperature synchronously
○ Built-in edge computing and edge alarm
○ Applicable to zone 0, zone 1, zone 2
○ Transmission distance: 300m line of sight
○ Communication distance: 300m line of sight.
○ Adopt ZigBee wireless communication protocol, IP68
○ Battery life: 2 years
○ Transmission distance: 300m line of sight
○ Communication distance: 300m line of sight.
○ Adopt ZigBee wireless communication protocol, IP68

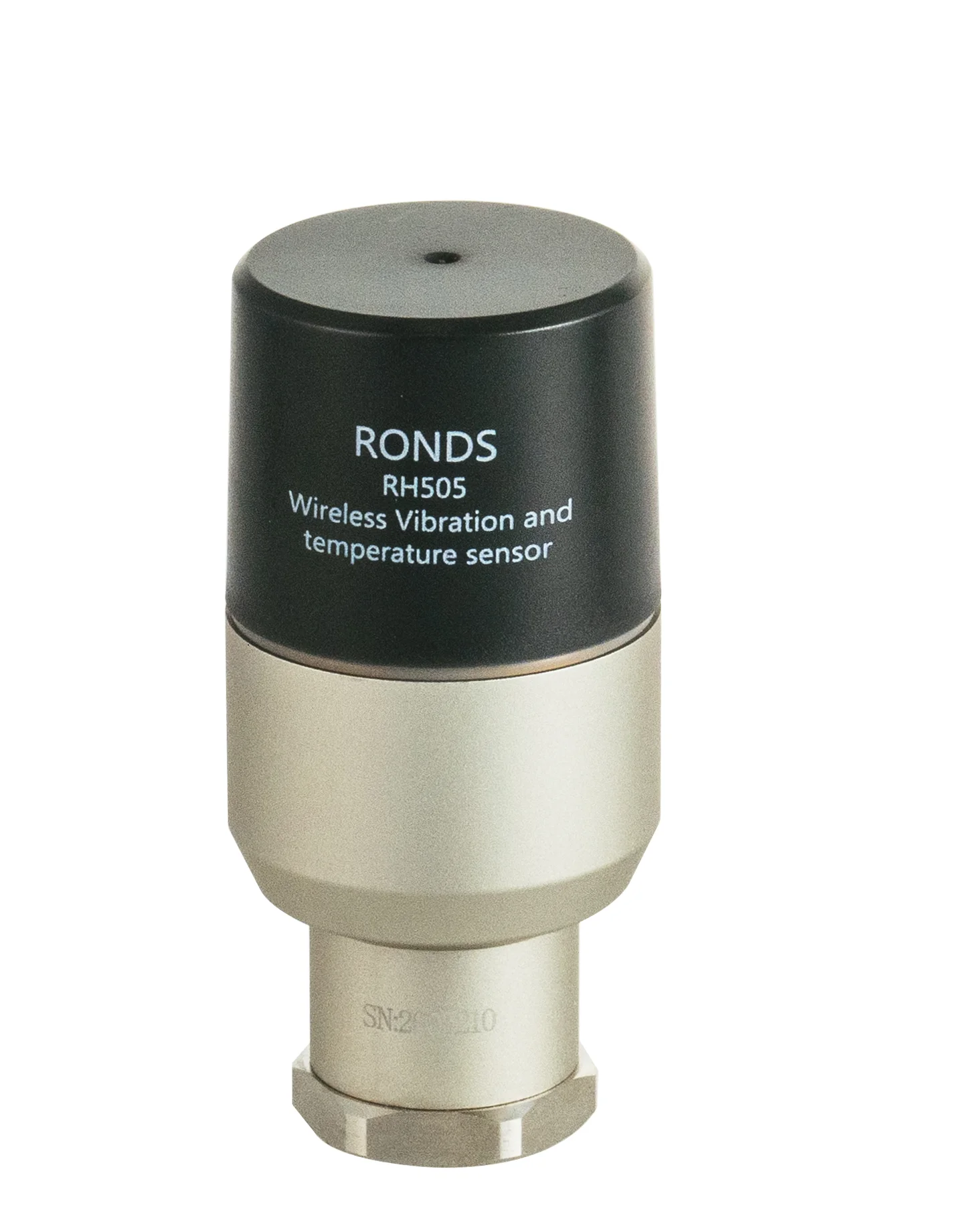

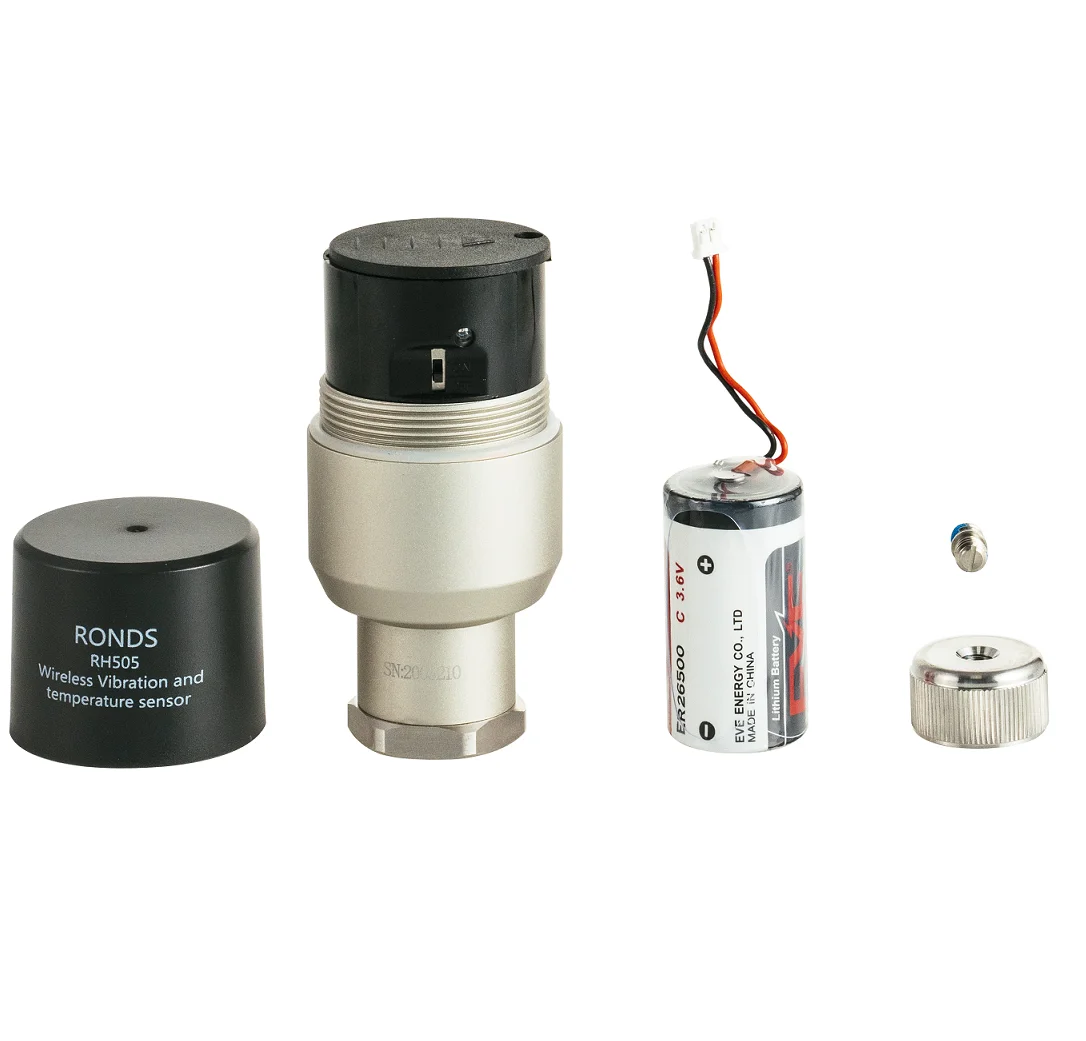

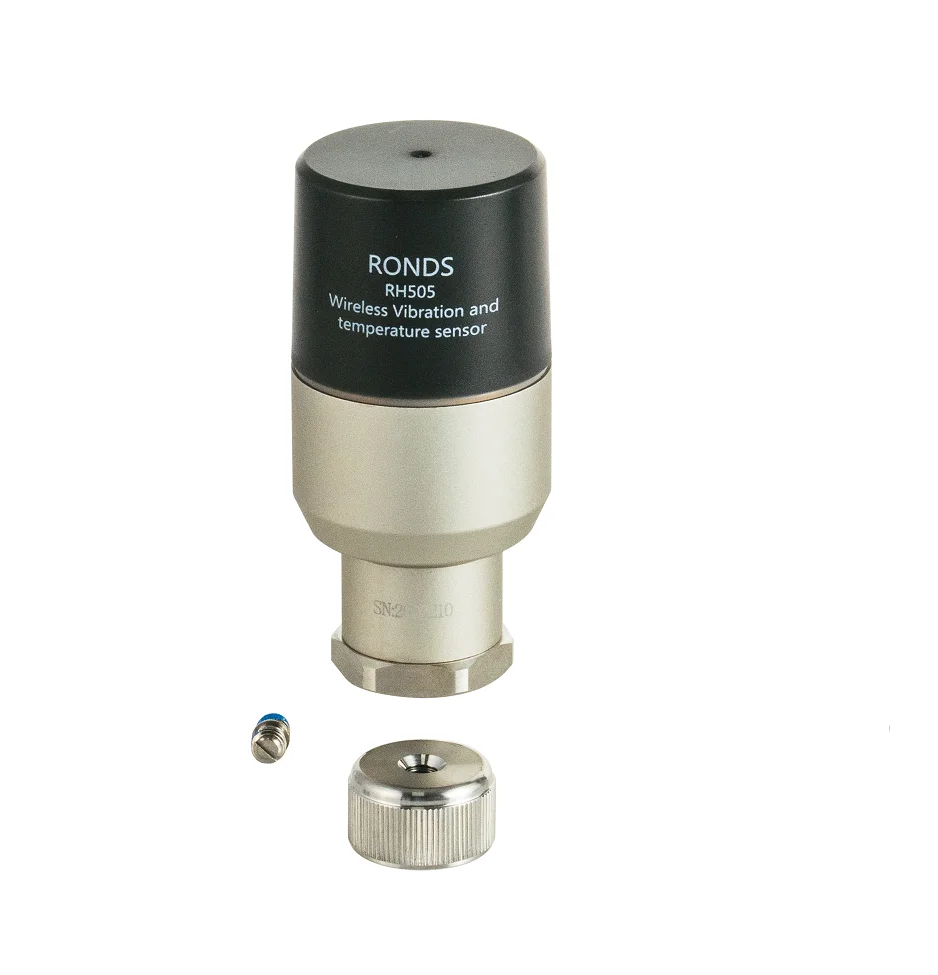

Product Picture
Packaging
accept OEM
Warranty
RONDS promise one year warranty
Company Profile
Anhui RONDS Science&Technology Incoporated Company
RONDS is a high-tech enterprise in the field of industrial Internet. Our company was formed in 2007, and our strength lies in intelligent operation&maintenance platform solution and equipment predictive maintenance products and services.
In 2021，RONDS successfully listed on the scientific innovation board of Shanghai Stock Exchange. Stock code：688768
Ronds Team
RONDS employees: 500+
Technical team employees: 200+ ; R&D expense ratio: 18%+
Software R&D Team: Has the level 3 certification of CMMI ( Capability Maturity Model Integration )
Hardware R&D Team: Possesses strong theoretical basis + Over 10 years practical experience
Intelligent Algorithm Team: Able to build a fully autonomous data platform
Ronds Factory
Wireless Monitoring Product Manufacturing Center
Wired Monitoring Product Manufacturing Center
Sensor Manufacturing Center
Ronds Service
Pre-Sales Service
○ Technical plan support.
○ Inquiry and consulting support.
○ Inquiry and consulting support.
After-Sales Service
○ Remote Training how to instal and use the system.
○ Professional suggestions on data analysis.
○ Professional suggestions on data analysis.
Ronds Clients
RONDS products have been exported to more than 35 countries, creating and developing close distributor relationships.
Due to continued expansion, we are looking to establish distribution network with business partners across the globe.
Contact us!
Industries
RONDS products and service are mainly applied in power industry, petro chemecal industry, steel industry, sement industry and coal industry.
Besides, our products are also applies in other industries including mining, paper making, water treatment plant, municipal transportation and so on.
