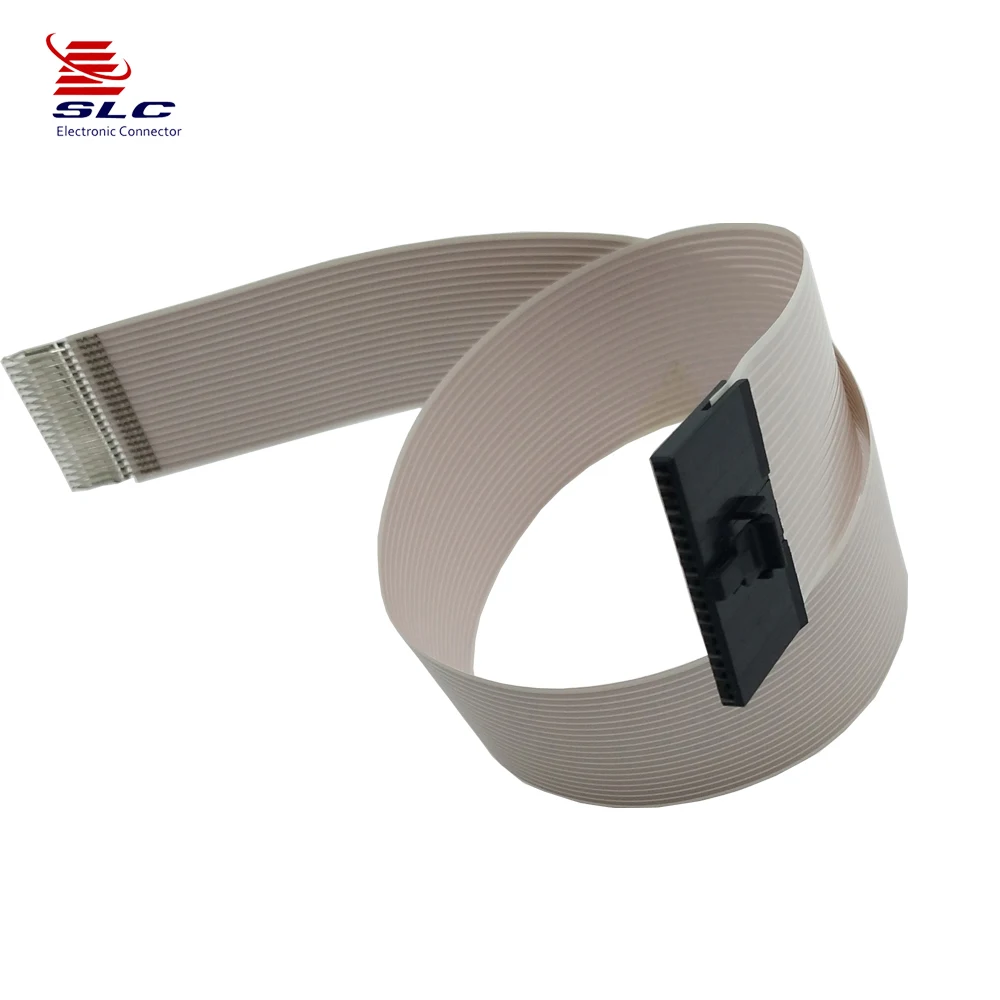

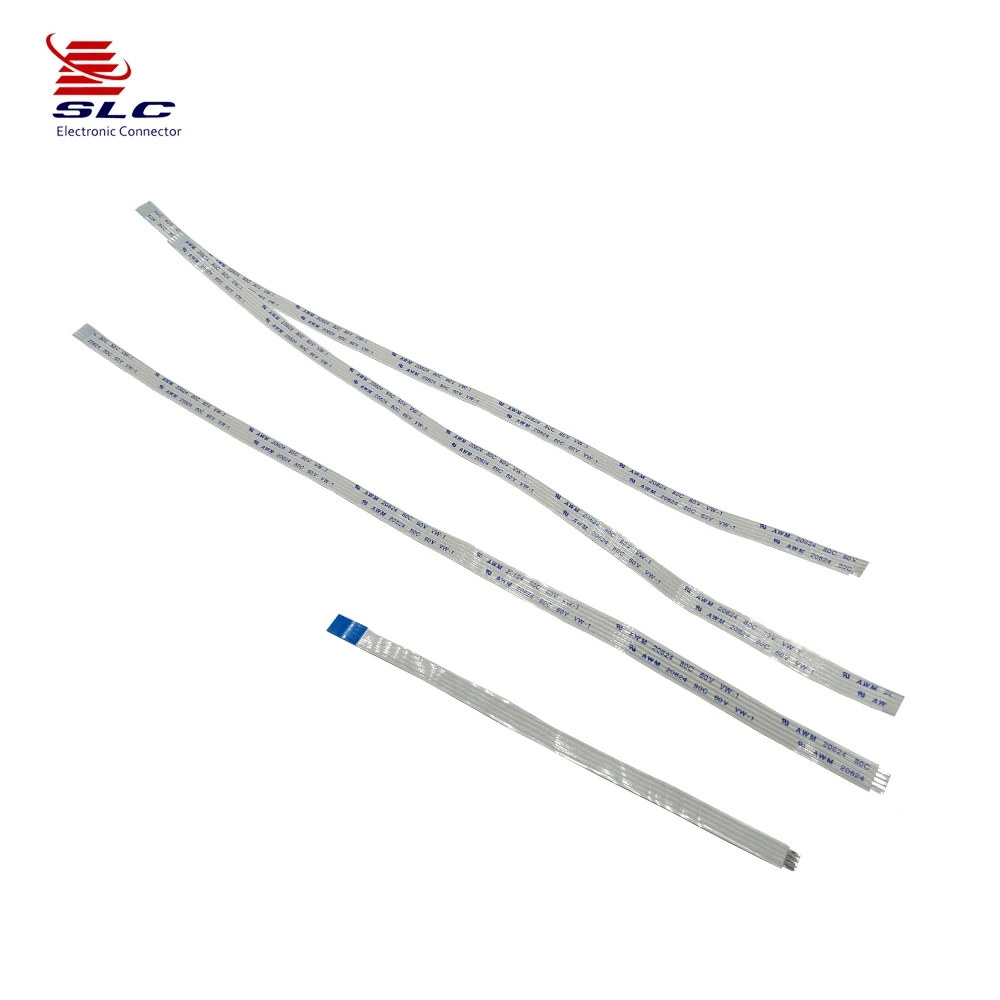

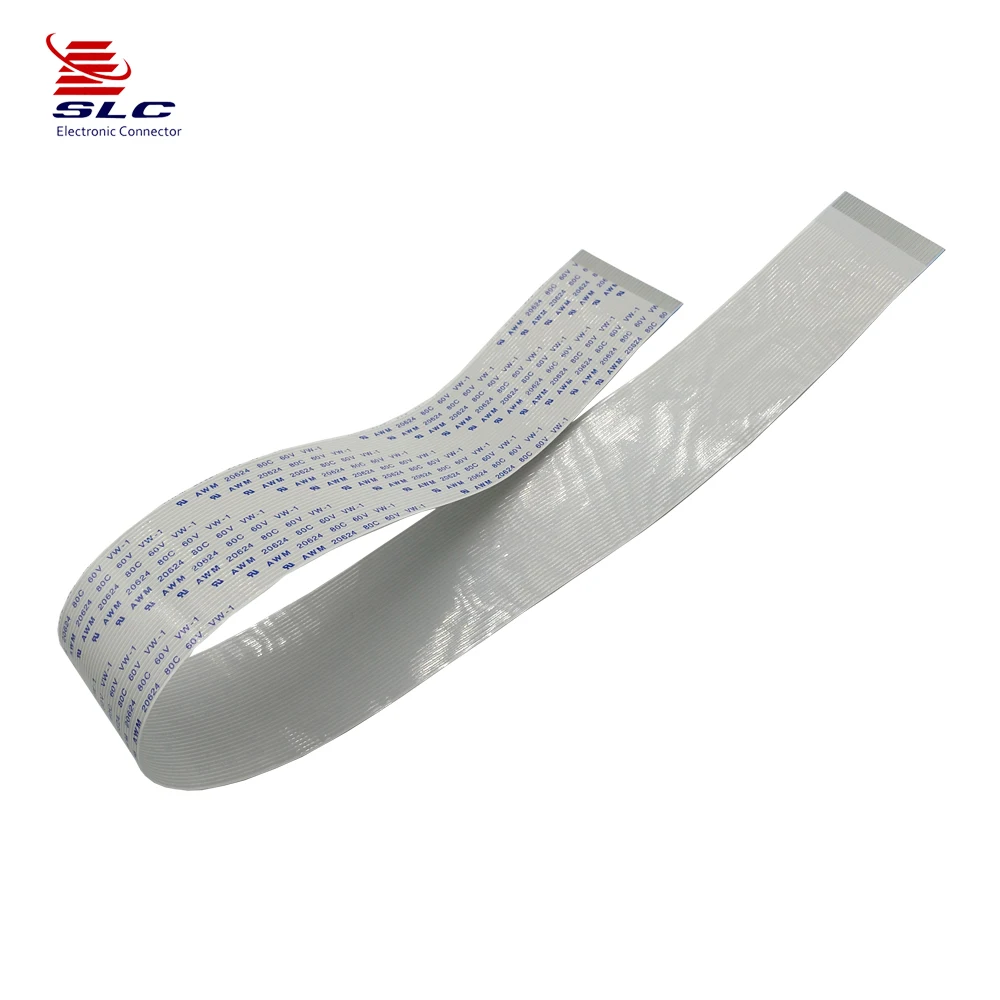

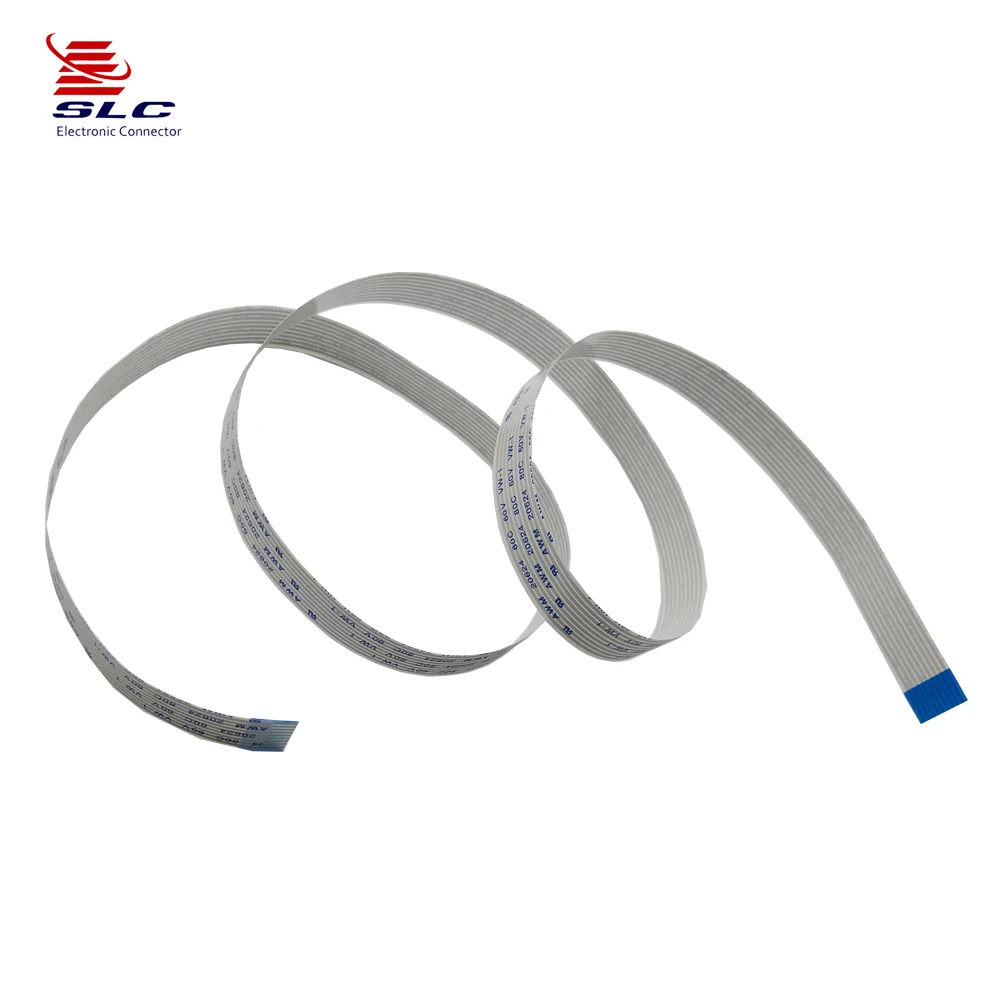

FPC ffc cable 20624 80C 60v 0.5mm ffc Ribbon flexible cable
- Category: >>>
- Supplier: Dongguan Sanling Electronics Co. Ltd.
Share on (1600523977640):
Product Overview
Description
Product Description
| Series No. | SL-FFC-1XXXXXA01 | |||||
| Description | 0.5mm FFC Cable Tin plated or gold A type | |||||
| Standard Dimension | PA | PB | W | Length | ||
| Custom Dimension | ||||||
| Pin ways | 04~60P | |||||
| Alternative Plating | G/F | Tin | Sel. Gold/Tin | |||
| GO | SN | S0 | ||||
| Packing way | PE Bag /Tube/ Tray/ Plastic box/ Tape&Reel Packing. | |||||
| MOQ | 500PCS | |||||
| Delivery time | 1-2weeks after confirm order | |||||
| Engineering Specifications | Rated Current:0.75AMP | |||||
| Contact Resistance: 30 Max | ||||||
| Withstand Voltage:500V AC/DC | ||||||
| Insulation Resistance:1000 Min | ||||||
| Operation Temperature: -40°c to +105°c | ||||||
| Contact Material : Brass | ||||||
| Contact Plating: Au Over Ni | ||||||
| Insulator Material :Polyester (UL94V-0) | ||||||
| Standard: LCP | ||||||
| Max.Processing Temp: 230°c for 30-60 Seconds / (260°c for 10 Seconds | ||||||

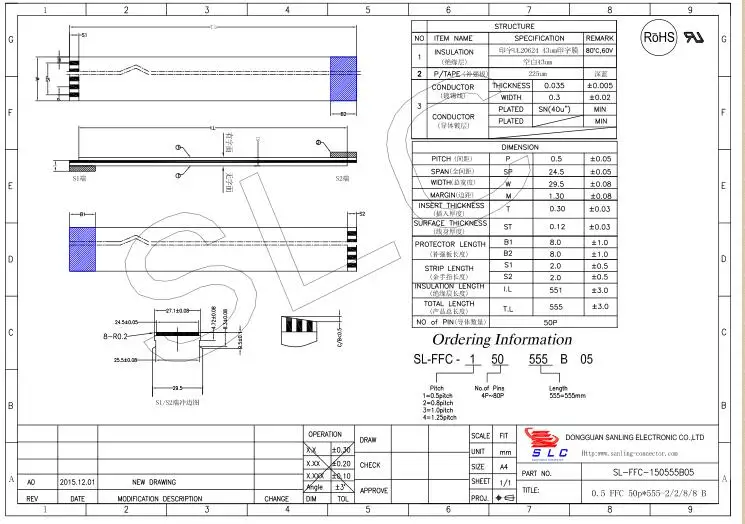

Drawings Details
Company Information
FAQ
1. What ‘s MOQ ?
MOQ 500PCS.
2. What’s samples quantity you can get with free?
You can get 10 pcs free samples
3. What’s samples lead time?
One weeks
4. What’s mass production delivery date?
2 Weeks.
5. What’s your Service policies?
High Efficient , Professional , Responsibility , Passionate
6. Why you buy from us?
a. We respect the customer terms to protect privacy projects
b. High quality with attractive prices .
c. Fast lead time
d. Happy deal
E. One stop service save your time and cost
