Factory Direct Sales Cup Type Fried Instant Noodle Spicy Noodles Making Machine Food Production Line
- Category: >>>
- Supplier: Henan Brother Machinery Co. Ltd.
Share on (1600523997261):
Product Overview
Description
Product Description
Instant Noodle Production Line
The instant noodle production line has perfect technology, compact structure, novel design, stable and reliable performance. The production from flour to finished product is automatically completed at one time, with high automation procedures, simple operation, moderate output, energy saving.It is especially suitable for large-sized food companies.
Specification
Model | Capacity(KG/H) | Install Power(KW) | Overall Size(M) |
BFP-2Y/C | 150 | 45 | 40*5*5 |
BFP-6Y/C | 450 | 58 | 45*5*5 |
BFP-10Y/C | 750 | 72 | 55*5*5 |
BFP-14Y/C | 1000 | 80 | 59*5*5 |
BFP-18Y/C | 1400 | 95 | 65*5*5 |
BFP-22Y/C | 1700 | 108 | 72*5*5 |
BFP-26Y/C | 2000 | 128 | 90*5*5 |
Processing Flow

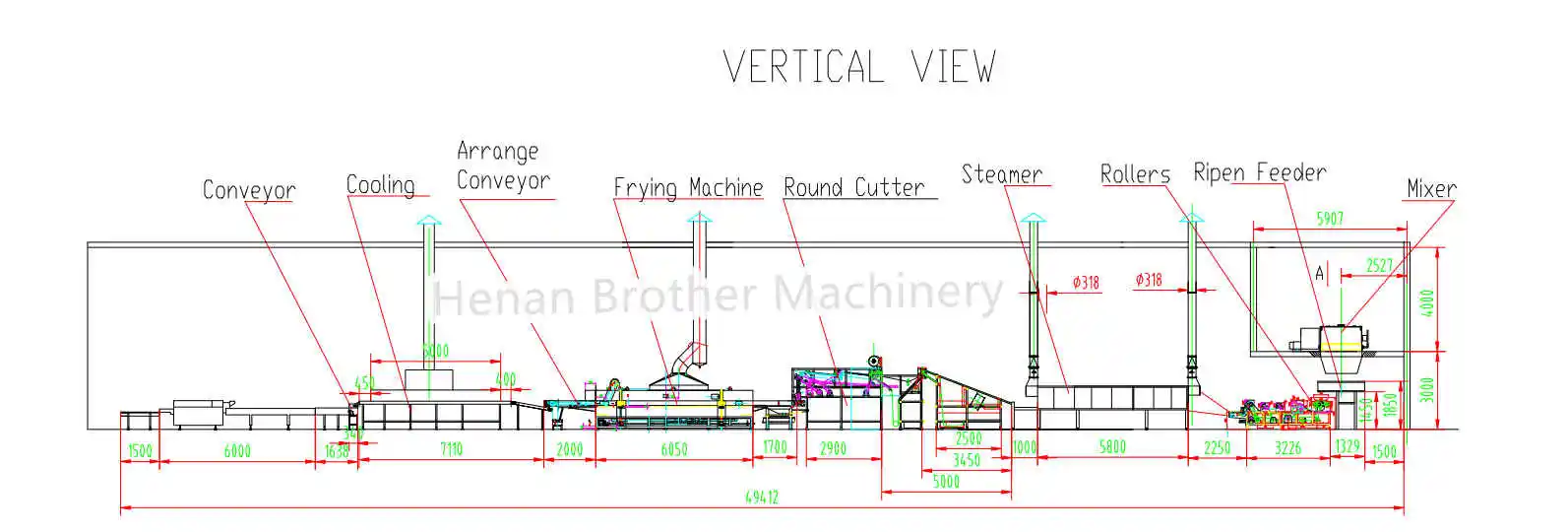

Here is the reference draft drawings. We can customize the whole production line according to your specific size and scale.
Details Images

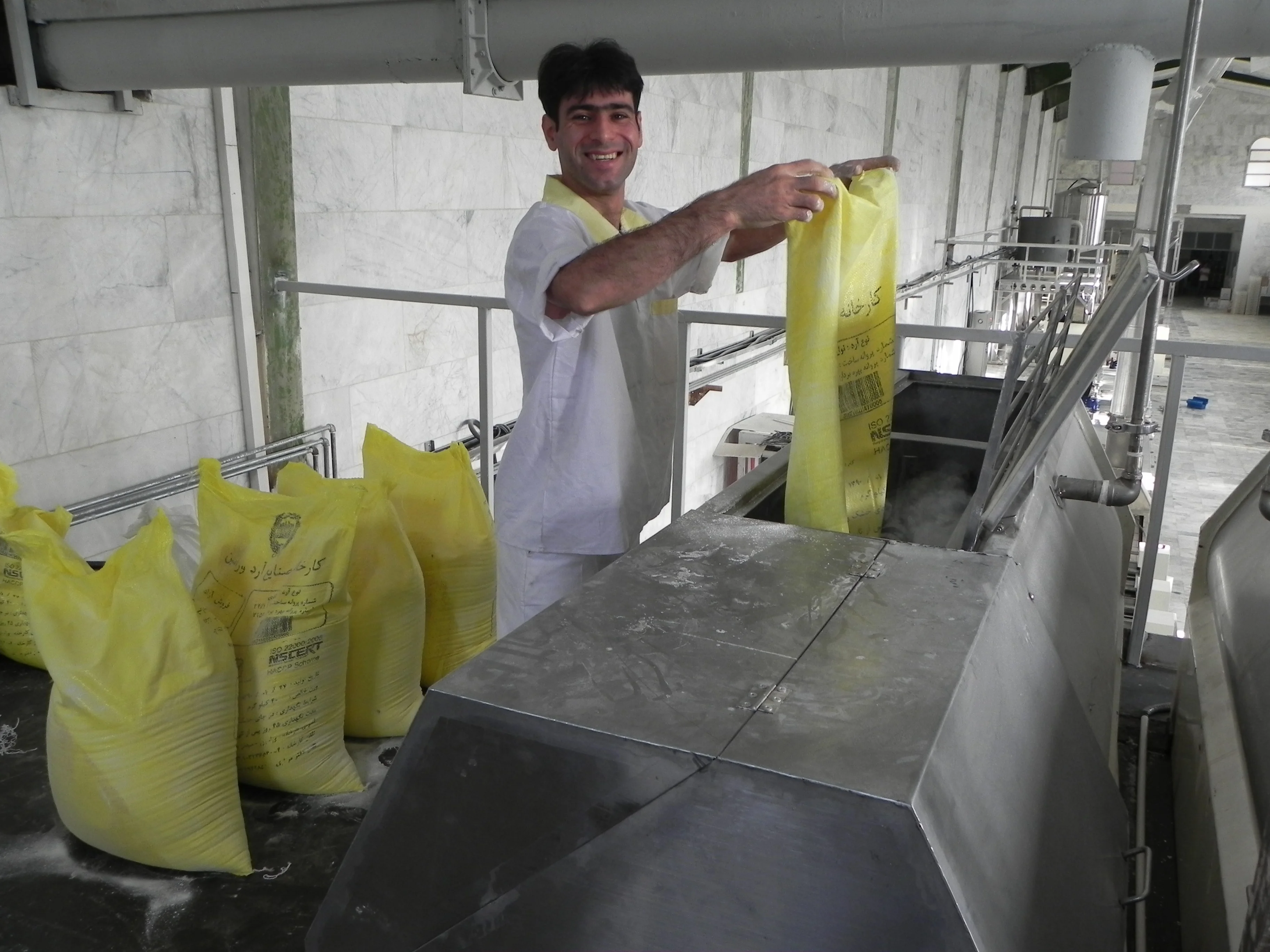

DOUGH MIXER
CAPACITY:50-350KG PER BATCH
MATERIAL: SUS304
FUNCTION: TO MAKE FLOUR WITH WATER COMPLETELY
MAIN PARAMETERS: MIXING TIME: 15-20MINS
WATER CONTENT: 11-14%
WATER ADD: 30-35%

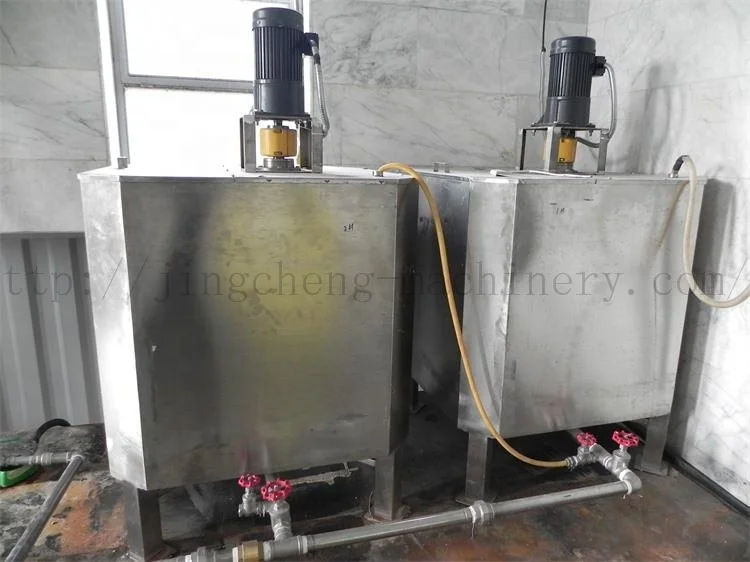

ALKALI MIXING TANK
CAPACITY:500-1000KG PER TANK
MATERIAL: SUS304/316
FUNCTION: TO MIX WATER WITH SALT AND ADDITIVES
MAIN PARAMETERS: MIXING TIME: 10MINS
WATER CONTENT: PURED WATER BETTER

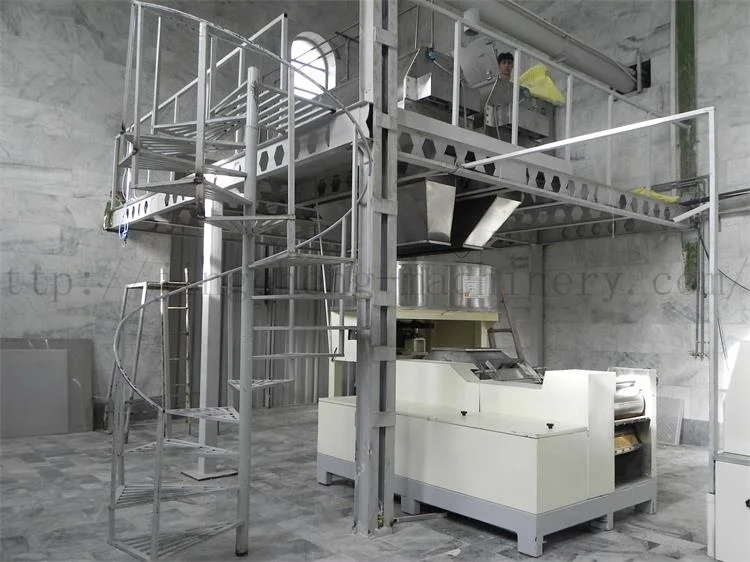

MIXER PLATFORM
SIZE: 6X6M OR 8X8M
MATERIAL: CARBON STEEL
FUNCTION: TO PUT THE MIXER AND ALKALI TANK
MAIN PARAMETERS: STRONG ENOUGH FOR 2000KG PER SQM

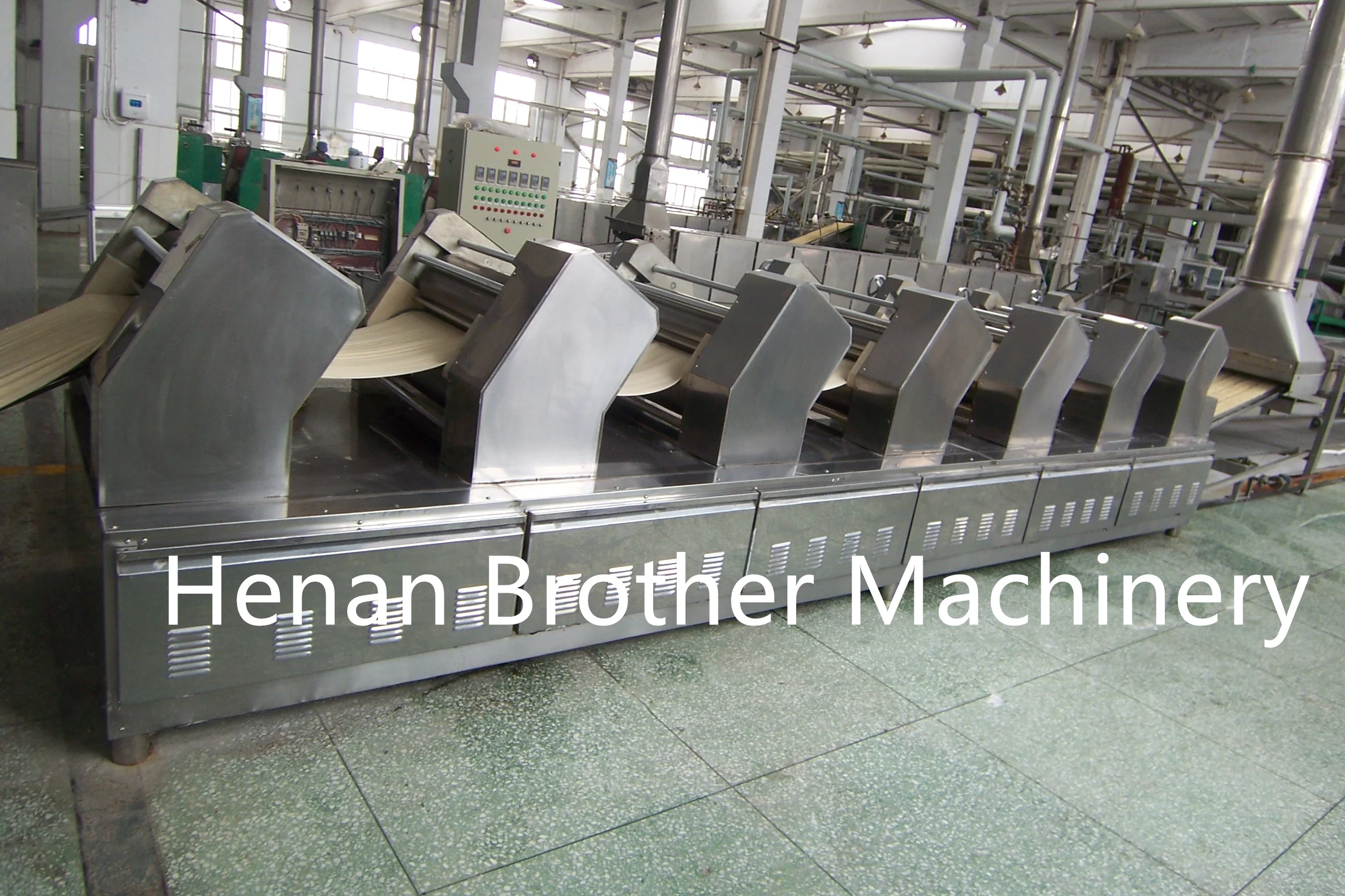

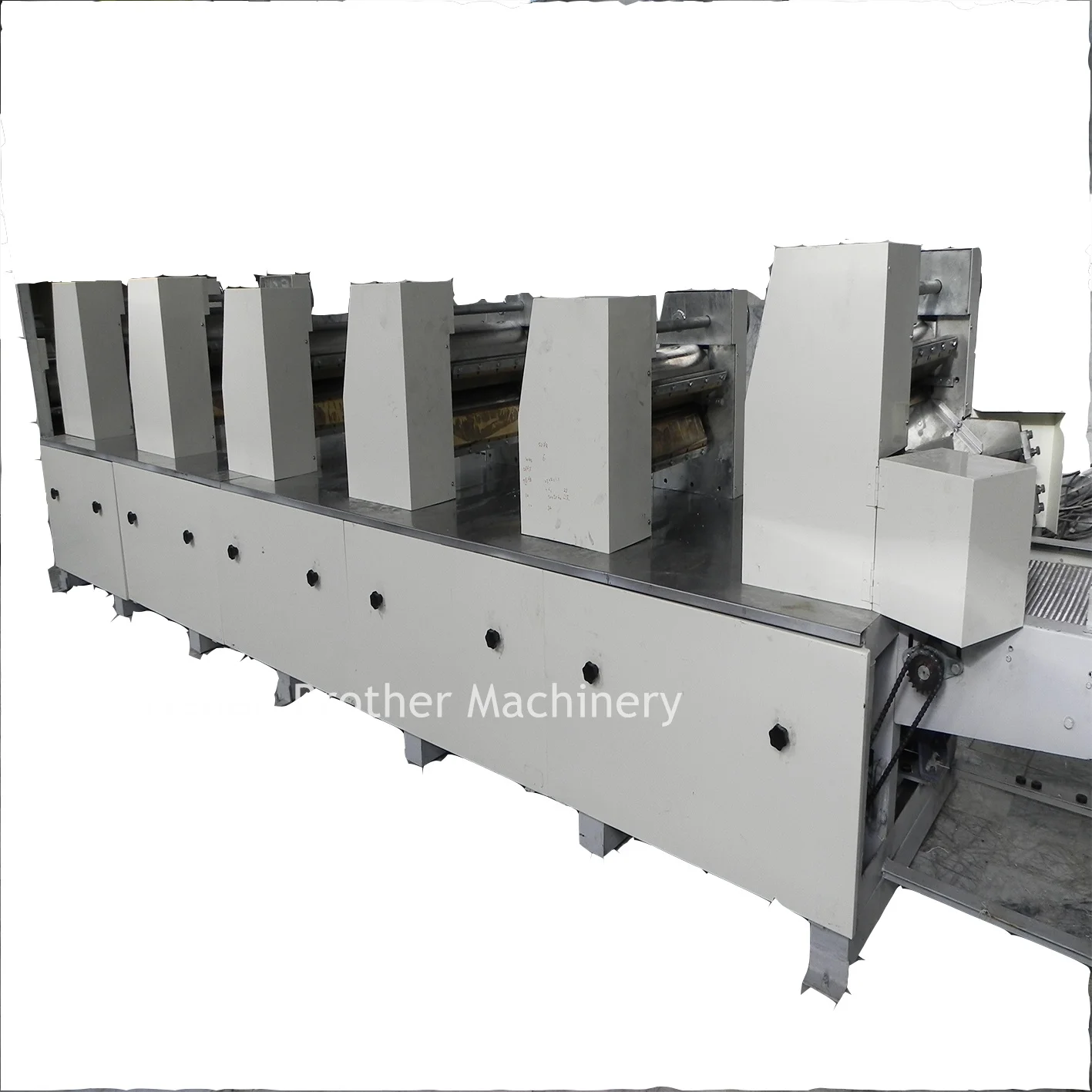

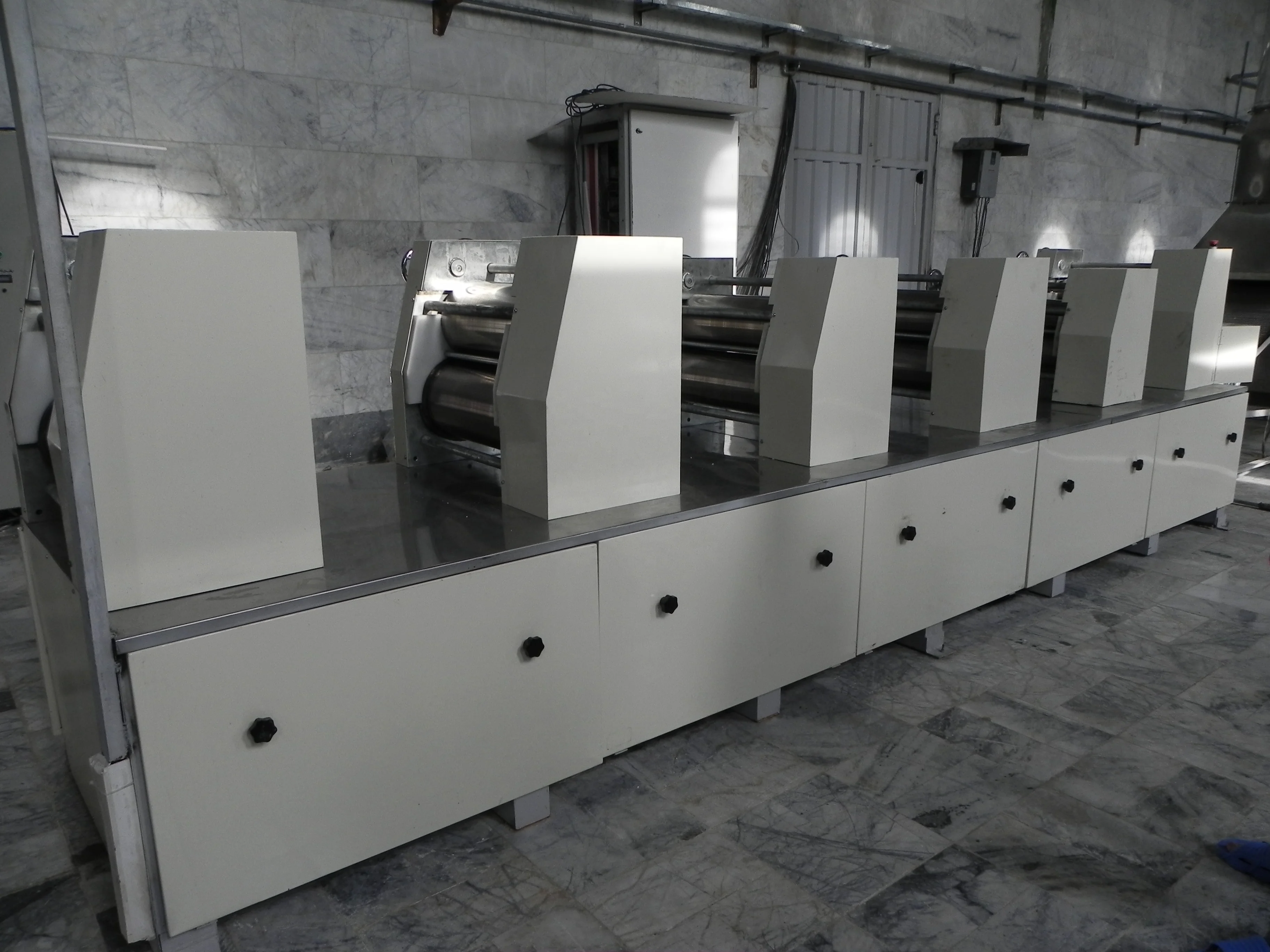

CONTINUOUS DOUGH ROLLING MACHINE
ROLLER WIDTH: 200-1500MM
MATERIAL: ALLOY STEEL OR SUS304
FUNCTION: TO ROLL THE DROUGH FROM 14MM TO 1MM THICKNESS
MAIN PARAMETERS: DOUGH SHEET THICKNESS: 14-1MM
ROLLING SPEED: 7M-10M PER MIN
MOTOR TYPE: SOLO OR COMPOUND TYPE
NOODLE SLITTER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO SLITTING DOUGH SHEET TO NOODLES
MAIN PARAMETERS: SLITTING SIZE: 0.7-5MM
SLITTER TYPE: ROUND AND SQUARE
NOODLE CONTINUOUS STEAMER
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO STEAM NOODLES CONTINUOUSLY
MAIN PARAMETERS: STEAM TEMP:110C
STEAM TIME: 180S
STEAMER TYPE: 1 LAYER OR 3 LAYER
NOODLE CUTTER AND FOLDER
WIDTH:200-1500MM
MATERIAL: SUS304, SLICON PALLET
FUNCTION: TO CUT AND FOLD NOODLES BEFORE DRYING
MAIN PARAMETERS: CUT SPEED: 20-70CUTS PER MIN
CUT LENGTH ADJUSTABLE

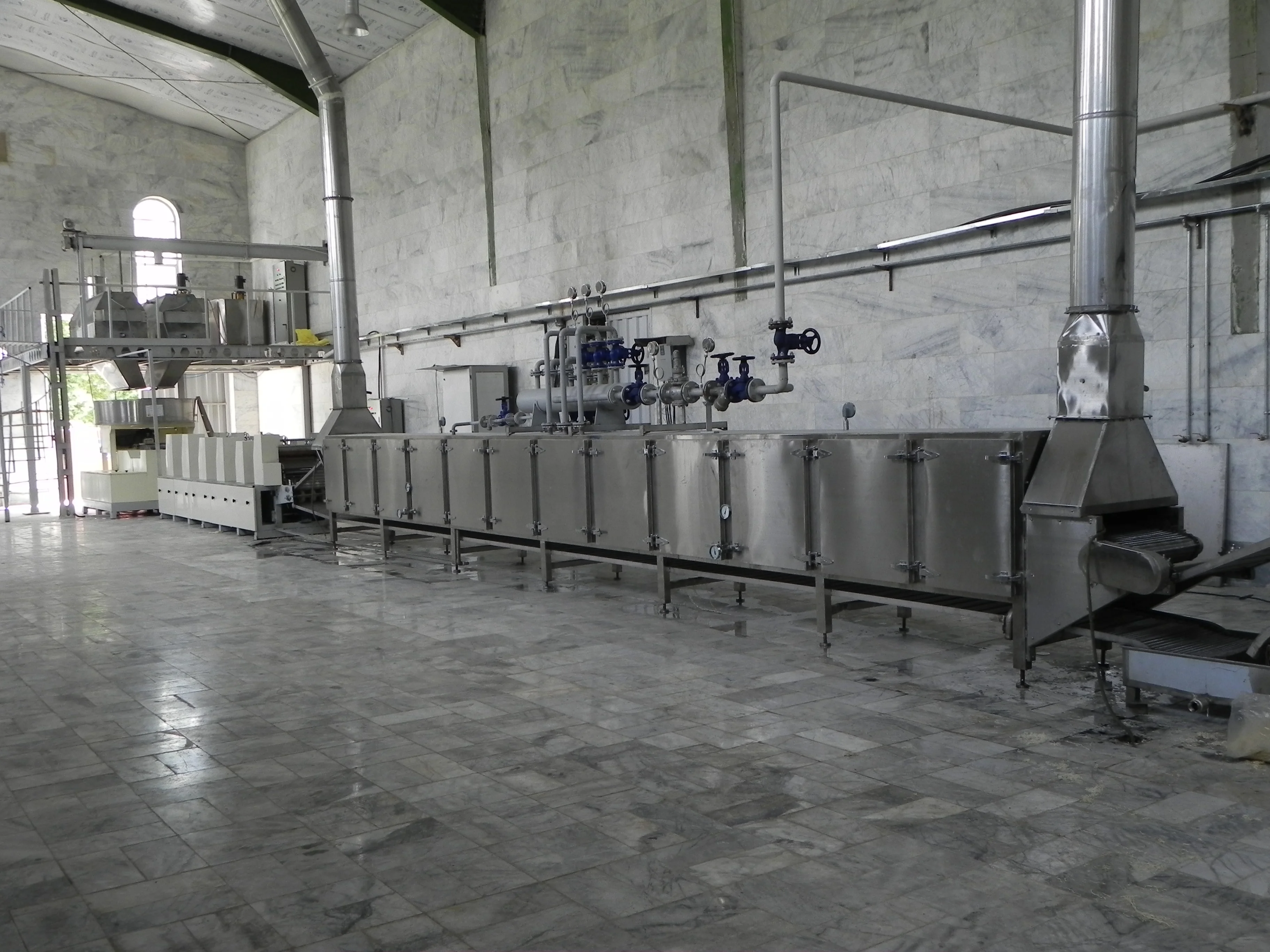

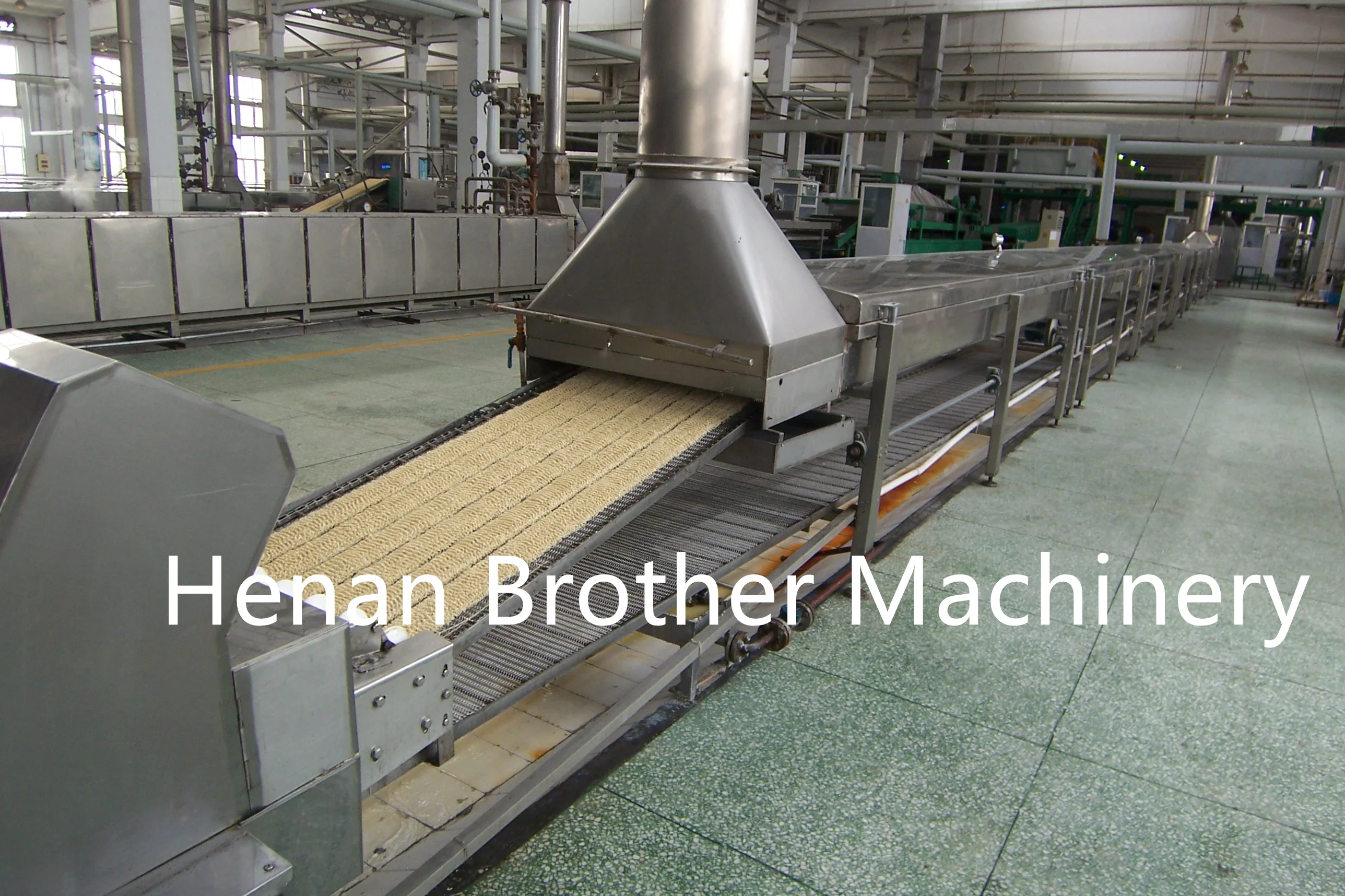

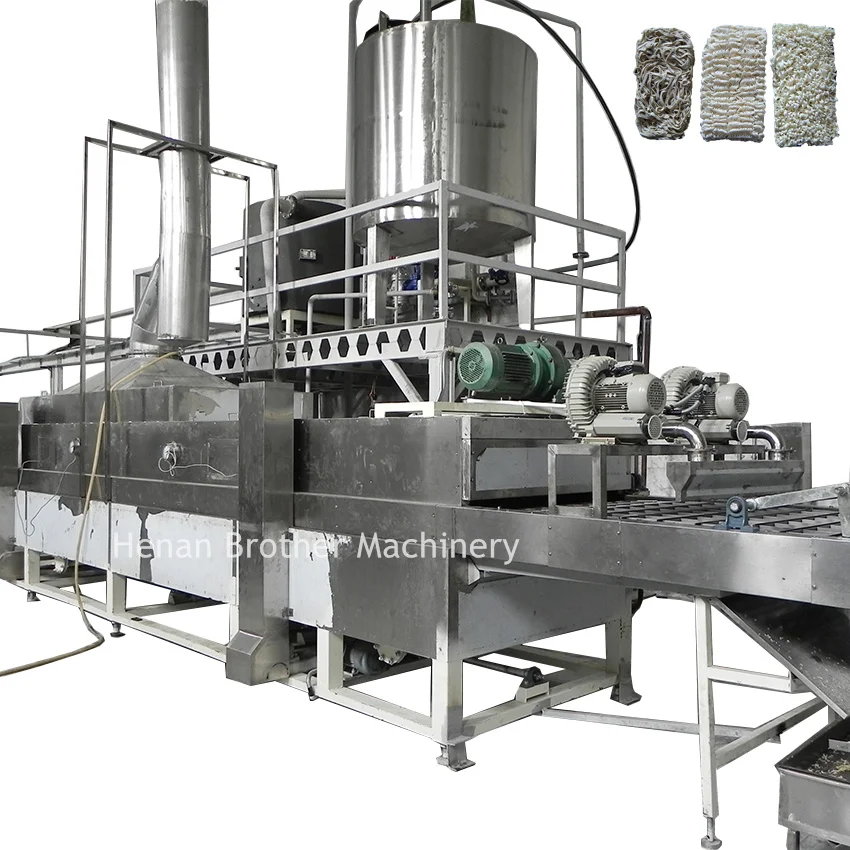

NOODLE FRYING MACHINE
WIDTH:200-3500MM
MATERIAL: CARBON STEEL FRAME, NOODLE CONTACT SUS304
FUNCTION: TO FRY NOODLES AS REQUESTED TYPE
MAIN PARAMETERS: FRYER TYPE: BUSKET
FRYING TIME: 90-100S
FRYING TEMP: 155-165C
OUT FRYER CONVEYOR
WIDTH:200-1500MM
MATERIAL: SUS304
FUNCTION: TO CONVEY NOODLE TO COOLING MACHINE
MAIN PARAMETERS: BY SUS304 BUSKET
ABOUT 2M LONG
NOODLE PACKING MACHINE
CAPACITY: 140-200 PACKS PER MIN
MATERIAL: CARBON STEEL AND SUS304
FUNCTION: TO PACK NOODLES WITH FLAVOR BAG
Packing & Delivery
Overseas Service And Clients
Company Profile
Henan brother MACHINERY MANUFACTURING CO.,LTD is located in Henan Province of China. Founded in 2002, which specializes in manufacturing, researching and technical suotion complete sets of noodle machines.
Flagship products:Capacity Range: 100kg/hr-2000kg/hr
=Oil Fried Instant Noodles Production Line (square&cup)
=Hot Air Dried Instant Noodles Production Line (shape as request)
=Chow-Mein Production Line(dried or steamed)
=Dried Stick Noodle Production Line( Chinese Spaghetti)
= Multifunctional Noodles Project (fried/dried/steamed)
=Modification&updating Service (as per request)
The friends from all over the world are warmly welcome to build the Win-Win future with us anytime.
FAQ
Q: I am a fresh man in noodles industry and without any experience .
A: The key is you must have passion only, the rest is our job : site visIt,design, feasibility Report,cost analyst,deal or make friend only,installing,training,servicing of noodle machine,free technical formula available.
Q: How about your noodle machine quality?
A: All main parts of the machine are made of 304 stainless steel. We will be responsible for site installation and commissioning.If there is anything wrong with the machine, our engineers can be on site to repair it within two days. Even if the machine doesn't break down. We also pay a return visit twice a year by video phone.
Q: My recent noodle machine is still working but high wastage.
A: Basically,you don't have to replace it if not extend business, we do machine upgrade ,free service check.
Q: I need noodle machine spare parts.
A: We make all kinds of noodle machine spare parts: roller,slitter set, brass comb, divider, SUS304(316) mesh net, noodle casing box and cover,chain,scraper, food grade souping pallet,chain gears etc.
Q: Is it possible to visit you and see your running factory?
A: Of course , you can visit our domestic customer's noodle factory and oversea's both.
Q: I want small capacity noodle machine.
A: Available, low cost but good quality design for you.
Q: What services can we provide?
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian and so on.
A: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian and so on.
