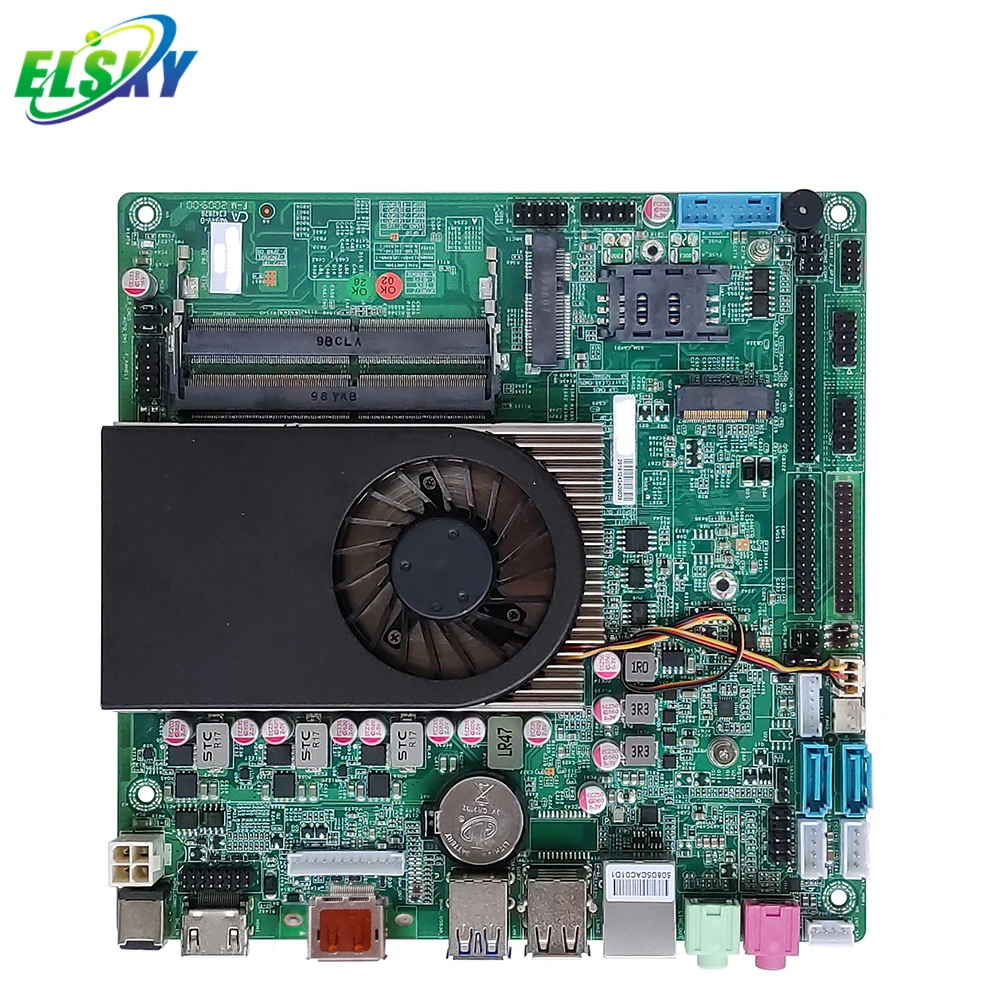

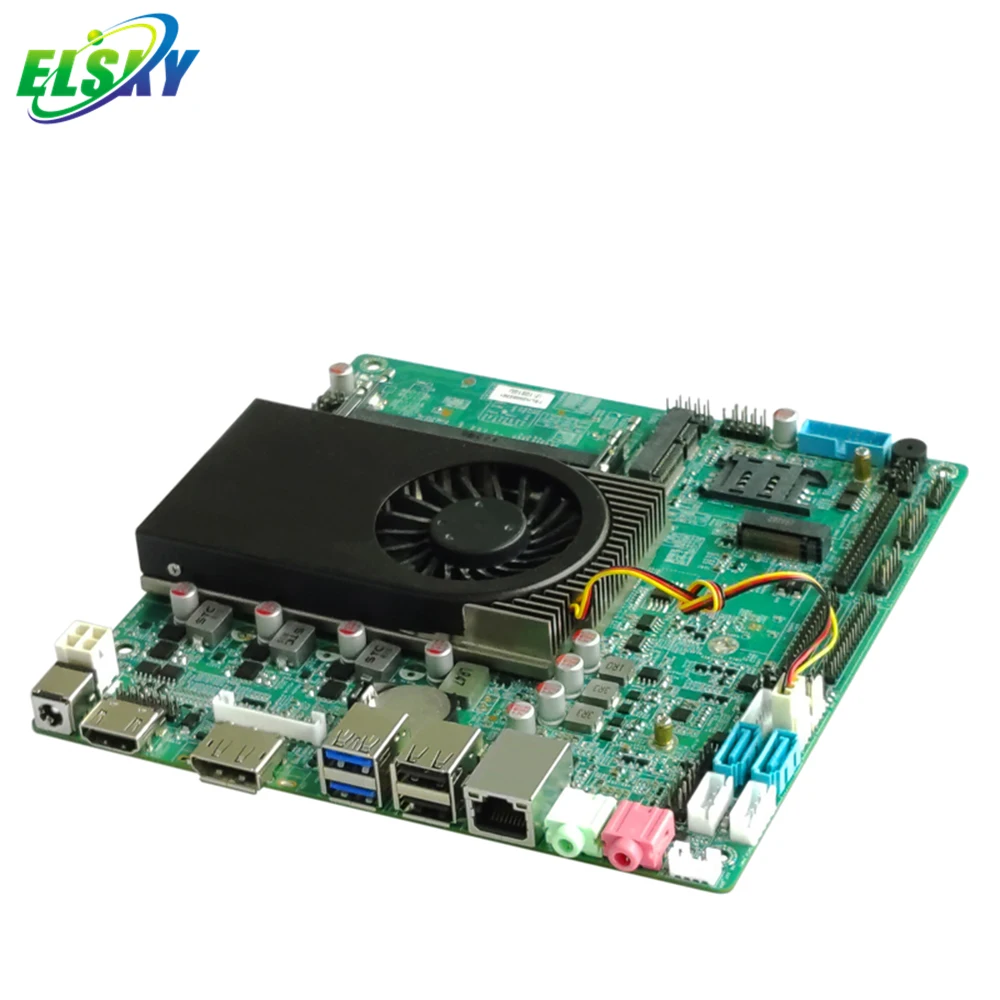

Hot sale 10th I3 10110U I5 10210U I7 10510U motherboard 2*DDR4 ram 2133/2400 Max.64GB RAM VGA HD MI LVDS EDP DP UHD Graphics

QM10U Motherboard Spec.

Processer

Comet lake 10th generation core .i3-10110U /i5-10210U /i7-10510U ect.;

BIOS

Support LAN boot rom,Wake On LAN,Power ON,Watch dog, RTC Intelligent identification of remote switching equipment etc functions.

Display core

 In-tel UHD Graphics  ,super core graphics controller card,Built-in GPU,Support 4k,1080P,H264/3D Play

Display Output

Having (EDP)LVDS/(DP)VGA/HD-MI Pin or Interfaces;

Support Independent three display;

Support Synchronous&Asynchronous Dual Panel and Three panel Display.

1*lVDS (EDP) PIN;

1*VGA (DP)port and  PIN

1*HD-MI port and PIN

HD-MI,DP,EDP support 4k 4096*3840*2160@60HZ

Memory

2*DDR4 2133/2400 DIMM slot,Support Max.64GB

Sound effect

On-board ALC662 HD Audio Sound Card,support 6 Sound Channel.

Network

1*RTL8111H Gigabit network  (RJ45 LAN),single lan and dual lan optional

Storage

2*SATA3.0(standard interface+2 set SATA Power);

1*Mini-PCI-E long card slot(Support WIFI/3G/4G/M-SATA functions);

1*M.2 slot(Support M.2 SATA protocol and PCIE(NVMe)protocol.

USB

6*USB2.0;

4*USB3.1.

Power

1*DC-in 12V or 19V(Interface:the inside diameter of 2.5mm);

On-board 4PIN socket.

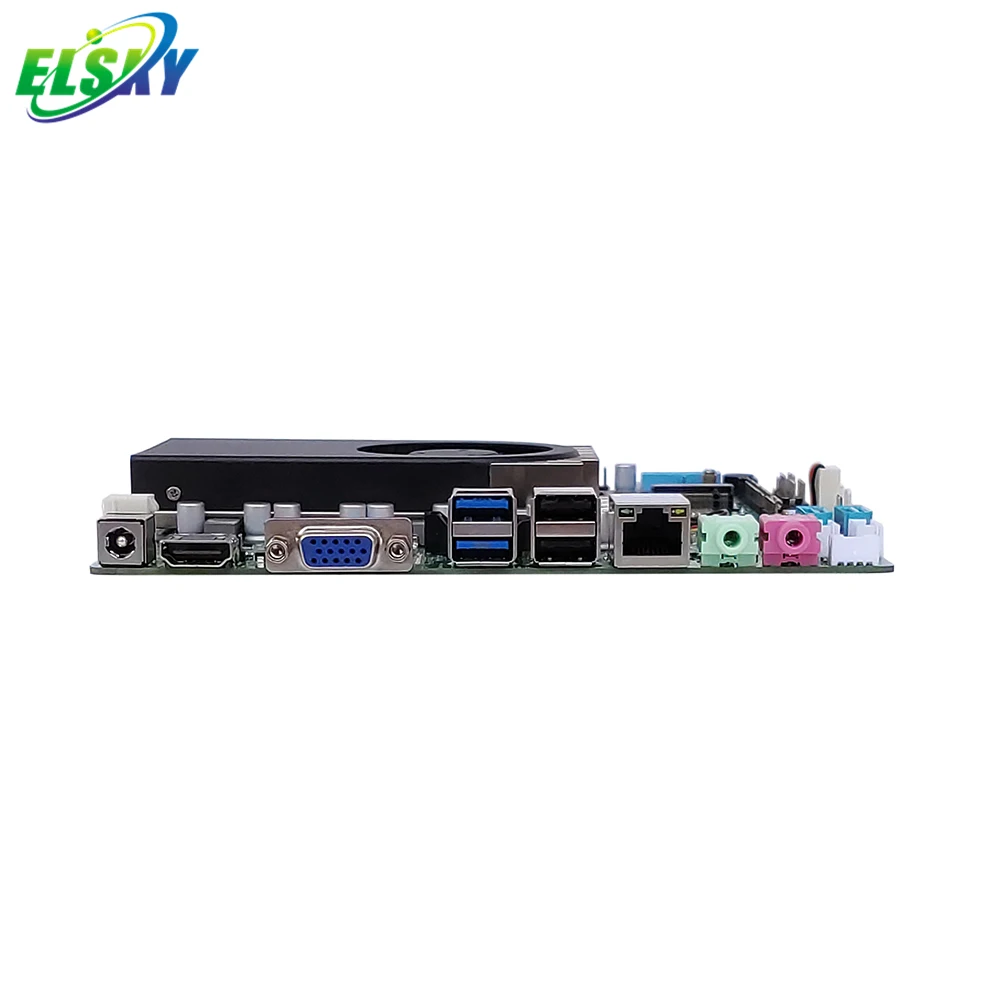

Rear I/Ointerfaces

2*USB2.0

2*USB3.1

1*VGA interface

1*HD-MI interface

1*RJ45_LAN interface

1*AUDIO pin

1*DC

Built-in I/O interfaces

1*4Pin ATX

1*AUDIO PIN

2*SATA hard disk interface

2*USB2.0 PIN

2*USB3.1 PIN

1*INT_SPK PIN(Power Amplifier)

1*CPU FAN PIN

1*SYS FAN PIN

1*F_PANEL PIN

2/6*COM PIN   (RS232,RS422,RS485 signal optional)

1*SIM Card Slot

Temperature

Work:-20°C ~60°C

Humidity

5%~90%,Non-Condensation.

Size

170*170mm
