cnc vertical machining center VMC1060 gsk fanuc control system milling machine ce iso9001 standard 3 axis 4 axis 5 axis
- Category: >>>
- Supplier: Shandong Mainland Cnc Equipment Co. Ltd
Share on (1600524070269):
Product Overview
Description
Products Performance
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional

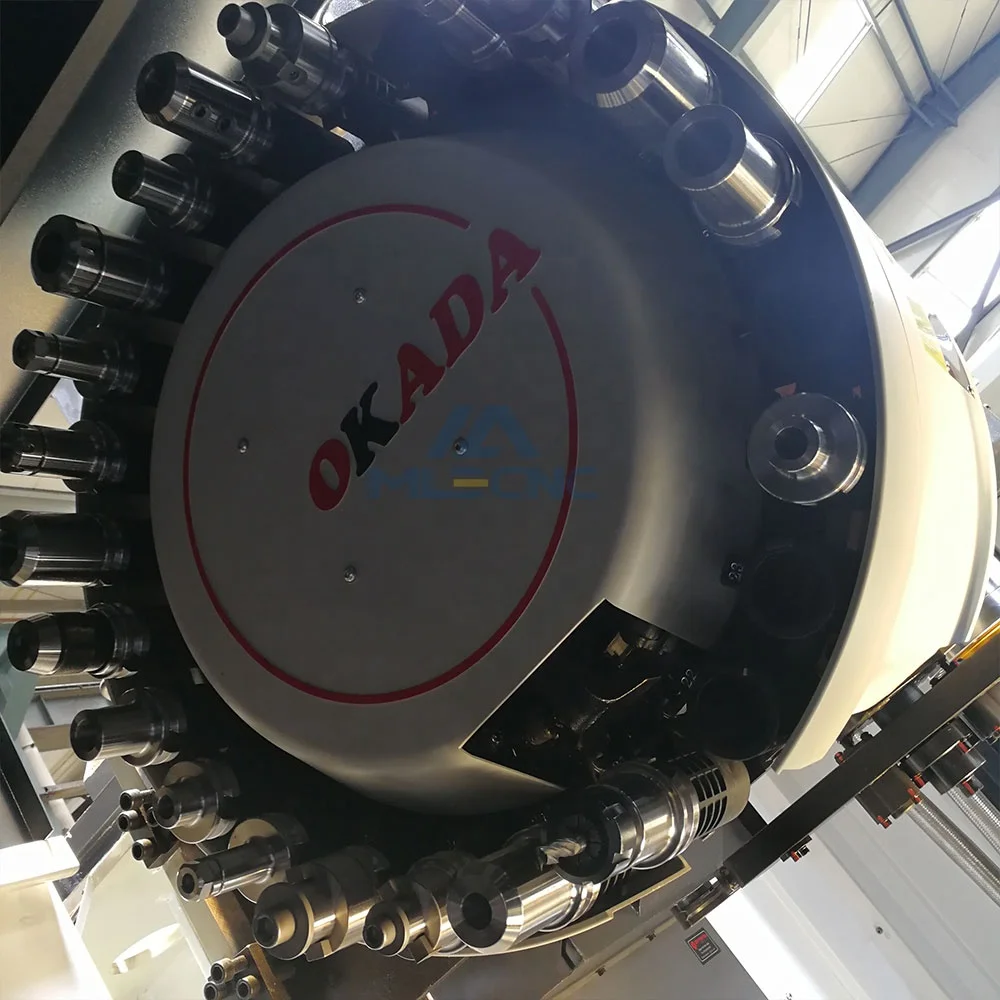

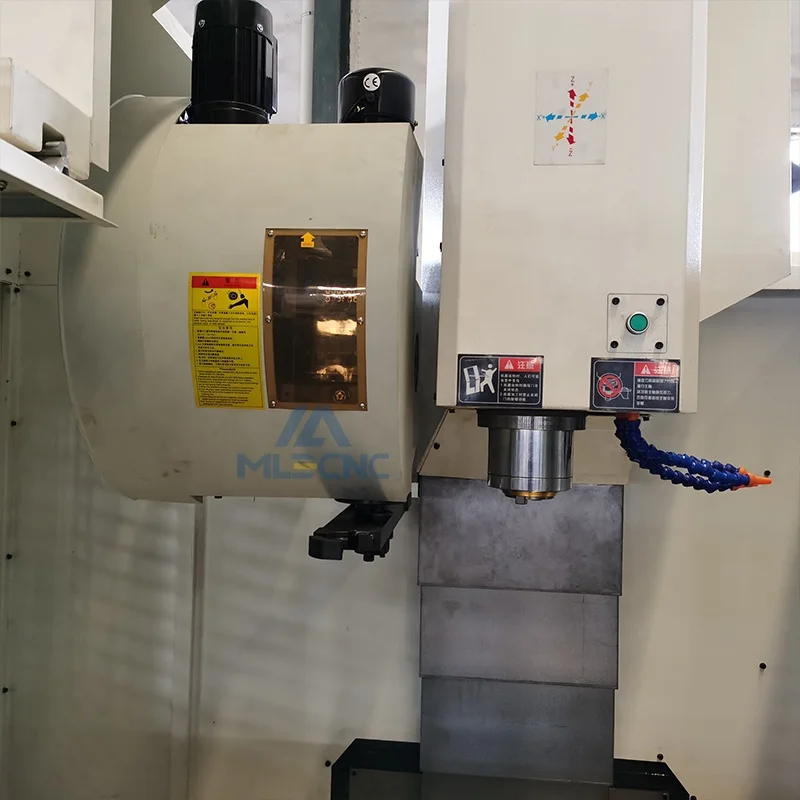

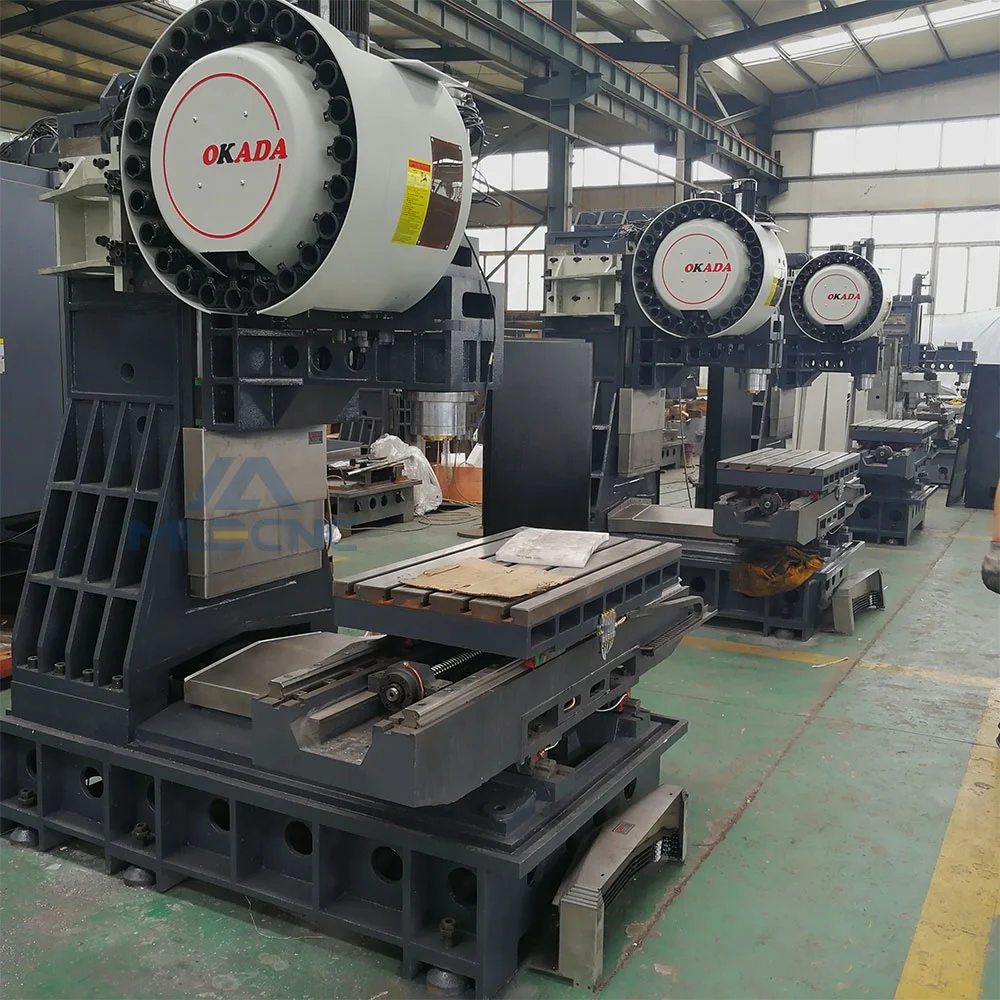

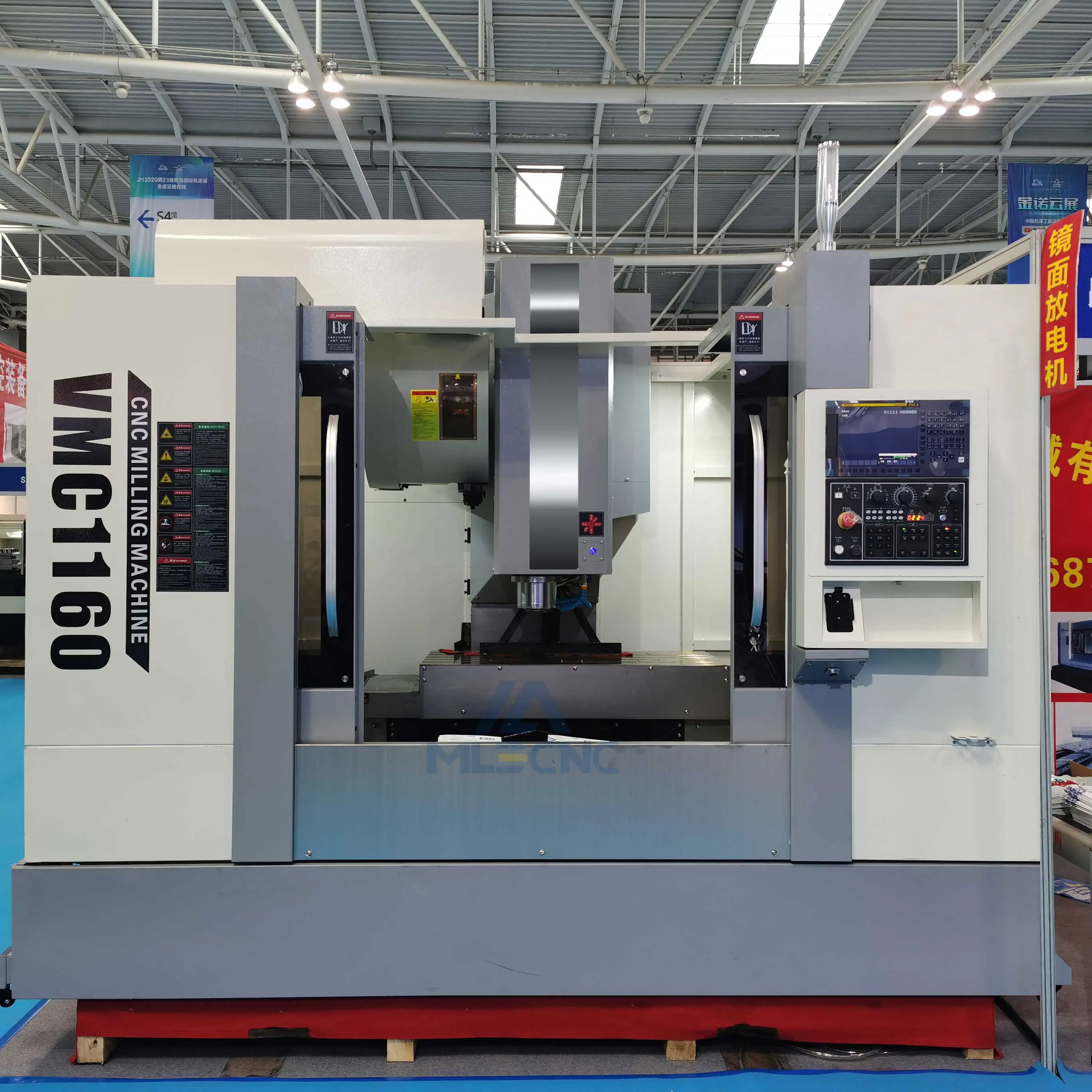

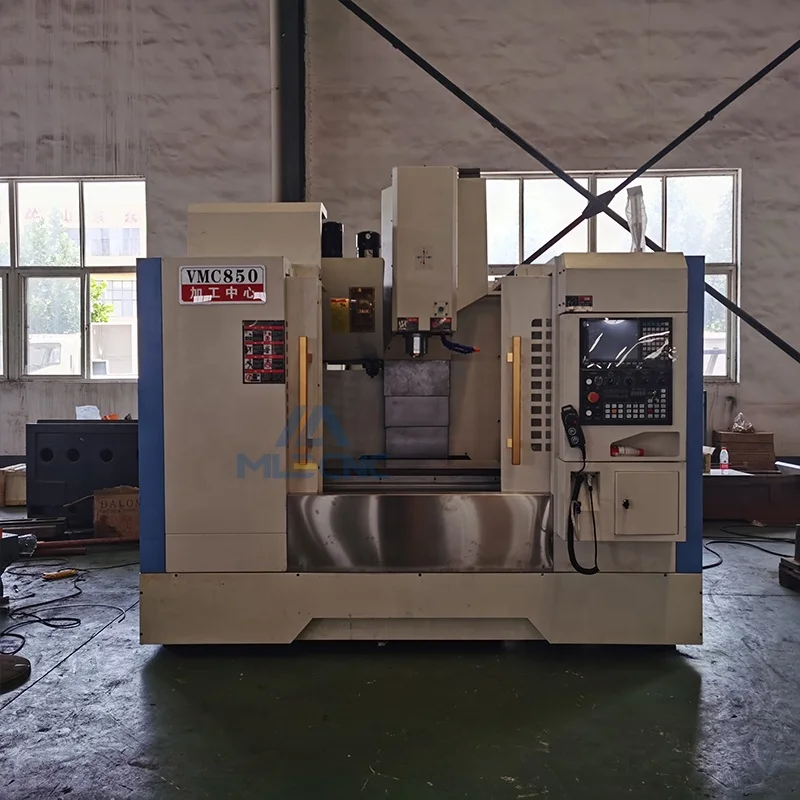

Machine Photos
Product Paramenters
SPECIFICATION | unit | VMC850 | VMC1060 | |||||||
Table size | mm | 1000×500 | 1200×600 | |||||||
Travel (X/Y/Z) | mm | 800×510×550 | 1100×600×600 | |||||||
Distance from spindle to worktable | mm | 100-650 | 100-700 | |||||||
Distance from spindle center to column | mm | 580 | 620 | |||||||
Max. table loading | kg | 600 | ||||||||
T-slot (No.×width×pitch) | mm | 5-18×100 | 5-18×110 | |||||||
Spindle | ||||||||||
Spindle taper | BT40/BT50-150 | |||||||||
Main motor | kw | 7.5/11/15 | ||||||||
Speed of spindle | rpm | 8000 or more | ||||||||
Spindle drive | Belt drive/Gear drive | |||||||||
Feed | ||||||||||
Guide way | X/Y/Z Linear guide way or box way | |||||||||
Cutting feed speed | m/min | 0-10 | ||||||||
Rapid feeding(X/Y/Z) | m/min | 36×36×30 | ||||||||
Tool Magazine | ||||||||||
Tool Magazine capacity | pcs | 16/20/24 | ||||||||
Tool change time | sec | 7/2.5 | ||||||||
Max. diameter of tool | mm | 100 | ||||||||
Max. length of tool | mm | 300 | ||||||||
Max. weight of tool | kg | 7.5 | ||||||||
Accuracy | ||||||||||
Positioning accuracy | mm | ±0.007 | ||||||||
Repositioning accuracy | mm | ±0.005 | ||||||||
Machine dimension | cm | 275*227*251 | 305*227*251 | |||||||
Weight | kg | 6000 | 6000 | 7500 | 6000 | |||||
Standard Accessories
Standard Configuration:
1. GSK25i CNC Controller.
2. BT40 8000 rpm spindle unit.
3. 16/24T Tool Changer.
4. Taiwan Hiwin linear guideway.
2. BT40 8000 rpm spindle unit.
3. 16/24T Tool Changer.
4. Taiwan Hiwin linear guideway.
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Automatic Central Lubrication System.
8. Full Enclosure Machine Guard.
6. Work Lamp.
7. Automatic Central Lubrication System.
8. Full Enclosure Machine Guard.

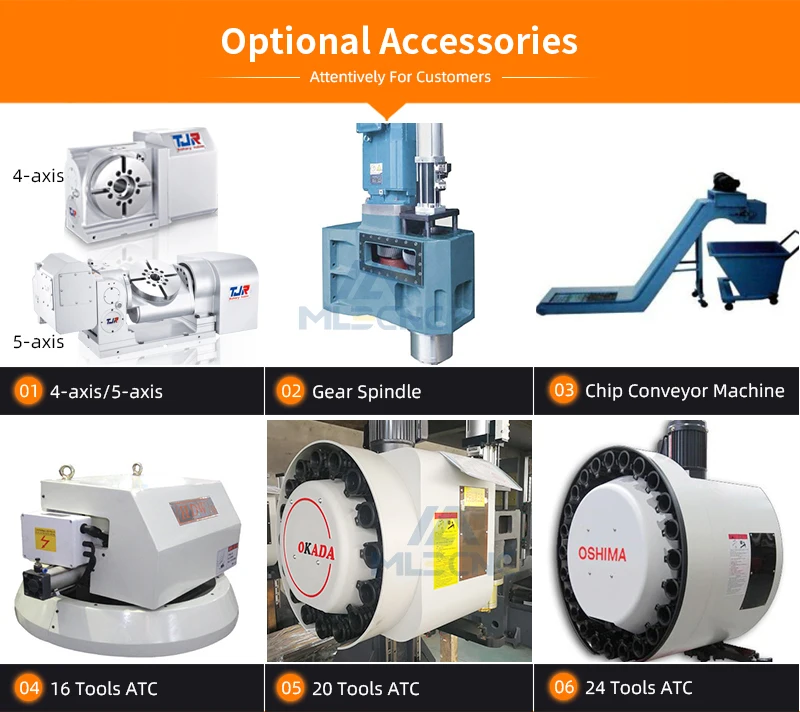

Optional Configurations:

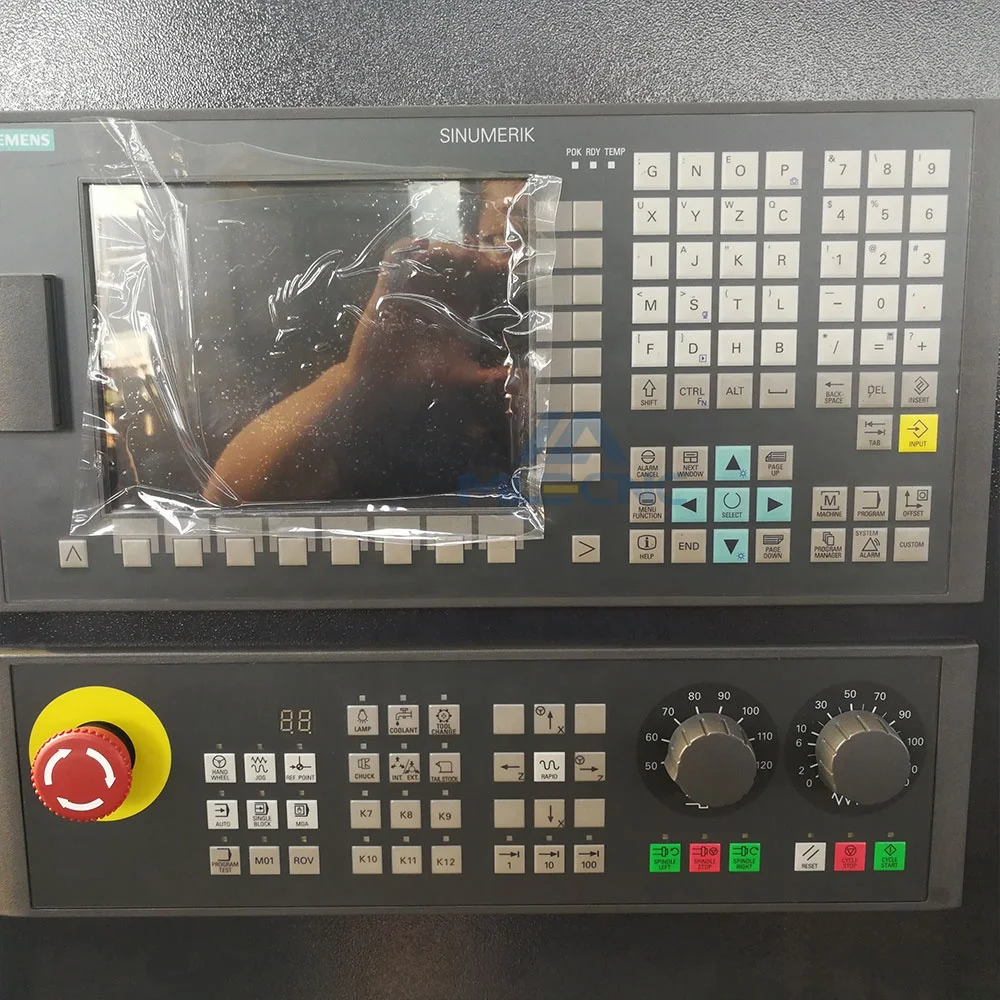

1. GSK KND Siemens Fanuc Mitusbishi .
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil coolant,center to water.
6. Renishaw probe for workpiece and tool.
2. Taiwan arm type ATC.
3. Automatic chip conveyor.
4. 4th axis and 5th axis
5. Spindle oil coolant,center to water.
6. Renishaw probe for workpiece and tool.

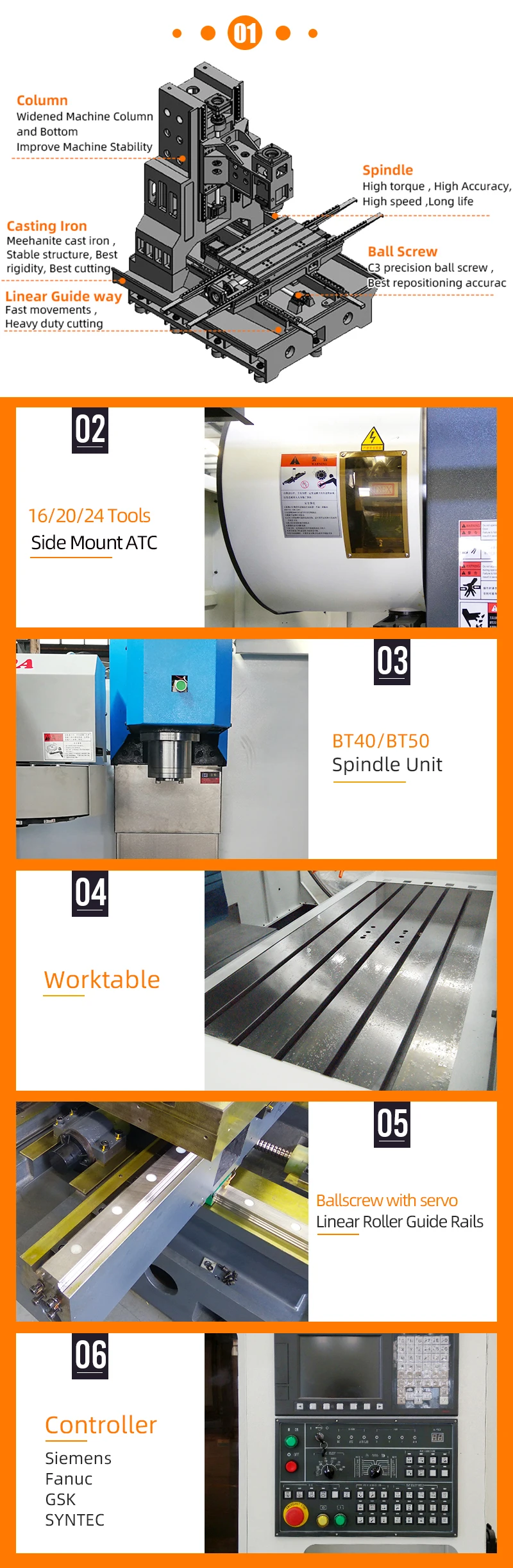

Products Details
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
