Russia Europe Italy DVB T2 Digital Terrestrial Set Top Box Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Use
- Category: >>>
- Supplier: Shenzhen Maoer Power Co. Ltd.
Share on (1600524147114):
Product Overview
Description
Specification
Russia Europe Italy DVB T2 Digital Terrestrial Set Top Box Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Use
Brand Name | Haohsat |
Model Number | BK-T2 |
CPU | MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz. |
Processor Core | Quad Core |
Support Resolution | 1920 x 1080 |
Ethernet | 1 x 10/100/1000MBps |
WiFi | 802.11n 2.4G/5GHz |
Private Mold | Yes |
Keywords | Set Top Box Dvb T2 |
Warranty | 12 Months |
Demodulator Type: | MSB1236C Chip Set |
Function | DVB-T2 H.264 8Bit |
Packing | 1 *Terrestrial Receiver Set Top Box (Attached EU plug) 1 * IR remote control 1 * RCA Cable 1 * English User Manual |
Language | English/French/German/Spanish/Italian Etc. 24 Languages |
CPU | MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz. |
USB wifi | MT7601 |
Product Description
Russia Europe Italy DVB T2 Digital Terrestrial Set Top Box Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Use
Features:
Hardware Specification:
CPU: MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz.
Memory: 32X16Mbit DDR2 Frequency1066.
Flash: 32M bytes.
Demodulator Type: MSB1236C Chip Set
TUNER: Rafael R836.
Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow at least 50 Mbit / sec.
Support 3D interface and Sleep Timer.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback.
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.
Decoder:
Video Decoder: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818.
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps).
MPEG-2 Main Profile# Main Level(15Mbps).
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-channel decoding.
Media Codec: avi, mpg, dat, vob, div, mov, mkv, jpeg, etc.
Audio Codec: WMA,MP3,AAC (wma,mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Demodulation:
Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz,7MHz,8MHz.
for Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6.
Guard Interval: 1 / 128 1 / 32 1 / 16 19 / 256 1 / 8 19 / 128 1 / 4.
FFT Mode: 2K/ 8K / 32K.
Support: Support Single and multiple PLPS.
Input level: -83 - -5dBm.
Specifications:
Color: Black
Front Panel: One embedded USB 2.0 host (USB Recording PVR) and 4-Digit LED display on front panel. Red LED Standby and Green LED Lock; Panel Keys (POWER, CH+ ,CH-, etc)

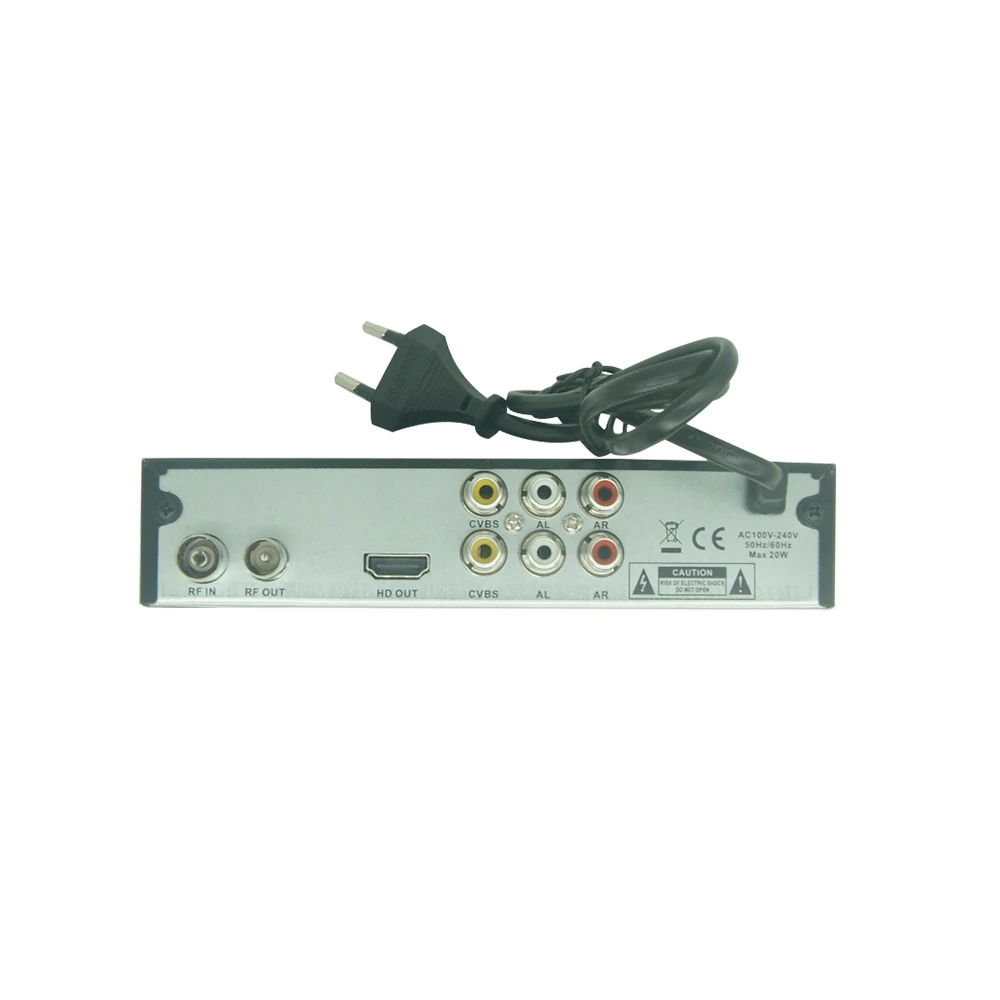

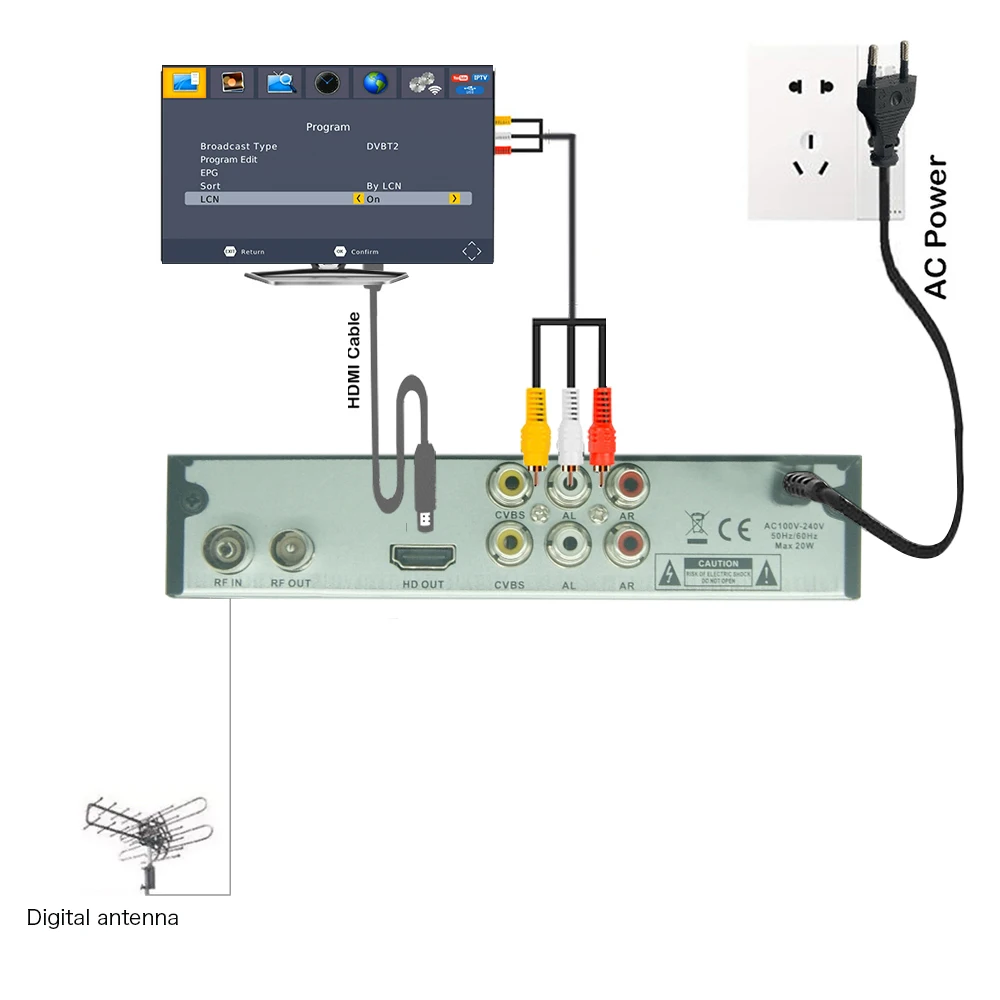

Rear Panel: 1 * ANT-IN connector (IEC-162-2 Female); 1 * ANT-OUT connector (IEC-162-2 Male); 1 * HDMI (Compatible with HDMI V1.3/V1.4), 1 * RCA CVBS AL AR Connector; 1 * Ypbpr RCA; 1 * Coaxial.
Power Supply: AC 90~240V 50Hz/60Hz
Item weight: 0.45KG
Package size: 19.5 * 17.0 * 5.0cm / 7.68 * 6.70 * 1.97in
Package weight: 512g / 18.07g

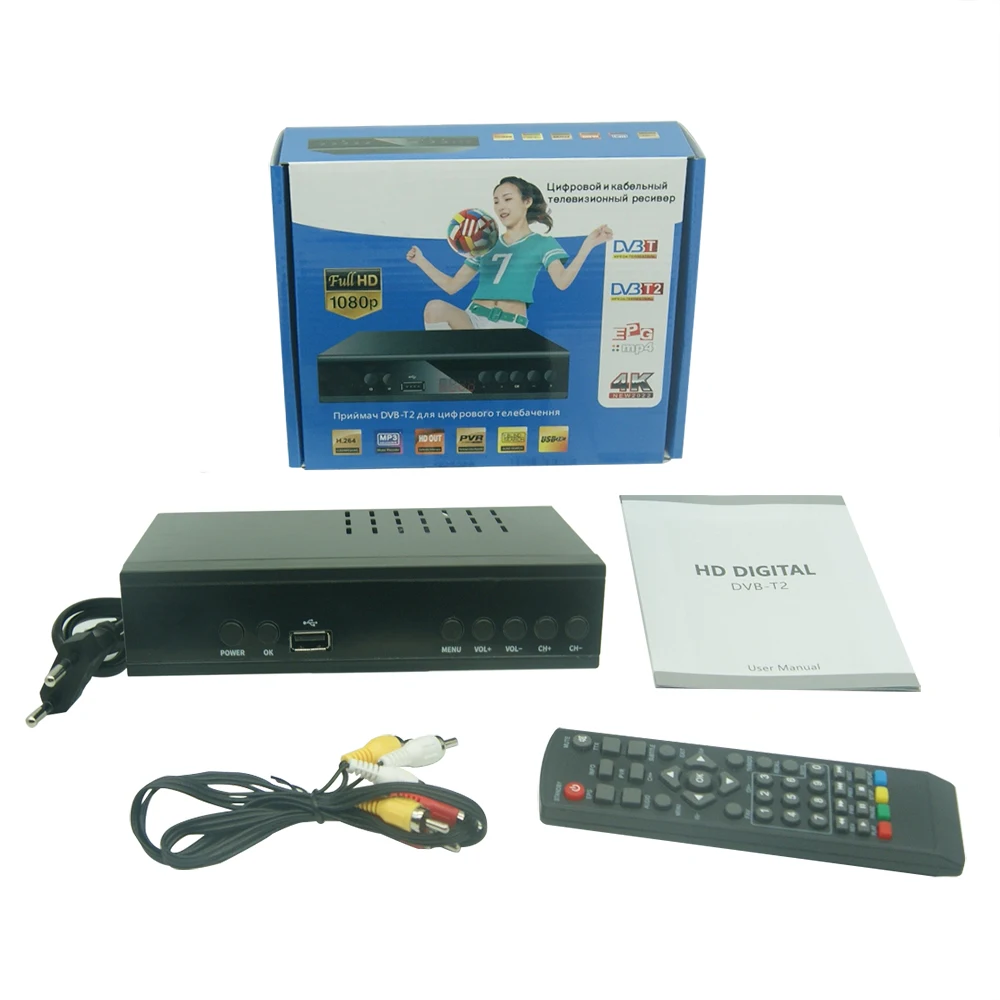

Package list:
1 *Terrestrial Receiver Set Top Box (Attached EU plug)
1 * IR remote control
1 * RCA Cable
1 * English User Manual
Features:
Hardware Specification:
CPU: MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz.
Memory: 32X16Mbit DDR2 Frequency1066.
Flash: 32M bytes.
Demodulator Type: MSB1236C Chip Set
TUNER: Rafael R836.
Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow at least 50 Mbit / sec.
Support 3D interface and Sleep Timer.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback.
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.
Decoder:
Video Decoder: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818.
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps).
MPEG-2 Main Profile# Main Level(15Mbps).
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-channel decoding.
Media Codec: avi, mpg, dat, vob, div, mov, mkv, jpeg, etc.
Audio Codec: WMA,MP3,AAC (wma,mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Demodulation:
Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz,7MHz,8MHz.
for Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6.
Guard Interval: 1 / 128 1 / 32 1 / 16 19 / 256 1 / 8 19 / 128 1 / 4.
FFT Mode: 2K/ 8K / 32K.
Support: Support Single and multiple PLPS.
Input level: -83 - -5dBm.
Specifications:
Color: Black
Front Panel: One embedded USB 2.0 host (USB Recording PVR) and 4-Digit LED display on front panel. Red LED Standby and Green LED Lock; Panel Keys (POWER, CH+ ,CH-, etc)
Rear Panel: 1 * ANT-IN connector (IEC-162-2 Female); 1 * ANT-OUT connector (IEC-162-2 Male); 1 * HDMI (Compatible with HDMI V1.3/V1.4), 1 * RCA CVBS AL AR Connector; 1 * Ypbpr RCA; 1 * Coaxial.
Power Supply: AC 90~240V 50Hz/60Hz
Item weight: 0.45KG
Package size: 19.5 * 17.0 * 5.0cm / 7.68 * 6.70 * 1.97in
Package weight: 512g / 18.07g
Package list:
1 *Terrestrial Receiver Set Top Box (Attached EU plug)
1 * IR remote control
1 * RCA Cable
1 * English User Manual
