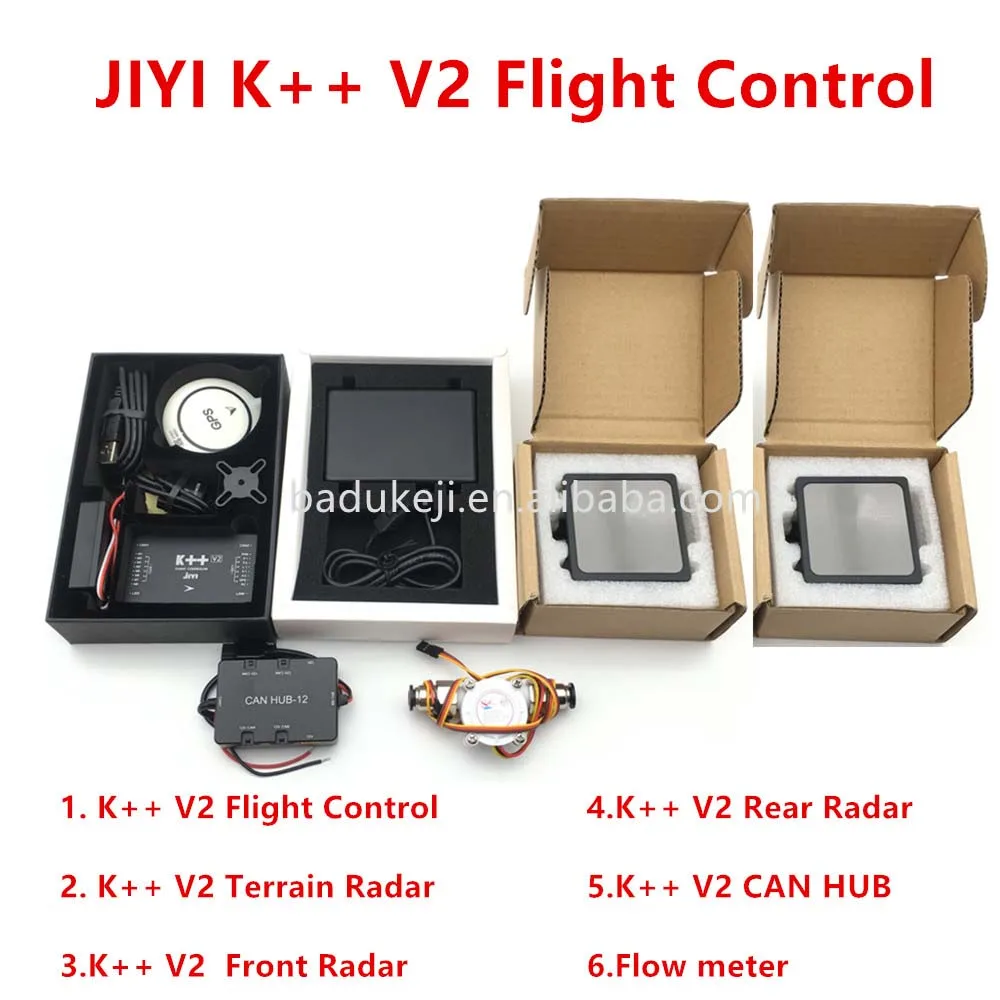

JIYI K V2 flight control front and rear obstacle avoidance radar terrain height radar agricultural spray drone UAV
- Category: >>>
- Supplier: Shenzhen Octave Technology Co. Ltd.
Share on (1600524160219):
Product Overview
Description
Product List
Product Description
Specification

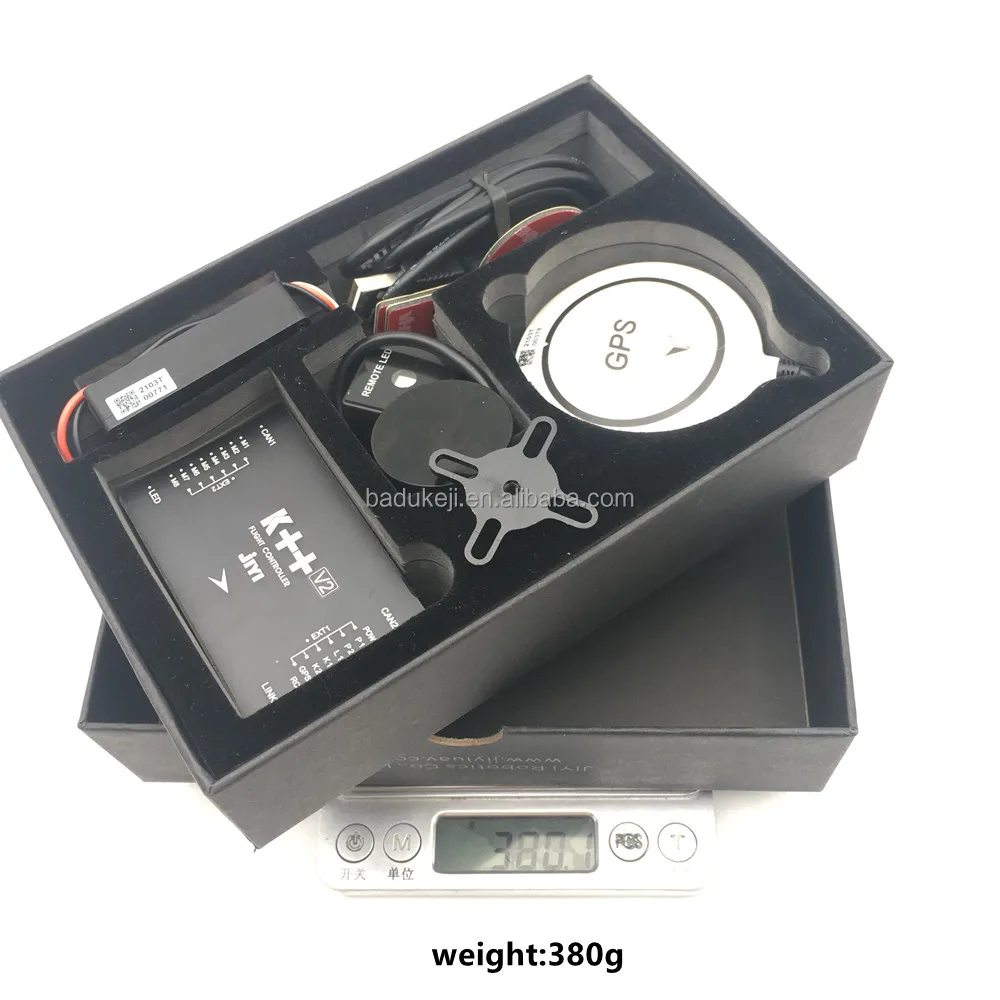

weight | Total net weight: 321g |

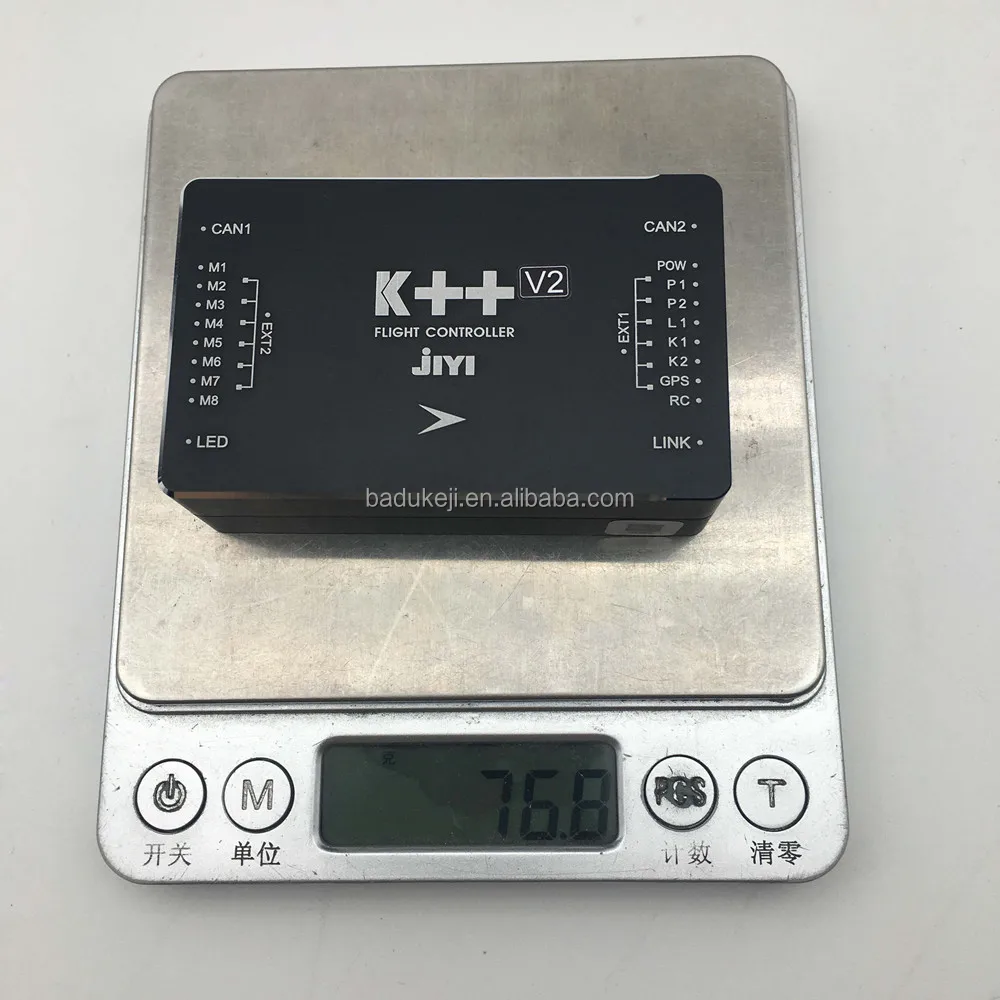

FC: 76.8g | |
PMU: 41g | |
PMU2 (UPS): 44g | |
Size | FC: 72.6mm×48.0mm×22.8mm |
PMU: 53.4mm×34.4mmx14.5mm | |
PMU2 (UPS): 53.4mm×34.4mmx14.5mm | |
GPS: φ62*14.3mm | |
LED: 24*24*8mm |
Product parameters
Working voltage | 2-14S |
Power consumption | less than 5W |
Working environment temperature | -10~60℃ |
Storage temperature | -25~60℃ |
Earthquake resistance level | <1G |
Support multi-rotor type | Four-rotor (+ type, X type) hover accuracy |
Six-rotor (+, X, IY and YI coaxial twin propellers) | |
Eight-rotor (+ type, X type, V type) |
Supported ESC type | PWM ESC below 490HZ |
Maximum output channel | 8 channels |
Recommended remote control type | SBUS receiver |
Supported receiver types | PPM, S-BUS receiver |
K-BOX, IOT, RTK, binocular obstacle avoidance, ground-following radar, integrated remote control, FPV camera, flow meter, liquid level meter |
Flight characteristics | Flight characteristics | |||||||
Hovering accuracy | horizontal ±1.5m | |||||||
Vertical direction | ±0.5 meters | |||||||
Maximum tilt angle | 30 degrees | |||||||
Maximum yaw speed | 150 degrees/second； 6 meters/second | |||||||
Wind resistance | continuous wind: level 4 ；Gust: Level 5 | |||||||
Flight modes and functions | Attitude mode, GPS mode, AB operation, route operation, one-key return home, runaway protection, runaway operation, low voltage protection, fence function, log storage function, landing lock function, no-fly zone function, vibration protection function, star loss Protection function, active noise reduction function, motor sequence detection function, direction detection function, dual water pump mode, drug breaking protection function, precise spraying, water pump switch control, water pump linkage control | ||||||

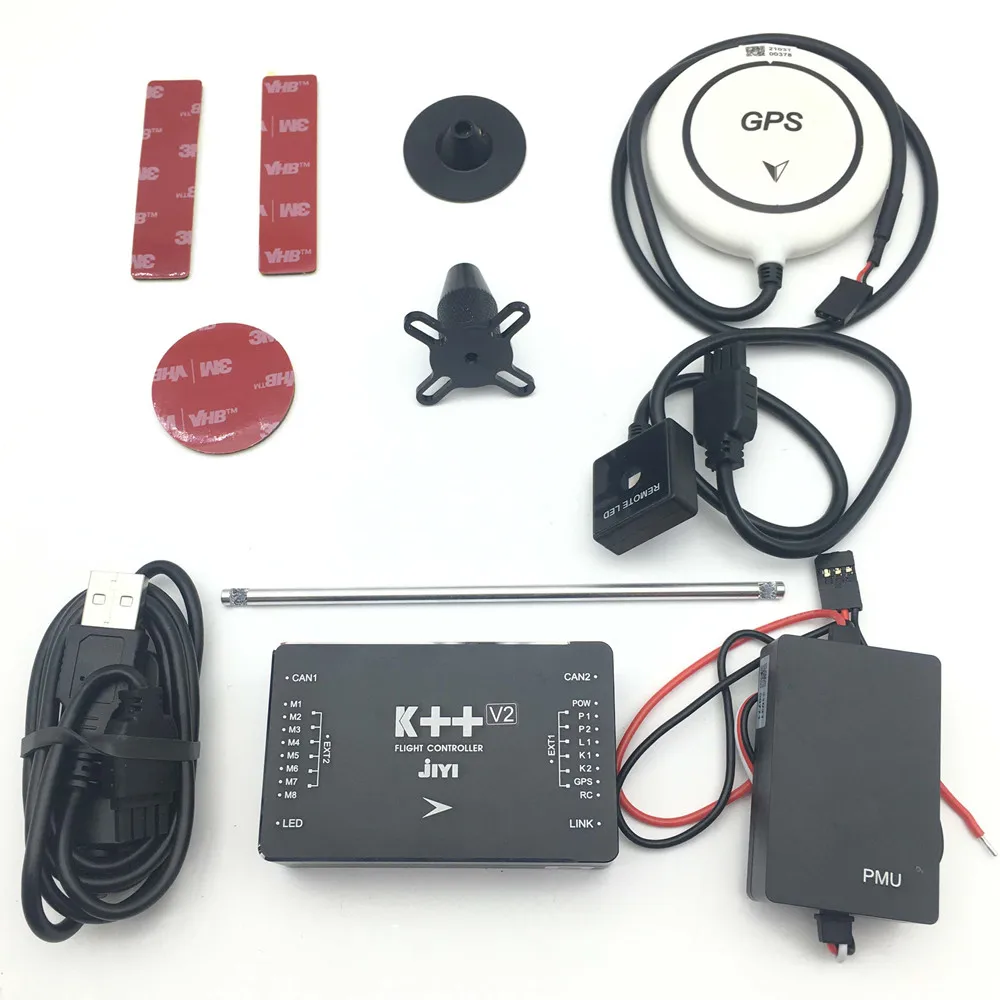

Packing & Delivery
Please check the parts and accessories according to the product list, and download the assistant software, APP and Register on the flight defense butler supervision platform to get more intelligent flight functions and flight data. K++The installation and use of the flight control system has certain technical complexity. Before installation and use, please Be sure to be familiar with the product instructions.
product advantages
k++ flight control's powerful industrial-grade sensor configuration and algorithm optimization. After the same aircraft flight control system is installed, it only needs to be calibrated once. Even if the operating environment is changed, there is no need to re-calibrate, which is convenient to use.
Dual CPU configuration, the processing function is more powerful, the maximum can support 1000Hz ESC control.
The main control supports the backup power interface, and the power supply is more reliable.

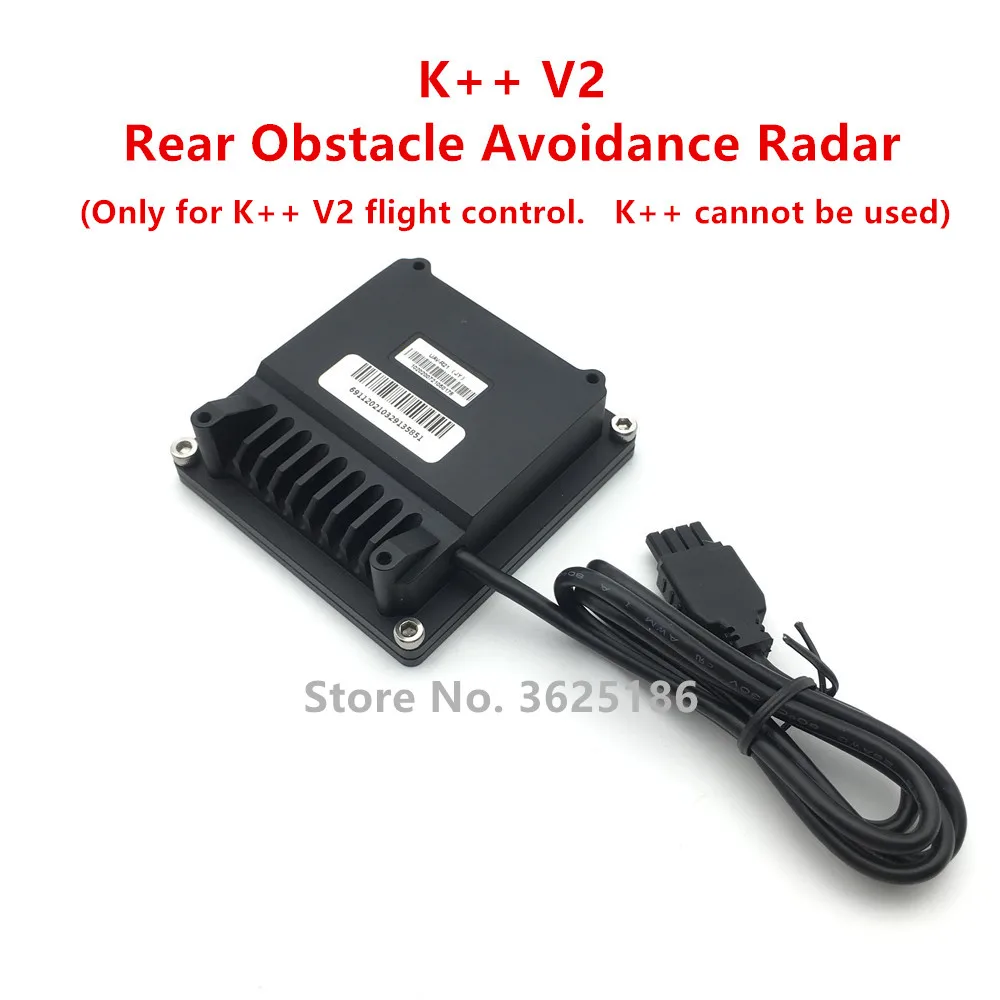

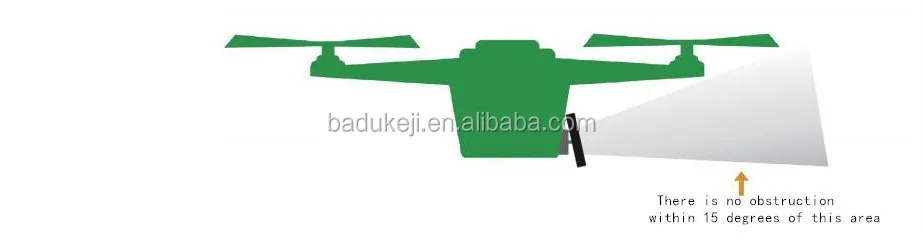

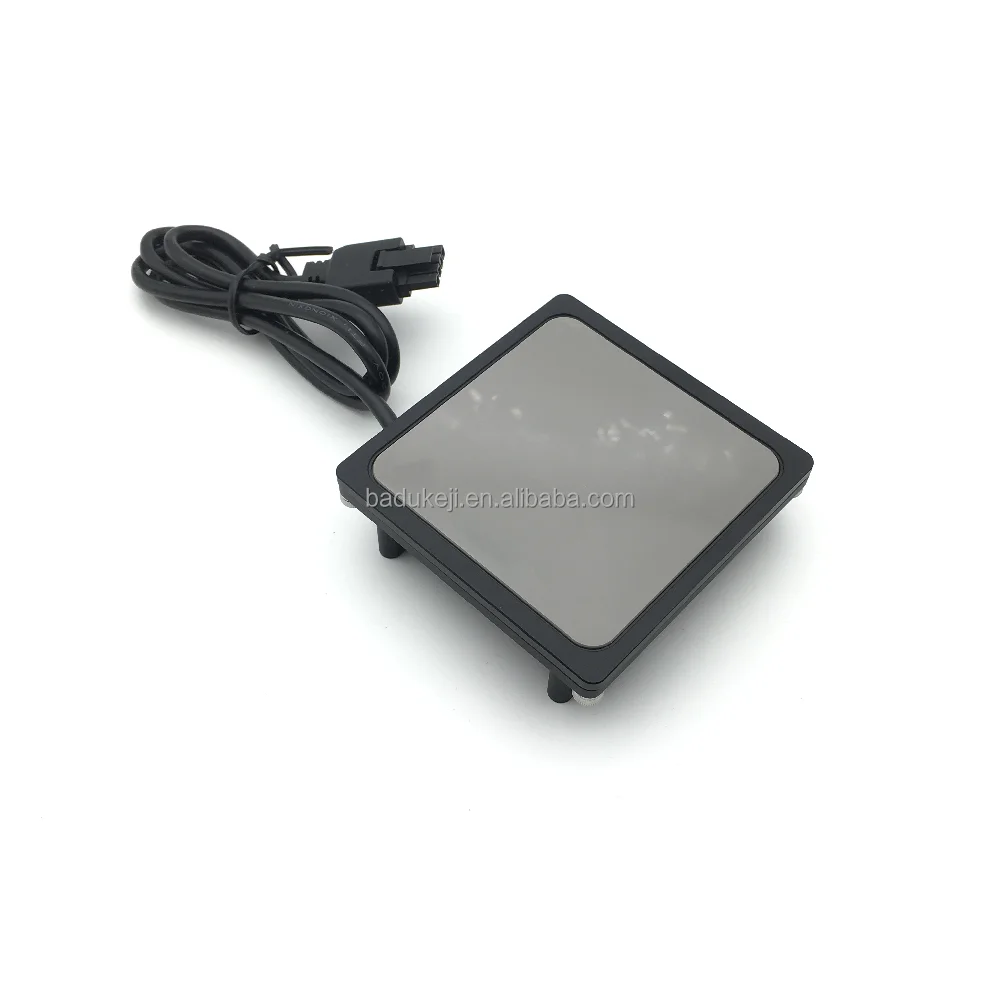

Obstacle Avoidance Radar
There are front obstacle avoidance radar and rear obstacle avoidance radar, they have the same appearance but different procedures.
Note:

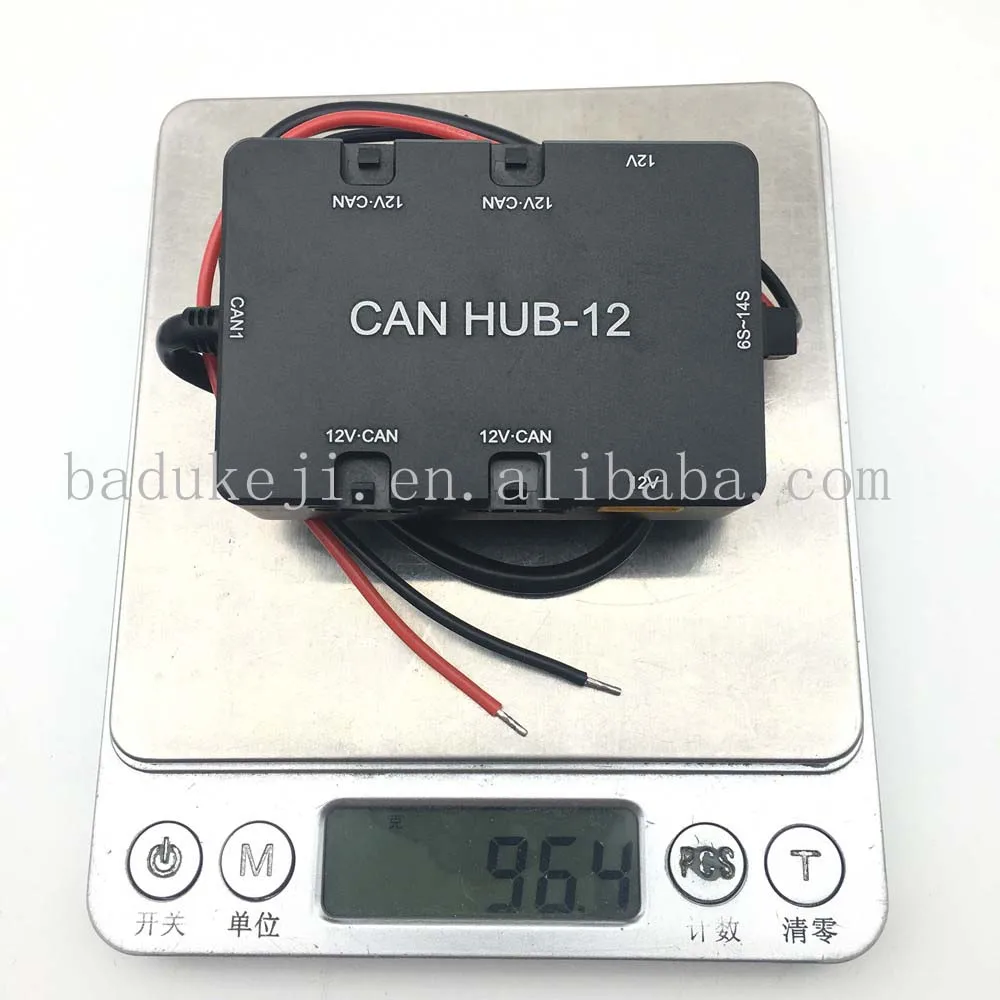

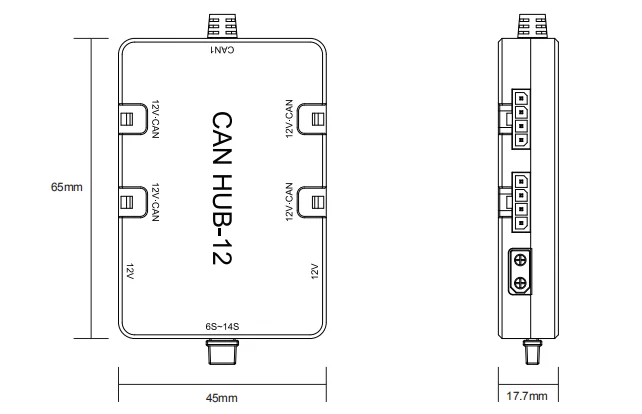

CAN HUB module is forbidden to be hot plugged (the plug of the module cannot be plugged in and out when the power is on), you need
to plug in the plug first and then plug in the power supplyonly for JIYI flight control K++ and K++V2
①. 6S-14S: Connect the power battery (6S-14S,Red positive, black negative) to supply power to the module ②. 12V: This port (the
interface is XT30 male) can provide 12V power supply to other modules (except for high-power devices such as water pumps and

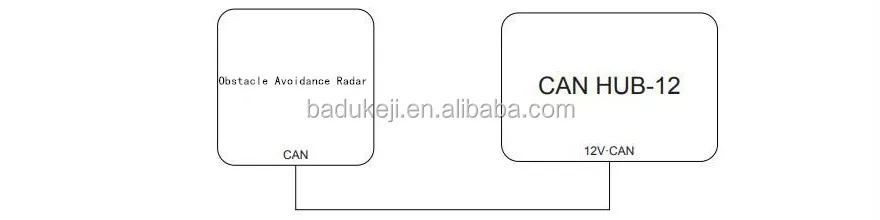

flight controllers) ③. 12V-CAN: Connect ground defense radar and obstacle avoidance radar or RTK ④. CAN1: Connect to the flight
control CAN1 port
