Woming Ex factory Price 50L Laboratory Filtration System Vacuum Suction Filter ZF 50

Product Overview

Description

Product Description:

ZF series vacuum filter is a special laboratory filter, it matched with the microporous membrane of different aperture, adopts vacuum suction filter, can be used in the research of chemical analysis, instrumental analysis, sanitary inspection, pharmaceutical industry, and agricultural machinery, automotive, construction machinery and so on for liquid - liquid Extraction or liquid - soild filtration. liquid filtration, to detect and remove fluid of the particles and bacteria, for example: the sterile aseptic filtration test, medium, small and medium-sized power internal combustion engine clean, jet fuel and hydraulic system of solid particle pollution weight method, such as grating film. also applies to the hydraulic oil, aviation kerosene, and water quality of high purity reagent counting method.



Product Features:

1.The filter bottle is made of GG17 high borosilicate glass and has excellent chemical and physical properties.
2.The stainless steel Brinell funnel has excellent physical and chemical properties.
3.Special PTFE material design mixing plug, perfect technology, high cost-effective corrosion resistance.

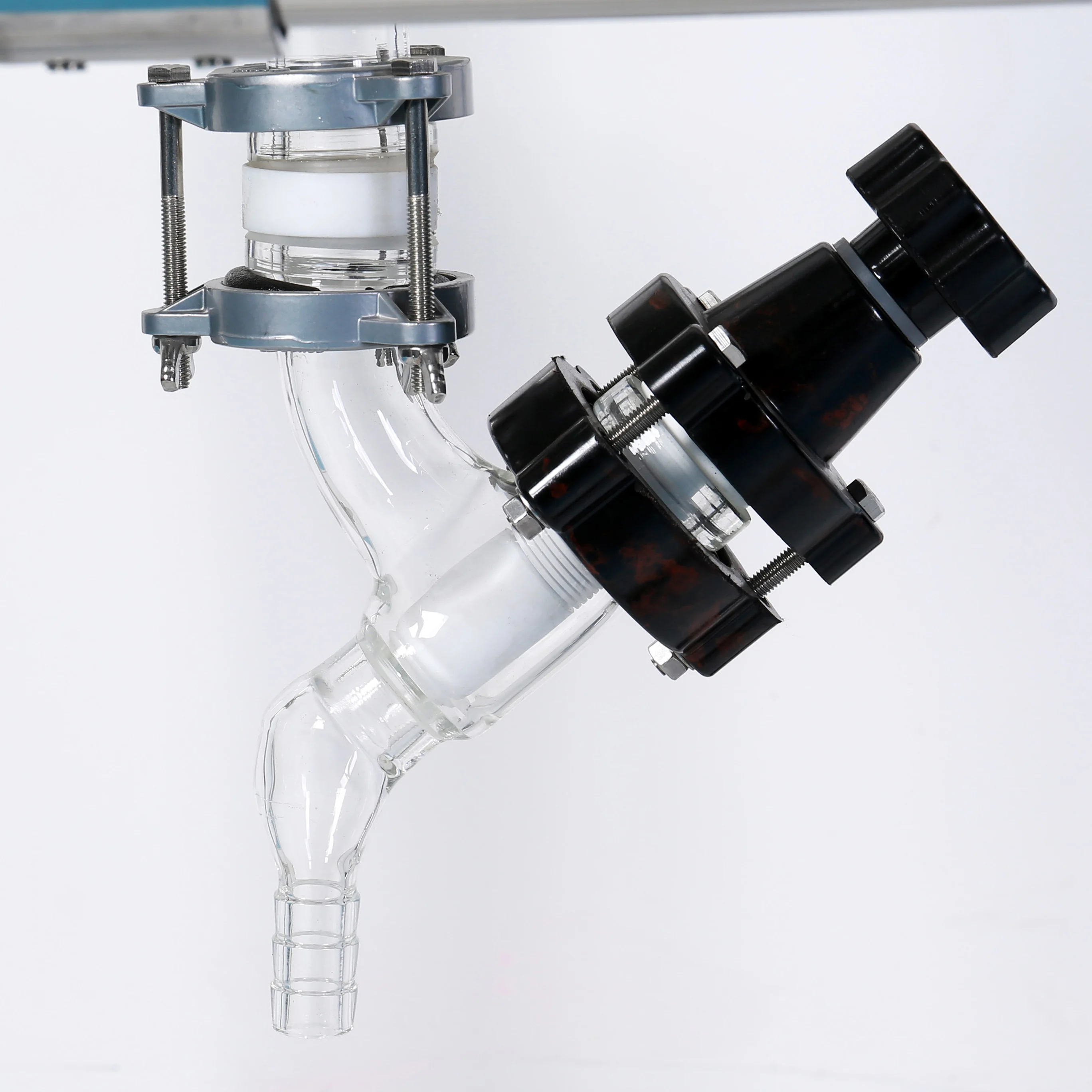

4.The discharging part is specially designed PTFE valve with glass flange. There is no dead angle in the container. It can be disassembled to facilitate solid material discharging.
5.The whole machine has perfect sealing performance, and the negative pressure under static state can be less than 0.098 MPa.
6.The structure of the whole machine is scientific, visualization features are prominent, practical and novel. The frame is made of 304 stainless steel with ground casters for easy movement.

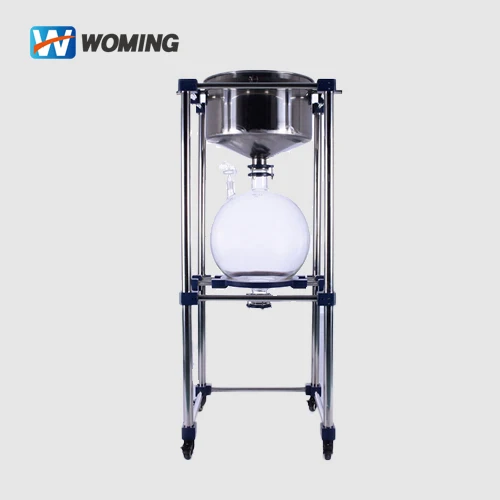

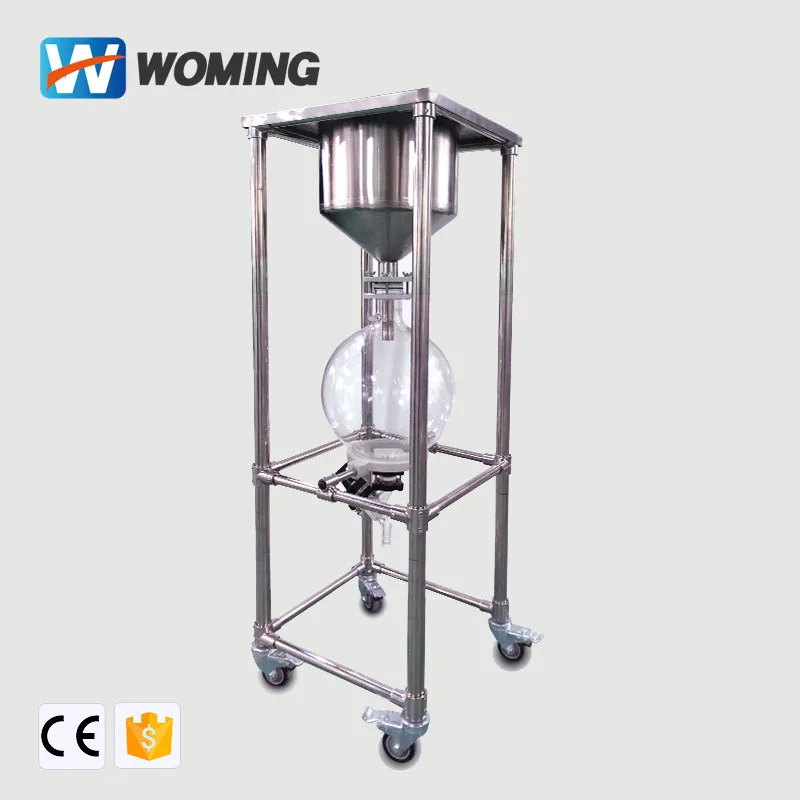

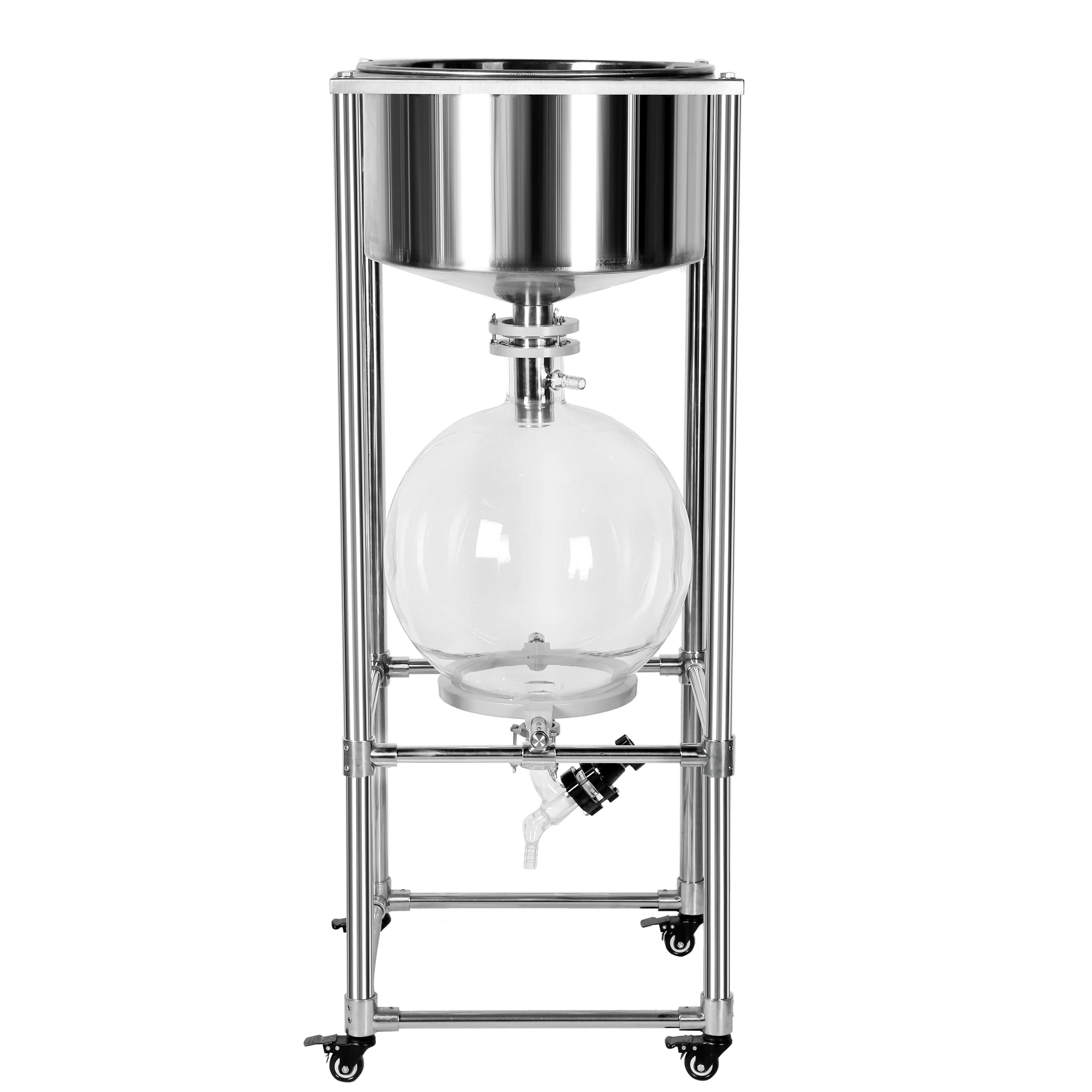

Product Pictures:

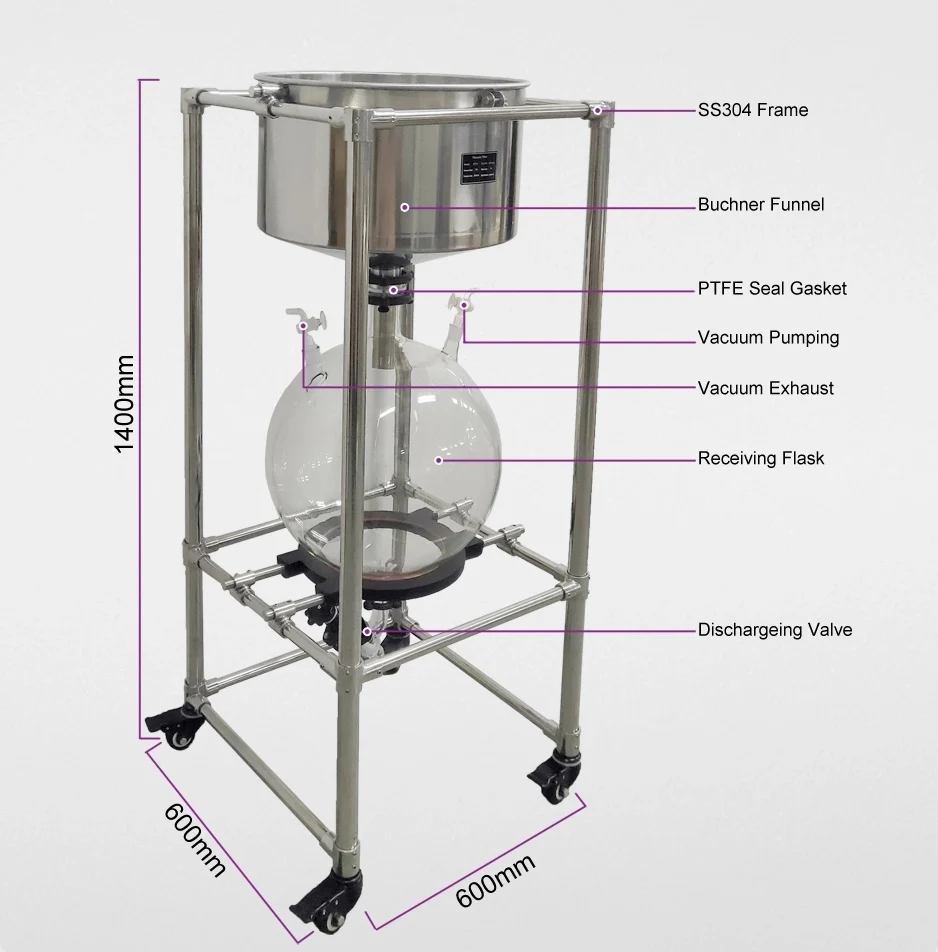

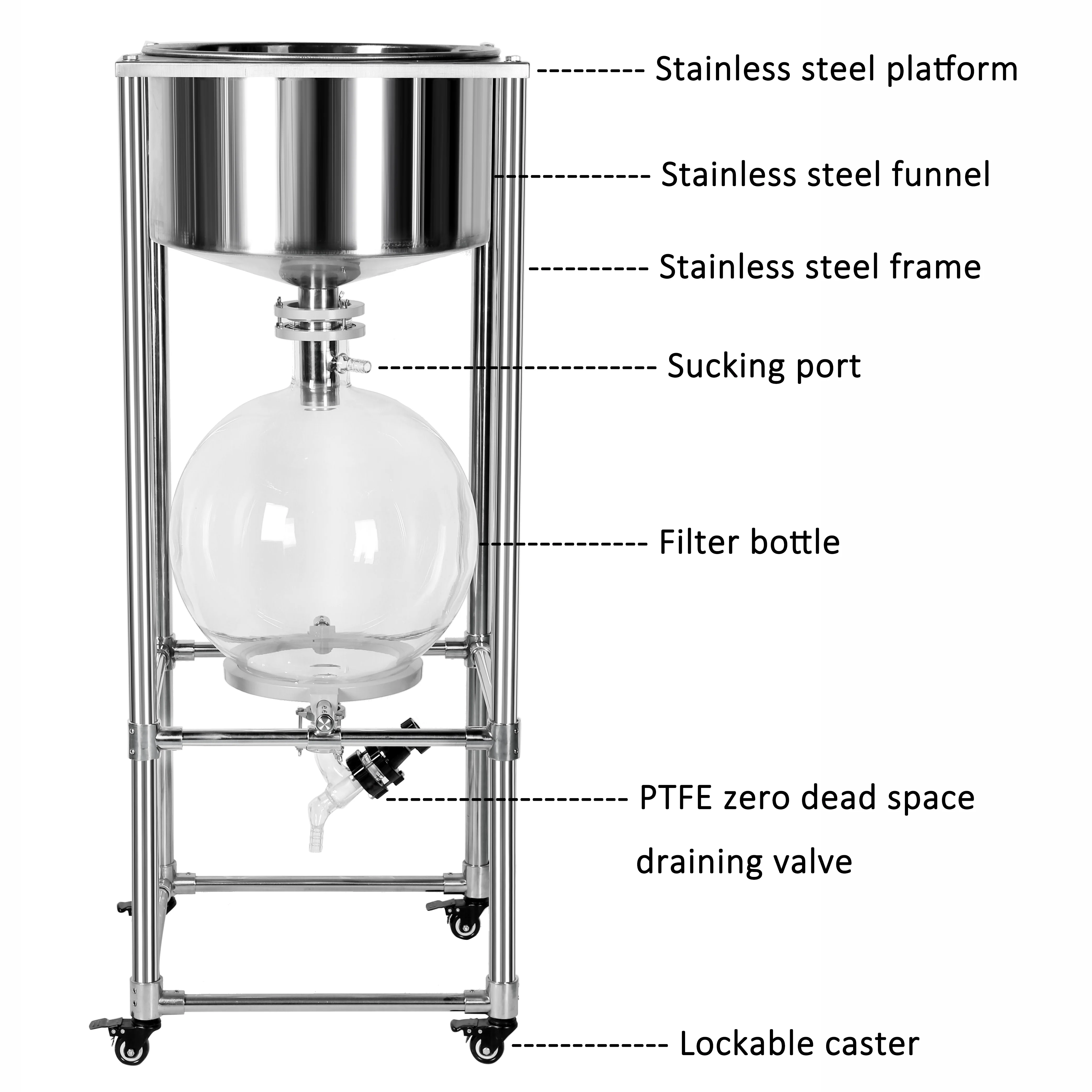

Product Structure:

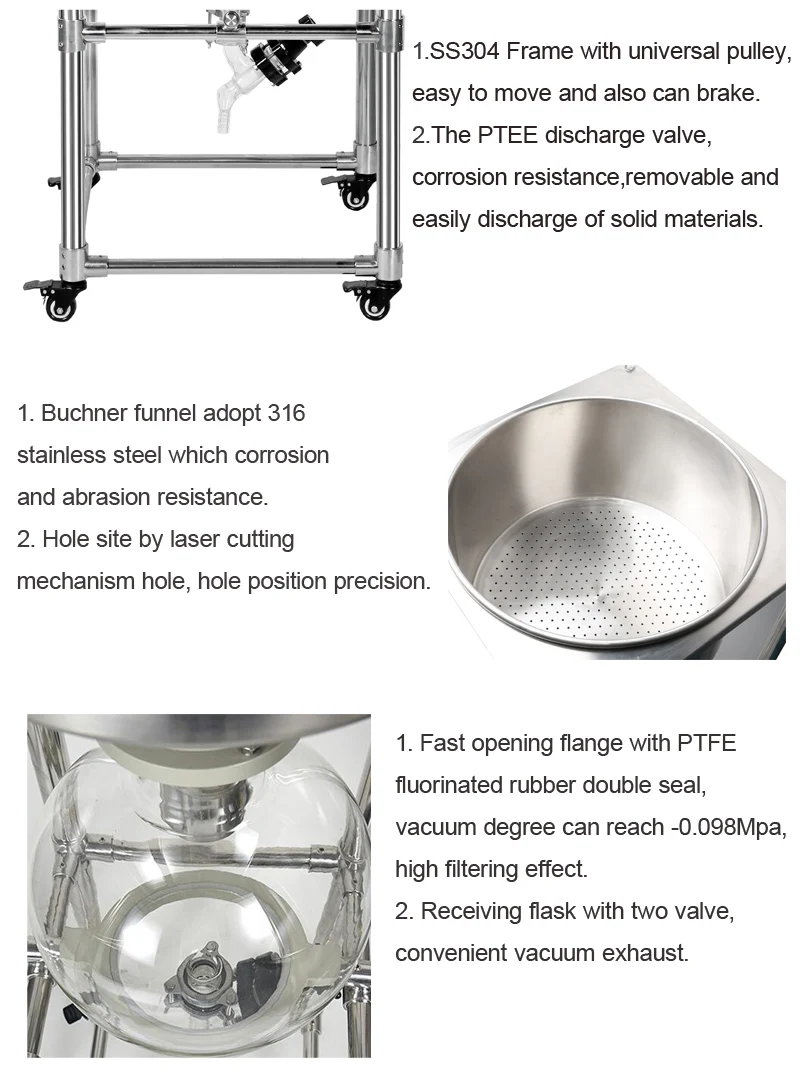

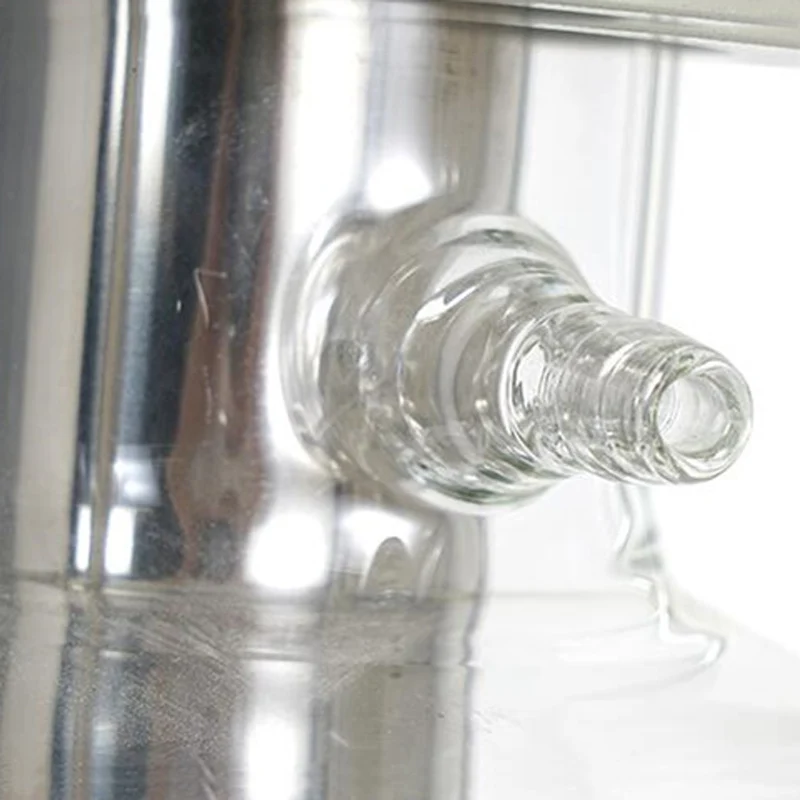

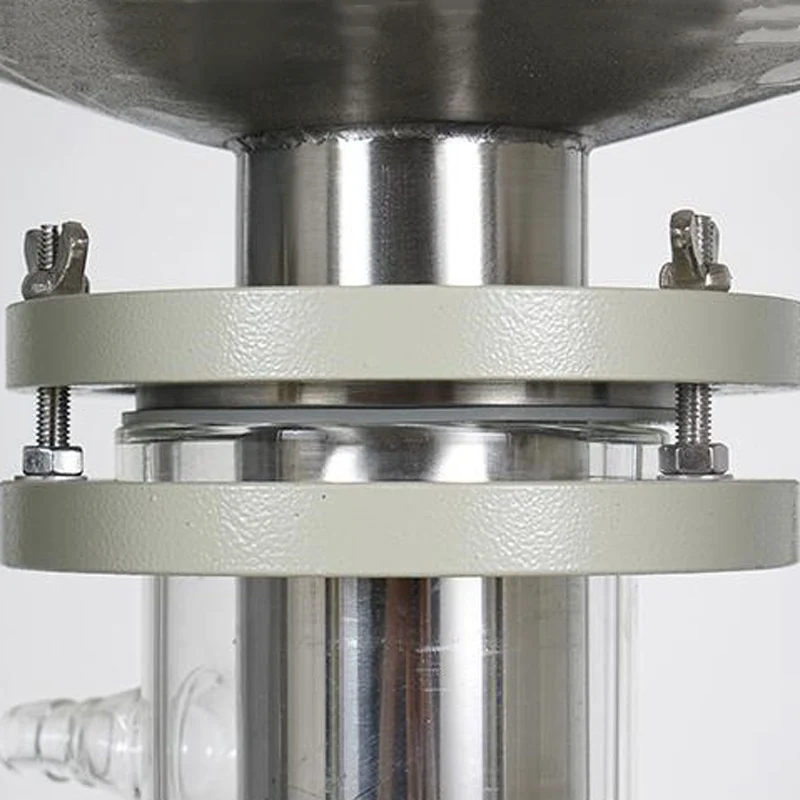

Product Details:



Detailed Data:

Product	Vacuum Suction Filter
Model	ZF-10	ZF-20	ZF-30	ZF-50
Funnel capacity	10L	20L	30L	50L
Funnel type	Buchner funnel
Funnel material	Stainless steel  funnel or glass runnel
Filter bottle capacity	10L	20L	30L	50L
Filter bottle type	Spherical
Glass part material	High borosilicate glass 3.3
Filter bottle inlet (mm)	95
Filter bottle outlet (mm)	50
Size of filter bottle (mm)	297	370	404	460
Funnel size (mm)	300*200	350*220	350*220	500*250
Sealing type	Silicone gasket sealing
Machine size (mm)	400*400*1200	500*500*1300	500*500*1400	600*600*1500



Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.



Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.



Shipping method	Note
Express	Door to door, very convenient, don't need to clearance or pick-up
By air	Airport to airport, you need to do the customs clearance and pick up  the goods at your local airport,which you can have a local shipping agent to do for you
By sea	Port to port and you need to do the customs clearance and pick-up the goods at your local port,which you can have a local shipping agent to do for you
