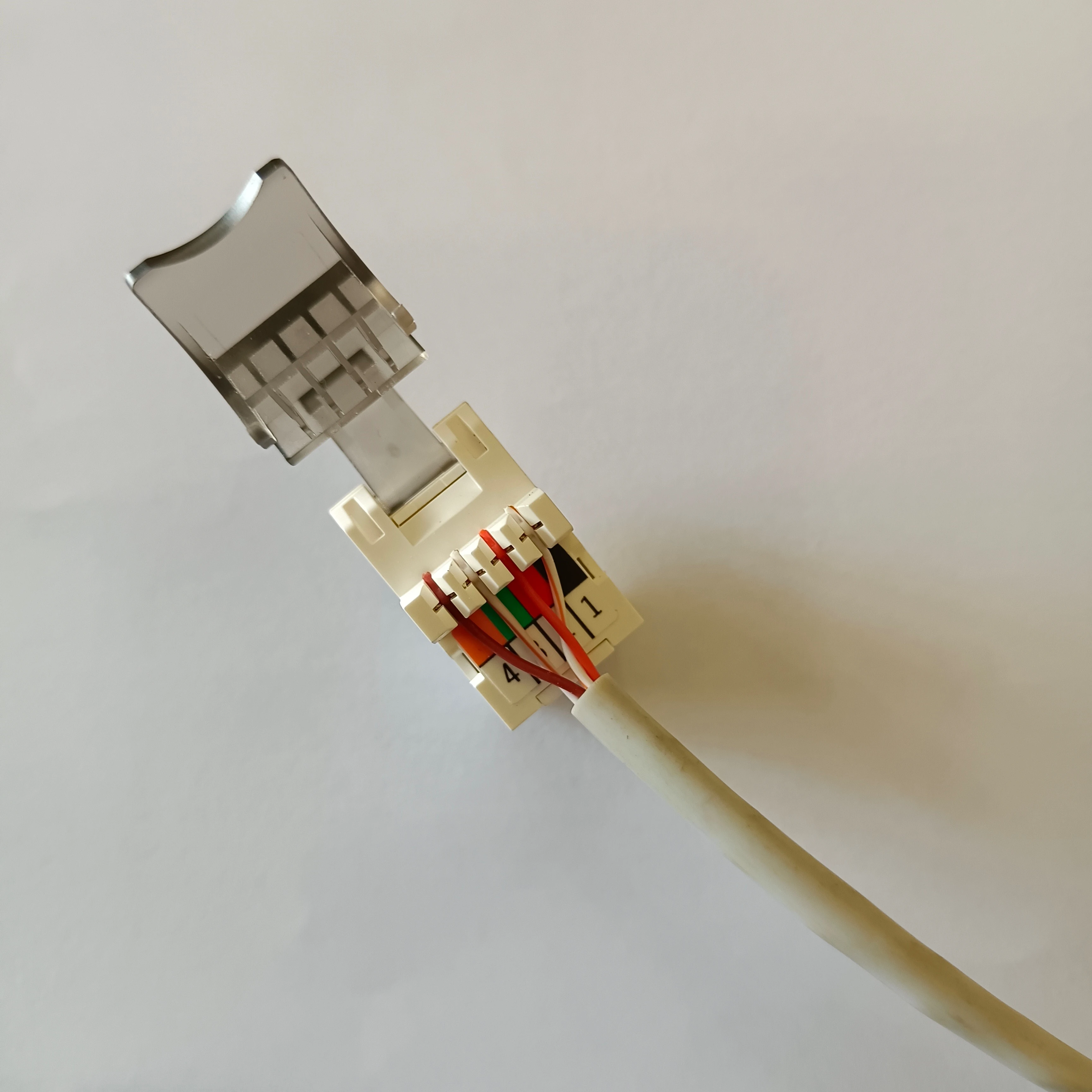

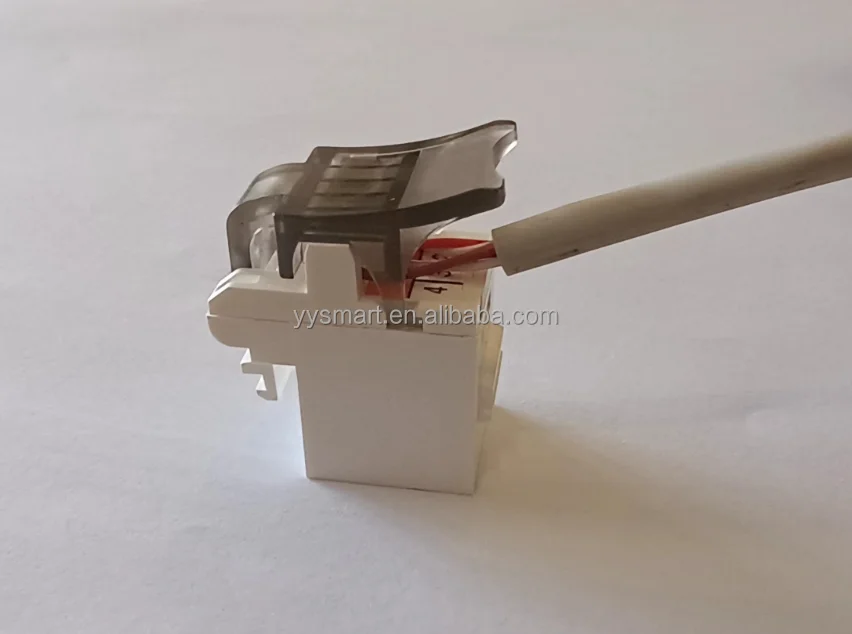

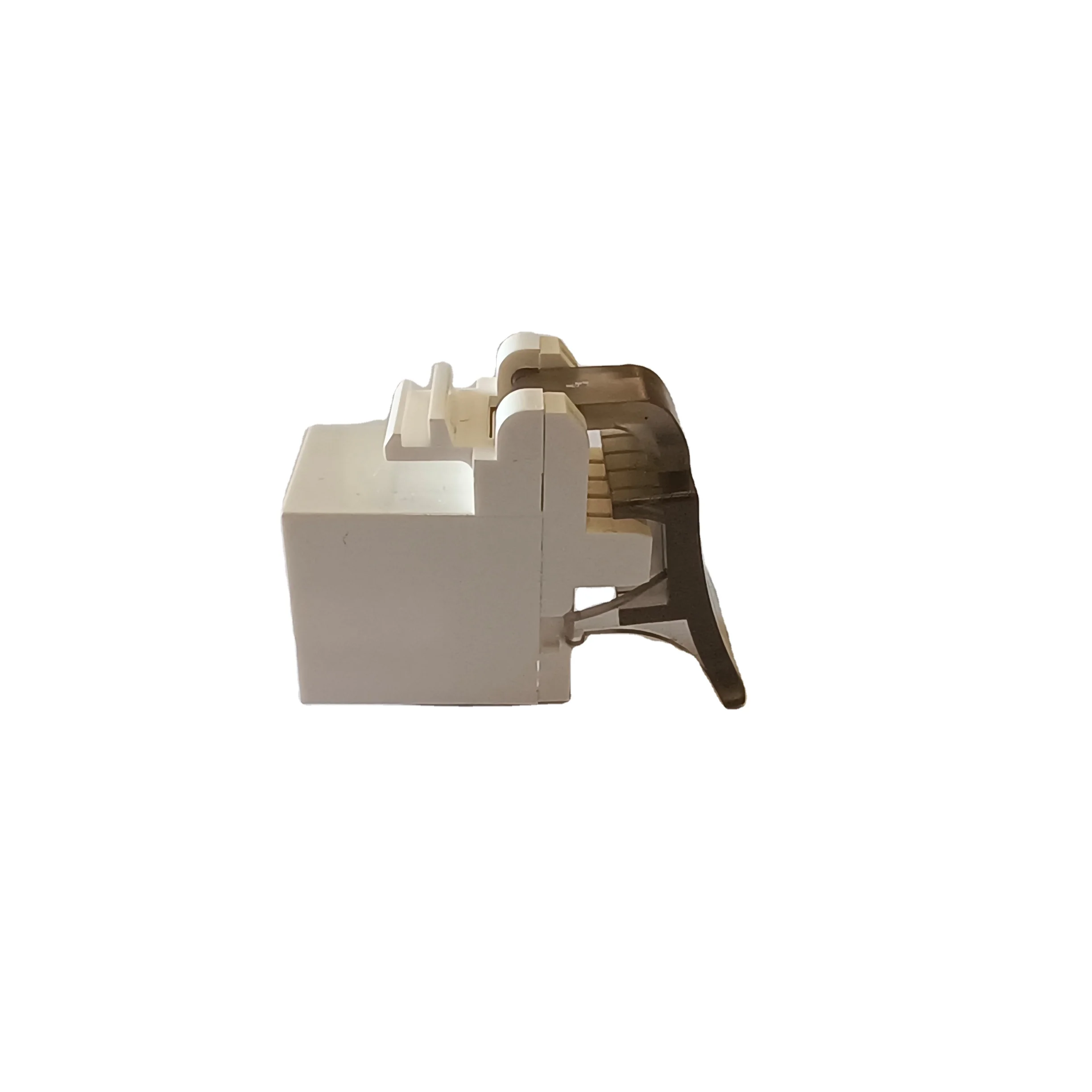

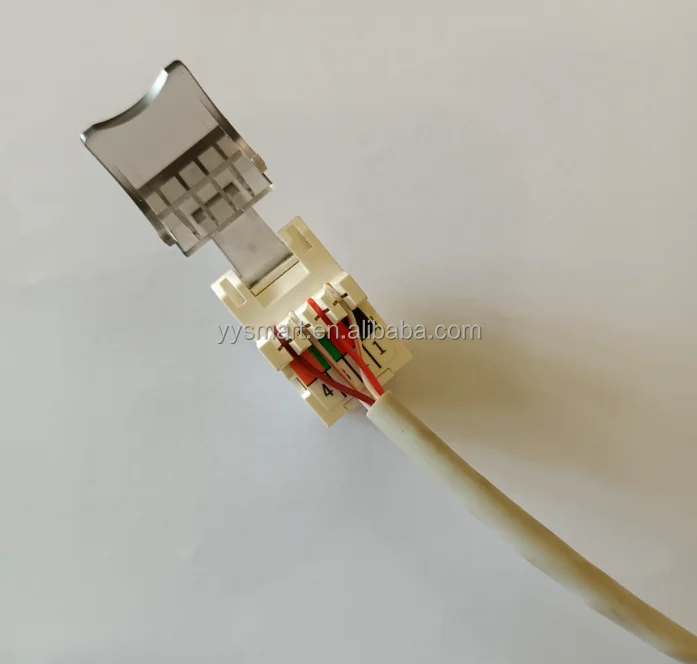

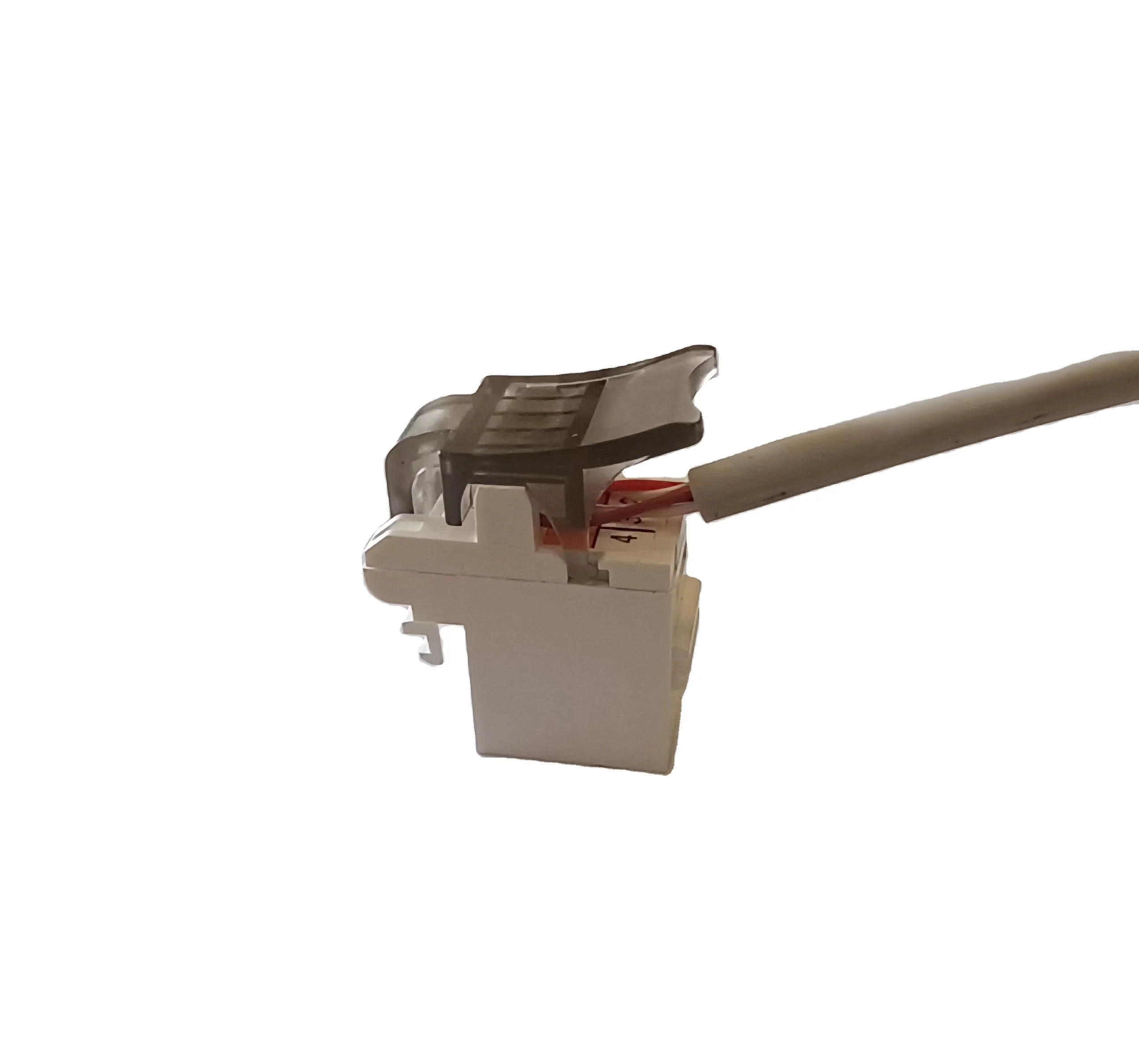

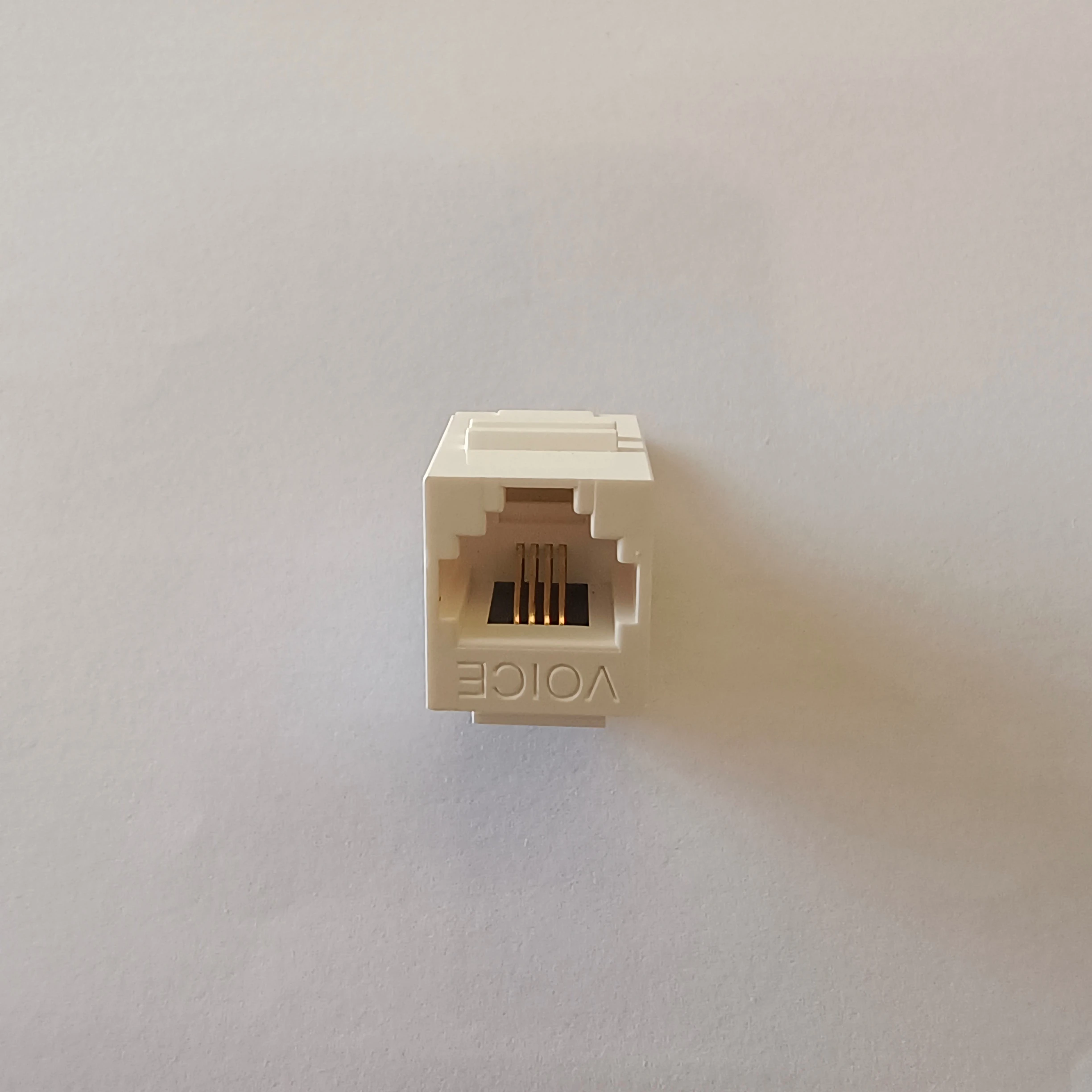

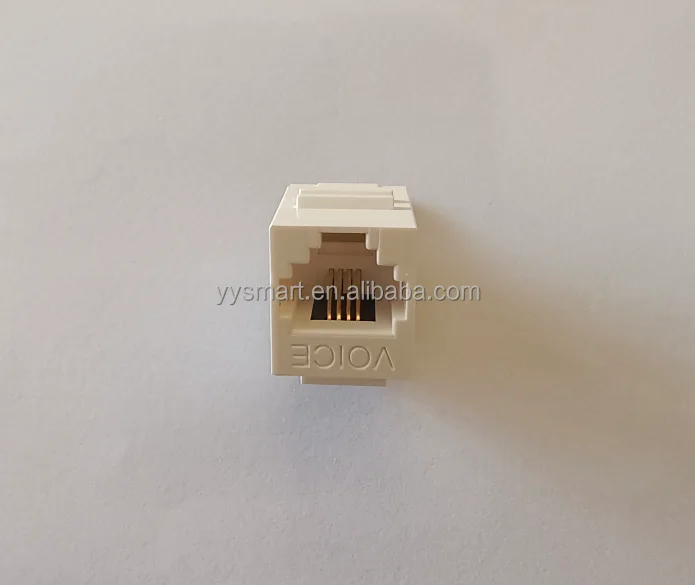

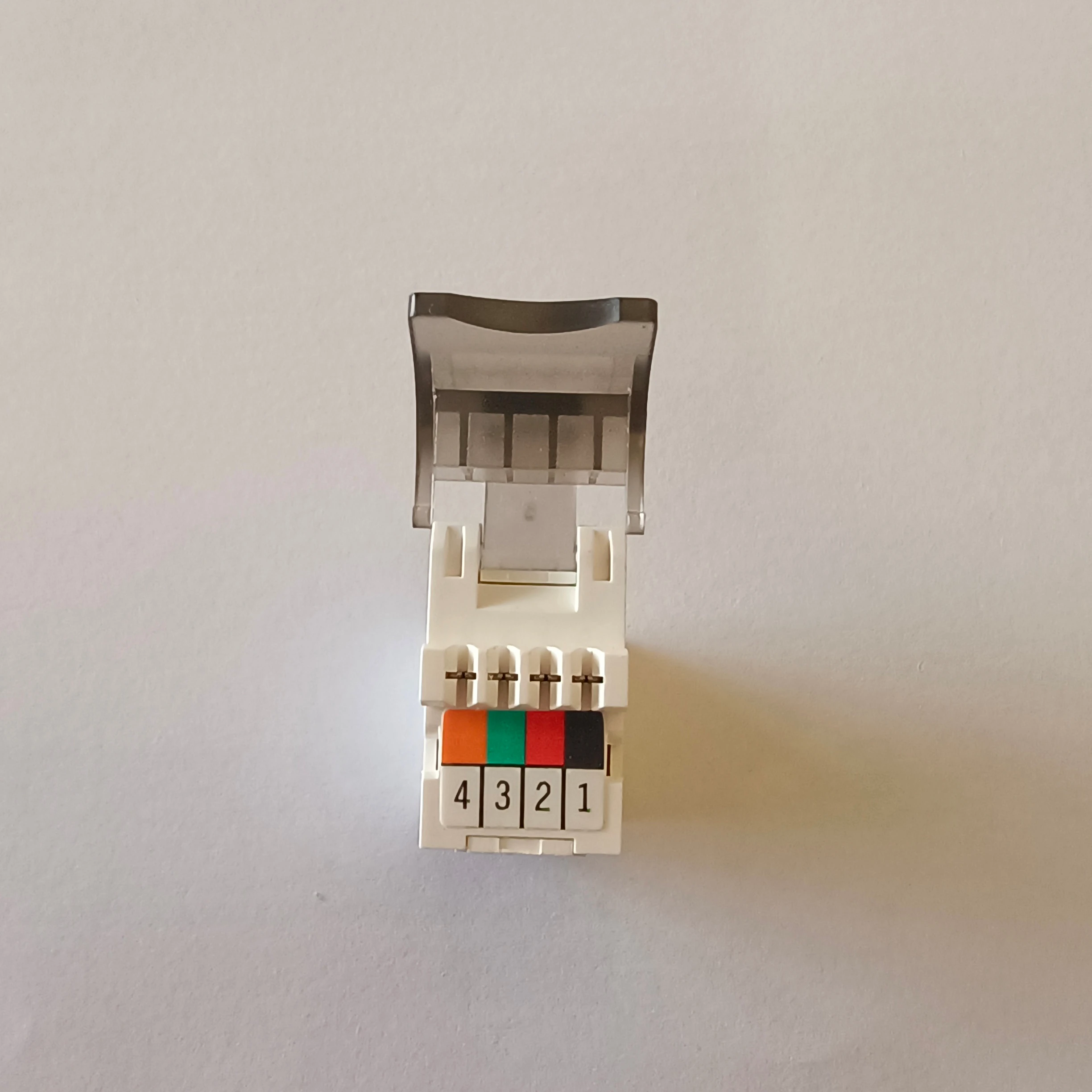

4P4C RJ11 6P4C CAT3 180 degree toolless Keystone Jack voice modular jack
- Category: >>>
- Supplier: Yuyao Simante Network Communication Equipment Co. Ltd.
Share on (1600524408585):
Product Overview
Description
4P4C RJ11 6P4C CAT3 180 degree toolless Keystone Jack voice modular jack
Product Description
Advantages
1. Auto-Machine Produce : stable quality & short leading time
2.100% QC test , 100% pass fluke test
3. OEM & ODM Services
4. Excellent R&D group support
5. Entity factory ,welcome to check the factory any time
Products Details
Techinical Details:
| Current Rating: | 1.5 Amps |
| Insulation Resistance: | 500 Megaohm |
| DC Resistance: | 0.1 ohm MAX |
| Voltage: | 150 VAC MAX |
| Insertion Life: | ≥ 1000 Mating Cycles |
| Plug Retention Force: | 89N |
| Temperature: | -60 ~80 degree |
| IDC Accept: | 22-26 AWG Solid Wire |
| Wire Scheme: | T568A/ B |
Material:
| Housing | High Impact PC |
| CAP | High Impact PC |
| Spring Wire | Phosphor Bronze With Gold-plated 6u -50 u |
| IDC Contact | Phosphor Bronze |
| IDC Holder | High Impact PC |
| PCB | Glass Fiber |
| Cable Tie | Nylon |
