Hydrogen Gas Generator Portable Hho Kit/solar Power Hydrogen Water Generator Hydrogen Station of Power Plant Energy & Mining PLC

Share on (1600524448152):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Condition
New
Place of Origin
China
Beijing
Brand Name
sinohy
Usage
HYDROGEN
Production Rate
100%
Voltage
50DCV
Weight
Actual Weight
Dimension(L*W*H)
Actual Size
Certification
ISO9001,ISO14001,OHSAA18001,
Warranty
1 year
Key Selling Points
Energy saving
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
PLC
After-sales Service Provided
Engineers available to service machinery overseas
Application:

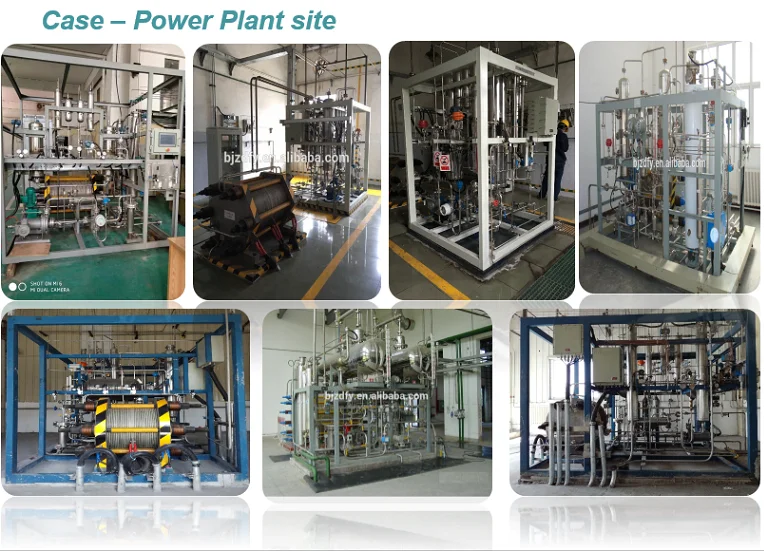

hydrogen station of power plant
Purity:
99.999%
Capacity:
5-500Nm3/h
Dew point:
-70℃
Control mode:
PLC+ touch screen + fully automatic + unattended
Pressure:
3.2Mpa
Type:
alkaline hydrogen generator
Service life:
more than 10 years
name
Output 50N3/h Hydrogen Generation Equipment for Power plant


Product Advantages


* Ultra Pure Gas:
Ultra-pure (99.999%) gas generation with continuous purity monitoring increases equipment life, saving considerable maintenance
and replacement costs.
* Proven Reliability:
Durable stainless steel process components maximize system life. Demonstrated life span of 25+ years.
* Comprehensive Installation:
Every BJ CEI hydrogen generator system is fully assembled and skid-mounted for trouble-free shipping and simple installation.
* Fully Tested:
Each unit thoroughly factory-tested to meet national standards and exceed industry codes.
* On-Demand Gas Delivery:
- Pressure up to 3.2 Mpa
- Maximum flow delivery ranges from 2 m3/h to 600 m3/h
- Higher flow delivery ranges available to meet your specific hydrogen requirements
* Custom Engineered Design: Custom-engineered hydrogen-generating solutions available for optimum integration with existing plant
infrastructure.
* Professional Maintenance and Promotion of old Chinese-made hydrogen generators
Good reference and experience in maintenance and promotion of old Chinese-made hydrogen generators.
* Safe, Unattended Operation:
- Fully automatic operation with on-board diagnostics
- Minimal onboard gases and no sparking components
- Redundancy control system design
- Remote monitoring and operation option


Technical Detail

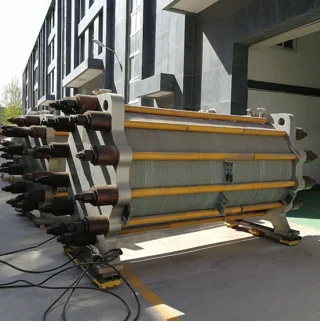

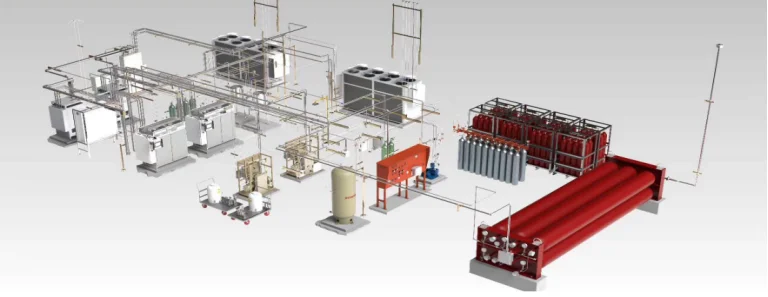

Skidded-type Hydrogen generation system by water electrolysis:


HGA
HGB
HGC
HGD
HGE
HGF
HGG
Pressure
3.2MPa
1.6 MPa
H2 production(m3/h)
5
10
20
60
100
200
500
O2 Production(m3/h)
2.5
5
10
30
50
100
250
Rated Current(A)
500
920
1670
2480
4600
6600
6600
Rated Voltage(V)
50
52
56
114
102
142
280
KOH Solution Flow(m3/h)
0.4
0.6
1
3
5
8
14
Feedwater Consumption(Kg/h)
5
10
20
60
100
200
500
Cooling Water Consumption(t/h)
1
2
4
12
16
28
52
Dilute KOH Consumption(Kg)
30
60
180
230
460
1000
2200
Concentrated KOH Consumption(Kg)
60
120
400
500
1000
2200
4800
Transformer Capacity(KVA)
45
80
200
500
800
1600
4000




Company Profile






Beijing SinoHy Energy Co., Ltd, (SinoHy) is a professional company for the operating, researching, manufacture, sale and supply of gas generation and testing system. We have the capacity and professional technology to serve our client on time and have accumulated plenty of outstanding achievements in electric power industry area. There are over 50 staffs in our company, and over 65% of them are professional and technical engineers.

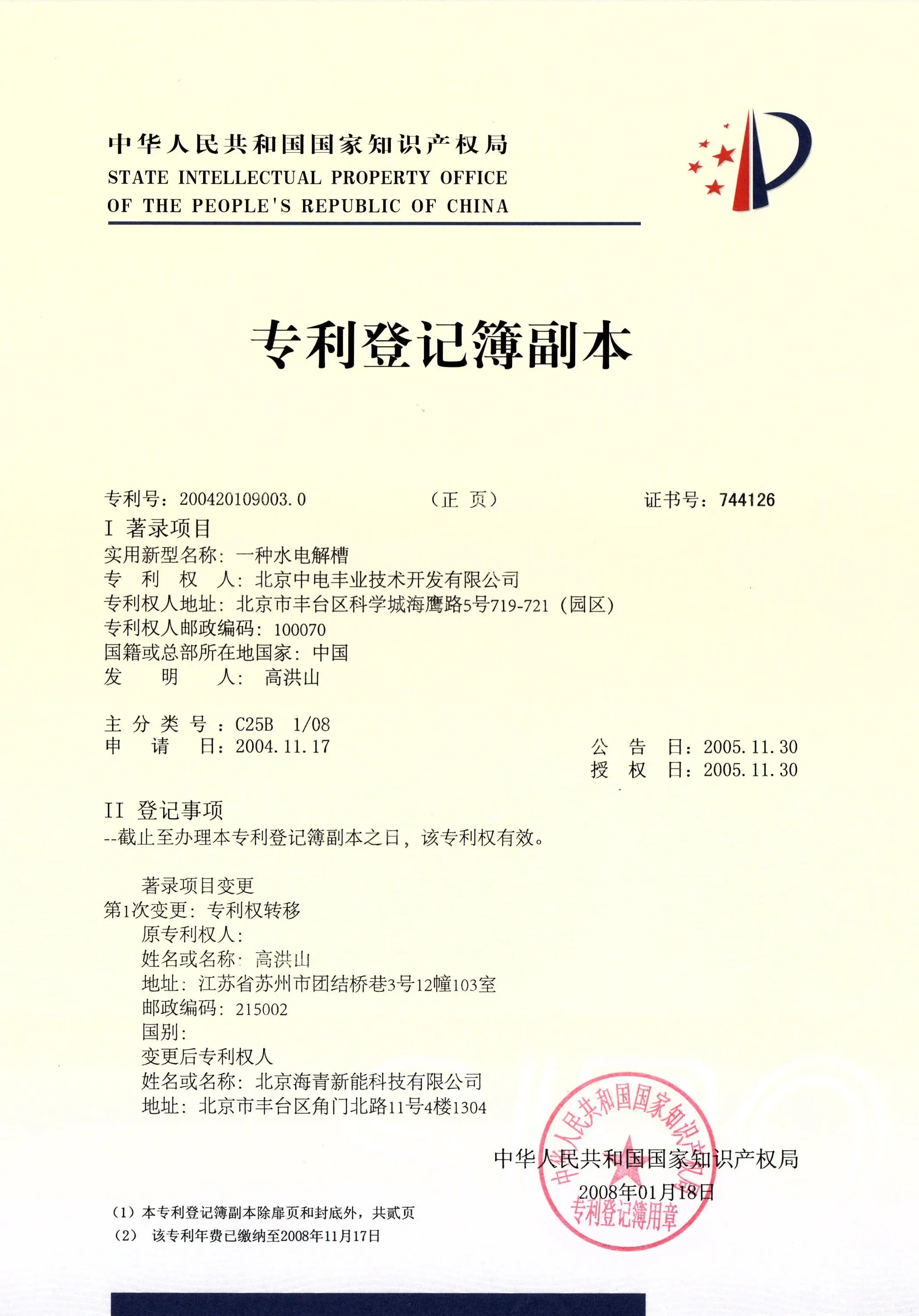

Our company is engaged itself into researching, manufacture, sale and after- service of hydrogen generation system, and have abundant experience in design, installation, regulating and maintenance on Hydrogen generation system and hydrogen supply system. As TESI' agency in China, it has dozens of outstanding achievements .We have intellectual property rights of hydrogen electrolysis equipment not only on the current technology of domestic innovation, applied for two patents; particular advantage of our United States Teledyne's conditions for cooperation, absorbing the advantages of its PLC control, so that our hydrogen production unit run more secure, higher degree of automation. At present, our equipment has been widely applied to the State Power, Huaneng and China Power Investment and Guangdong Electric Power, the country can be other local power companies.With experience of more than 10 years on professional training and commissioning, our engineers have enough on-site experience in installation, regulation and training. This ensures the users to get on-time, circumspect, and economical after-service.Our altimate tenet is to supply hydrogen generators with the best safety and service. All the design, technology, manufacture, materials, quality certificate and safety precautions of the hydrogen generator we supplied are all in accordance with international and European standards. It has the following features: high reliability, high integration, high safety standard, automatic, unmanned watch, low cost and maintenance-free. It has accepted and praised by the customers in many countries.

Why choose us?
Rich Experience
13+ years full hydrogen industry working experience

400 sets Annual Yield Capacity
Generation base of 10,000 m2
Annual yield capacity: 400 sets.
Annual output: 80MW

Professional Team
Core Team members are also the co-founders of the company
Working closely since 2007

Global View
International Clients
International Partners
International Consultants

After-sales service online and offline
Online diagnostic
Overseas on-site services
Depend on client's demands




Our service
Pre-Sales Service
* Inquiry and consulting support.
* Technical proposal support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.


Packing & Delivery

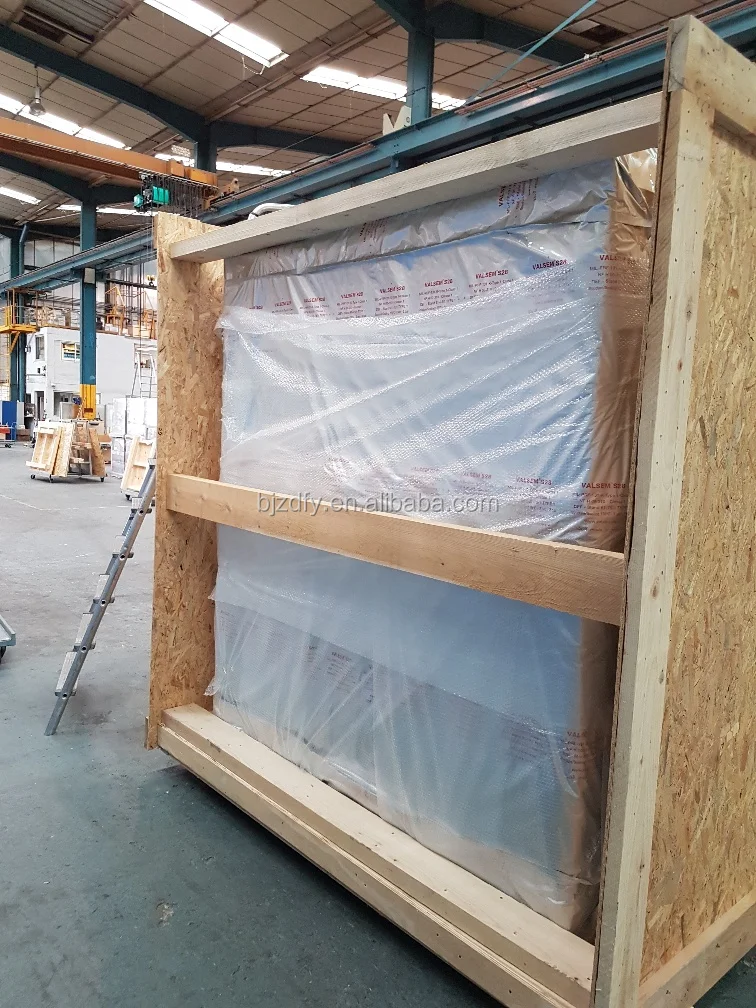

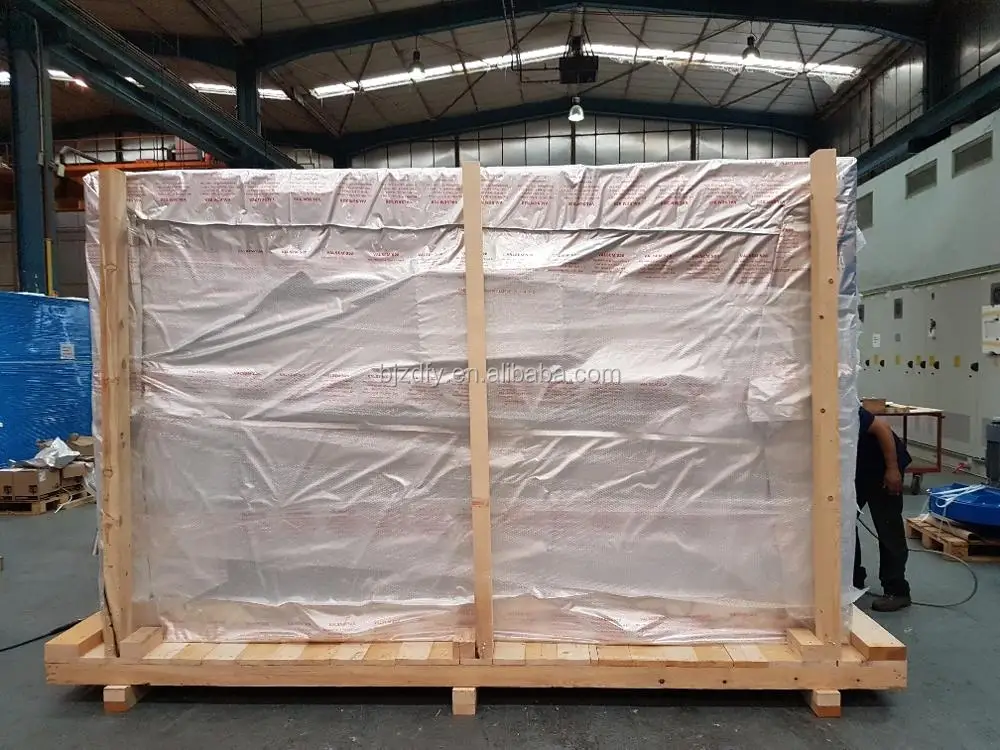

Wooden Case package, sea-worthy packing.
Solar power hydrogen water/gas generator hho kit with low price for sale

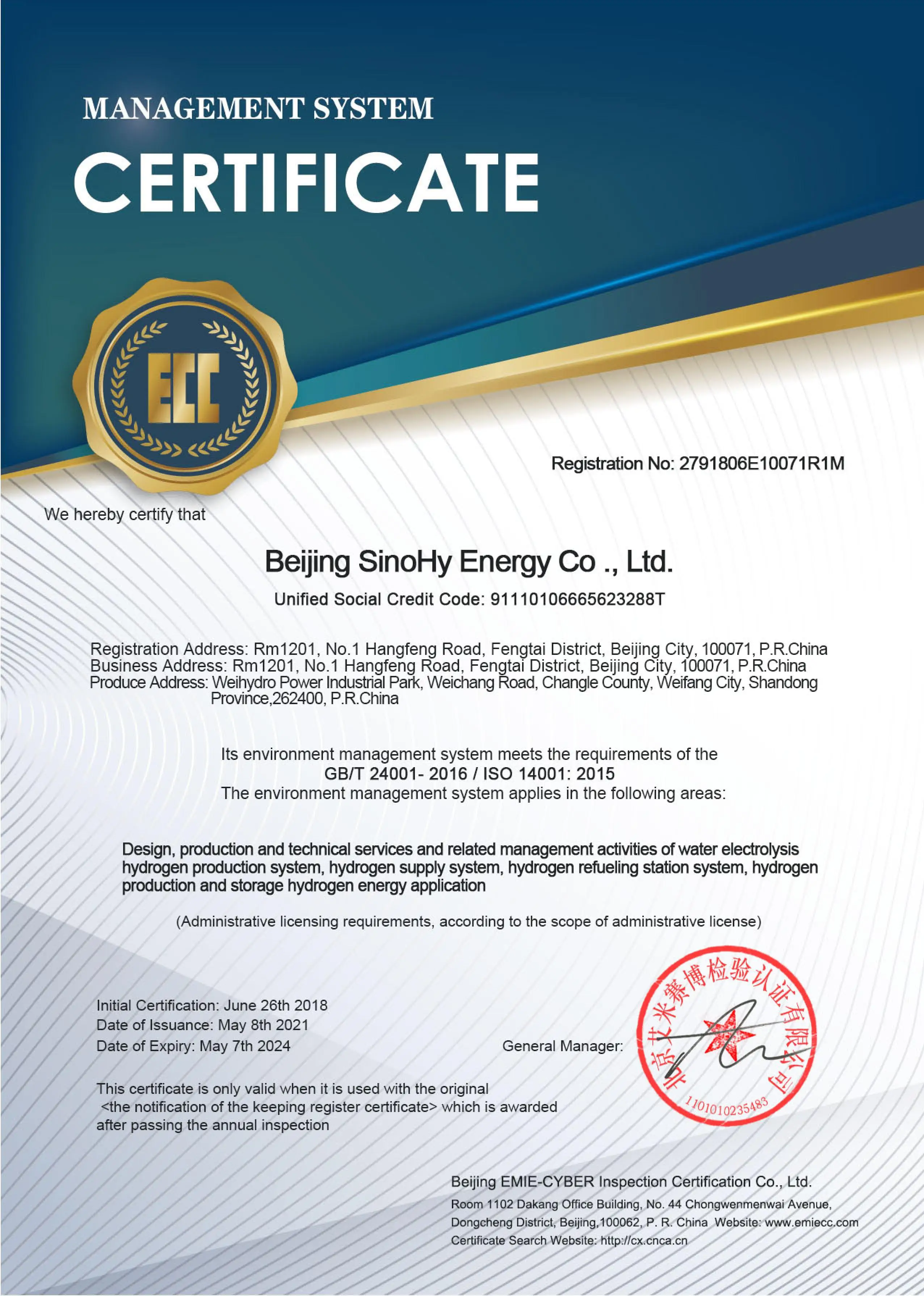

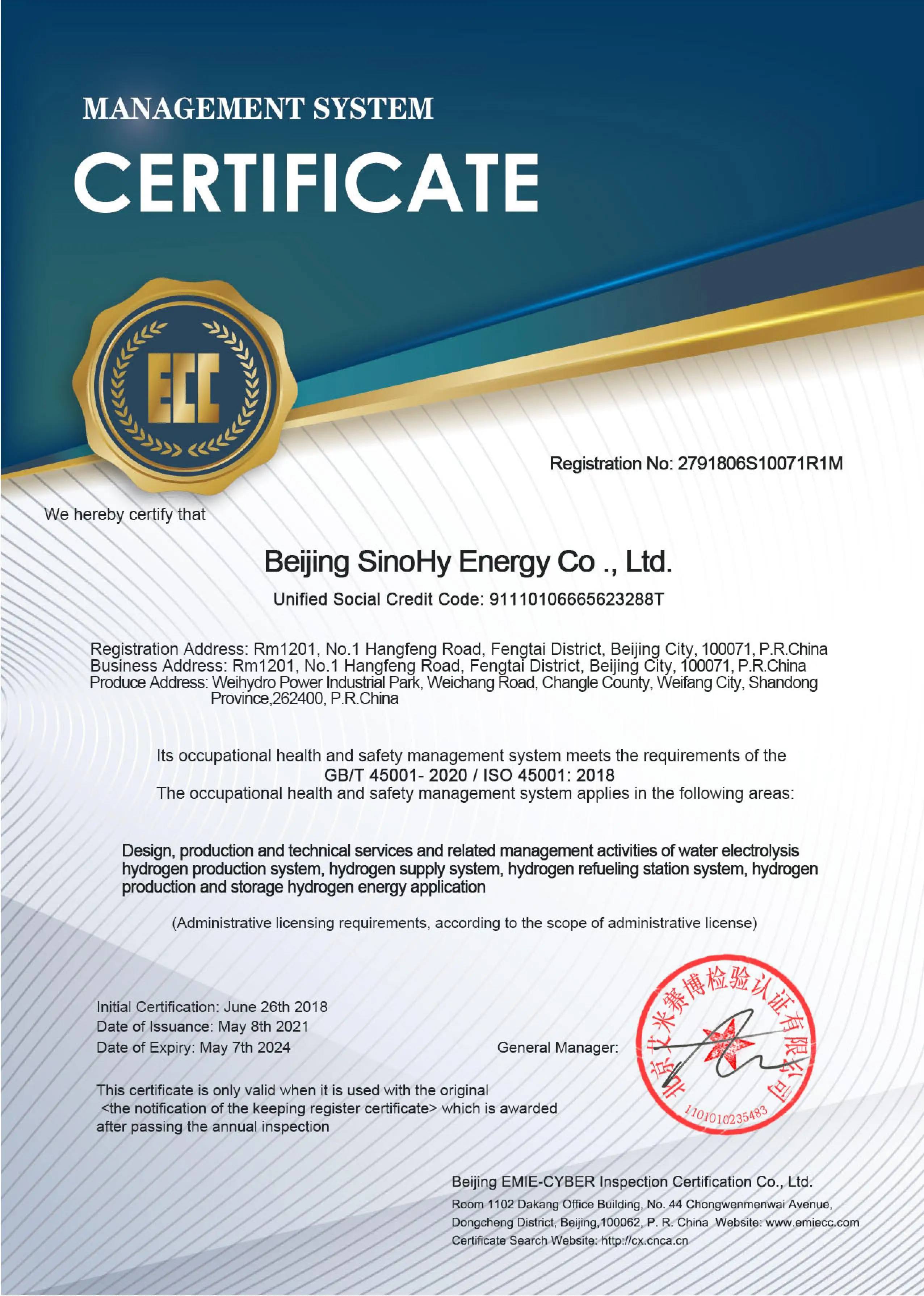

Certifications
















FAQ


1. who are we?
We are based in Beijing, China, start from 2007,sell to Domestic Market(50.00%),Oceania(10.00%),Southeast Asia(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Western Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Alkaline Water electrolysis hydrogen generator,PEM pure Water electrolysis hydrogen generator,electrolyzer/Electrolyser,Renewable energy water electrolysis hydrogen production energy storage system,Hydrogen Fuel Cell Vehicle On-Site Hydrogen Production and refueling Station Equipment

4. why should you buy from us not from other suppliers?
Our business covers the whole world
10+ years of design and manufacturing experience
200+ references all over the world
Online diagnostic and Overseas on-site services available
10000 m2 production base
30 core technology intellectual property right

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese


Wooden Case package, sea-worthy packing.
HRS-High Pressure Hydrogen Fuel Station for Fuel Cell Car Hydrogen Refueling Station


1. who are we?
We are based in Beijing, China, start from 2007,sell to Domestic Market(50.00%),Oceania(10.00%),Southeast Asia(10.00%),Southern Europe(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),South America(5.00%),Western Europe(5.00%),North America(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Alkaline Water electrolysis hydrogen generator,PEM pure Water electrolysis hydrogen generator,electrolyzer/Electrolyser,Renewable energy water electrolysis hydrogen production energy storage system,Hydrogen Fuel Cell Vehicle On-Site Hydrogen Production and refueling Station Equipment

4. why should you buy from us not from other suppliers?
Our business covers the whole world
10+ years of design and manufacturing experience
200+ references all over the world
Online diagnostic and Overseas on-site services available
10000 m2 production base
30 core technology intellectual property right

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DDP,DDU;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
