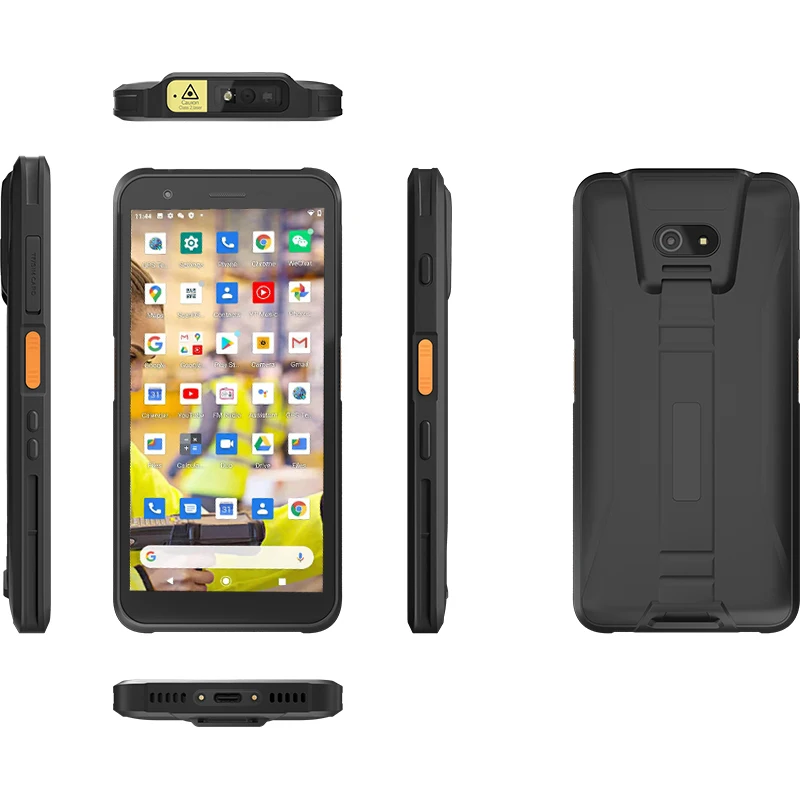

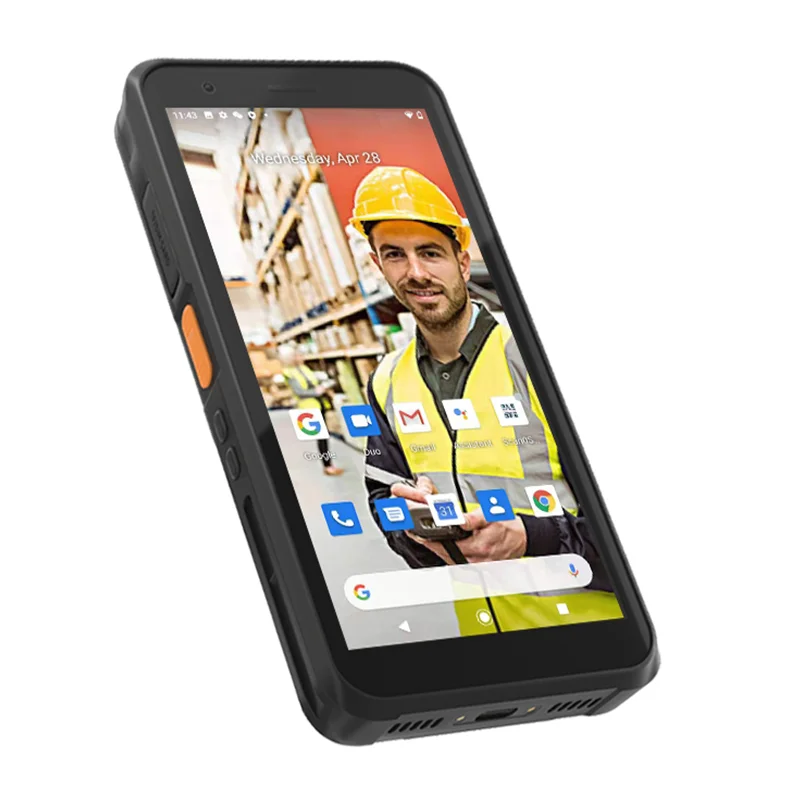

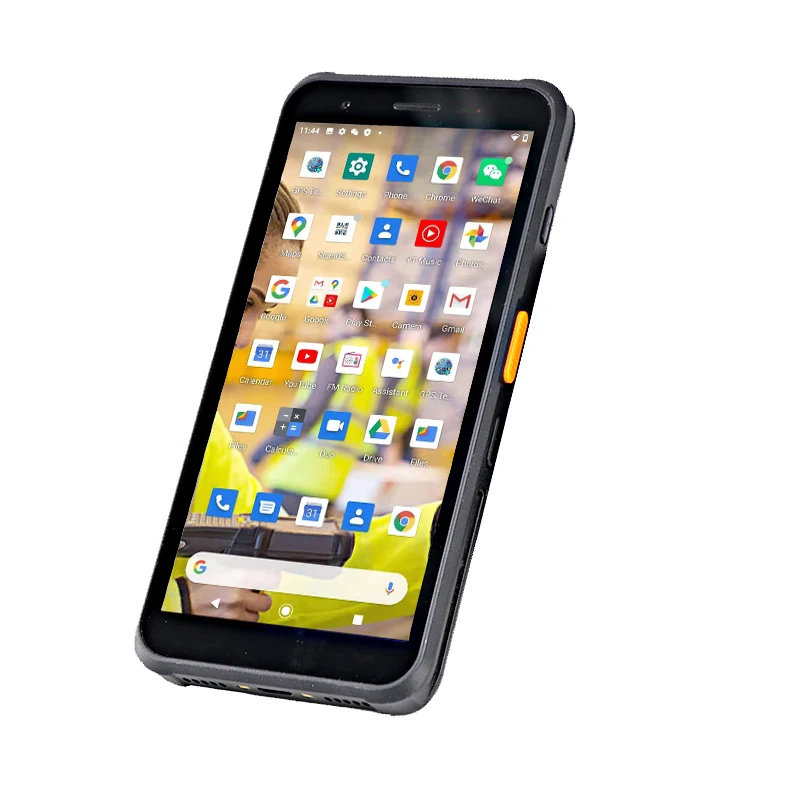

RUGGED PDA Android 10 Rugged 1D 2D Handheld Barcode Scanner Data Collector WiFi 4G Barcode Reader Mobile phoneTerminal
- Category: >>>
- Supplier: Shenzhen Rugline Technology Co. Ltd.
Share on (1600524461880):
Product Overview
Description
Dear Customer, Please note:
The price shown on this page includes 1D/2D barcode scanner. Thanks.

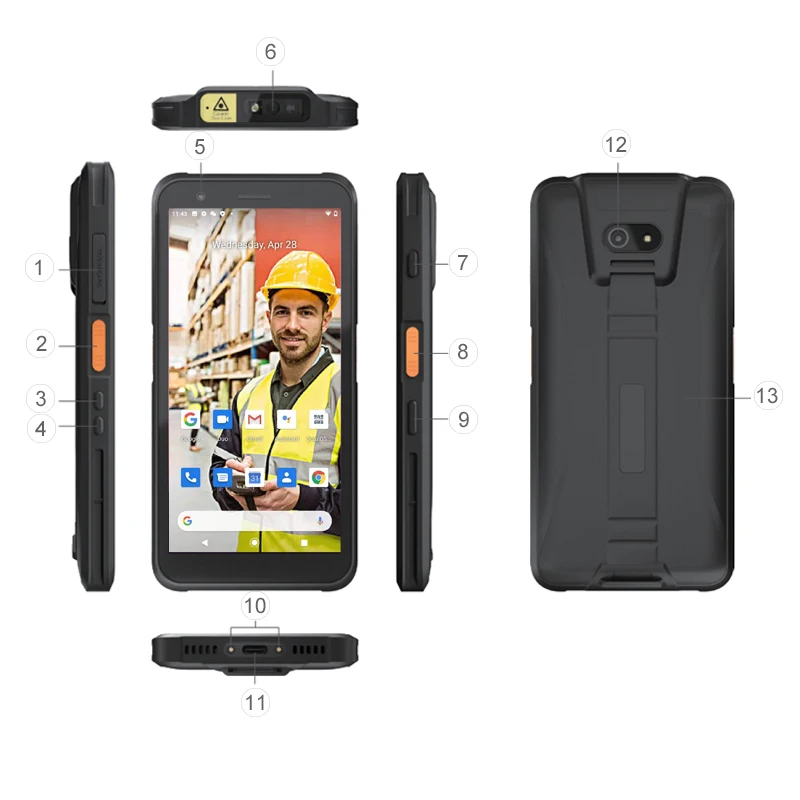

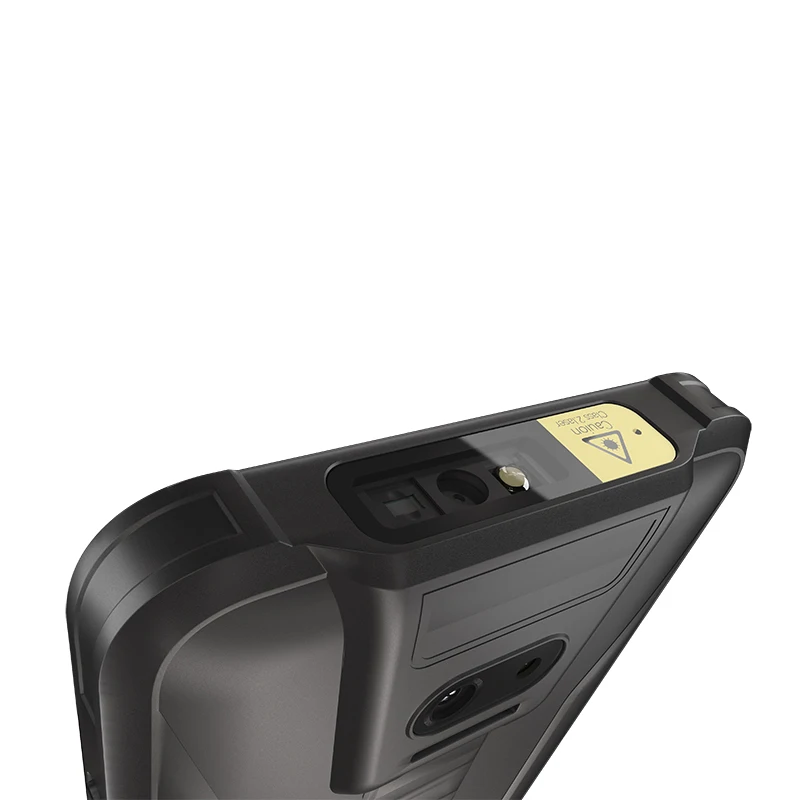

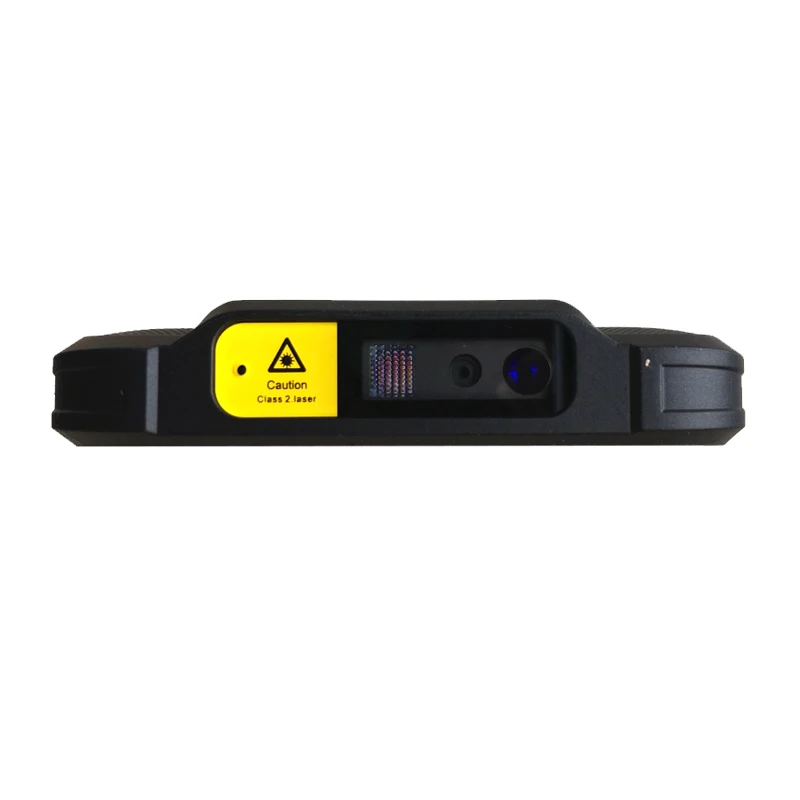

Appearance
1.TF/SIM card slot | 2.Scanning buttom | 3.Volume buttom+ | 4.Volume button- |

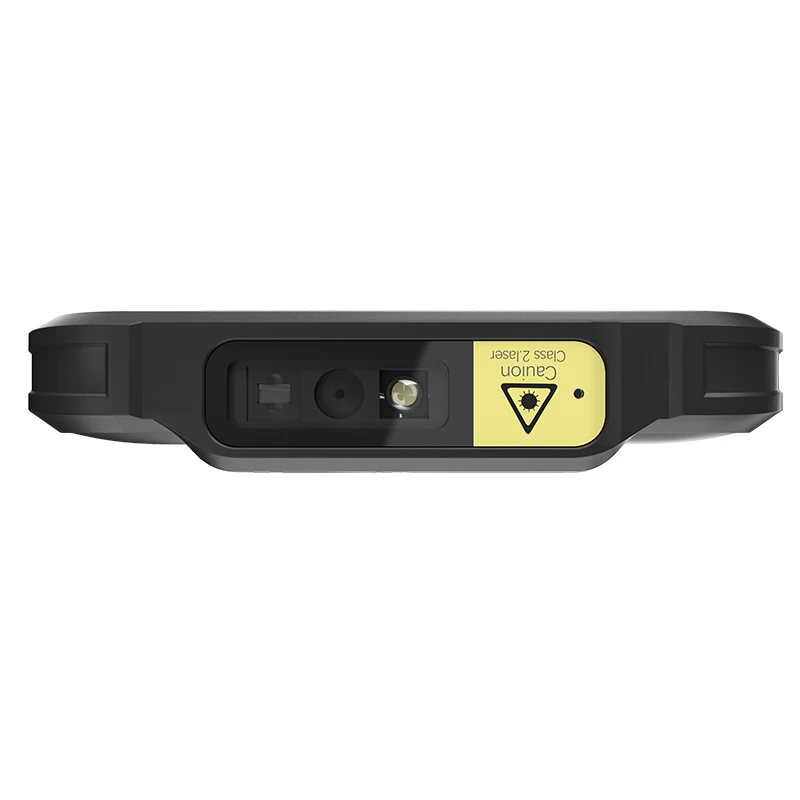

5.Front camera | 6.1D/2D barcode scanner | 7.Power on/off buttom | 8.Scanning button |

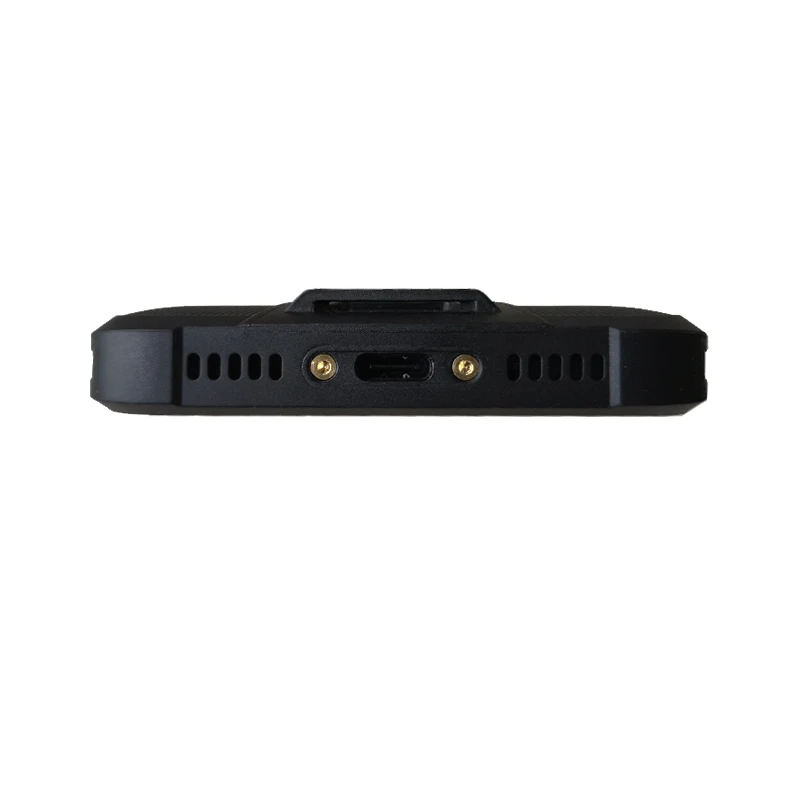

9.Custom key | 10.Pogo pin interface | 11.Type-C Port | 12.Rear Camera |
13.Battery |
Products Description

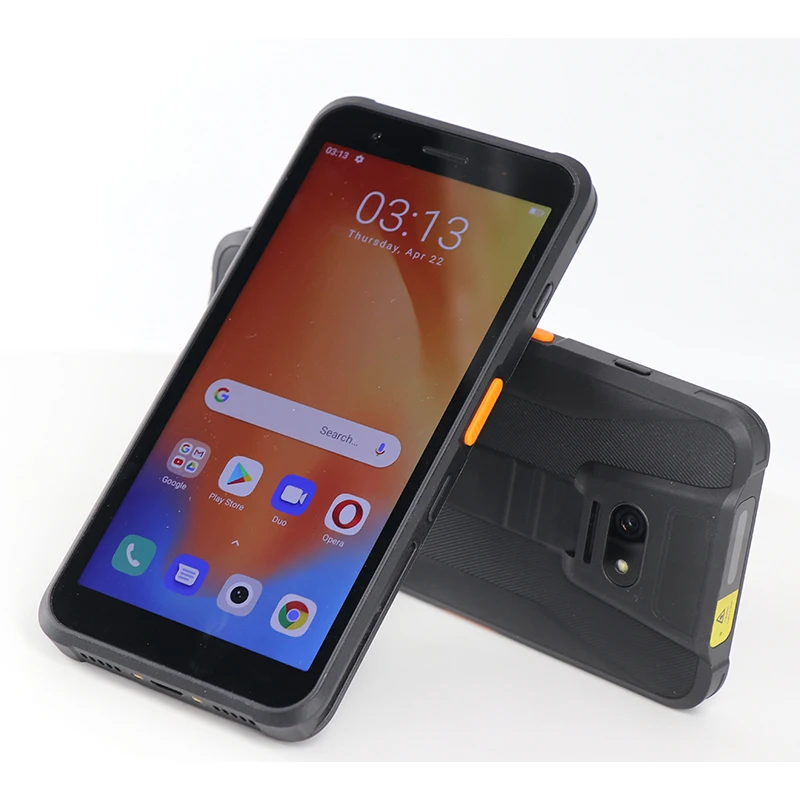

Product Show
Product Paramenters
X5P Parameters | ||
Dimension | 159.7 x 80 x 16.3mm | |
Weight | device unit 275g | |
Device Color | black | |
LCD | 5.7 inch IPS 18:9,720*1440,430 Nit | |
Touch Panel | 5 points Capacitive,G+F | |
Camera | Front 13.0MP Rear 16.0MP | |
I/O | Type C x 1, TF Card x 1 max: 128G, SIM Card x 1 (Two out of three card holder) | |
Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/2.5A | |
GPS | support GPS, GLONASS, Beidou, Galileo | |
Performance parameter | ||
CPU | MTK OCTA Core | |
OS | Android 10/GMS | |
RAM | 64GB | |
ROM | 4GB LPDDR4 | |
Battery | ||
Capacity | 3.8V/5000mAh | |
Type | Built-in Lithium-ion polymer battery | |
Endurance | 7hrs (Default 50% volumn,Default 200 lumens brightness,Play 1080P video) | |
Network connections | ||
WIFI | 2.4G+5G dual frequency, WIFI 802.11(a/b/g/n/ac) | |
Blue-tooth | BT5.0 (BLE) | |
3G/4G (optional) | GSM 2/3/5/8 WCDMA 1/2/4/5/8 TDD B38/B40/B41 FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/ B19/B20/B28A/B28B/B18/B25/B26/B66 | |
Reliability | ||
Operate Temperature | -10 °C ~ 50 °C | |
Store Temperature | -20 °C ~ 60 °C | |
Humidity | IP67 | |
IP Grade | 95% Non-Condensing | |
Data Collection | ||
NFC | Support ST21NFCDXBGARA7 | |
2D | Support Honeywell6703, Optional SE4710 | |
Certifications
Packing and Shipping
Standard Packaging
International Express
FAQ
Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID (LF/HF/UHF),Fingerprint/ Bar code scanner.
Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union,Paypal,Alipay,Trade Assurance and so on.
Q: What's Your Products Warranty?
A: We Offer 12 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 24/36 Months, and the price for the warranty extension is 10% up.
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send back to us to fix it.
Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 11 years experiences, support customize project and preload software.
