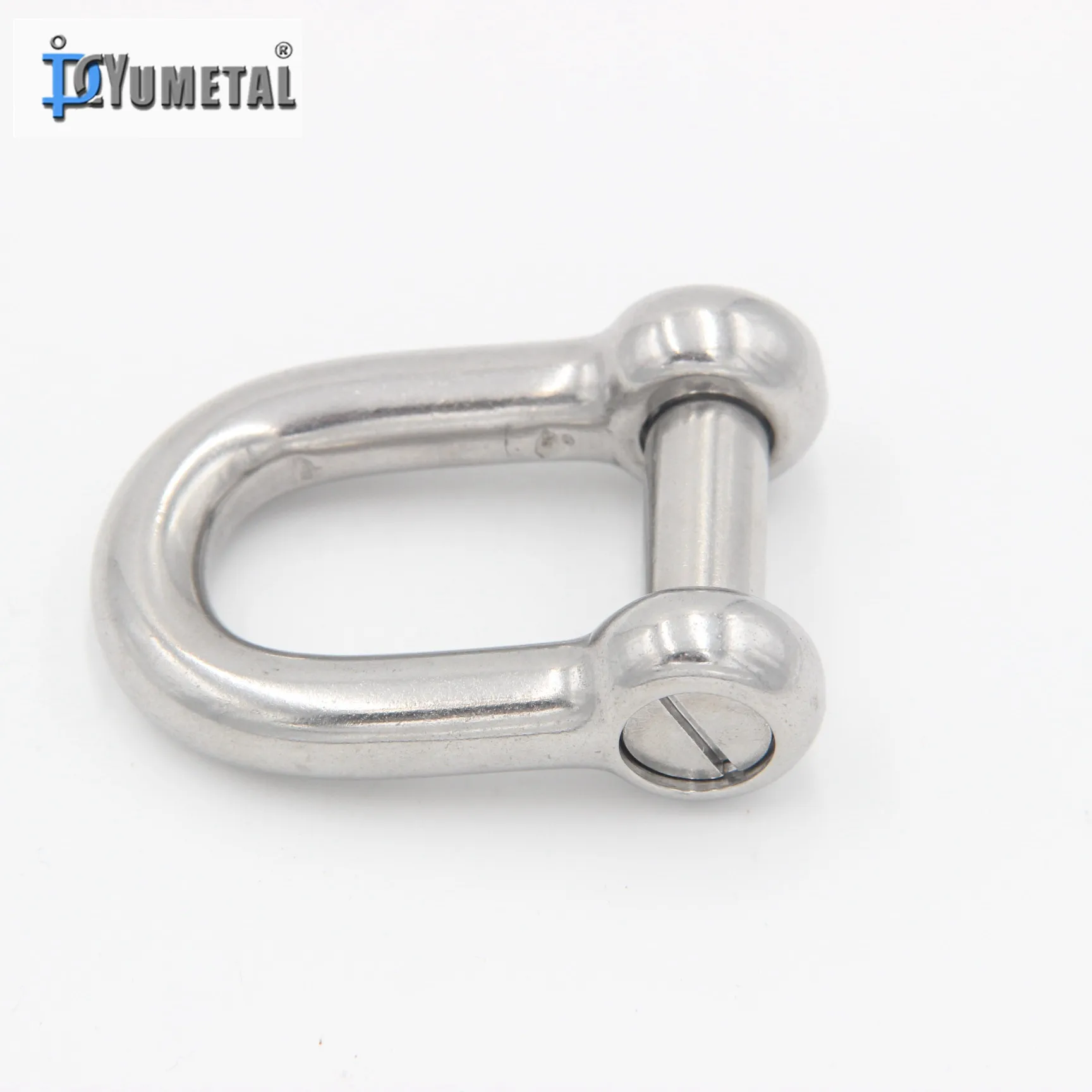

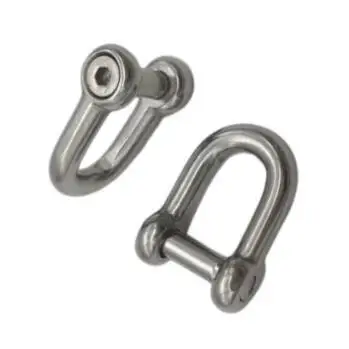

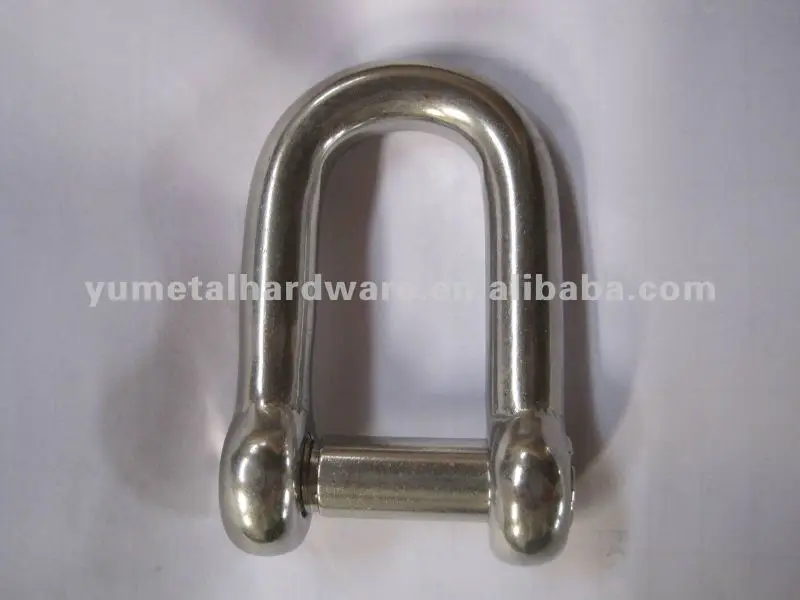

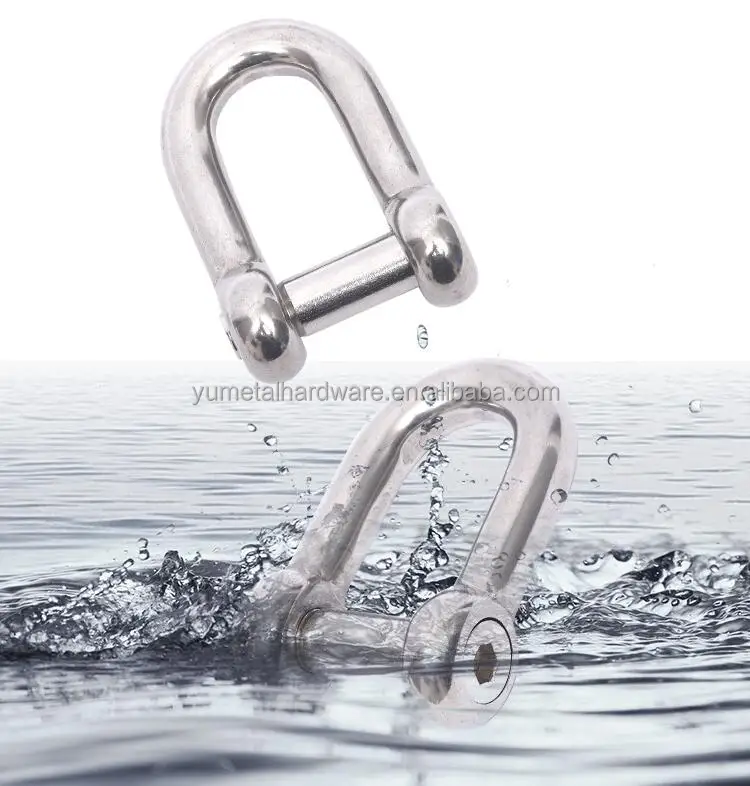

L Hexagon Socket Head Pin Dee Shackle stainless steel 316 marine rigging hardware
- Category: >>>
- Supplier: Qingdao Yumetal Hardware Rigging Co. Ltd.
Share on (1600524494453):
Product Overview
Description
AISI316 & AISI304 Stainless Steel Hexagon Socket Head Pin Dee Shackles

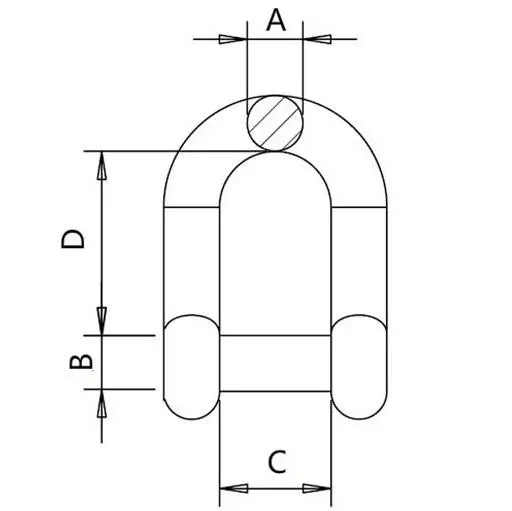

| Art No. | SIZE | A | B | C | D | WLL | Weight |
| mm | mm | mm | mm | mm | tons | kg/pc | |
| S.SH22-04 | 4 | 4 | 4 | 8 | 16 | 0.09 | 0.008 |
| S.SH22-05 | 5 | 5 | 5 | 10 | 20 | 0.10 | 0.014 |
| S.SH22-06 | 6 | 6 | 6 | 12 | 24 | 0.15 | 0.027 |
| S.SH22-08 | 8 | 8 | 8 | 16 | 32 | 0.20 | 0.064 |
| S.SH22-10 | 10 | 10 | 10 | 20 | 40 | 0.50 | 0.120 |
| S.SH22-12 | 12 | 12 | 12 | 24 | 48 | 0.60 | 0.210 |
| S.SH22-14 | 14 | 14 | 14 | 28 | 56 | 0.90 | 0.350 |
| S.SH22-16 | 16 | 16 | 16 | 32 | 64 | 1.10 | 0.500 |
| S.SH22-18 | 18 | 18 | 18 | 36 | 72 | 1.40 | 0.700 |
| S.SH22-20 | 20/19 | 20 | 20 | 40 | 80 | 1.60 | 0.930 |
| S.SH22-22 | 22 | 22 | 22 | 44 | 88 | 2.50 | 1.400 |
| S.SH22-25 | 25/24 | 25 | 25 | 50 | 100 | 3.00 | 2.080 |
| S.SH22-28 | 28 | 28 | 28 | 56 | 112 | 3.50 | 2.500 |
| S.SH22-32 | 32 | 32 | 32 | 64 | 128 | 4.50 | 3.750 |
