Truck paint booth for sale

Category: Spray Booths >>>
Supplier: Guangzhou,Chnhc,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Product Description

Specification of truck paint booth for sale

Specification 15B(European design)
Device Name	Configuration instructions
Inside Size	14000 x 5000 x6000 mm (L x W x H)
Outside Size	14160 x 6620 x 6660 mm (L x W x H)
Foundation	No metal foundation, side draft
Wallboard	Adopt high quality double construction fireproof insulation EPS panel, thickness: 75mm
Roof Panel	Roof panels adopt galvanized steel plate bending forming
Entrance door	1 set, size: 4000x5400 mm(W x H), tempering glass observation window
Working door	2set,,700x2000mm (W x H),hand-made, tempering glass observation window
Ceiling Lighting	20Units, each4×36W, Total 2880W , adopt Germany OSRAM Lamp
Side Lighting	10Units, each2×36W, Total 720W, adopt Germany OSRAM Lamp
Brightness	≥700 LUX
Pre-filters	Grade G2 plate type fiber glass filter
Ceiling Filters	EU5 grade high efficient filter
Bottom filter	Fiberglass paint-stop filter
Exhaust filter	Fiberglass paint-stop filter and active carbon
Inlet fan (Direct drive motor)	Adopt big impeller turbo fan 2X 7.5KW ,380V,50HZ
Outlet fan (Direct drive motor)	Adopt big impeller turbo fan 2X 7.5KW ,380V,50HZ
Painting and baking exchange system	Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Total fan Capacity	50,000m³/h
Air Flow Speed in cabin	0.20-0.35m/s in loaded booth
Exhaust pipe	8.5 meter, flanged joint
Heating Exchanger	Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Burner Model	Adopt Italy RIELLO diesel burner G20X2(2X180,000kcal/h)
Heating time	5-8minutes (from20 to 60ºC) under baking status, max baking temperature is 80°C
Control system	Standard control system
Function	Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication
Total power	35KW

121 - .jpg 122 - .jpg 123 - .jpg 124 - .jpg

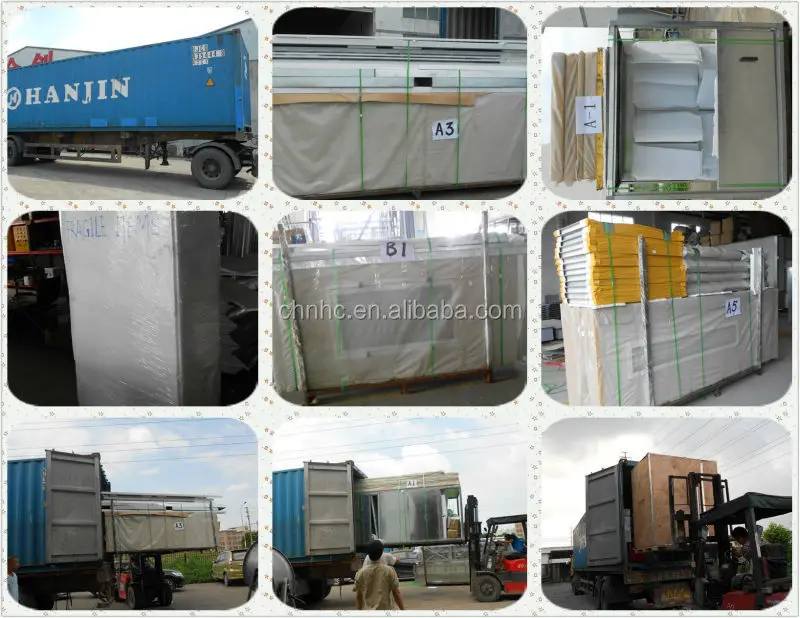

Packaging & Shipping

Package and Shipping

Package: Professional export package-use the iron bracket package

Loading situations: a 40HQ container

Our Services

Our Services

A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.

B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before

shipment.
C: Delivery time: To effect shipment within 15 days after the receipt of deposit.

D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the

delivery cost for DHL or TNT Carrier.

E:We are a member of Trade Assurance Service.

Company Information

Company Information

HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus spray booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.

Our Factory

.jpg

Exhibition

CE and ISO approved

FAQ

Q: Are you a factory or a trading company?

A: We are a factory and all machines are produced at our own factory.

Q:Can I order special color which I like?

A: Yes, we can also produce machines with special color according to client's request.

Q: Can I order spray booth in any special size?

A: Yes,you can.

The size is customized.

Q: I don't know how to assemble your spray booth

A: The complex installation is already finished before delivery, what you need to

do is finishing the simple procedures according to the installation instructions

Q: When the product can be delivered?

A: Commonly the lead time will be within 15 days after receiving 30% deposit by T/T.

Q: What is "Trade Assurance"?

A: Trade Assurance is a new service provided by Alibaba, which can provides buyers with a number of trade safeguards, protect buyers' payments, and to ensure suppliers fufill their obligations regarding order delivery time and product quality.
