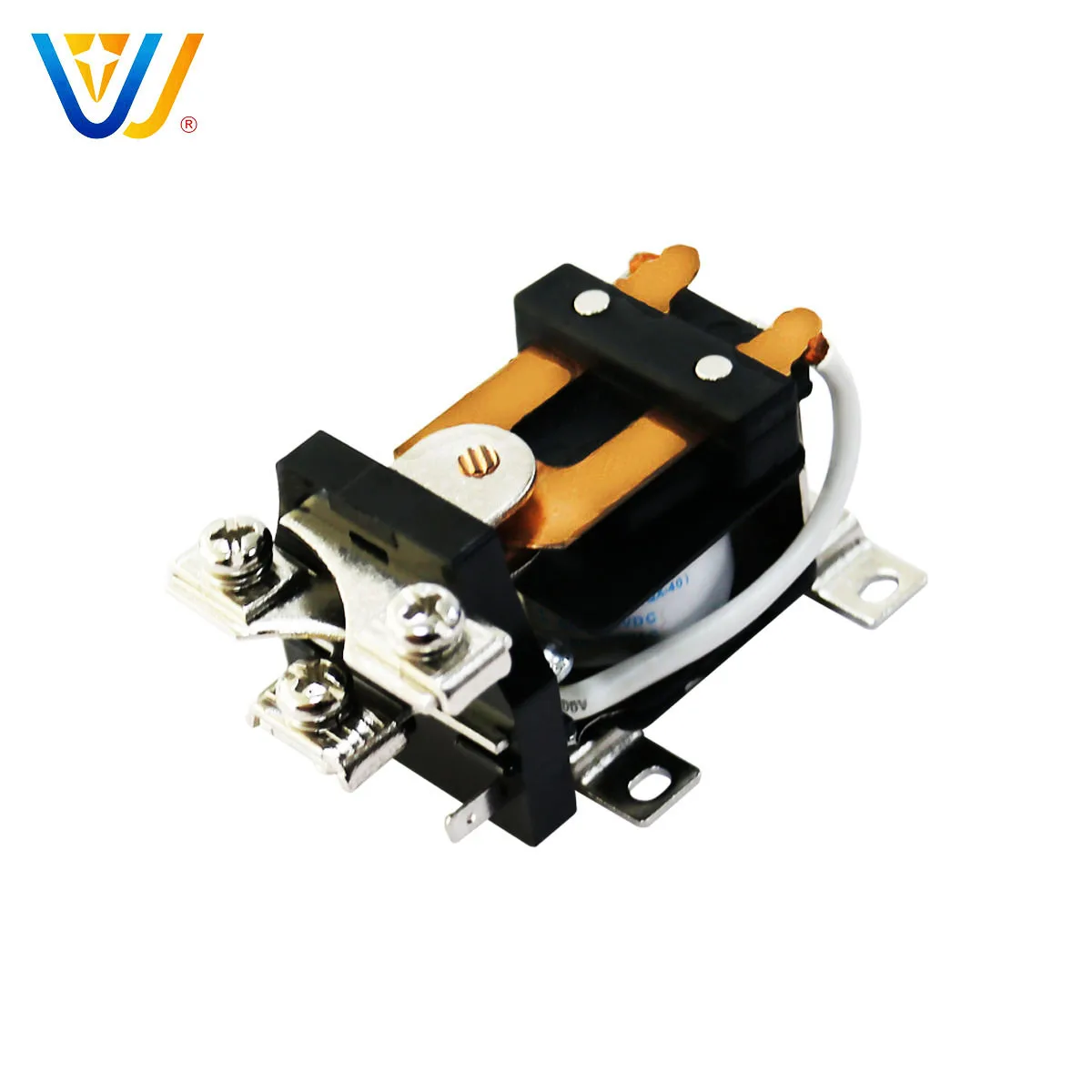

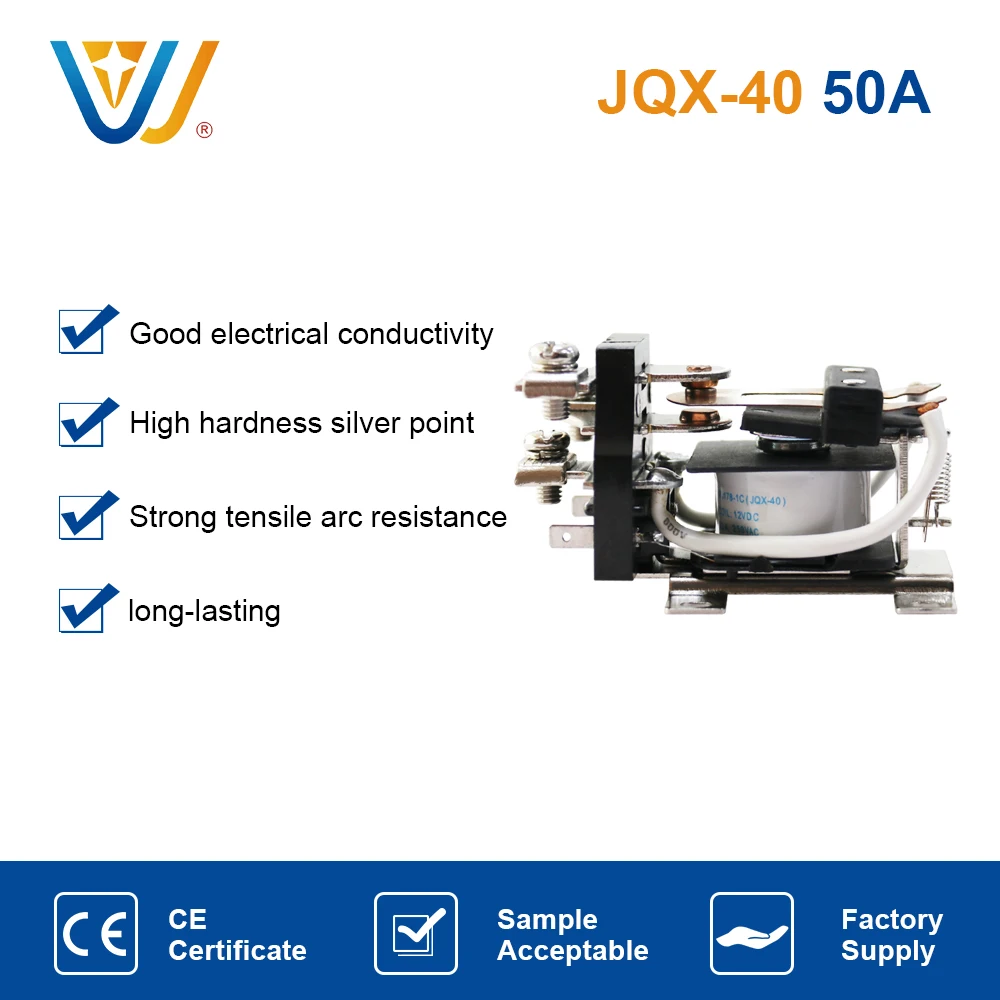

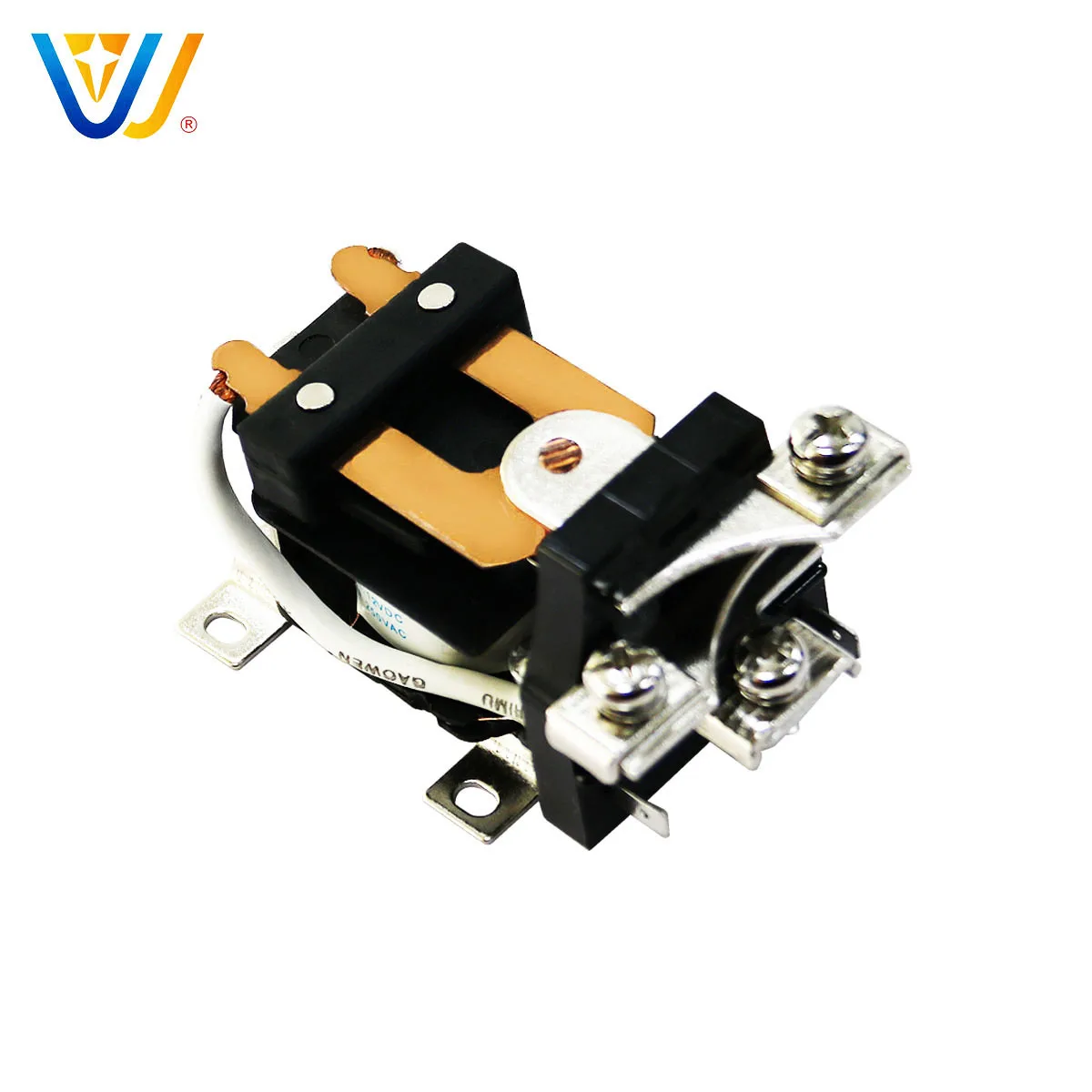

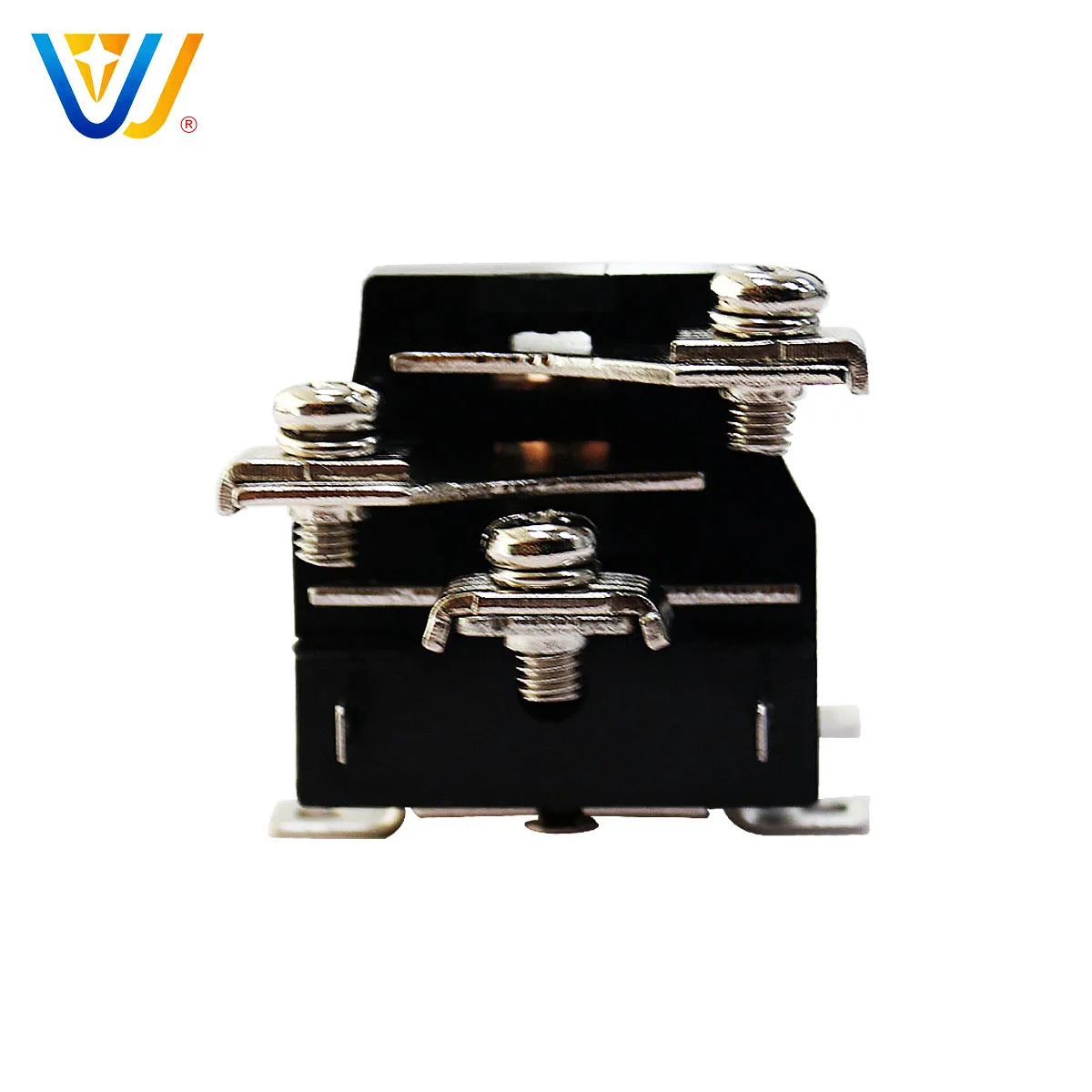

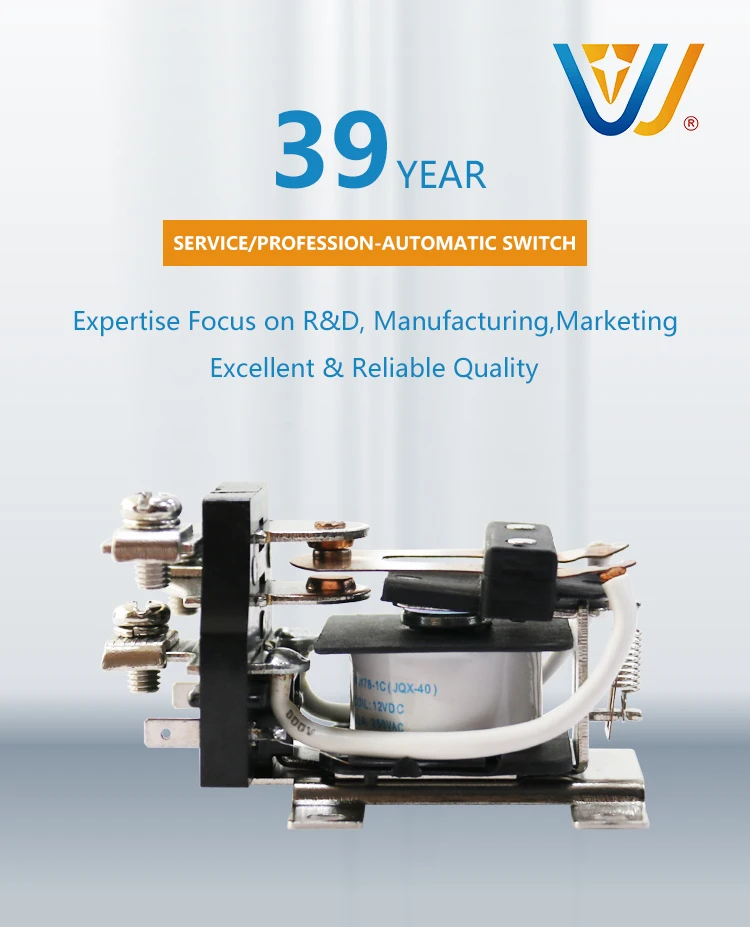

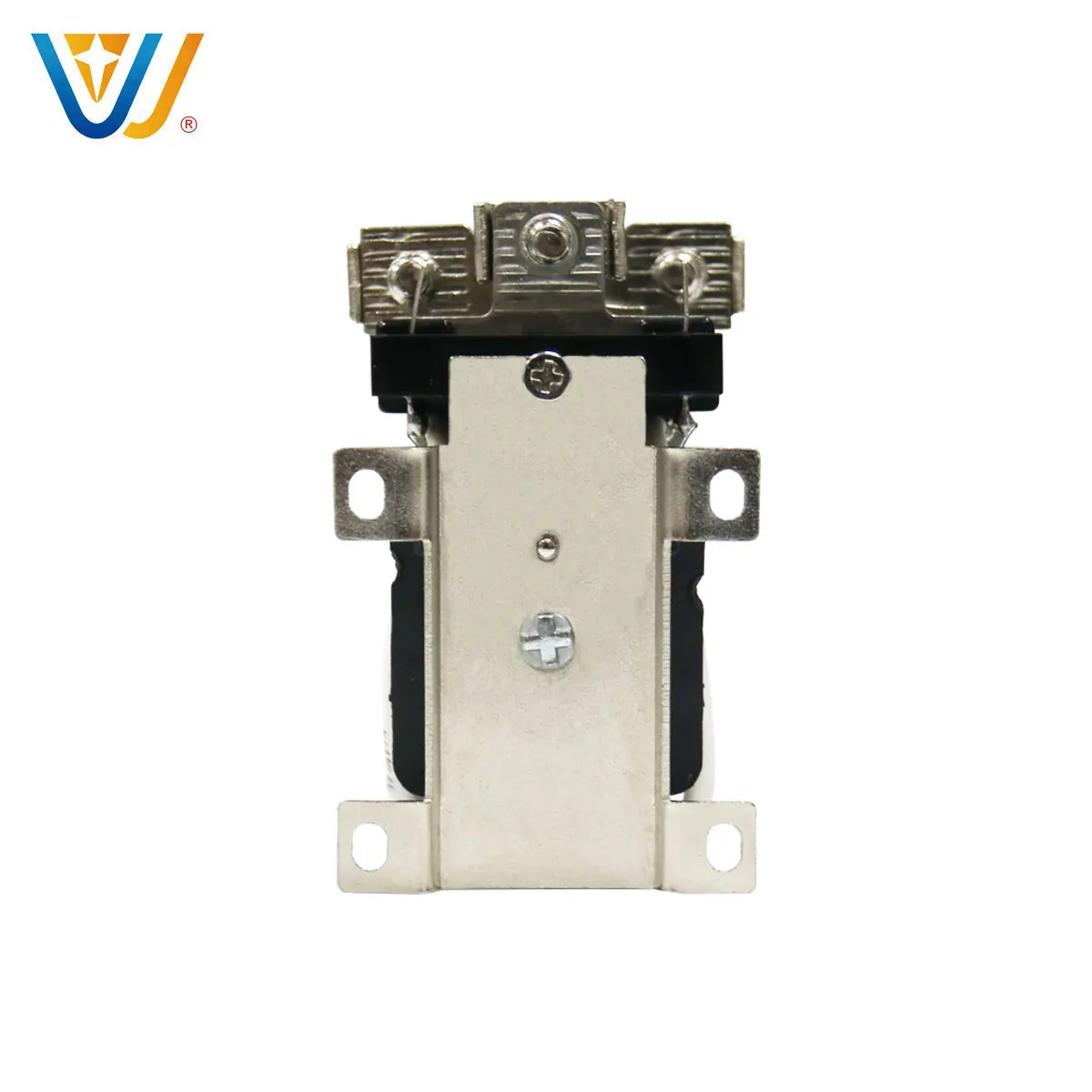

Environmental friendly relais 50A Miniature 24V jqx 40 12VDC 24volt 250vac 220v spst spdt Electromagnetic Relay
- Category: >>>
- Supplier: Ivy Metering Co. Ltd.
Share on (1600524497308):
Product Overview
Description
Main Parameters | ||||
Contact Type | 1A、1B、1C | |||
Contact Material | Silver Alloy | |||
Contact Resistance | Max.50mΩ | |||
Rated Load | 50A 250VAC | |||
50A 28VDC | ||||
Max. Switching Voltage | 28VDC/250VAC | |||
Max. Switching Current | 50A | |||
Max. Switching Power | 1400W/12500VA | |||
Electrical Life | 2×104 | |||
Mechanical Life | 1×107 | |||
Coil Power Consumption | （DC） | 3.0W | ||
（AC） | 5.5VA | |||
Coil Voltage | （DC） | 6～220VDC | ||
（AC） | 6～220VAC | |||
Other Parameters | ||||
Movement Time | Max.25ms | |||
Release Time | Max.25ms | |||
Starting Resistance | Coil Contacts | 2000VAC ,(50/60Hz), 1 min. | ||
Open Contacts | 1500VAC ,(50/60Hz), 1 min. | |||
Insulation Resistance | Min. 1000MΩ (500 VDC) | |||
Environment Temperature | -40℃～+55℃ | |||
Operation Humidity | 45%~85% RH | |||
Shock Resistance | Functional | Min. 10G | ||
Destructive | Min. 100G | |||
Anti-vibration | Functional | 1.5mm（DA）10~55 Hz | ||
Destructive | 1.5mm（DA）10~55 Hz | |||
Weight | ≈150g | |||

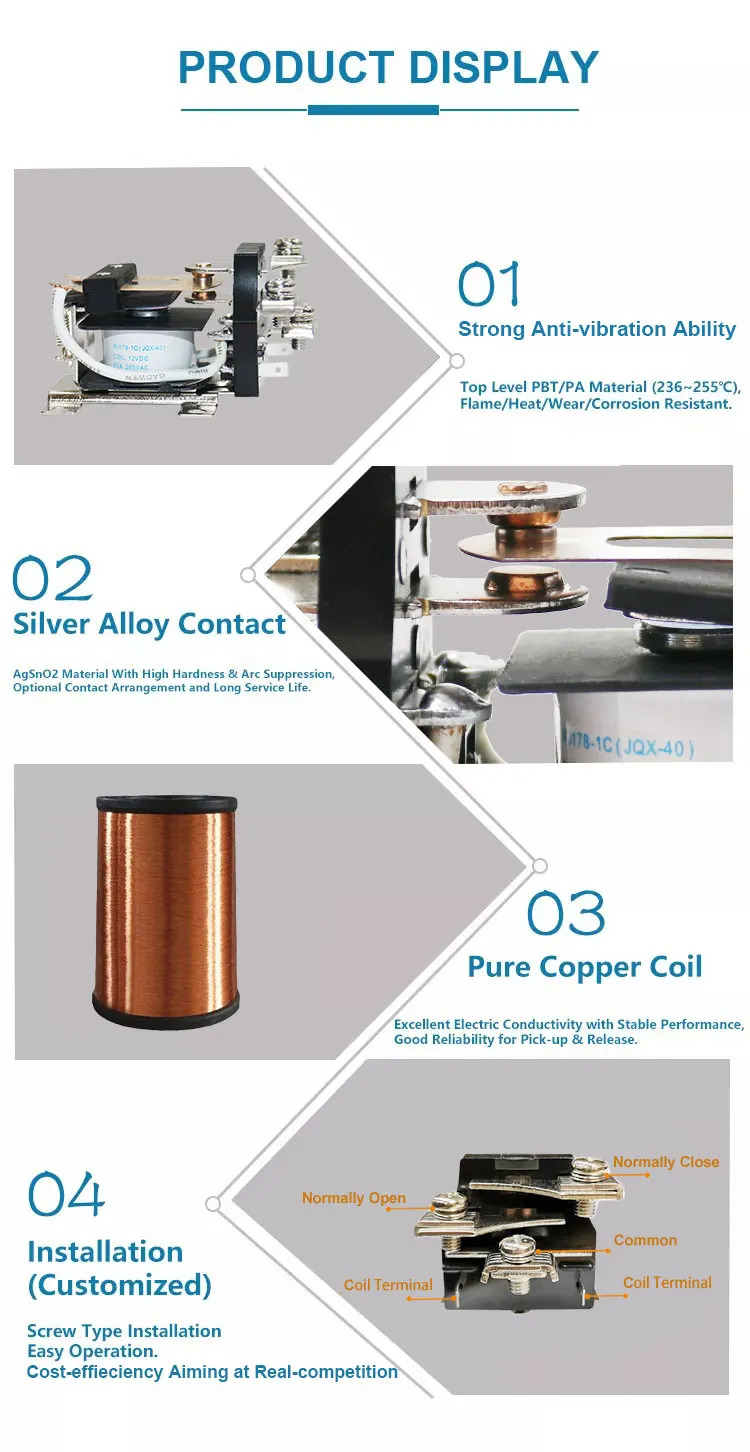

Wan Jia Star focuses on the research and development and manufacture of high-quality high-power electromagnetic relays. With contact anti-arc material and single-contact structure, it has an excellent performance in large-capacity load switching of power supply systems, while maintaining excellent performance in terms of contact volume and contact pressure. Our relay products include single group, double group, and triple group, 7A to 200A current range, NO, NC, and Transfer contacts, coil voltage 6~220VDC, 6~240VAC, and contact capacity 12VDC 24VDC 28VDC / 110VAC 220VAC 250VAC, PCB and Screw Fasten two mounting methods are available. In addition, Wan Jia Star power relays comply with various safety standards. IEC255, GB8898, UL, CE, TUV, RoHS, Reach, CQC standards, etc. It is used in electronic control equipment, household appliances, smart home, office automation, security series, commercial machinery, communication equipment, automobiles, machine tools, construction, transportation equipment, and instrumentation, and it can be used as a remote-control intermediate conversion or amplification component.
