Europe Rotterdam Stock 450 watt Solar Panel 405w All Black Mono 410Wp black from all black Solar PV module Price
- Category: >>>
- Supplier: Hefei Angxu Solar Energy Tech. Co. Ltd.
Share on (1600524501525):
Product Overview
Description

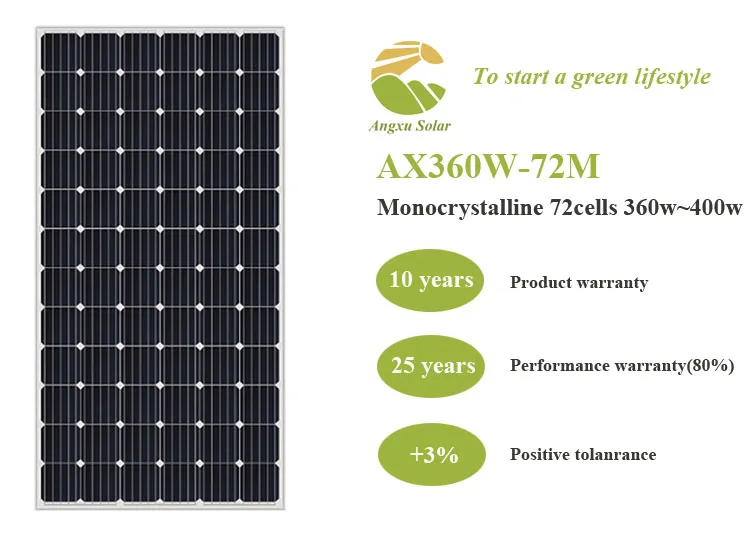

Module | AX360M-72 | AX370M-72 | AX380M-72 | AX390M-72 | AX400M-72 | ||||
Rated Maximum Power at STC(Wp) | 360 | 370 | 380 | 390 | 400 | ||||
Open Circuit Voltage(Voc/V) | 47.7 | 47.81 | 48.06 | 49.11 | 49.8 | ||||
Maximum Power Voltage(Vmp/V) | 39.0 | 39.9 | 40.5 | 41.1 | 41.7 | ||||
Short Circuit Current(Isc/A) | 9.37 | 9.56 | 9.75 | 10.12 | 10.36 | ||||
Maximum Power Current(Imp/A) | 9.24 | 9.28 | 9.39 | 9.49 | 9.60 | ||||
Module Efficiency(%) | 17.2 | 17.8 | 18.4 | 19.05 | 19.6 | ||||
Power Output Tolerance-Pmax(W) | 0~+5w | ||||||||
Temperature Coefficient of Pmax | -0.39%/℃ | -0.39%/℃ | |||||||
Temperature Coefficient of Voc | -0.29%/℃ | -0.29%/℃ | |||||||
Temperature Coefficient of Isc STC | 0.05%/℃ | 0.05%/℃ | |||||||
Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 | ||||||||
Solar Panel
Mono solar panel
Include:
36cells(170~190w)
60cells(290~330w)
72cells(340~400w)
96cells(500w)
Poly solar panel
Include:
36cells(150~190w)
60cells(260~300w)
60cells(260~300w)
72cells(340~360w)
Half cell solar panel
Include:
122cells(300~340w)
144cells(400~440w)
144cells(400~440w)
Details Images

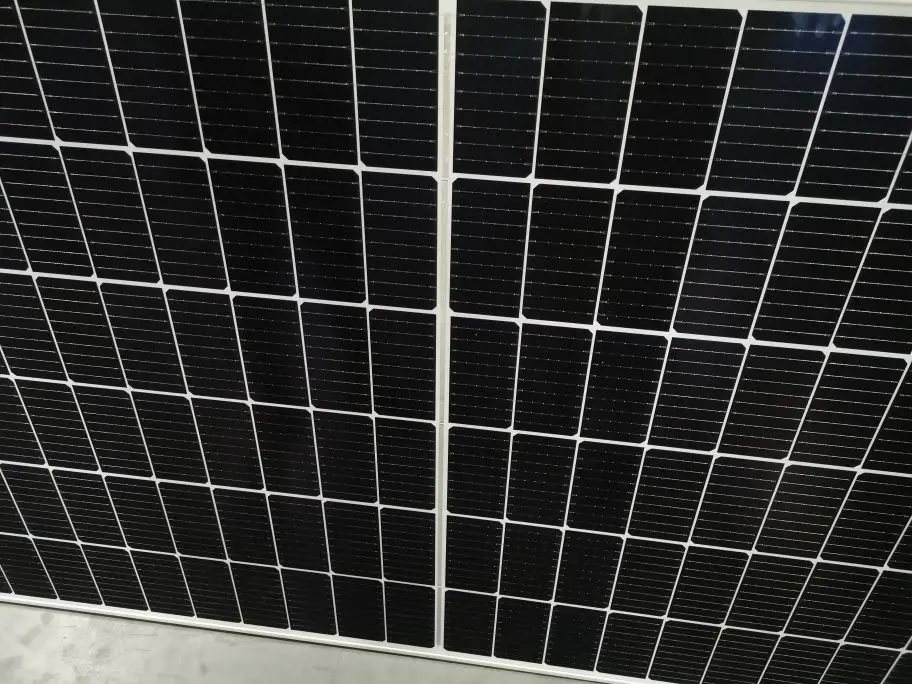

Solar cells
*Anti PID
*High Eficiency PV Cells
*Appearance Consistency
*Color soring ensure consistent appearance on each module
*High Eficiency PV Cells
*Appearance Consistency
*Color soring ensure consistent appearance on each module
*Ant-reflectite glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life 25 years
*Translucency of normal luminosiy is increased 2%
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life 25 years
*Translucency of normal luminosiy is increased 2%
Frame
*Conventional frame
*Seal-lip design glue injection
*Silver or black frames are optional
*Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
*Seal-lip design glue injection
*Silver or black frames are optional
*Serrated-clip design tensile strength
*Boost bearing capability and prolong service life
Junction box
*Heat disspation
*Long service life
*IP67 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
*Long service life
*IP67 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition
Our Company
Angxu solar Energy Tech.Co.,Ltd is a leading manufacturer of solar panel in China, established in 2010. In the last ten years,we are specialized in Chinese solar project,cooperate with Sungrow,Huawei,Growatt,Solis,Sofar,Goodwe,INVT etc. Installed so many solar project, now professional to solve all solar system.
For global environmental protection,we committed to making photovoltaic systems all over the world,from solar system for home to solar project for power station, we all can provide the most professional system design and help to install successfully.
For global environmental protection,we committed to making photovoltaic systems all over the world,from solar system for home to solar project for power station, we all can provide the most professional system design and help to install successfully.
Our Factory

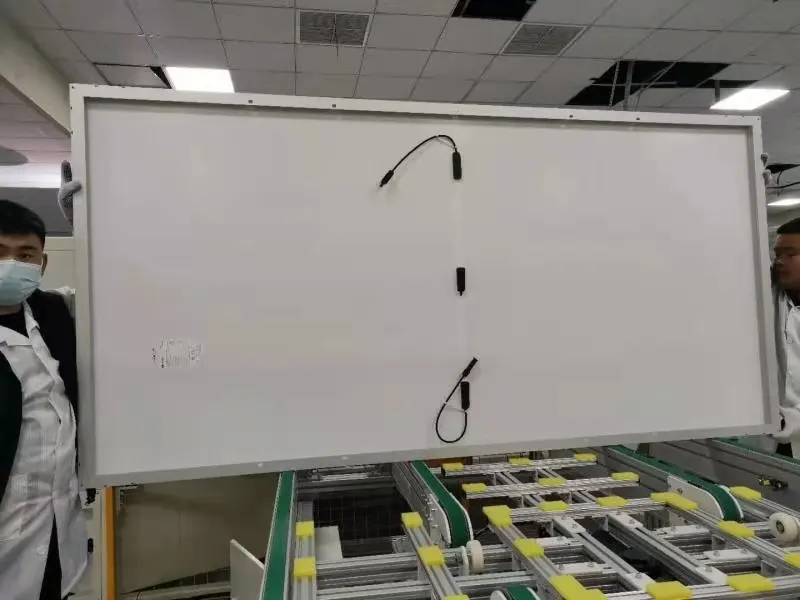

Production Line

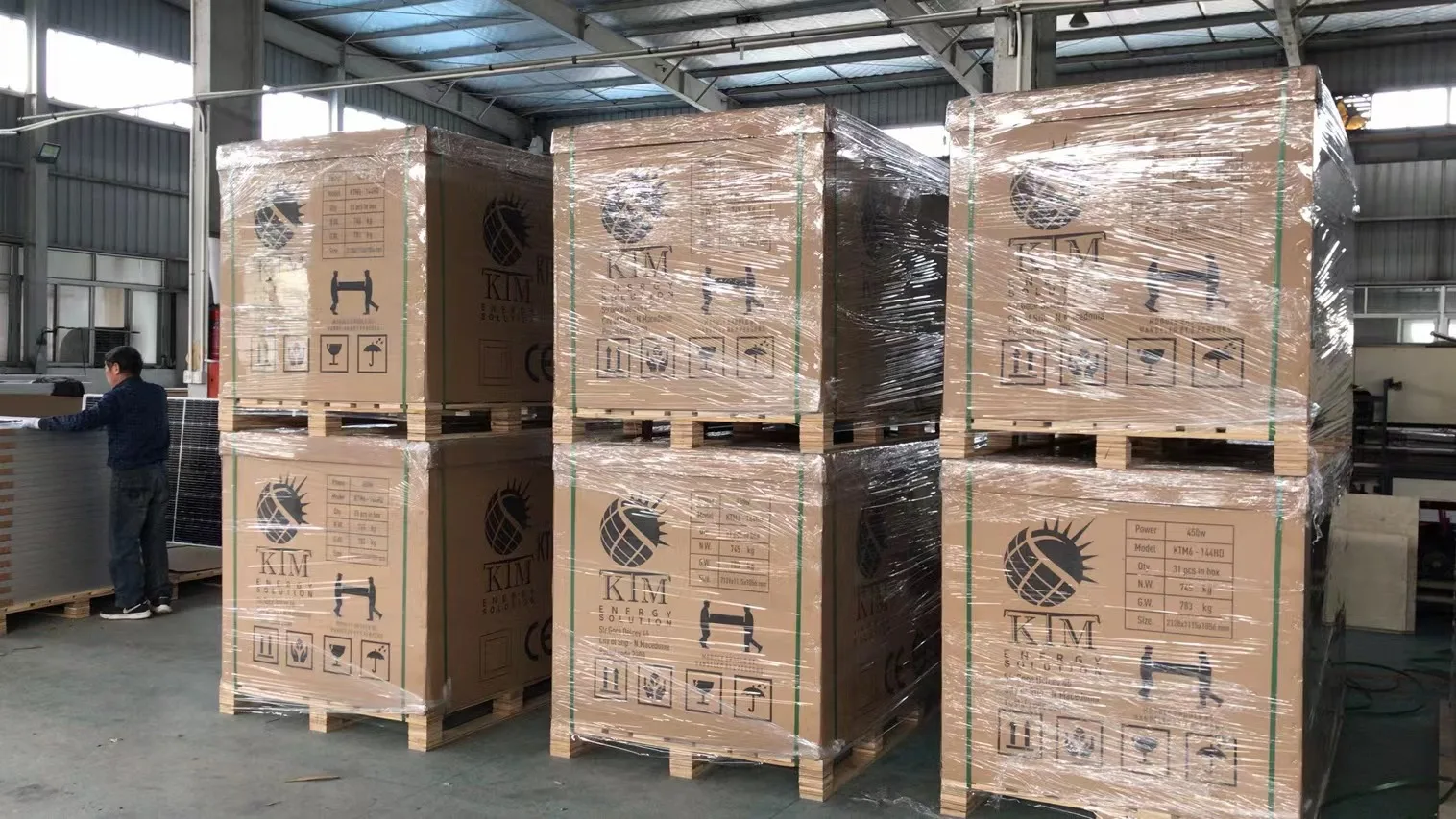

Packing&Shipping
By sea
Delivered from Shanghai/Ningbo seaport and so on
By express
Delivered by TNT,UPS,DHL
By air
Delivered from Shanghai Pudong Airport
Project
5MW in Mexico
100KW in Poland
50kw in USA
300KW in Germany
