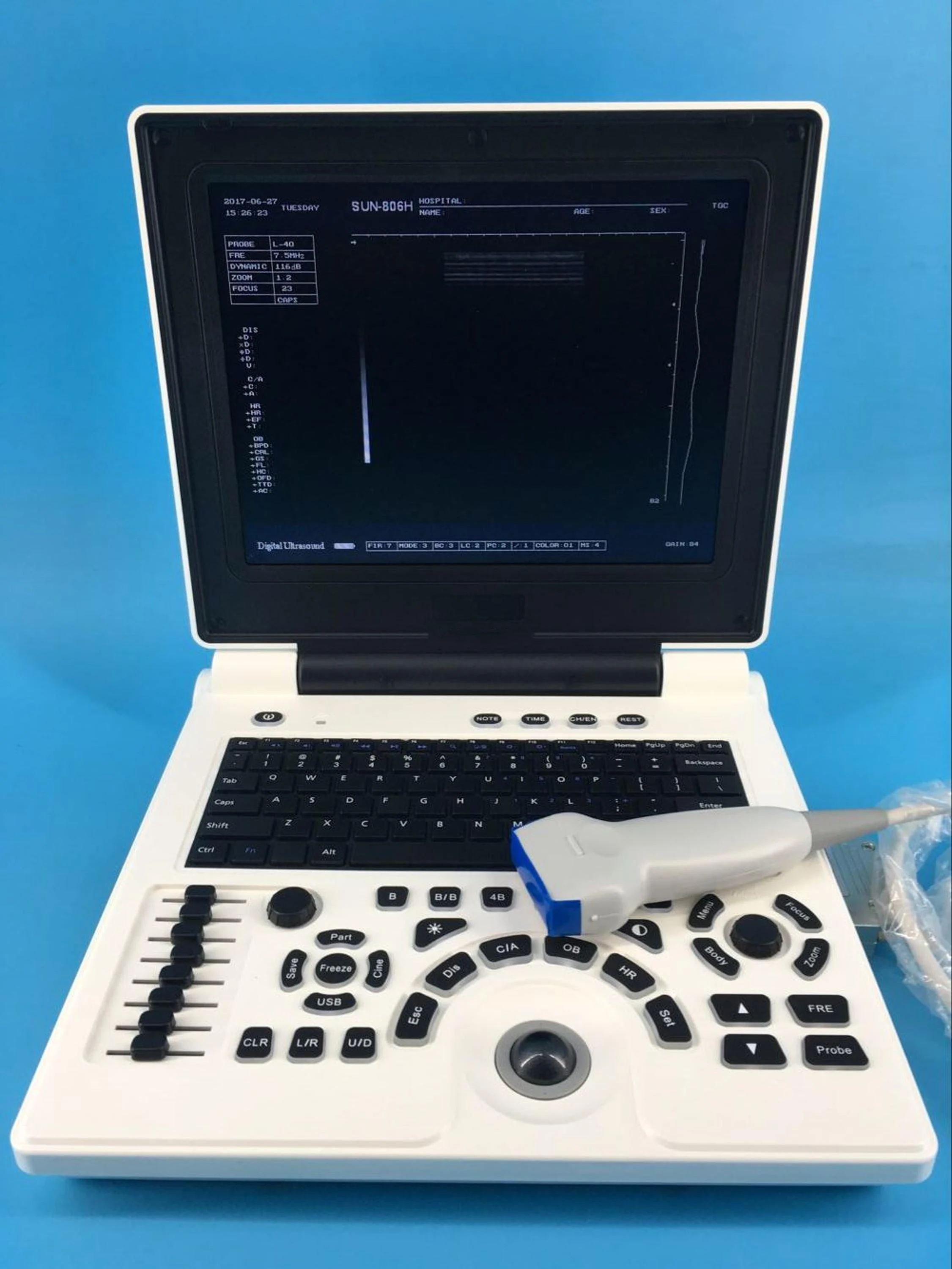

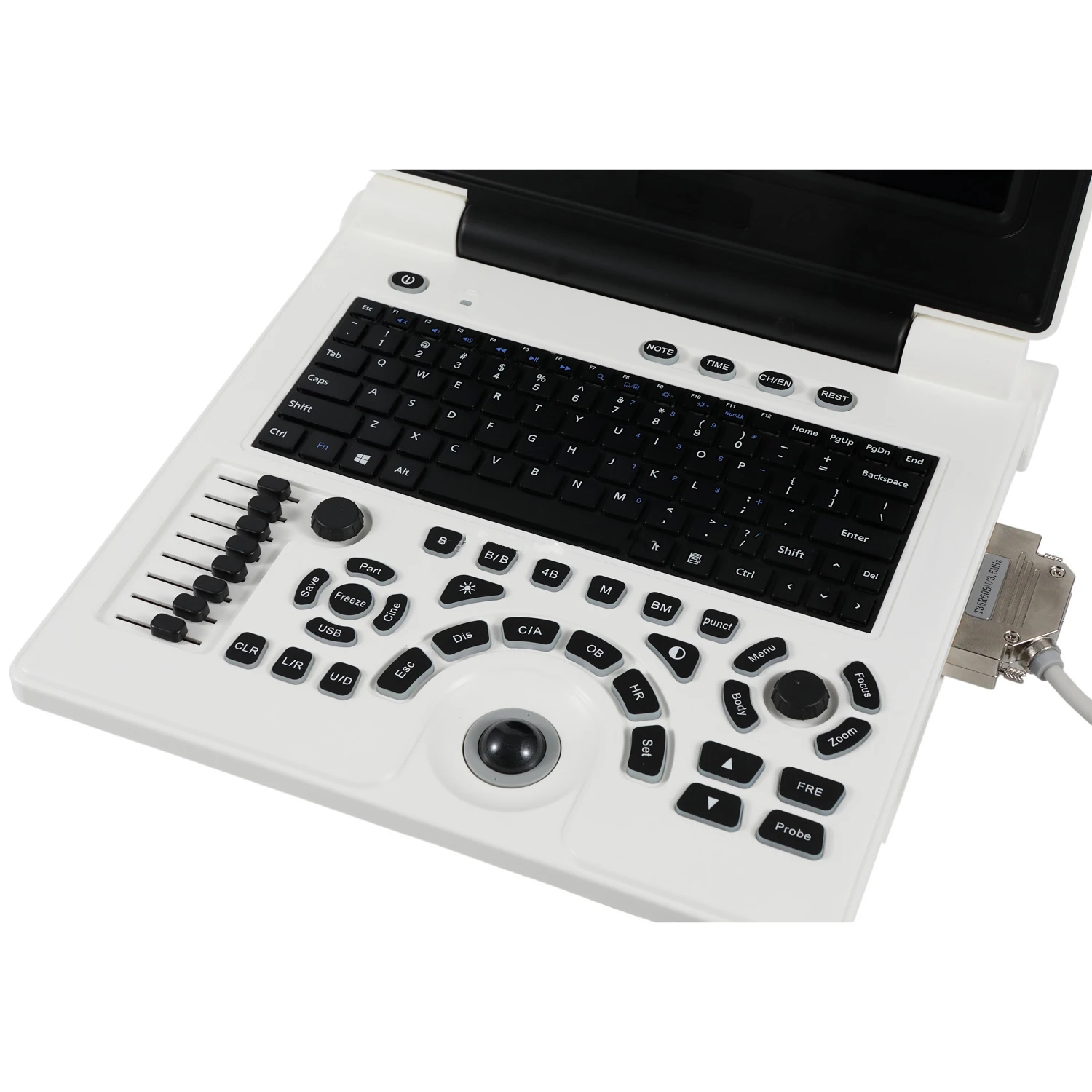

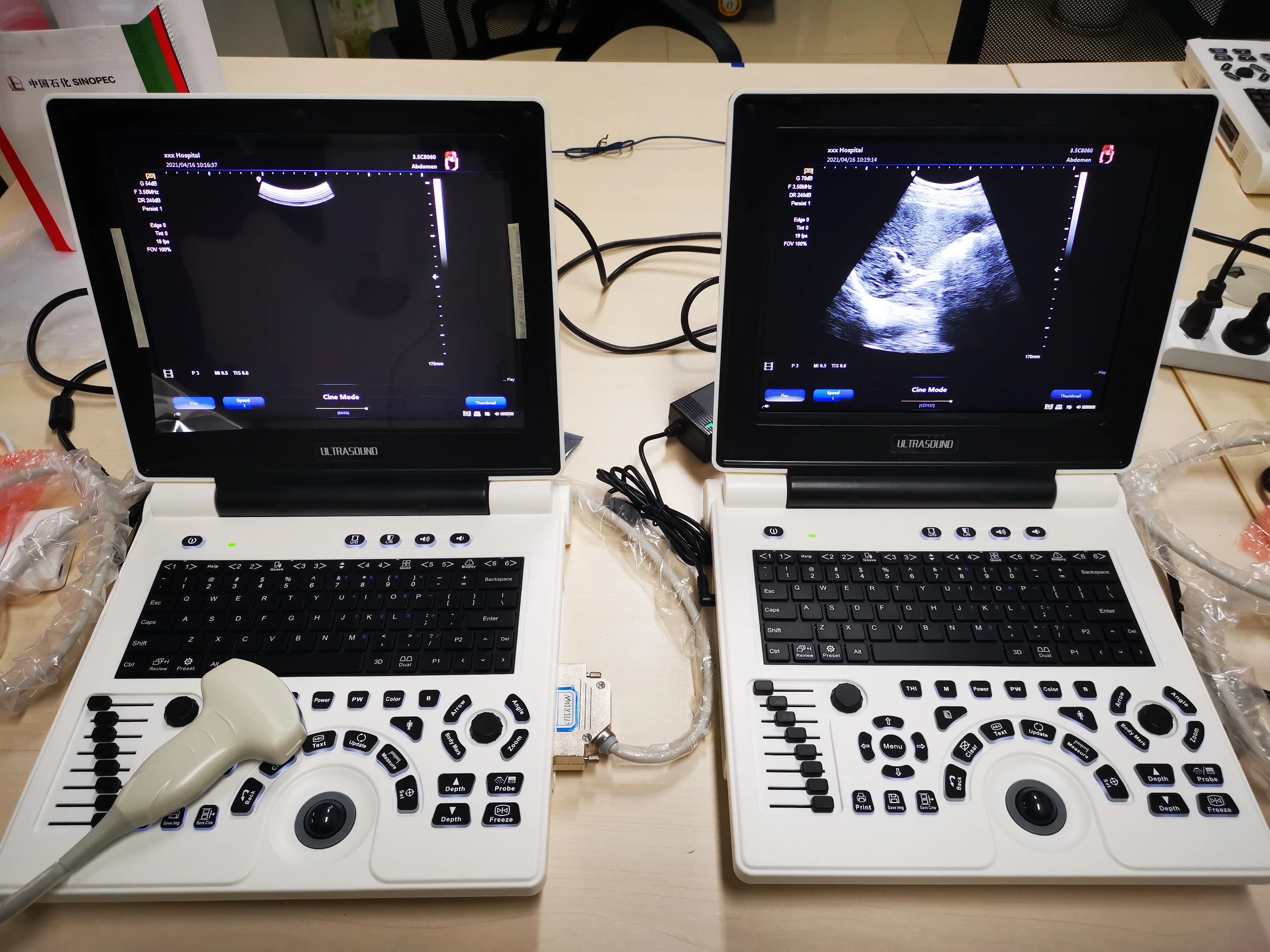

Medical Diagnostic B&W Portable Ultrasound Machine Ultrasound Scanner For Sale

Image multiplying factor

3.5MHz/R60 convex array probe: x0.8;x1.0,x1.2,x1.5,x1.8, x2.0( 6 modes)x0.8;x1.0(display penetration depth)

E-zoom:

Magnify 2 times of real time image

Dynamic range

0~120db adjustable

Focus position

Dynamic electron focusing

Image proessing

8γcorrections, Point correlation, Frame correlation, Line correlation, Digital filting,Digital edge enhancement and pseudo color
processing

According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this
parameter. This default of parameter can aslo be modified in the menue.

Gray scale

256 levels

Frequency conversion

2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0Mhz
5 periods of frequency conversion
Frequency range applies
5.5MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe

Measuring function

Distance, circumference/area(method of ellipse,method of loci) ,volume,heart rate, gestational weeks, expected date of confinement
and fetus weight,etc.

Annotation function:

Hospital name;patient’s name, age and gender; Body marks(with probe’s position);Full-screen character annotation;Real-time clock
display

Puncture guide

3.5MHz convex array probe can display punture guide in B mode

Gain control

8segments TGC and overall gain can be adjusted respectively

Image polarity

Left and right flip; up and down flip

Capacity cine loop

Real time display 256 consecutive images which are moemorized successively

Image playback

Series playback or check one by one

Permanent storage

128 images

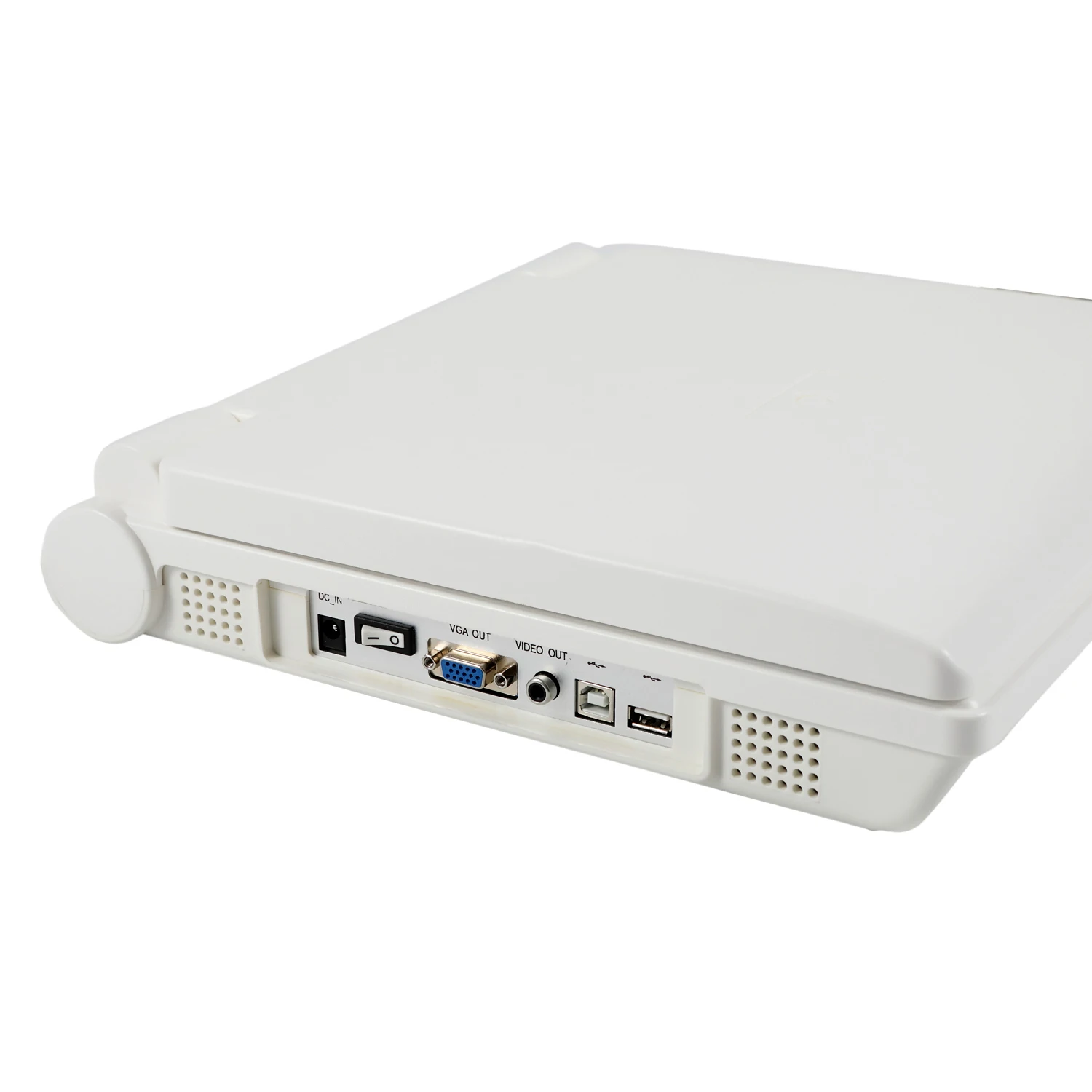

Output interface

USB port

Standard configuration

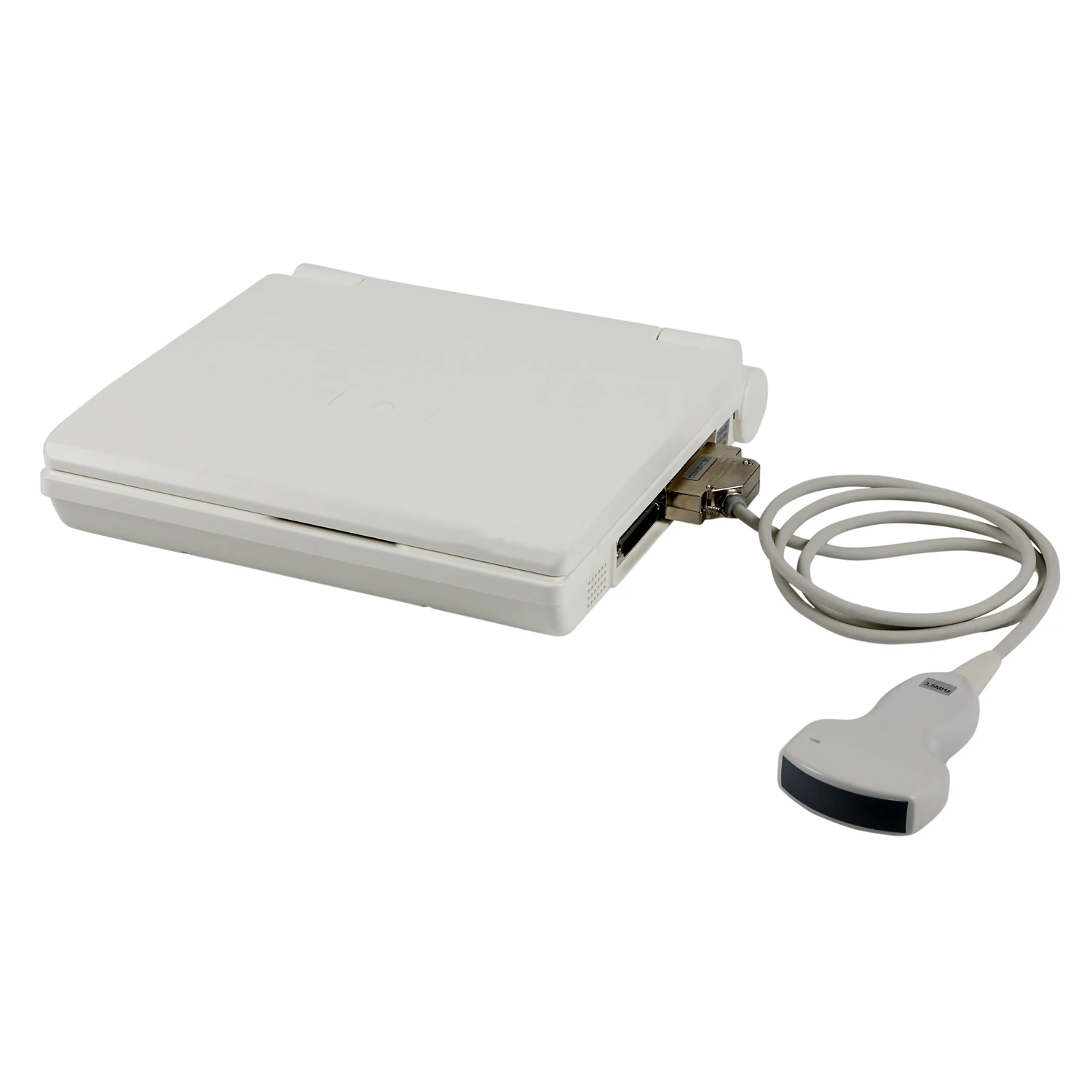

Ultrasound machine with 3.5Mhz convex array probe and power adapter
