Product Overview
Description

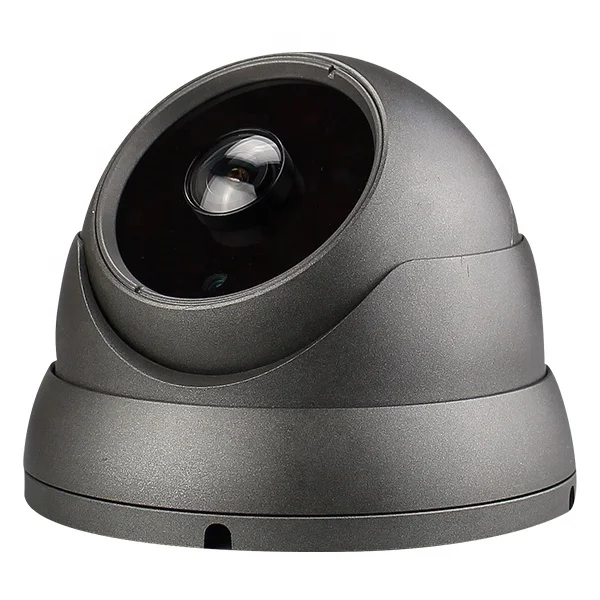

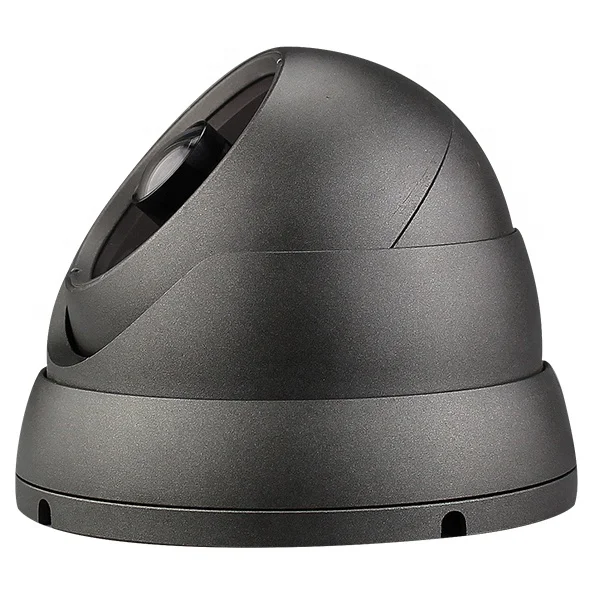

Panoramic camera fish eye 360 180 fisheye 5mp poe network ip camera
Feature:
- Sony 335 5MP CMOS chipset
Frame Rate:NTSC:30fps PAL:25fps
360/180 degree fisheye 1.8mm lens
Power: DC12V,POE optional
Support more than 20 languages
Mobile Phone View&Free CMS
DDNS&Motion Detection Model No.
AI-I3295S
System
Embedded RTOS design
Camera
Effective Pixels
5 Mega Pixels
5.0MP(2592H*1944V@30/25fps)
Sub stream: 704*576
Frames Rates
PAL:25fps(2592*1944)
NTSC:30fps(2592*1944)
Image Sensor
1/2.8" SONY Starvis CMOS Sensor
5MP
DSP
Dual core 32-bit DSP
Min. Illumination
Color 0.01Lux/F1.0
B/W 0.01 Lux/F1.0
Adjust Parameters
DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video
Compression
H.265Main profile
Stream
support dual stream,AVI format
Bit Rate
support 0.1M ~8Mpbs bit rate adjustable
Frame Rates
support 1~30fps adjust
Audio
Input and output
1ch input( micphone),1ch output( Speaker&micphone) Optional
Compression
G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm
Types
Motion Detection, Video Blind , Video Loss
Network
WEB Browser
Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone
mobile remote Monitoring (iPhone,Android,Windows Mobile,BlackBerry,Symbian)
CMS Software
Uniform CMS Software(multiple devices management system)
Cloud P2P
www.p2pipc.net,MYEYE platform and other program,Offer SDK
Network
1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP

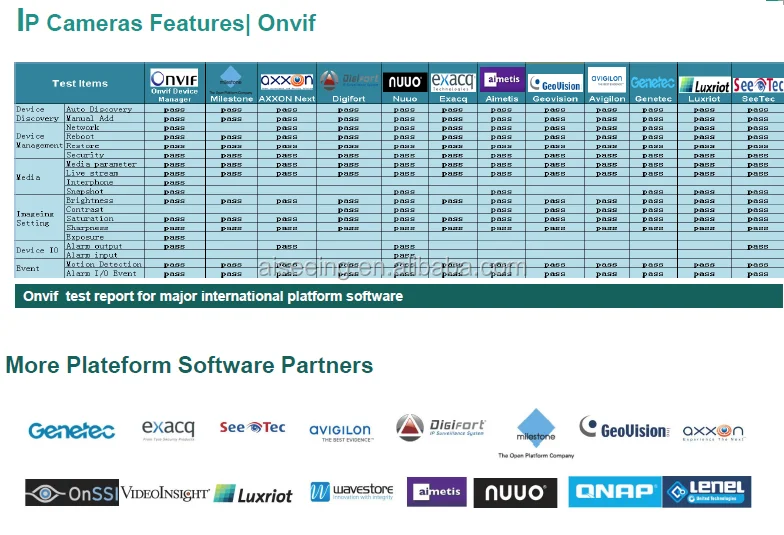

ONVIF
Support (ONVIF 2.4)
General
Language
20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
IR Cut Filter
Set of double light switch IR-CUT filter
Lens Mount
1.8mm fisheye lens
Infrared Luminary
20 m IR distance
Illuminate Distance
Support
Waterproof Criterion
IP 66
I/O Connector
1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage
DC12V/POE(802.3af/820.3at)
Power Consumption
IR On: 600mA max., IR Off: Less than 200mA
Working Environment
-10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
Weight
1.5kg
Connection Diagram
