Product Overview
Description
Two layers support connection optical cables Accessories Preformed Suspension clamp set for 200-1000m span ADSS
Product Description

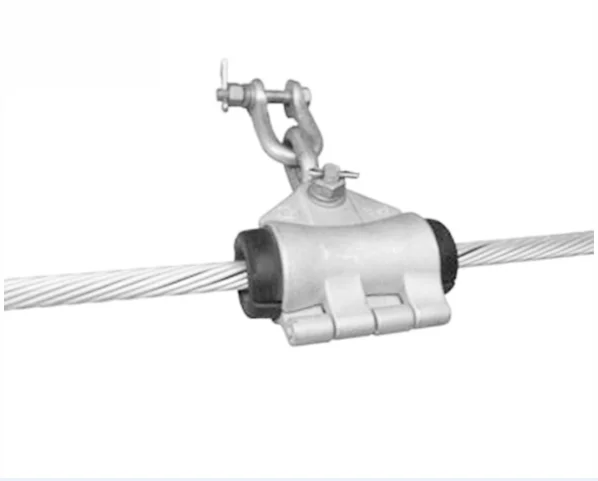

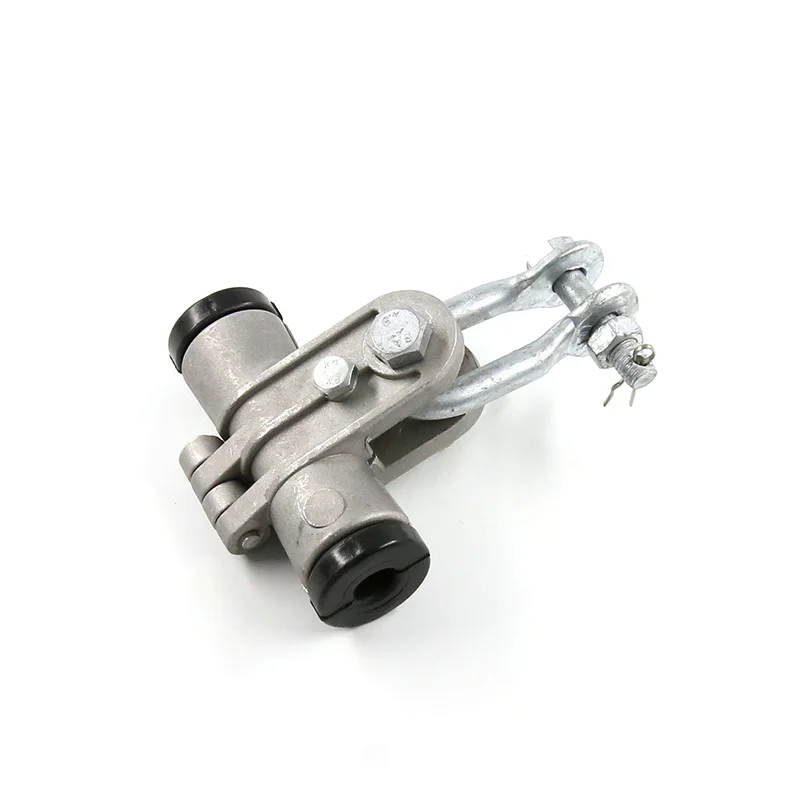

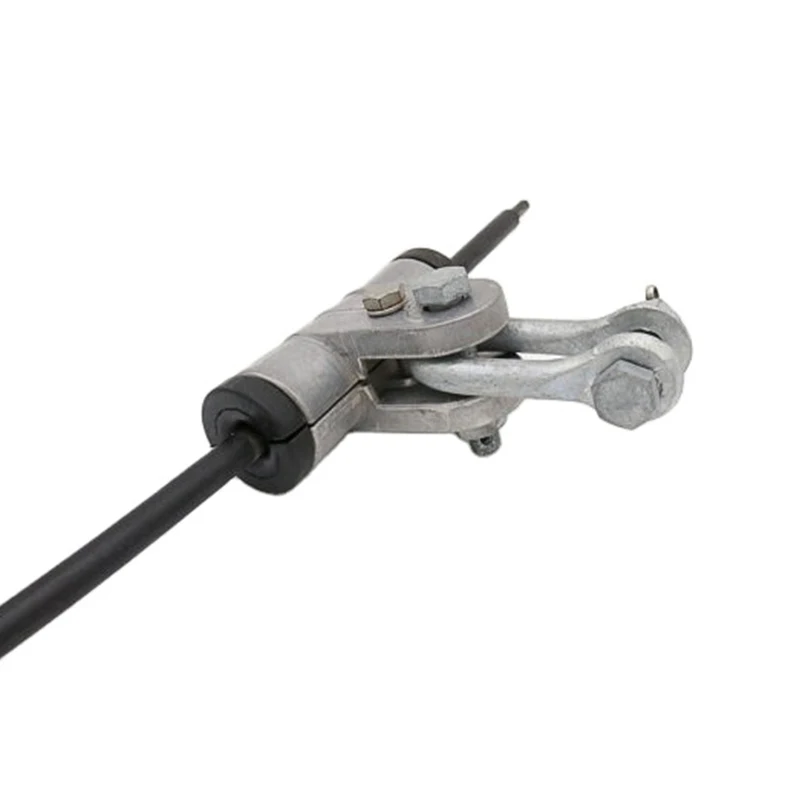

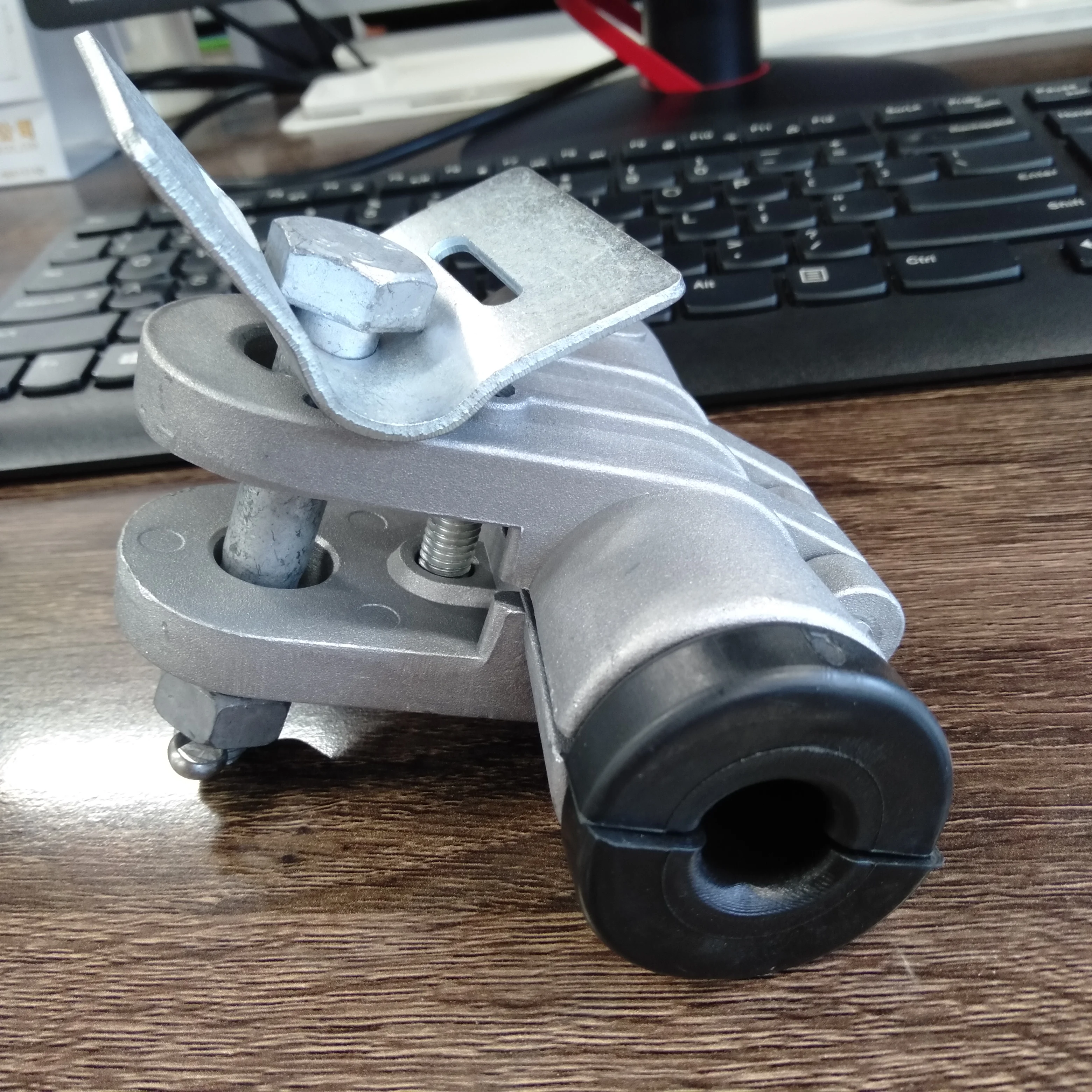

Preformed suspension clamps for ADSS cable are used for the suspension and support connection of optical cables on linear poles and towers. Used well for protection of the optical cable, without concentrated stress. And avoids the abnormal situation of the optical cable having an excessively small bending radius and stress concentration.
The gripping force of the clamp is greater than 10%-20% of the rated tensile strength of the optical cable. The installation is convenient. Has excellent fatigue resistance, and plays an auxiliary shock absorption role for the OPGW optical cable.
The whole set of suspension clamps includes: inner and outer layers of pre-twisted wires, suspension heads and supporting connecting hardware.
Features:
1. Materials are metal and rubber, aluminium alloy wire .

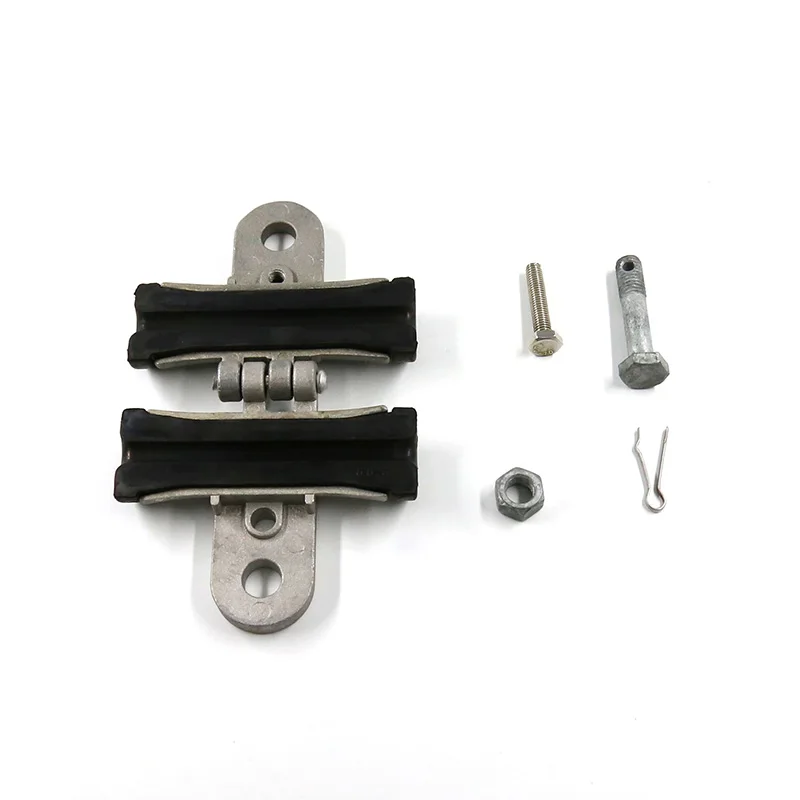

2. Includes: armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
3. Poles/towers with span of less than 1000m, and line angle between 15°-18°
4. Higher supporting capability of dynamic stress, corner angle of less than or equal to 25°in straight lines. The angle of single-side.
1. Installation easy and aging resistance.
2. Packing with carton box or wooden pallet.
Production Name | Code | Available Dia. of Cable(mm) | Length of Outer Rods(mm) | Length of Inner rods(mm) | Weight(kg) | Span(m) | Color |
Two layers Preformed Suspension clamp for ADSS cable | CW-GUYSA-030 0960 | 9.0-9.6 | 1060 | 1500 | 1.45 | 200-300 | Yellow |
| CW-GUYSA-030 1010 | 9.7-10.1 | 1060 | 1500 | 1.45 | 200-300 | Red |
| CW-GUYSA-030 1060 | 10.2-10.6 | 1060 | 1500 | 1.51 | 200-300 | Blue |
| CW-GUYSA-030 1110 | 10.7-11.1 | 1060 | 1500 | 1.51 | 200-300 | Green |
| CW-GUYSA-030 1160 | 11.2-11.6 | 1080 | 1540 | 1.63 | 200-300 | Orange |
| CW-GUYSA-030 1170 | 11.7-11.7 | 1080 | 1540 | 1.71 | 200-300 | Black |
| CW-GUYSA-030 1200 | 11.8-12.0 | 1160 | 1680 | 1.86 | 200-300 | Yellow |
| CW-GUYSA-030 1270 | 12.1-12.7 | 1160 | 1680 | 1.86 | 200-300 | Red |
| CW-GUYSA-030 1290 | 12.8-12.9 | 1160 | 1680 | 2.04 | 200-300 | Blue |
| CW-GUYSA-030 1360 | 13.0-13.6 | 1250 | 1800 | 2.21 | 200-300 | Green |
| CW-GUYSA-030 1410 | 13.7-14.1 | 1250 | 1800 | 2.21 | 200-300 | Orange |
| CW-GUYSA-030 1430 | 14.2-14.3 | 1250 | 1800 | 2.21 | 200-300 | Black |
| CW-GUYSA-030 1450 | 14.4-14.5 | 1250 | 1800 | 2.32 | 200-300 | Yellow |
FAQ
| 1. Are you a factory or a trading company? |
| Hebei Crownwealth hardware factory is a professional factory . |
| 2. Can I be your agent? |
| Yes, welcome to deep cooperation. |
| 3. Is OEM available? |
| Yes, OEM is available. We have professional designer to help your brand promotion. |
| 4. Is the sample available? |
| Yes, samples are available for you to test the quality. |
| 5. Are the products tested before shipping? |
| Yes, all of our products was qualified before shipping. |
| 6. What's your quality guarantee? |
| We have different kinds of products which can meet different quality standard. |
