Led strip(Date: Jan 2019) | Color temperature (K) | Light efficacy Lm/w | Light transmission | ||||
IP20 strip | after silicon tube | IP20 strip | after silicon neon | For AP1616F-T-B | |||
2835/120led/2700k | 2747K | 2424k | 110 | 60.5 | 55% | ||
2835/120led/3000k | 2965k | 2516K | 110.35 | 60 | 55% | ||
2835/120led/4000k | 4127K | 3396K | 110.56 | 60 | 55% | ||
2835/120led/600k | 6642K | 4845k | 115 | 63 | 55% | ||

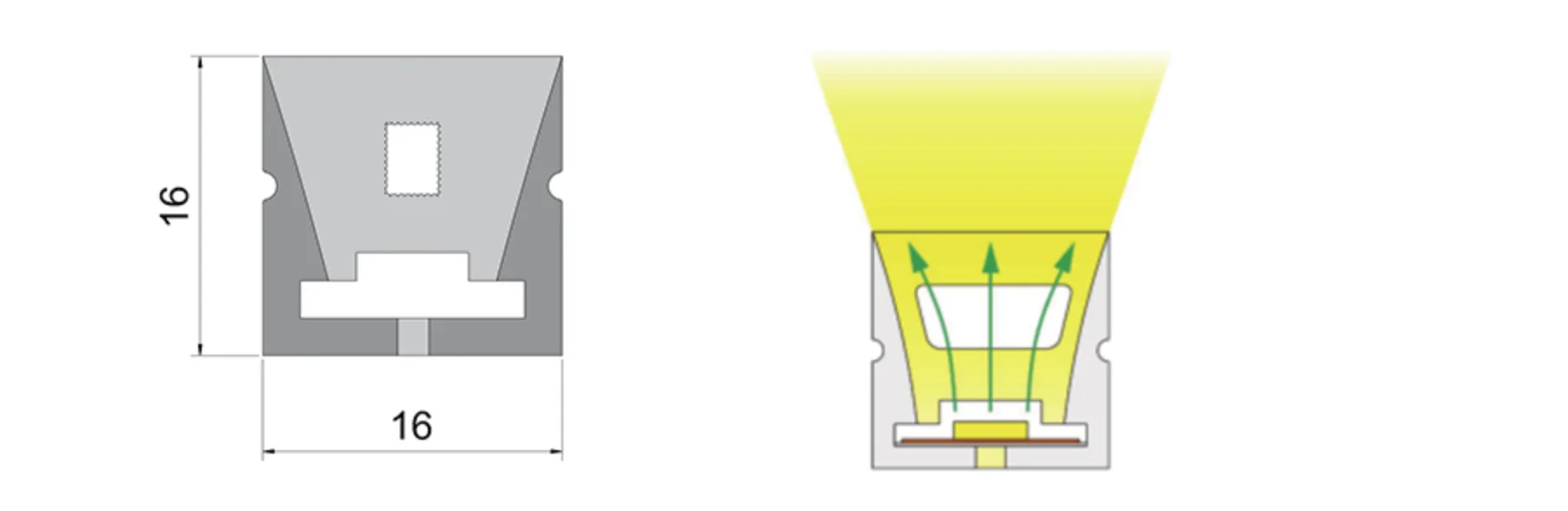

Size (mm) | Max Power per meter | Strip suggested | PCB width |
W16X16mm | 15W per meter | at least 120LED/m | 10mm |
W16X16mm | 15W per meter | at least 120LED/m | 12mm |

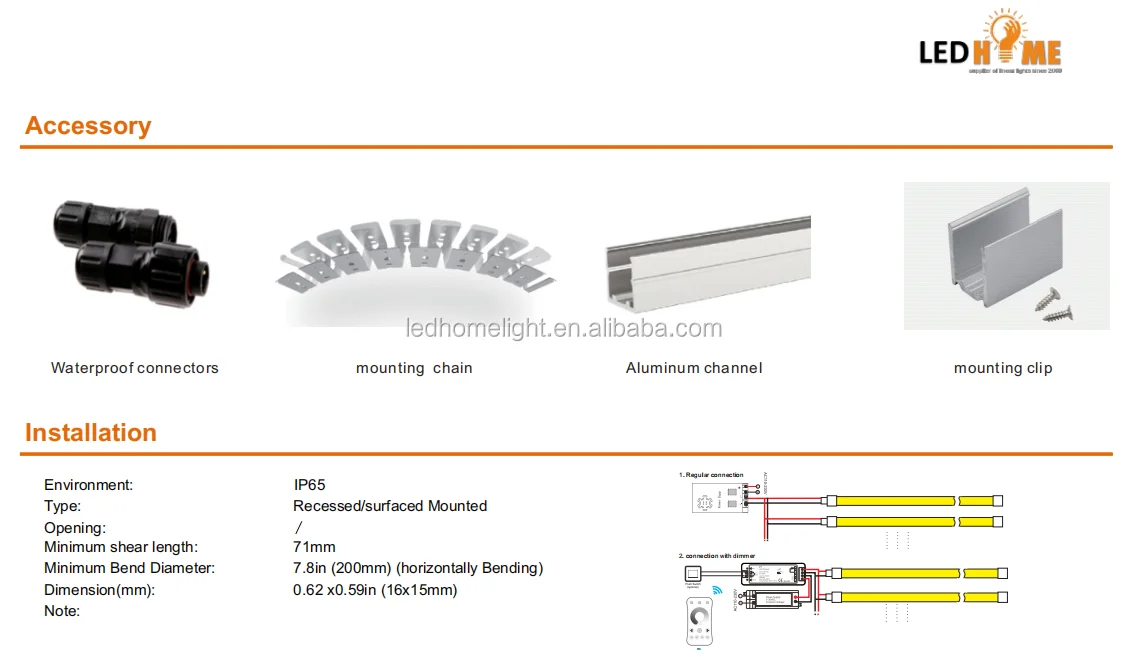

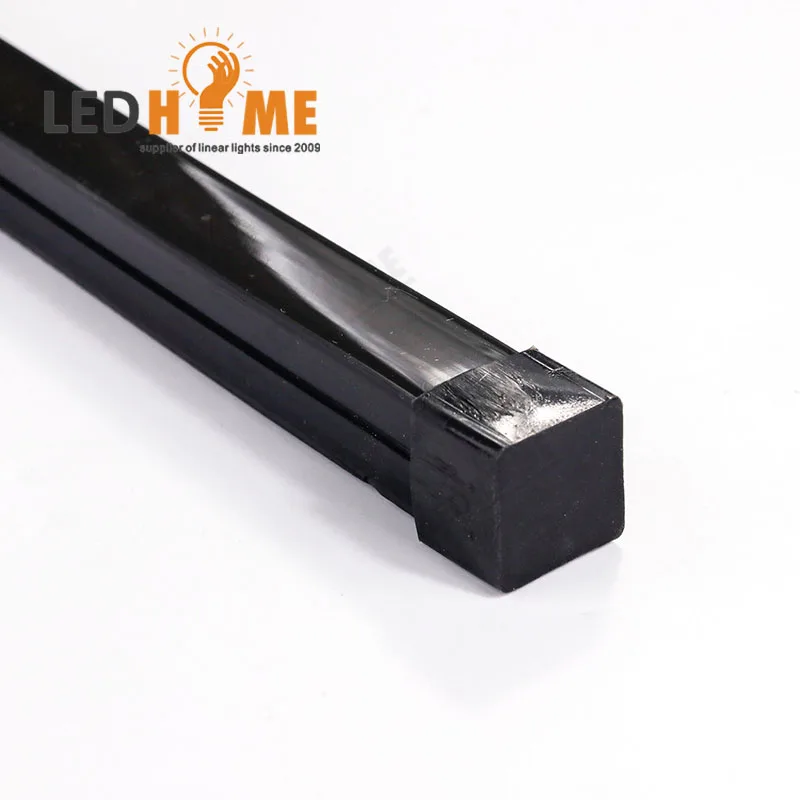

End cap without hole | End cap with front cable entry | End cap with side cable entry | End cap with bottom cable entry | Mounting Clip | |
YES | YES | YES | YES | YES | |
U shape Alu channel | Flex channel | Channel with spring clip | Spring clip | H shape alu channel | |
Yes | YES | YES | YES | can be made | |
Alu channel with fixing pin | PVC clear channel | SS channel | IP68 connector | ||
Yes | can be made | can be made | Yes |
