13.3 inch LCD business presentation /churh worship/medical live streaming 4*H DMI inputs 6 channel audio video switcher mixer

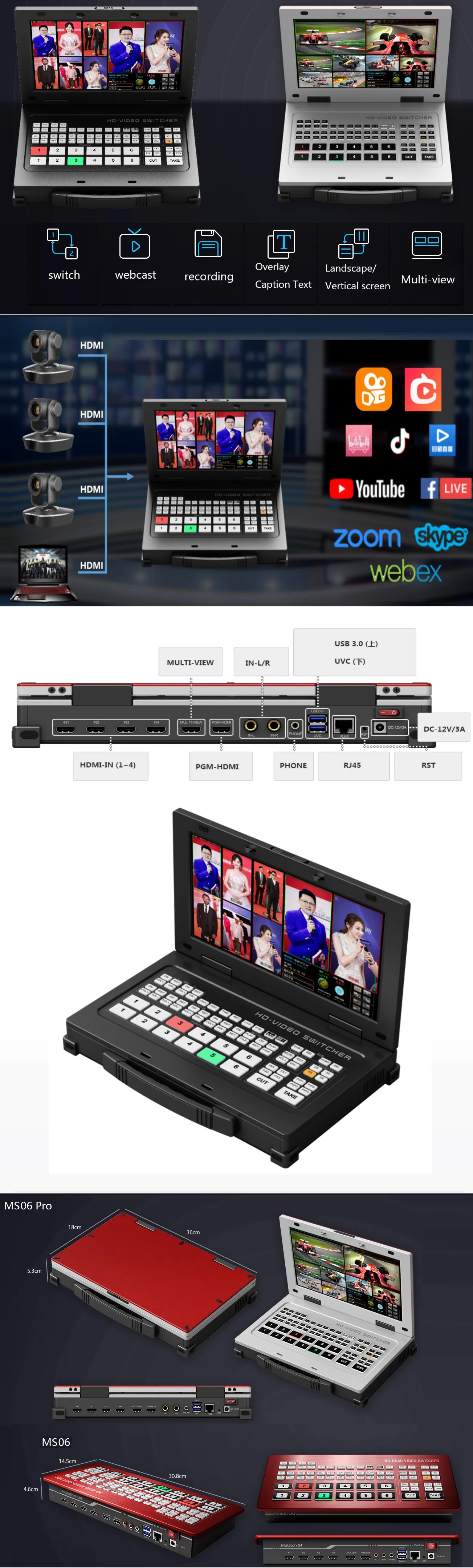

13.3 inch Screen ZMKMS06 pro ----Interfaces

Video Source

4xHDMI, 2X decoding stream video/USB media file

Video Output

1xHDMI PGM out, 1xHDMI Multiview out

Audio Source

1 pair 6.3mm audio

Audio Output

1 x 3.5mm audio

USB 3.0 Port

Recording, broadcasting media file, work as webcam,

connect 4G Wireless dongle

RJ45

10/100/1000Mb/s, web control & live streaming & video decoding

A/V Standard

Input Resolution

576i50, 720P50, 720P60, 1080i50, 1080i59, 1080i60, 1080P25, 1080P30, 1080P50, 1080P60

Output Resolution

Program resolution: 1080i50, 1080i59, 1080i60, 1080P25, 1080P30, 1080P50, 1080P60

Multiview resolution: 1080P60

Video Format

16:9 & 9:16

Audio Level

-40dB~0dB

Sampling

48kHz

Audio Format

AAC

A/V Switching

Video Switching

Cut Direct Switching & Take Transitional Switching

Effects

Fade, Mix, Wipe, PIP, POP

Transitional Rate

2s,3s,4s,5s adjustable

Audio Control

On/Off/Reset/Follow Video

Video Decoding

Format

H.264

Resolution

1920x1080

Protocol

HTTP-TS, RTS, HLS, FLV, RTMP

Live Streaming

Format

H.264

Resolution

1920×1080

Bit Rate

500-40960kbps adjustable

Protocol

RTMP, RTMPS

Multi-stream

4 platforms at the same time

Video Recording

Channel

1x Program Video

Recording Duration

Depends on the capacity of USB disk and recording bitrate

10240 kbps (13.6 mins /GB) – default

40960kbps (3.4 mins/GB) – max

Recording Bit Rate

500-40960kbps adjustable

Resolution

1920×1080

Video Format

MP4

USB Media File

USB Disk Format

FAT32, NTSF, EXFAT

Graphic Format

PNG, BMP, TGA, JPG (suggested file size<1MB)

Video Format

MP4, MKV

Voltage

12V

Current

3A max

Consumption

36W max

Environment

Operating Temperature

-20℃~40℃ (-4°F – 104° F)

Storage Temperature

-20℃~60℃ (-4°F – 140° F)

Operating Humidity

0% to 90% non-condensing

Storage Humidity

0% to 90% non-condensing

Physical Specification

Product Dimension

30x20x5.2cm

Product Weight

3.5kg | 4.65lbs

What’s Included

Package Content

1x HDMI Switcher

1x 12V 3A DC Power Adapter

1x Warranty Card

1x User Manual
