Professional custom multi function bell mouth 600 automatic CNC spinning forming lathe
- Category: >>>
- Supplier: Jiangmen Zhuosheng Machinery Co. Ltd.
Share on (1600524552213):
Product Overview
Description

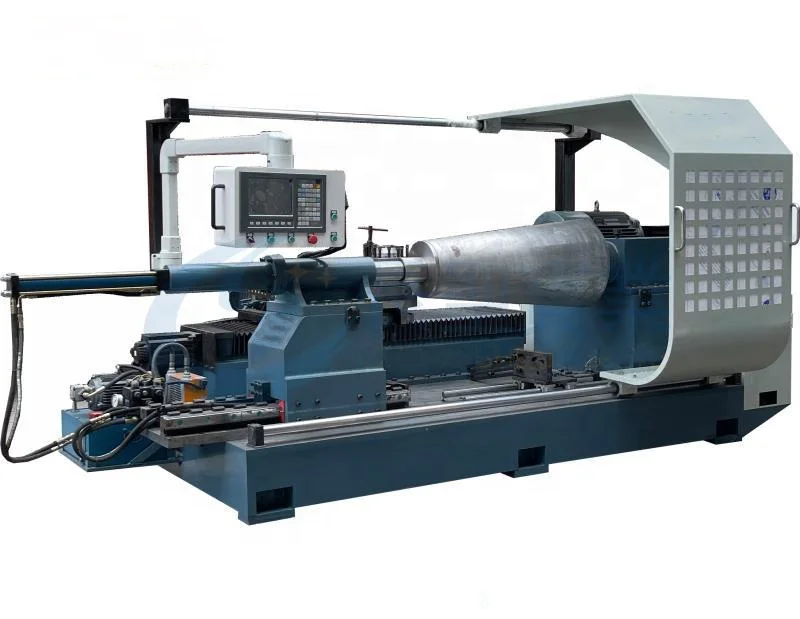

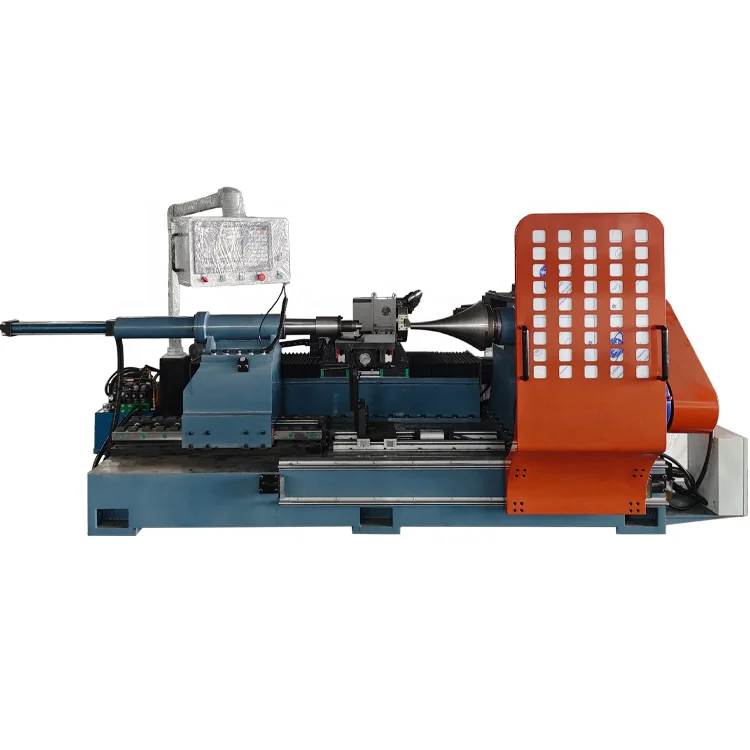

Professional custom multi - function bell mouth 600 automatic CNC spinning forming lathe

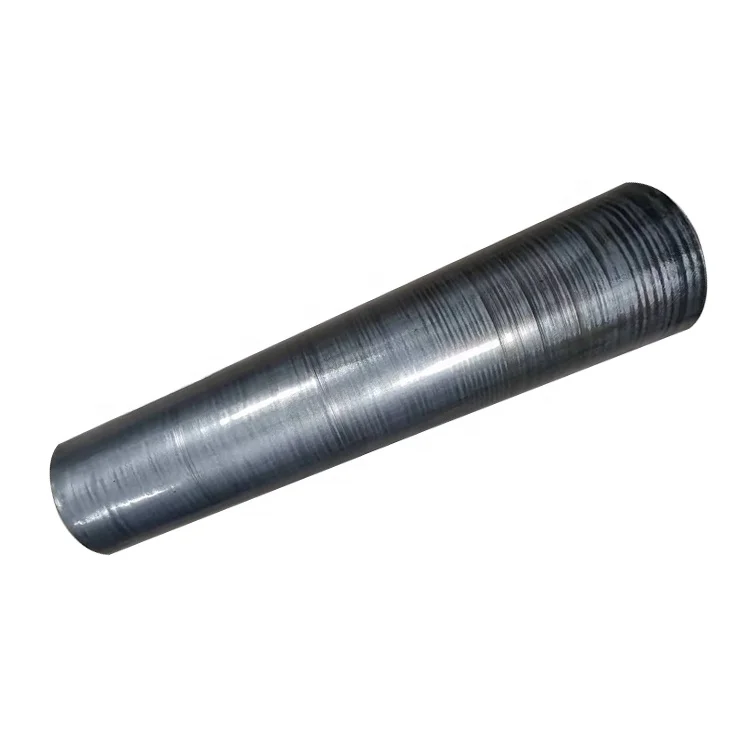

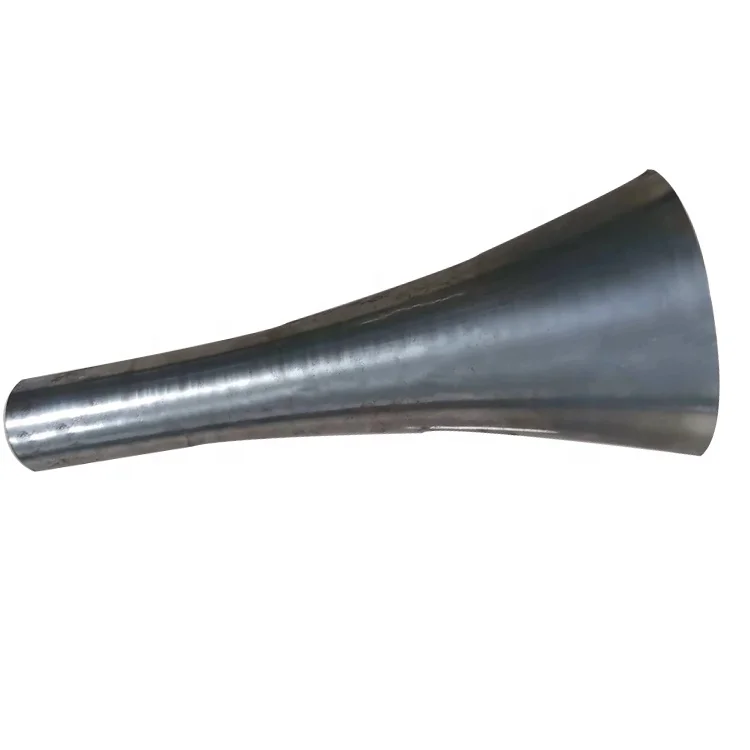

Purpose: this machine is suitable for lamps and lanterns, cooking utensils, crafts and other industries. It can complete batch production of barrel type, cone type, parabola type, horn type, warhead type and other products
Specification
item | value |
Condition | New |
Type | Horizontal |
Flat Bed Lathe | |
Year | 2021 |
Max. Length of Workpiece (mm) | 300 |
Max. Spindle Speed (r.p.m) | 2500r.p.m |
Machining Capacity | Medium Duty |
Spindle Bore(mm) | 110 |
Spindle Motor Power(kW) | 10.5 |
No. of Spindles | 4 |
Travel (X Axis)(mm) | 325mm |
Travel (Z Axis)(mm) | 350mm |
Positioning Accuracy (mm) | ±0.02 |
Repeatability (X/Y/Z) (mm) | ±0.02 |
Place of Origin | China |
Guangdong | |
Dimension(L*W*H) | 2200*1400*1700 |
Brand Name | zhuosheng |
Model Number | ZS-600 |
Voltage | 220V/380V,50HZ |
CNC Control System | Fanuc/Siemens/GSK |
Tool Post Stations | 4 |
Weight (KG) | 3000 |
Warranty | 1 Year |
Applicable Industries | Construction works |
Key Selling Points | Automatic |
Showroom Location | None |
Marketing Type | New Product 2020 |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, PLC |
product description
Product Description:
1, with mature CAD drawing programming software functions, rotary wheel movement trajectory can be straight line, arc, multi-arc connection line and combination of curves, and input into the computer for track standard programming.
2, the operator can input process parameters and spin pass through the keyboard and operation panel, and can edit, store and call at will.
3, with the core mold outline "copy" protection function, that is, in the process of adjustment and recording back to teach, the wheel will not hit the core mold.
4, the machine tool in the automatic program, can be the feed speed and spindle speed suspension. With stroke limit protection,limit protection of hardware and software in the control system, fault detection and alarm functions.
5. Automatic fault detection, automatic diagnosis, overload protection and other functions for each unit upon startup.
6, according to the requirements of users, can achieve a variety of special shape parts spinning forming, to ensure that the
workpiece surface, diameter, thinning rate and other relevant dimensions meet the requirements.
1, with mature CAD drawing programming software functions, rotary wheel movement trajectory can be straight line, arc, multi-arc connection line and combination of curves, and input into the computer for track standard programming.
2, the operator can input process parameters and spin pass through the keyboard and operation panel, and can edit, store and call at will.
3, with the core mold outline "copy" protection function, that is, in the process of adjustment and recording back to teach, the wheel will not hit the core mold.
4, the machine tool in the automatic program, can be the feed speed and spindle speed suspension. With stroke limit protection,limit protection of hardware and software in the control system, fault detection and alarm functions.
5. Automatic fault detection, automatic diagnosis, overload protection and other functions for each unit upon startup.
6, according to the requirements of users, can achieve a variety of special shape parts spinning forming, to ensure that the
workpiece surface, diameter, thinning rate and other relevant dimensions meet the requirements.
7, in the same machine tool to complete trimming, flanging, rolling, shrinking, rolling processing and other functions.
