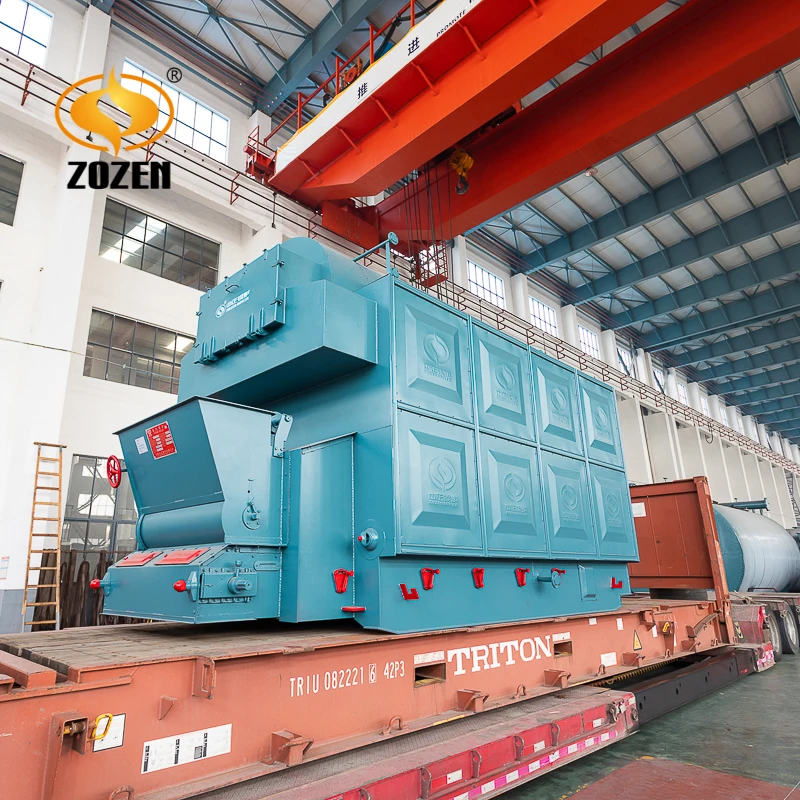

Угольной котел для фармацевтической промышленности, 2 тонны в час
- Category: Boilers & Parts >>>
- Supplier: Wuxi Zozen Boilers Co. Ltd.
Share on (1600524564018):
Product Overview
Description
Product Details
2 Ton Per Hour Coal Fired Boiler for Pharmaceutical Industry

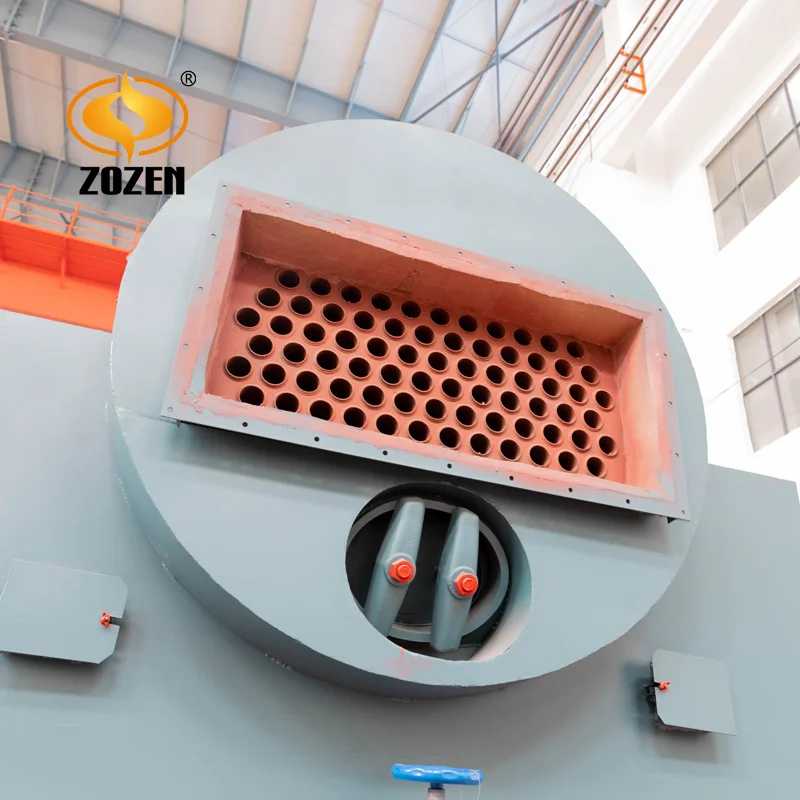

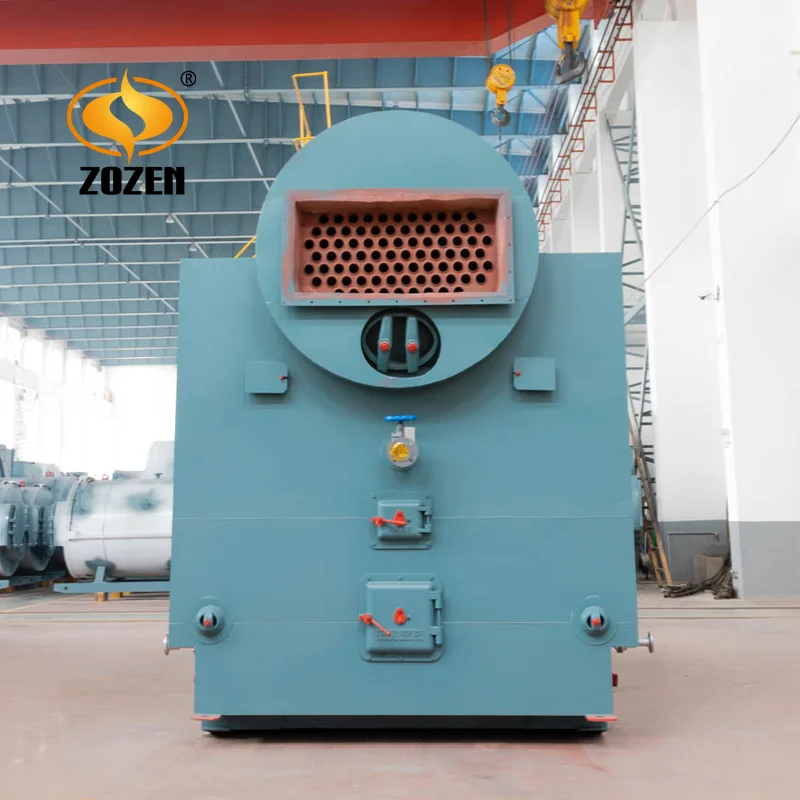

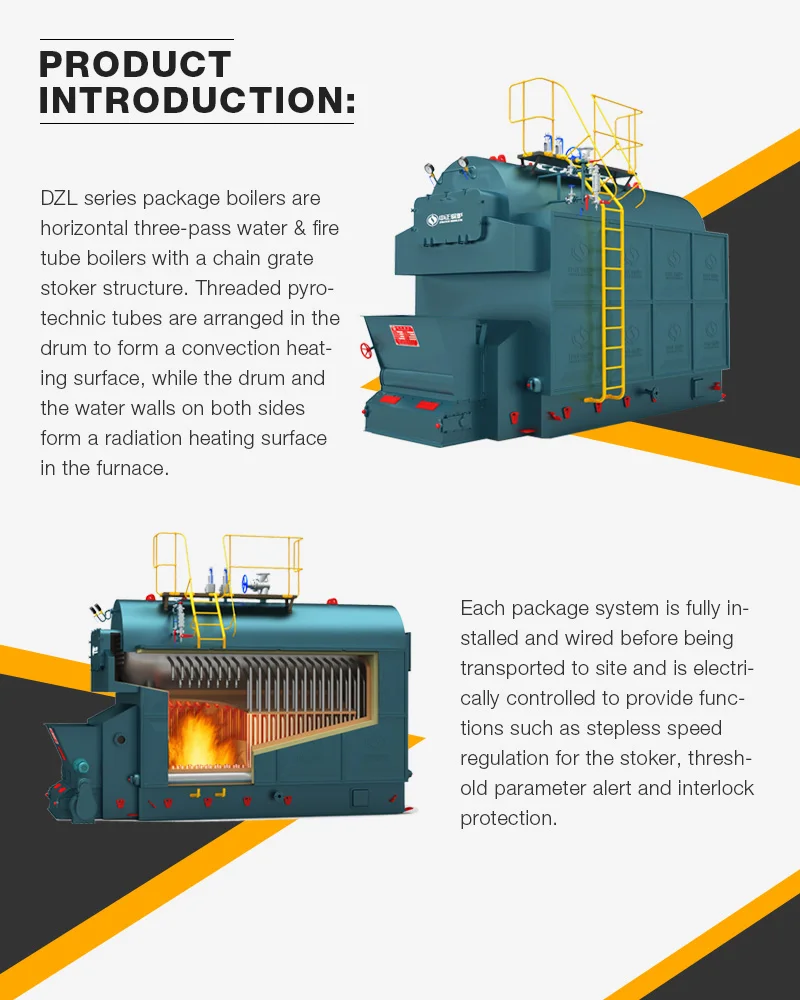

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
DZL series coal-fired horizontal three-pass water & fire tube boilers are packaged boilers with a chain grate stoker structure.
The boiler proper is longitudinal arrangement with a single drum, threaded fire tubes are arranged in the drum to form a
convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
The boiler proper is longitudinal arrangement with a single drum, threaded fire tubes are arranged in the drum to form a
convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.
Product Paramenters
Product thermal capacity:2 – 20t/h
Working pressure:1.0-2.5 MPA
Outlet temperature:170-225℃
Available fuel:Bituminous coal,lean coal,anthracite
Available industries:Heating, chemical, food, tobacco, textile, printing and dyeing, feed, medicine, building material, wine, rubber, hospital
Model | Rated evaporation | Rated working pressure（MPa） | Rated steam temperature | Thermal efficiency（%） | Maximum transport size(m) (L×W×H) |
DZL2-1.0-AⅡ | 2 | 1.0 | 184 | 79 | 5.7×2.5×3.5 |
DZL2-1.25-AⅡ | 2 | 1.25 | 194 | 79 | 5.7×2.5×3.5 |
DZL2-1.57-AⅡ | 2 | 1.57 | 204 | 79 | 5.7×2.5×3.5 |
DZL2-2.45-AⅡ | 2 | 2.45 | 225 | 79 | 5.7×2.5×3.5 |
DZL4-1.25-AⅡ | 4 | 1.25 | 194 | 79 | 6.3×2.6×3.6 |
DZL4-1.57-AⅡ | 4 | 1.57 | 204 | 79 | 6.3×2.6×3.6 |
DZL4-2.45-AⅡ | 4 | 2.45 | 225 | 79 | 6.3×2.6×3.6 |
DZL6-1.25-AⅡ | 6 | 1.25 | 194 | 79 | 7.3×3.2×3.6 |
DZL6-1.60-AⅡ | 6 | 1.6 | 205 | 79 | 7.3×3.2×3.6 |
DZL10-1.25-All | 10 | 1.25 | 194 | 79 | 7.2×3.3×3.6 |
DZL10-1.60-All | 10 | 1.6 | 205 | 79 | 7.2×3.3×3.6 |
DZL15-1.25-All | 15 | 1.25 | 194 | 79 | 8.8×3.7×3.7 |
DZL15-1.60-All | 15 | 1.6 | 205 | 79 | 8.8×3.7×3.7 |
DZL20-1.25-All | 20 | 1.25 | 194 | 79 | 9.7×3.4×3.7 |
DZL20-1.60-All | 20 | 1.6 | 205 | 79 | 9.7×3.4×3.7 |

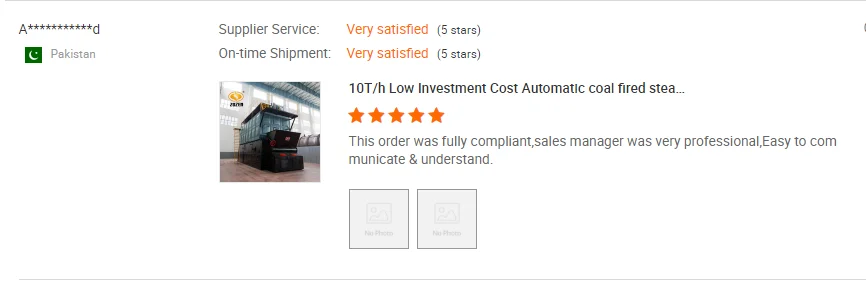

Customer Feedback
Why Choose Us
ZOZEN creates value for you
●Wide fuel adaptability - Applicable to a wide range of fuels including bituminous coal, lean coal, anthracite, etc.;
●Customized solutions save money and time - Save you money and time with custom designed and engineered feeding system, slag discharge system, flue gas treatment system and boiler house layout plans;
●Higher thermal efficiency - Thermal efficiency at least 5% higher than normal systems, annual fuel cost savings for each 10 tph boiler as high as $75,000;
●High level of automation - easy maintenance, high level of automation that requires less involvement of operational and
maintenance personnel;
●Advanced control system - Ensure stable operation while saving investment cost for you with a reasonable selection.
●Customized solutions save money and time - Save you money and time with custom designed and engineered feeding system, slag discharge system, flue gas treatment system and boiler house layout plans;
●Higher thermal efficiency - Thermal efficiency at least 5% higher than normal systems, annual fuel cost savings for each 10 tph boiler as high as $75,000;
●High level of automation - easy maintenance, high level of automation that requires less involvement of operational and
maintenance personnel;
●Advanced control system - Ensure stable operation while saving investment cost for you with a reasonable selection.
Choose ZOZEN as your reliable partner
●ZOZEN QUALITY - 30 years' innovative technology research and development achieve excellent performance advantages
The average design efficiency and actual-measured efficiency of ZOZEN coal-fired steam boilers both exceed industry average level
ZOZEN boilers average design efficiency: 81% actual-measured efficiency: 82%
Industry's average design efficiency: 80% Industry's average actual-measured efficiency: 79%
ZOZEN 15 tph coal-fired steam boilers design efficiency 80.18% actual-measured efficiency 82.27%
ZOZEN 30 tph coal-fired steam boilers design efficiency 81.4% actual-measured efficiency 83.21%
The above data are selected from China Special Equipment Inspection Institute.
●ZOZEN QUALITY - 30 years' innovative technology research and development achieve excellent performance advantages
The average design efficiency and actual-measured efficiency of ZOZEN coal-fired steam boilers both exceed industry average level
ZOZEN boilers average design efficiency: 81% actual-measured efficiency: 82%
Industry's average design efficiency: 80% Industry's average actual-measured efficiency: 79%
ZOZEN 15 tph coal-fired steam boilers design efficiency 80.18% actual-measured efficiency 82.27%
ZOZEN 30 tph coal-fired steam boilers design efficiency 81.4% actual-measured efficiency 83.21%
The above data are selected from China Special Equipment Inspection Institute.
Wuxi ZOZEN Boilers Co., Ltd., has been committed to manufacturing, researching and developing industrial boilers since its foundation in 1994. ZOZEN is located in Wuxi, a city in southern Jiangsu province. ZOZEN has obtained PRC Grade A Manufacture License of Special Equipment, ASME "S" and "U" stamps, ISO9001, and many other international certificates of authorization.
Meanwhile, ZOZEN has more than 400 varieties and specifications of products including steam boilers, hot water boilers, thermal oil boilers and boilers’ accessories. ZOZEN’s WNS series and SZS series gas-fired boilers are awarded "star of energy efficiency" voted by MIIT. To enhance productivity and guarantee the processing quality, ZOZEN has introduced international advanced process equipment, including CNC planar driller, CNC plate rolling machine, automatic welding of base pipe and intersecting line CNC cutting machine. With over 30 years of efforts, ZOZEN high-quality boilers are exported to many countries all over the world and all walks of life including tobacco, rubber, food, paper-making, pharmaceuticals, electronic, etc.
Furthermore, ZOZEN hasestablished a comprehensive after-sales service system to offer our valued customers with "Full Process","Full Day", "Full Aspects" and "Full Spirit" services. ZOZEN also welcomes OEM and ODM orders all time. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can consult our customer service about your sourcing requirements.
Welcome to visit ZOZEN and we are looking forward to cooperating with you!
Meanwhile, ZOZEN has more than 400 varieties and specifications of products including steam boilers, hot water boilers, thermal oil boilers and boilers’ accessories. ZOZEN’s WNS series and SZS series gas-fired boilers are awarded "star of energy efficiency" voted by MIIT. To enhance productivity and guarantee the processing quality, ZOZEN has introduced international advanced process equipment, including CNC planar driller, CNC plate rolling machine, automatic welding of base pipe and intersecting line CNC cutting machine. With over 30 years of efforts, ZOZEN high-quality boilers are exported to many countries all over the world and all walks of life including tobacco, rubber, food, paper-making, pharmaceuticals, electronic, etc.
Furthermore, ZOZEN hasestablished a comprehensive after-sales service system to offer our valued customers with "Full Process","Full Day", "Full Aspects" and "Full Spirit" services. ZOZEN also welcomes OEM and ODM orders all time. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can consult our customer service about your sourcing requirements.
Welcome to visit ZOZEN and we are looking forward to cooperating with you!
Recommend Products
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1. How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
2. Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Jiangsu Boiler Inspection Institute;
(6).Passed ISO:9001 ,ISO14001,OHASA18001 and ASME(S and U) and A-class boiler certificate.
3. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
4.Terms of payment
T/T 30% of total contract value as down payment;
T/T or L/C 70% of total contract value before delivery.
5.Claim
Any claims by the buyers regarding the machines shipped should be filed within 30 days after arrival of machines at the destination specified in the relative B/L and supported by a survey report issued by a surveyor approved by the sellers, otherwise the sellers shall refuse to consider. Claims in respect of matters within responsibility of insurance company and/or shipping company will not be considered by the seller.
6. What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
