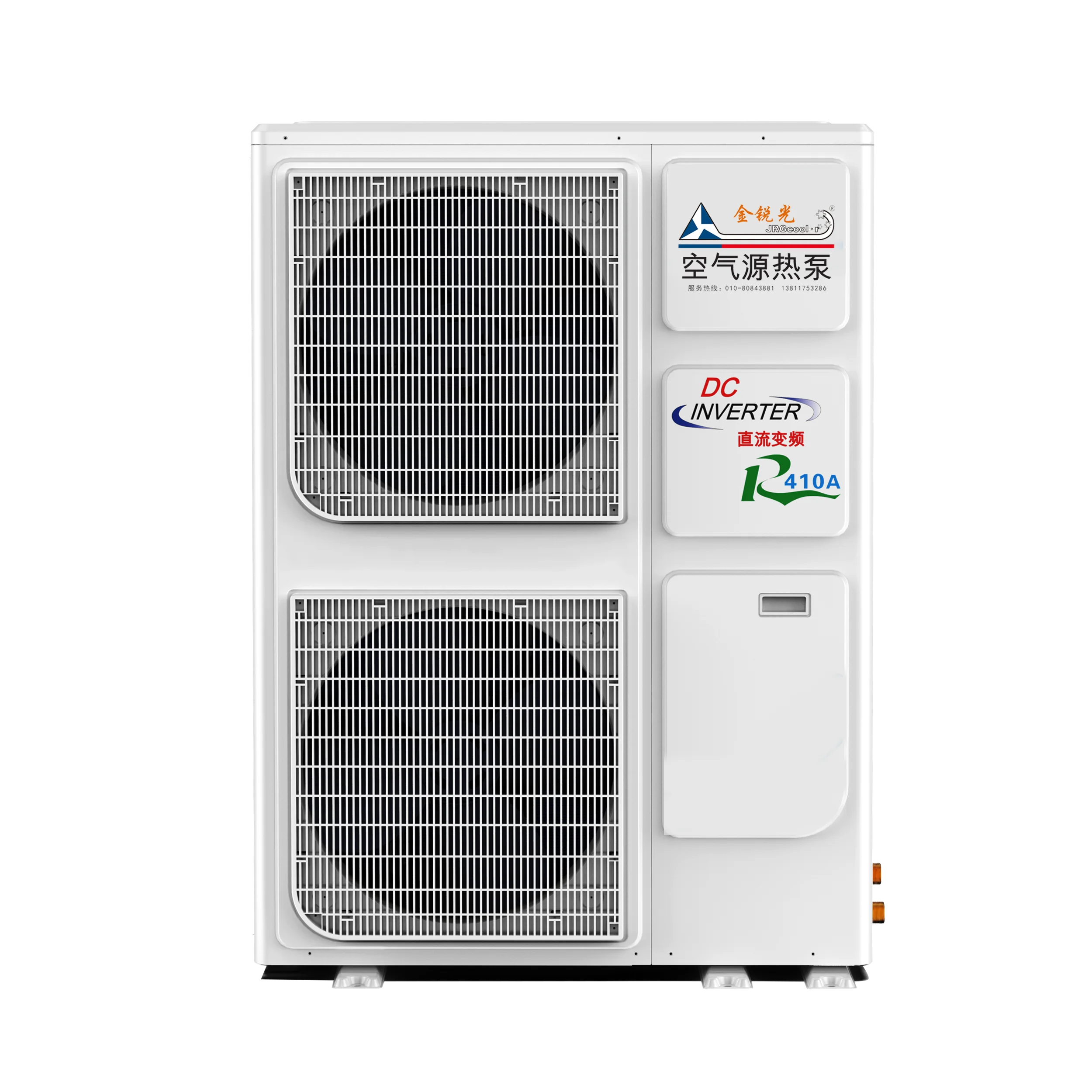

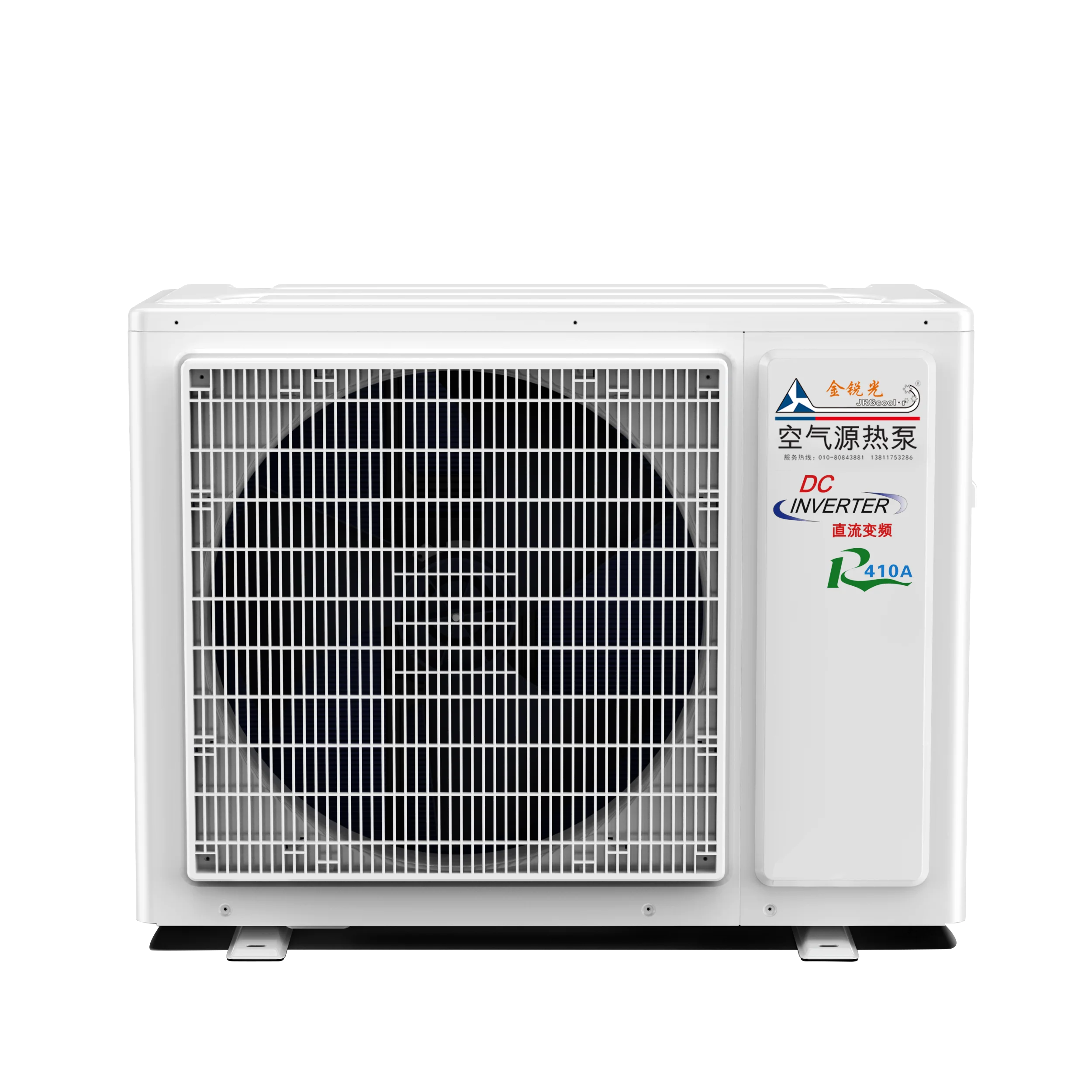

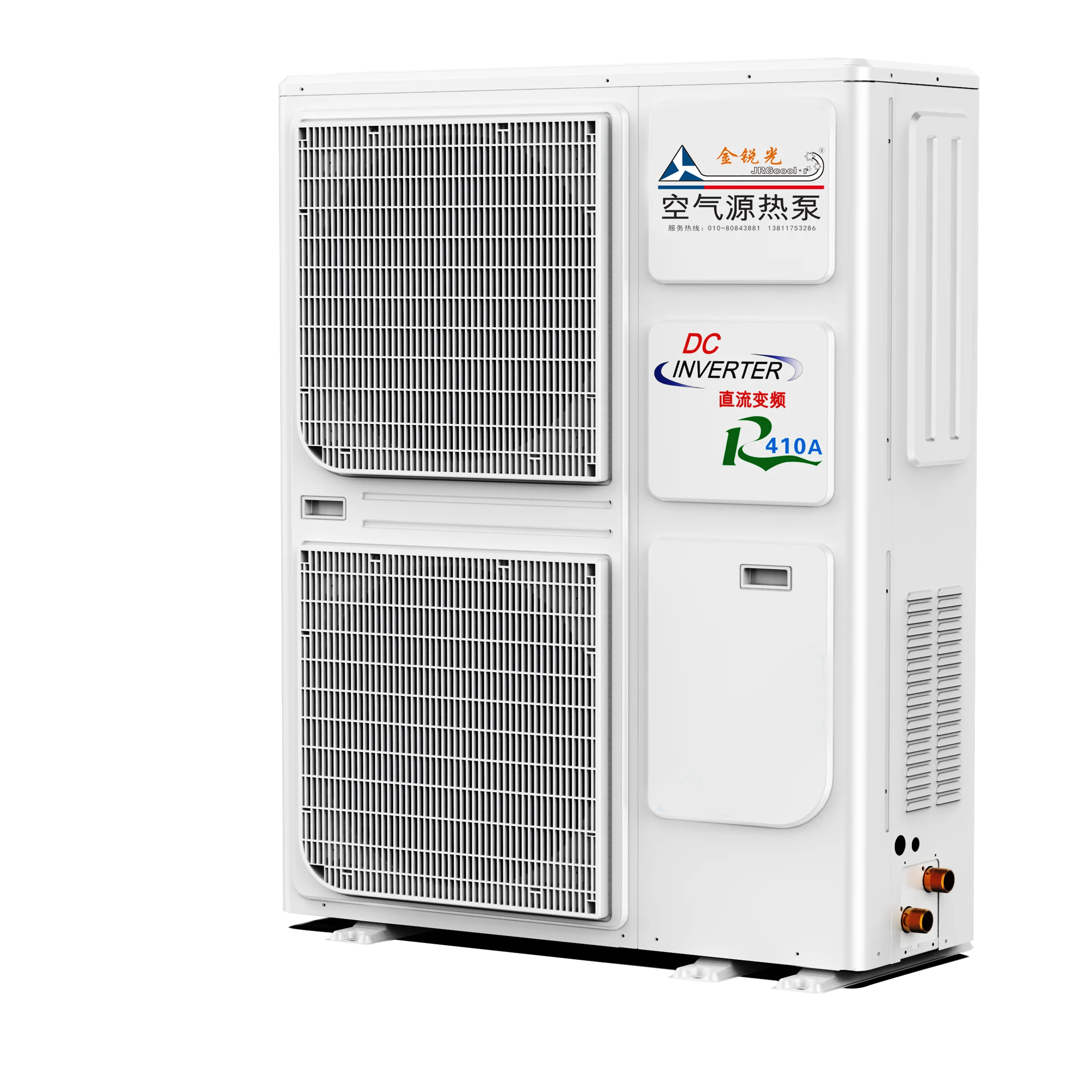

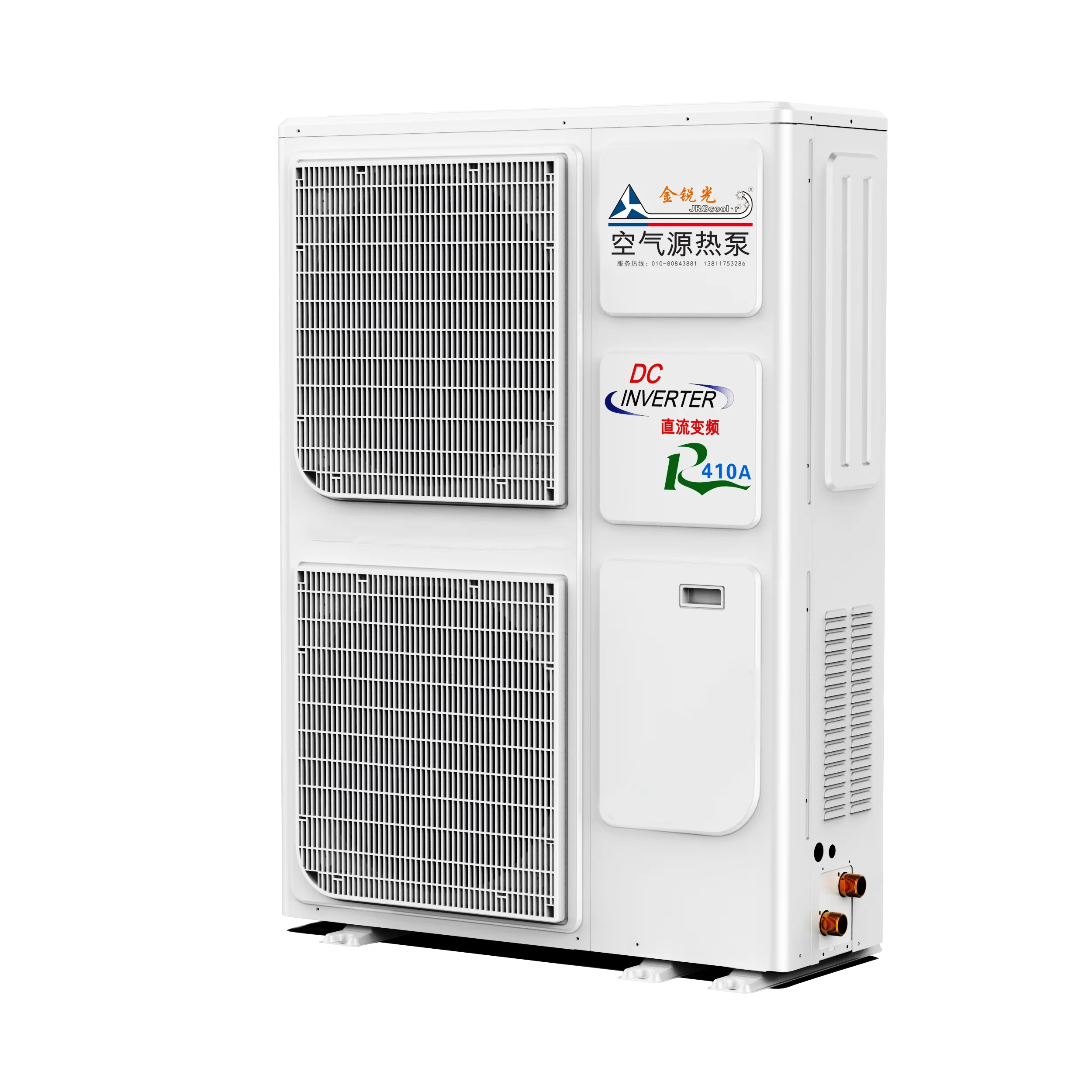

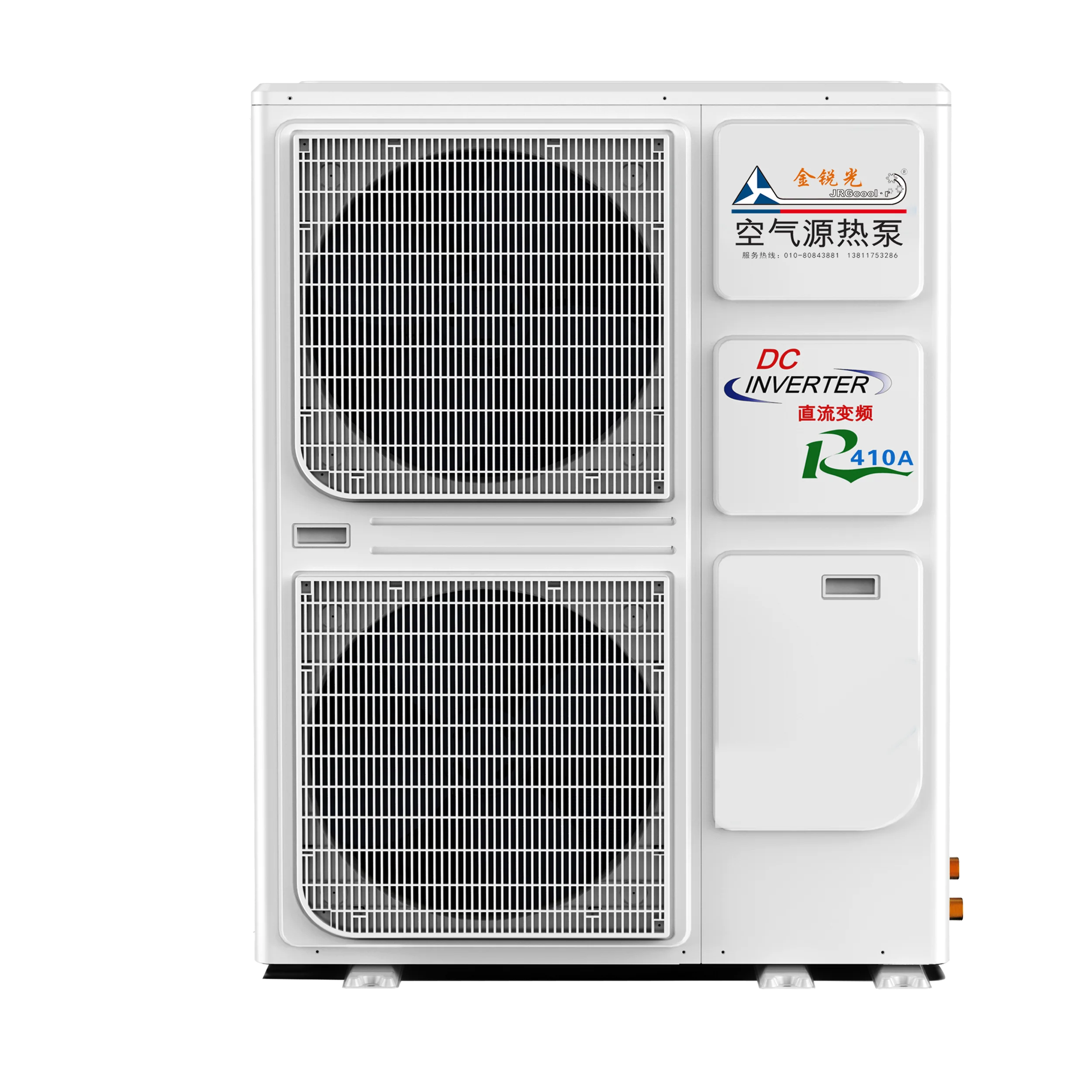

JRG BYRBD20.0C Air Source Heat Pumps Can Be Custom 20kw Commercial Dc Inverter Water Heater Unit
- Category: Heat Pump Water Heaters >>>
- Supplier: Hebei JRG New Energy Technology Development Co. Ltd.
Share on (1600524573162):
Product Overview
Description
Products Display
Specification
Nominal heating A-12 W50 | Rated Calories | KW | 12.5 | |
Input power | KW | 5.84 | ||
COP | W/W | 2.14 | ||
Low temperature heating A-20 W50 | Low temperature heating | KW | 10 | |
Input power | KW | 5.62 | ||
COP | W/W | 1.78 | ||
HSPF(H) | W/W | 2.31 | ||
Water flow/water resistance | (m3/h)/kPa | 1.89/48 | ||
Nominal heating A-12 W55 | Rated Calories | KW | 10 | |
Input power | KW | 5.1 | ||
COP | W/W | 1.96 | ||
Nominal heating A-20 W55 | Rated Calories | KW | 8.8 | |
Input power | KW | 5.03 | ||
COP | W/W | 1.75 | ||
IPLV(H) | W/W | 2.2 | ||
Water flow/water resistance | (m3/h)/kPa | 1.55/40 | ||
Nominal cooling A35 W7 | Rated cooling capacity | KW | 11.6 | |
Input power | KW | 4.64 | ||
EER | W/W | 2.5 | ||
Nominal heating A7W45 | Rated Calories | KW | 20 | |
Input power | KW | 5.88 | ||
COP | W/W | 3.4 | ||
Nominal heating A-12W41 | Rated Calories | KW | 14.5 | |
Input power | KW | 6.02 | ||
COP | W/W | 2.41 | ||
Nominal heating A-20 W41 | Rated Calories | KW | 12.5 | |
Input power | KW | 6.25 | ||
COP | W/W | 2 | ||
IPLV(H) | W/W | 2.97 | ||
HSPF(H) | W/W | 2.68 | ||
APF | W/W | 2.67 | ||
Water flow/water resistance | (m3/h)/kPa | 2.0/52 | ||
Power Specifications | V/Ph/Hz | 220/1/50 | ||
Maximum input power (excluding electric heating) | KW | 7.1 | ||
Maximum input current (excluding electric heating) | A | 32.5 | ||
Maximum outlet water temperature (without electric heating) | ℃ | 58℃ | ||
Operating temperature range | ℃ | -30~43 | ||
Refrigerating system | Refrigerant | Specification | R410A | |
Charge amount/Kg | 2.5 | |||
Fin Heat Exchanger | Specification | High Efficiency Hydrophilic Aluminum Foil Fin Heat Exchanger | ||
Water system | Water heat exchanger | Specification | Casing Heat Exchanger | |
Electric heating | KW | Reserve power | ||
Inlet/Outlet | inch(mm) | 1" internal teeth | ||
Net size | Host (L*W*H) | mm | 940*393*1373 | |
Package Size | Host (L*W*H) | mm | 1095*495"1500 | |
Net weight | Host | kg | 140 | |
Gross weight | Host | kg | 155 | |
Noise | Host | dB(A) | ≤61.5 | |
