Eink Screen 2.9inch 296x158 e-ink panel color Electronic Shelf Label Display for Supermarket
\t\t\t\t\t\t\t\t\tGeneral Description \t\t\t\t\t\t\t

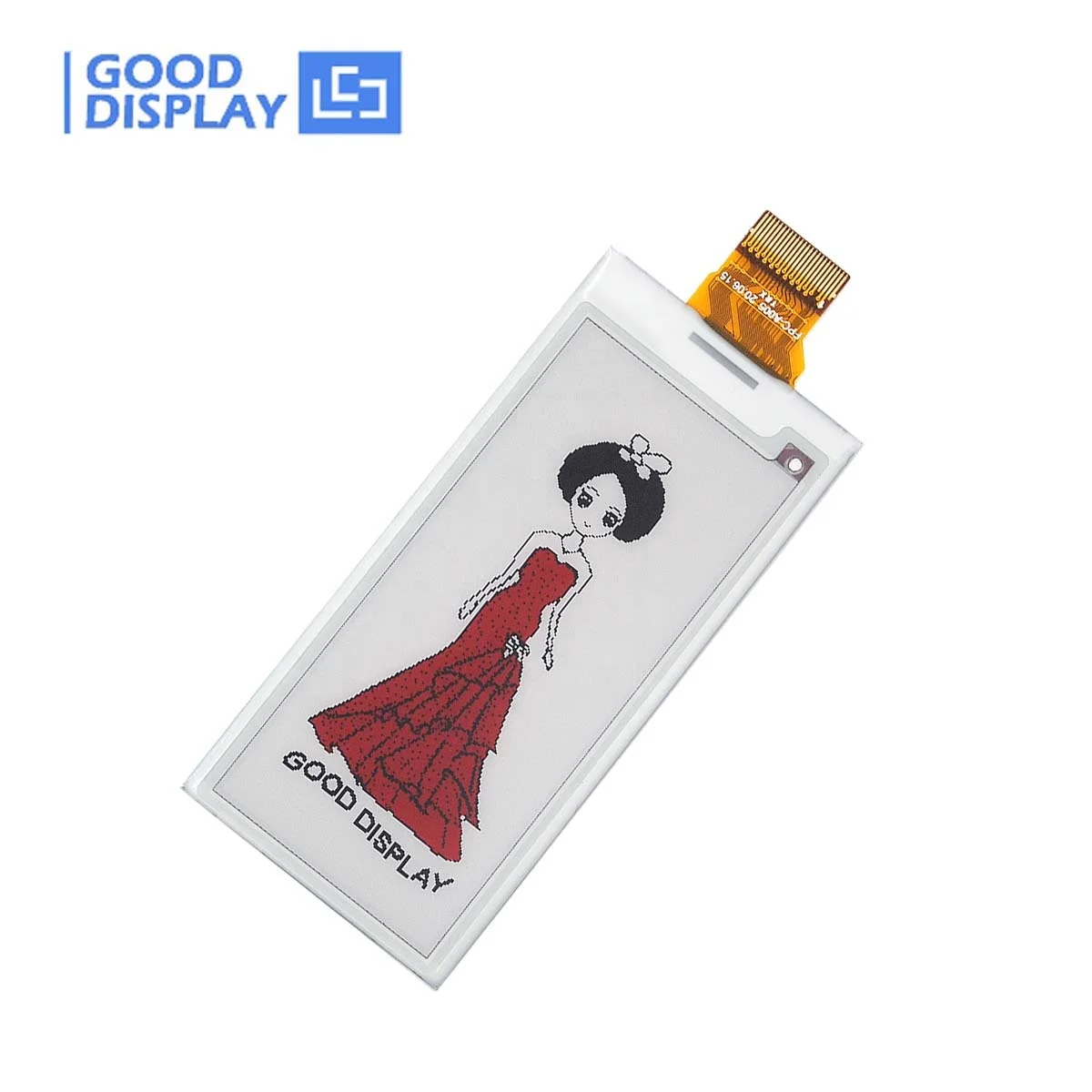

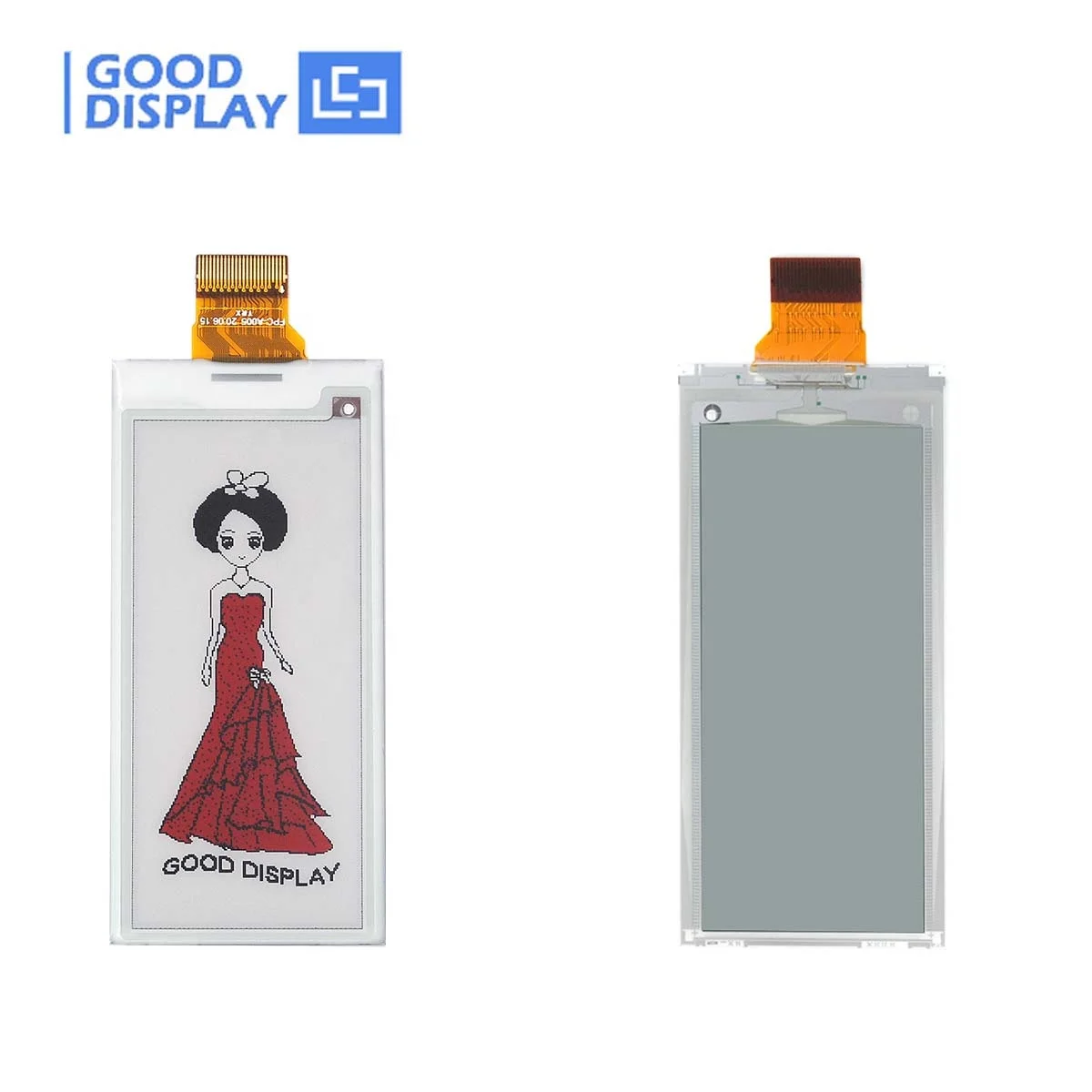

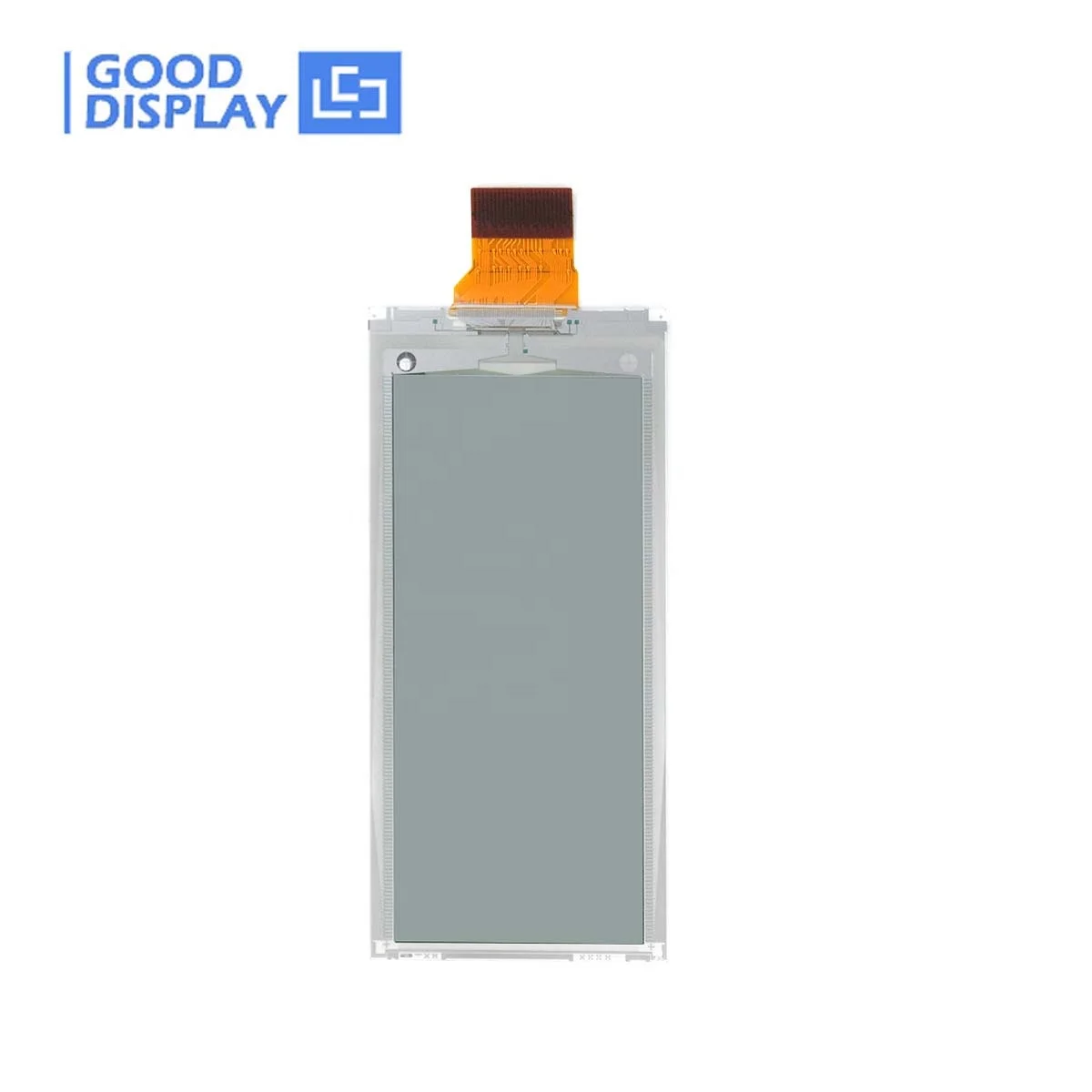

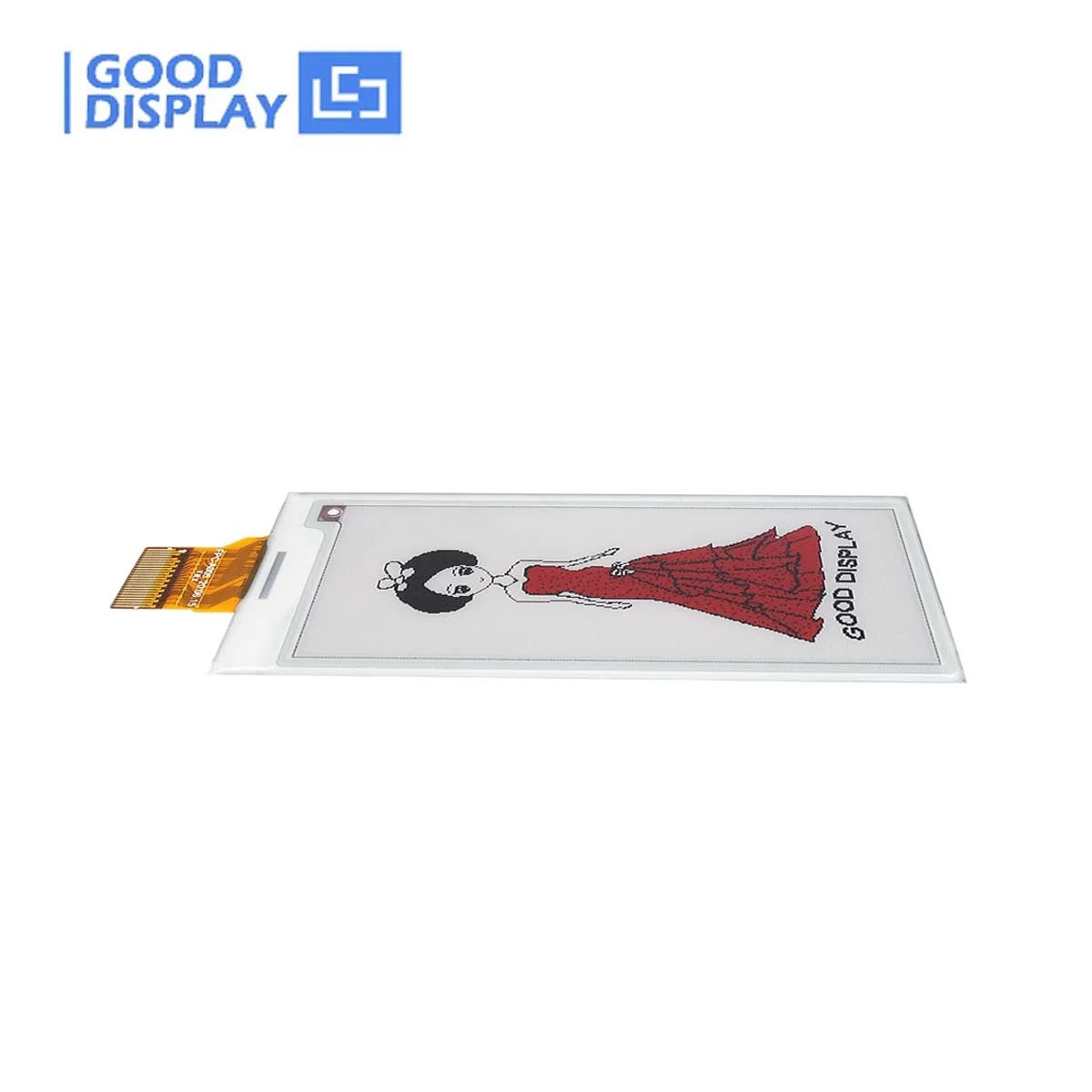

This is a 2.9 inch Tri-color e-paper display with 296x128 resolution, SPI interface, and the display is capable to display images with black, white and red content. Your image holds indefinitely without power – put up your image, then shut down the power. Once these e-paper modules are updated they don't require any power and can actually be disconnected entirely and the content will remain on the display indefinitely. This e-paper display GDEY029Z94 is perfect for low power devices powered by solar or batteries.
We could provide Front light, Touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
We could provide Front light, Touch screen and other accessories for you.
Use our free e-paper software to prepare your bitmap image for this display.
PART NUMBER | GDEY029Z94 |
SIZE | 2.9 inch |
TYPE | Dot Matrix |
IC | SSD1680A |
RESOLUTION | 296x128 |
OUTLINE SIZE(mm) | 79x36.7x1.2 |
ACTIVE SIZE(mm) | 66.896x29.056 |
PIXEL PITCH(mm) | 0.227x0.226 |
OPERATING TEMP. | 0℃~40℃ |
STORAGE TEMP. | -25℃~70℃ |

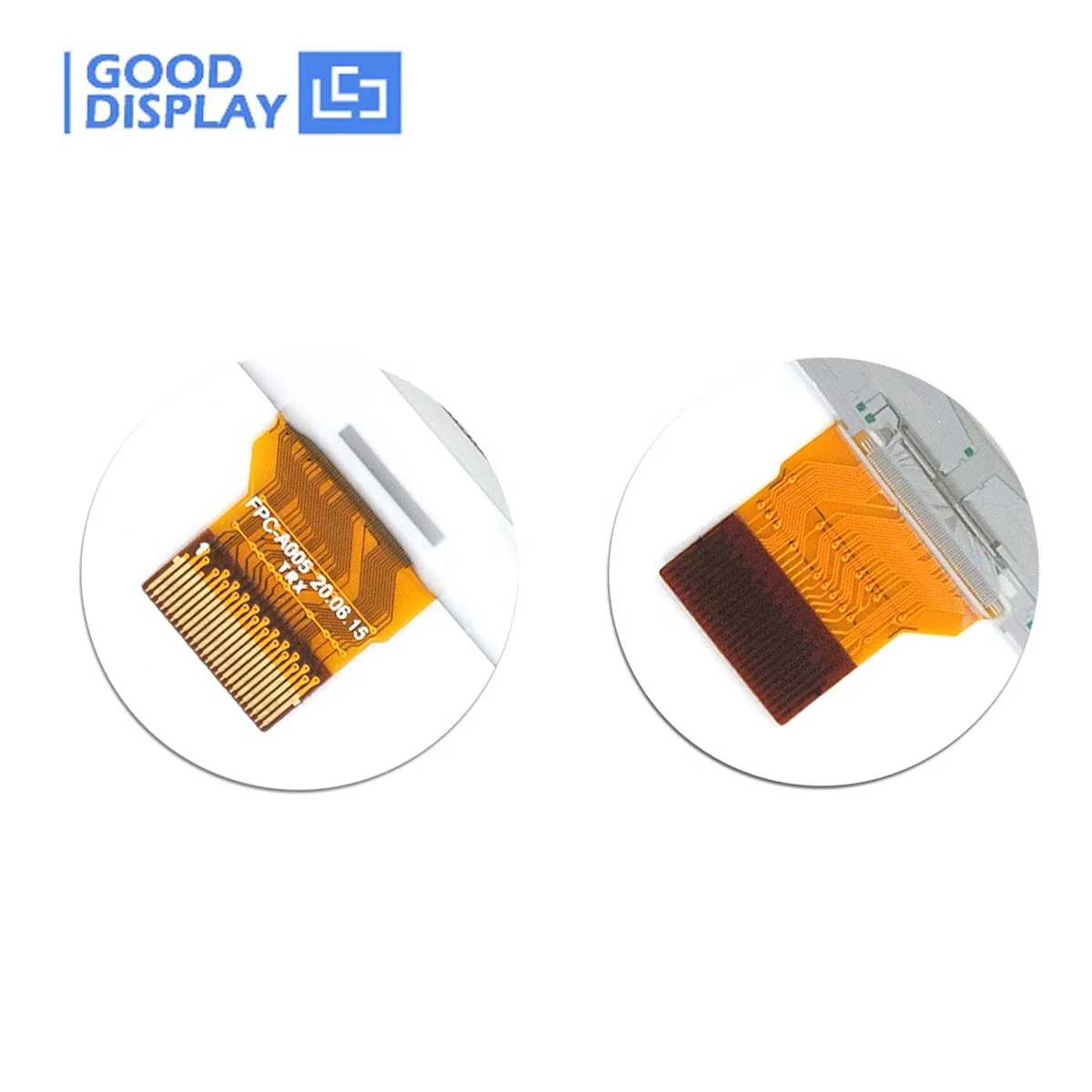

CONNECTOR | 24 Pin FPC |
MAX GRAYSCALE | 2 |
COLOR | Black, White, Red |
INTERFACE | SPI |
FULL REFRESH(s) | 22 |
POWER CONSUMPTION OF THE REFRESH(mW) | 24.9 |
STANDBY POWER CONSUMPTION (mW) | 0.006 |
How does E-paper Display Work?
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
● Versatile. Use in portrait or landscape format
● Contrast Ratio is higher than normal e-paper display
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
● Contrast Ratio is higher than normal e-paper display
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor
● Black, white and red. Compared with monochrome electronic paper display, it is more beautiful
\t\t\t\t\t\t\t\t\tOther Products \t\t\t\t\t\t\t
E-Paper Display Q&A
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 0.97 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
Q: Any solution to achieve lower power consumption of E-paper display?
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
A: After E-paper enters deep sleep mode, turn off the driving circuit and IC power supply so that the electronic paper can achieve zero power consumption.
