CE Certificated Car Spray Paint Booth Custom Spray Booth Full Down Draft car spray painting and baking booth
- Category: >>>
- Supplier: Guangzhou Chnhc Co. Ltd.
Share on (1600524594219):
Product Overview
Description
Product Description
Full downdraught spray booth | ||
Size (L x W x H) | Inside Size | 9000 x 4000 x 2400mm |
| Outside Size | 9140 x 5760 x 2820mm |

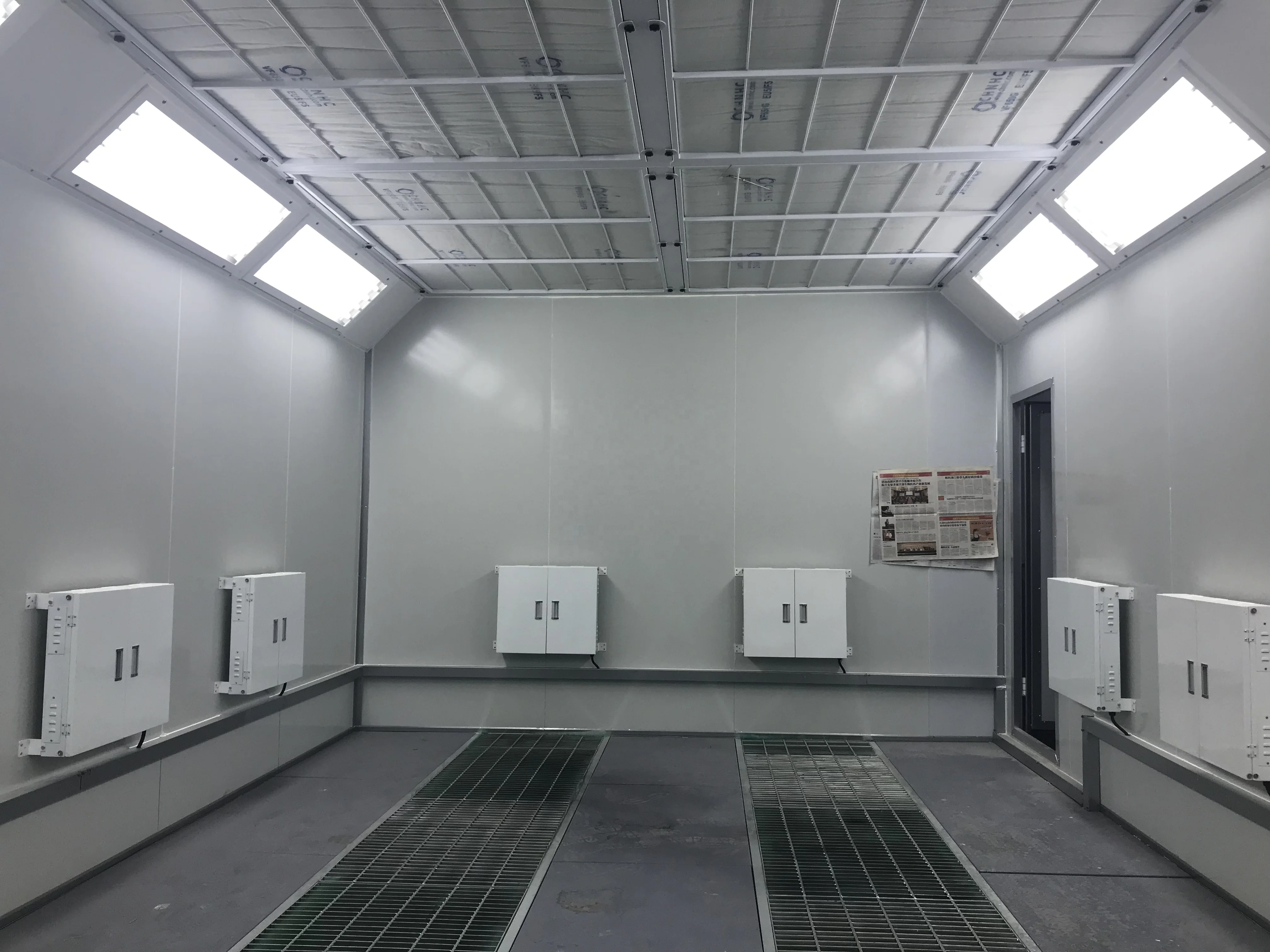

Foundation and Floor | Foundation | Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates |
| Metal Basement | 300mm height, |
| Drive-in Ramps | After confirming the order, we provide the base map,customer site digging pit sinking structure |
Wall and Door | Wallboard | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm |
| Roof Panel | Roof panels adopt galvanized steel plate bending forming |

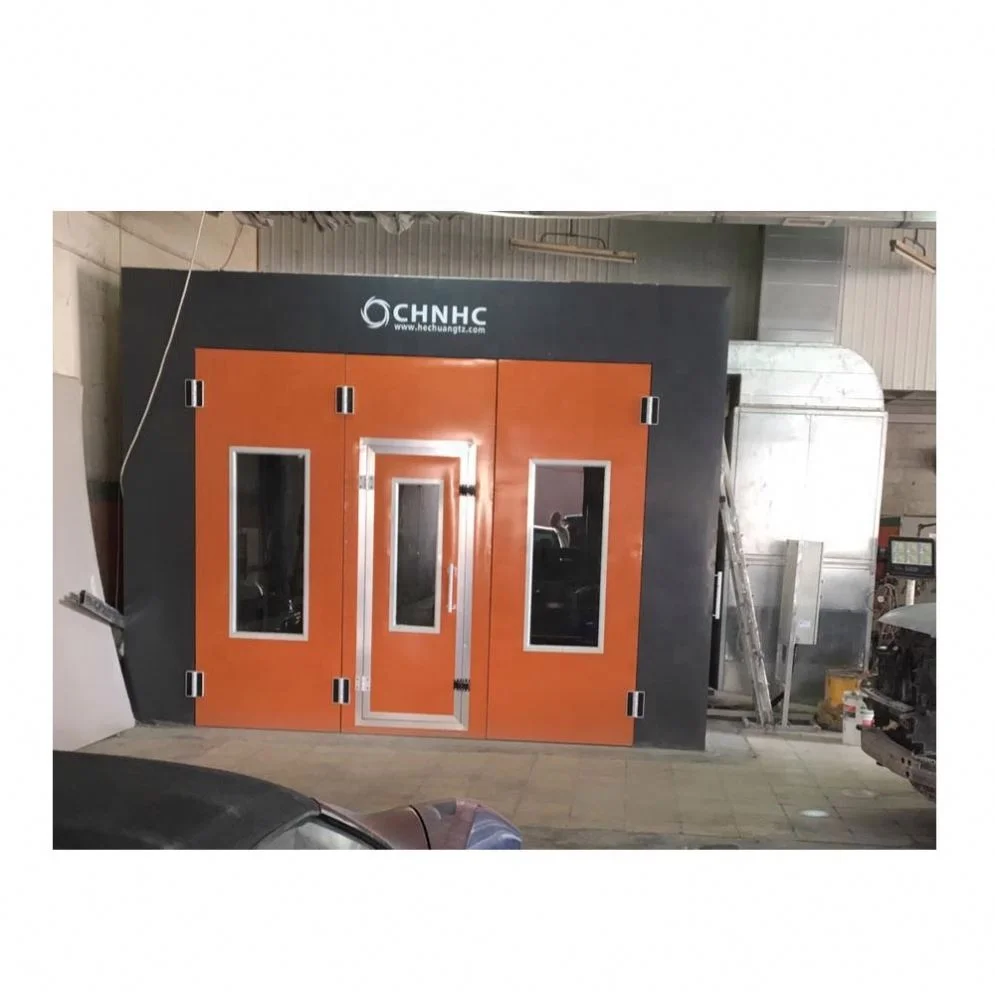

| Entrance Door | Door with steel frame, 1 set, size: 3100 x 2300mm (W x H), tempering glass observation window(Service doors are installed on the big doors) |
| Personnel Door | 1 set, size: 700 x 2000mm (W x H),tempering glass observation window |

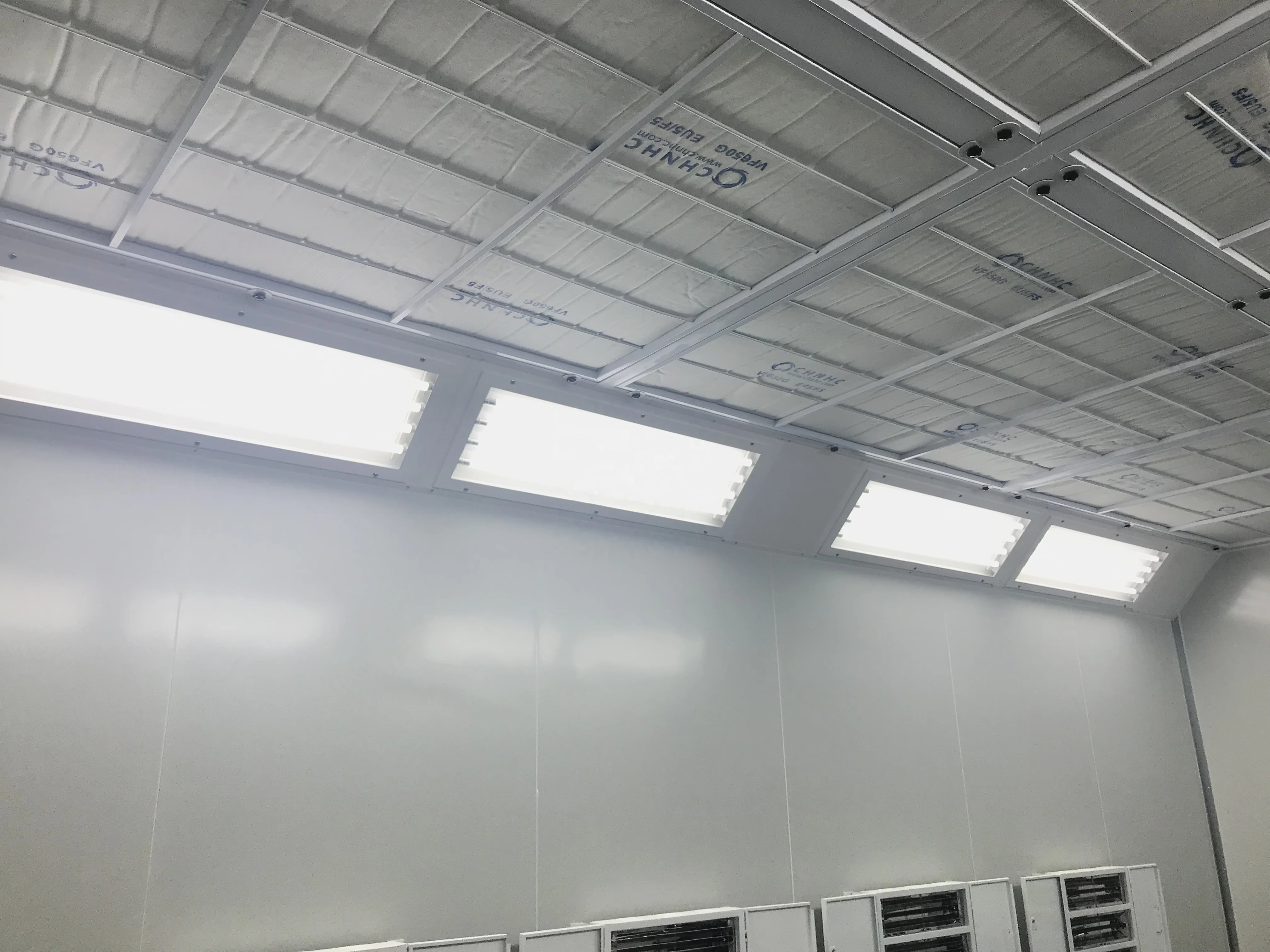

Light System | Ceiling Lighting | 12 units, each 4 x 20w, adopt LED energy saving light, tempering glass |
| Side Lighting | 6 units, each 2 x 20w, adopt LED energy saving light, tempering glass |
| Brightness | ≥800 LUX |
Filtration System | Pre-filters | Grade G2 plate type fibreglass filter |
| Ceiling Filters | Adopt high efficient adhesive filter, which can capture the dust who is more than 4μm, its filtering rate reaches 98% |
| Bottom filter | Fibreglass paint-stop filter |
Exhaust Filters | Fibreglass paint-stop filter and active carbon filter | |
Ventilation System | Inlet Fan | Adopt big impeller turbo fan 1 x 11KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ |
Outlet Fan | Adopt big impeller turbo fan 1 x 11KW , Three-phase, 6 pole motor, 380V, 970RPM, 50HZ | |
Total Fan Capacity | 32,000m³/h | |
Air Flow Speed in Cabin | 0.25-0.30m/s in loaded booth | |
Duct | Straight pipe: 3 set, bending pipe: 3 units, reducing pipe: 2 units, soft connection: 1 unit, flange connection | |
Flue | Galvanized pipe: 4 meters, bending pipe: 2 units | |

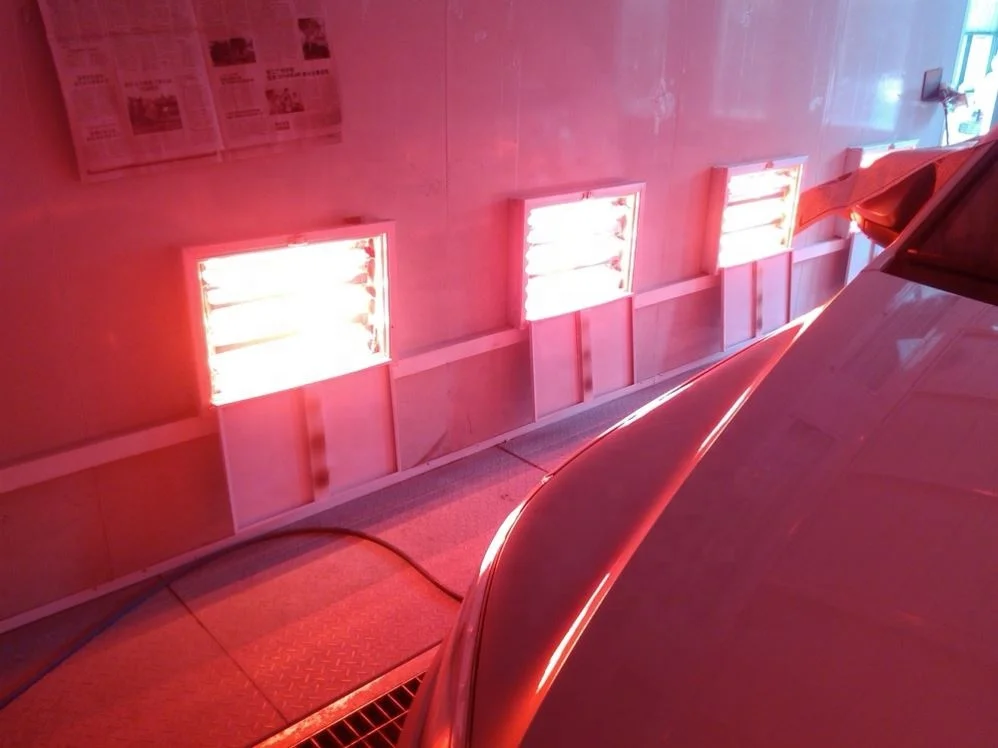

Heating System | Infrared heater | 12 groups of good quality infrared heaters with 3*1KW ,each with safety protection switches ,total 12 groups. |
Control Box | Control System | Standard control system |
Function | Painting, baking, lighting, emergency stop switch, baking time setting, temperature setting, over-temperature alarm indication, temperature limiter , error alarm | |
Total Power | 60KW |
Packaging & Shipping
Our Services
A. All of the machines in our factory can be customized. If you have any other requirements of the machine, please feel free to contact me. We can design it for you.
B: Payment terms: T/T. 30% in advance after order confirmed, 70% in balance before
shipment.
C: Delivery time: To effect shipment within 10 days after the receipt of deposit.
D:Warranty time: 1 year. During the warranty time, any defective caused by product’s quality, CHNHC has responsibility to offer free spare parts to customers freely and bear the
delivery cost for DHL or TNT Carrier.
Company Information
HC Coating Equipment Manufacturing Co., Ltd. is an auto maintenance equipment company. Today it is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. The core products in our company are spray painting and baking booth, portable spray booth, bus spray booth, preparation station, mixing room, brake lathe, car bench and so on. All our products are shipped to Europe, East Europe, North & South America, Africa, Australia and Asia as well as different provinces in China.
FAQ
Q: Are you a factory or a trading company?
A: We are a factory and all machines are produced at our own factory.
Q:Can I order special color which I like?
A: Yes, we can also produce machines with special color according to client's request.
Q: Can I order spray booth in any special size?
A: Yes,you can.
The size is customized.
Q: I don't know how to assemble your spray booth
A: The complex installation is already finished before delivery, what you need to
do is finishing the simple procedures according to the installation instructions.
Q: When the product can be delivered?
A: Commonly the lead time will be within 10 working days after receiving 30% deposit by T/T.
