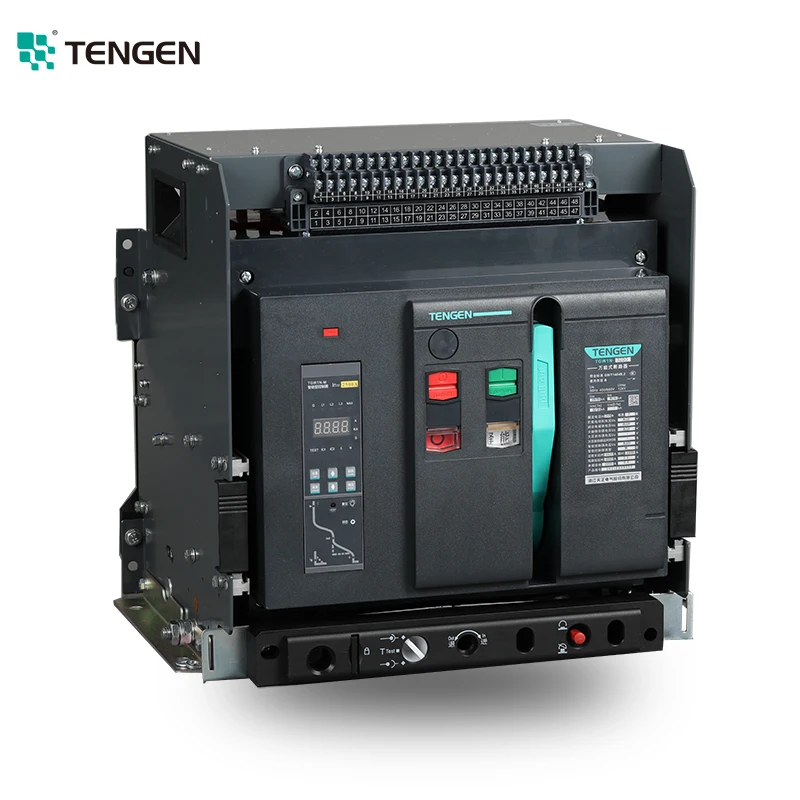

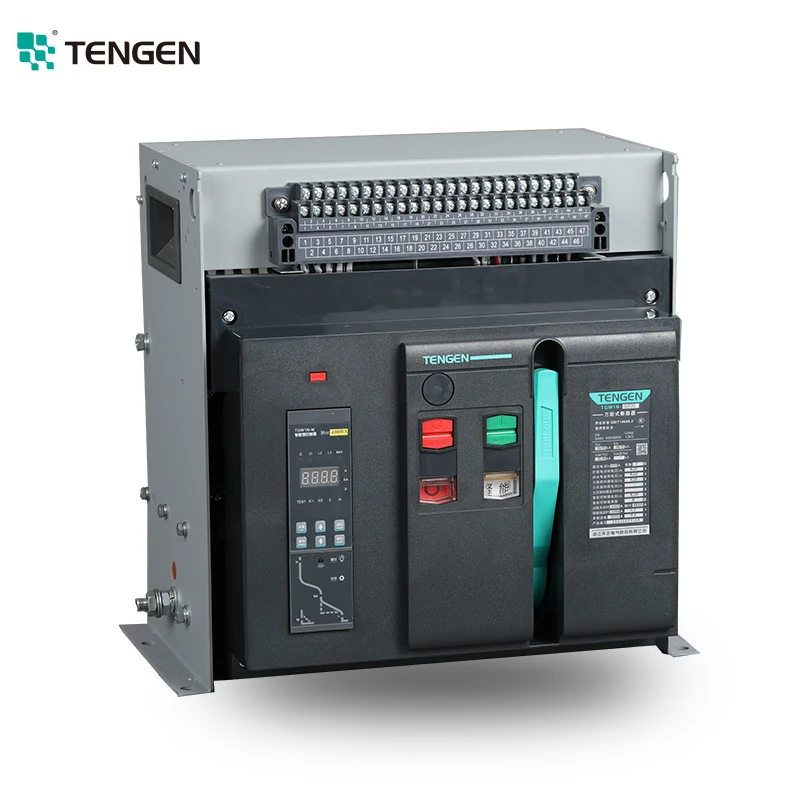

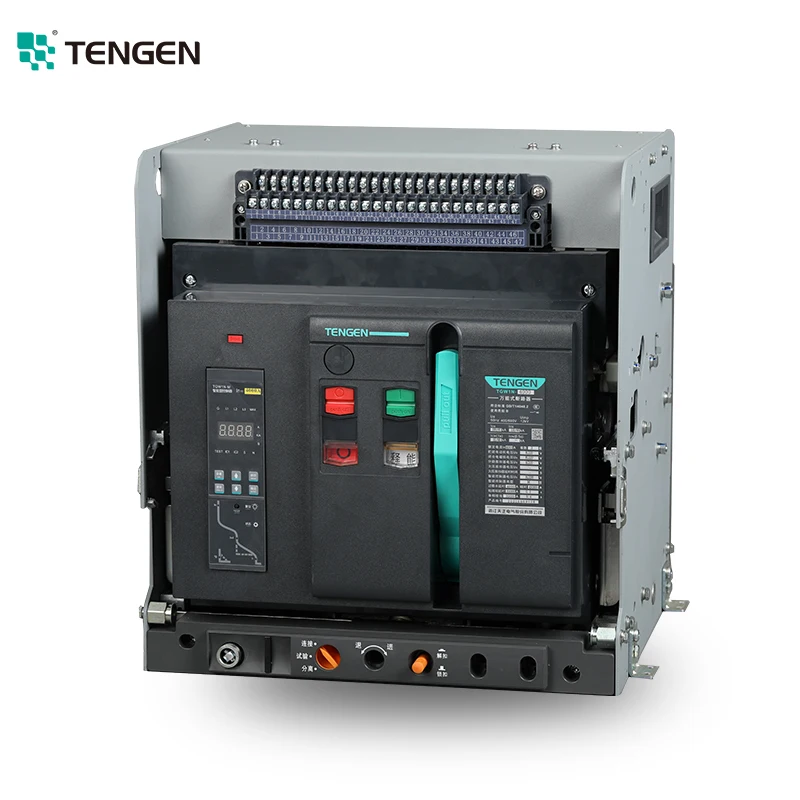

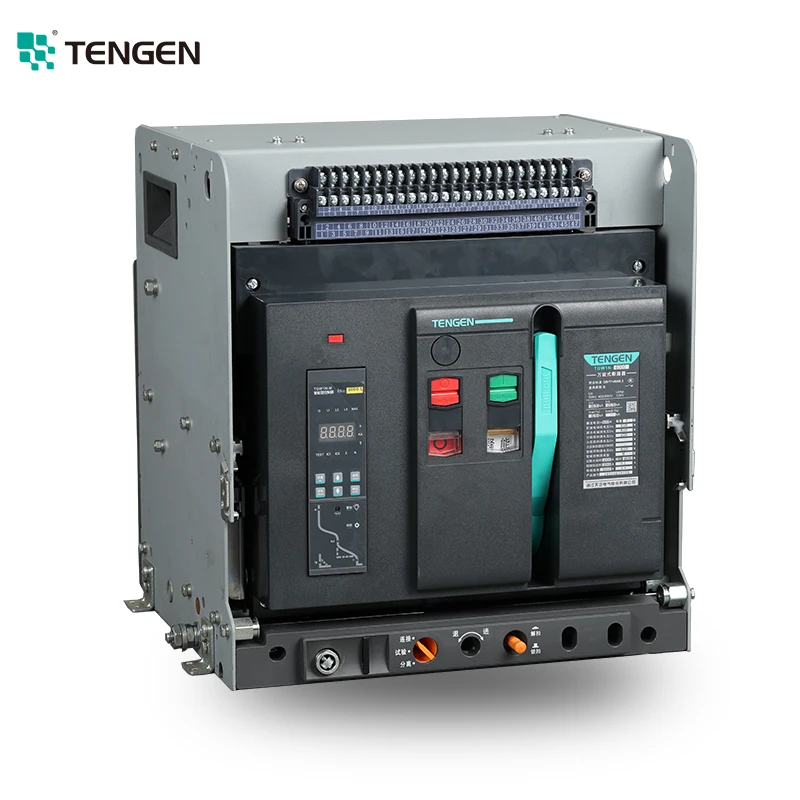

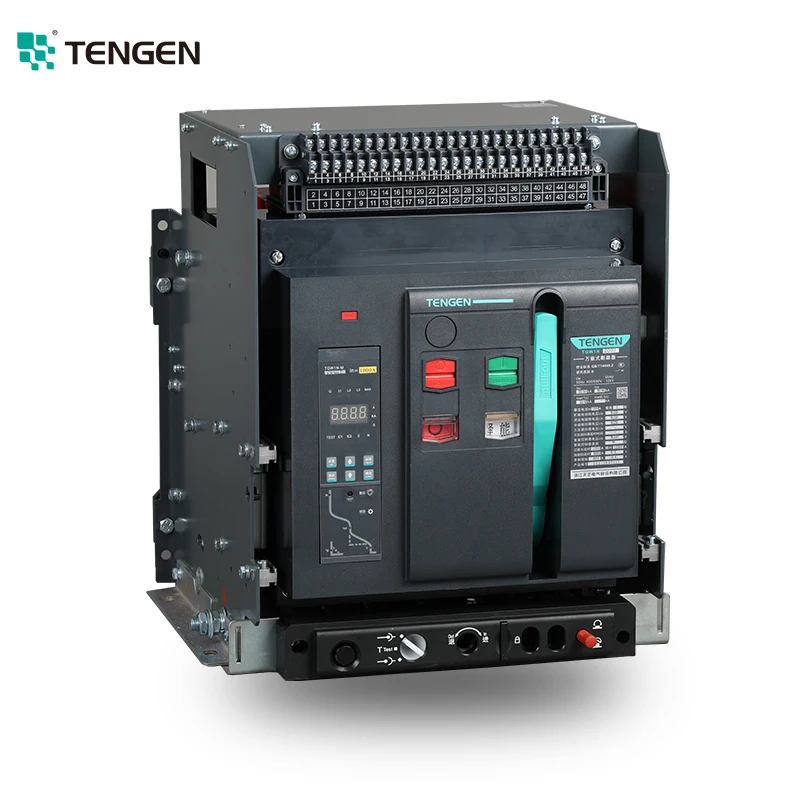

Hight Quality 3p 4p ACB 630a 2500a 5000a 6300a Draw-out /Fixed type acb 3 Poles air circuit breaker
TGW1N series Air Circuit Breaker (hereinafter referred to as the circuit breaker) is suitable for distribution network with AC 50Hz, rated voltage of AC380V-AC690V, rated current of 200A-6,300A. It is used for distributing electric energy and protecting circuits and power units from overload, short circuit, undervoltage, one-phase ground or residual current. The circuit breaker has the functions of communication and intelligent protection, which can improve the reliability of power supply and avoid unnecessary power failure. It can fully replace TGW45 products in the market with its excellent breaking performance and high quality.
International Standards and Certification: CE CB
Comply with the standards: IEC/EN60947-2
International Standards and Certification: CE CB
Comply with the standards: IEC/EN60947-2
Basic parameters | ||||||||||||
Frame current | 1600 | 2000 | 2500 | 3200 | 4000 | 6300 | ||||||
Rated working voltage Ue(V) | AC415/690 | AC400/690 | ||||||||||
Rated insulation voltage Ui(V) | 1000 | |||||||||||
Rated impulse withstand voltage Uimp(kV) | 12 | |||||||||||
Frequency (HZ) | 50 | |||||||||||
Use category | B | |||||||||||
Pole number | 3P/4P | 3P | 3P/4P | |||||||||
Maximum continuous current of N pole (A) | 100%In | / | 50%In | |||||||||
Full-breaking delay time without addition (ms) | ≤30 | |||||||||||
Closing time (ms) | ≤70 | |||||||||||
Flashover distance (mm) | 0 | |||||||||||
Rated current In(A) | 200/400/630 800/1000 1250/1600 | 200/250/400 500/630/800 1000/1250 1600/1900 2000 | 630/800 1000/1250 1600/2000 2500 | 2000/2500 2900/3150 3200 | 4000 | 4000/4900 5000/5900 6300 | ||||||

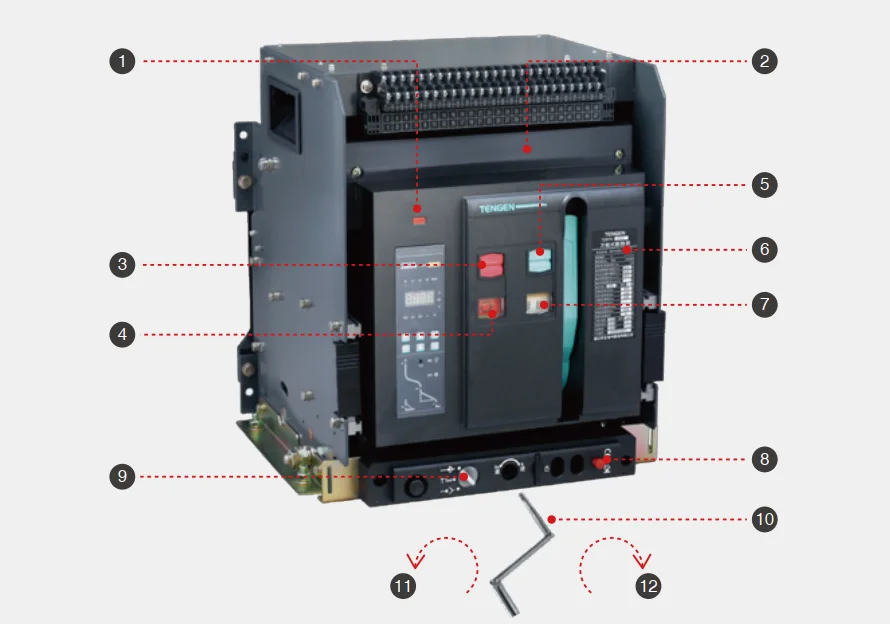

External structure
1 Reset button for fault trip indication
2 Shell
3 Switching-OFF button
4 Indictor of circuit breaker closed and open
5 Switching-ON button
6 Data label
2 Shell
3 Switching-OFF button
4 Indictor of circuit breaker closed and open
5 Switching-ON button
6 Data label
7 Energy storage/release indicator light
8 Drawer three-position button
9 Indication of connection, test and separation positions
10 Jiggle bar
11 Screw out
12 Rotate in
8 Drawer three-position button
9 Indication of connection, test and separation positions
10 Jiggle bar
11 Screw out
12 Rotate in

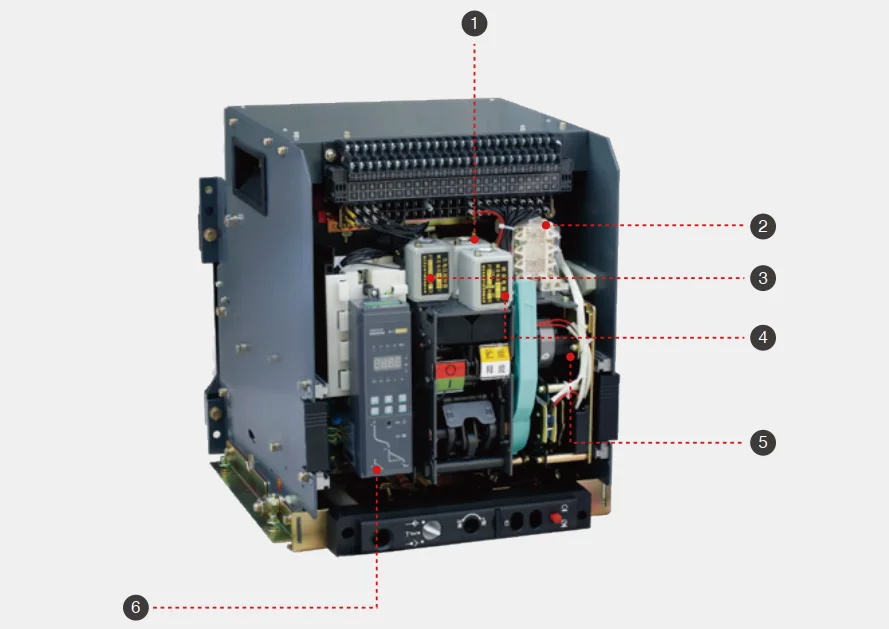

Internal structure
1 Reset button for fault trip indication
2 Shell
3 Switching-OFF button
2 Shell
3 Switching-OFF button
4 Opening and closing indication
5 Switching-ON button
6 Nameplate
5 Switching-ON button
6 Nameplate
