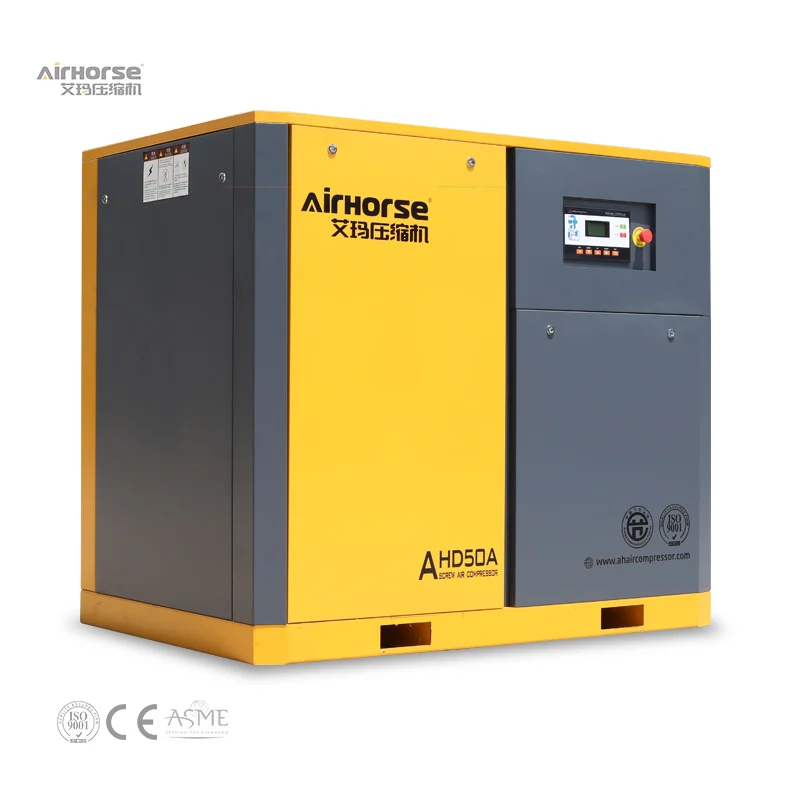

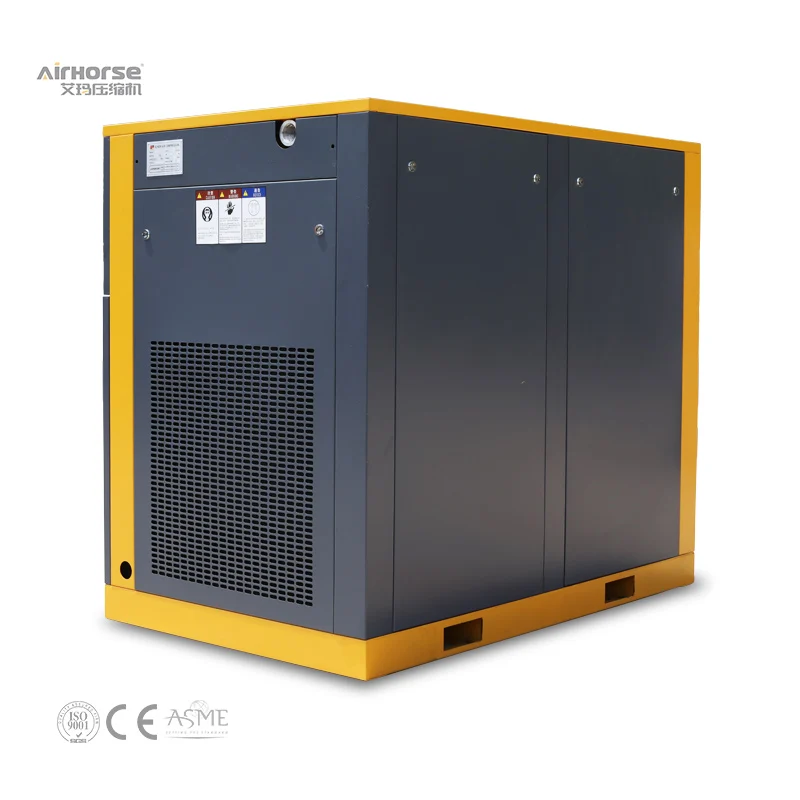

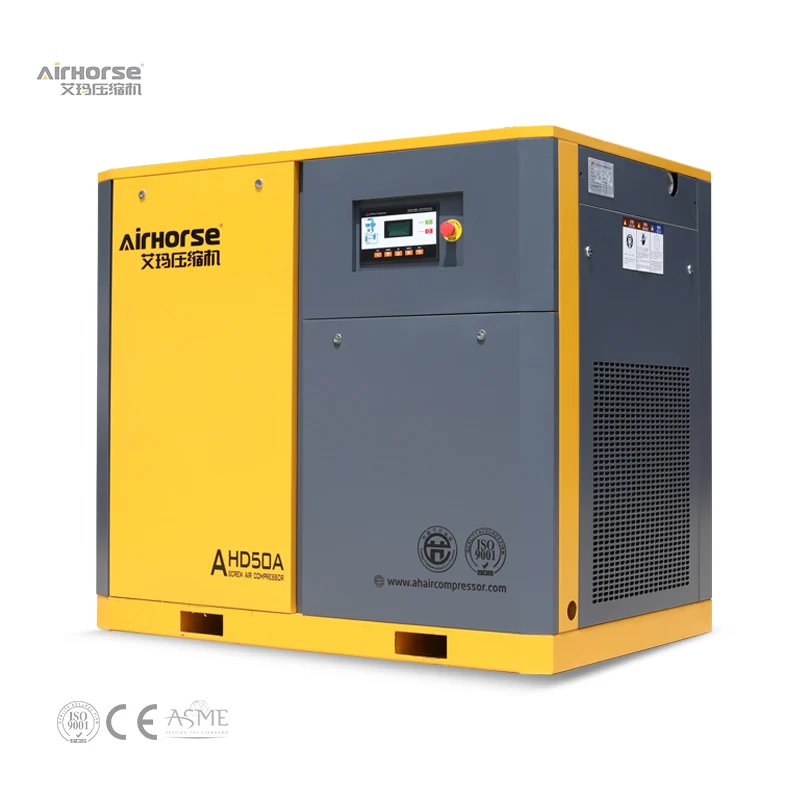

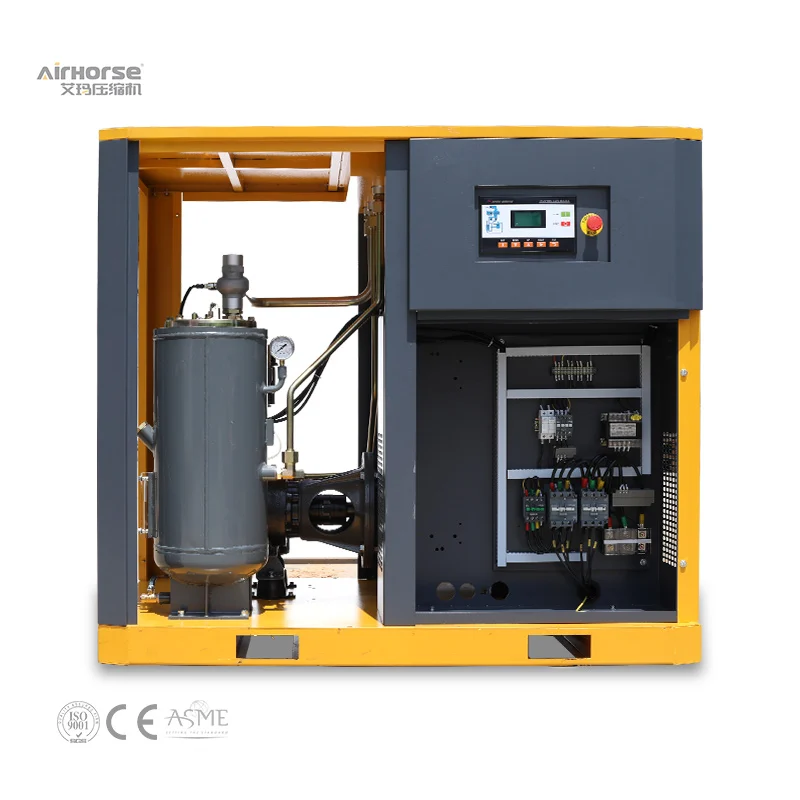

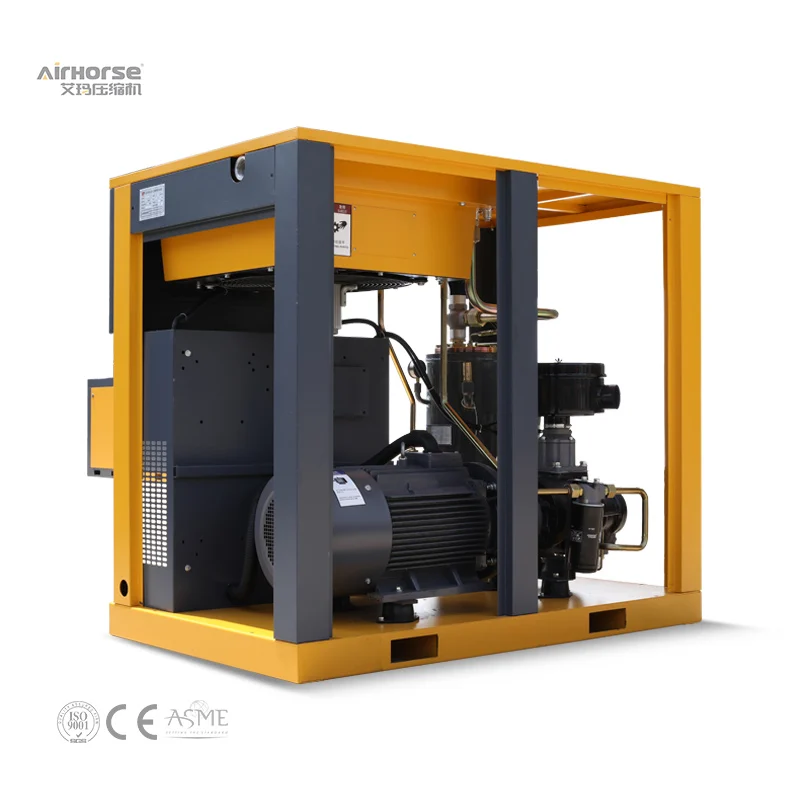

factory selling price 30HP 22KW 7bar 8bar Industrial Variable Speed Drive Screw type VSD Air Compressor 220V 460V 480V
- Category: >>>
- Supplier: Guangzhou Airking Compressor Co. Ltd.
Share on (1600524617822):
Product Overview
Description
Product Description
30Hp 22KW Absolute stability industrial compressors Industrial VSD Screw Air Compressor
>>C l i c k H e r e F o r M o r e I n f o r m a t i o n ! ! !

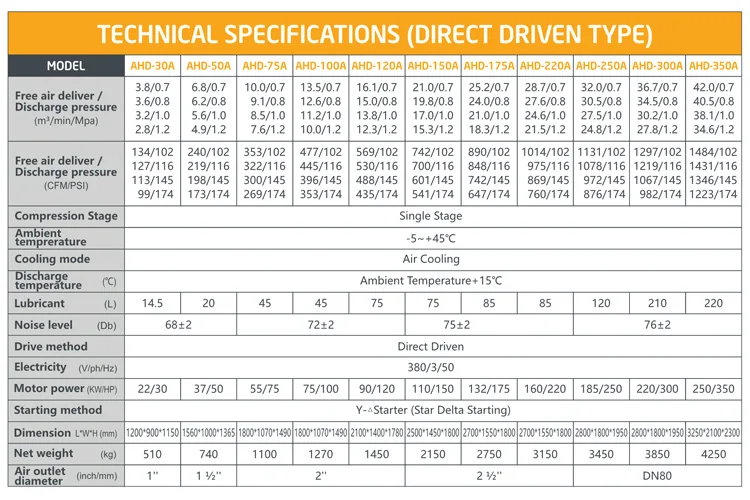

| Screw Air Compressor:AHD-30A VSD | |
| Free air deliver/Discharge pressure(m³/min/Mpa) | 3.8/0.7 3.6/0.8 3.2/1.0 2.8/1.2 |
| Free air deliver/Discharge pressure(CFM/PSI) | 134/102 127/116 113/145 99/174 |
| Motor power(KW/HP) | 22/30 |
| No.of compression stage | Single stage |
| Ambient temperature(°C) | -5--+45 |
| Cooling mode | Air cooling |
| Discharge temperature(0C) | Ambient temperature+15 |
| Lubricant(L) | 14.5 |
| Noise level(Db) | 68±2 |
| Drive method | Direct driven |
| Electricity(V/ph/Hz) | 380/3/50 |
| Starting method | Direct starting |
| Dimension:L*W*H(mm) | 1200×900×1150 |
| Weight(kg) | 415 |
| Air outlet pipe diameter(inch/mm) | 1'' |

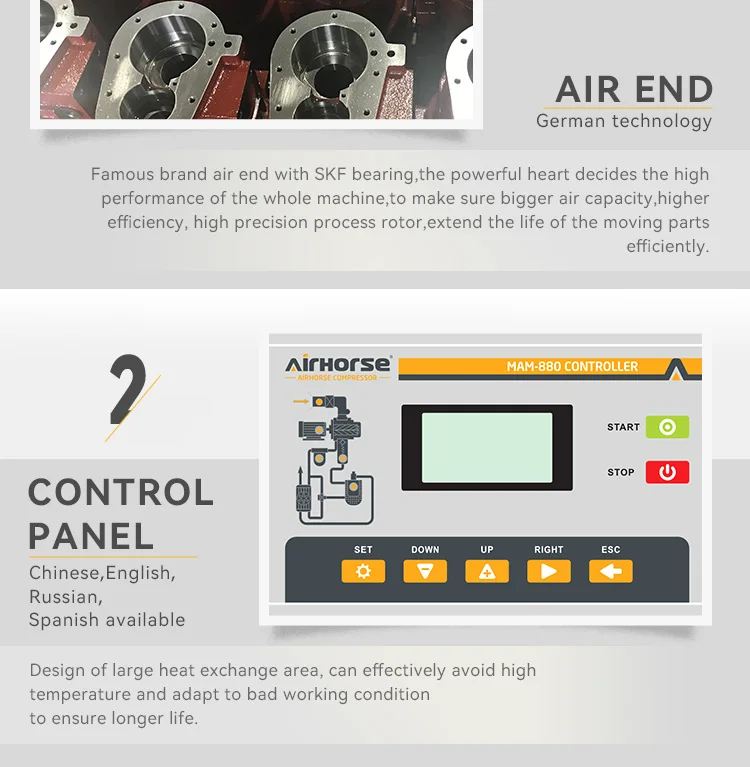

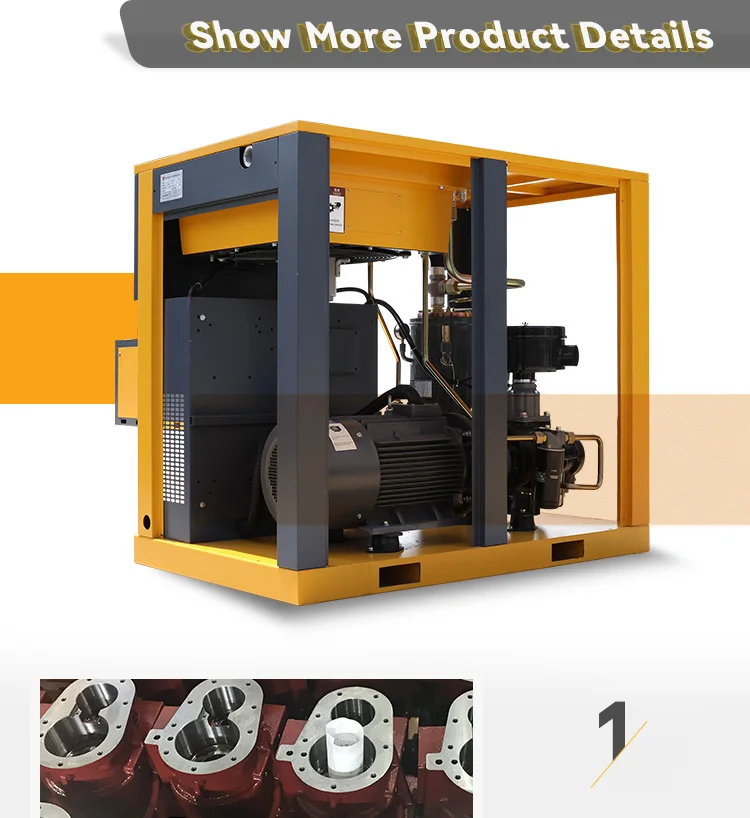

Product Details

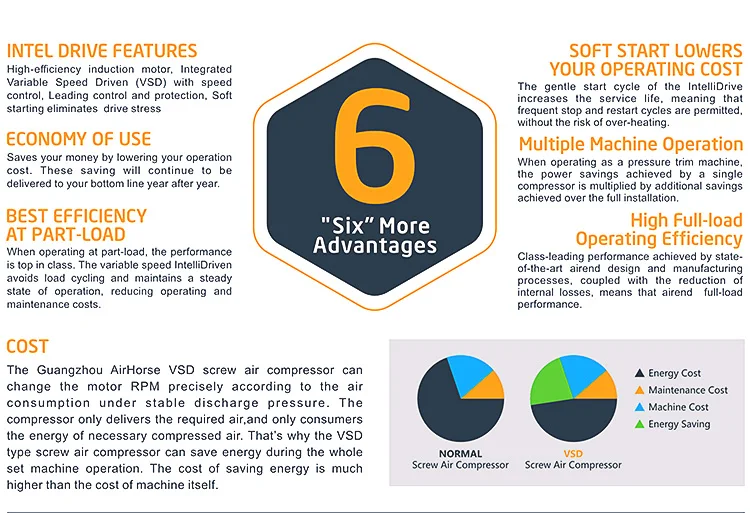

Our Advantages
