ETEK EKL1 63 6KA 1P N High Quality Residual Current Breaker 16A RCCB with TUV CB test report CE Approval
- Category: >>>
- Supplier: Hangzhou Etek Electric Co. Ltd.
Share on (1600524644866):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | ETEK |

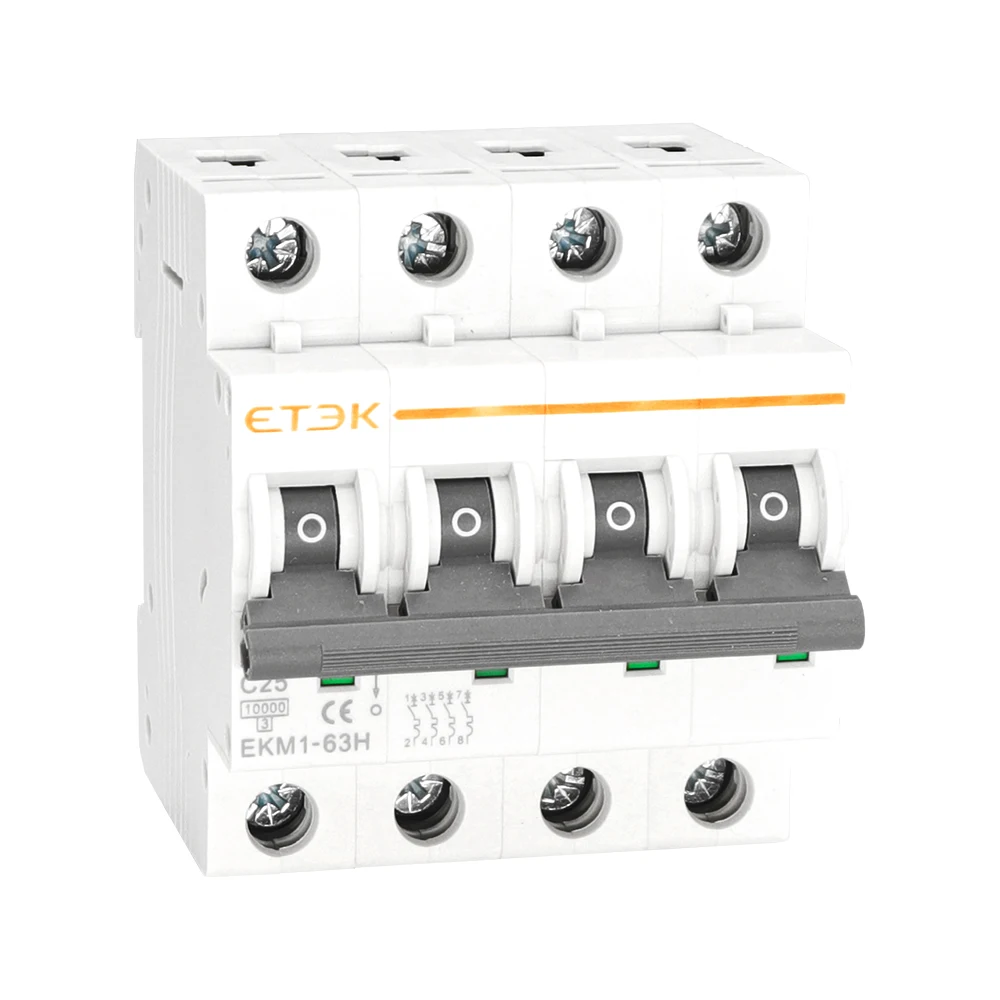

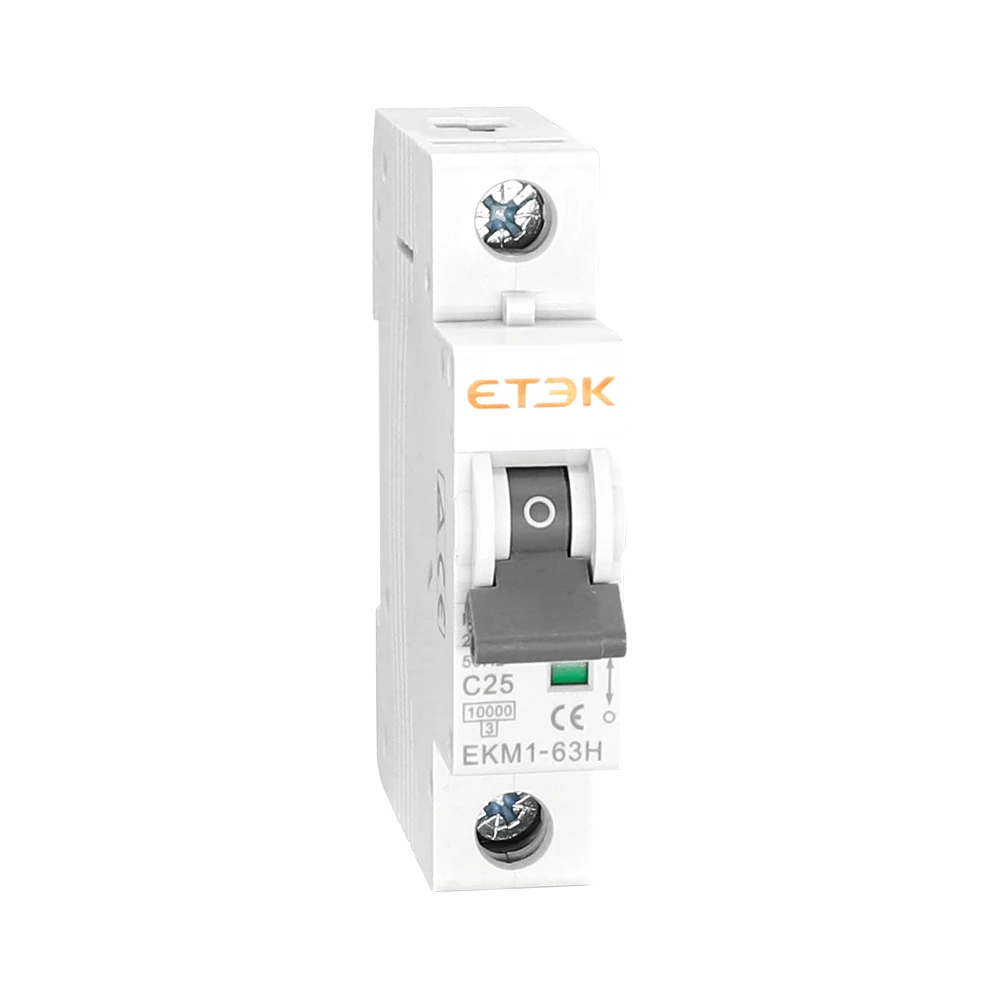

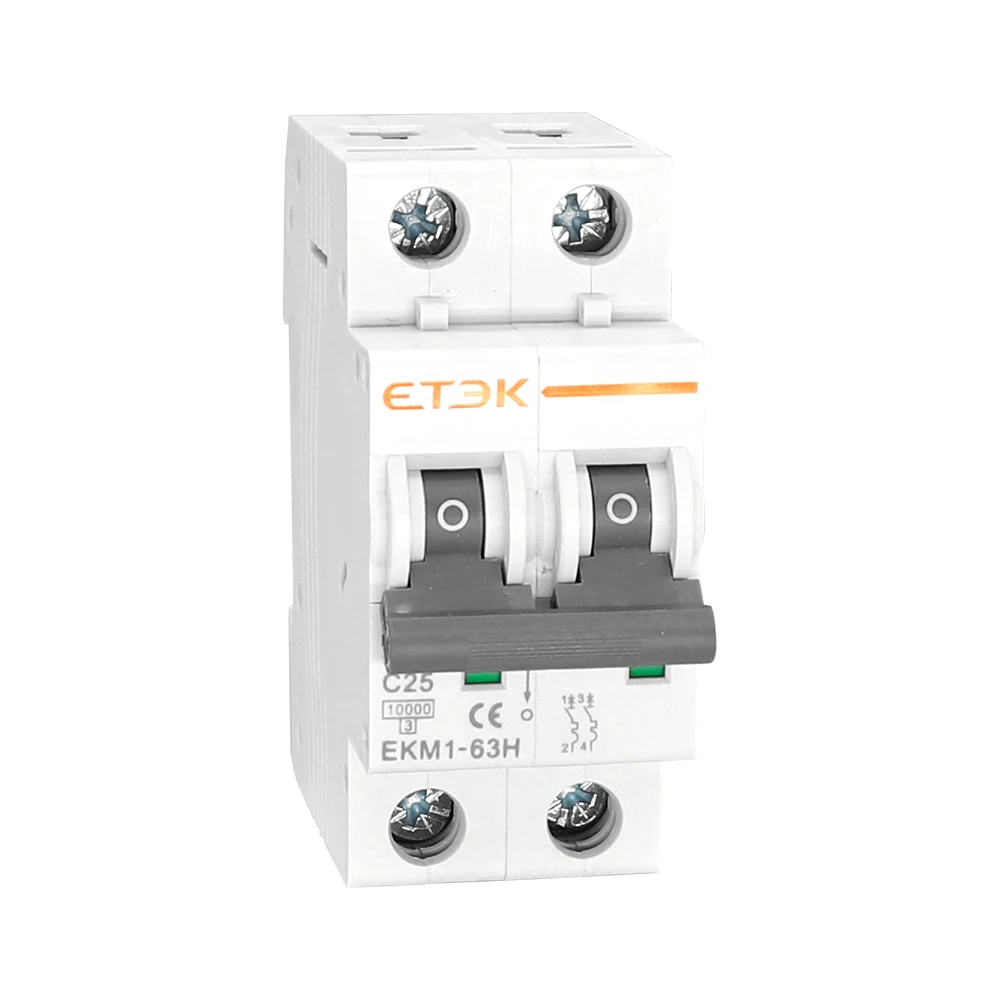

Model Number | EKM1-63H |
Rated current In | 1,2,3,4,5,6,8,10,13,16,20,25,32,40,50,63A |
Poles | 1P, 1P+N , 2P , 3P , 3P+N ,4P |
Rated breaking capacity | 10,000A |
Rated impulse withstandvoltage(1.5/50) Uimp | 4,000V |
Dielectric test voltage at ind. Freq. for 1 min | 2kV |
Pollution degree | 2 |
Electrical Life | 8,000 Cycles |
Mechanical life | 20,000 Cycles |
Contact position indicator | Yes |
Protection degree | IP20 |
Reference temperature for setting of thermal element | 30℃ |
Ambient temperature(with daily average≤35℃） | -5℃~+40℃ |
Storage temperature | -25℃~+70℃ |
Terminal connection type | Cable/Pin-type busbar/U-type busbar |
Terminal size top/bottom for cable | 25m㎡ 18-3AWG |
Terminal size top/bottom for busbar | 25m㎡ 18-3AWG |
Tightening torque | 2.5Nm 22In-Ibs |
Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
Connection | From top and bottom |
Auxiliary contact | EKM1-OF |
Alarm contact | EKM1-FB |
Shunt release | EKM1-MX |
Over/Under voltage release | EKM1-MV+MN |
Packing & Delivery
ETEK gift box ,blank box ,Customized gift box
Company Profile
Hangzhou ETEK Electrical Co.,Ltd.was founded in 2021, which has more than 50 employees now. It is a professional manufacturing company engaged in R & D, production and sale of high and low voltage electrical products, such as terminal distribution electrical appliances, industrial distribution electrical appliances, industrial control electrical appliances, DC systems distribution appliances, etc. it possesses 3 major manufacturing departments and 1 import & export trading company. The three manufacturing departments are terminal distribution electrical appliances manufacturing department, industrial distribution electrical appliances manufacturing department and industrial control electrical appliances manufacturing department.
The series of products manufactured by the company are mainly sold to international market. All the products produced are in strictly accordance with international IEC/EN standards and China's GB standards. Most of these products have gained international certification, such as TUV, Intertek, BV and other certification certificates, such as CB, CE, TUV, SEMKO, INMETRO, EAC, SAA, ISO9001, etc. The products are sold to more than 50 countries and regions in the world, such as UK, France, Australia, Russia, Ukraine, Turkey, Brazil and so on. The quality of the products has been widely praised by the majority of users.
The series of products manufactured by the company are mainly sold to international market. All the products produced are in strictly accordance with international IEC/EN standards and China's GB standards. Most of these products have gained international certification, such as TUV, Intertek, BV and other certification certificates, such as CB, CE, TUV, SEMKO, INMETRO, EAC, SAA, ISO9001, etc. The products are sold to more than 50 countries and regions in the world, such as UK, France, Australia, Russia, Ukraine, Turkey, Brazil and so on. The quality of the products has been widely praised by the majority of users.
