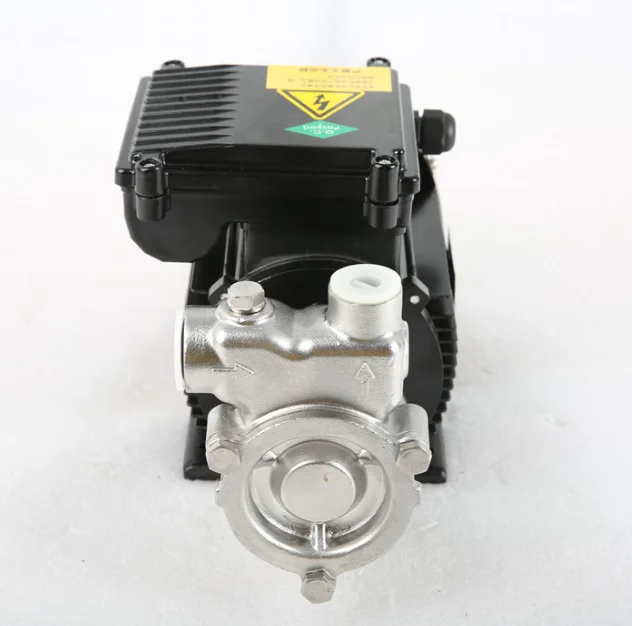

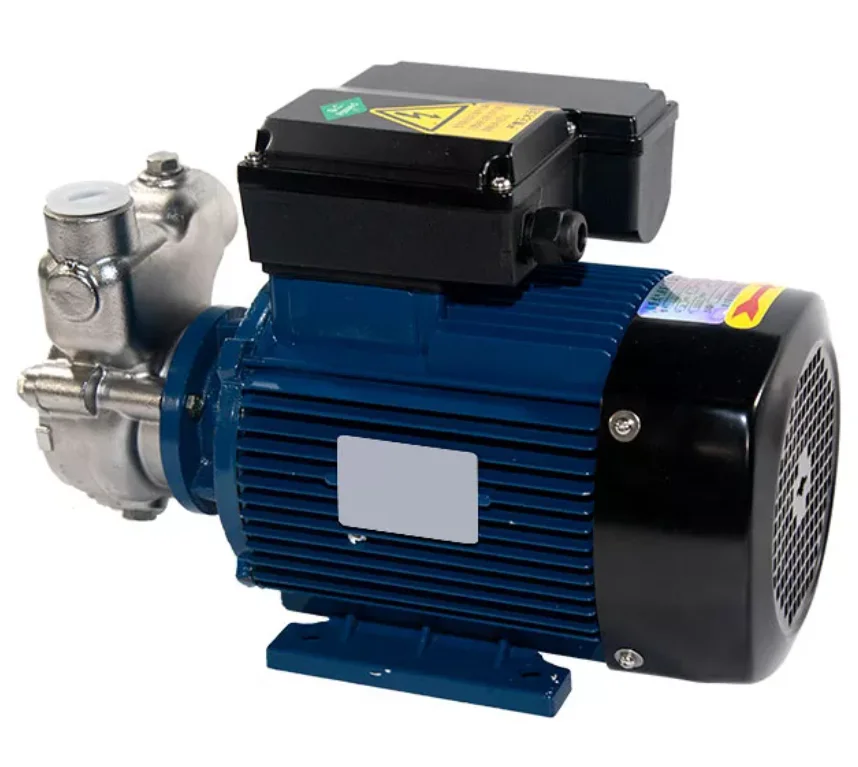

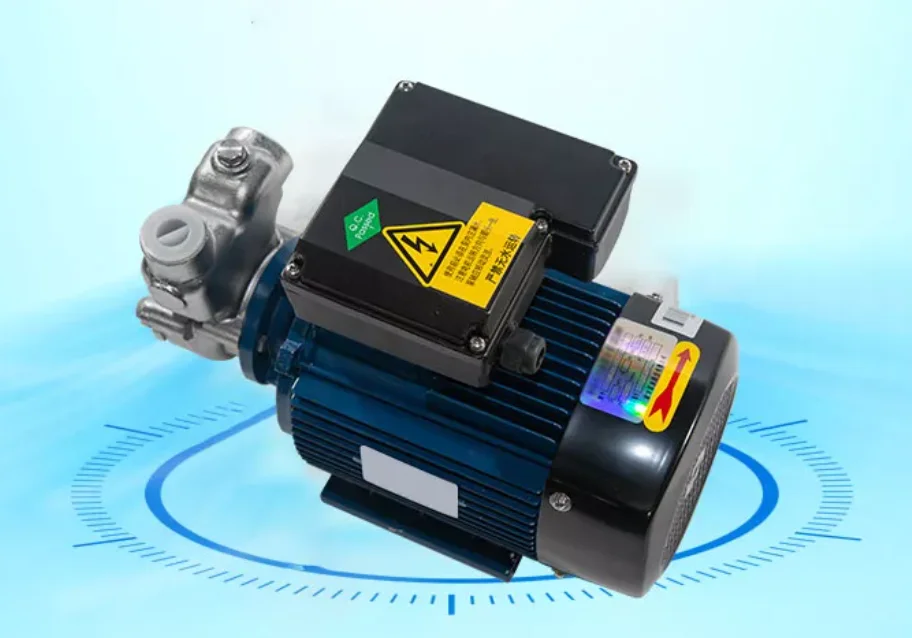

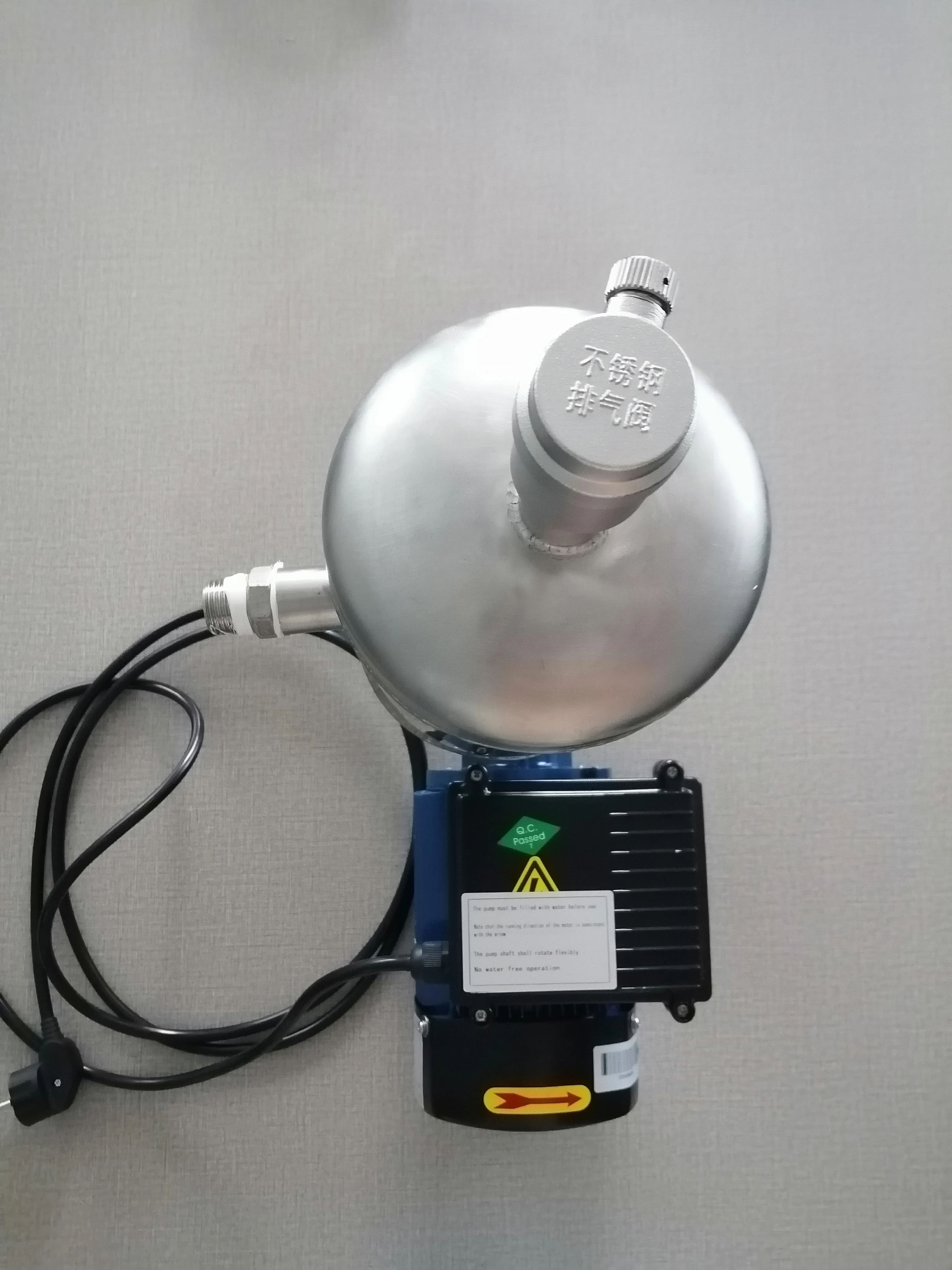

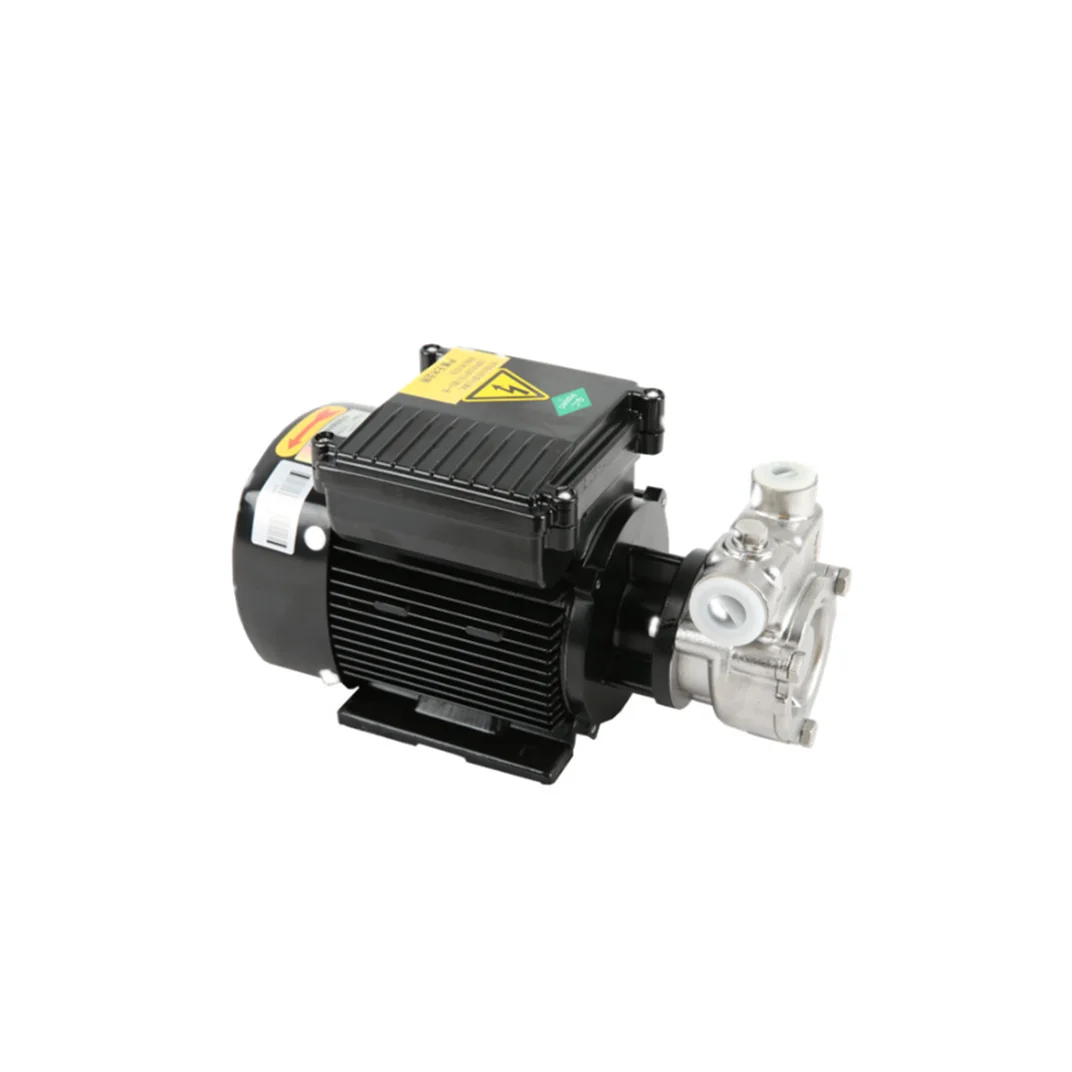

Stainless steel gas liquid mixing pump for mixing ozone and water
- Category: >>>
- Supplier: Guangzhou Baifeng Environmental Protection Technology Co. Ltd.
Share on (1600524653674):
Product Overview
Description
Test Drive This Product
Still not sure? We offer free product samples for many of our products.
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
No strings attached. We believe in our products and we
think you will too, once you give them a try.
Get A FREE Sample >>>
Products Information
Ozone Water Mixing Pump (Gas Liquid Pump) works more efficiently(3times) than venturi injection mixing way.

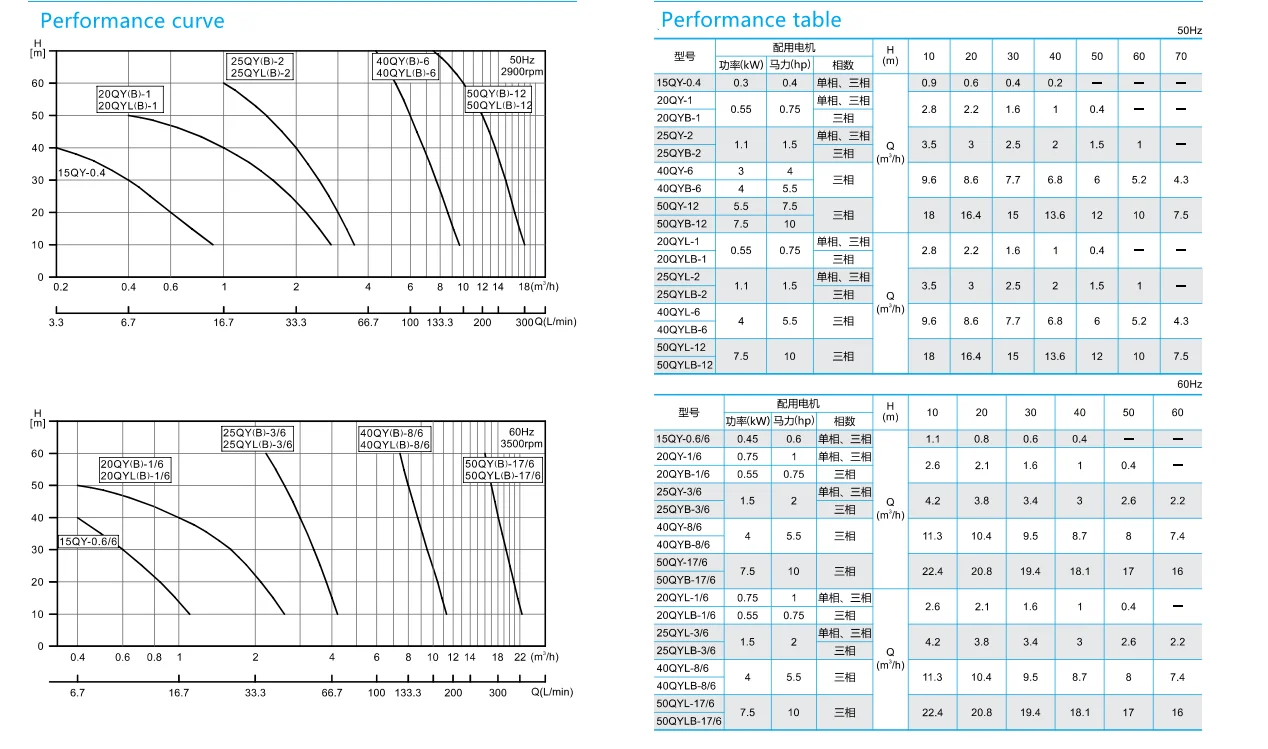

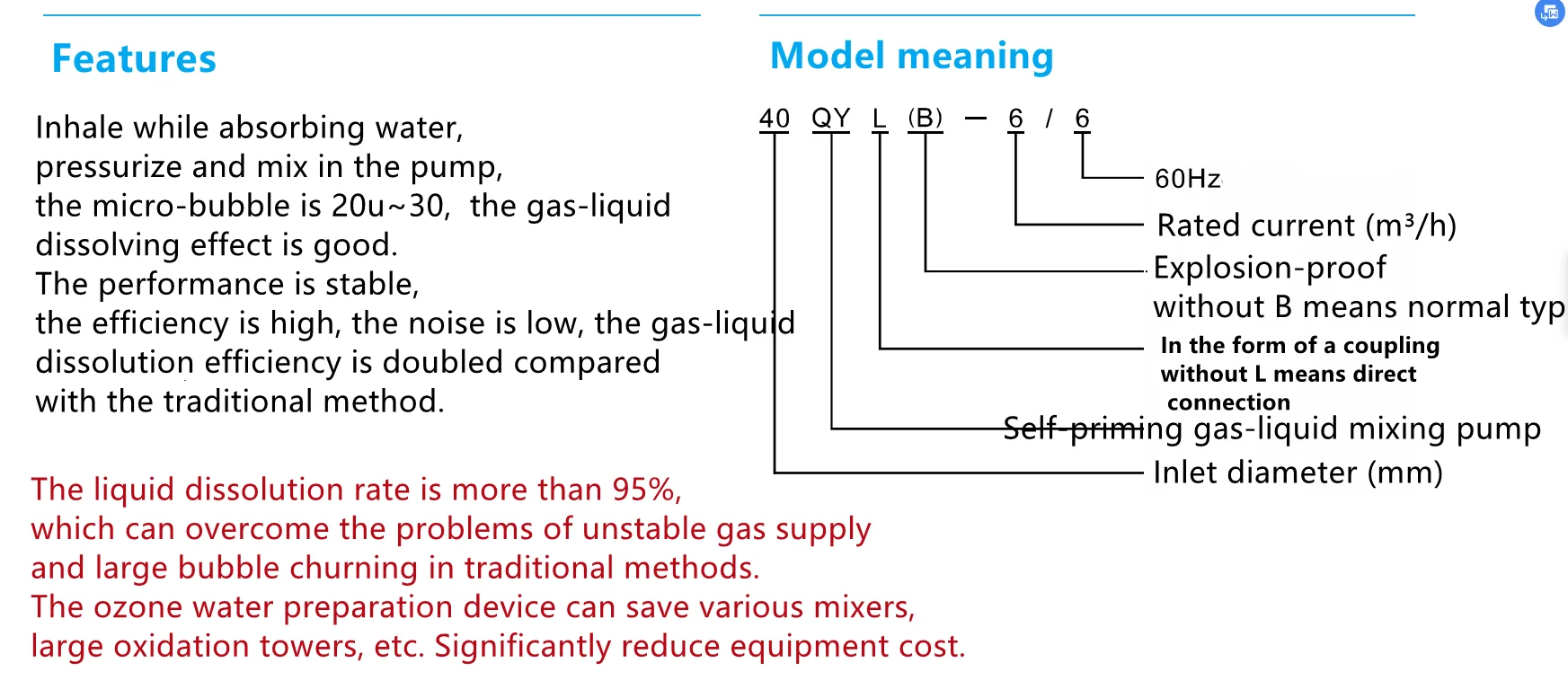

Model | Pump Head (m) | Water Flow (m3/h) | Motor Power (kw) | Speed (r/min) |
20QY-1 | 40 | 1 | 0.55 | 2900 |
20QYB-1 | 40 | 1 | 0.55 | 2900 |
25QY-2 | 40 | 2 | 1.1 | 2900 |
25QYB-2 | 40 | 2 | 1.1 | 2900 |
40QY-6 | 40 | 6 | 3 | 2900 |
40QYB-6 | 40 | 6 | 4 | 2900 |
50QY-12 | 50 | 12 | 5.5 | 2900 |
50QYB-12 | 50 | 12 | 7.5 | 2900 |
Ozone generator, water mixing pump, nano bubble generator

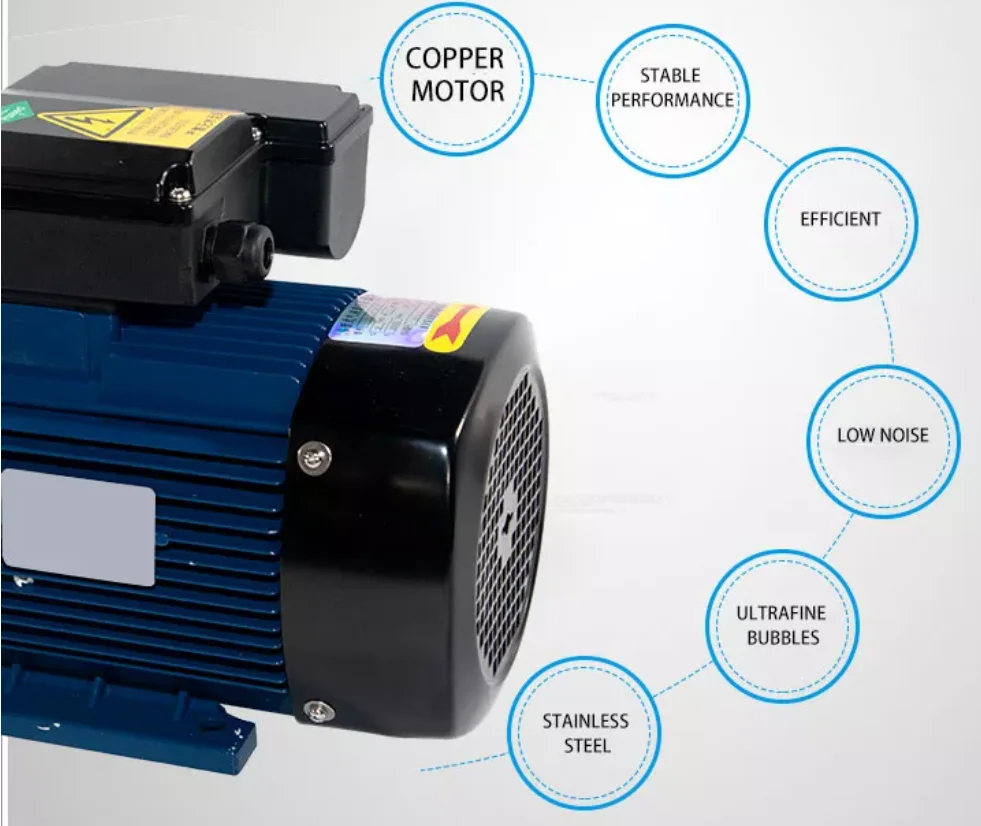

1.Long Using Life
2.Stable performance
3.High efficency
4.Low noise
5.Simple in instruction and operation
Working condition:
* Liquid temperature: -150C ~ 1200C
* Maximum ambient temperature: +400C
* Gas-liquid ratio 1:9 (Gas suction volume 8~10%)
* Inlet: horizontal, Outlet: Vertical.
1.Long Using Life
2.Stable performance
3.High efficency
4.Low noise
5.Simple in instruction and operation
Working condition:
* Liquid temperature: -150C ~ 1200C
* Maximum ambient temperature: +400C
* Gas-liquid ratio 1:9 (Gas suction volume 8~10%)
* Inlet: horizontal, Outlet: Vertical.

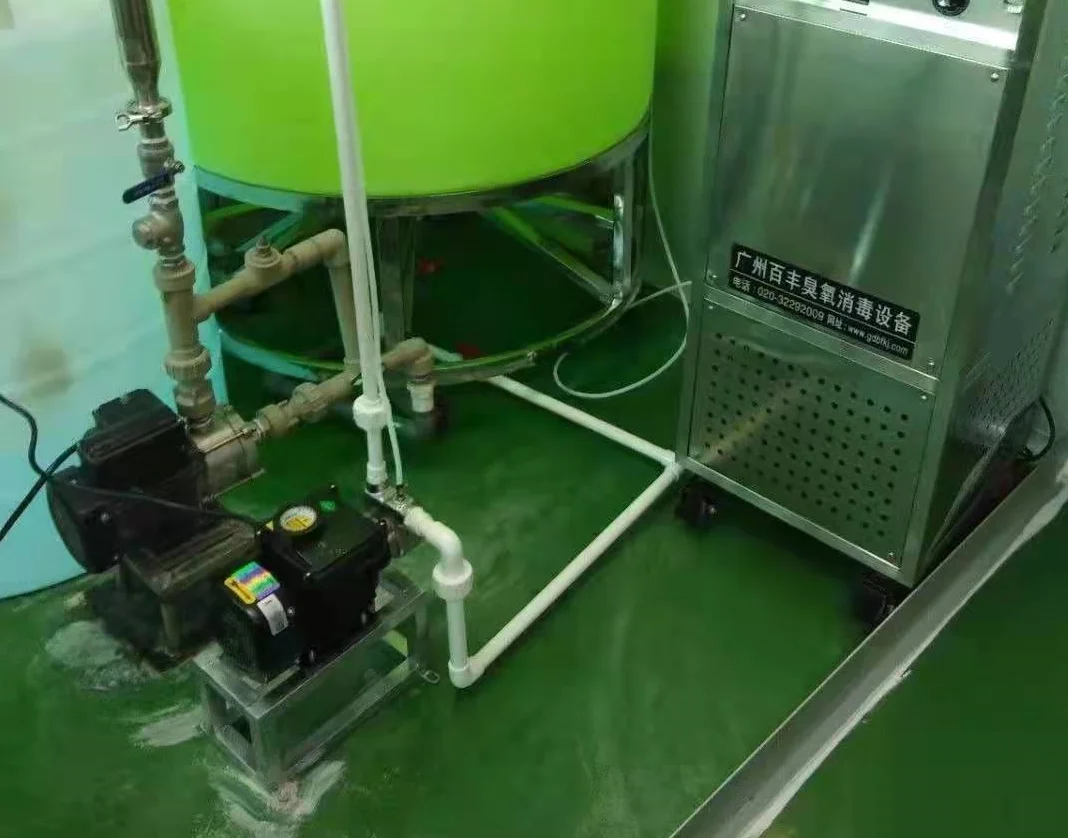

Application
Company Profile
Baifeng , your reliable supplier of technical products as well as for OEM production. We support a network of national and global partners with our experience and our qualified, multilingual staff. Partnership and long-term cooperation are very important to us..We are very attentive to the needs of our customers and can thus constantly expand our product range. Customer service and a growing product range with an attractive price / performance ratio can be offered.
Let us know, we look forward to working with you.
Let us know, we look forward to working with you.
Q: Are you manufacturer or trader?
A: We’re professional manufacturer focus on ozone equipment, located in TianHe District, Guangzhou City, China. Welcome to visit us.
Q: What’s the warranty?
Q: What’s the warranty?
A: Warranty is 12 months, life time technical support. If any quality problem occur during this period,which due to our
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package ?
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
responsibility, we’ll take care of it, or send more new spare parts to replace.
Q: What’ the MOQ?
A: One piece each model.
Q: Can I buy a sample for test purpose, then if it’s ok, I’ll buy more?
A: Yes, you can.
Q: Can we print our logo and have our own package ?
A: Yes, you can, OEM&ODM orders are acceptable.
Q: Is there any discount?
A: Of course, more quantities, more discount.
Q: Can I get a catalog?
A: Yes, you can download on our website.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
