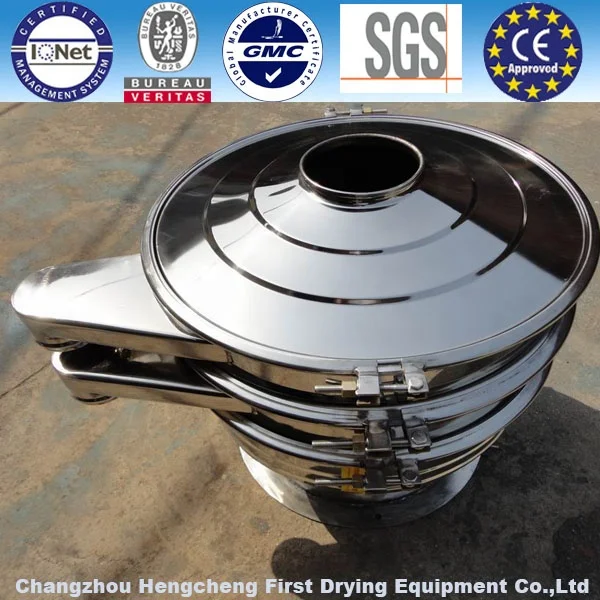

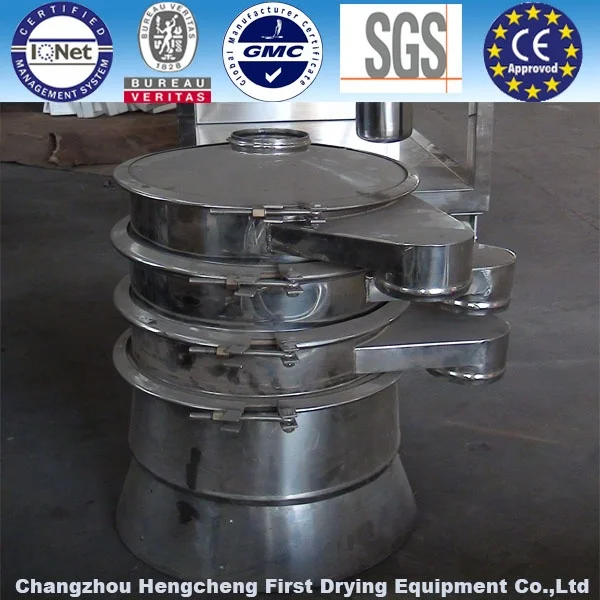

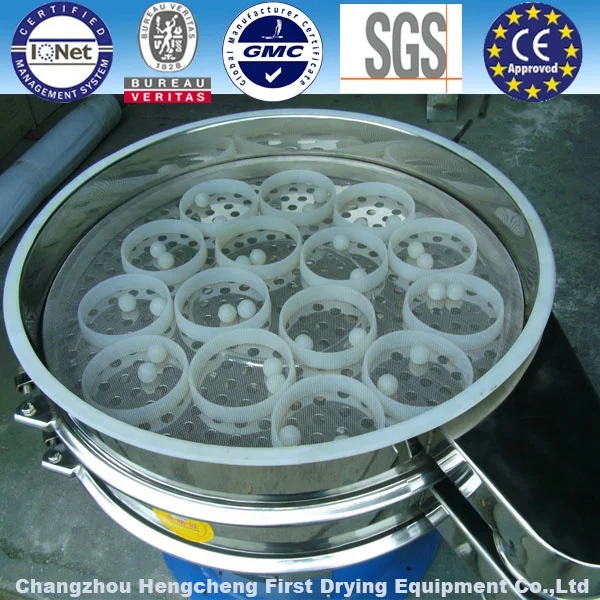

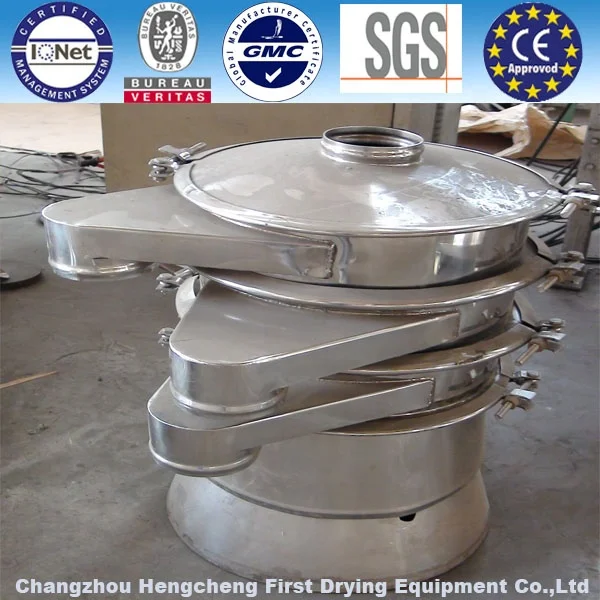

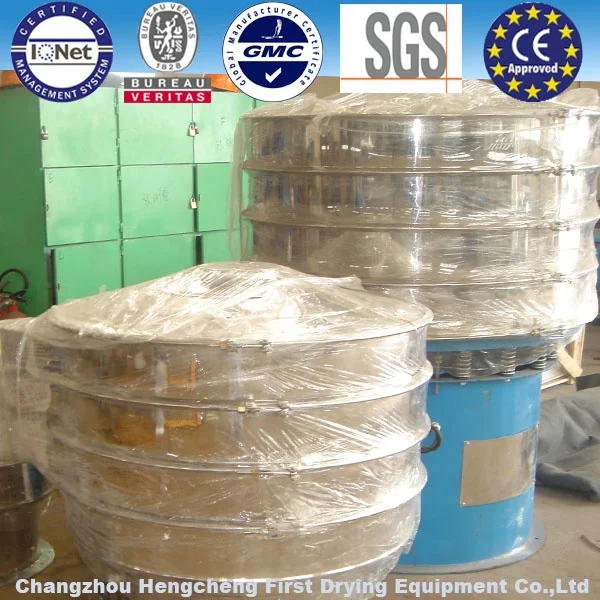

High Quality Low cost circular vibrating screen (ZS)

Product Overview

Description

Description:

ZS series vibrating screen consist of hopper, vibrating chamber, couple and motor. There are eccentric wheel, rubber software, main shaft and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor , cause centrifuged force under the state of unbalance and so that the materials from regular eddy . The amplitude of the hammer may be adjusted according to the property of material and the mesh screen. It is compact in structure, small in volume,thightness dust free, noise-free, high output, low in energy consumption, easy to move and easy to maintain.



Technical Parameter:



Spec	ZS-350	ZS-515	ZS-650	ZS-800	ZS-1000	ZS-1500
capacity(kg/h)	40-500	60-600	80-800	150-1200	300-2000	350-2800
meshes	12-1200	12-200	12-200	12-200	5-325	5-325
power(kw)	0.55	0.55	0.55	0.75	1.5	2.2
speed(rpm)	1380	1370	1370	1500	1500	1500
overall dimension(mm)	540×540×1060	710×710×1290	880×880×1350	1000×1000×1000	1100×1100×1200	1600×1600×1200
weight(kg)	100	180	250	300	350	400
