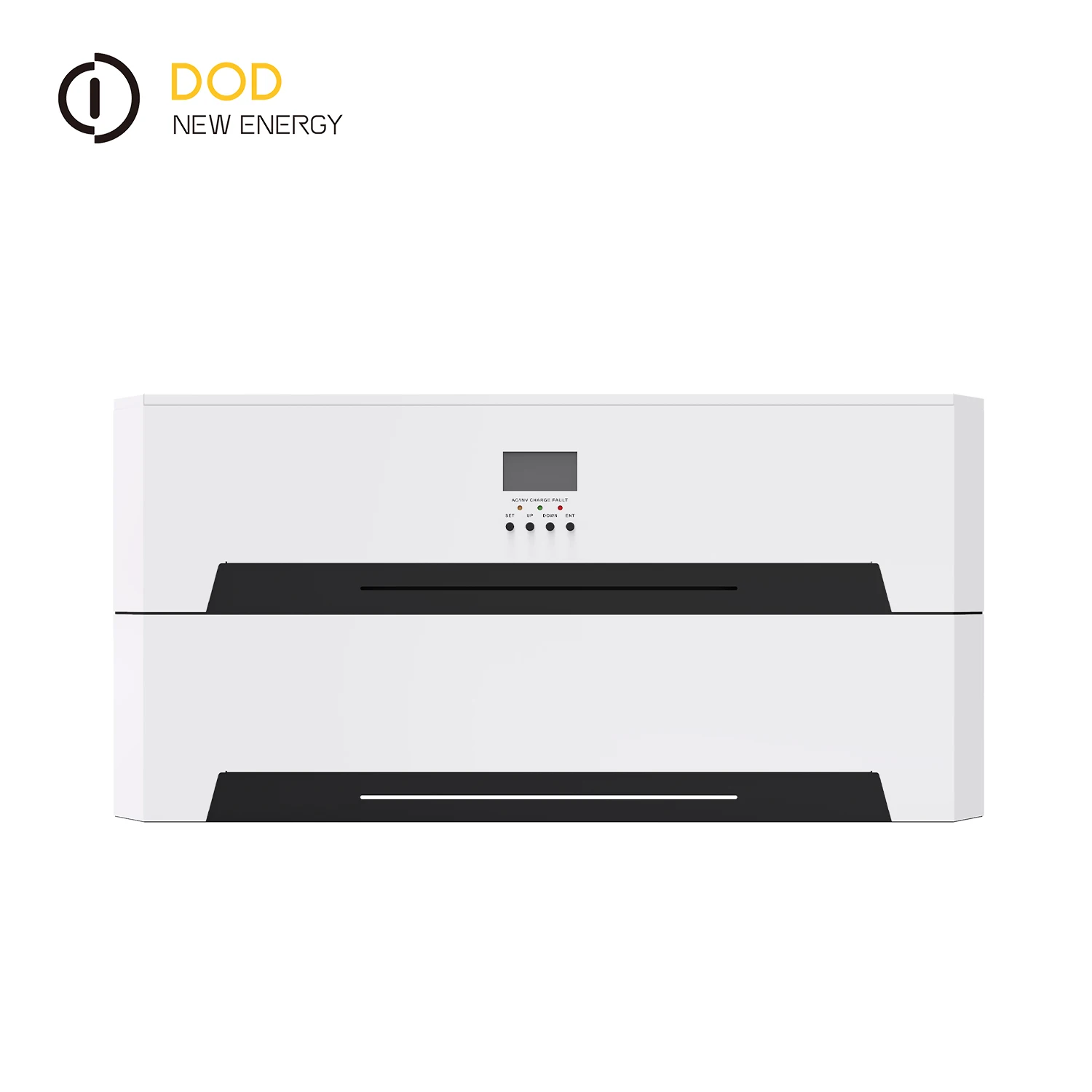

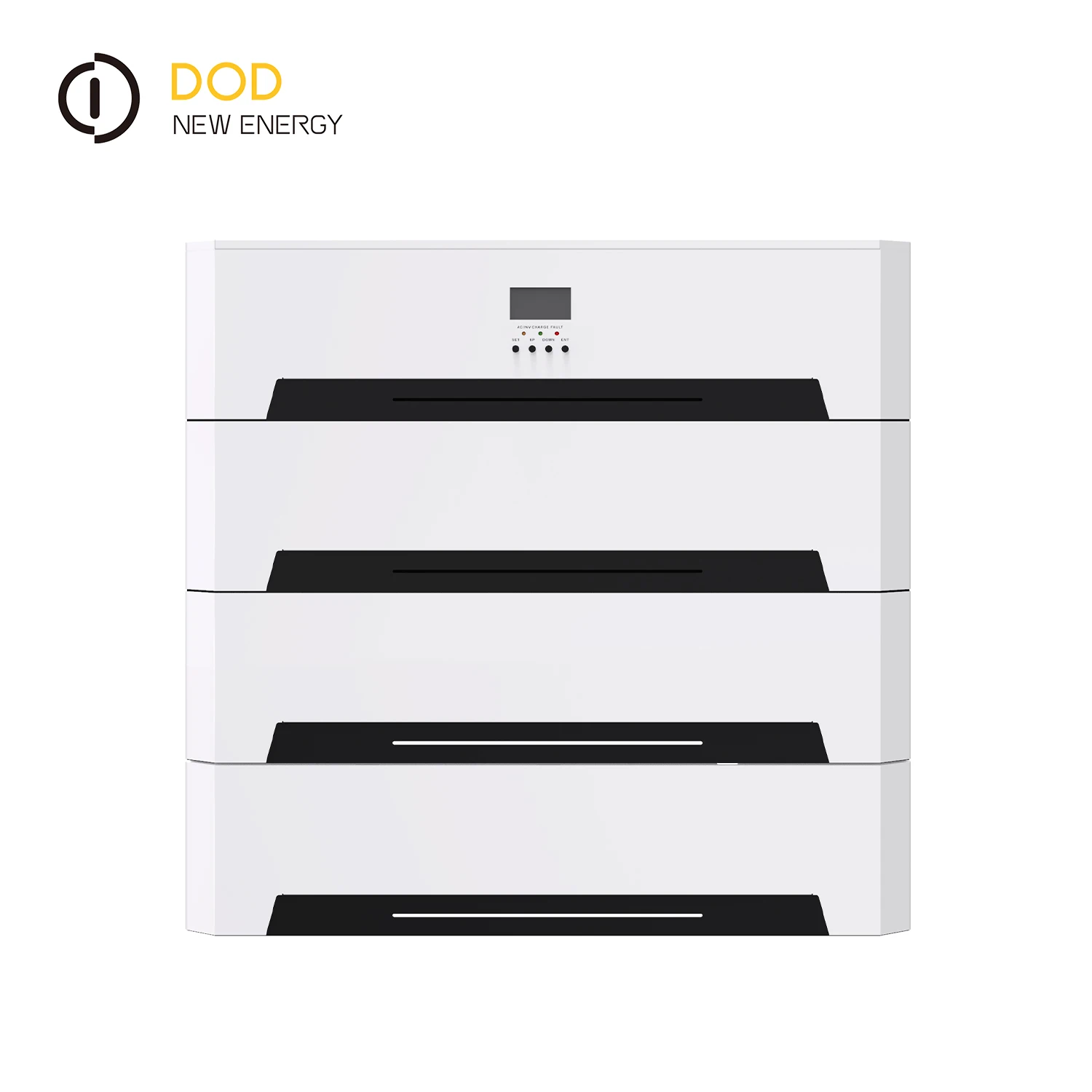

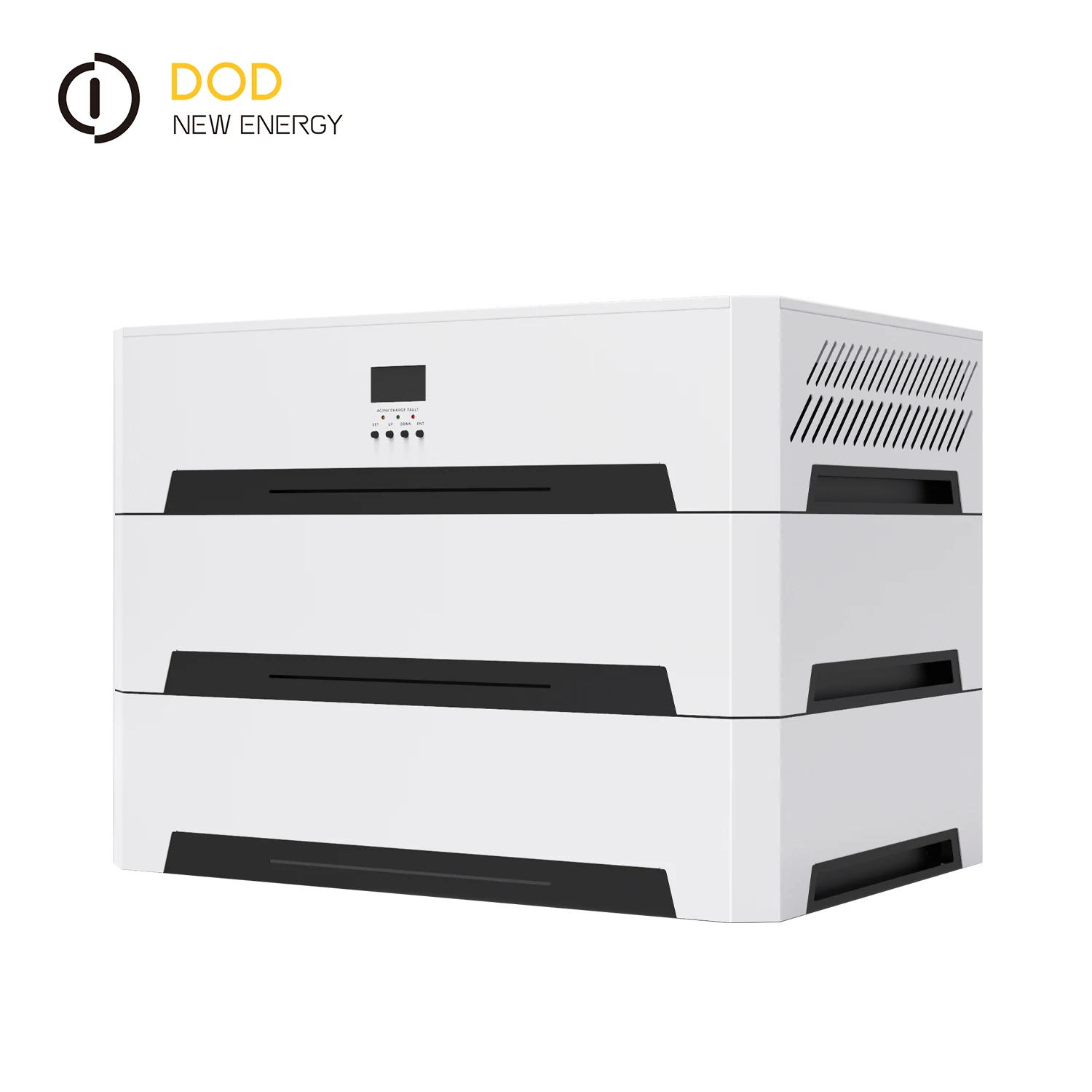

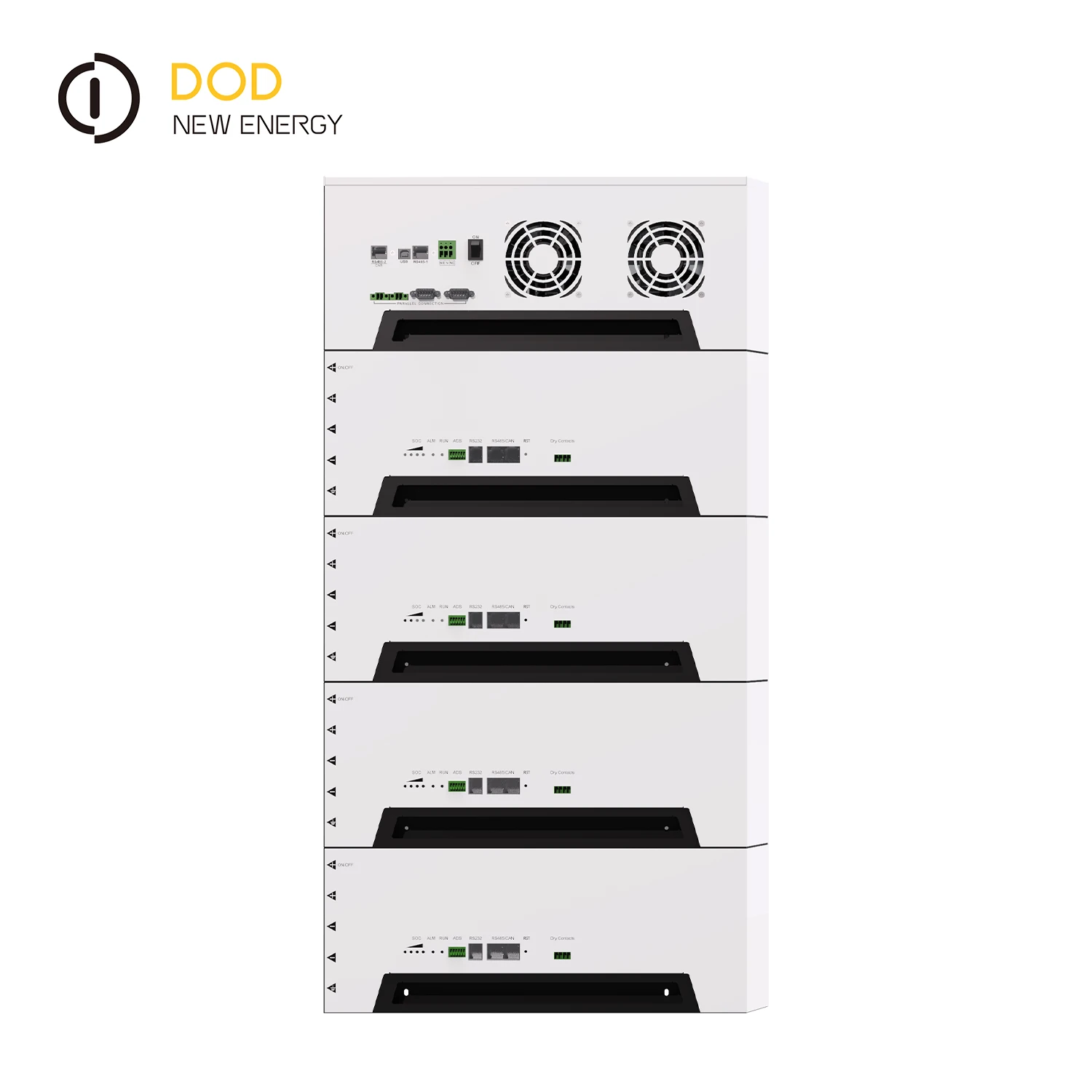

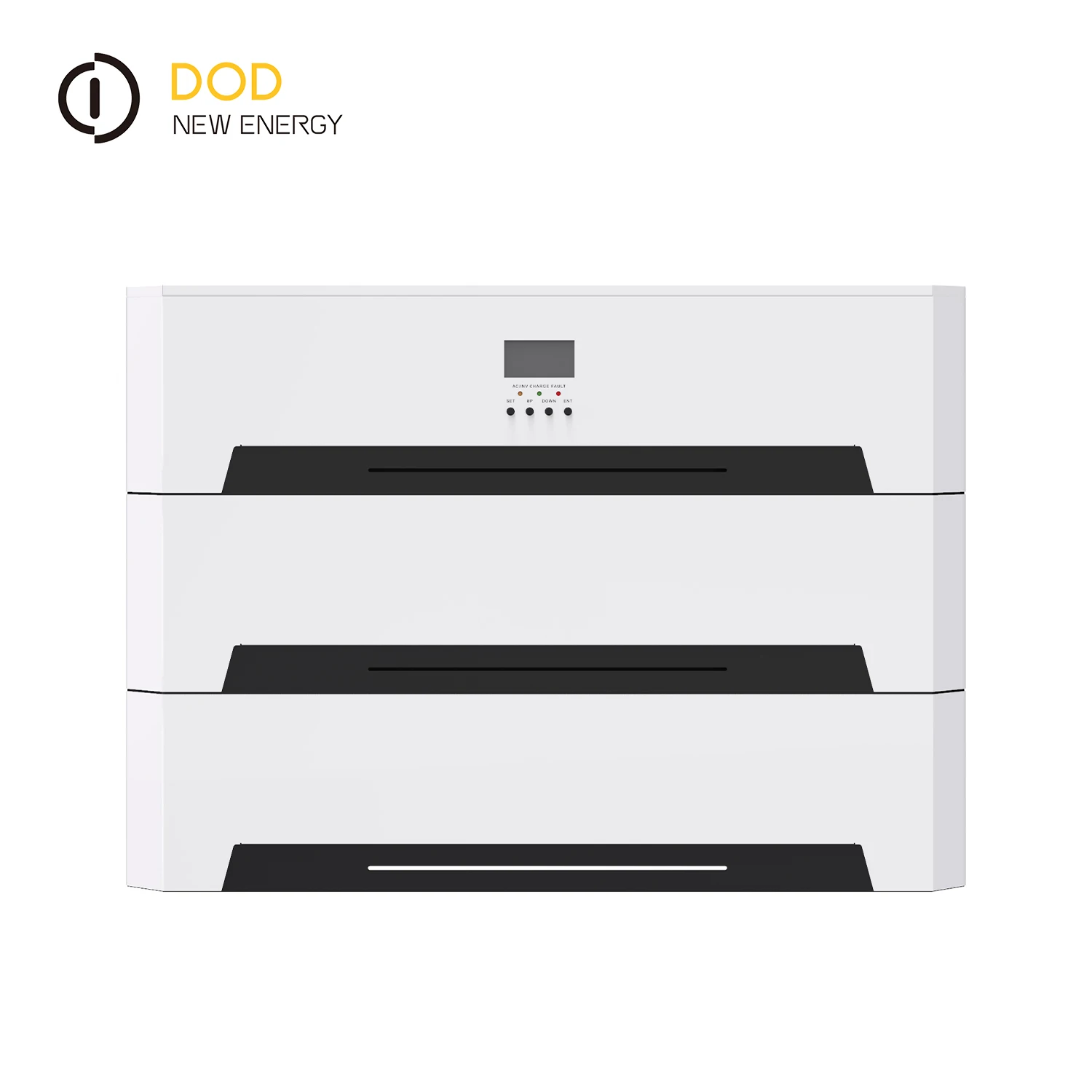

Energy storage system 100AH 200Ah 300AH 400AH stackable lithium lifepo4 battery storage with low cost
- Category: >>>
- Supplier: Chengdu Dod New Energy Technology Co. Ltd.
Share on (1600524663663):
Product Overview
Description
energy storage system 100AH 200Ah 300AH 400AH stackable lithium lifepo4 battery storage with low cost

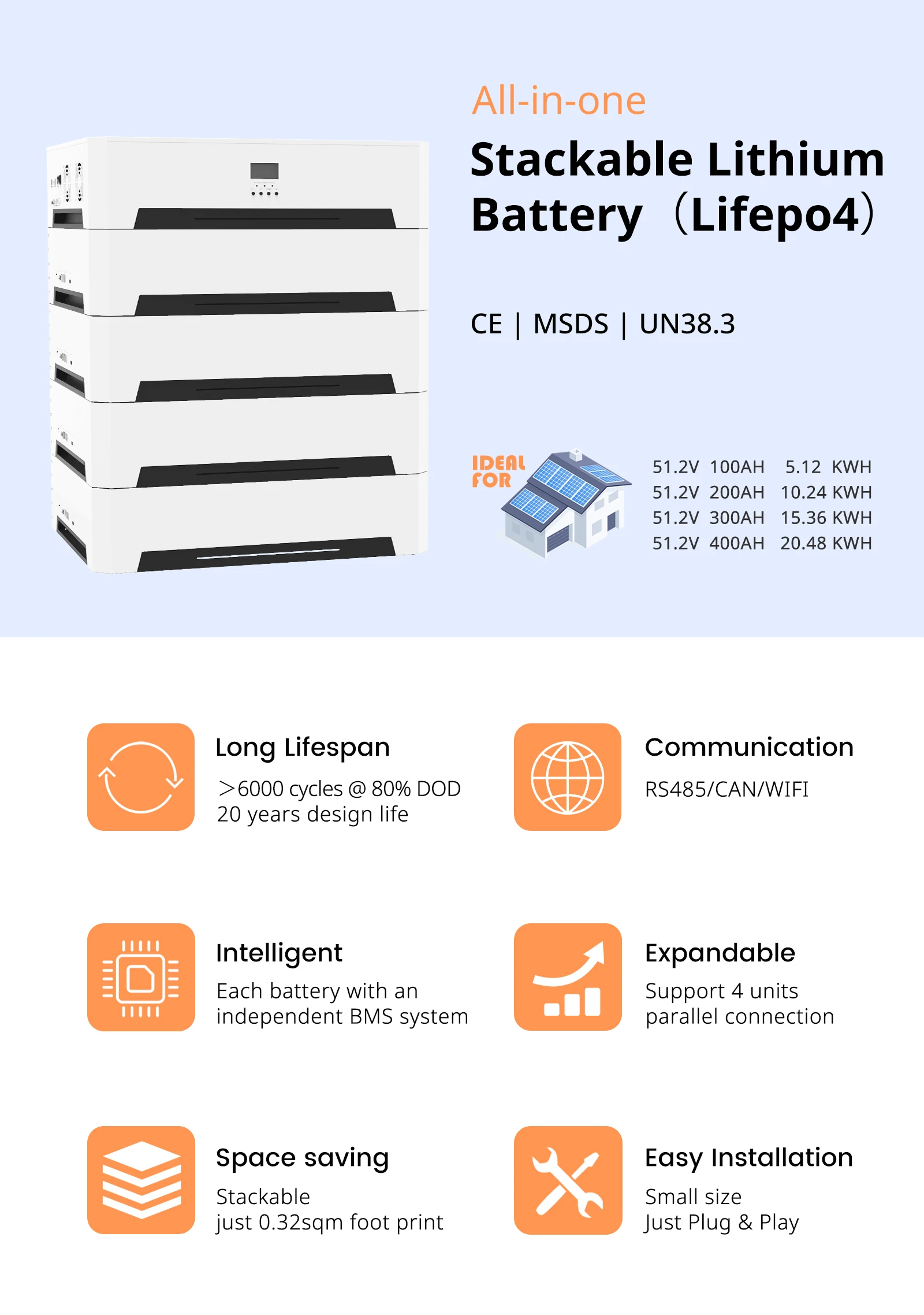

Features

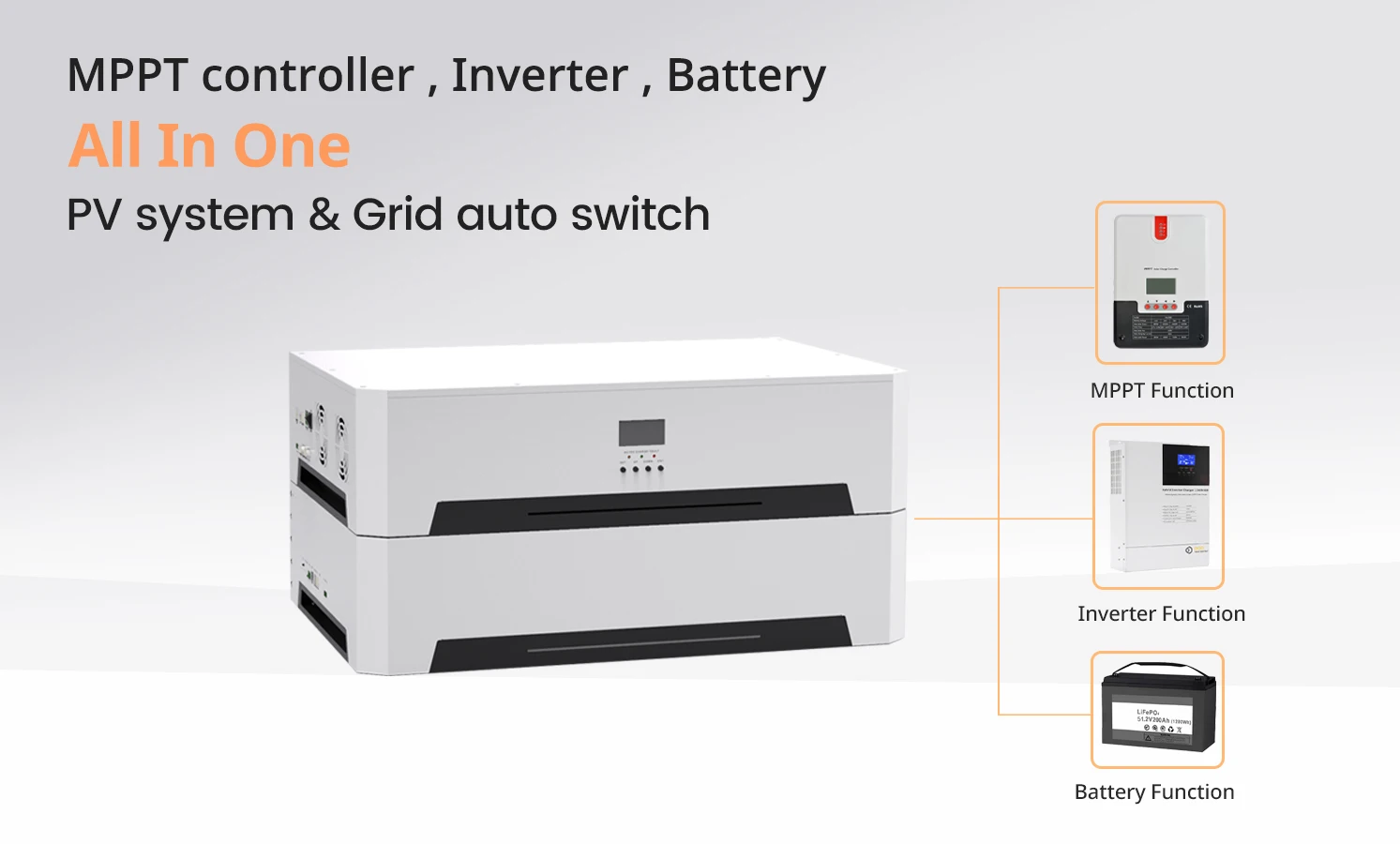

Products Description

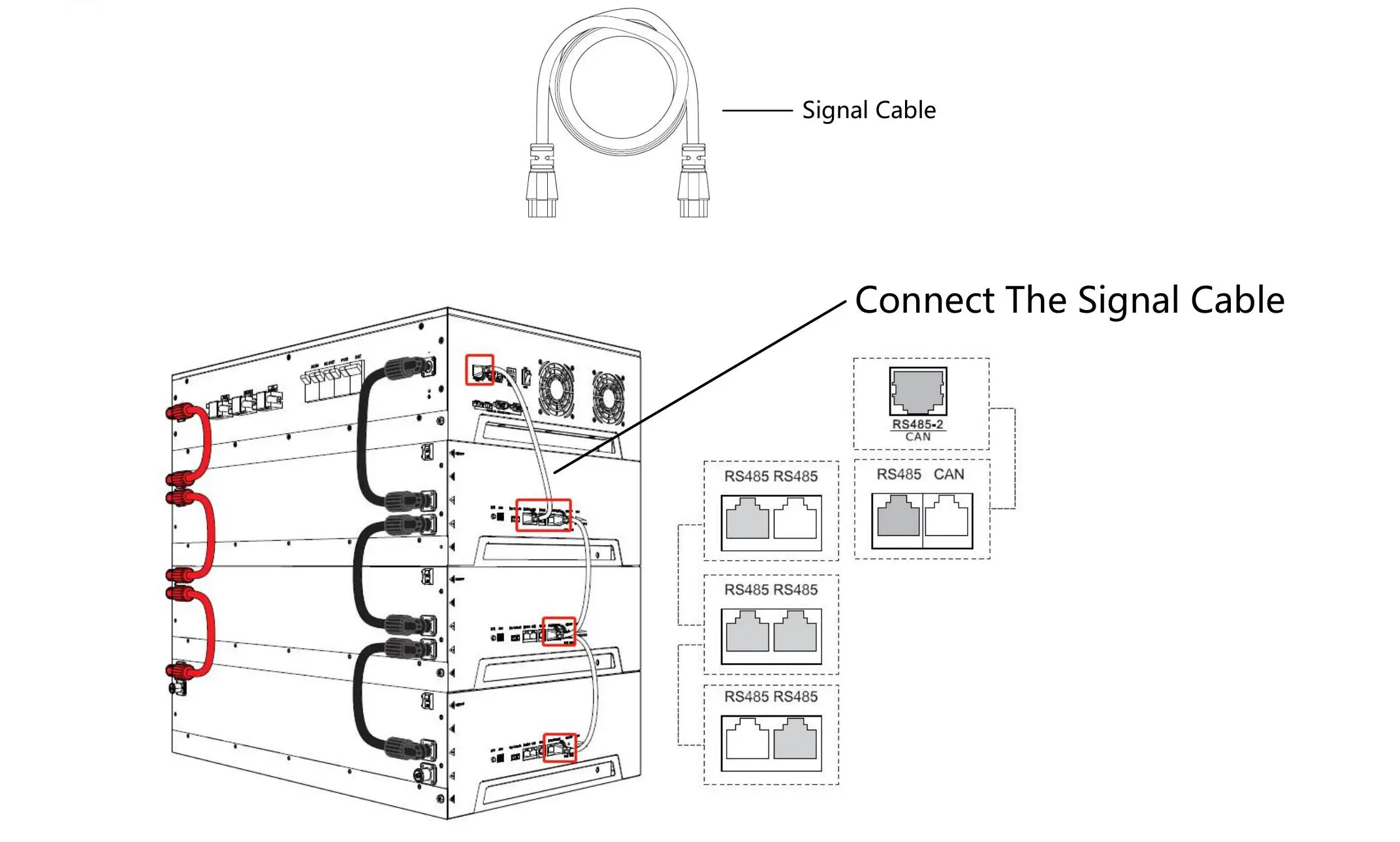

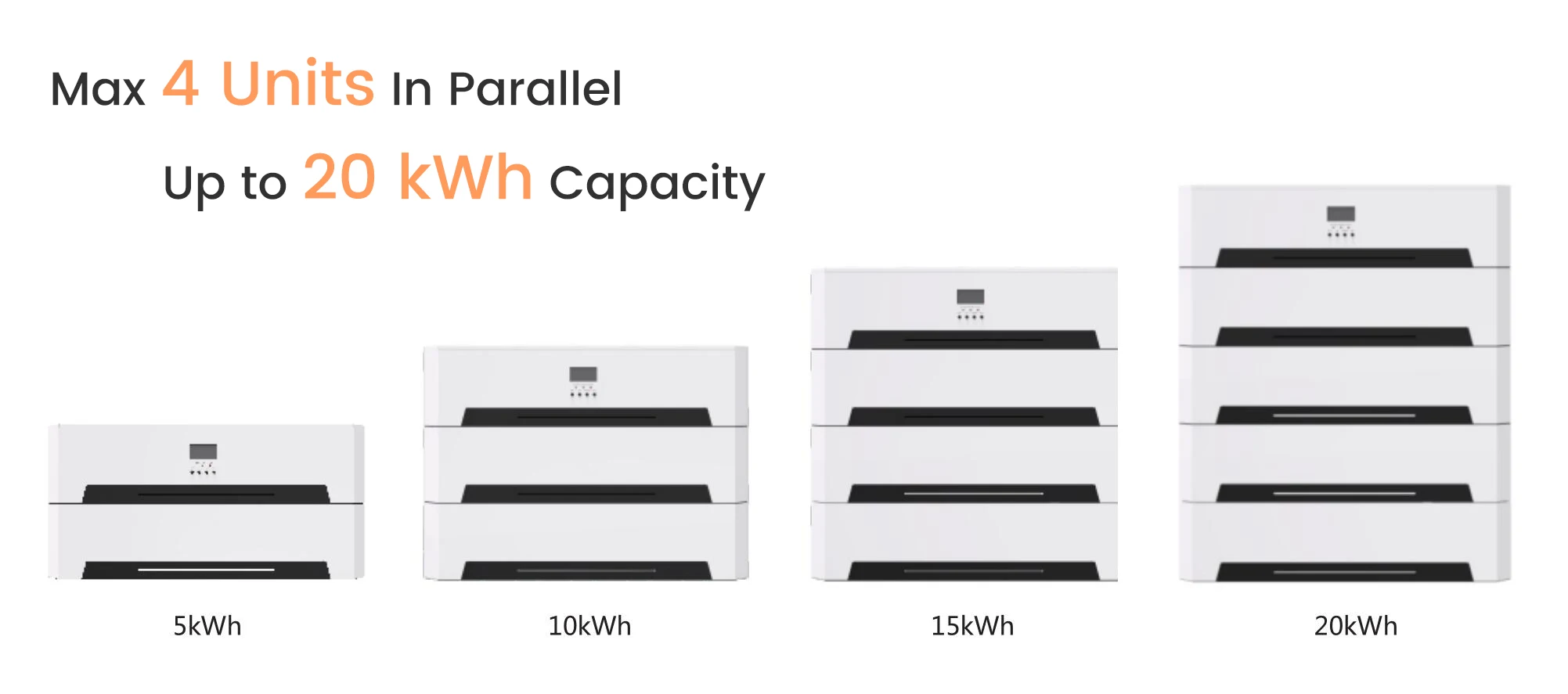

Expansion and Connection
Product Paramenters
Model | Stackable Li- 5.0S | Stackable Li- 10.0S | Stackable Li- 15.0S | Stackable Li- 20.0S | ||||
Battery Moudule | 1 | 2 | 3 | 4 | ||||
Battery Energy | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | ||||
Battery Capacity | 100AH | 200AH | 300AH | 400AH | ||||
Weight | 80kg | 133kg | 186kg | 239kg | ||||

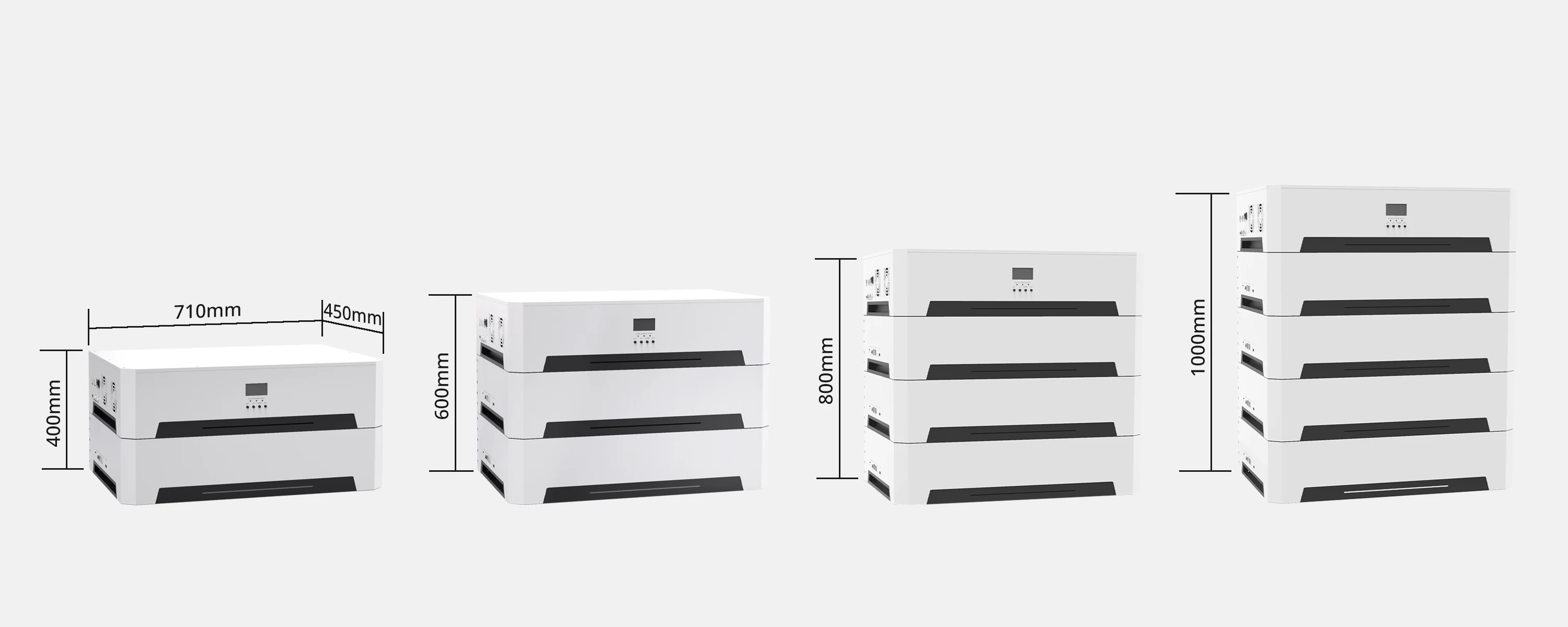

Dimension L× D× H | 710×450×400 | 710×450×600 | 710×450×800 | 710×450×1000 | ||||
Battery Type | LiFePO4 | |||||||
Battery Rated Voltage | 51.2V | |||||||
Battery Working Voltage Range | 44.8 ～57.6V | |||||||
Maximum Charging Current | 100A | |||||||
Maximum Discharging Current | 100A | |||||||
DOD | 0.8 | |||||||
Parallel Quantity | 4 | |||||||
Designed Life-span | 6000 | |||||||
PV CHARGE | ||||||||
Solar Charge Type | MPPT | |||||||
Maximum Output Power | 5KW | |||||||
PV Charging Current Range | 0～80A | |||||||
PV Operating Voltage Range | 120～500V | |||||||
MPPT Voltage Range | 120～450V | |||||||
AC CHARGE | ||||||||
Maximum Charge Power | 3150W | |||||||
AC Charging Current Range | 0～60A | |||||||
Rated Input Voltage | 220/230Vac | |||||||
Input Voltage Range | 90～280Vac | |||||||
AC OUTPUT | ||||||||
Rated Output Power | 5KW | |||||||
Maximum Output Current | 30A | |||||||
Frequency | 50Hz | |||||||
Overload Current | 35A | |||||||
BATTERY INVERTER OUTPUT | ||||||||
Rated Output Power | 5KW | |||||||
Maximum Peak Power | 10KVA | |||||||
Power Factor | 1 | |||||||
Rated Output Voltage (Vac) | 230Vac | |||||||
Frequency | 50Hz | |||||||
Auto Switch Period | ＜15ms | |||||||
THD | ＜3% | |||||||
GENERAL DATA | ||||||||

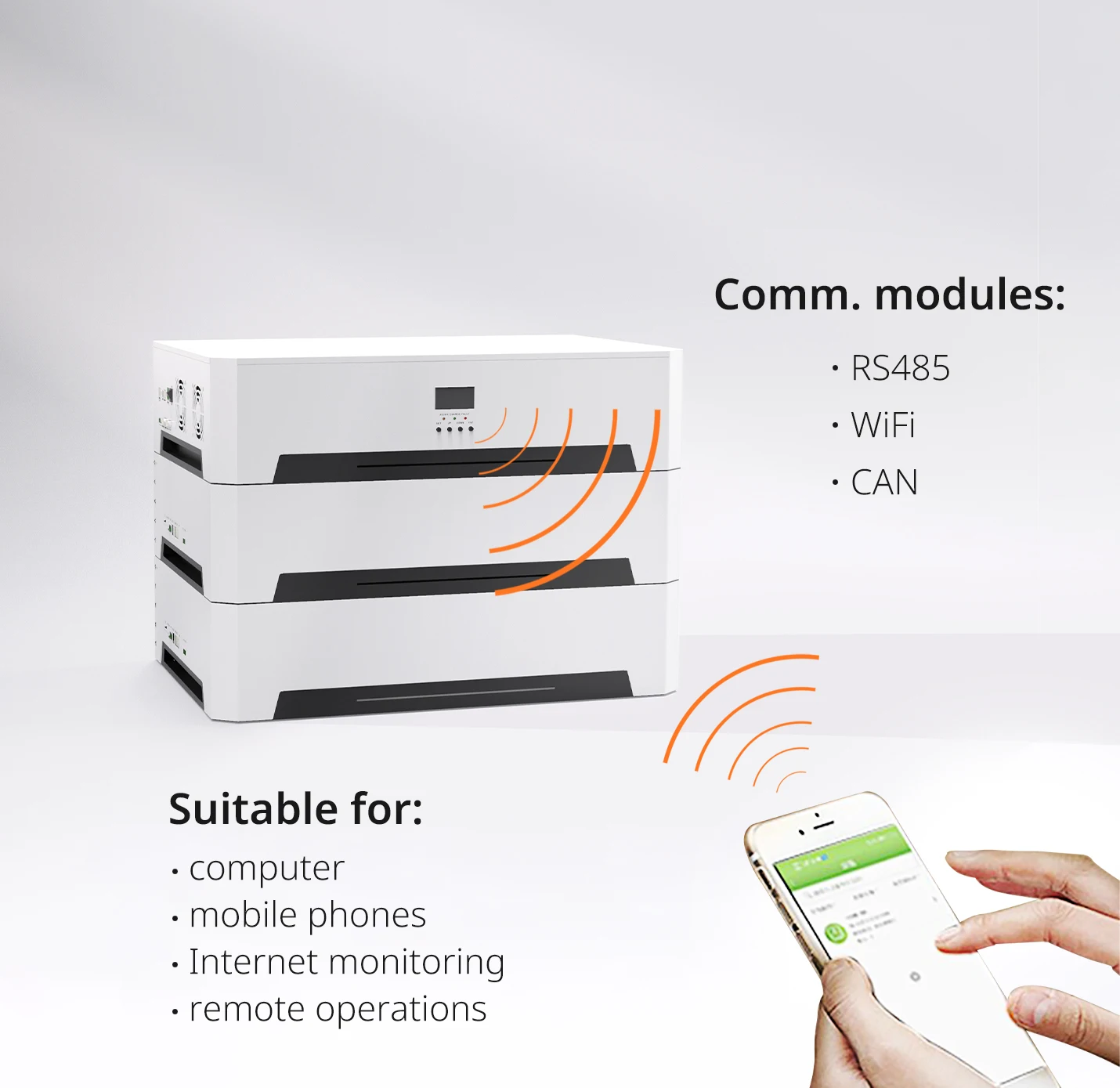

Communication | RS485/CAN/WIFI | |||||||
Storage time / temperature | 6 months @25℃;3 months @35℃;1 months @45℃; | |||||||
Charging temperature range | 0～45℃ | |||||||
Discharging temperature range | -10～45℃ | |||||||
Operation Humidity | 5% ～ 85% | |||||||
Nominal Operation Altitude | ＜2000m | |||||||
Cooling Mode | Force-Air Cooling | |||||||
Noise | 60dB(A) | |||||||
Ingress Protection Rating | IP20 | |||||||
Recommended Operation Environment | Indoor | |||||||
Installation Method | Horizontal | |||||||
Certification | UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3 | |||||||

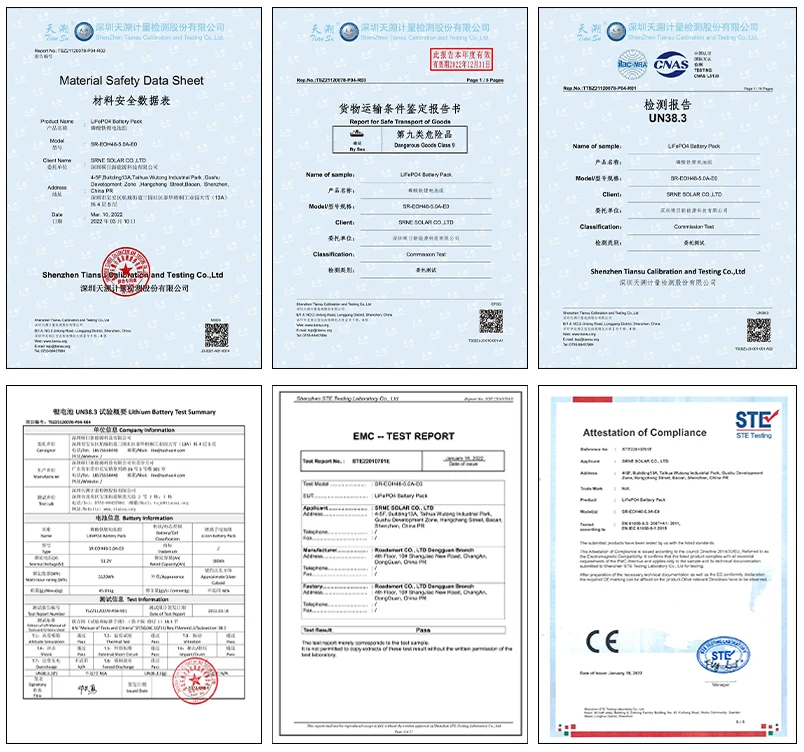

Certificate

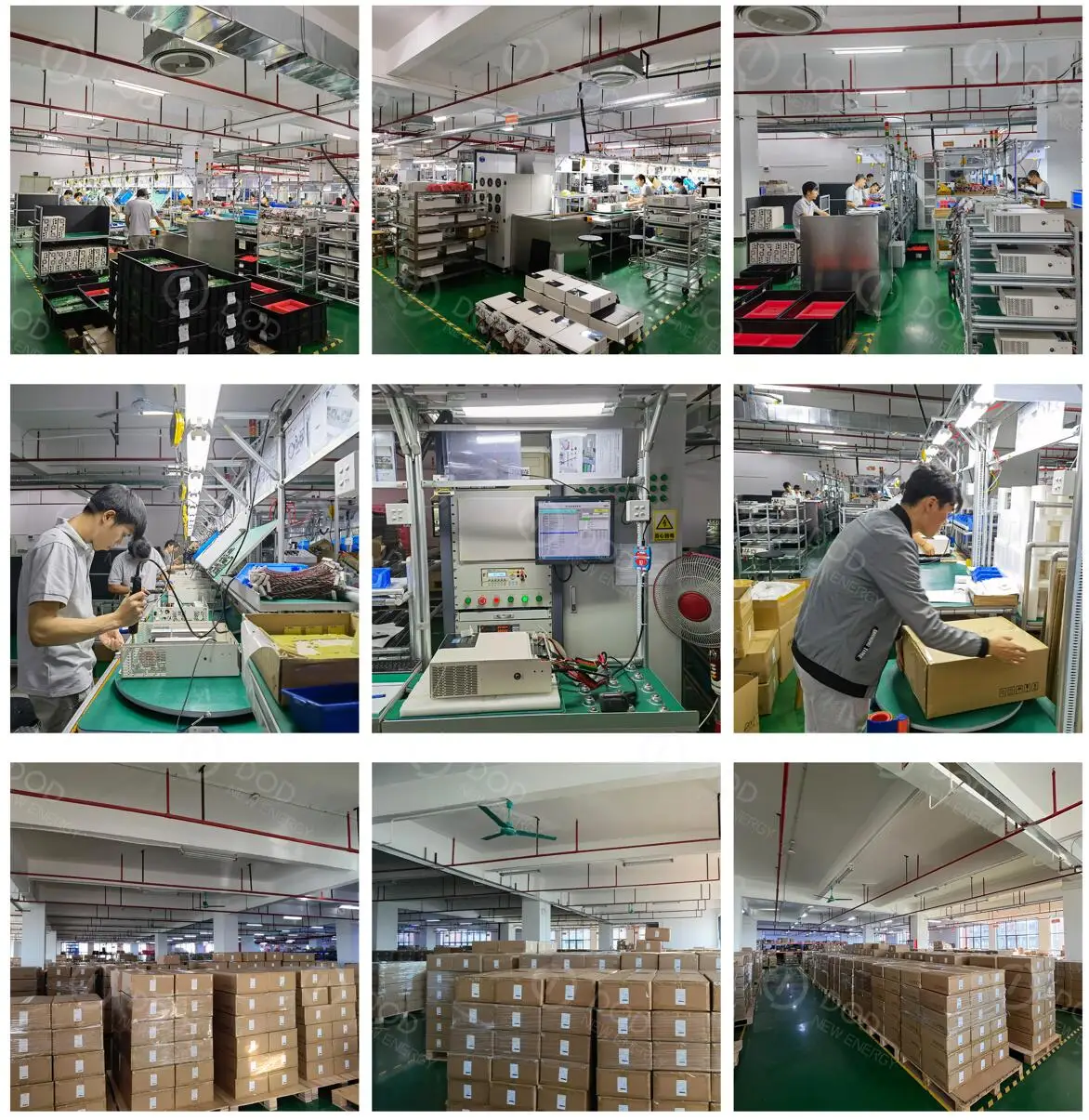

Our Factory
Packaging Details
one battery module &
one PCS module package
16pcs modules per wooden case ;
900kg
