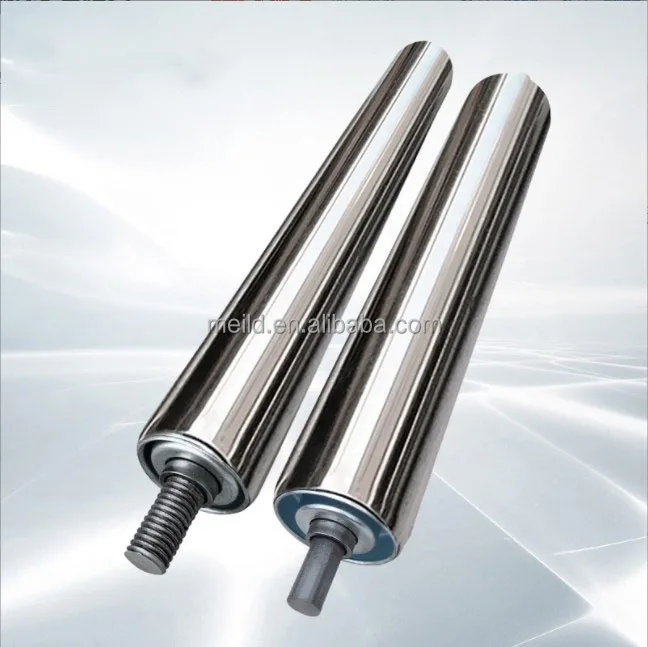

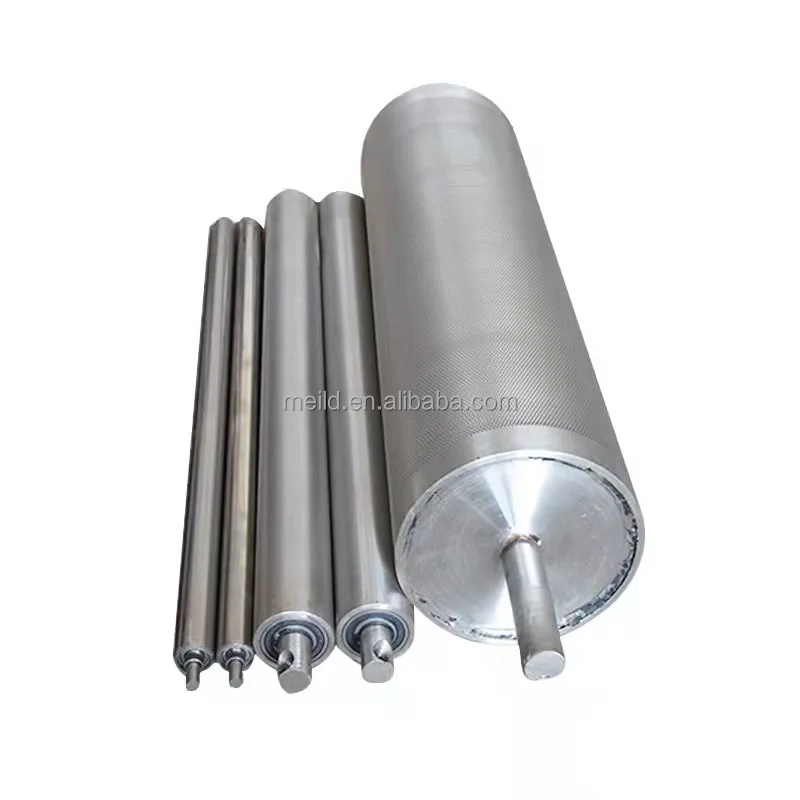

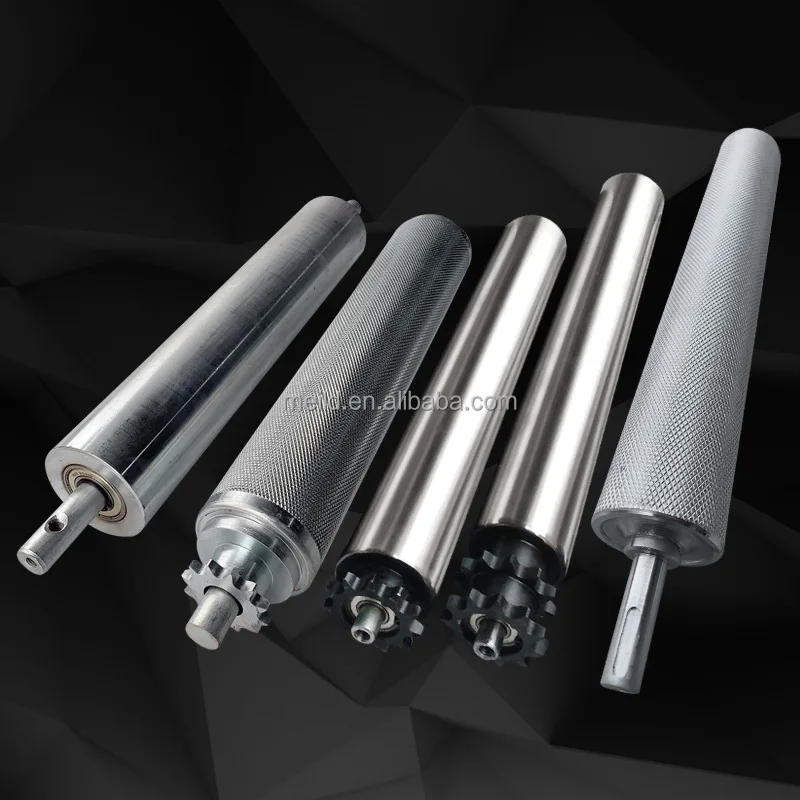

Non Driven Roller Conveyor Unpowered Roller Made In China Micro Conveyor Belt Durable
- Category: Material Handling Equipment Parts >>>
- Supplier: Kunshan Meilide Industrial Automation Technology Co. Ltd.
Share on (1600524676817):
Product Overview
Description

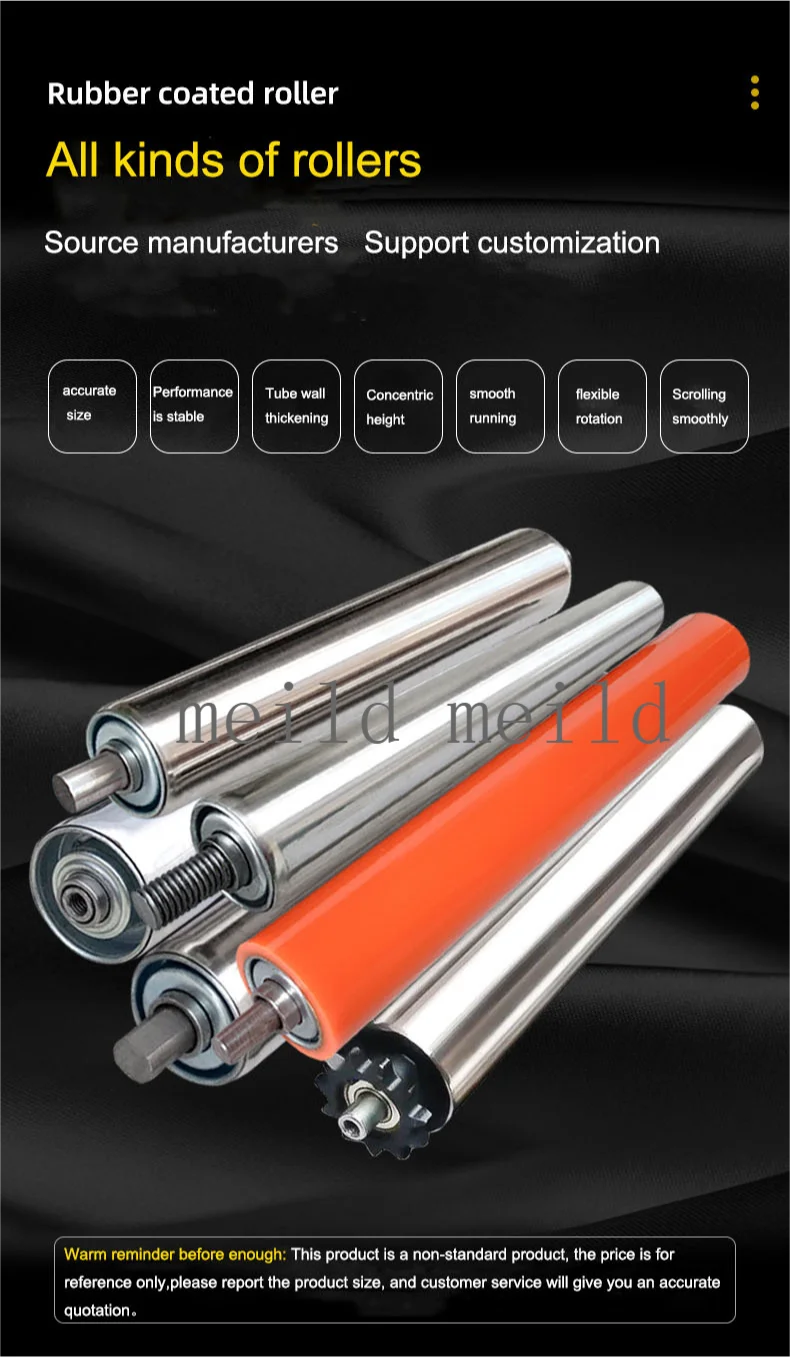

Product introduction
Product parameters
Common Specification Sheet | ||||||||||

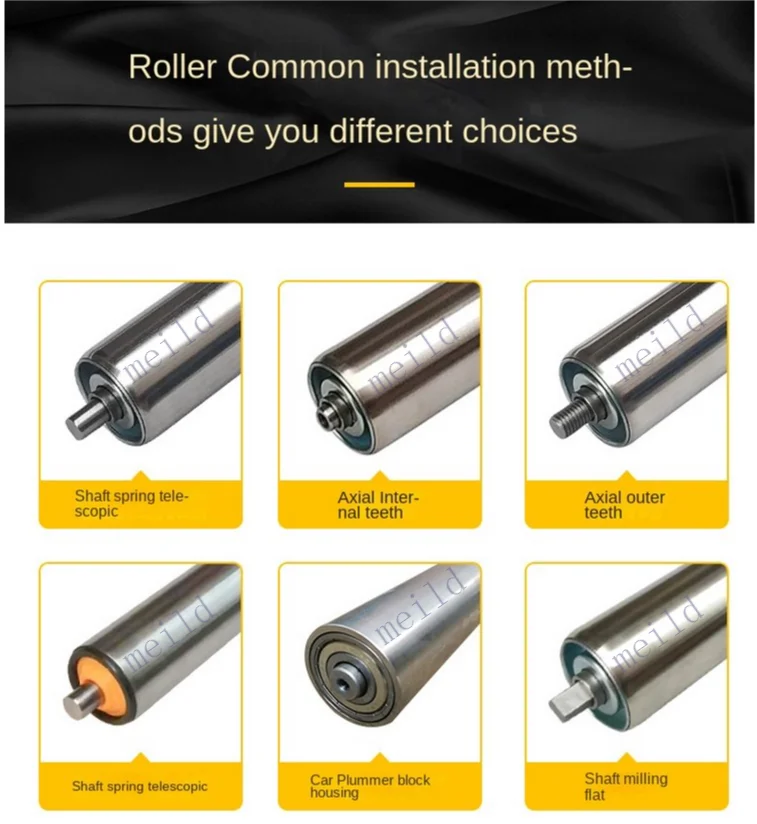

Diameter (mm) | Shaft diameter (mm) | Thickness (mm) | Pipe material | Bearing material | Installation method | |||||
25 | 8 | 0.8 | stainless steel/galvanized | /Shaft Steel | spring retractable | |||||
38 | 12/15 | 1.0/1. 2/1.5 | stainless steel/galvanized | spring retractable | ||||||
50 | 12/15 | 1.2/1.5/2.0 | stainless steel/galvanized | iron flat | ||||||
60 | 12/15/20 | 1.5/2.0 | stainless steel/galvanized | internal thread | ||||||
76 | 15/20 | 1.5/2.0 | stainless steel/galvanized | External thread | ||||||

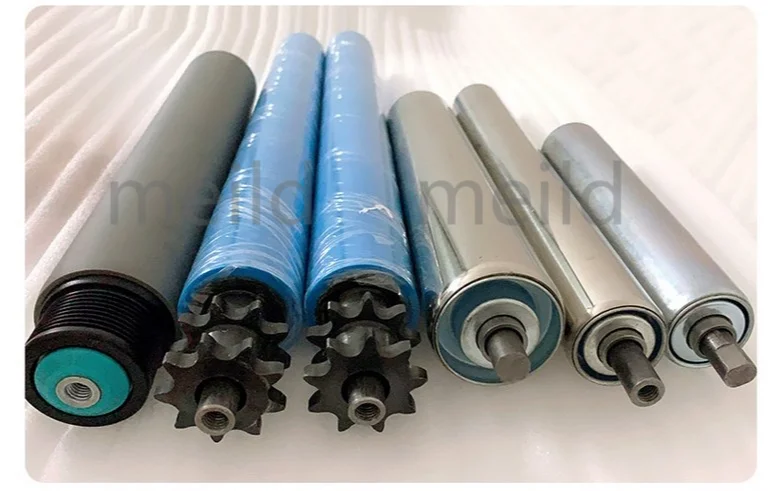

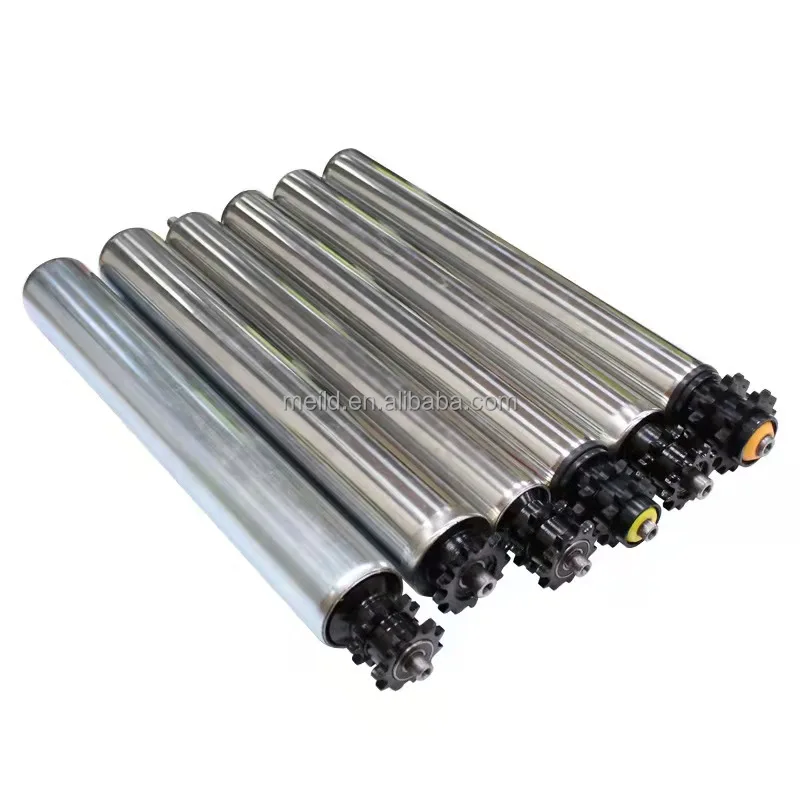

Note: sprocket roller can be equipped with sprocket model: 4 points 9 teeth, 4 points 11 teeth, 4 points 14 teeth, etc. | ||||||||||
Roller load bearing parameter table | ||||||||||||||||||
length Diameter*Wall Thickness | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | |||||||||
φ25*0.8 | 22 | 20 | 17 | 15 | 12 | 10 | 8 | 6 | 5 | |||||||||
φ38*1.0 | 36 | 34 | 30 | 25 | 22 | 20 | 20 | 15 | 15 | |||||||||
φ38*1.2 | 40 | 38 | 35 | 30 | 28 | 28 | 25 | 25 | 20 | |||||||||
φ38*1.5 | 72 | 70 | 63 | 60 | 58 | 55 | 55 | 50 | 45 | |||||||||
φ50*1.2 | 85 | 80 | 76 | 72 | 70 | 65 | 60 | 55 | 50 | |||||||||
φ38*1.0 | 92 | 90 | 85 | 80 | 75 | 73 | 70 | 60 | 55 | |||||||||
φ38*1.2 | 100 | 95 | 93 | 90 | 85 | 83 | 80 | 75 | 70 | |||||||||
φ38*1.5 | 120 | 115 | 110 | 106 | 100 | 95 | 90 | 85 | 80 | |||||||||
φ 50*1.2 | 145 | 140 | 136 | 130 | 130 | 125 | 120 | 110 | 100 | |||||||||

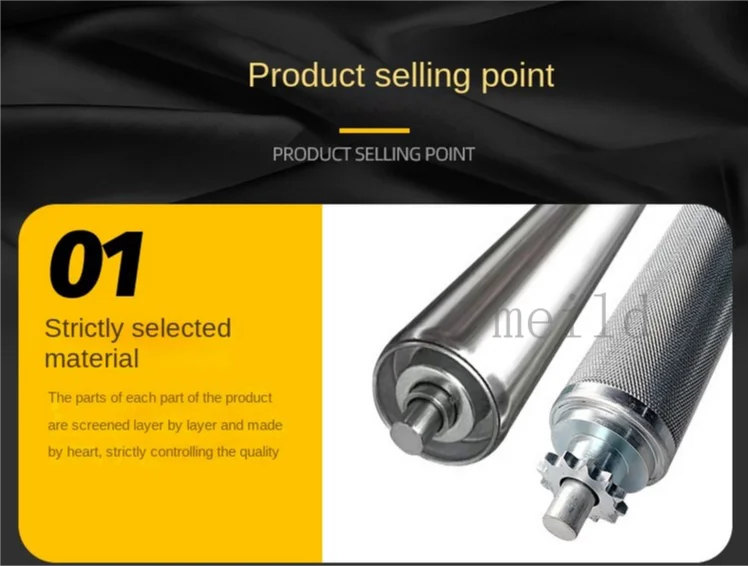

Product Selling Point
Application fieldlay
Certificate
Payment and transportation
