Huawei OSX010000/0231A0A8/LE0M0XS1DD Compatible 10GBASE LR SFP 1310nm 10km DOM SMF Transceiver Module
- Category: >>>
- Supplier: Shenzhen Silink Technology Co. Ltd.
Share on (1600524685873):
Product Overview
Description
Product Description

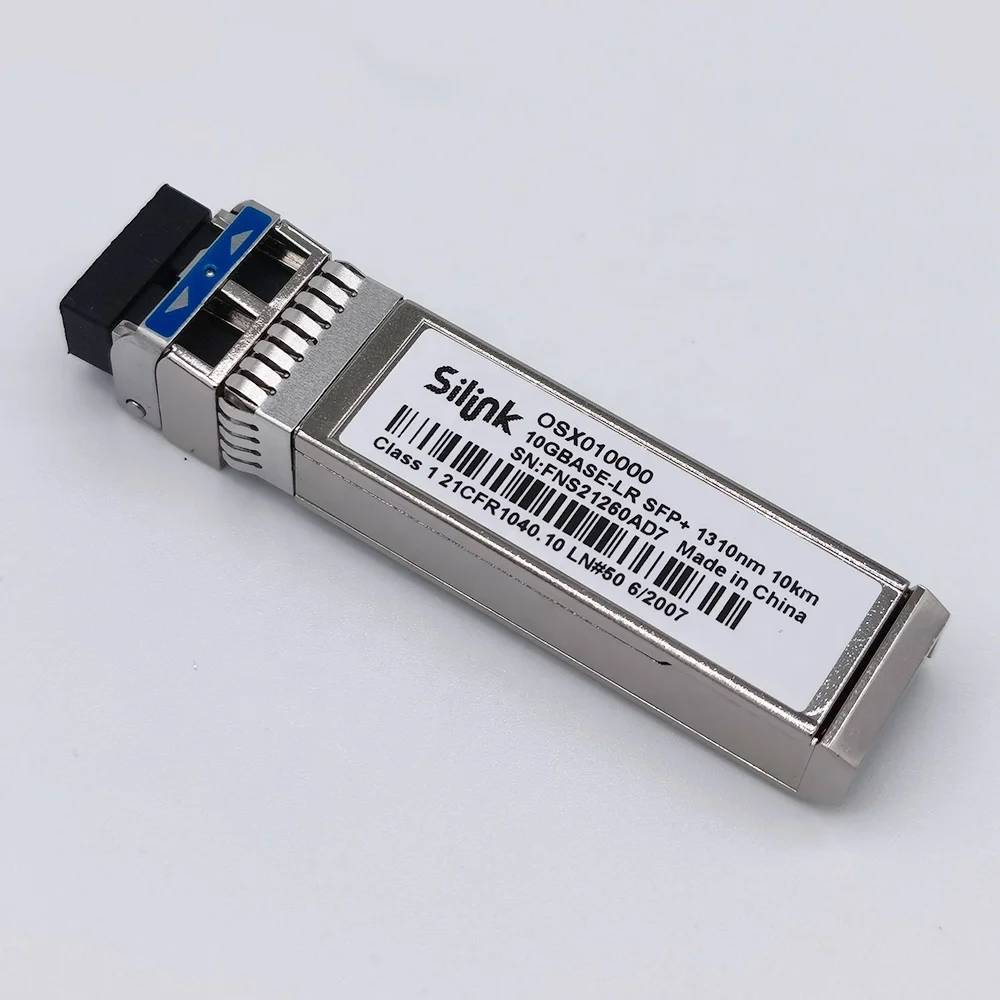

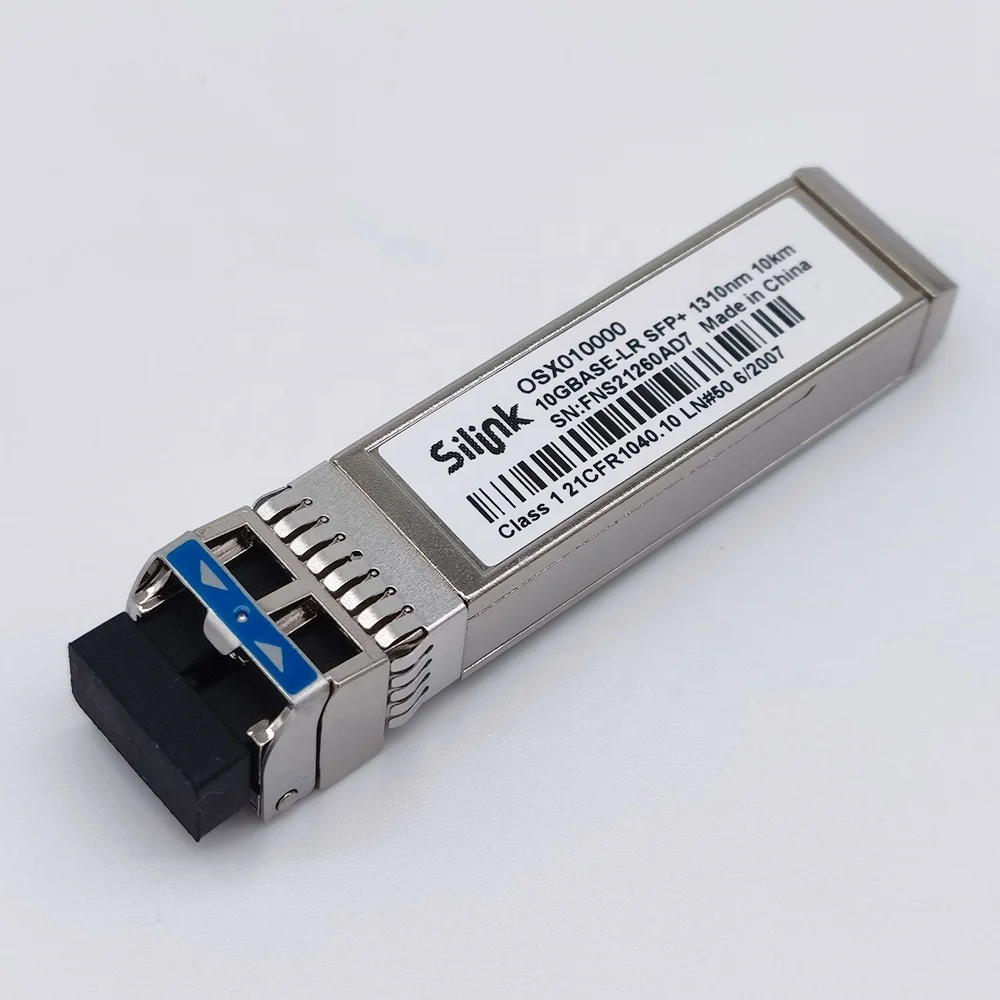

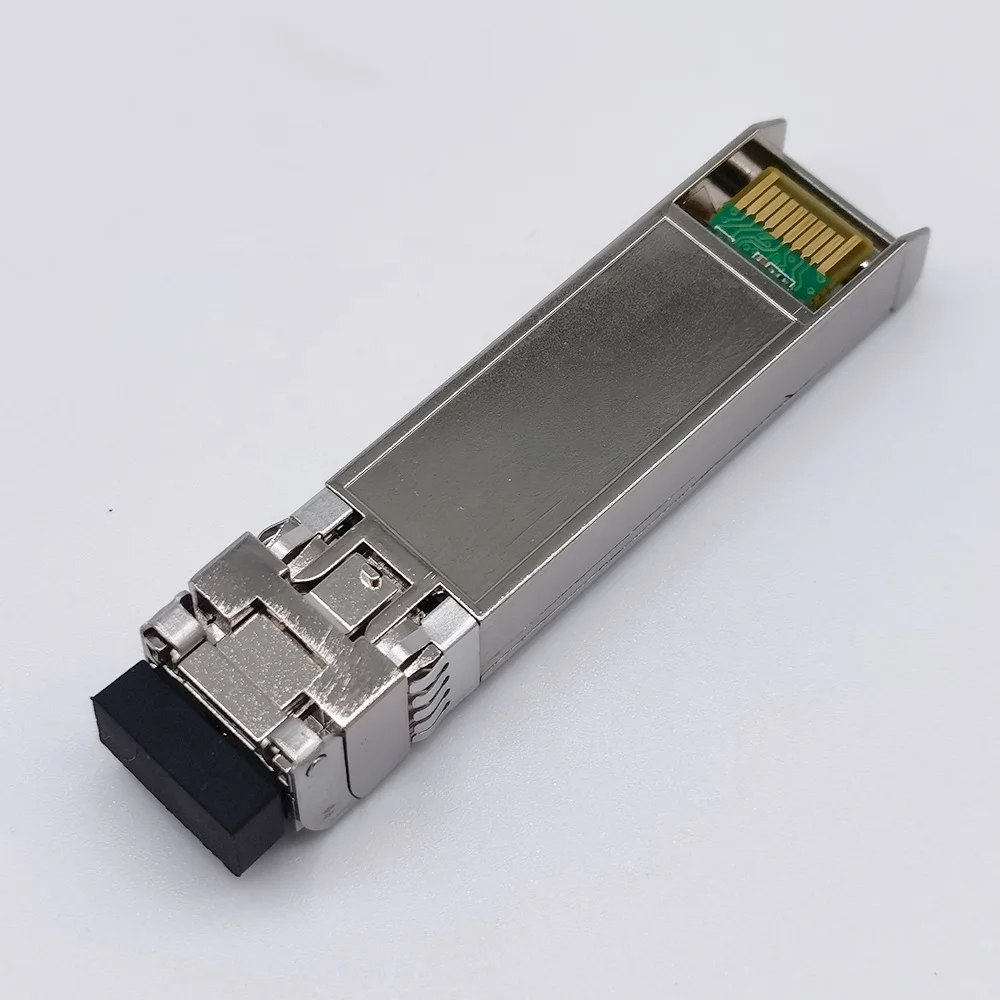

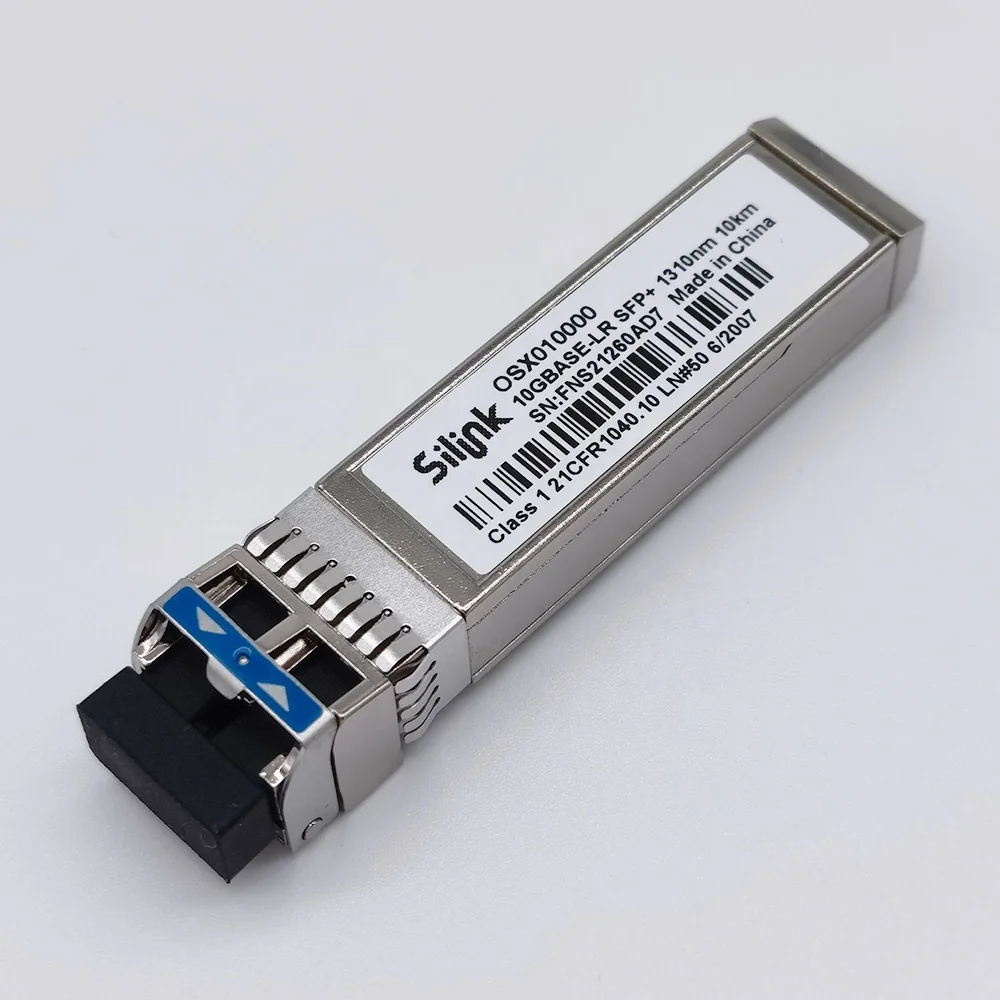

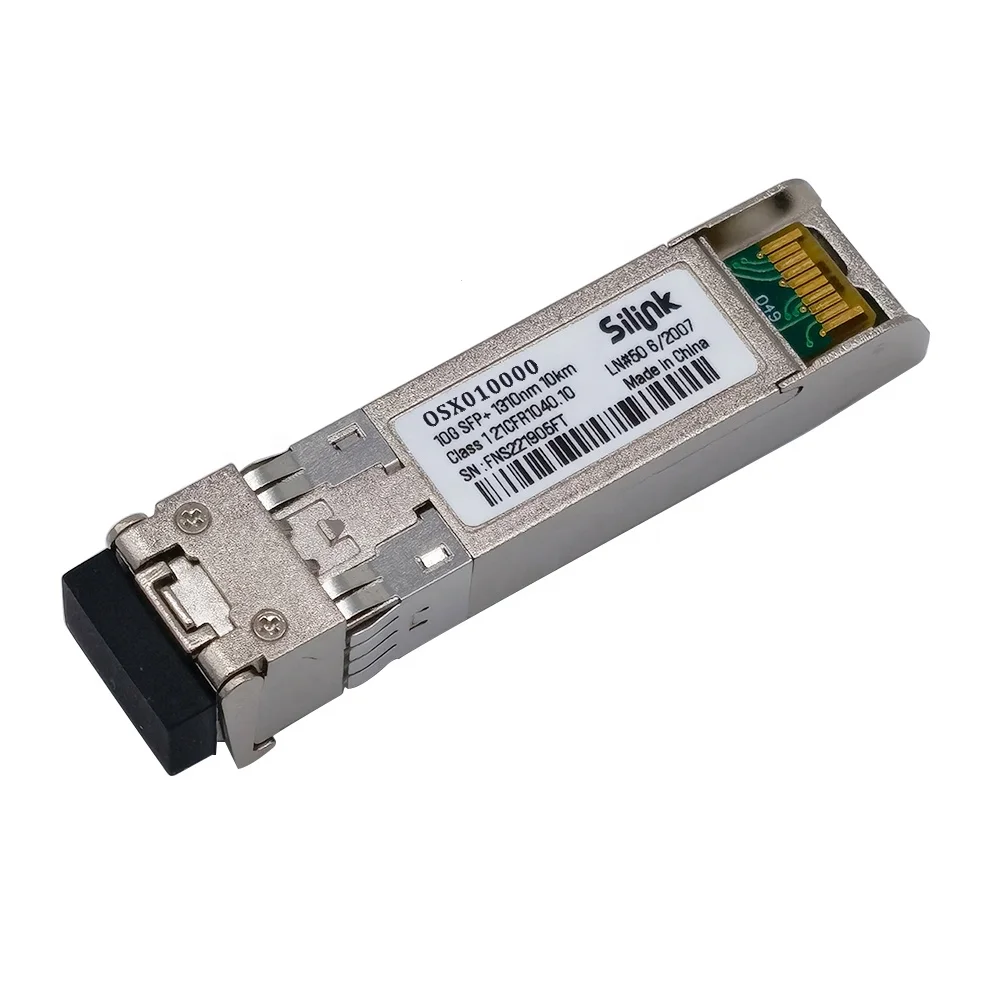

Huawei OSX010000/0231A0A8/LE0M0XS1DD Compatible 10GBASE-LR SFP+ 1310nm 10km DOM SMF Transceiver Module
Description
This is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The transceiver converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links.
The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.
Features
◈ Supports 8.5 to 11.3Gb/s bit rates
◈ Hot-Pluggable
◈ Uncooled 1310nm DFB laser
◈ Duplex LC connector
◈ RoHS compliant and Lead Free
◈ Up to 10 km on 9/125μm SMF
◈ Single +3.3V Power Supply
◈ Built-in digital diagnostic functions
◈ Commercial operating temperaturerange: 0°C to 70°C
Applications
◈ 10GBASE-LR/LW 10G Ethernet
◈ 1200-SM-LL-L 10G Fibre Channel
◈ SONET OC-192 / SDH STM-64
Form Type | SFP+ |
Data Rate | 10Gbps |
Wavelength | 1310nm |
Distance | 10km |
Cable Type | SMF |
Interface | LC duplex |
Optical Components | DFB 1310nm |
DDM/DOM | Supported |
TX Power | -8.2~0.5dBm |
Receiver Sensitivity | <-14.4dBm |
Commercial Temperature | 0 to 70°C |
HS Code | 8517706000 |
Detailed Images
Packing & Delivery
Packing
1, Antistatic bag
2, Plastic boxes for packaging（10PCS or 1PCS）
3, Seperate white or brown Box for each transceiver
4, Specific packaging as Request, Original packaging
Payment
1, T/T, Western Union, Paypal and so on.
Delivery
1, International Express: DHL, FedEx, UPS, TNT, Aramex and so on.
2, You also can choose your own shipping forwarder, please notify us in advance.
3, Shipments are usually dispatched in 2-5 working days after received payment.
Our Service
OEM:
1, We can provide OEM services, and can design packaging, Logo, and labels according to your requirements.
2, Labels are generic labels or our own brand labels, or original labels
3, Specific labels as request (according to your requirements, design products label, logo, PN, SN. )
3, Specific labels as request (according to your requirements, design products label, logo, PN, SN. )
Warranty:
1, 3 years warranty
Compatible Brand
We product are compatible with Cisco, 3COM, H3C, HP, aruba, Finisar, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Ordering Information
Model Number | Description | |
SFP Transceiver | ||
GLC-T | 1000BASE-T SFP Copper RJ-45 100m | |
GLC-SX-MM | 1000BASE-SX SFP 850nm 550m MMF LC | |
GLC-SX-MMD | 1000BASE-SX SFP 850nm 550m MMF LC DDM | |
GLC-LH-SM | 1000BASE-LX/LH SFP 1310nm 10km SMF LC | |
GLC-LH-SMD | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DDM | |
GLC-ZX-SM | 1000BASE-ZX SFP 1550nm 70km SMF LC | |
GLC-ZX-SMD | 1000BASE-ZX SFP 1550nm 70km SMF LC DDM | |
GLC-BX-D | 1000BASE-BX-D SFP 1490nm-TX/1310nm-RX 10km SMF LC DOM | |
GLC-BX-U | 1000BASE-BX-U SFP 1310nm-TX/1490nm-RX 10km SMF LC DOM | |
SFP-GE-S | 1000BASE-SX SFP 850nm 550m MMF DOM LC | |
SFP-GE-L | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DOM | |
GLC-EX-SMD | 1000BASE-EX SFP 1310nm 40km SMF LC DOM | |
SFP-GE-Z | 1000BASE-ZX SFP 1550nm 70km SMF LC DOM | |
SFP-GE-T | 1000BASE-T SFP Copper RJ-45 100m | |
GLC-SX-MM-RGD | 1000BASE-SX SFP 850nm 550m MMF LC DOM IND | |
GLC-LX-SM-RGD | 1000BASE-LX/LH SFP 1310nm 10km SMF LC DOM IND | |
GLC-ZX-SM-RGD | 1000BASE-ZX SFP 1550nm 70km SMF LC DOM IND | |
GLC-GE-100FX | 100BASE-FX SFP 1310nm 2km MMF LC | |
GLC-FE-100FX | 100BASE-FX SFP 1310nm 2km MMF LC DOM | |
GLC-FE-100EX | 100BASE-EX SFP 1310nm 40km SMF LC DOM | |
GLC-FE-100LX | 100BASE-LX10 SFP 1310nm 10km SMF LC DOM | |
GLC-FE-100BX-D | 100BASE-BX-D SFP 1550nm-TX/1310nm-RX 10km SMF LC DOM | |
GLC-FE-100BX-U | 100BASE-BX-U SFP 1310nm-TX/1550nm-RX 10km SMF LC DOM | |
GLC-FE-100ZX | 100BASE-ZX SFP 1550nm 80km SMF LC DOM | |
GLC-FE-100FX-RGD | 100BASE-FX SFP 1310nm 2km MMF LC DOM IND | |
GLC-FE-100LX-RGD | 100BASE-LX10 SFP 1310nm 10km SMF LC DOM IND | |
More... | ||
SFP+ Transceiver | ||
SFP-10G-SR | 10GBASE-SR SFP+ MMF, 850nm, 300m, LC, DOM | |
SFP-10G-SR-S | 10GBASE-SR SFP+ MMF, 850nm, 300m, LC, DOM | |
SFP-10G-LR | 10GBASE-LR SFP+ SMF, 1310nm, 10km, LC, DOM | |
SFP-10G-LRM | 10GBASE-LRM SFP+ MMF, 1310nm, 220m, LC, DOM | |
SFP-10G-ER | 10GBASE-ER SFP+ SMF, 1550nm, 40km, LC, DOM | |
SFP-10G-ZR | 10GBASE-ZR/ZW SFP+ SMF, 1550nm 80km LC, DOM | |
More... | ||
Our Company
Shenzhen Silink Technology Co., Ltd. is a leading manufacturer and exporter specializing in fiber optical communications equipments,optical transceiver modules and network cabling products.
Optical transceiver modules: SFP, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM,Media Converter and other special transceiver modules,which are compatible with Cisco, 3COM, H3C, HP, Alcatel-Lucent, Allied Telesis, Nortel, Juniper, Huawei,etc.
Network cabling products: Keystone jack,patch panel,patch cord,faceplate,etc.
Fiber optical communications equipments: Fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc.
These products are widely used in telecommunications, broadband, broadcast, CATV and network industry
FAQ
1, Can I have a sample order? What is your MOQ?
Answer: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable,We do not have MOQ,1 sample is available.
2, Are your transceivers compatible?
Answer: Yes,our OEM compatible optical module all test for compatibility on a variety of different brands of network equipment such as Cisco, Juniper, HP , Huawei, Alcatel, H3C and more.
3, How does your company do regarding quality control?
Answer: We have professional testing equipment and QC team. Every unit will be double tested with perfect performance before shipping.
4, What is your warranty time ?
Answer: We promise 3 years warranty for all products shipped from us.
5, Could I use our own logo, label and package?
Answer: Yes,we could provide a OEM service and according to your requirements, design products label, logo, PN, SN, package.
6, What is the lead time?
Answer: For usual products,We keep stock,could ship 1-3 days after PO.For big quantity and special products,Please check lead time with our sales representative.
7, What is your payment terms?
Answer: T/T, Western union, Paypal.
8, What is the shipping terms?
Answer: We usually ship by Aramex, Fedex, DHL, UPS, TNT and EMS. If you have another preferred carrier, please notify us in advance.
