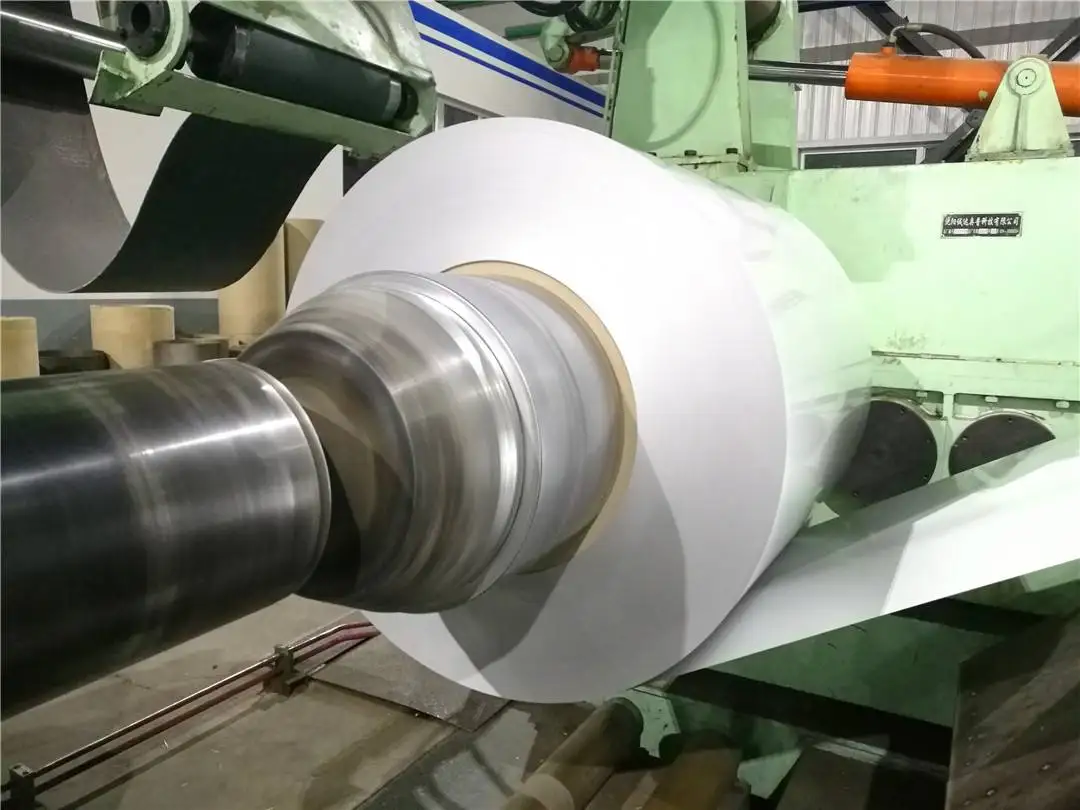

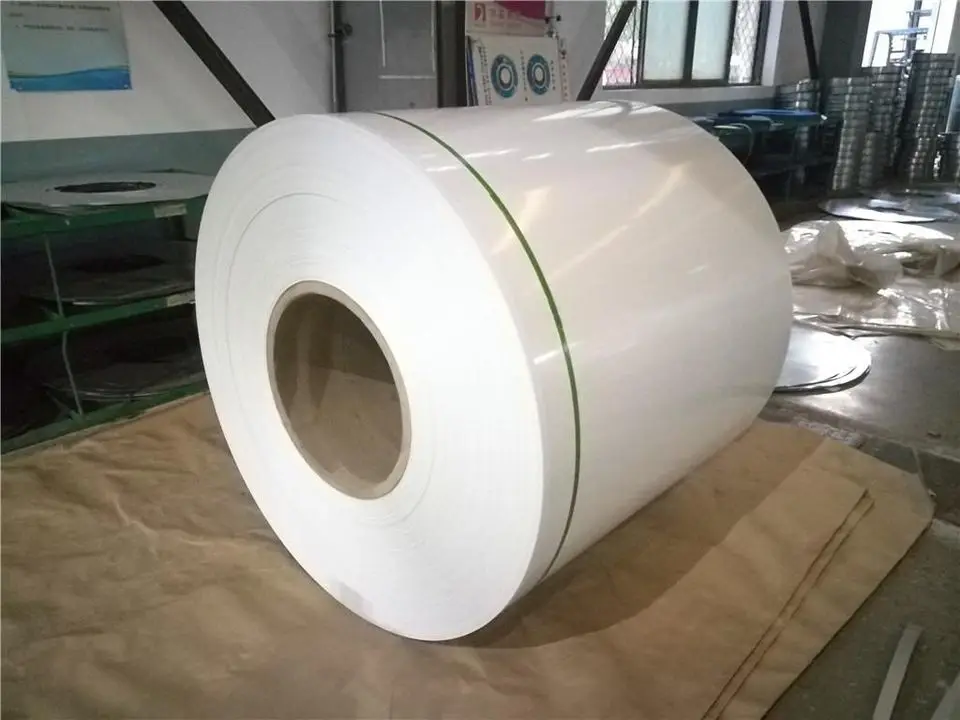

Prepainted Aluminum Steel Coil PPGI PPGL GI GL Galvanized Steel Coil Z275 Prepainted Color Coated Steel Coil
- Category: >>>
- Supplier: Shandong Wayne Steel Co. Ltd.
Share on (1600524691959):
Product Overview
Description
Prime Wrinkled Gi Steel Coil PPGI Color Coated Prepainted Galvanized Steel Coil for Roofing Sheet
Specification
Commodity | Pre-Painted Coated Steel Coil |
Thickness | 0.18-1.20 MM |
Width | 30-1250 MM |
Length | As you need |
Basic Coil | Galvanized Steel Coil |
Zinc coating | 30-275 Gsm |
Color | RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc |
Steel Grade | DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC, SECE, BLCE+Z, BLDE+Z, BUSDE+Z or Customer’s Requirement |
Paint Brand | Akzonobel, Beckers, KCC, Wanbo, Xineroi, Aobli |
Protective Film | Yes (30 μm, 40 μm, 50 μm) |
Surface Type | Normal Glossy, Matt, Wrinkle |
Paint Type | PE, SMP, HDF, PVDF |
Standard | EN, JIS, ASTM, GB |
Sample | Free sample will be sent as your requirement |
Product Description

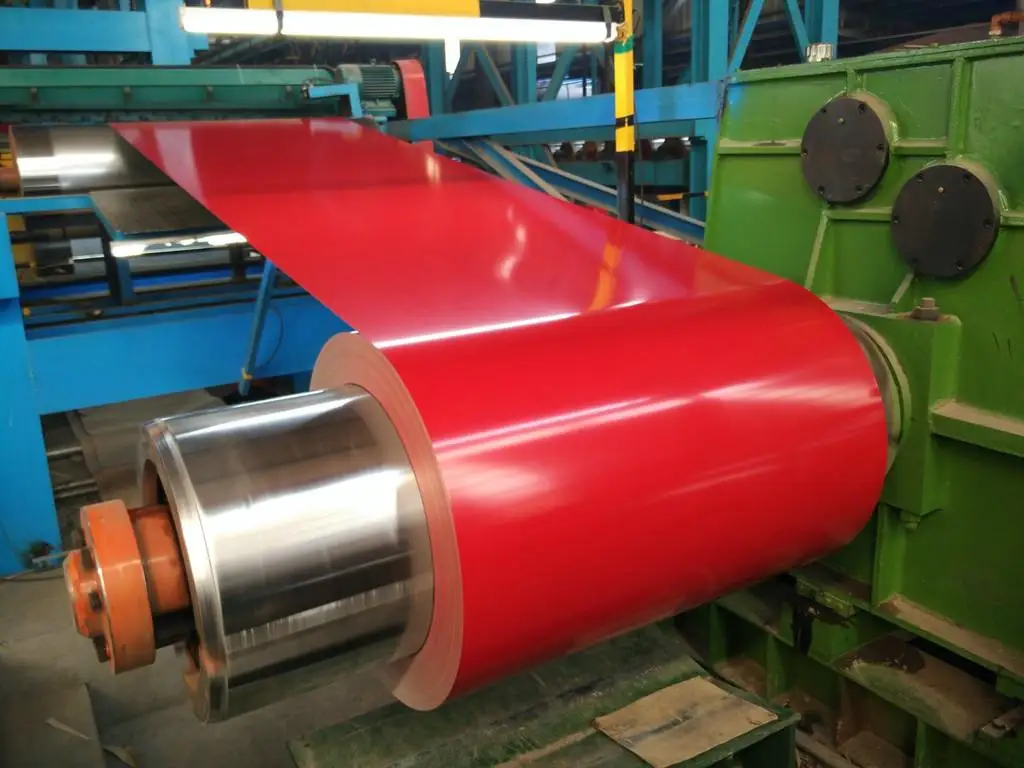

The prepainted steel coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, and galvalume steel sheet, or an aluminum sheet to a surface chemical treatment (coating), followed by baking and curing.
The total thickness of the pre-panted galvanized steel coil is composed of the base steel – coating -primer – top paint –
protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm.
Usually, the paint coating material is polyester (PE) and the color of the back paint is white grey. From Wayen Fctory,The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.
The total thickness of the pre-panted galvanized steel coil is composed of the base steel – coating -primer – top paint –
protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm.
Usually, the paint coating material is polyester (PE) and the color of the back paint is white grey. From Wayen Fctory,The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.
PPGI Sheet Coating Layer
* Top (Finish) Coating (PE/HDP/PVDF, etc.)
* Primer Coating
* Pre Treatment (Chromate Coating)
* Plating Layer (Zn, AL, 55%AL+Zn)
* Base Metal (Cold Rolled Steel Sheet)
* Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
* Pre Treatment (Chromate Coating)
* Functional Painting (Epoxy, Polyester )
* Primer Coating
* Pre Treatment (Chromate Coating)
* Plating Layer (Zn, AL, 55%AL+Zn)
* Base Metal (Cold Rolled Steel Sheet)
* Plating Layer (Zn, AL, 55%AL+Zn, Sn, Cr, etc.)
* Pre Treatment (Chromate Coating)
* Functional Painting (Epoxy, Polyester )
Type Of Coating
PE
The PE-coated color-coated steel sheet is easy to be processed and formed because of its good adhesion, and the price is
relatively cheap. But the other degree of UV resistance and chalking resistance is relatively low. PE color coated steel can be used for the roof of ordinary civil buildings.
SMP
SMP steel plate has better durability, and the cost is higher than the PE coating. Silicone is not as good as PE in terms of
adhesion and processing formability to materials.
High Durable Polyester (HDP)
It is better than ordinary SMP coatings, and its outdoor weather resistance reaches 16 years. Its flexibility and weather
resistance are higher.
PVC
PVC coating has nice anti-chemical and anti-water, and the coasting is relatively thick, which can well protect the substrate. The PVC coating is rarely used because they pollute the environment.
PVDF
PVDF coatings have great color retention and corrosion resistance. Among the PPGI sheet coating for construction, it is the highest grade.
The PE-coated color-coated steel sheet is easy to be processed and formed because of its good adhesion, and the price is
relatively cheap. But the other degree of UV resistance and chalking resistance is relatively low. PE color coated steel can be used for the roof of ordinary civil buildings.
SMP
SMP steel plate has better durability, and the cost is higher than the PE coating. Silicone is not as good as PE in terms of
adhesion and processing formability to materials.
High Durable Polyester (HDP)
It is better than ordinary SMP coatings, and its outdoor weather resistance reaches 16 years. Its flexibility and weather
resistance are higher.
PVC
PVC coating has nice anti-chemical and anti-water, and the coasting is relatively thick, which can well protect the substrate. The PVC coating is rarely used because they pollute the environment.
PVDF
PVDF coatings have great color retention and corrosion resistance. Among the PPGI sheet coating for construction, it is the highest grade.
Recommend Products

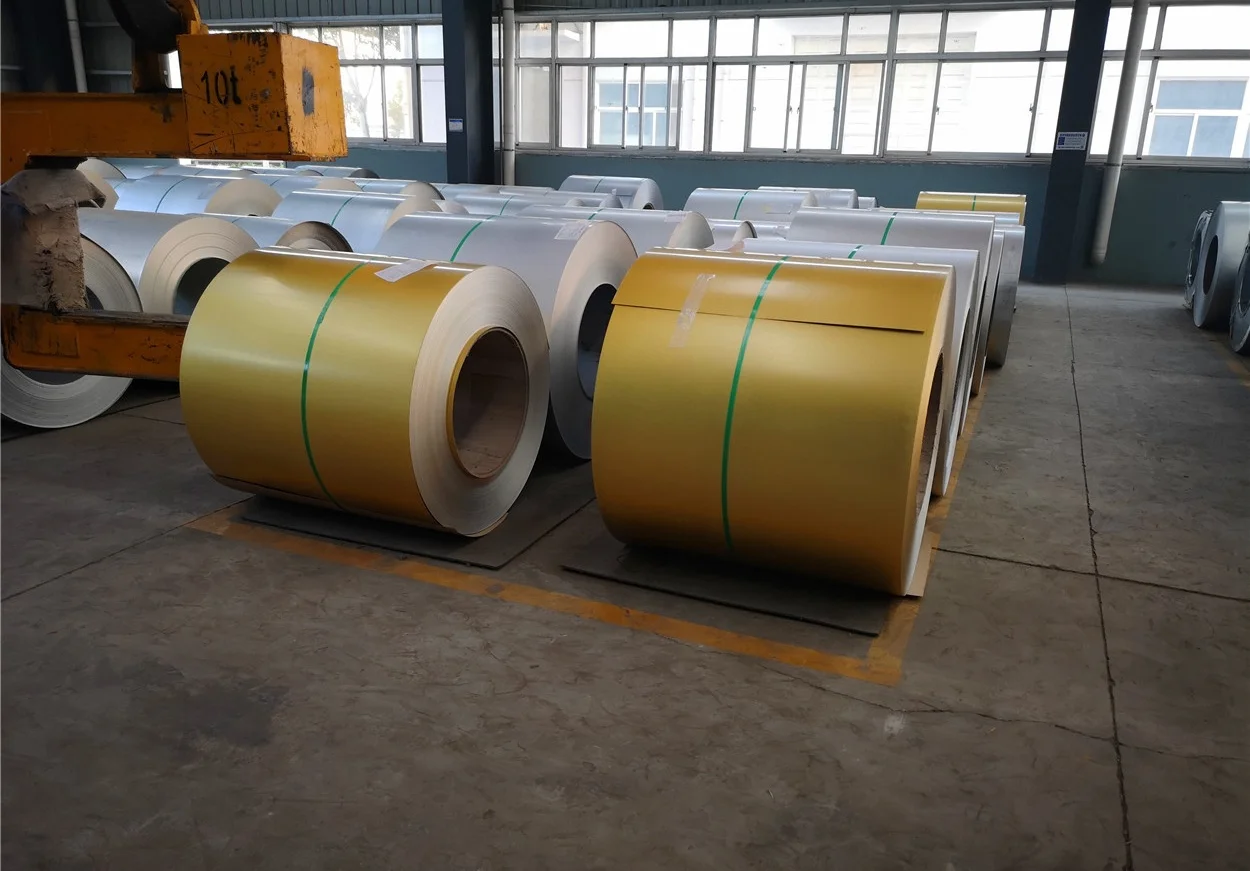

Packing & Delivery

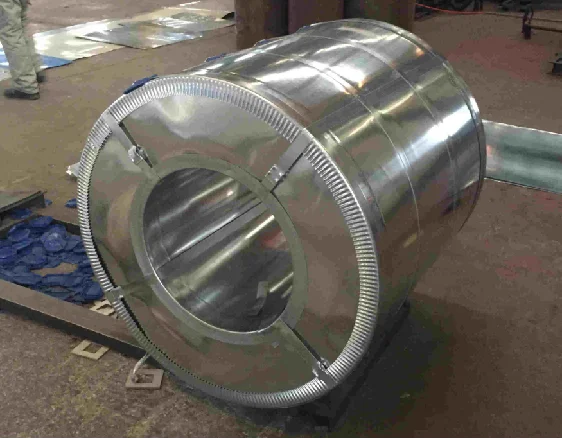

Standard Export Packing:
* Galvanized metal fluted rings on inner and outer edges
* Galvanized metal and waterproof paper wall protection disk
* Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
* Galvanized metal fluted rings on inner and outer edges
* Galvanized metal and waterproof paper wall protection disk
* Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.

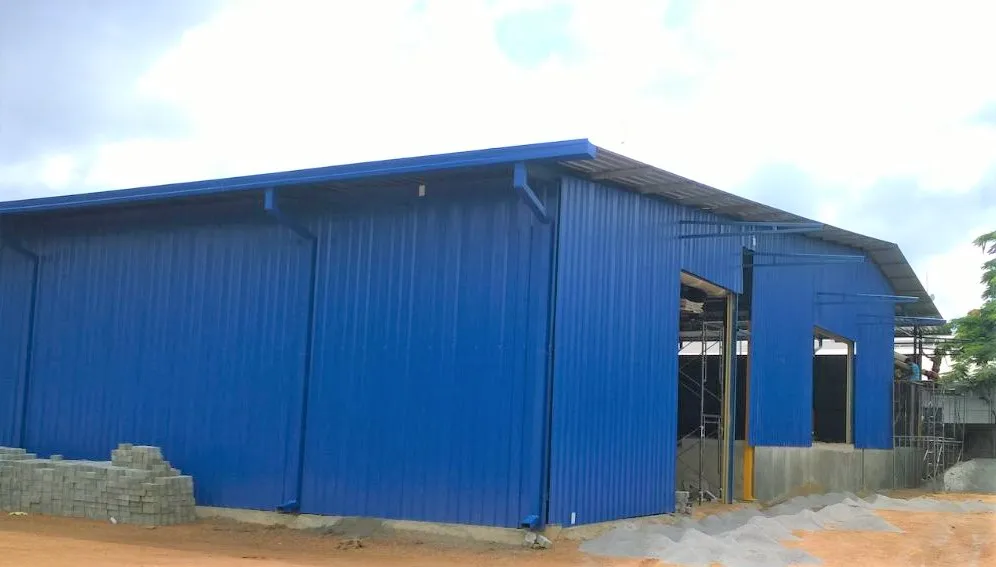

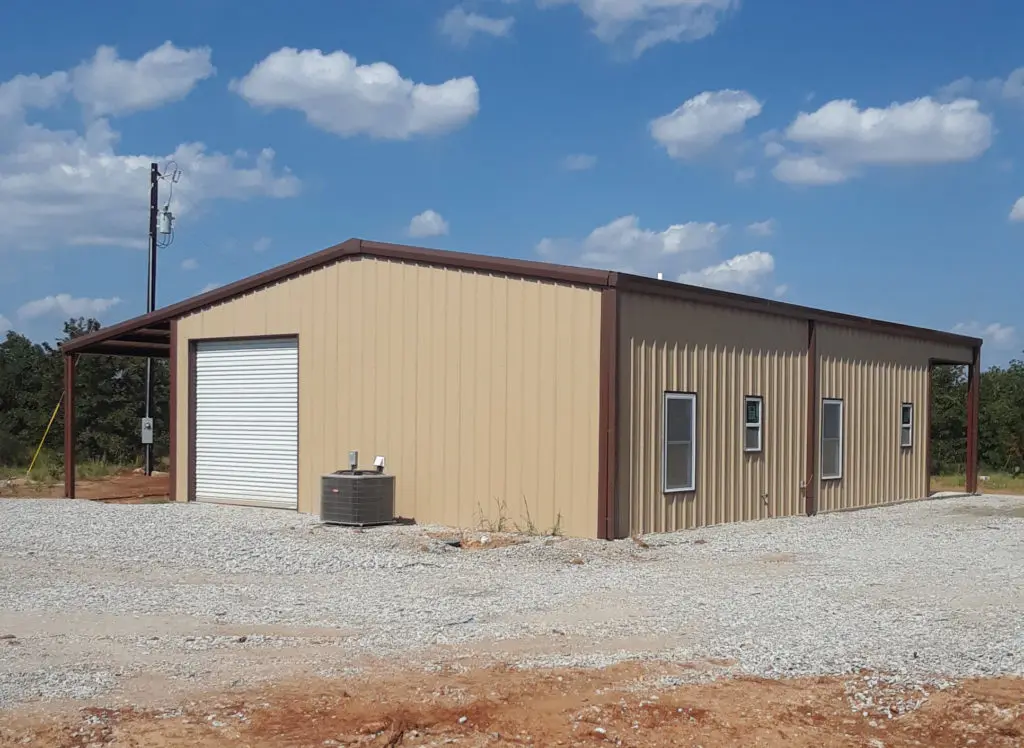

Applications
Color-coated steel sheets are widely used in construction, industry, household manufacturing, product packaging, interior
decoration and other fields.
decoration and other fields.
Quality Inspection
Quality Control
In terms of quality control, full-time inspectors are set up in each process to inspect product quality to ensure product quality is controlled from the production process. The process inspection process includes product specification inspection, product surface inspection, product performance inspection, product level determination and professional testing laboratory. Which including hardness test, film thickness test, gloss test, bending test, repeated impact test, product aging test and Salt spray resistance test, etc.
From Customer Feedback
FAQ
1. Q: Are you a manufacturer?
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for
delivery.
6. Q: Can I get some samples?
A: We are glad to provide samples to you.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
2. Q: Can we visit your factory?
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
3. Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
4. Q: Can you arrange the shipment for us?
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
5. Q: How long is your delivery time?
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for
delivery.
6. Q: Can I get some samples?
A: We are glad to provide samples to you.
7. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.
