Real time quantitative pcr machine thermal cycler pcr system pcr test machine
- Category: >>>
- Supplier: Wester Technology Co. Limited
Share on (1600524699491):
Product Overview
Description
Real-time quantitative pcr machine thermal cycler pcr system pcr test machine
Product Description

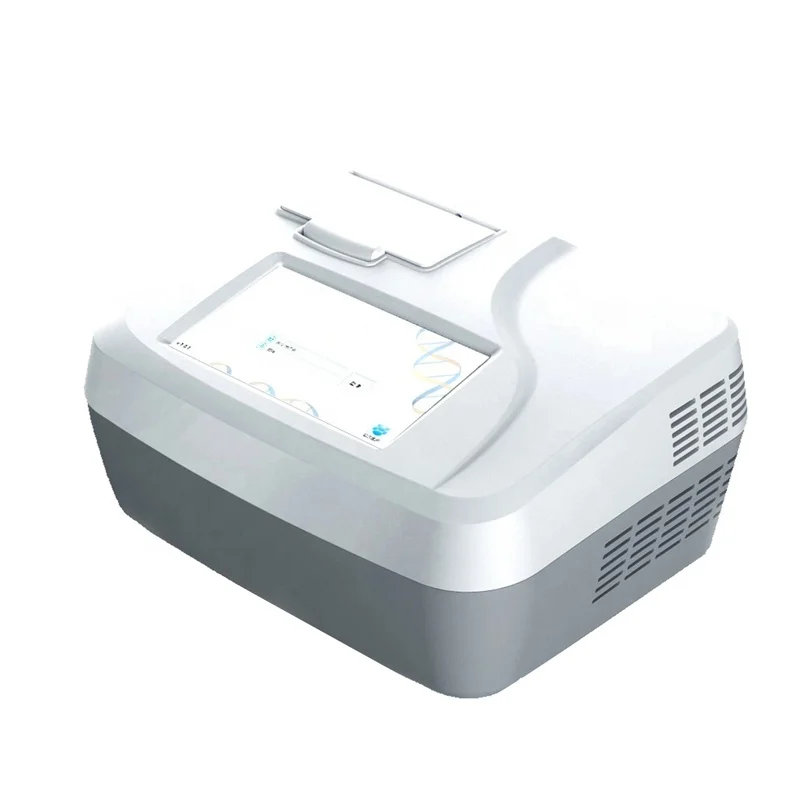

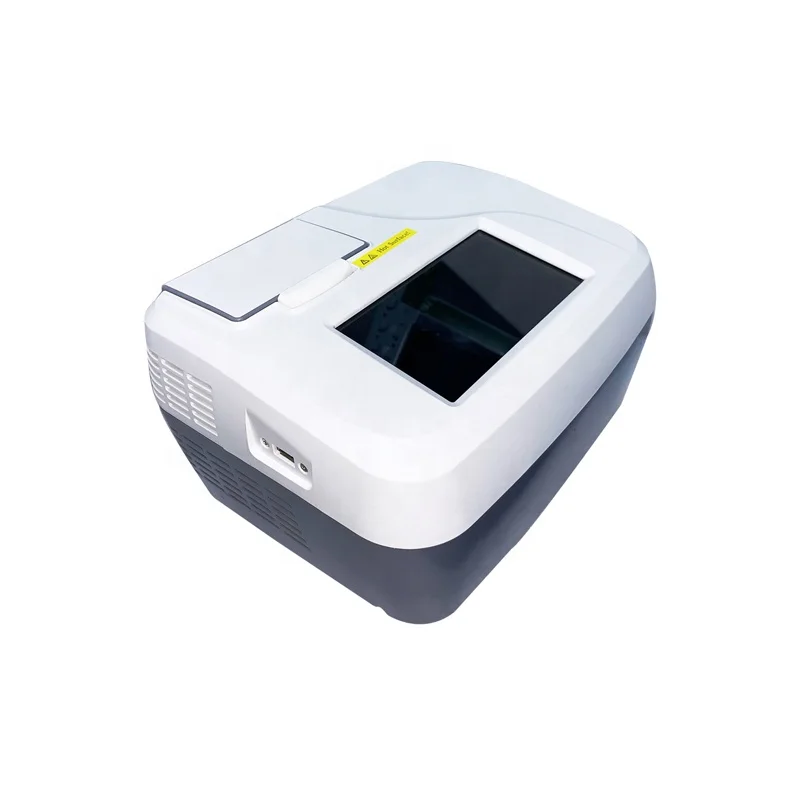

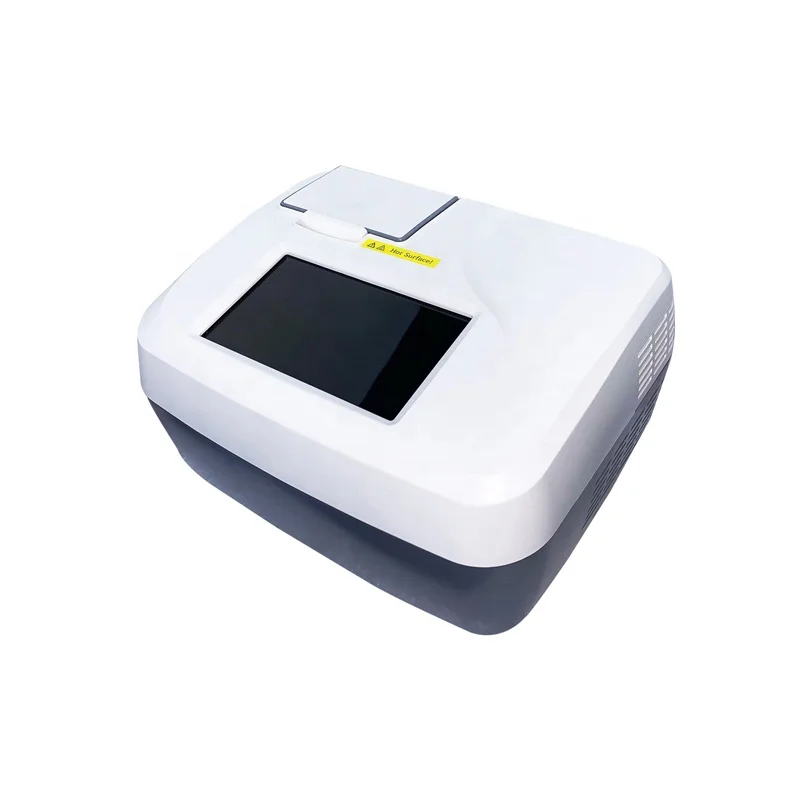

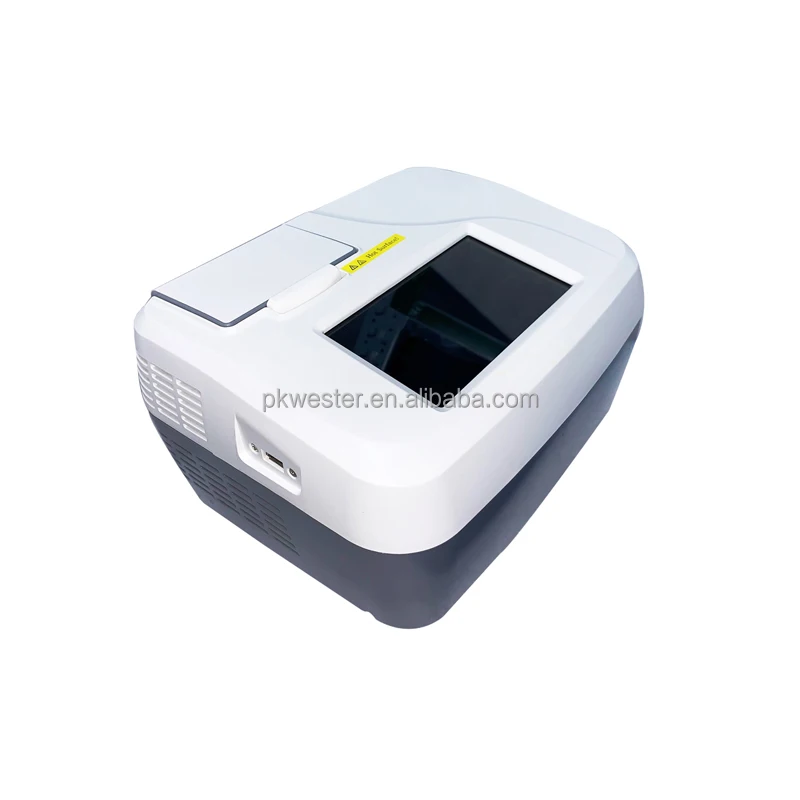

WS-1620Q Real-Time Quantitative Thermal Cycler
Product Features
Small size, light weight, easy to carry, easy to meet the needs of outside experiments.

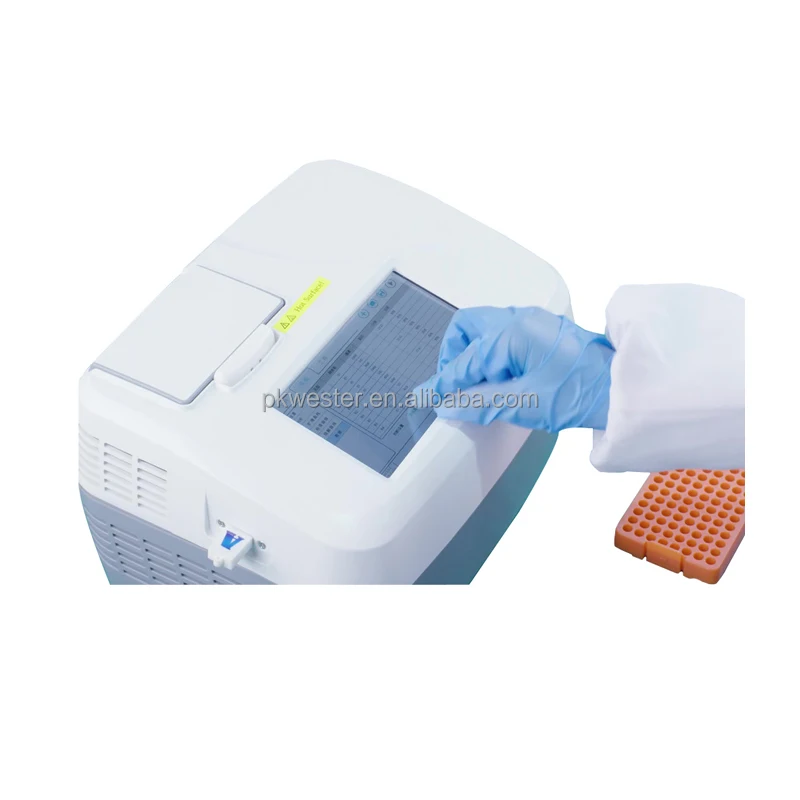

Still powerful, can be used for relative quantitative, absolute quantitative, melting curve, negative and positiveAnalysis, etc. built-in 7-inch capacitor screen PDA, touch screen operation, simple and quick.

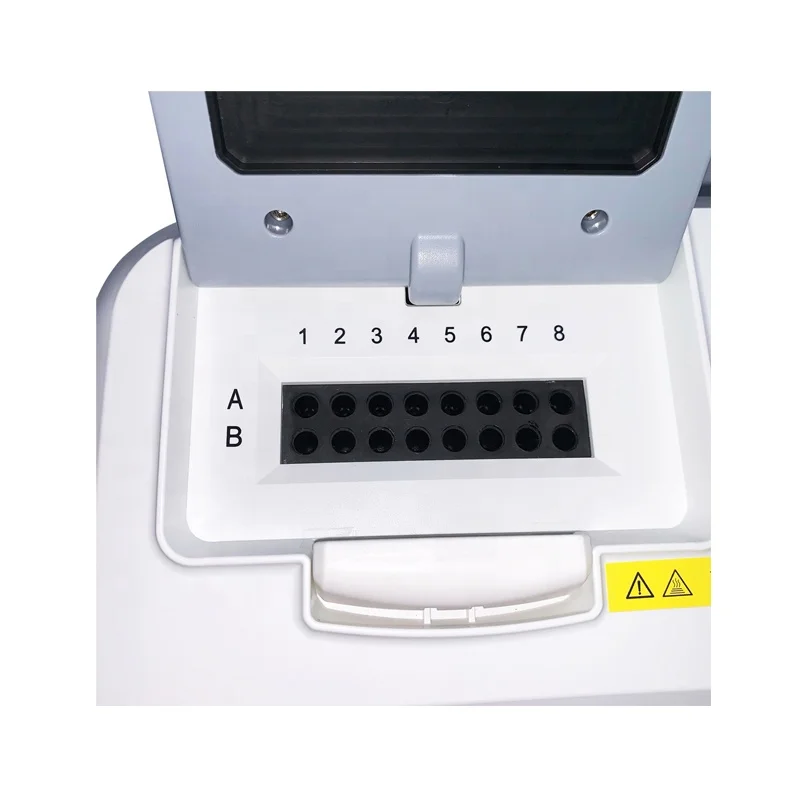

16x0.2ml reaction module, com partible with eight-row tube and single tube.

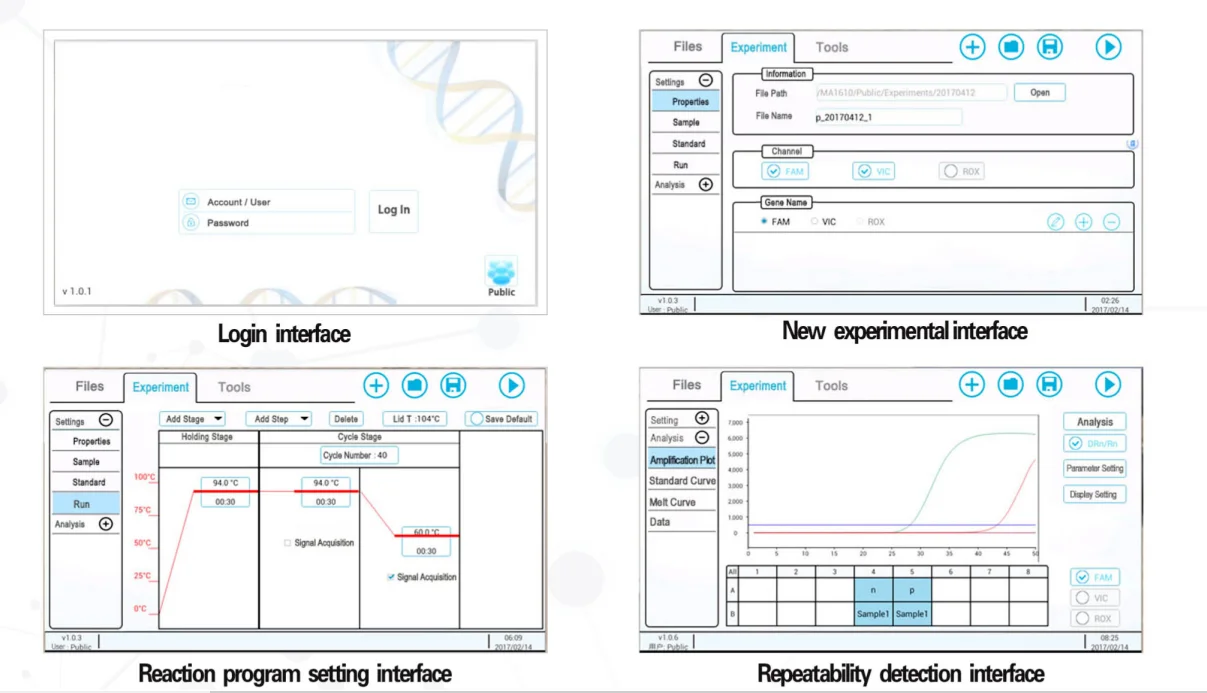

Simple and intuitive software guidance, easy to open fluorescence quantitative PCR system.

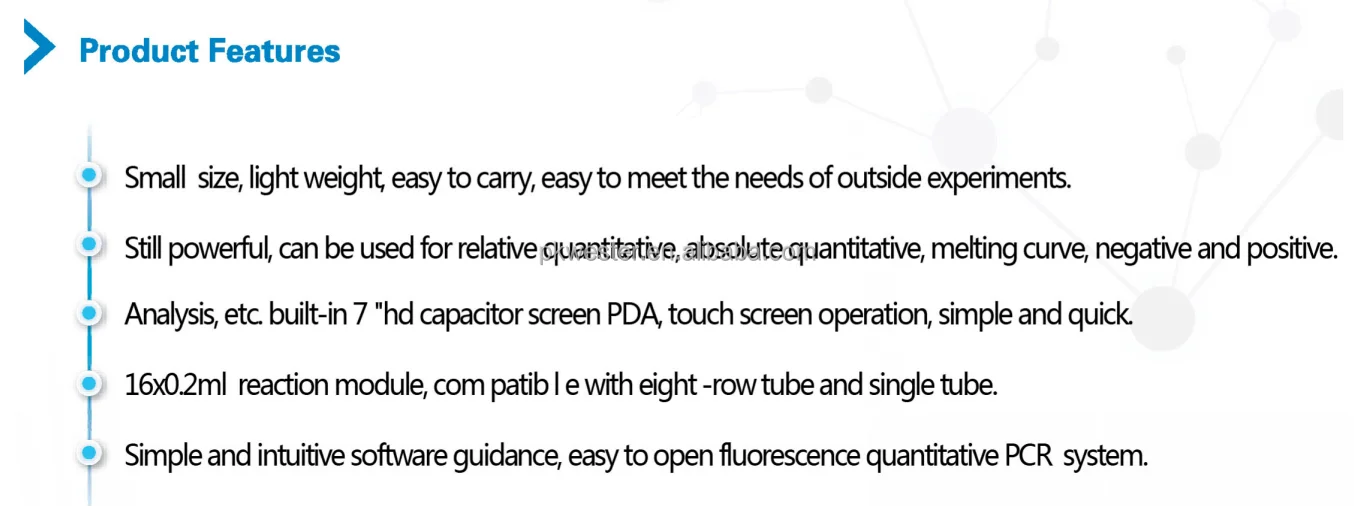

Product Features
Small size, light weight, easy to carry, easy to meet the needs of outside experiments.
Still powerful, can be used for relative quantitative, absolute quantitative, melting curve, negative and positiveAnalysis, etc. built-in 7-inch capacitor screen PDA, touch screen operation, simple and quick.
16x0.2ml reaction module, com partible with eight-row tube and single tube.
Simple and intuitive software guidance, easy to open fluorescence quantitative PCR system.
Details Images
Specification
Basic Performance | ||||
WS-1620Q | WS-1630Q | |||
Overall dimensions | 320*250*177mm | |||
Weight | 4.5kg | |||
Power supply | 110V~240V, 50~60Hz | |||
Noise level | 45db | |||
Communication interface | USB | |||
Operating environment parameters | ||||
Environment temperature | 15~30℃ | |||
Relative humidity | ≤85% | |||
Transportation & storage temperature | -20~55℃ | |||
Transportation & storage relative humidity | ≤85% | |||
PCR system performance | ||||
Tube capacity | 16*0.2ml | |||
Sample volume | 25~120ul | |||
Apply consumables | 0.2ml PCR tube, 8*0.2ml PCR tube | |||
Temperature control range | 4~99℃ | |||
Temperature accuracy | ≤±0.1℃ | |||
Temperature uniformity | ≤±0.25℃ | |||
Maximum heating rate | 3.8℃ | |||
Average heating rate | 1.5℃ | |||
Maximum cooling rate | 3.4℃ | |||
Average cooling rate | 1.5℃ | |||
Modular temperature control accuracy | ≤0.1℃ | |||
Temperature duration accuracy | ≤±1% | |||
Heating/Cooling | Semiconductor mode | |||
Hot cover | Electric heat cover | |||

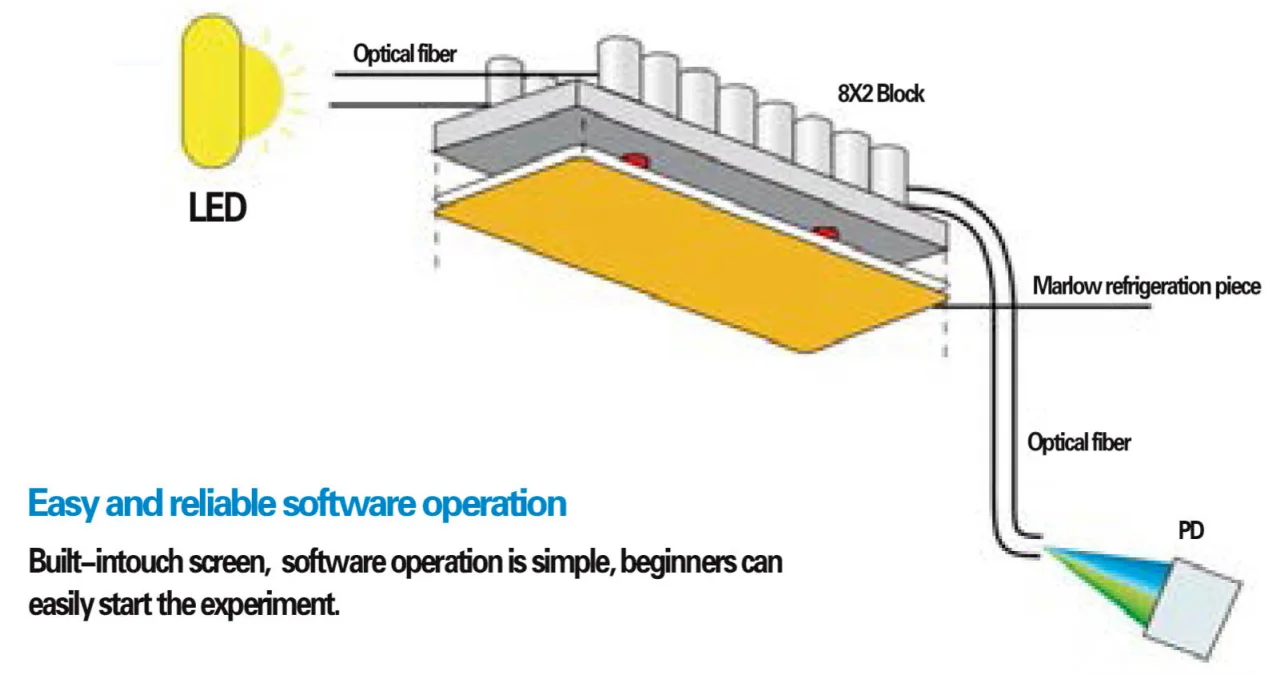

Fluorescence detection system performance | ||||
Light source | High brightness LED | |||
Detector | PD | |||
Excitation and detection of propagation media | High temperature resistant professional fiber | |||
Linear range of samples | 10º- 109 copies | |||
Sample linearity | R≥0.99 | |||
Sample testing repeatability | CV＜3.00% | |||
Excitation wavelength | Channel 1: 470nm±10nm Channel 2: 525nm±10nm | Channel 1: 470nm±10nm Channel 2: 525nm±10nm Channel 3：570nm±10nm | ||
Detection wavelength | Channel 1: 520nm±10nm Channel 2: 570nm±10nm | Channel 1: 5200nm±10nm Channel 2: 570nm±10nm Channel 3：620nm±10nm | ||

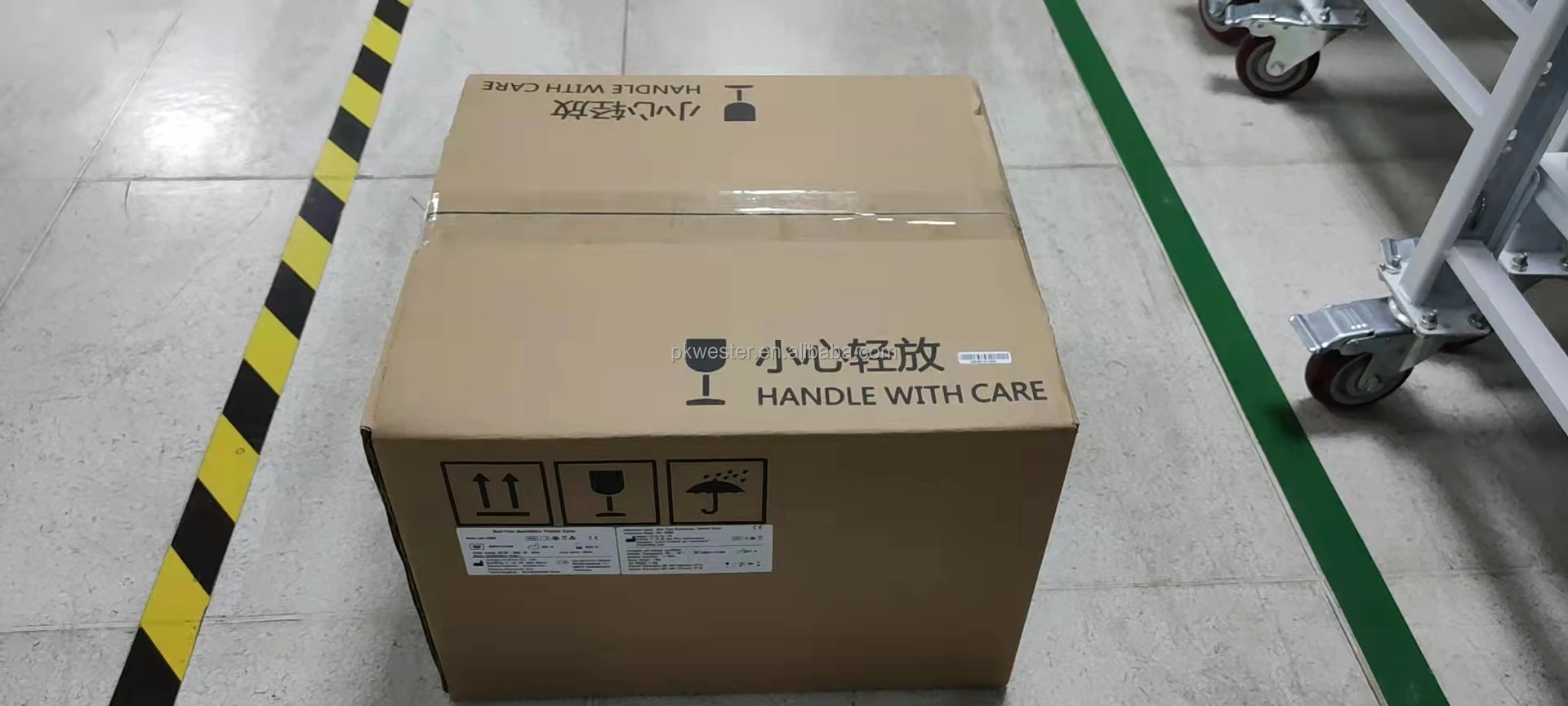

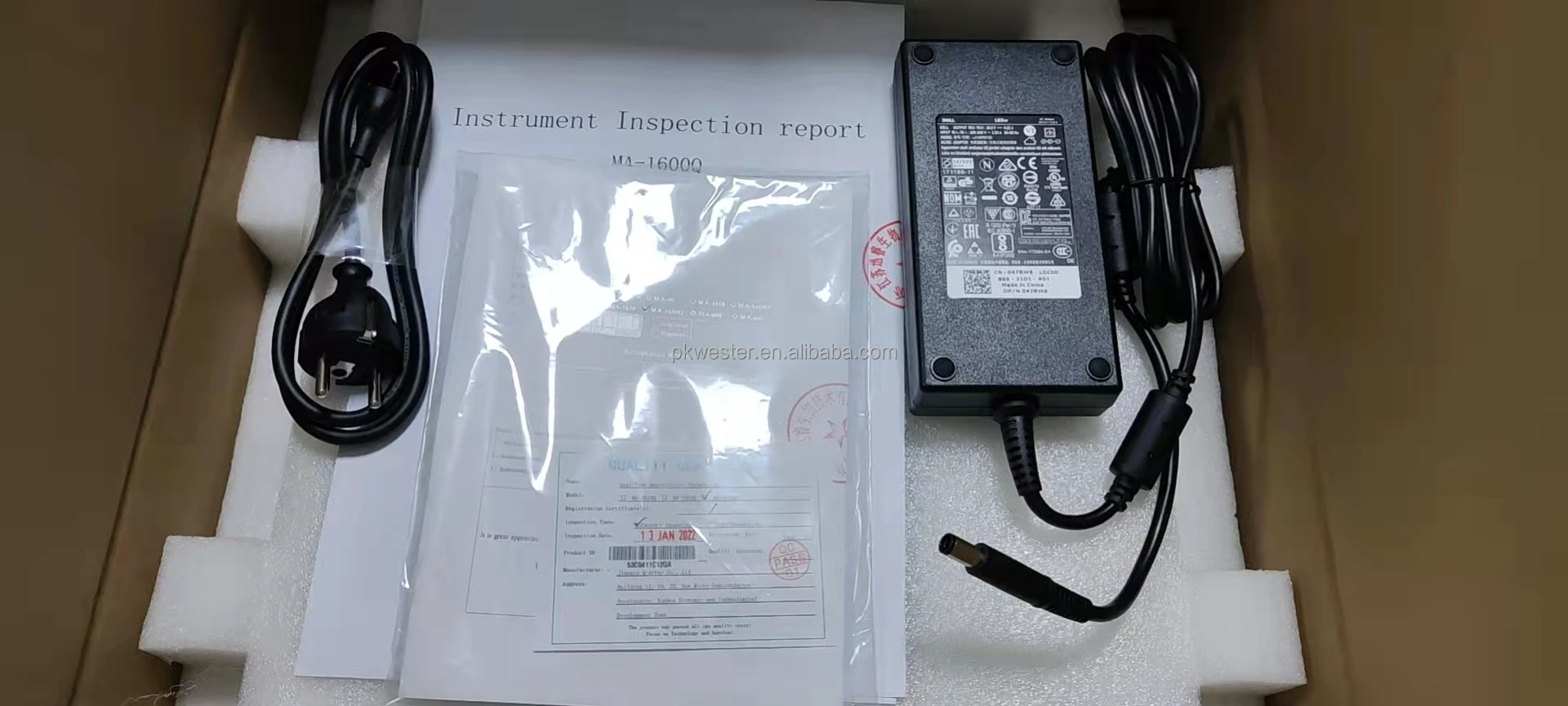

Packing & Delivery
Carton Size | Gross weight |
42x41x30cm | 8kg |
