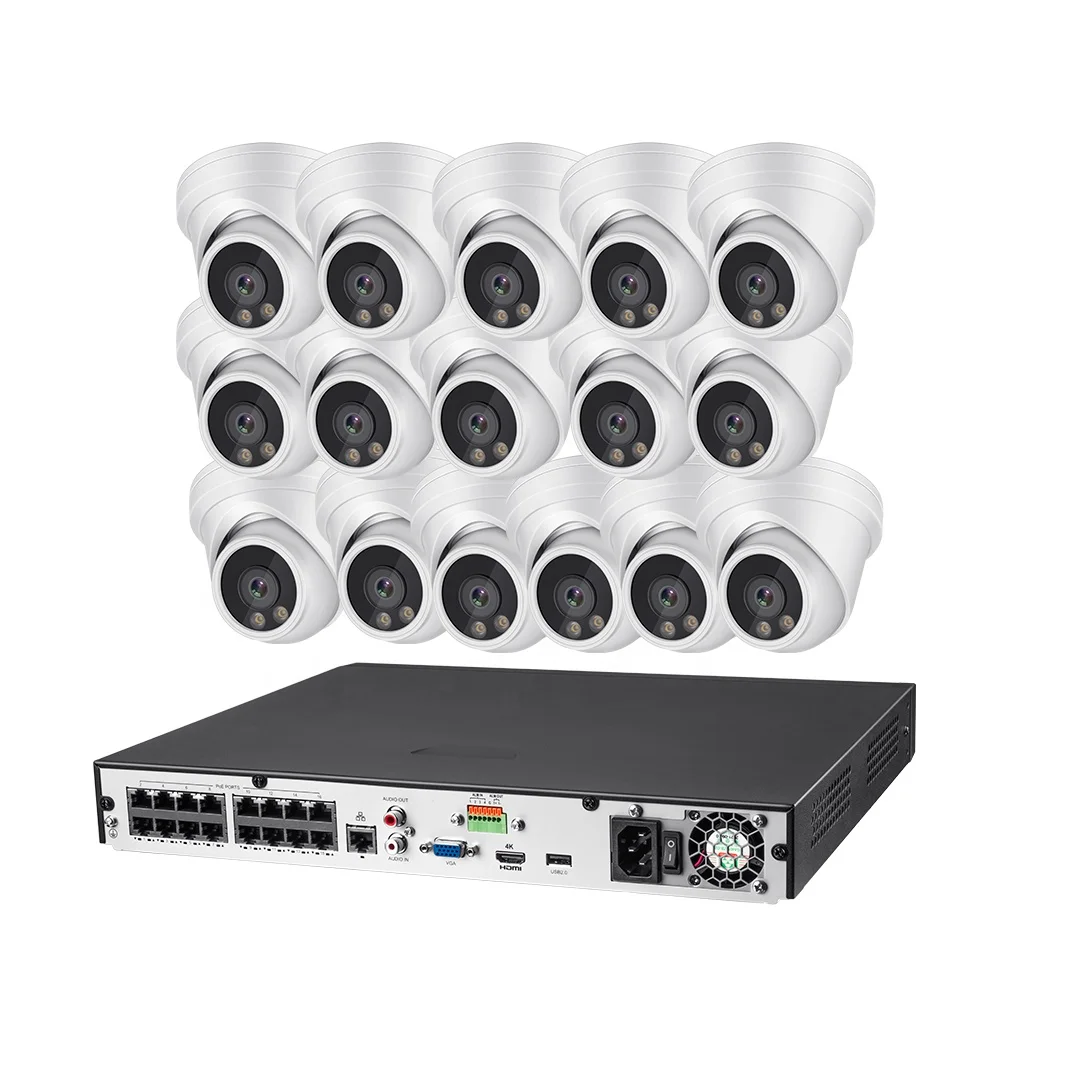

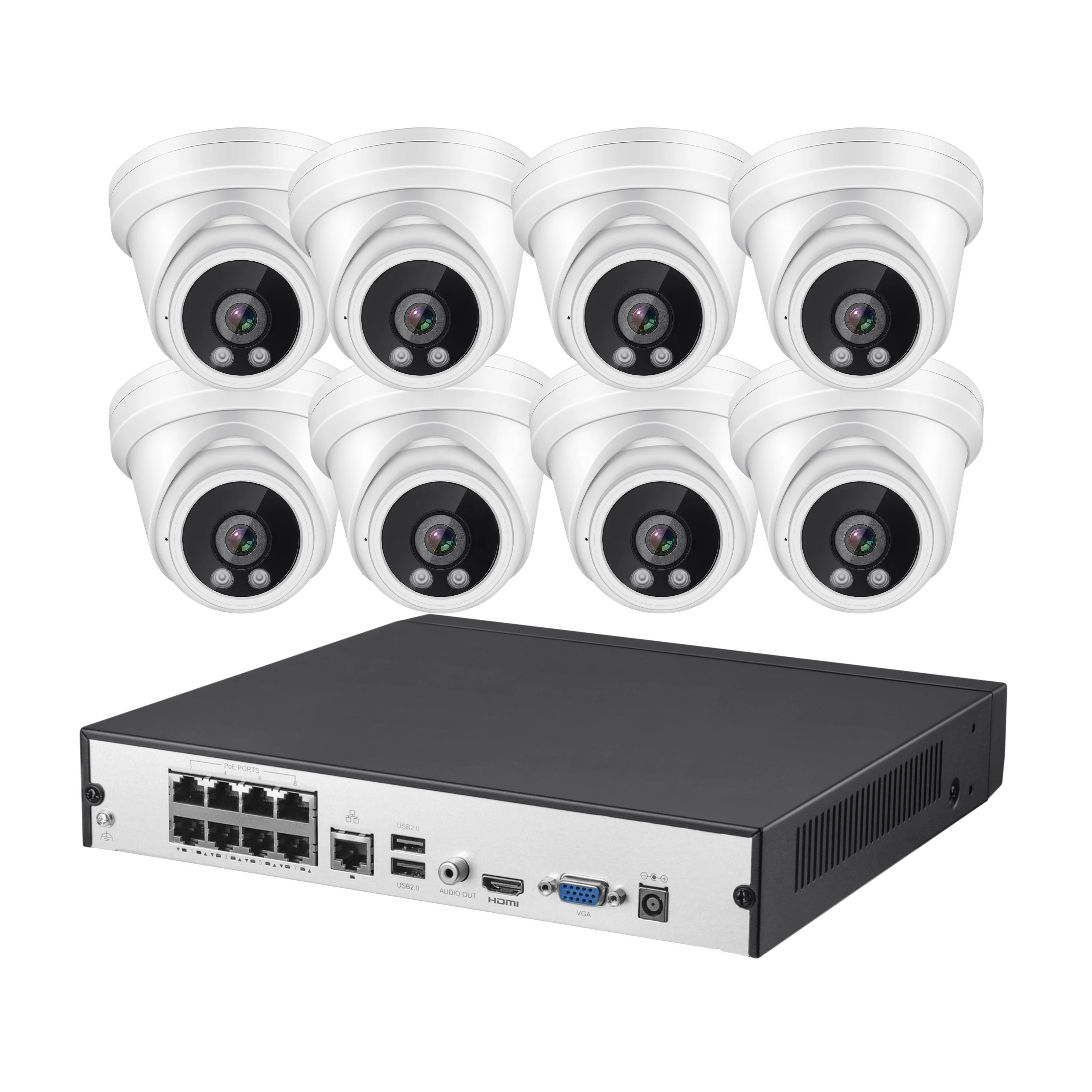

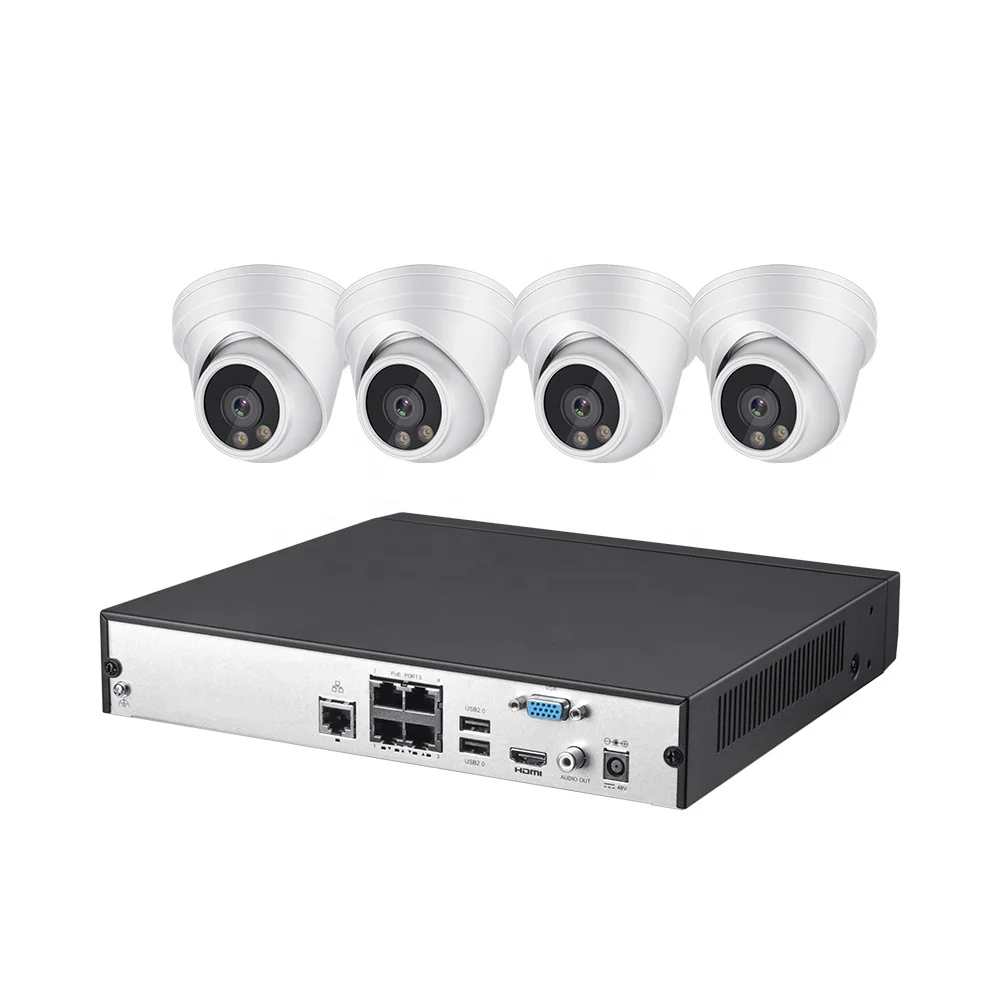

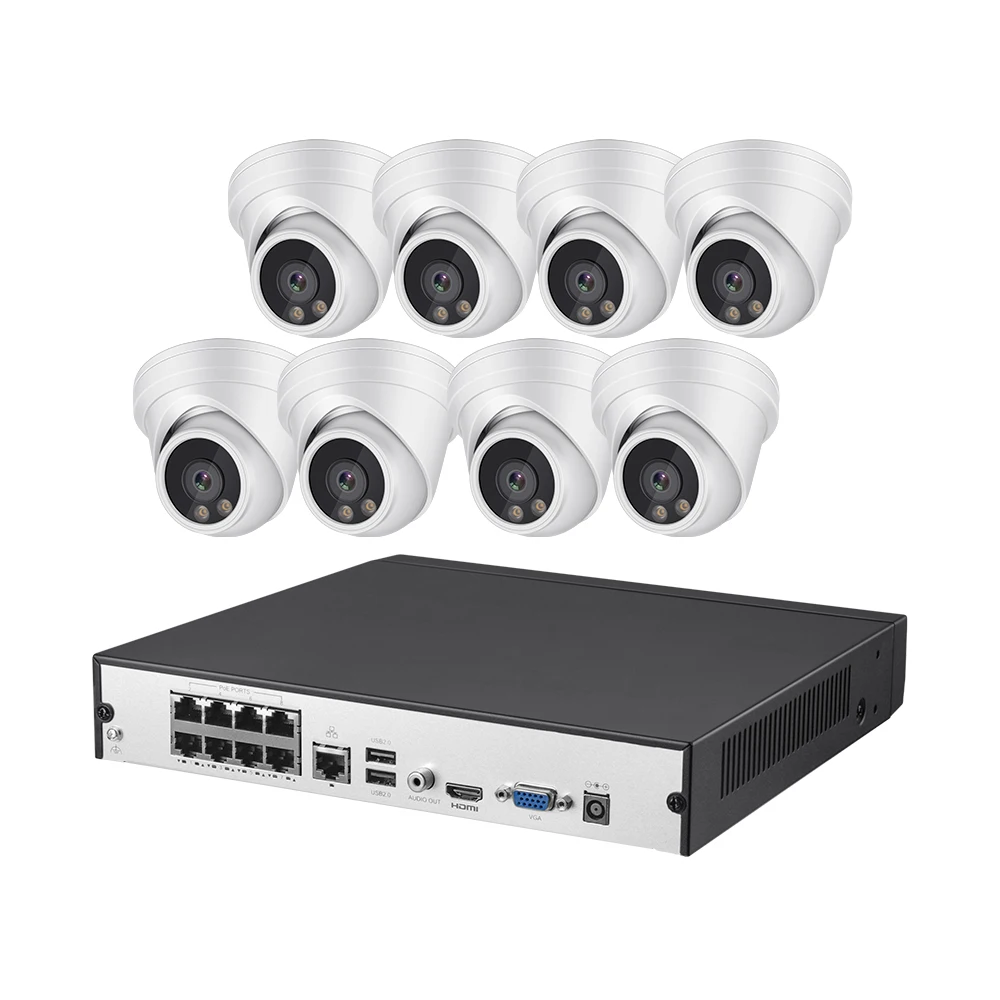

ready to ship poe nvr cctv system 8ch PoE 5mp 8mp 8channel Surveillance System colorvu kit cctv outdoor cctv microphone kit
- Category: >>>
- Supplier: Shenzhen Ruoxi Technology Co. Ltd.
Share on (1600524706938):
Product Overview
Description
Product Description
ready to ship poe nvr cctv system 8ch PoE 5mp 8mp 8channel Surveillance System colorvu kit cctv outdoor cctv microphone kit
Key Features Support Smart H.264/5 video formats
8-channel input
8-channel input
Plug & Play with 8 independent PoE network interfaces
Third-party IP cameras supported with O-N-V-I-F conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
Up to 4K resolution recording
1 SATA HDD up to 6 TB
Support cloud upgrade
Key Features

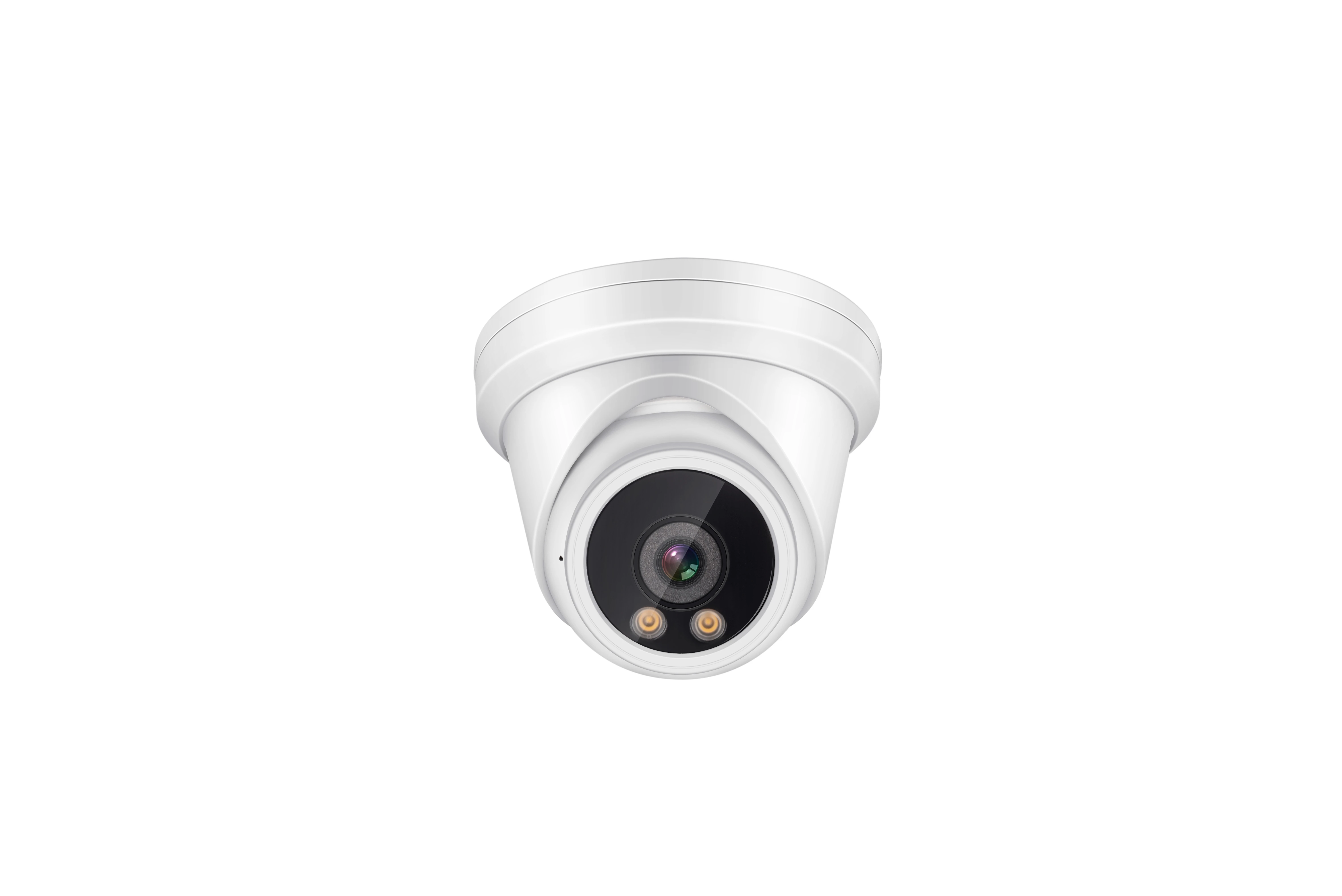

1/2.8" Sony CMOS sensor
4K resolution 3840 x 2160P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, rotate
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and 0-N-V-I-F 17.06 compatible with many third-party NVR
smart H.264/5 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
Support Vehicle and Human Body detection( only the 8mp support)
2 pcs Array IR Leds, IR distance 30 meters
External SD slot optional
1/2.8" Sony CMOS sensor
4K resolution 3840 x 2160P
Low illumination 0.01Lux
Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, rotate
Multiply Style OSD Overlay,Motion Detection, Privacy Mask
RTSP and 0-N-V-I-F 17.06 compatible with many third-party NVR
smart H.264/5 dual-stream media server
Easy-to-use P2P Cloud service
Support user authentication, video data encryption
Support Alarm Snapshot to Email and FTP
Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access
RJ45 100mbps network port, IEEE802.3af PoE
Lightning protection 4000V
Strong water-proof housing, IP66
Support Vehicle and Human Body detection( only the 8mp support)
2 pcs Array IR Leds, IR distance 30 meters
External SD slot optional
Image Sensor | 1/2.8" Sony CMOS | |
Effective Pixels | 8 megapixels | |
Electronic Shutter | AUTO, 1/25s ~ 1/100000s | |
Min. Illumination | 0.01Lux@F1.2(AGC ON), 0Lux IR on | |
Day/Night | Auto/Color/(B/W)/Timing | |
WDR | Digital WDR | |
White Balance | Auto/Manual | |
BLC /HLC | Support | |
DNR | 2D/3D DNR | |
Other | AGC,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay | |
Encode | ||
Video Standard | smart H.264/5 | |
Video Resolution | MainStream:20fps@8MP(3840x2160),30fps@6MP(3072x2048)/5MP(2592x1944)/4MP/3MP/1080P/720P,etc. | |
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps,etc. | ||
Video Bitrates | 512Kbps - 12Mbps, VBR/CBR | |
Audio Standard | G.711-u/G.711-a | |
Built-in Mic | yes | |
OSD Overlay | Title and Time overlay ,custom color adjustable | |
IR Led | ||
IR Led | 2 pcs array IR Led | |
IR Distance | 30 M | |
Lens | ||
Focal length | 2.8mm | |
Optional Function | ||
PoE, Audio, Human body detection, vehicle detection, External SD slot optional | ||
Network Services | ||
Protocol | HTTP/RTSP/FTP/SMTP/DHCP/NTP/NFS, etc. | |
P2P | Yes | |
Web | IE , Firefox (32bit esr), etc. | |
Media | CMS, Android, IOS | |
0-N-V-I-F | 17.06 compatible | |
General | ||
Network Port | 1-RJ45, 100Mbps, POE optional | |
Power Supply | 12 VDC ± 10% | |
Power Consumption | < 8 W | |
Operating Temp. | -30_x005f_x005f_x005f_x005f_x001f_°C-(+60)°C, 10%-90%RH | |
Technical Specifications: | ||
Video/Audio Input | ||
IP Video Input | 8-ch (up to 10 after channel expansion)) | |
Network | ||
Incoming Bandwidth | 64Mbps | |
Outgoing Bandwidth | 48Mbps | |
Remote Users | 128 | |
Protocols | P2P, UPnP, NTP, DHCP, PPPoE | |
Video/Audio Output | ||
HDMI/VGA Output | HDMI: | |
3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, | ||
1280x720/60Hz, 1024x768/60Hz | ||
VGA: | ||
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz | ||
Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Synchronous Playback | 8-ch | |
Corridor Mode Screen | 3/4/5/7/9 | |
Decoding | ||
Decoding format | Smart H.264/5 | |
Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |
Capability | 1 x 4K@30,1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25,4 x 1080p@30,8 x 720p@30 | |
Hard Disk | ||
SATA | 1 SATA interface | |
Capacity | up to 6TB for each disk | |

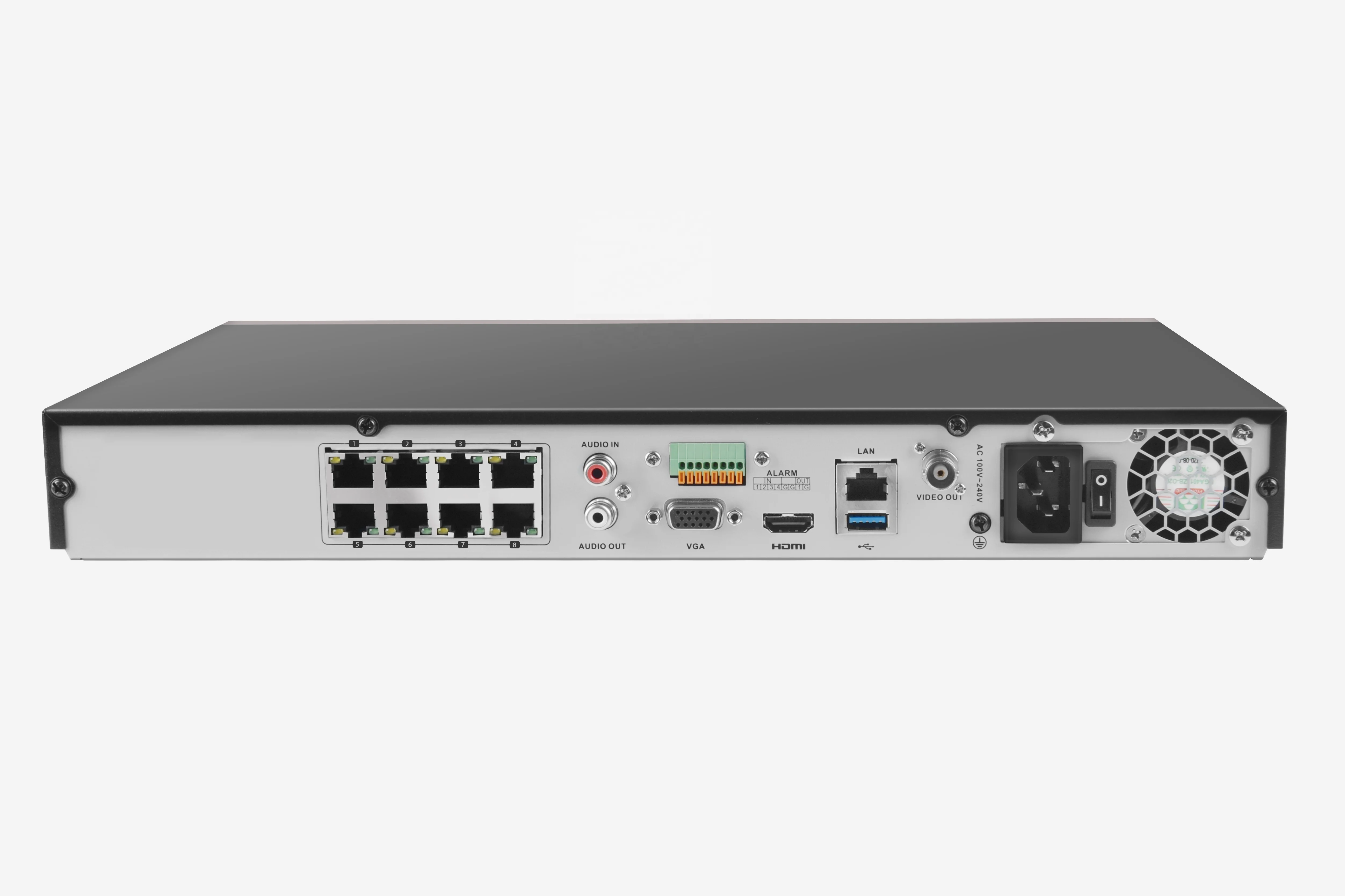

External Interface | ||
Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface | |
USB Interface | Rear panel: 2 x USB2.0 | |
PoE Interface | ||
Interface | 8 RJ-45 10M/100Mself-adaptive Ethernet Interface | |
Max Power | Max 30W for single port Max 75W in total | |
Supported Standard | IEEE 802.3at, IEEE 802.3af | |
General | ||
Power Supply | 52V DC, Power Consumption: ≤9 W (without HDD) | |
Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) | |
Dimensions (W×D×H) | 260mm × 240mm × 46mm (10.2"×9.4"×1.8") | |
Weight (without HDD) | 1.1kg (2.43 lb) | |

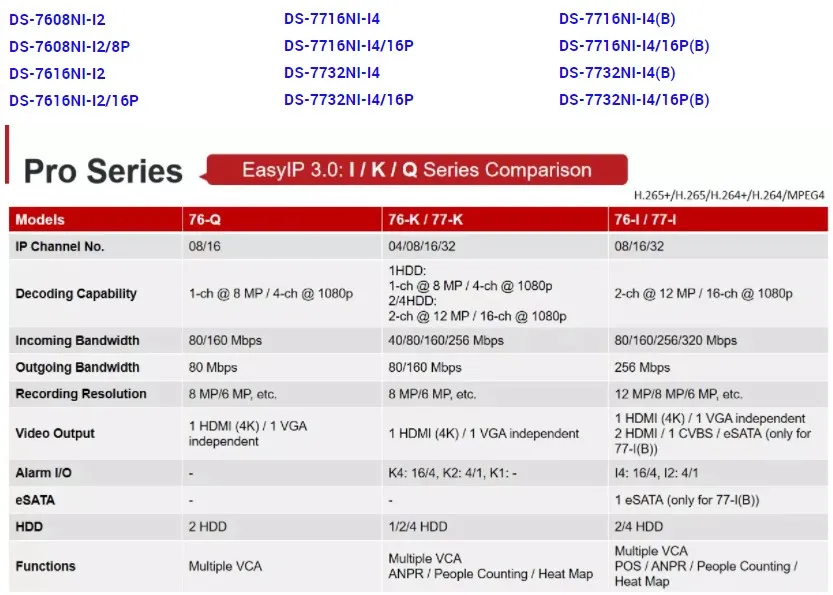

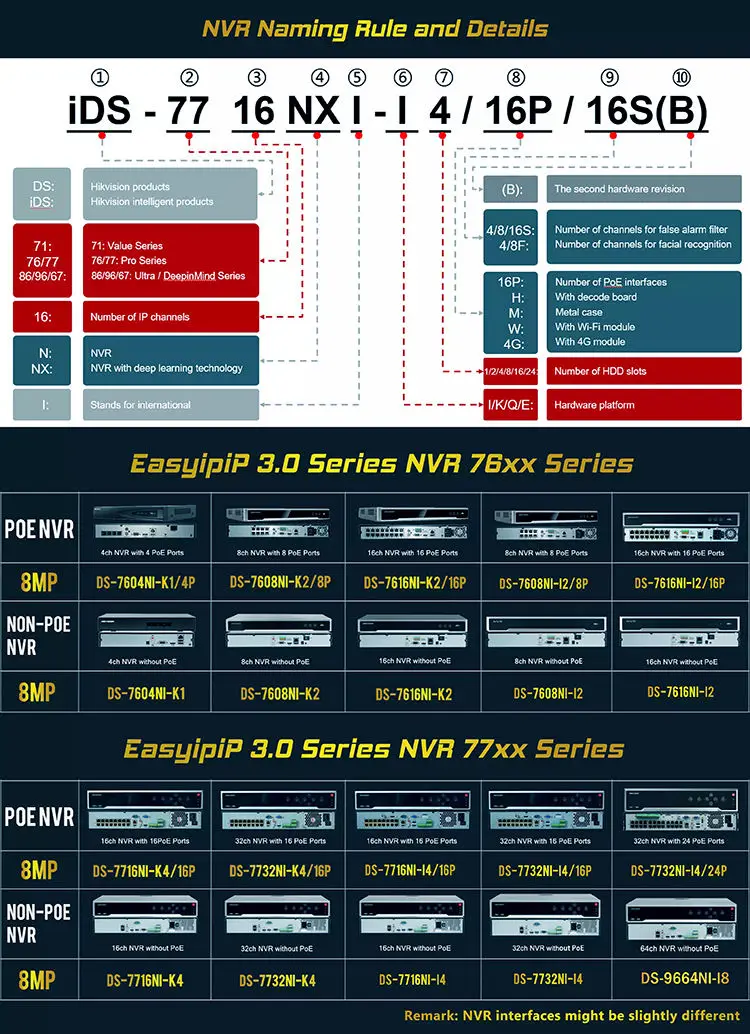

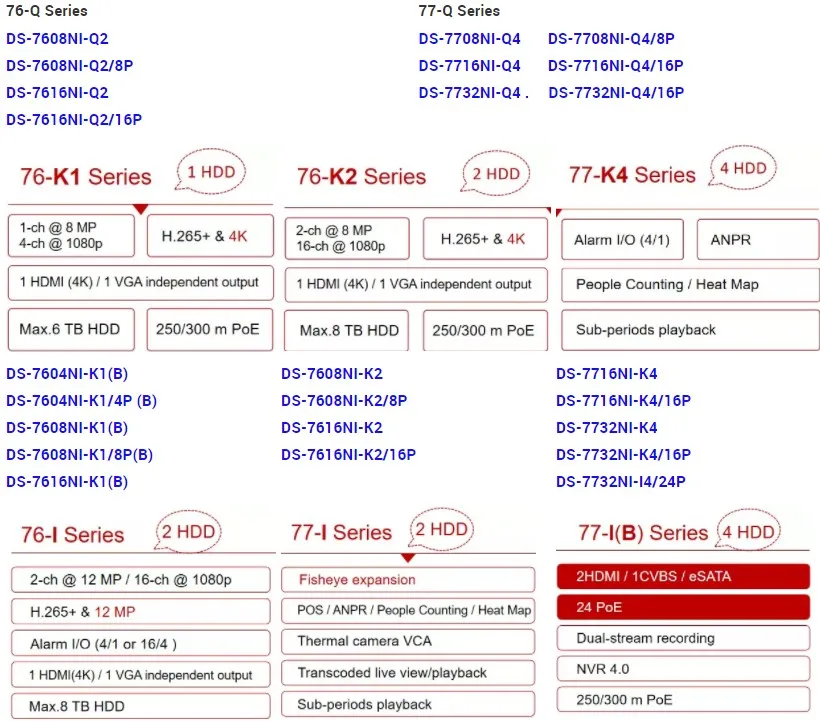

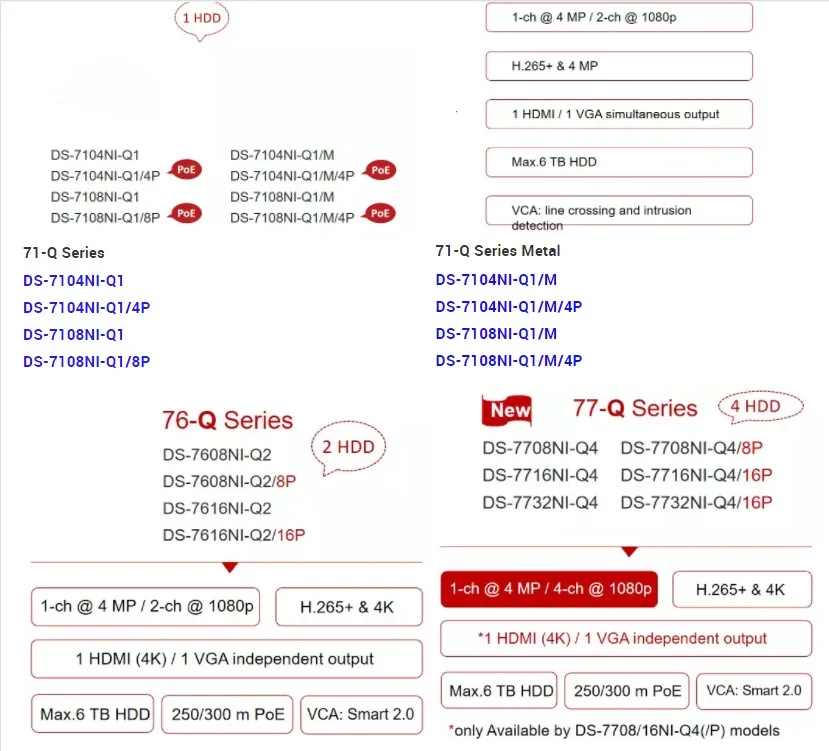

DS-2CD1043G0-I | DS-2CD2183G2-IU | DS-2CD2646G2-IZSU/SL | DS-7608NI-K1/8P |
DS-2CD1143G0-I | DS-2CD2183G2-ISBLACK | DS-2CD2683G2-IZS | DS-7608NI-K2/8P |
DS-2CD2043G2-IU | DS-2CD2186G2-I | DS-2CD2686G2-IZSU/SL | DS-7608NI-I2/8P |
DS-2CD2045FWD-I | DS-2CD2186G2-ISUBLACK | DS-2CD2746G2-IZS | DS-7616NI-K2/16P |
DS-2CD2046G2-IU/SL | DS-2CD2186G2-ISU | DS-2CD2H43G2-IZS | DS-7616NI-I2/16P |
DS-2CD2047G2-LU | DS-2CD2343G2-IU | DS-2CD2H83G2-IZS | DS-9664NI-I8 |
DS-2CD2047G2-LU/SL | DS-2CD2346G2-IU | DS-2CD2T43G2-4I | DS-KIS603-P(B) |
DS-2CD2065G1-I | DS-2CD2346G2-ISU/SL | DS-2CD2T83G2-4I | DS-KABV6113-RS |
DS-2CD2083G2-IU | DS-2CD2347G2-LU | DS-2CV2141G2-IDW | DS-KD8003-IME1/Flush |
DS-2CD2085G1-IBLACK | DS-2CD2347G2-LSU/SL | DS-2CD3686G2T-IZS | DS-KABV8113-RS |
DS-2CD2085G1-I | DS-2CD2383G2-IU | iDS-2CD75C5G0-IZHSYR | DS-KB8113-IME1 |
DS-2CD2086G2-I | DS-2CD2385G1-IBLACK | iDS-2CD7AC5G0-IZHSYR | DS-KH6320-WTE1 |
DS-2CD2086G2-IU/SL | DS-2CD2385G1-I | DS-2DE2A404IW-DE3/W(C0)(S6)(C) | DS-KH8520-WTE1 |
DS-2CD3086G2-IS | DS-2CD2386G2-IU | DS-2DE3A404IW-DE | DS-KH9310-WTE1 |
DS-2CD2087G2-LU | DS-2CD2386G2-ISU/SL | DS-2DE3A400BW-DE/W(F1)(S5) | DS-KH9510-WTE1 |
DS-2CD2143G2-IU | DS-2CD2387G2-LUBLACK | DS-2DE5432IW-AE(S5) | DS-KV6113-WPE1(B) |
DS-2CD2147G2-SU | DS-2CD2387G2-LU | DS-2DF6A836XS-AEL(T2) | DS-KV8113-WME1(B) |
DS-2CD2183G0-IU | DS-2CD2583G2-IS | DS-7604NI-K1/4P | DS-KV8213-WME1(B) |
DS-2CD2183G2-I | DS-2CD2643G2-IZS | DS-7608NI-Q2/8P | DS-KV8413-WME1(B) |
Q. What's the actual products I can get?
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?

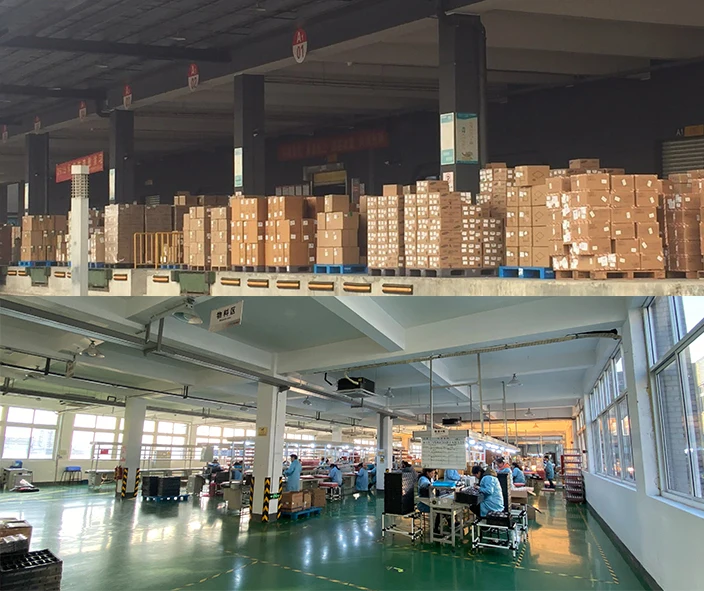

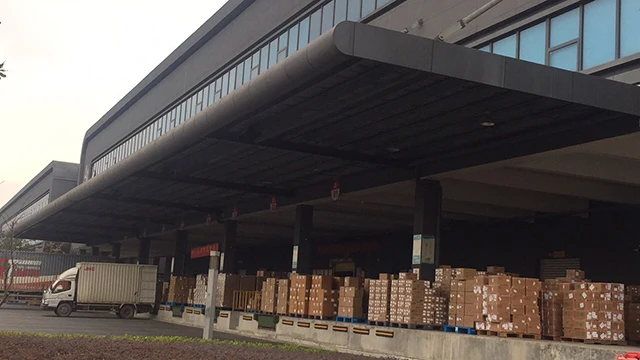

A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
A:we send the original products ,only the origianl products can work with the offical app(hik-connect)
Q. What's ETA time and stock status?
A: With Sales & Support department and US/EU/AU/RU warehouse, we provide most lines of stock products. So if stock products, the ETA is about 3-5 days, and for products with bulk quantity, the delivery time is about 2-4 weeks.
Q. Do you provide warranty for your products?
A: Yes, we promise 2 years warranty for all our products, OEM products are with 3 years.
Q.What is your method of payment?
A: T/T, Western Union, Paypal, credit card is welcomed.
Q.What is Minimum Order Quantity?
A: Sample order is welcomed, while the price is more competitive for big quantity .
Q: How to ship the goods?
A: For small parcels, we recommend to use the express, such as Fedex, DHL, Fedex, TNT, UPS etc. For bulk order, we can ship the products to your forwarder or will find a best shipping way for you.
