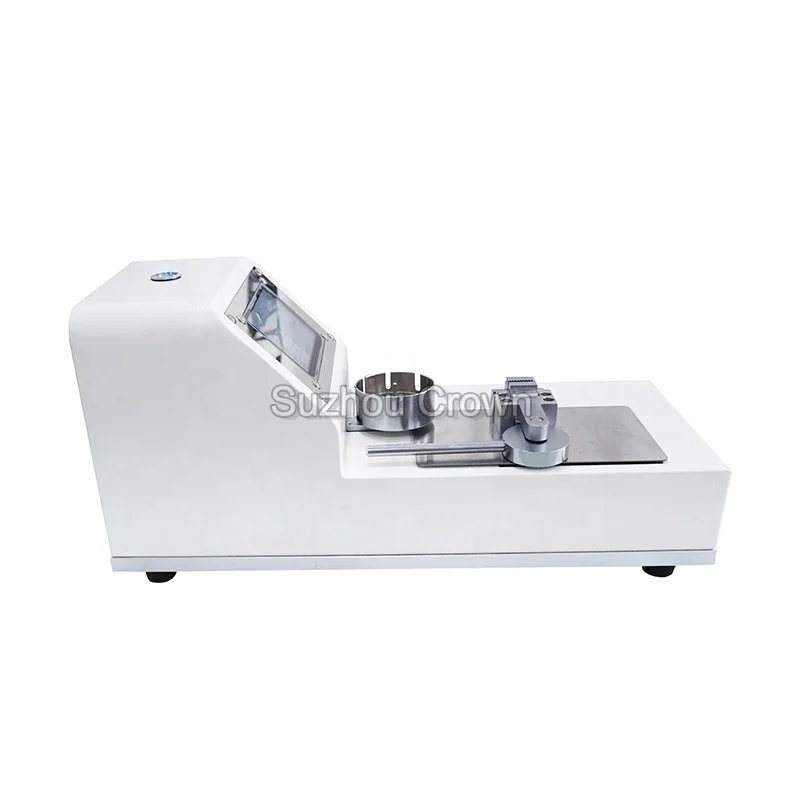

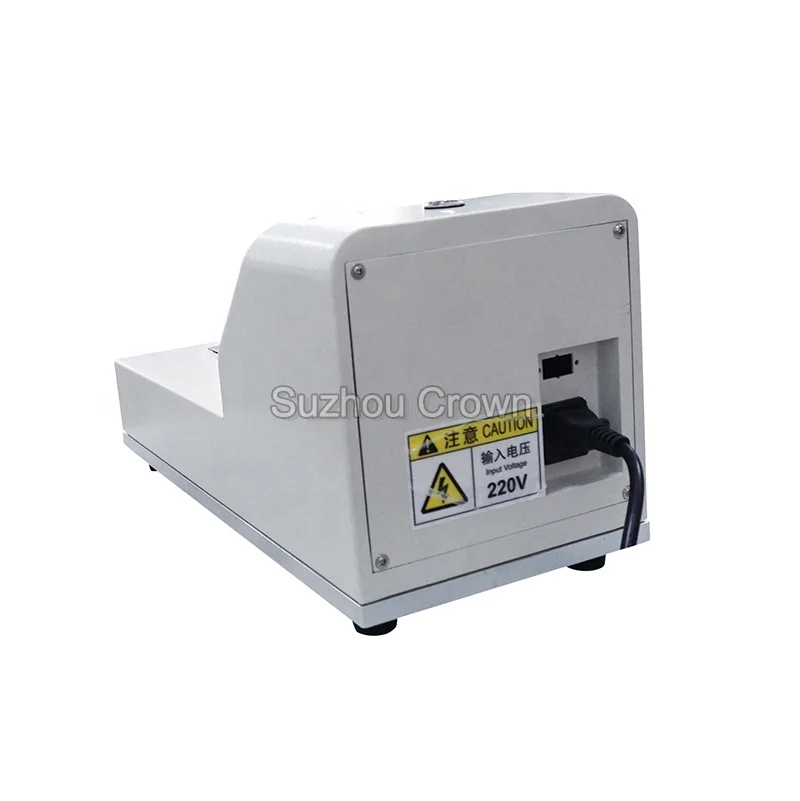

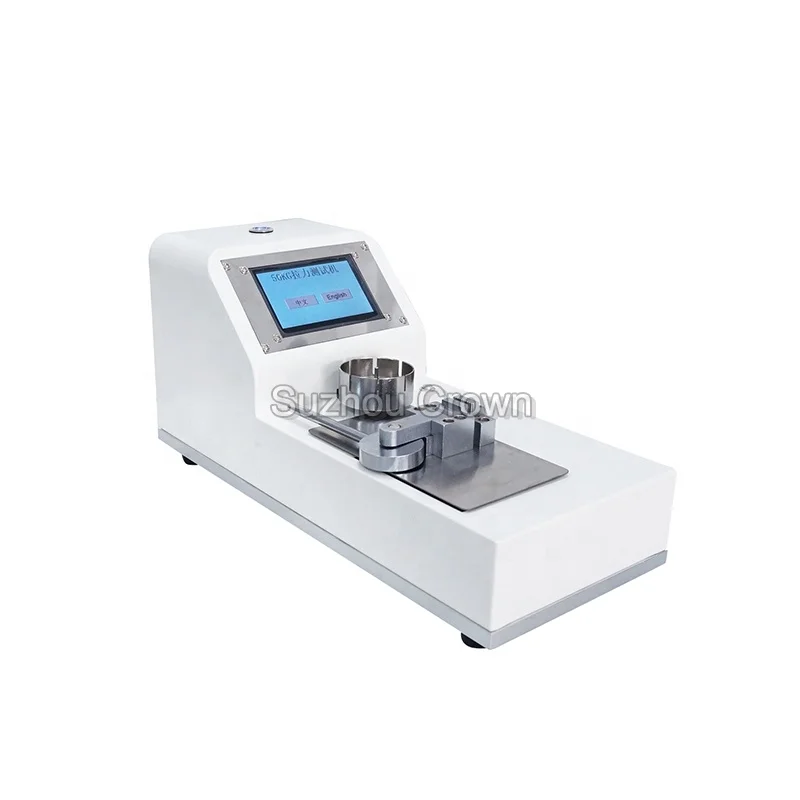

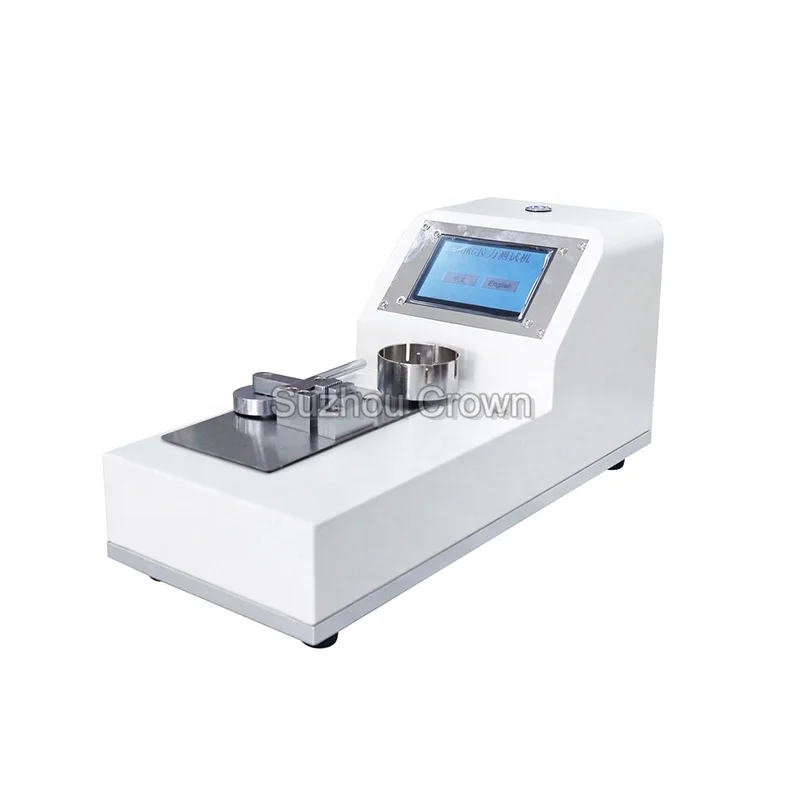

WL TT05 electrical wire/cable terminal tensile testing machine / Cable/wire crimp terminal pin pulling force tester
- Category: >>>
- Supplier: Suzhou Crown Electronic Technology Co. Ltd.
Share on (1600524720403):
Product Overview
Description
Specification
Model | WL-TT05 |
Test range | 0~500(N)/0~50(Kg), 1000N can be customized |
Test accuracy | ±0.04N |
Test speed | 10-800mm/min |
Test tolerance | 0.04N |
Power | 100W |
Program storage | 16 groups |
Power supply | AC220V, 50/60Hz |
Dimensions | (L×W×H) 430×180×210mm |
Net weight | 10KG |
This is an automatic wire crimp pull tester, which is designed to measure tensile strength of components up to 500N/1000N.
* Function: peak force, non-destructive test, UL test values for pull out.

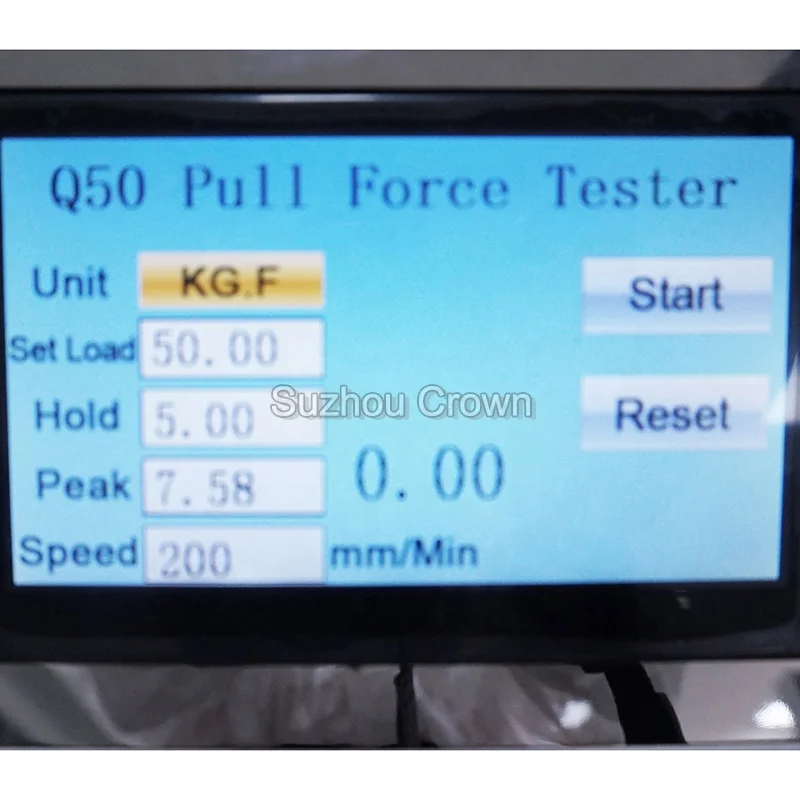

* Motor driven, color touch screen operation, automatic measurement and display of the tension value, simple operation and accurate measurement.
* It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensil test.
* With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real time.
* The data center can store 16 programs to meet the testing requirements of commonly used wires.
* The chuck can accommodate various sizes of wires and terminals, and special wire specifications can be customized.
* Motor driven, color touch screen operation, automatic measurement and display of the tension value, simple operation and accurate measurement.
* It can test the peak tensile force, and can also set the upper limit of tensile force and test time for non-destructive tensil test.
* With the self-developed test software, the peak graph displays the test process, communicates with the computer and printer, and prints in real time.
* The data center can store 16 programs to meet the testing requirements of commonly used wires.
* The chuck can accommodate various sizes of wires and terminals, and special wire specifications can be customized.
Product Description
Company Profile
Suzhou Crown Electronic Technology Co., Ltd. was founded in 1998 in Kunshan City, Jiangsu Province, China.
It is a modern high-tech enterprise integrating R&D, production and sales. Our company has passed ISO9001 international quality system certification and ISO14001 environmental management system certification, and fully implemented 6S modern enterprise management.
It is a modern high-tech enterprise integrating R&D, production and sales. Our company has passed ISO9001 international quality system certification and ISO14001 environmental management system certification, and fully implemented 6S modern enterprise management.
Packing & Delivery
Foam+ export standard package
Certifications
FAQ
Q1. How to contact you?
Contact us via trade manager directly. Send an inquiry to us via alibaba or email address. We also have wechat whatsapp and skype.
Q2. What payment methods can you accept?
We accept T/T, L/C, Western Union, PayPal…
Q3. Do you have manual ?
Manuals will go with machines.
If you have any problem with operation, please feel free to contact us.
Q4. How about the shipment time?
Normally 5-7 days. Large order need to be negotiated
5.What is your warranty?
We have 12 month warranty.
Contact us via trade manager directly. Send an inquiry to us via alibaba or email address. We also have wechat whatsapp and skype.
Q2. What payment methods can you accept?
We accept T/T, L/C, Western Union, PayPal…
Q3. Do you have manual ?
Manuals will go with machines.
If you have any problem with operation, please feel free to contact us.
Q4. How about the shipment time?
Normally 5-7 days. Large order need to be negotiated
5.What is your warranty?
We have 12 month warranty.
