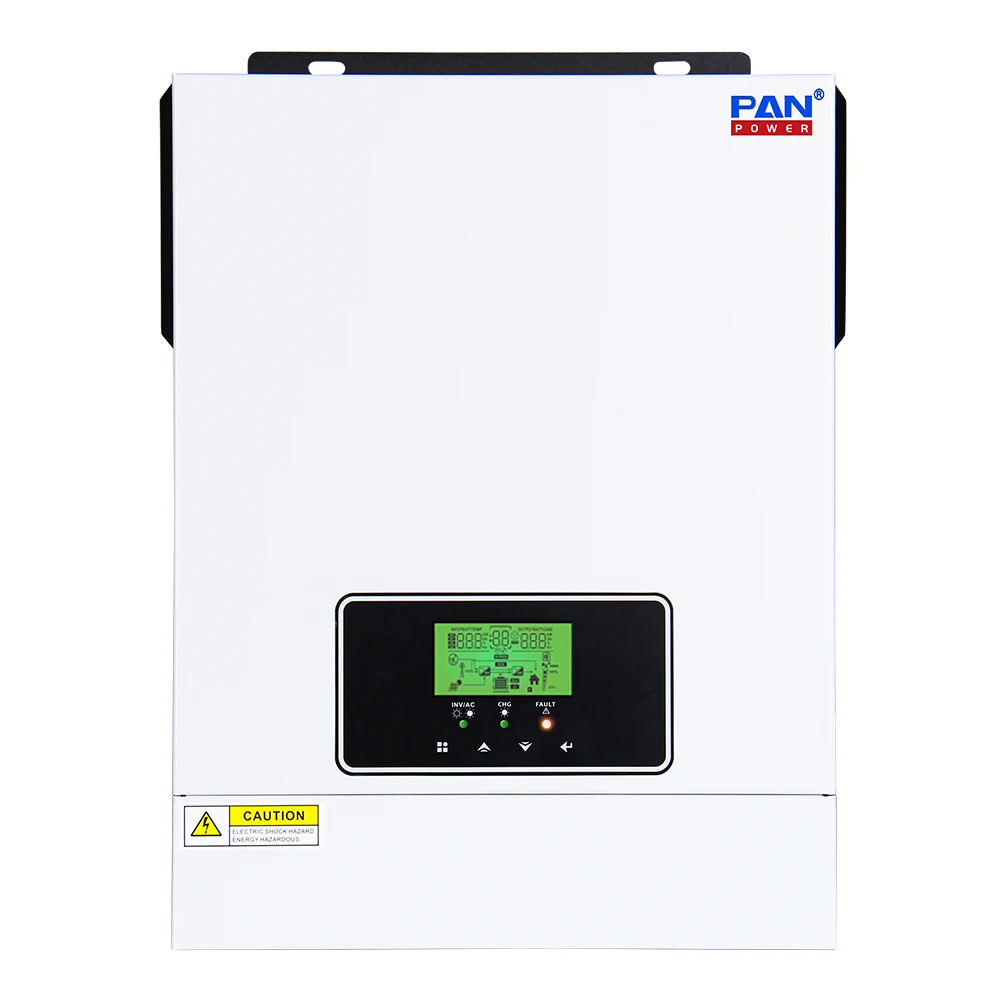

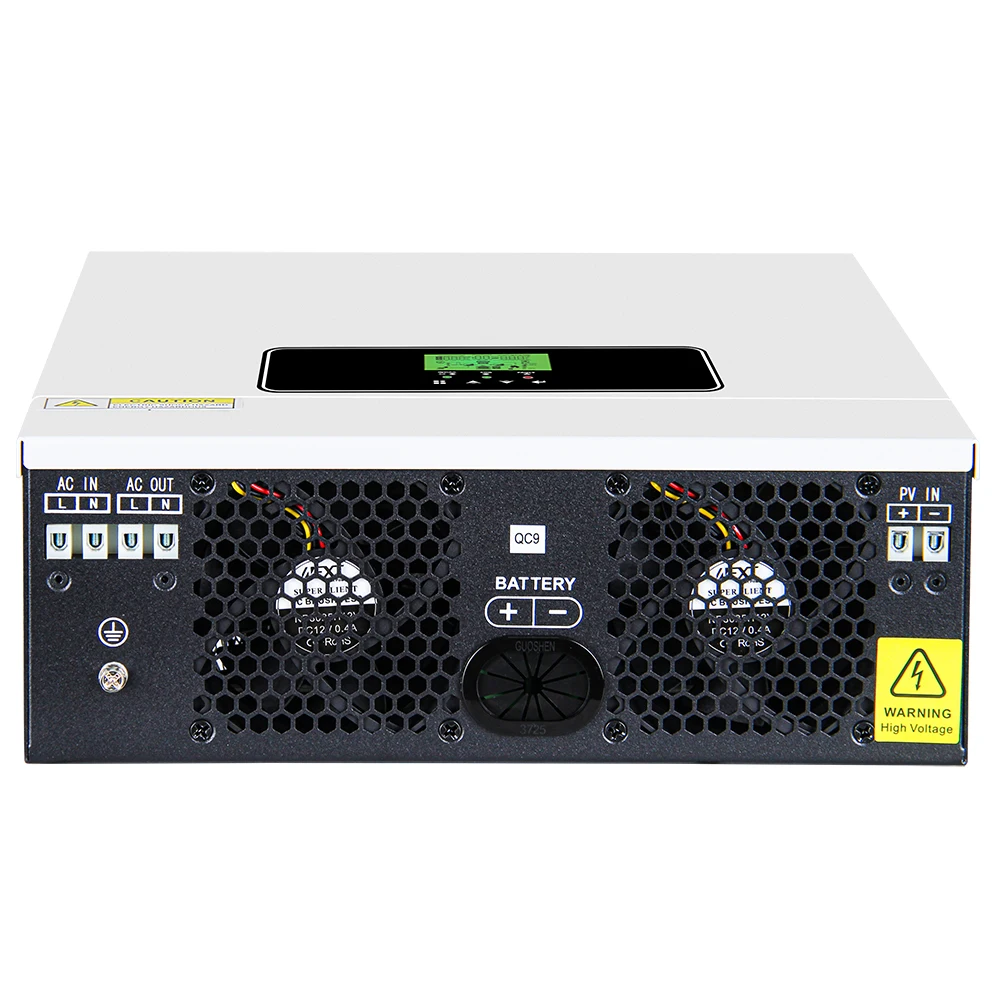

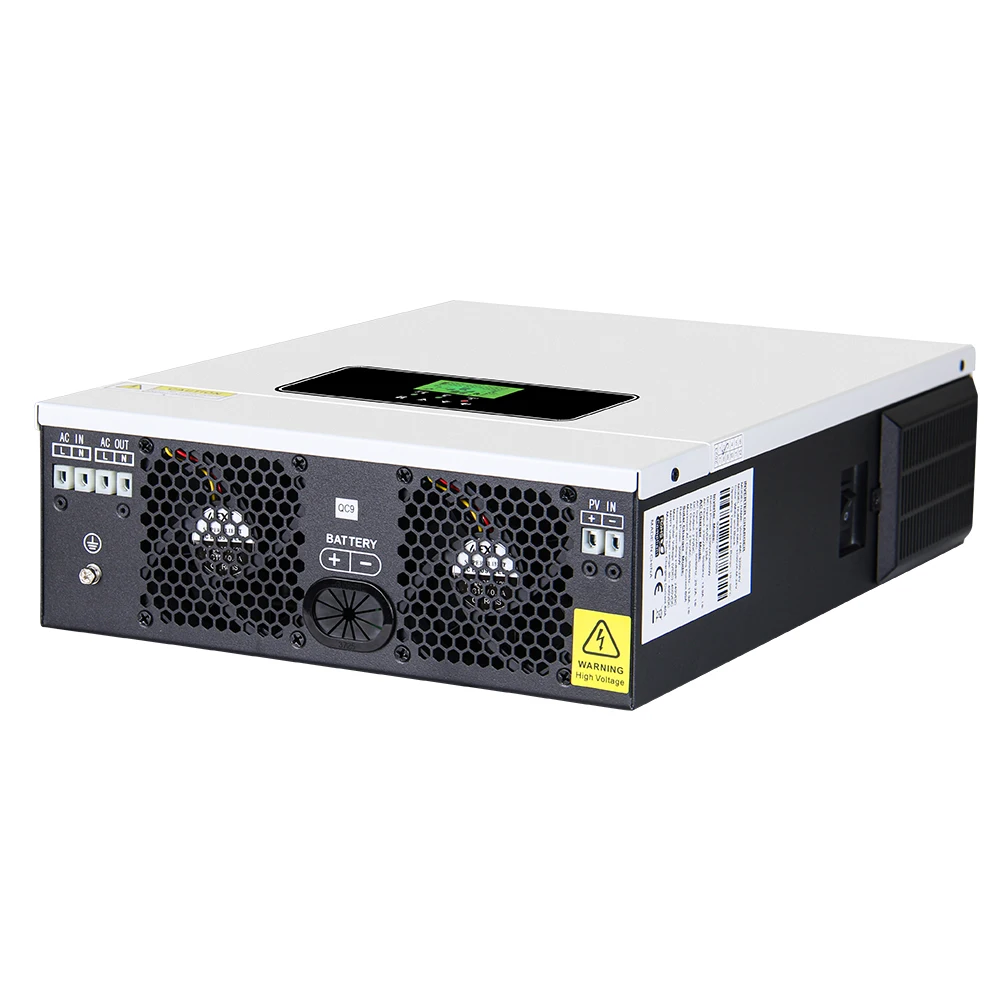

In Stock!!! Factory Price Single Phase 3kva 24vdc 3kw Off Grid Hybrid Solar Inverter With MPPT
- Category: >>>
- Supplier: Guangdong Panpower Power Supply Co. Ltd.
Share on (1600524720855):
Product Overview
Description
Product Description
1.6kw 3kw solar system mppt solar charge controller with solar inverter. This is a multi functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Main Features
* Pure sine wave inverter;
* Built-in 80A MPPT solar charge controller
* Selectable charging current based on applications
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering;
* Overload and short circuit protection
* Wide AC input range 90V~280V
* Smart battery charger design for optimized battery performance
* Selectable input voltage range for home appliances and personal computers
* Built-in 80A MPPT solar charge controller
* Selectable charging current based on applications
* Compatible to mains voltage or generator power
* Auto restart while AC is recovering;
* Overload and short circuit protection
* Wide AC input range 90V~280V
* Smart battery charger design for optimized battery performance
* Selectable input voltage range for home appliances and personal computers
Technical Parameters
Model | NM-2000-12 | NM-3200-24 | ||
Capacity | 1600W | 3000W | ||
Parallel Capability | NO | NO | ||
INPUT | ||||
Nominal Voltage | 220/230VAC | |||
Acceptable Voltage Range | 178~280VAC (For Personal Computers), 90~280 VAC (For Home Appliances) | |||
Frequency | 50/60HZ (Auto sensing) | |||
OUTPUT | ||||
Nominal Voltage | 220/230VAC ± 5% | |||
Surge Power | 3200W | 6000W | ||
Frequency | 50Hz/60Hz | |||
Waveform | Pure Sine Wave | |||
Transfer Time | 10ms (For Personal Computers); 20ms (For Home Appliances) | |||
Peak Efficiency(pv to inv) | 97% | |||
Peak Efficiency (batt to pv) | 93% | |||
Overload Protection | 5s@>=150% load; 10s 110%~150% load | |||
Crest Factor | 3:1 | |||
Admissible Power Factor | 0.6~1(inductive or capacitive) | |||
BATTERY | ||||
Battery Voltage | 12VDC | 24VDC | ||
Floating Chargr Voltage | 13.5VDC | 27VDC | ||
Overcharge Protection | 16VDC | 33VDC | ||
Charging Method | CC/CV | |||
Solar Charge & AC Charge | ||||
Solar Charge Type | MPPT | |||
Max. PV Array Power | 2000W | 3000W | ||
Max. PV Array Open Circuit Voltage | 400VDC | |||
PV Array MPPT Voltage Range | 90VDC~400VDC | |||
Maximum Solar Charge Current | 60A | 80A | ||
Maximum AC Charge Current | 40A | 80A | ||
Communication Interface | RS232 | |||
Environment | ||||
Operating Temperature | (-10℃~55℃) | |||
Storage Temperature | (-15℃~60℃) | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Nature | ||||
Size (L*W*H) mm | 357*273*95 | |||
Gross Weight (kg) | 5.4 | 5.5 | ||

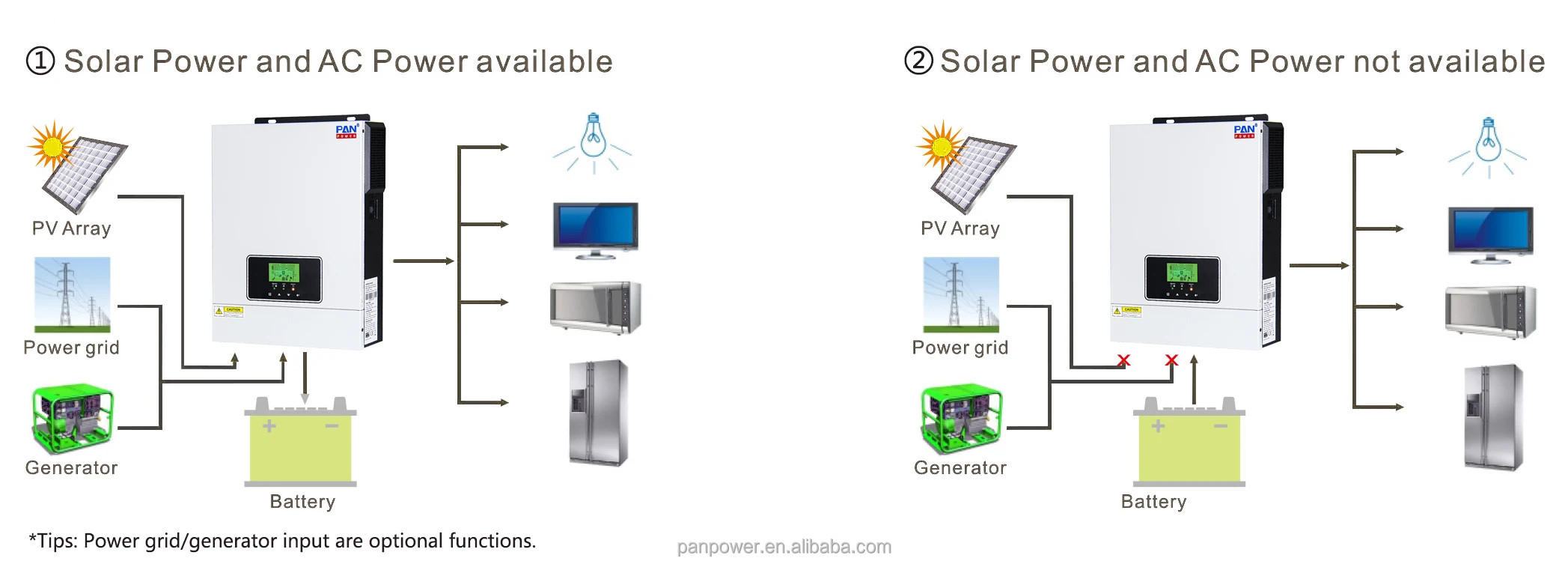

System Diagram

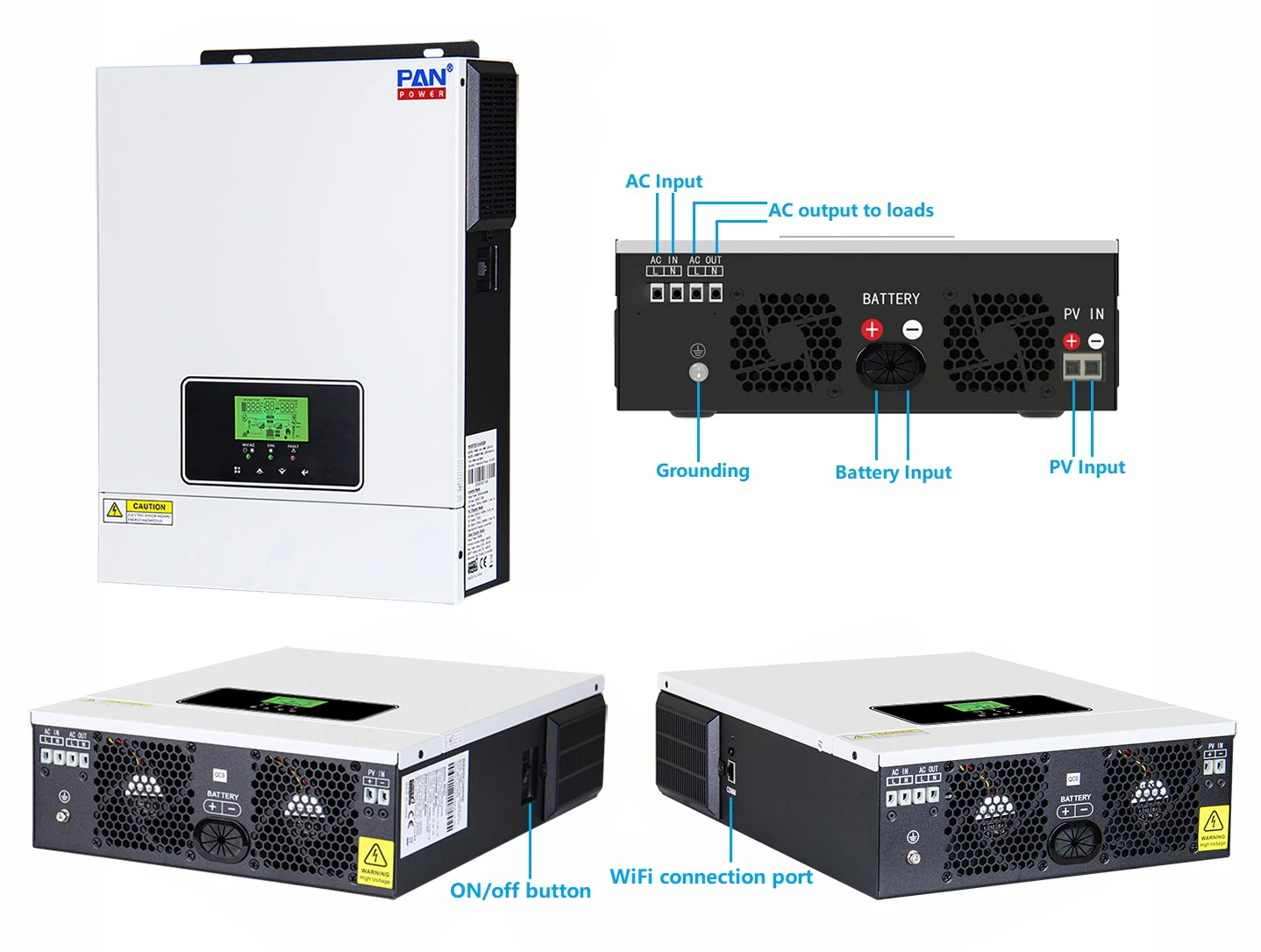

Product Details
Company Profile
Foshan Panpower Science & Technology Co., Ltd is located in Foshan, Guangdong province, China. Our factory was founded in 1999. Our products include kinds of inverter, UPS and EPS.
Our advantage: independent intellectual property and strong design capability, over 20 years rich production experience, first rate production equipment, quick response to the market. These foundations so allow us to continually develop competitive price and high quality products, and provide complete service.
Our advantage: independent intellectual property and strong design capability, over 20 years rich production experience, first rate production equipment, quick response to the market. These foundations so allow us to continually develop competitive price and high quality products, and provide complete service.
FAQ
Q: What’s the payment term?
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
A: T/T, Alibaba Trade Assurance, Western Union, Paypal, L/C.
Q: Are your inverter pure sine wave output?
A: Yes, all are true pure sine wave.
Q: What is the warranty of inverter?
A: One year warranty on PAN-Solar product.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q: What kind of output you can do?
A: Normally single phase 110V 120V 220V 230V 240V 50/60Hz, and three phase 220V 380V 400V 415V 440V 50/60Hz.
