Sand extraction machine with hydro cyclone desander in Indonesia

Sand extraction machine with hydro cyclone desander

Dehydration Sand Recovery Machine Brief introduction:

We successfully make No.6 sand recycling system machine as our LZZG brand, improve core technical, select new processing methods and absorb different sites working situation, we supply No.6 sand recycling system which also called as “de-watering type sand recycling system”.

Dehydration Sand Recovery Machine Working principle:

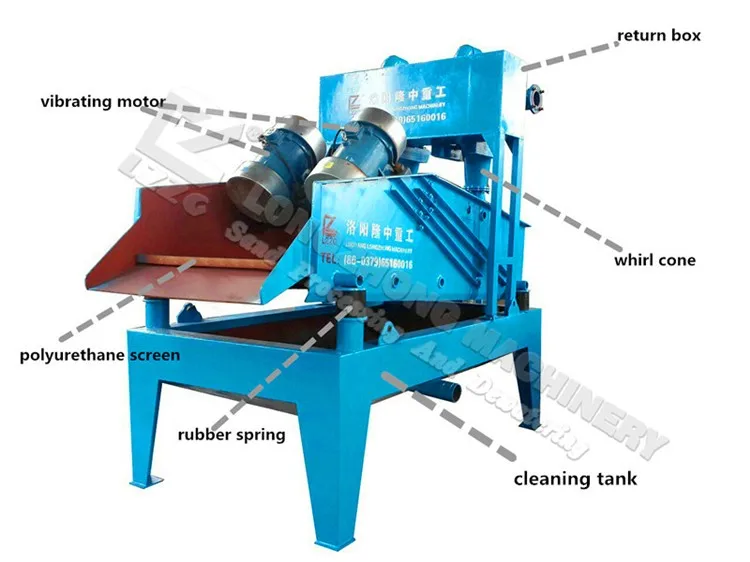

No.6 sand recycling machine, we still choose polyurethane screen as its main screening part, check its structure, we add recycling part on TS de-watering screen; sand after sand washer is fed onto polyurethane screen for de-watering waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.10-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Dehydration Sand Recovery Machine Features:

Dehydration Sand Recovery Machine Specification:

             (Note:Specific design can be made based on different requirements.)

Dehydration Sand Recovery Machine Application:

It is widely used in mud purification, artificial sand production line, hydropower stationand sand aggregate system, glass raw material processing system and coarse slime recovery, and fine material recovery.
