Image Sensor | 1/1.7 Inch CMOS |
Effective Pixels | 12.4 Million Pixels |
Signal System HD | 4K@30fps, 1080P@60fps, 1080I@60fps, 1080P@30fps, 720P@60fps |
Scanning Method | Line by line |
Lens | 12x, f = 4.2mm ~ 50.4mm, F1.8 ~ F2.8 |
Optical Zoom | 12x |
Minimum illumination | 0.05 Lux @ (F1.8, AGC ON) |
Shutter | 1/2s ~ 1/10000s |
White Balance | 0.1Lux |
BLC | support |
Digital Noise Reduction | 2D & 3D Digital Noise Reduction |
SNR | ≥55dB |
Horizontal Field of View | 82.6° ~ 8° |
Vertical Field of View | 51.9° ~ 4.58° |
PTZ Horizontal Angle | ±170° |
PTZ Vertical Angle | ±25° |
Pan Speed Range | 1.0° ~ 50.0°/s |
Vertical Rotation Speed Range | 0.8° ~ 10.0°/s |
Flip Horizontal/Vertical | Support |
Communication Interface | 1 Channel RS232 IN: 8-Pin Mini DIN, Distance: 30 Meters, |
VISCA/Pelco-D/Pelco-P Protocol.1 Channel RS232 OUT: 8-Pin Small | |
DIN, Distance: 30 Meters, for VISCA Protocol Networking. | |
1-Channel RS485: 2-Core Phoenix Port, Distance: 1200 Meters, | |
VISCA/Pelco-D/Pelco-P Protocol | |
Preset Accuracy | 0.1° |

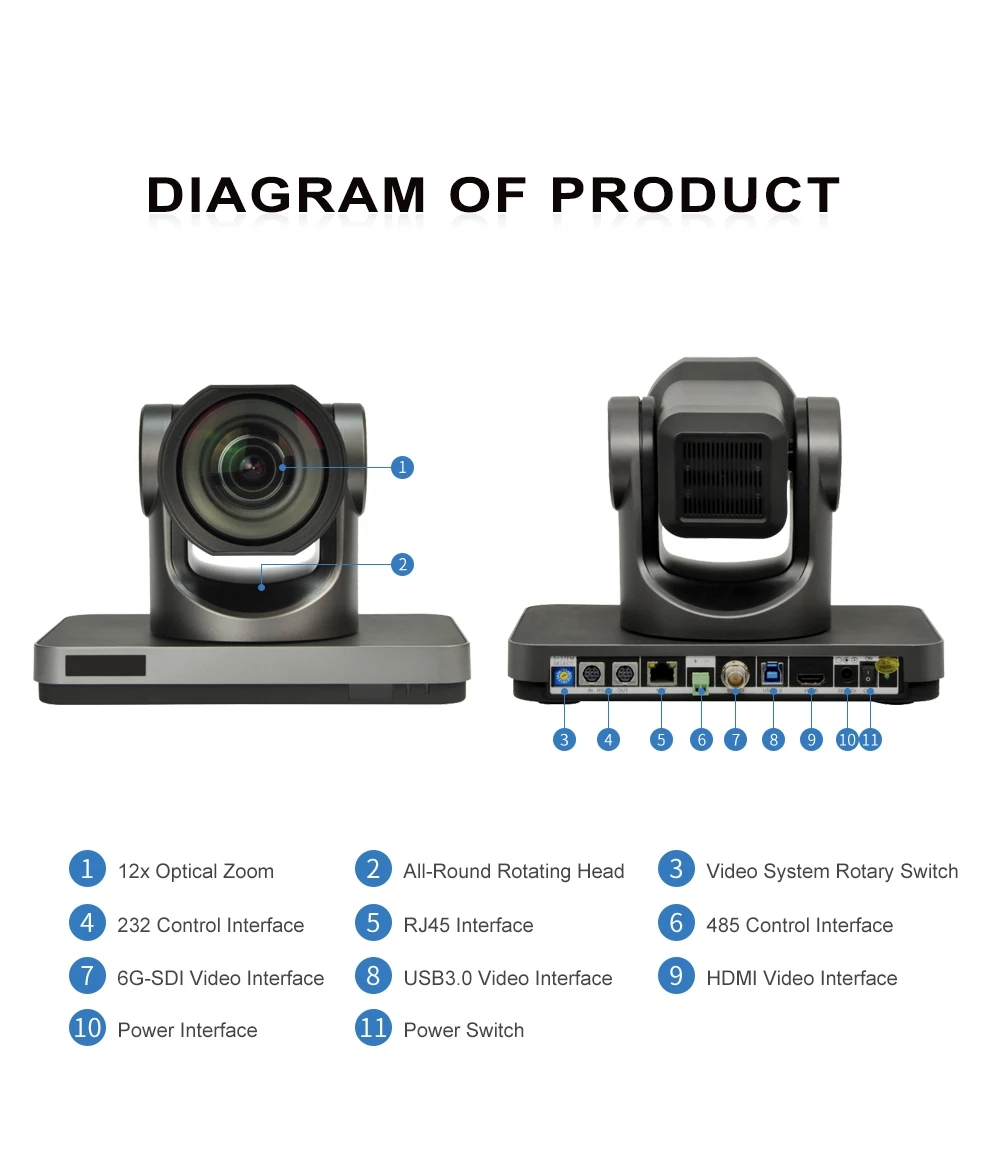

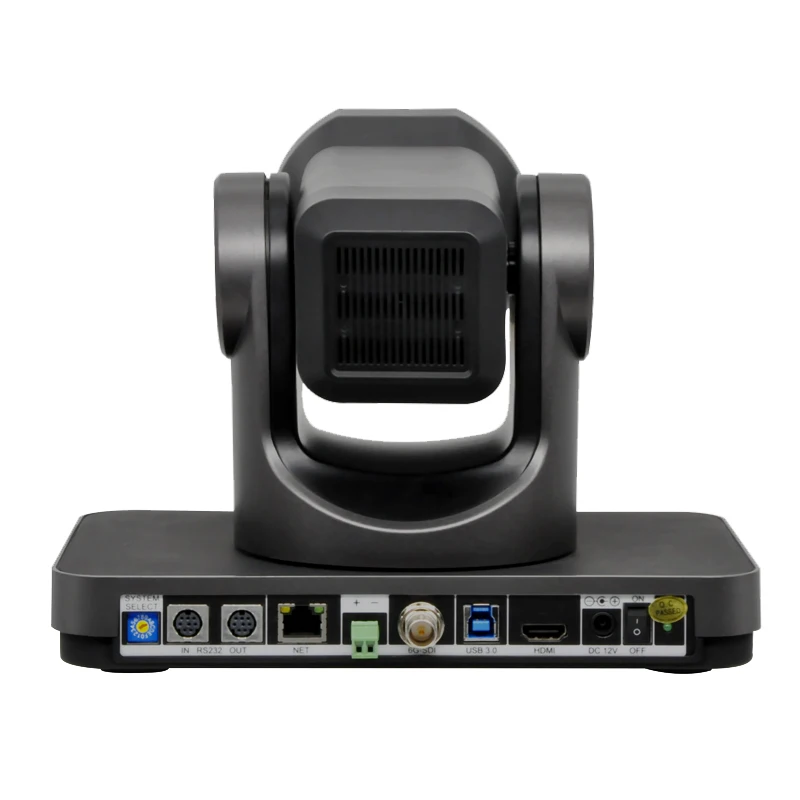

Network Interface | 1 Channel RJ45: 10/100/1000M Adaptive Ethernet |
H D M l Interface | 1Ch HDMI: Version 1.4/2.0 |
6G-SDI Interface | 1 Channel 6G-SDI: BNC type, 800mVp-p, 75Ω, SMPTE ST 2081-1, |
292M, 424M | |
USB Interface | 1-Way USB 3.0: Type B Socket |
Power Interface | JEITA Type (DC IN 12V) |
Input Voltage | DC 12V |
Input Current | 2.5A |
Operating Temperature | -10°C ~ 40°C |
Stored Temperature | -40°C ~ 60°C |
Power Consumption | 30W |
Product Size | 240 x 173 x 180mm |
product Weight | 2.83Kg |
Product List | Conference camera, Infrared Remote Control, Power Adapter 1.5M, |
USB3.0 Video Cable 3M,232 control line 3M, Manual, | |
Warranty Card Certificate, Mounting Bracket |
