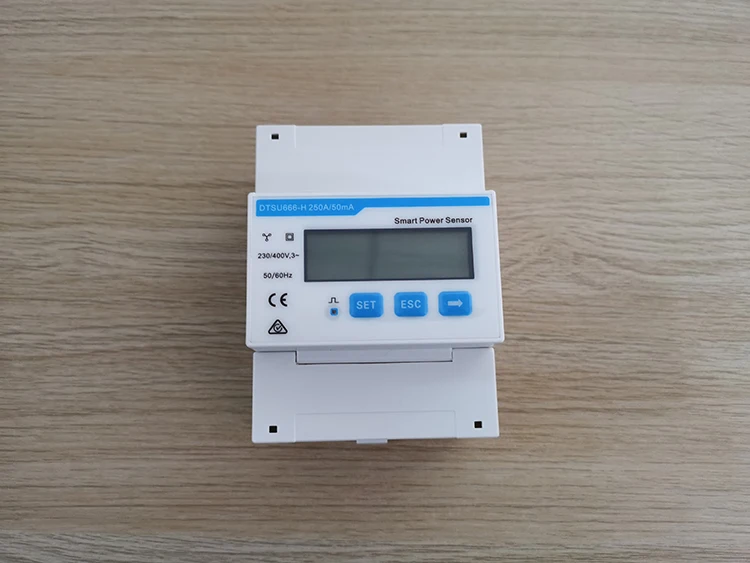

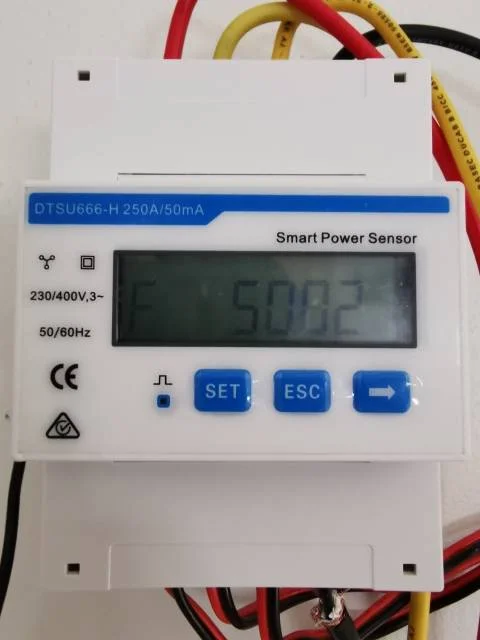

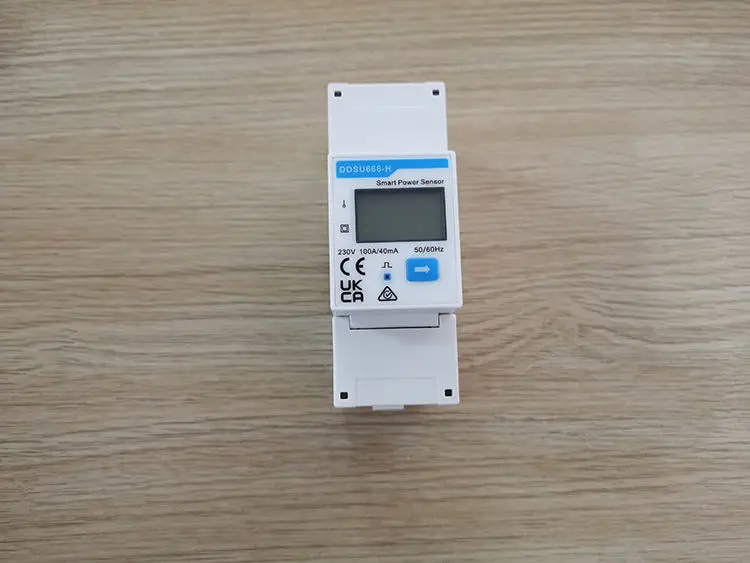

HUAWEl Smart Power Sensor DTSU666-H for Energy Meter
Smart Power Sensor DTSU666-H adopts large-scaled integrated circuit with digital sampling technology, specially designed for power monitoring and energy metering demands including power system, communication industry, construction industry, mainly applied into real-time measurement and display for parameters such as three phase voltage, three phase current, active power, reactive power, frequency, positive and reverse energy, four quadrant electric energy, etc.

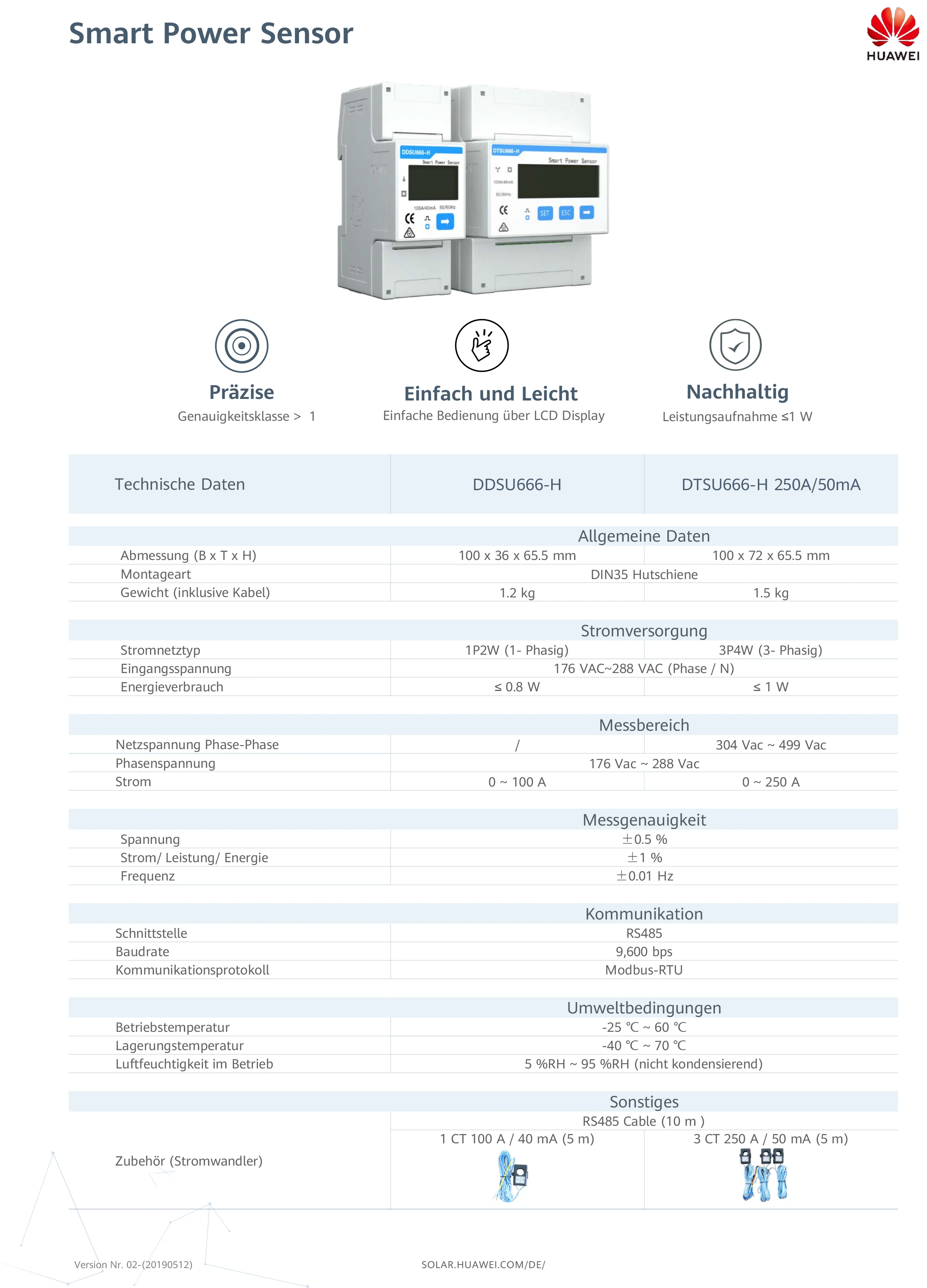

Datasheet
Technical Specification | DDSU666-H | DTSU666-H 250A/50mA | ||
General Data | ||||
Dimension (H x W x D) | 100 x 36 x 65.5 mm (3.9 x 1.4 x 2.6 inch) | 100 x 72 x 65.5 mm (3.9 x 2.8 x 2.6 inch) | ||
Mounting type | DIN35 Rail | |||
Weight (including cables) | 1.2 kg (2.6 lb) | 1.5 kg (3.3 lb) | ||
Power Supply | ||||
Power grid type | 1P2W | 3P4W/3P3W | ||
Input voltage (phase voltage) | 176 Vac ~ 288 Vac | |||
Power consumption | ≤ 0.8 W | ≤ 1 W | ||
Measurement Range | ||||
Line voltage | / | 304 Vac ~ 499 Vac | ||
Phase voltage | 176 Vac ~ 288 Vac | |||
Current | 0 ~ 100 A | 0 ~ 250 A | ||
Measurement Accuracy | ||||
Voltage | ±0.5 % | |||
Current / Power / Energy | ±1 % | |||
Frequency | ±0.01 Hz | |||
Communication | ||||
Interface | RS485 | |||
Baud rate | 9,600 bps | |||
Communication protocol | Modbus-RTU | |||
Environment | ||||
Operating temperature range | -25 ℃ ~ 60 ℃ | |||
Storage temperature range | -40 ℃ ~ 70 ℃ | |||
Operating humidity | 5 %RH ~ 95 %RH (non-condensing) | |||
Others | ||||

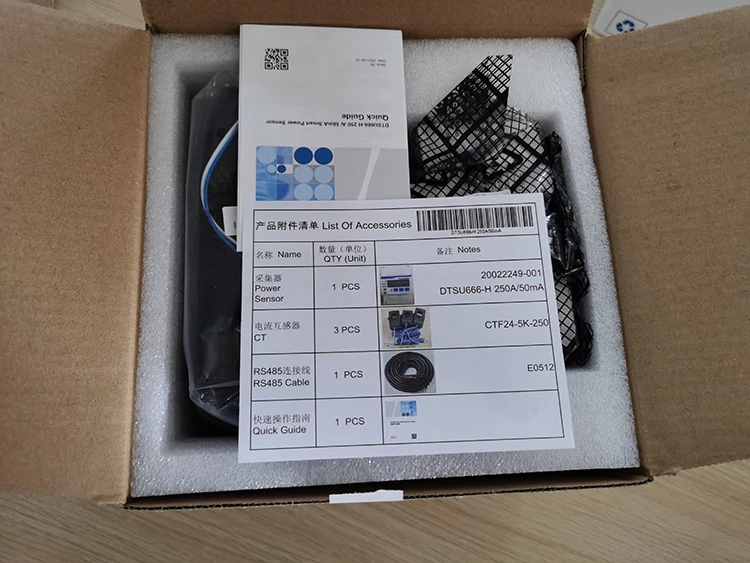

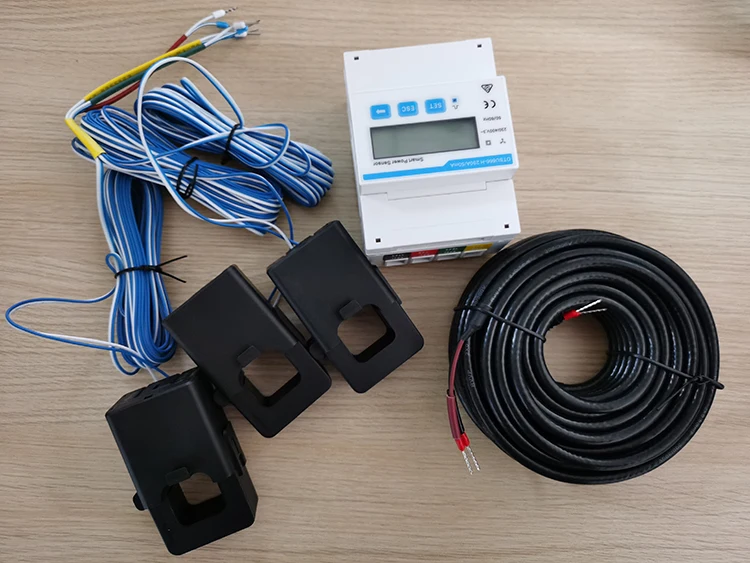

Accessories | RS485 Cable (10 m / 33 ft.) | |||

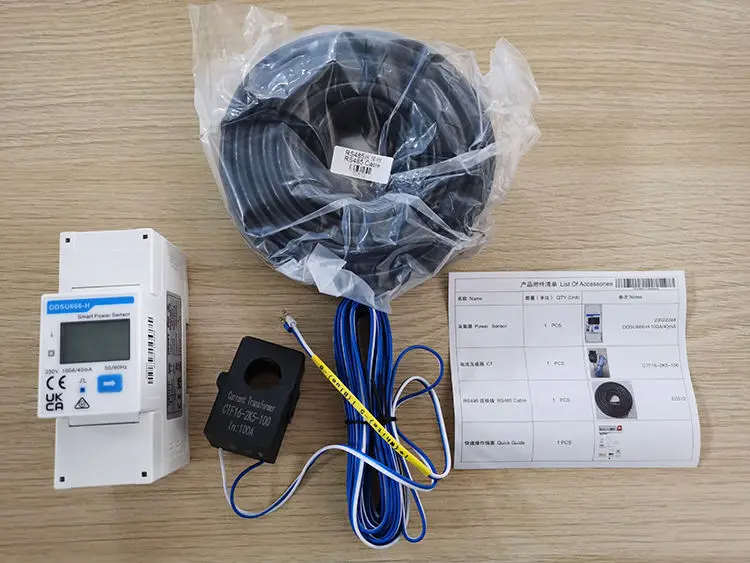

1 CT 100A / 40mA (5 m / 16.4 ft.) | 3 CT 250A / 50mA (5m / 16.4 ft.) | |||

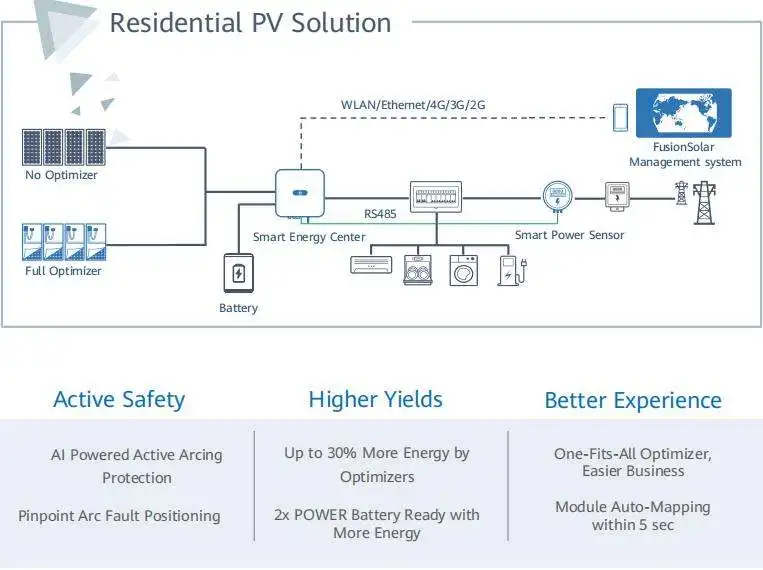

Residential PV solution

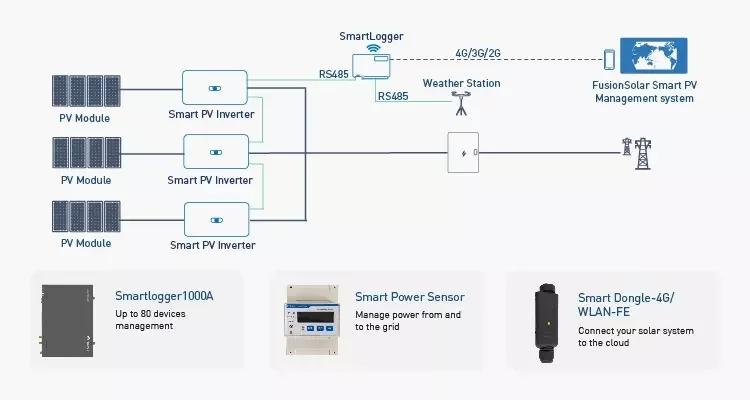

Product case
