High Efficiency Dry Type Antistatic Ion Bar Static Laser Bar Neutralizing Ionizing Bar For Film Packing Machine
- Category: >>>
- Supplier: Sidike Technology (guangdong) Co. Ltd.
Share on (1600524761339):
Product Overview
Description
Products Description
Product model | ST-DC-506A |
Ion generation mode | Corona discharge mode (HDC-AC) |
Input voltage | DC 24V+5V |
Power consumption | 3.6VA |
Output voltage | 10kV0-P(0 to peak) |
Output when abnormal | No voltage contact output (by normally closed MOSFET relay) |

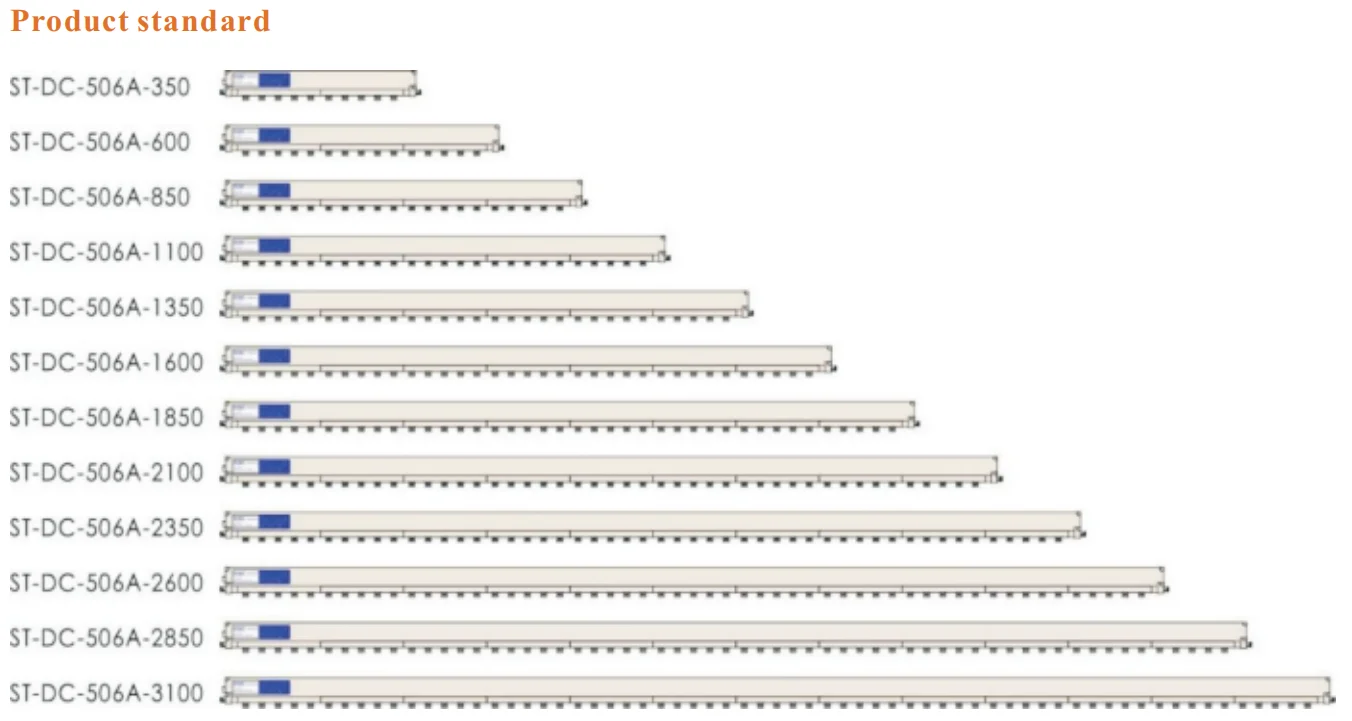

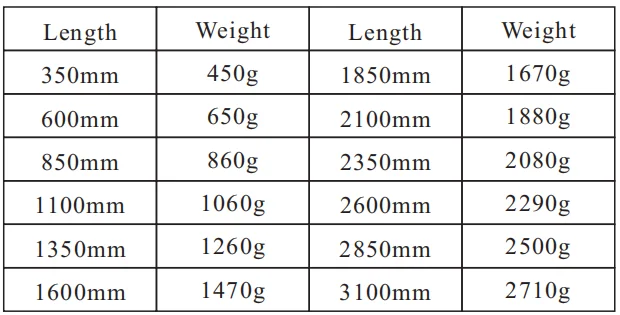

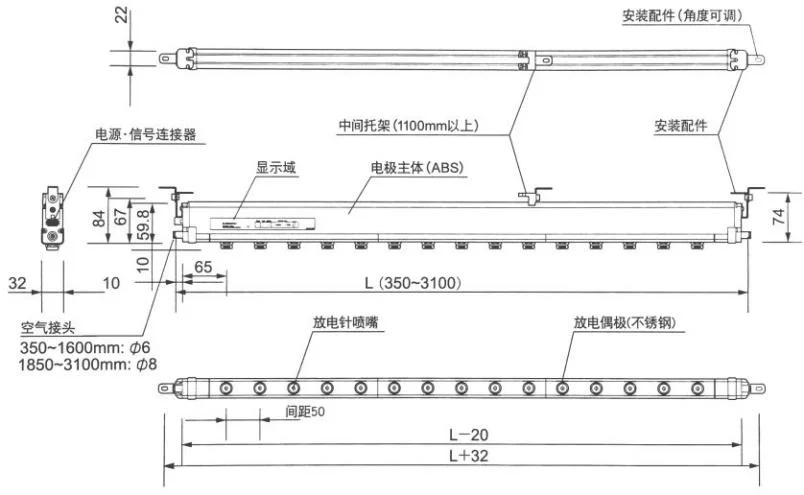

Measure | D29xH92xW350~3100mm |
Supply pressure range | Under 0.5Mpa |
Ionic equilibrium | ≤+-30V (when the air pressure is 0.3Mpa away from 300mm) |
Work environment | Ambient temperature: 5~40℃Ambient humidity: 15%~85% (no condensation) Supply gas: clean and dry air |

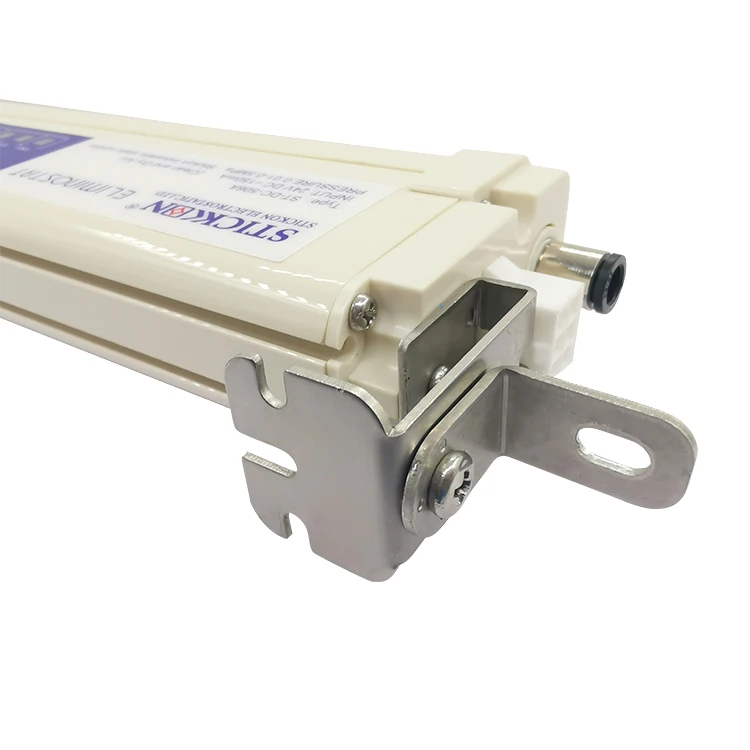

Attachment | Operating instructions, mounting bracket, power and signal cable (3m), intermediate bracket (over 110mm) |
Main features

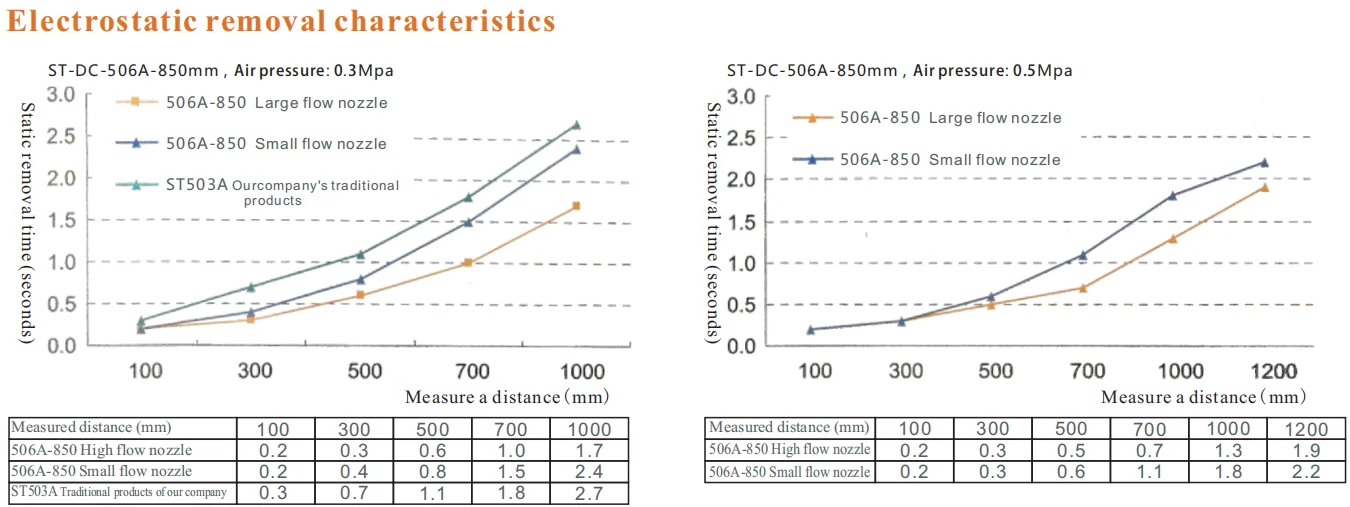

1 . 30% increase in capabilities : The time and size of static electricity removal are increased by 30%
(compared with the traditional products of our company)
(compared with the traditional products of our company)
2 . Long-term stability of static elimination capabilities
3 . Decrease in emitter needle abrasions
4 . Ultra low ozone
5 . Superior ion balance
5 . Superior ion balance
6 . Minimum flow type nozzle
7 . Cleaning timer : The cleaning timer function notifies the cleaning time
8 . Emitter needle variations
9 . Safety features : Through micro-discharge detection and low-voltage wiring of DC24V input, the
use safety is ensured
8 . Emitter needle variations
9 . Safety features : Through micro-discharge detection and low-voltage wiring of DC24V input, the
use safety is ensured
10. Small-flow discharge needle nozzle for suppressing air consumption is easy to replace
Options That Support Refreshing Static Removal
* AC adapter for ST101BS: ST101BS-DA (Input voltage AC100V~240V)
* Intermediate bracket: ST101BS-SUSP-A (Standard equipment above 1100)
* Power and signal extension cables: ST101BS-ENC3M (length: 3 m)
* Low flow type l nozzle
* Specification of tungsten discharge needle:ST101BS-NDL-LW01
* High-flow H nozzle
* Specification of tungsten discharge needle: ST101BS-NDL-HW01
* Intermediate bracket: ST101BS-SUSP-A (Standard equipment above 1100)
* Power and signal extension cables: ST101BS-ENC3M (length: 3 m)
* Low flow type l nozzle
* Specification of tungsten discharge needle:ST101BS-NDL-LW01
* High-flow H nozzle
* Specification of tungsten discharge needle: ST101BS-NDL-HW01
Installation and use guide

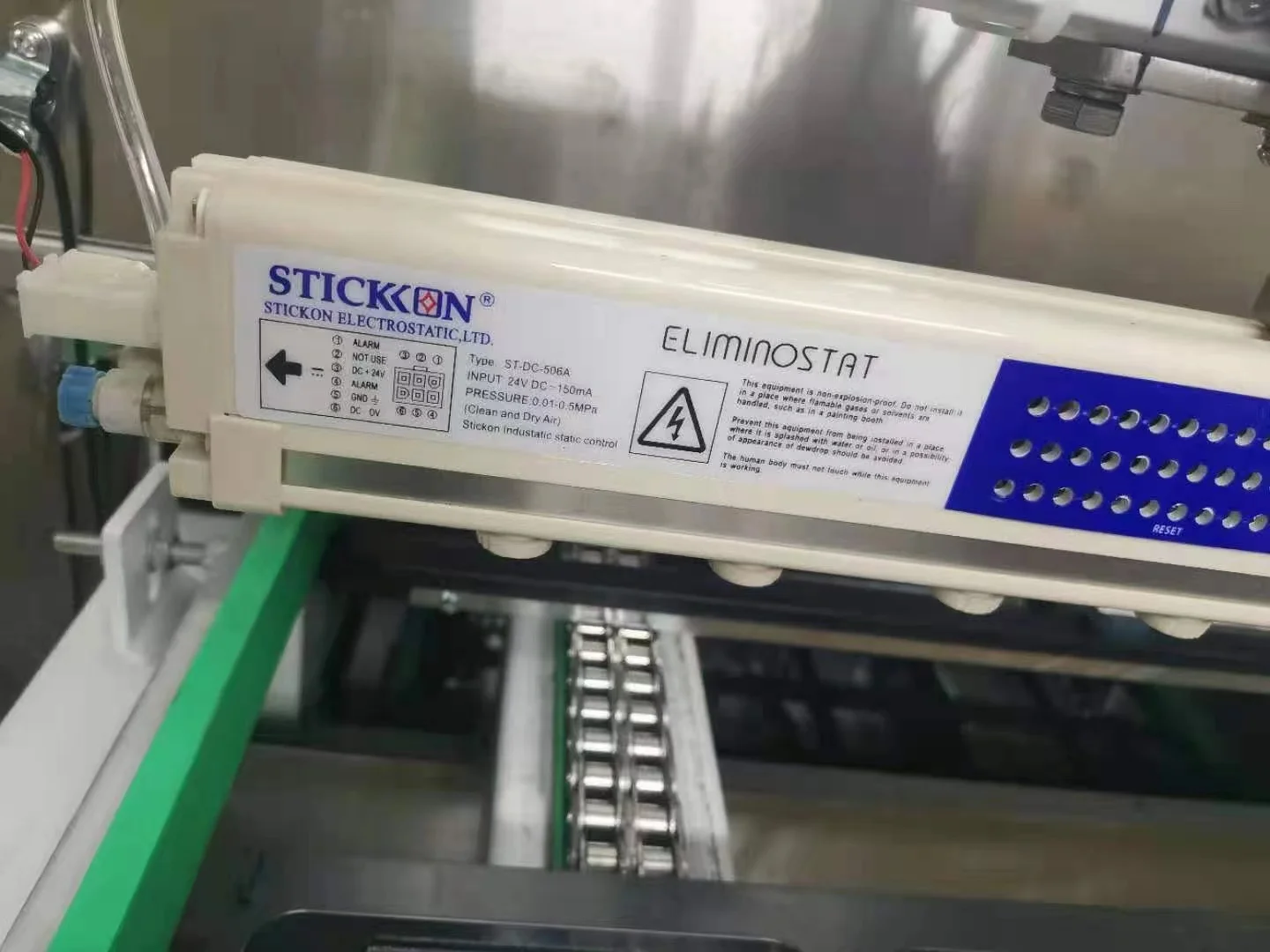

1. Choose the best position for removing static electricity, and install the ionizer bar and the matching power adapter firmly.
As shown on the right:

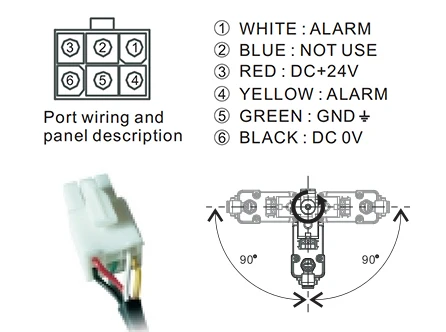

2. Insert one end of the power cord into the power adapter socket, and the other end into the power socket on the ionizer bar. Port wiring and panel description .
As shown on the right:
Remark:
When the machine itself is grounded, the grounding wire of this device does not need to be grounded separately (grounding wire 5 green GND can be suspended or connected to the machine )
3. The installation angle of the ionizer bar can be adjusted (As shown above)
When the machine itself is grounded, the grounding wire of this device does not need to be grounded separately (grounding wire 5 green GND can be suspended or connected to the machine )
1. Connect the air source connector on the ionizer bar to the air source generating device, and turn on the air source switch.
2. The network port power indicator light is on, and the panel indicator light is green to show that the ionizer bar is working. Adjust the appropriate air source pressure and voltage output parameters, and output positive and negative ions to neutralize the static electricity on the surface of the object.
3. The installation angle of the ionizer bar can be adjusted (As shown above)
