M8 Digital Terrestrial Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Indonesia Chile Russia Europe Italy
- Category: >>>
- Supplier: Shenzhen Maoer Power Source Co. Ltd
Share on (1600524796167):
Product Overview
Description
Specification
M8 Digital Terrestrial Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Indonesia Chile Russia Europe Italy
Brand Name | Haohsat |
Model Number | M8 |
CPU | MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz. |
Processor Core | Quad Core |
Support Resolution | 1920 x 1080 |
Ethernet | 1 x 10/100/1000MBps |
WiFi | 802.11n 2.4G/5GHz |
Private Mold | Yes |
Keywords | Set Top Box Dvb T2 |
Warranty | 12 Months |
Demodulator Type: | MSB1236C Chip Set |
Function | DVB-T2 H.264 8Bit |
Packing | 1 *Terrestrial Receiver Set Top Box (Attached EU plug) 1 * IR remote control 1 * RCA Cable 1 * English User Manual 1* Wifi MT7601 |
Language | English/French/German/Spanish/Italian Etc. 24 Languages |
CPU | MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz. |
USB wifi | MT7601 |
Product Description
M8 Digital Terrestrial Decoder DVB T2 TV Tuner H.264 WIFI Digital TV Set Top Box DVB T2 Indonesia Chile Russia Europe Italy
Features:
Hardware Specification:
CPU: MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz.
Memory: 32X16Mbit DDR2 Frequency1066.
Flash: 32M bytes.
Demodulator Type: MSB1236C Chip Set
TUNER: Rafael R836.
Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow at least 50 Mbit / sec.
Support 3D interface and Sleep Timer.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback.
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.
Decoder:
Video Decoder: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818.
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps).
MPEG-2 Main Profile# Main Level(15Mbps).
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-channel decoding.
Media Codec: avi, mpg, dat, vob, div, mov, mkv, jpeg, etc.
Audio Codec: WMA,MP3,AAC (wma,mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Demodulation:
Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz,7MHz,8MHz.
for Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6.
Guard Interval: 1 / 128 1 / 32 1 / 16 19 / 256 1 / 8 19 / 128 1 / 4.
FFT Mode: 2K/ 8K / 32K.
Support: Support Single and multiple PLPS.
Input level: -83 - -5dBm.
Specifications:
Color: Black

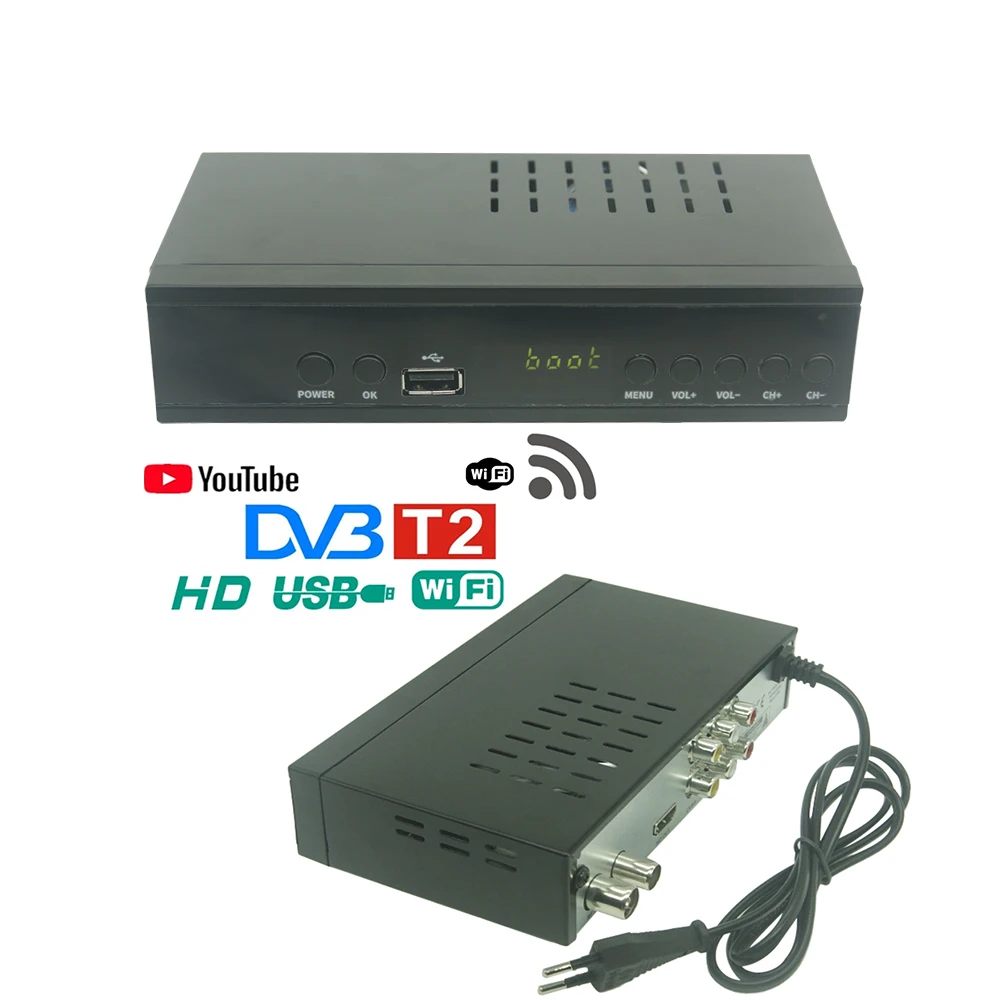

Front Panel: One embedded USB 2.0 host (USB Recording PVR) and 4-Digit LED display on front panel. Red LED Standby and Green LED Lock; Panel Keys (POWER, CH+ ,CH-, etc)

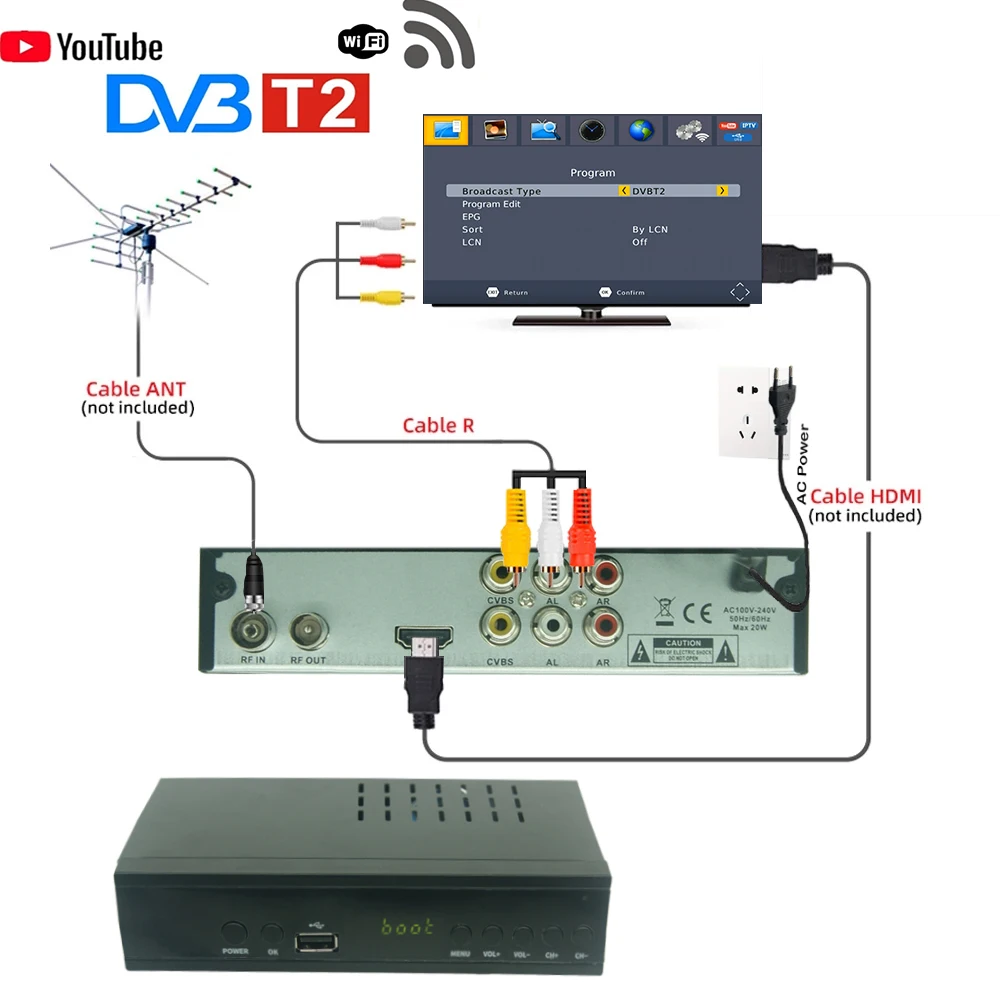

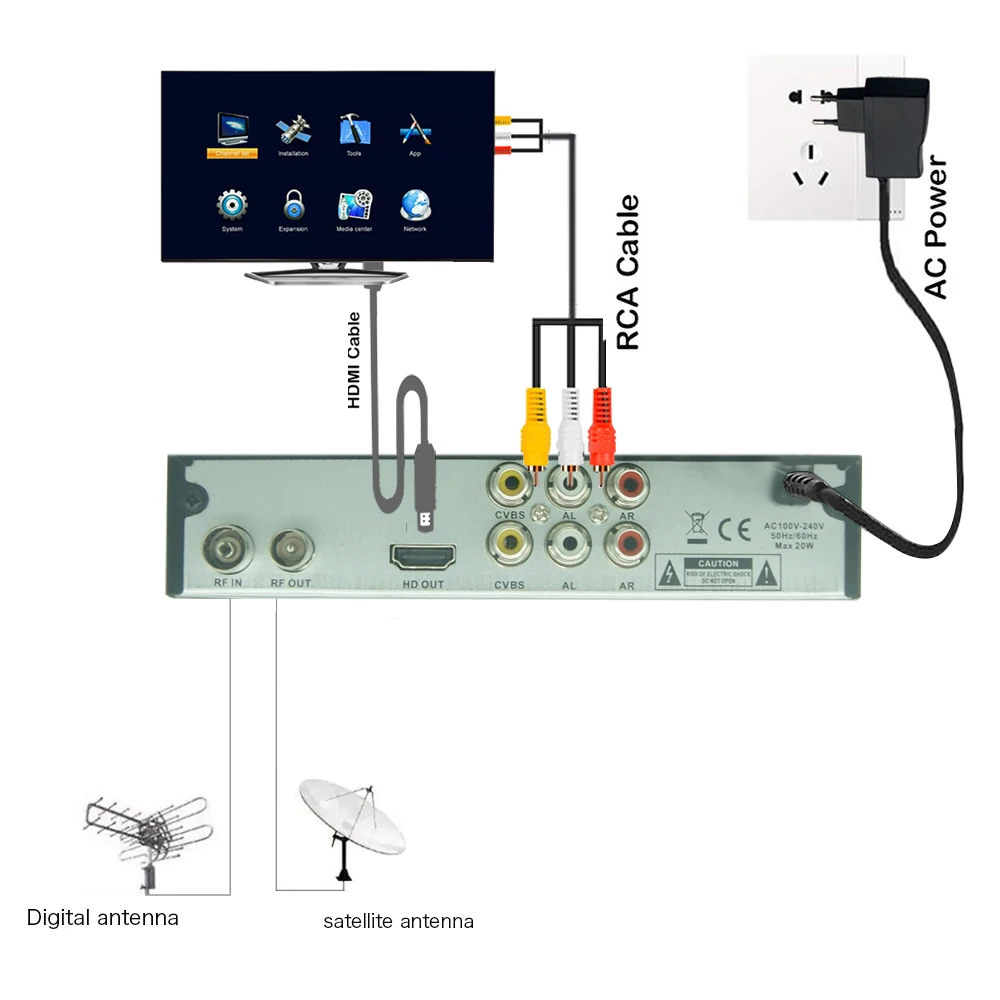

Rear Panel: 1 * ANT-IN connector (IEC-162-2 Female); 1 * ANT-OUT connector (IEC-162-2 Male); 1 * HDMI (Compatible with HDMI V1.3/V1.4), 1 * RCA CVBS AL AR Connector; 1 * Ypbpr RCA; 1 * Coaxial.
Power Supply: AC 90~240V 50Hz/60Hz
Item weight: 0.45KG
Package size: 19.5 * 17.0 * 5.0cm / 7.68 * 6.70 * 1.97in
Package weight: 512g / 18.07g

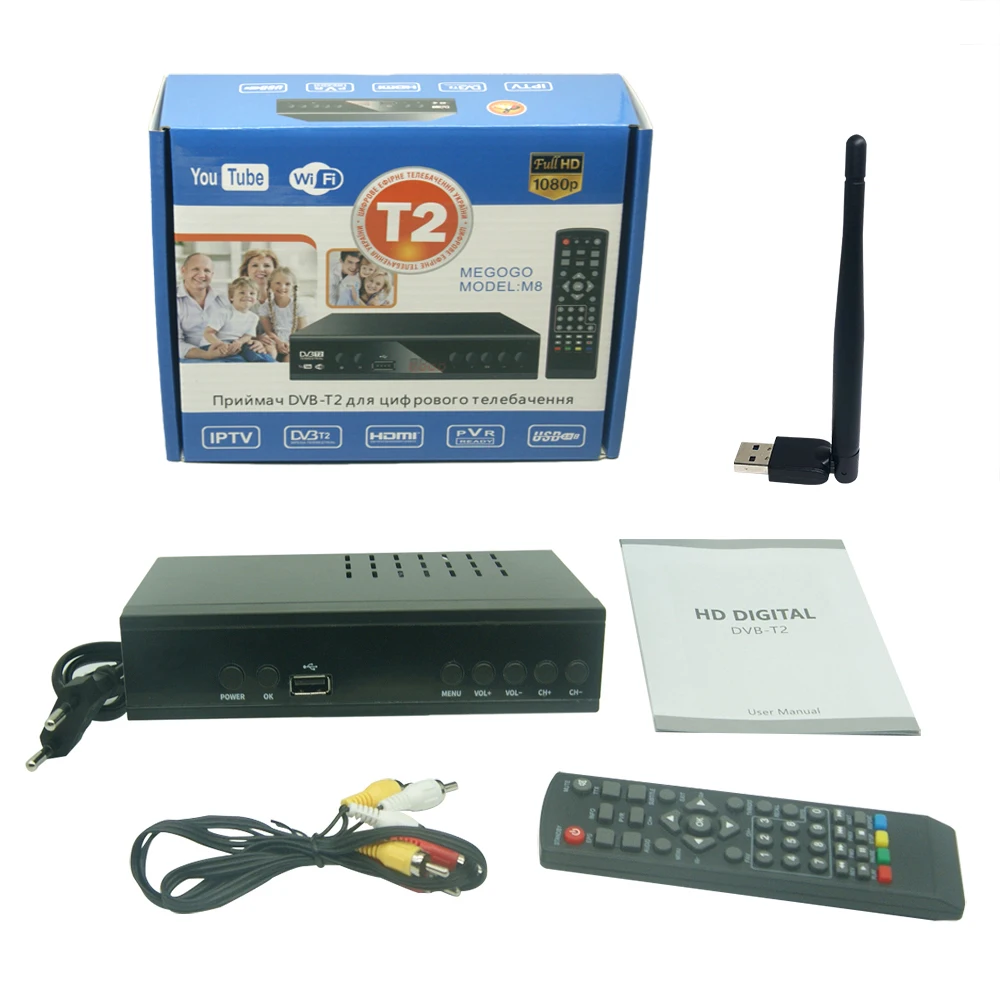

Package list:
1 *Terrestrial Receiver Set Top Box (Attached EU plug)
1 * IR remote control
1 * RCA Cable
1 * English User Manual
Hardware Specification:
CPU: MSTAR-MSD7T00(128 pin) MIPS 34Kf@600MHz.
Memory: 32X16Mbit DDR2 Frequency1066.
Flash: 32M bytes.
Demodulator Type: MSB1236C Chip Set
TUNER: Rafael R836.
Software Features:
Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard.
The maximum speed of the traffic flow at least 50 Mbit / sec.
Support 3D interface and Sleep Timer.
Powerful and highly effective 7-day EPG function.
AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback.
Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.
Decoder:
Video Decoder: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818.
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps).
MPEG-2 Main Profile# Main Level(15Mbps).
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps).
Audio Decoder: MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, WMA,HE-AAC 5.1 multi-channel decoding.
Media Codec: avi, mpg, dat, vob, div, mov, mkv, jpeg, etc.
Audio Codec: WMA,MP3,AAC (wma,mp3,m4a).
Photo Codec: JPEG, BMP, PNG.
Demodulation:
Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744).
Input RF Frequency: 48~866MHZ.
Bandwidth: 6MHz,7MHz,8MHz.
for Constellation: QPSK 16-QAM 64-QAM and 256-QAM.
FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6.
Guard Interval: 1 / 128 1 / 32 1 / 16 19 / 256 1 / 8 19 / 128 1 / 4.
FFT Mode: 2K/ 8K / 32K.
Support: Support Single and multiple PLPS.
Input level: -83 - -5dBm.
Specifications:
Color: Black
Front Panel: One embedded USB 2.0 host (USB Recording PVR) and 4-Digit LED display on front panel. Red LED Standby and Green LED Lock; Panel Keys (POWER, CH+ ,CH-, etc)
Rear Panel: 1 * ANT-IN connector (IEC-162-2 Female); 1 * ANT-OUT connector (IEC-162-2 Male); 1 * HDMI (Compatible with HDMI V1.3/V1.4), 1 * RCA CVBS AL AR Connector; 1 * Ypbpr RCA; 1 * Coaxial.
Power Supply: AC 90~240V 50Hz/60Hz
Item weight: 0.45KG
Package size: 19.5 * 17.0 * 5.0cm / 7.68 * 6.70 * 1.97in
Package weight: 512g / 18.07g
Package list:
1 *Terrestrial Receiver Set Top Box (Attached EU plug)
1 * IR remote control
1 * RCA Cable
1 * English User Manual
1* Wifi MT7601
