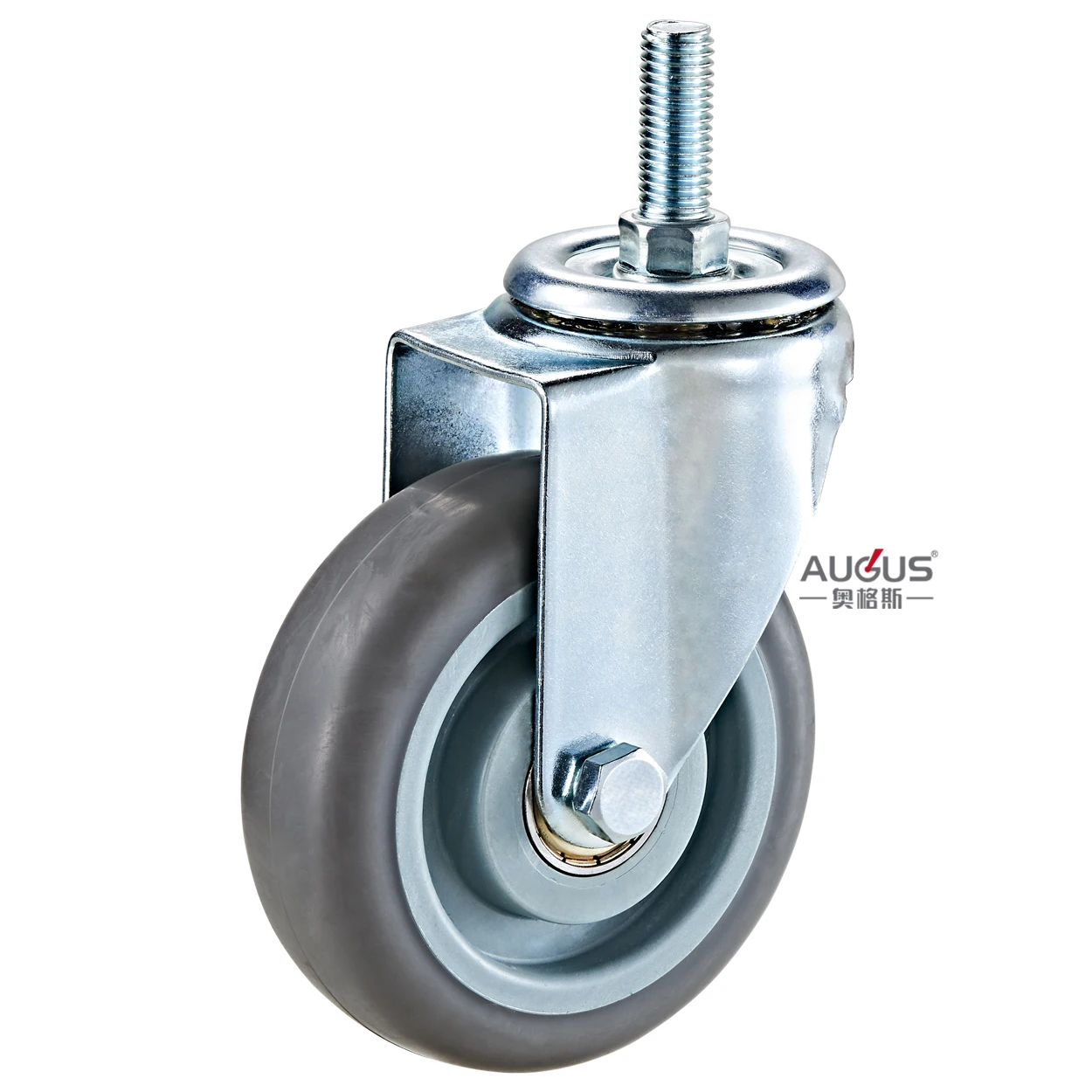

stem locking castor 5 inch tpr wheel trolley caster wheel medium duty
- Category: >>>
- Supplier: Zhongshan Augus Hardware Products Co. Ltd.
Share on (1600524827182):
Product Overview
Description
Company Introduction
Details Images
Products Description

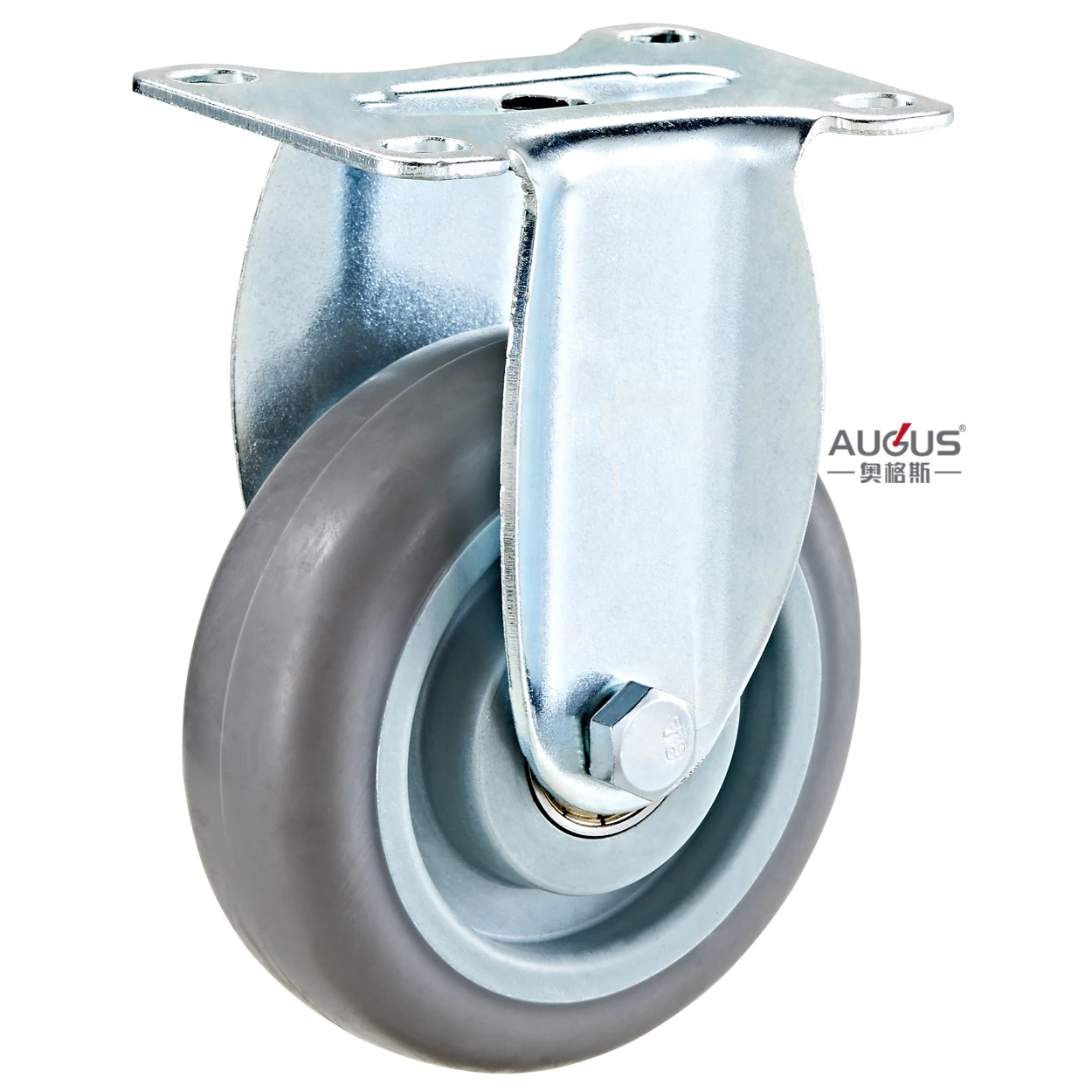

Medium Duty 01 Series-Gray TPR double bearing

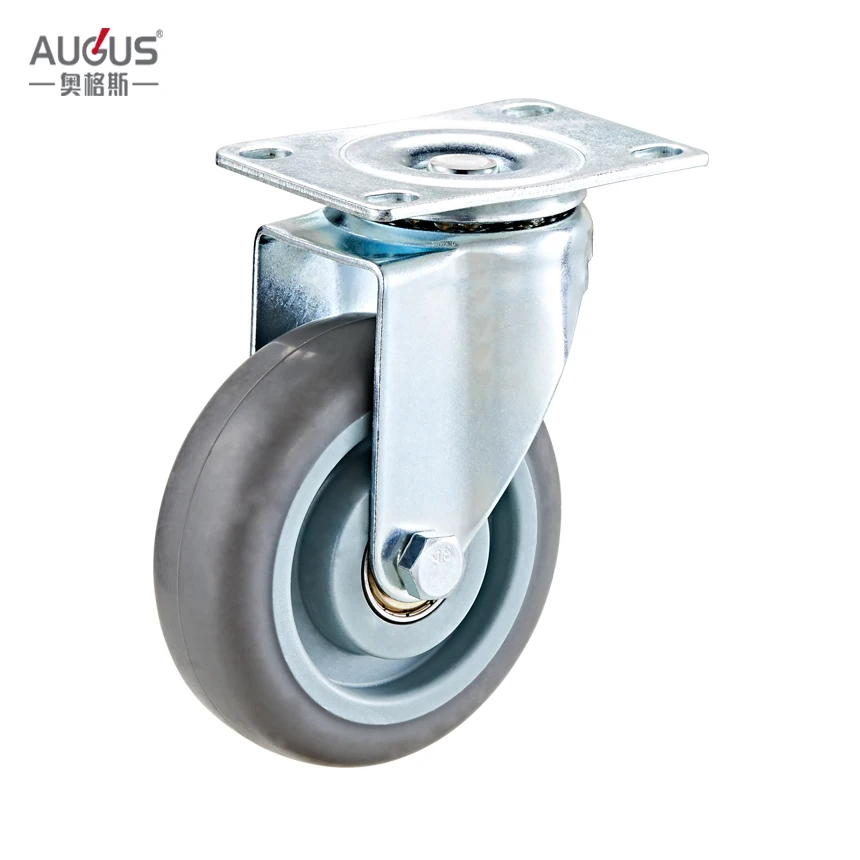

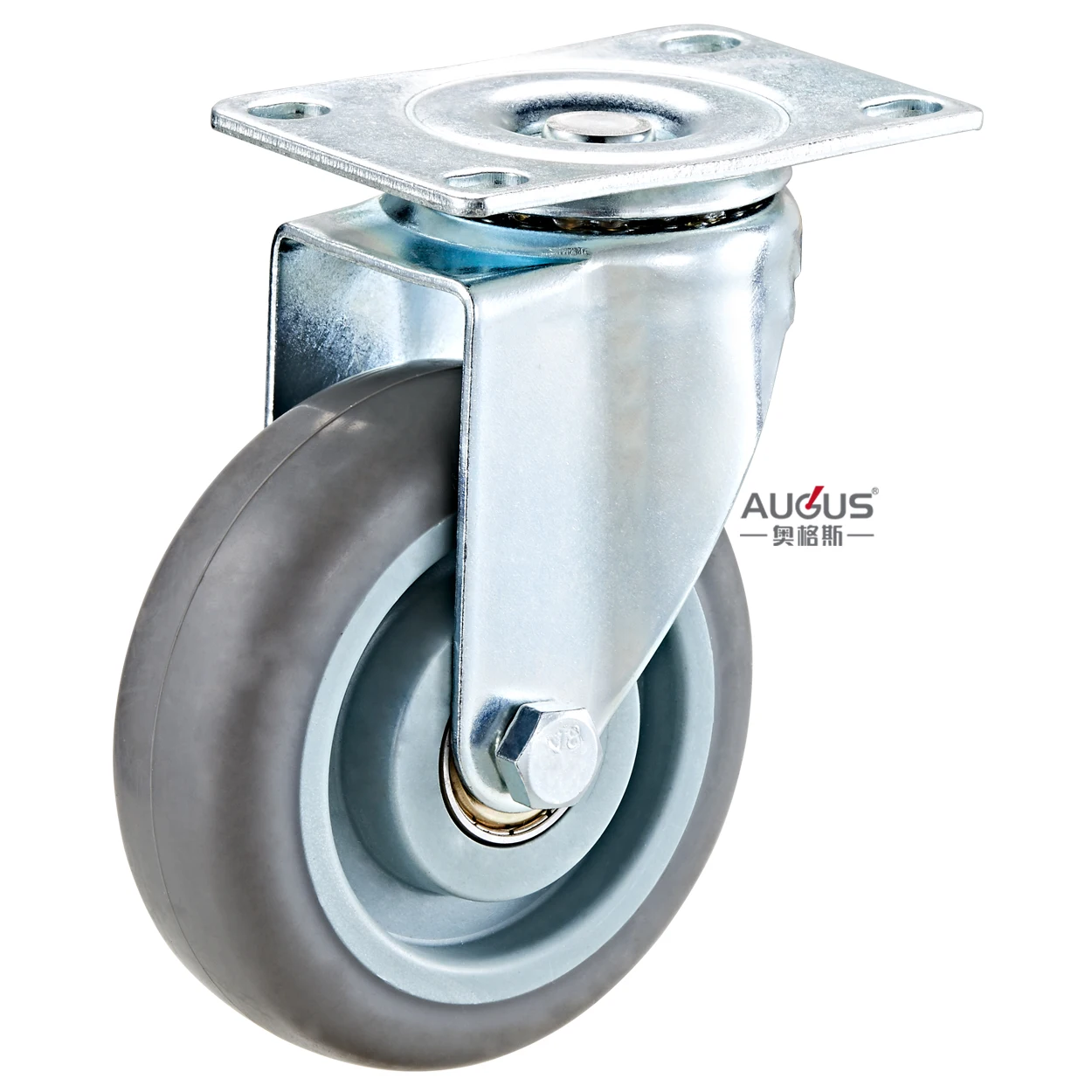

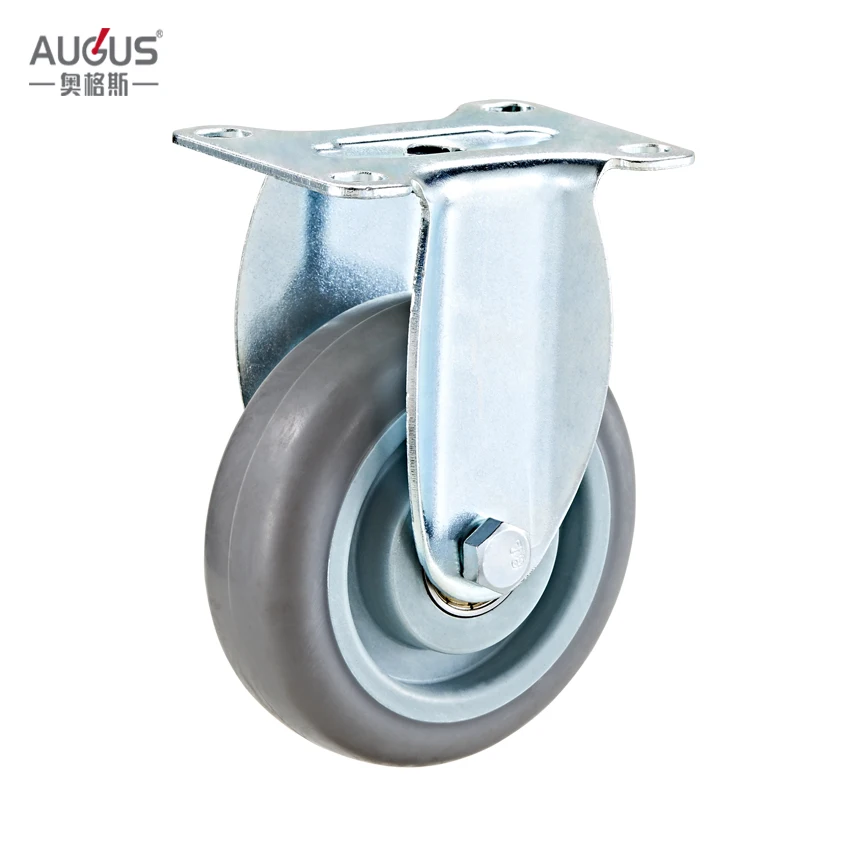

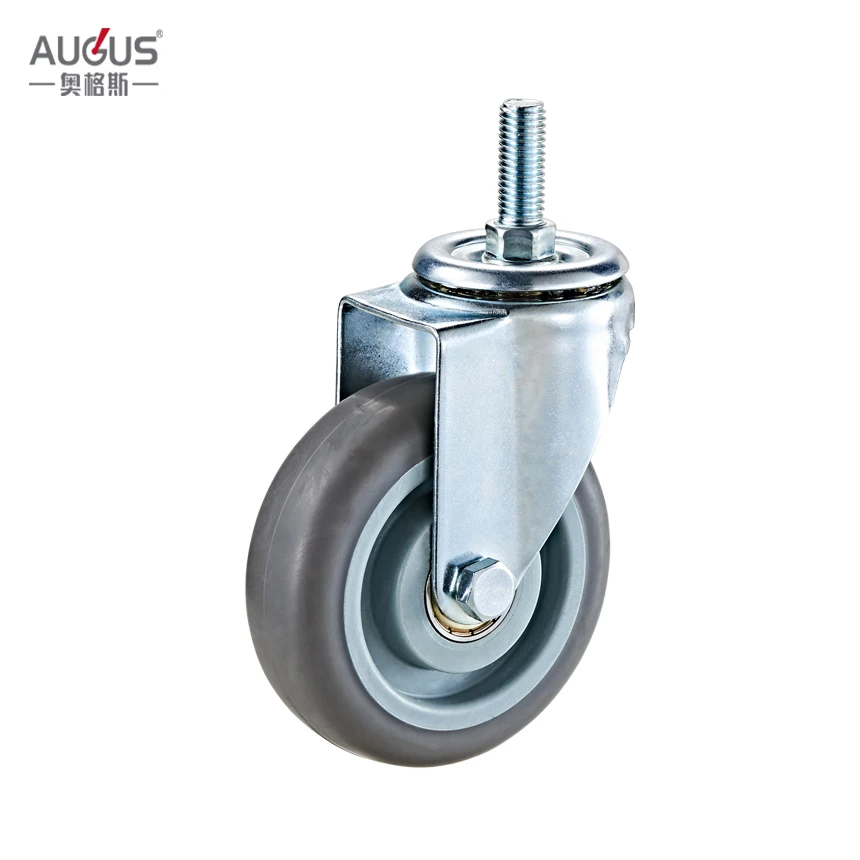

Description: Fix, Swivel, Screw, Bolt hole

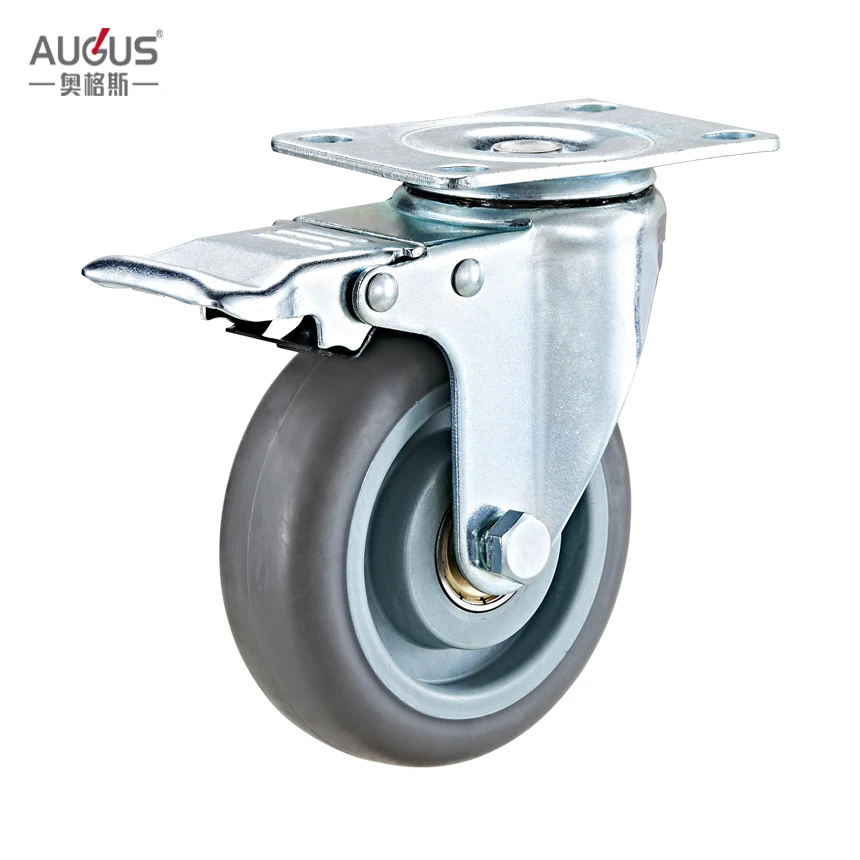

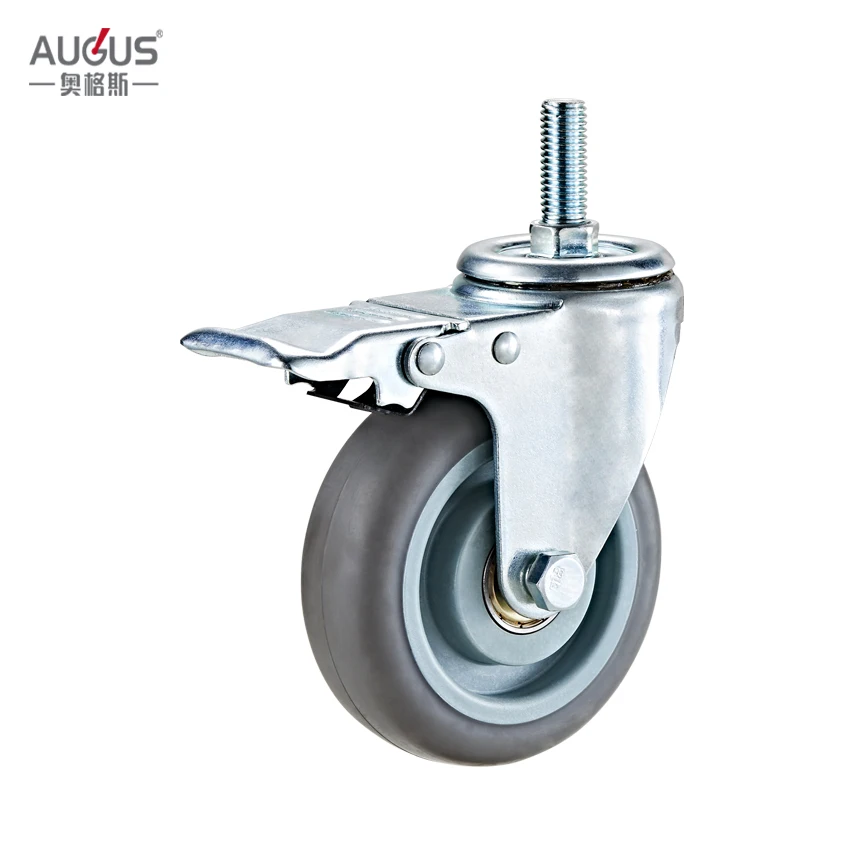

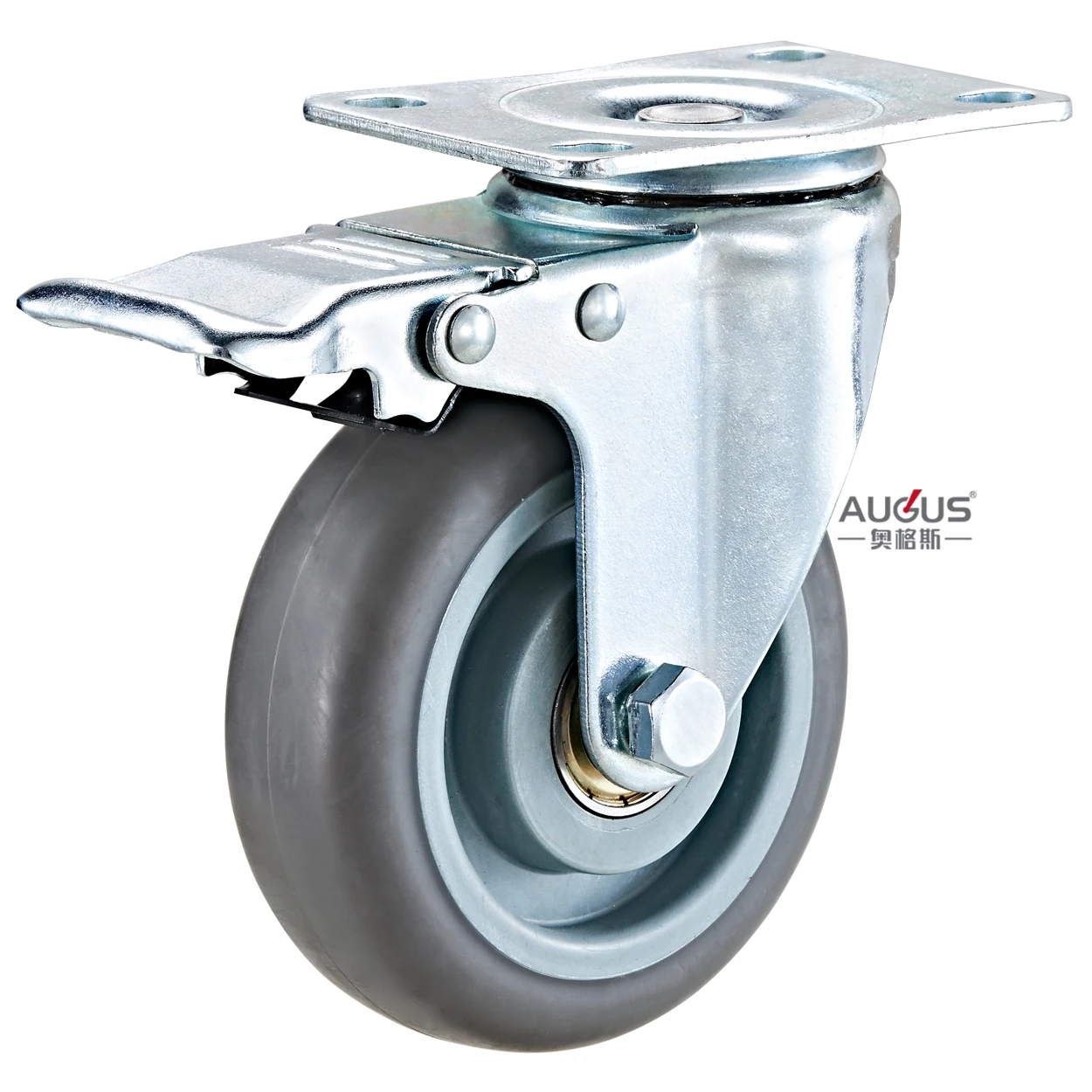

Brake mode: Total brake, Side brake, Plastic brake
Bracket mode: Housing made of Pressed Steel, bright zinc plated, blue zinc plated, black lacquer, chrome plated.
Install with nut, axle and bush, the wheel tread is made of TPR (Thermoplastic Rubber), the wheel center is made of PP (Polypropylene), with double bearing
Product Paramenters
Details | 3 Inch | 4 Inch | 5 Inch |
Wheel Diameter (mm) | 75 | 100 | 125 |
Tread Width (mm) | 32 | 32 | 32 |
Overall Height (mm) | 105 | 130 | 155 |
Offset (mm) | 30 | 30 | 30 |
Load Capacity (kgs) | 80 | 100 | 120 |
Size of Plate (mm) | 93x62 | 93x62 | 93x62 |
Hole Centre Distance (mm) | 73.5x44.5 | 73.5x44.5 | 73.5x44.5 |
Screw Size (mm) | M12x30 | M12x30 | M12x30 |
