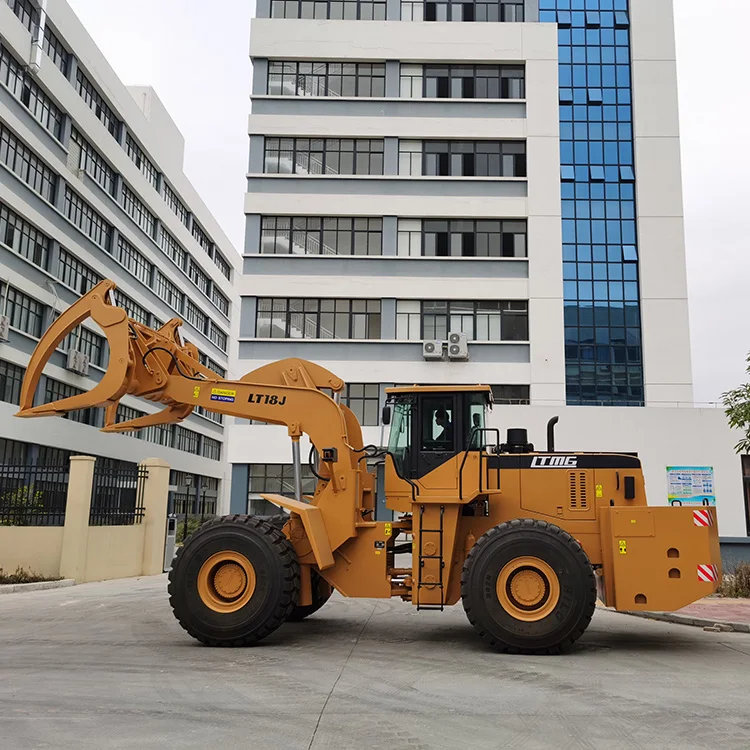

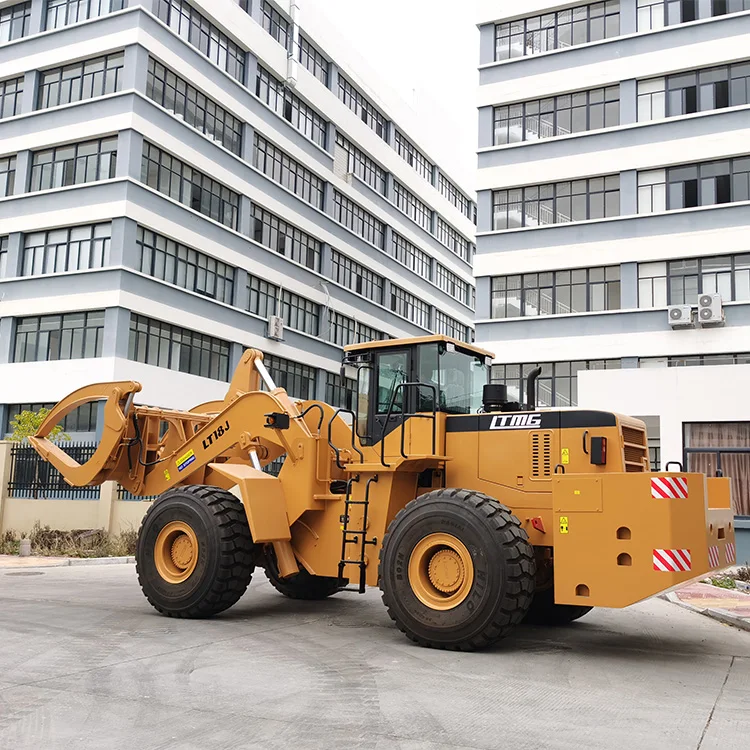

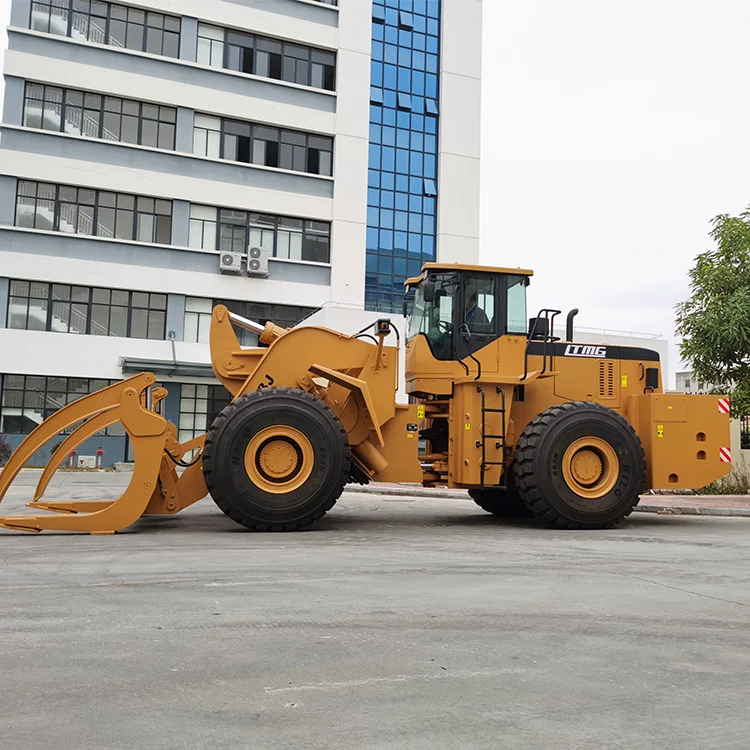

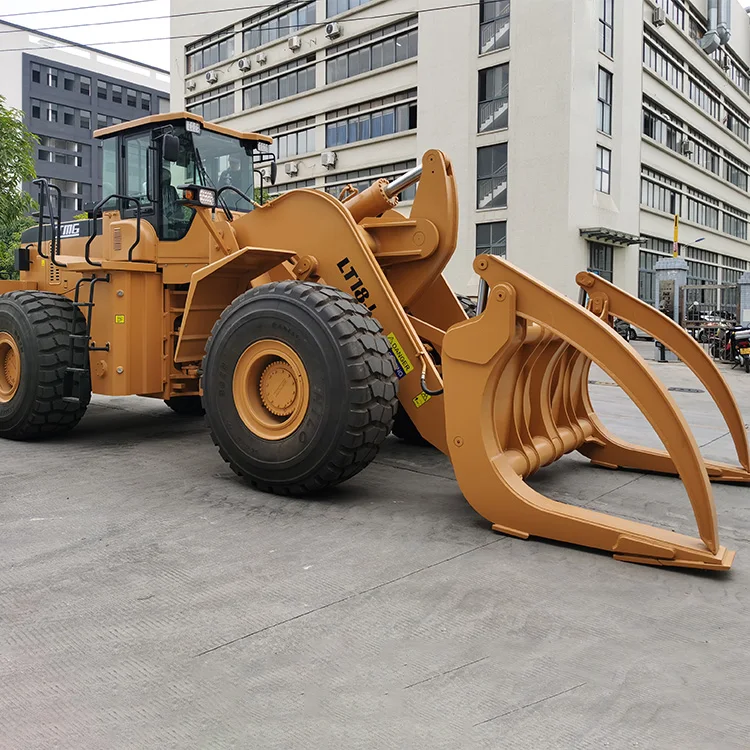

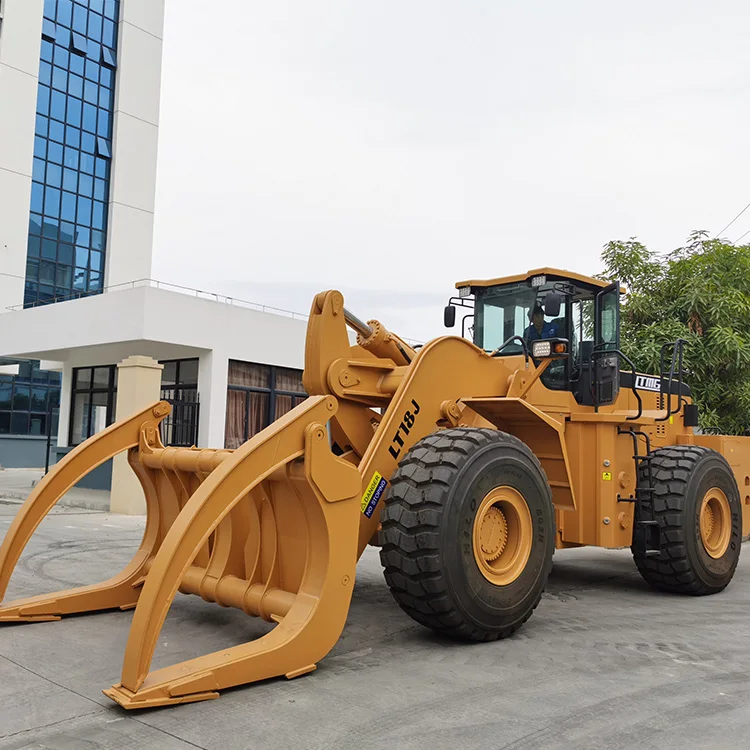

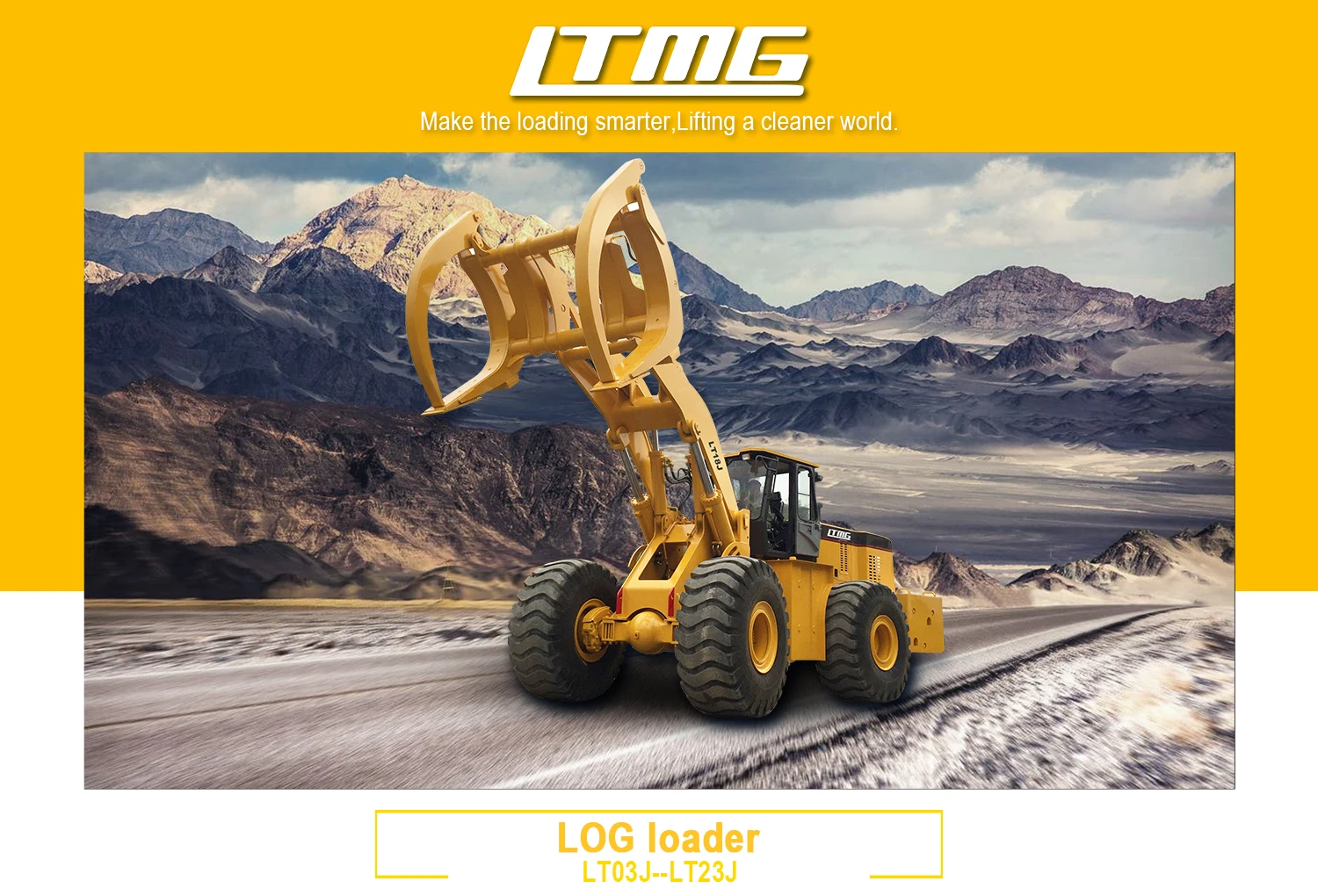

LTMG Machinery high quality log loader forester trailer 12 ton 18 ton log loader with CE certificate
- Category: >>>
- Supplier: Xiamen LTMG Machinery Co. Ltd.
Share on (1600524827806):
Product Overview
Description
Product Description
Products Specifications
Model | LT10J | LT12J | LT15J | LT18J | LT25J |
Operating weight | 20,800kg | 21,700kg | 25,000kg | 27,000kg | 300,00kg |
Engine model | WD10G220E23 | WD10G220E23 | WD10G270E201 | WD10G279E211 | WD12G336E211 |
Rated engine power | 162KW | 162KW | 199KW | 247KW | 247kw |
Rated rotate speed | 2200r/nin | 2200r/nin | 2200r/nin | 2200r/nin | 2200r/nin |
Max.torque | 920N.m | 920N.m | 920N.m | 920N.m | 920N.m |
Max.dumping height | 3450mm | 3600mm | 3400mm | 3850mm | 3600mm |
Rated load | 10,000 KG | 12,000 KG | 15,000 KG | 18,000 KG | 25000kg |
NO.of shifts | Forward 2 For Reverse 1 | Forward 2 For Reverse 1 | Forward 4 For Reverse2 | Forward 4 For Reverse2 | Forward 4 For Reverse 2 |
Driving speed | |||||
Forward Ⅰ | 0-11.5km/h | 0-11.5km/h | 0-7km/h | 0-7km/h | 0-6.5km/h |
Forward Ⅱ | 0-38km/h | 0-38km/h | 0-11km/h | 0-11km/h | 0-12.3km/h |
Reverse Ⅰ | 0-16km/h | 0-16km/h | 0-23km/h | 0-23km/h | ≥25° |
Grade ability | ≥25° | ≥25° | ≥25° | ≥25° | 35° |
Turning angle | 35° | 35° | 35° | 35° | 10150mm |
Overall length | 8400mm | 8400mm | 9500mm | 9850mm | 3330mm |
Overall width | 3130mm | 3130mm | 3230mm | 3230mm | 4000mm |
Overall height | 3550mm | 3550mm | 3800mm | 3800mm | 2500mm |
Wheel base | 3550mm | 3550mm | 3600mm | 3600mm | 2830mm |
Track base | 2510mm | 2510mm | 2410mm | 2410mm | Countershaft |
Torque converter | Planet-type | Planet-type | Beilian | Beilian | |
Cycling time | 16s | 14s | 12s | 12s | 18s |
Tire type | 23.5-25 | 26.5-25 | 26.5R25(front tires) | 26.5R25(front tires) | 29.5R25 |
