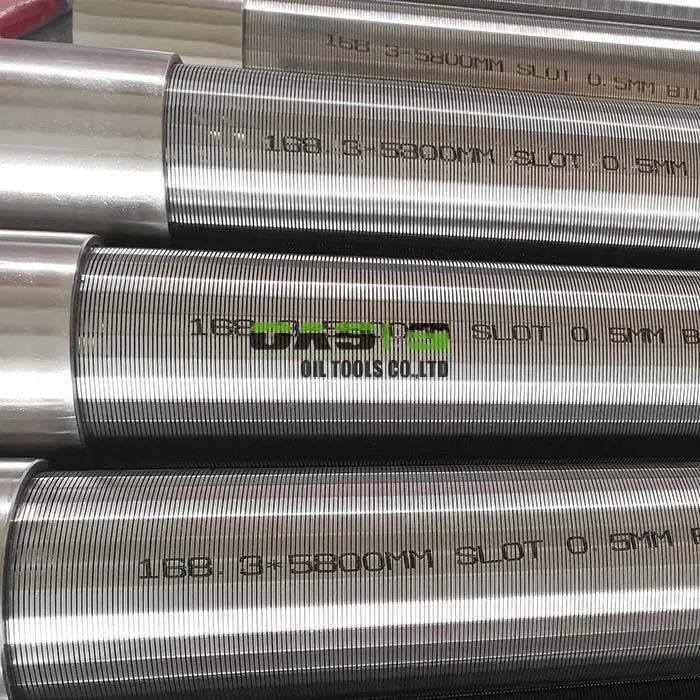

API Thread Ends BTC LTC STC Stainless Steel Water Well Strainer Filter Screen

Product Overview

Description

Oasis Oil Tools Co., Ltd is a leading and experienced manufacturer and supplier of Water Filter Screen with API Thread Ends (Johnson type Screens). We have been in this line for more than 10 years. Our products have been exported to the overseas market.

Company Profile:

Oasis Oil Tools Co.,LTD,  located in the industrial park of high-tech enterprises  in Fengquan District,  Xinxiang City, covers more than 20000 square meters  with total RMB 15 million investment.  Oasis now has more than 150 staff,  among them 6 persons are  senior engineer. After many years’ efforts,  now  OASIS has developed into a  professional and

 famous manufacturer, which design, manufacture and sell stainless steel and galvanized carbon steel water well screens /johnson screens, oil well screens and  sand control well screens, bridge slotted well screens,  pipe based well screens,  perforated pipe (base pipe),  gravel pre-packed well screens, wedge wire screens, passive water intake screens, and other water, oil and gas well filtering products as well as steel tubes and pipes and industrial parts.

Form:  Slot Wire -wrap Screen with Welding Beve Ends are  manufactured  by a v or wedge  shaped wire  around an internal array of longitudinal  support rods. The world  advanced all-weld technology  is used  with each  intersecting point  of these wire  fusion welded,  which creates the  robust  construction  and  excellent  mechanical  performance.

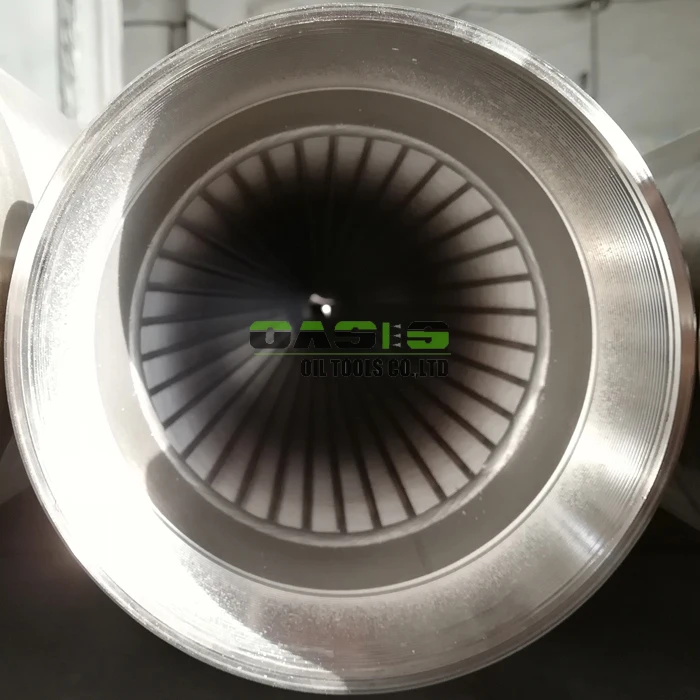

Operation principle: The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water to enter the well freely in ample quantities while at the same time keeps the majority of sand and gravel out of the well.

Specifications of Water Filter Screen with API Thread Ends:



Specification (wedge wire):	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 4.00 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod):	Width(mm): 2.30 3.00 3.30 3.70  Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.
Material:	stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.
End connection	API Thread



Why choose we OASIS Water Filter Screen?

1)World Class Quality: OASIS provide our clients with high quality water well screens and related products. OASIS had passed ISO9001:2008 quality control system.

2)Third party inspection: The productive process of OASIS screen is controlled by third party test company such as BV,SGS,etc. or client's representative.

3)Non Standard Screens: We OASIS can supply customer designed and engineered screens according to our clients’ requirements.

4)Quick Delivery:OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5)Lower Maintenance of the Well:The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.

6)Environmentally safe:OASIS water well screen has signed the file to protect the environment with our local Environmental Protection Administration.

Shape and size of Surpport Rod and Wire:

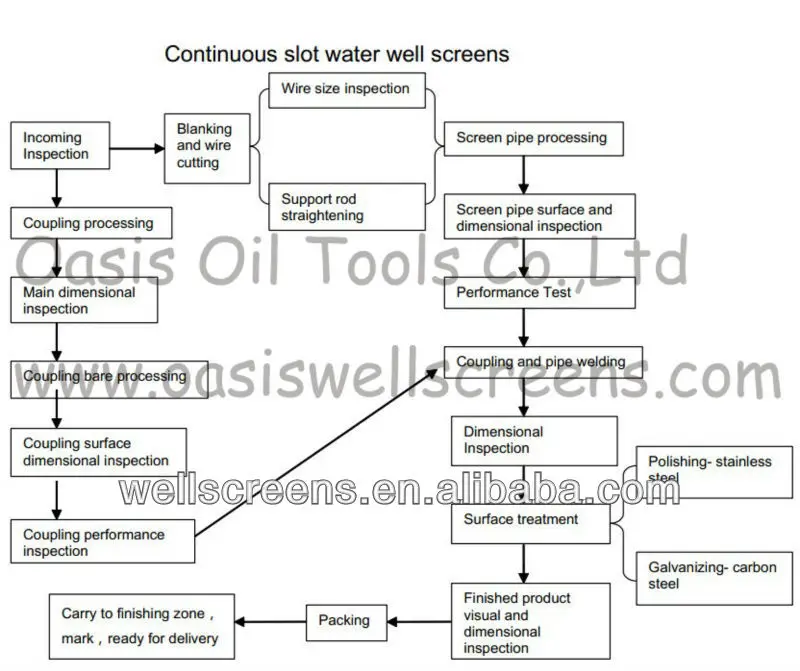

Producing process of water well screen:

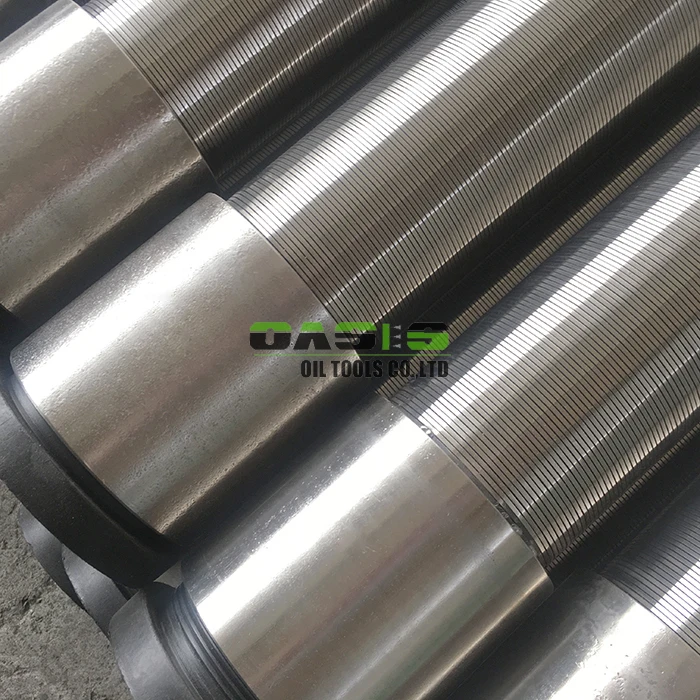

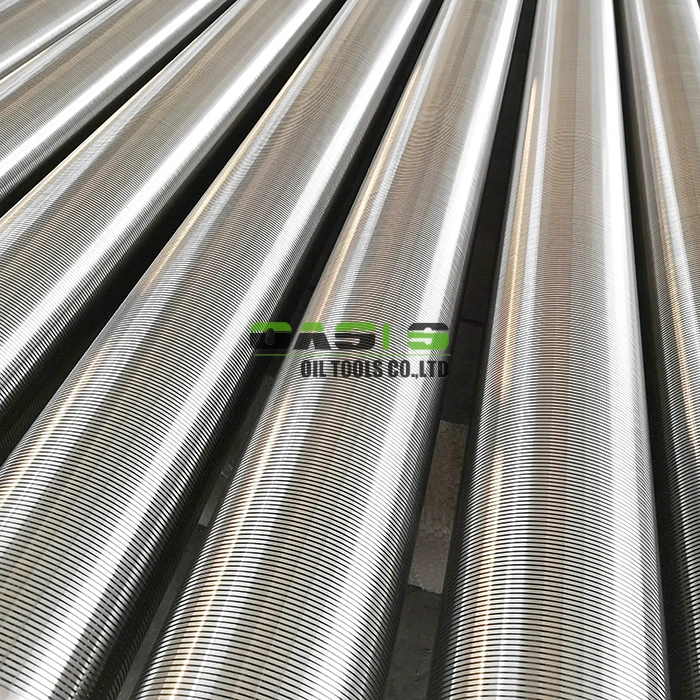

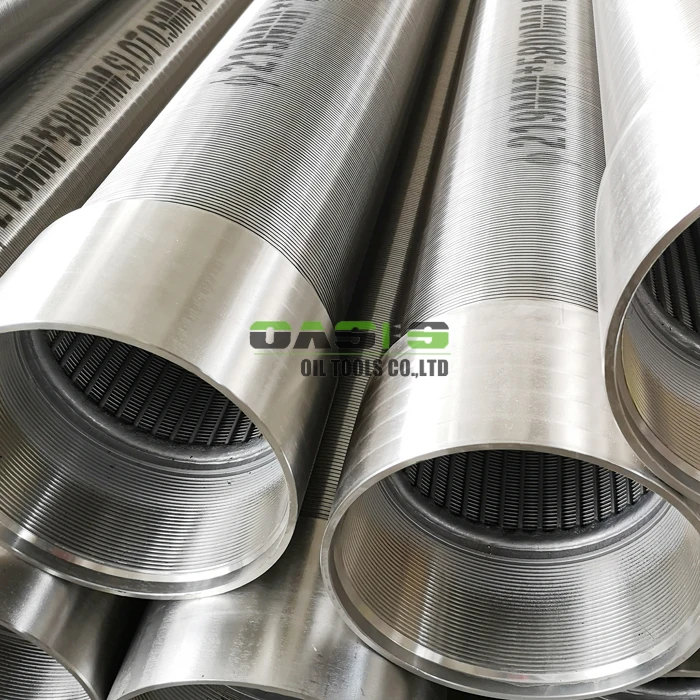

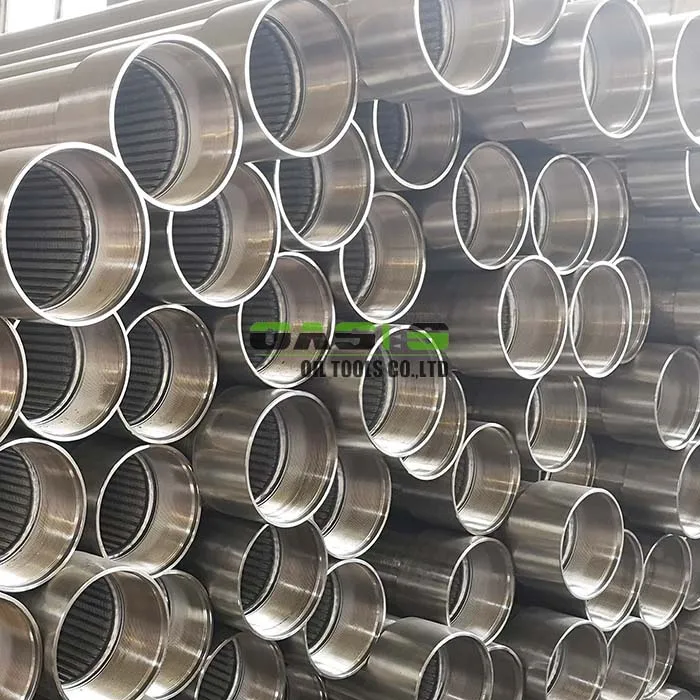

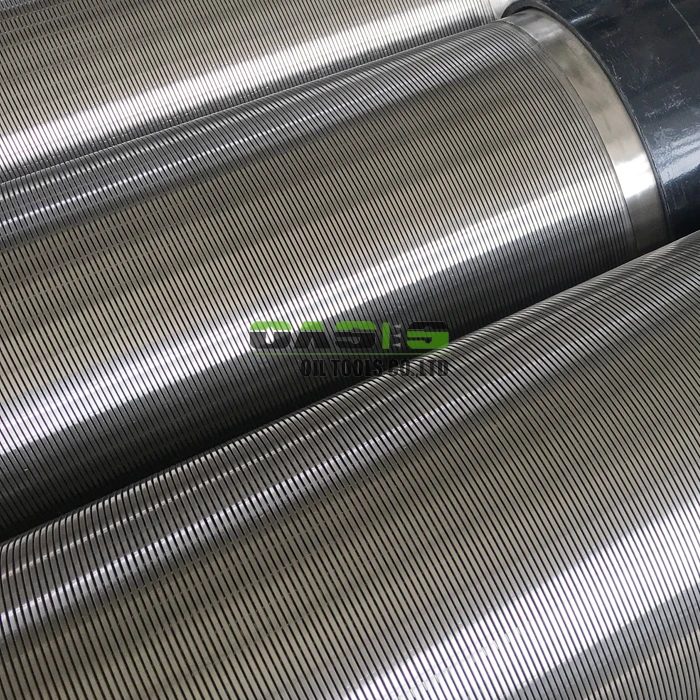

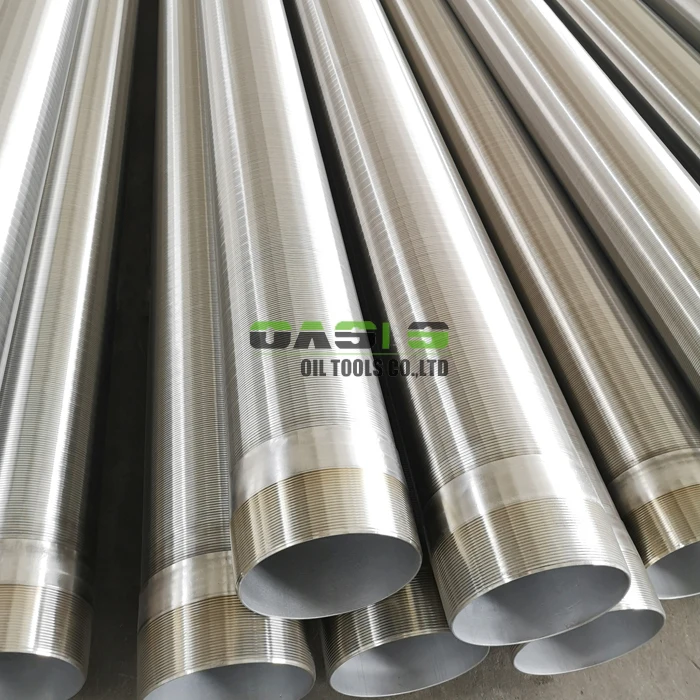

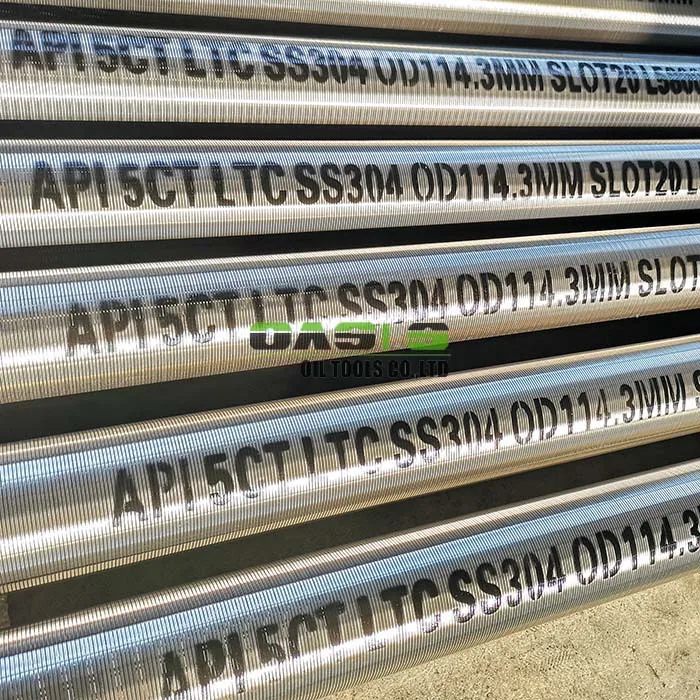

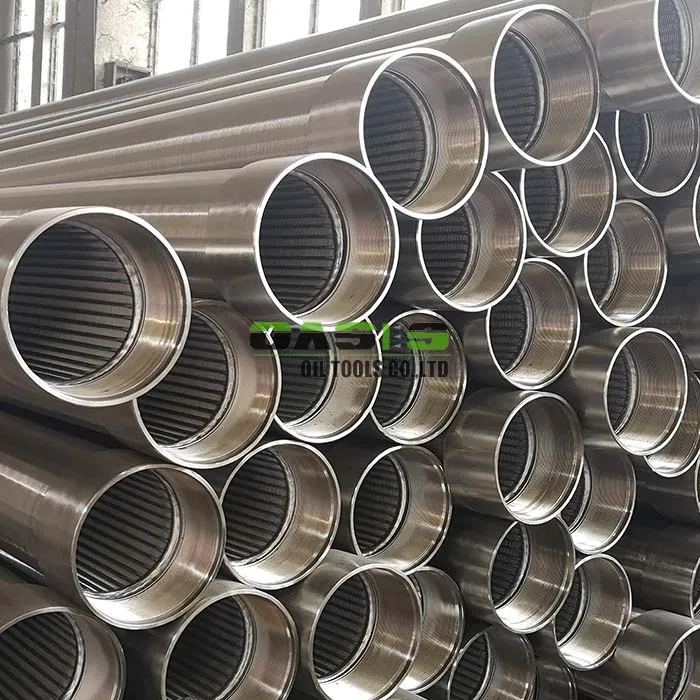

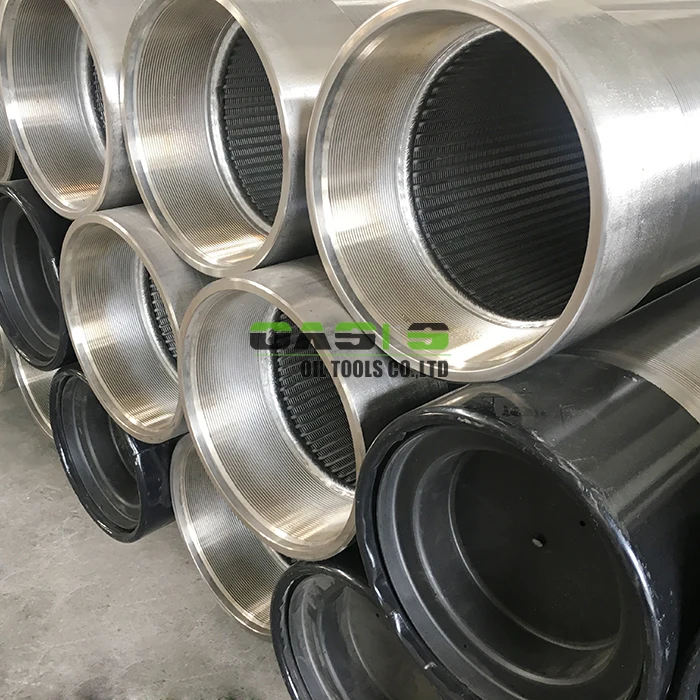

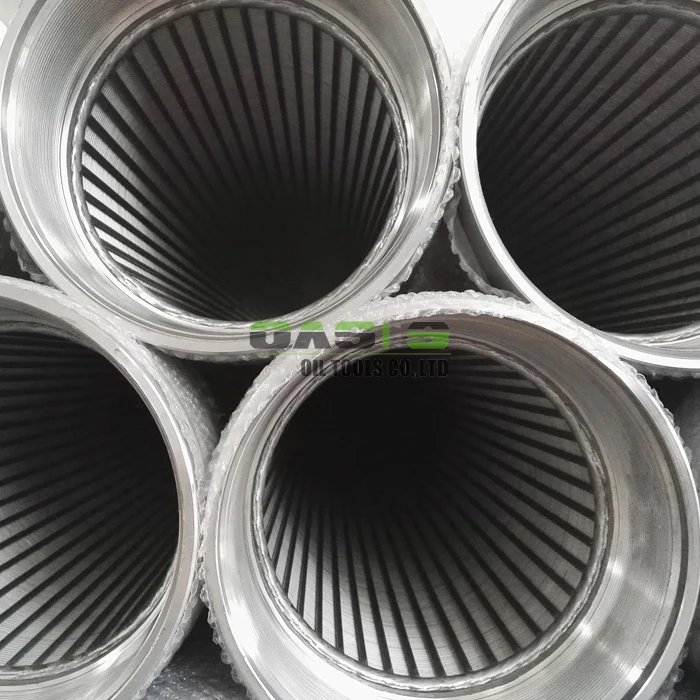

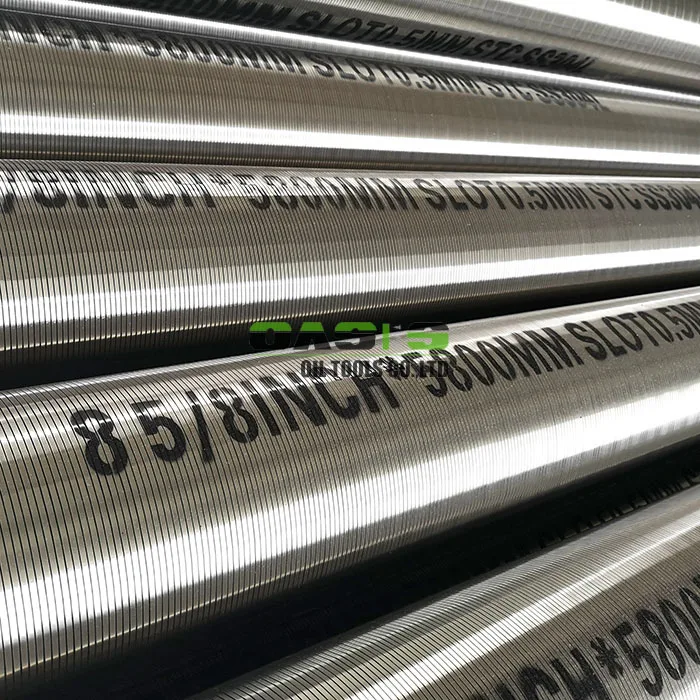

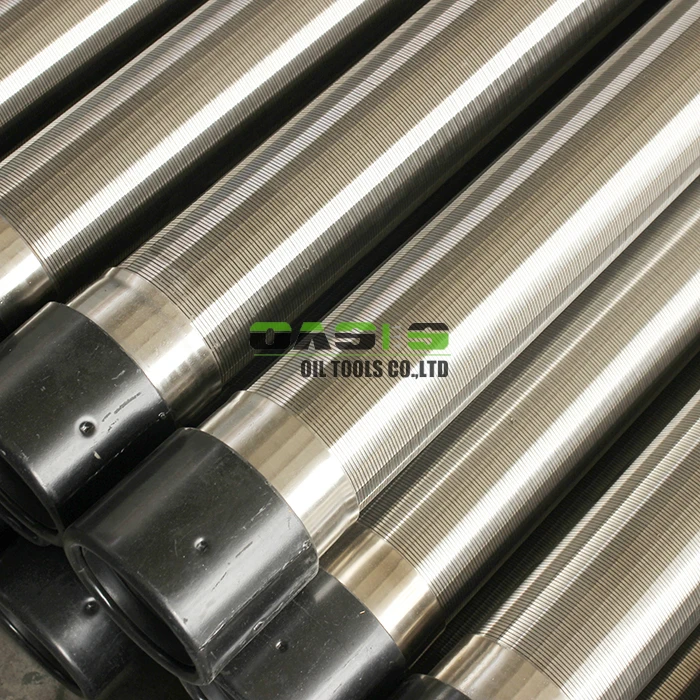

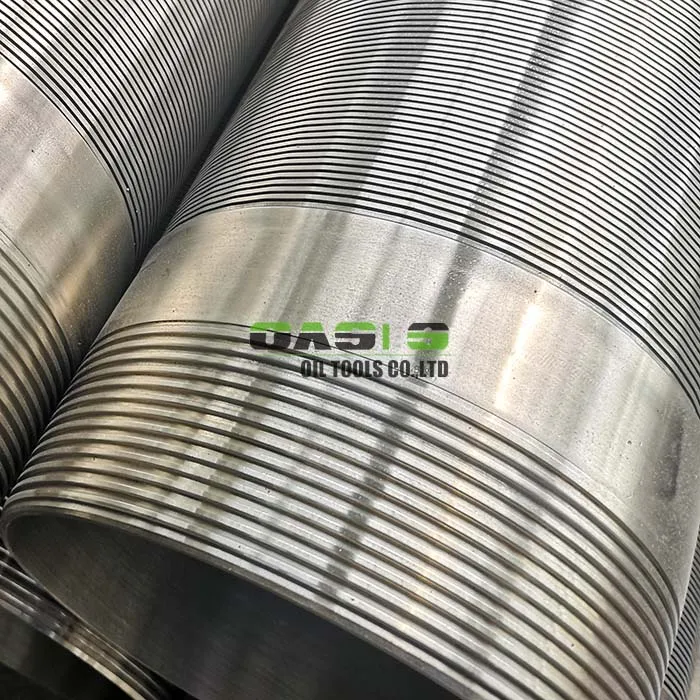

Reference pictures of API Thread Ends BTC STC Water Well Strainer Filter Screen:Which is easier to handle at site.

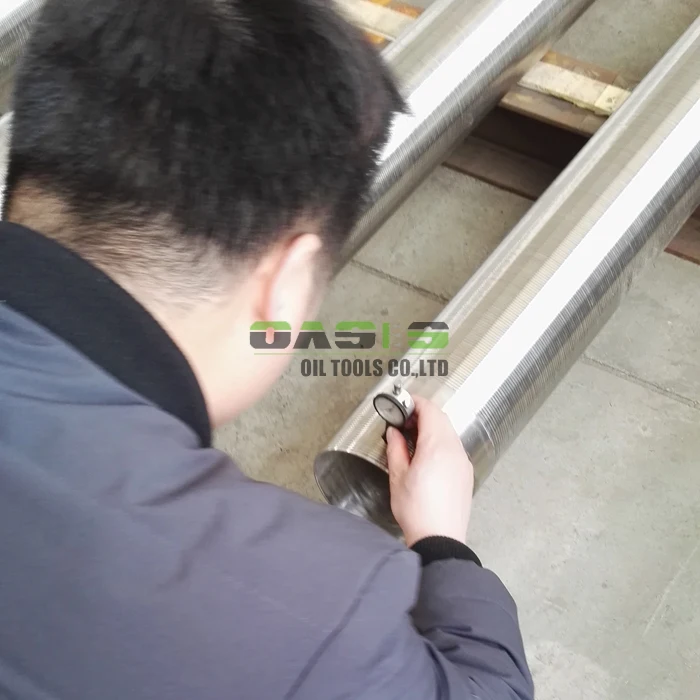

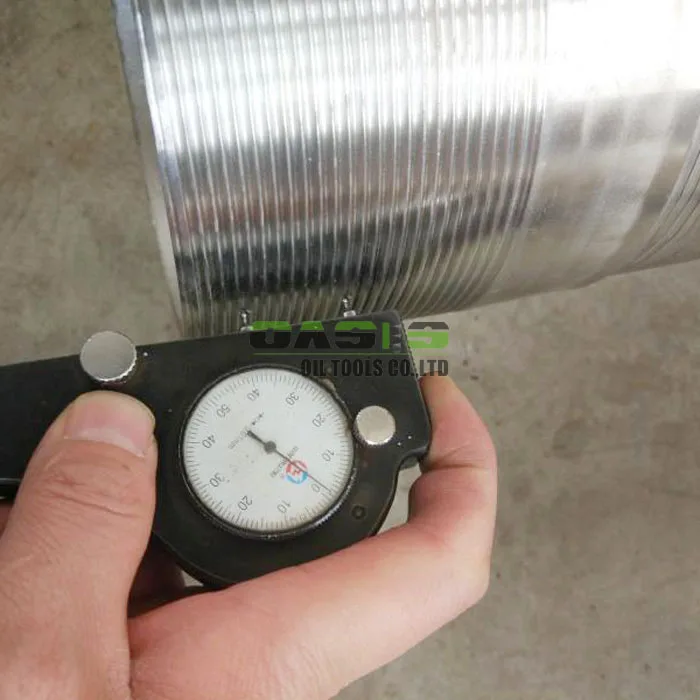

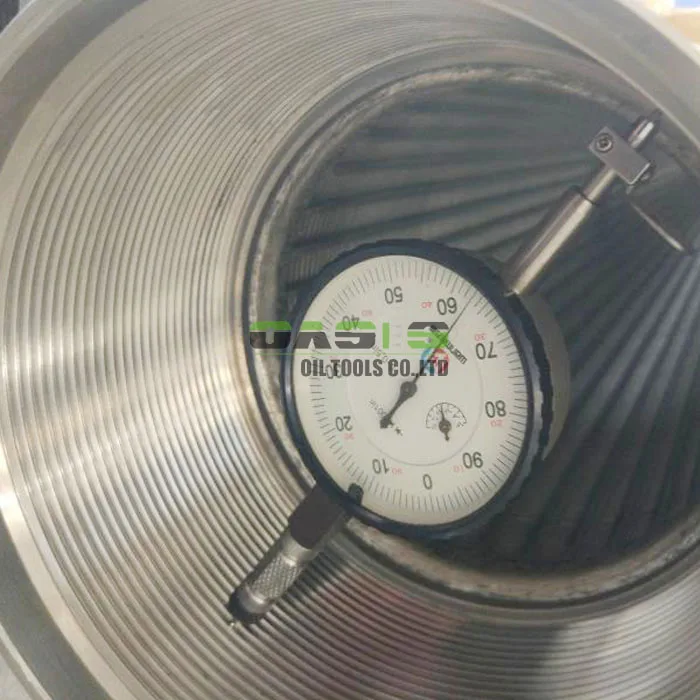

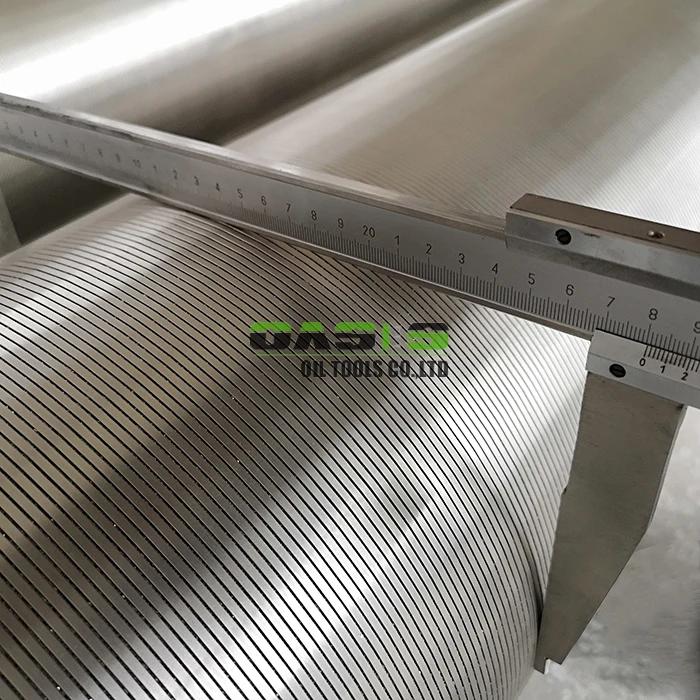

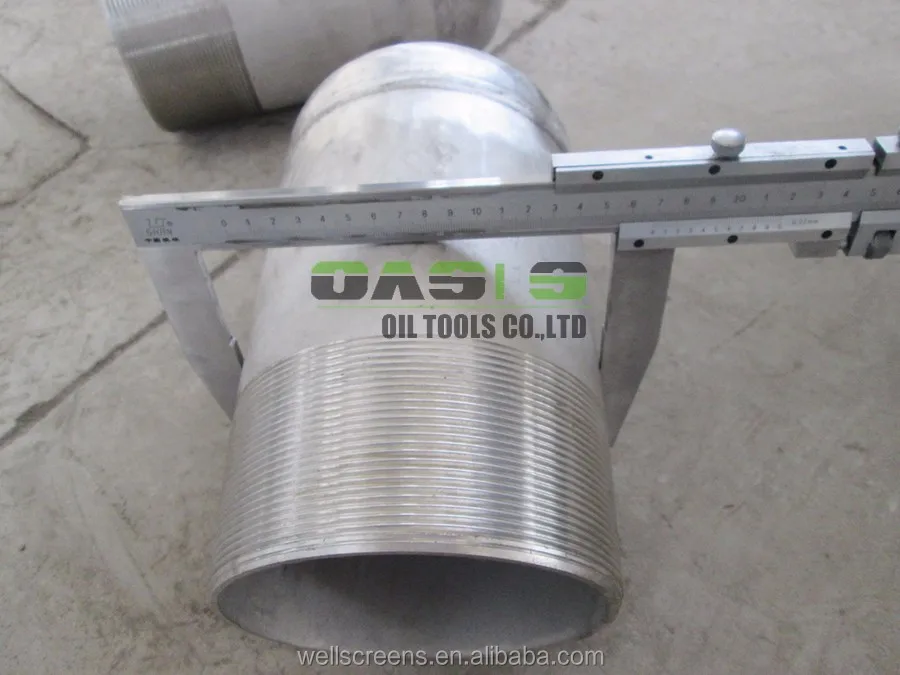

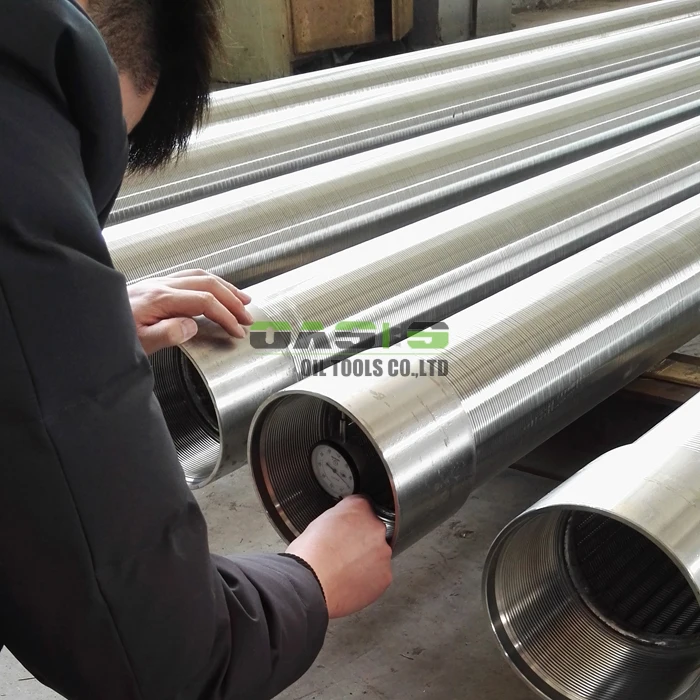

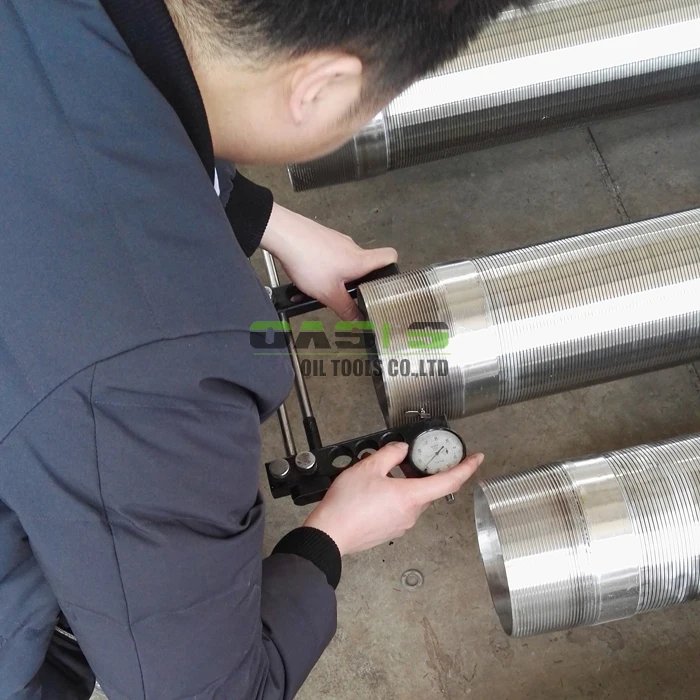

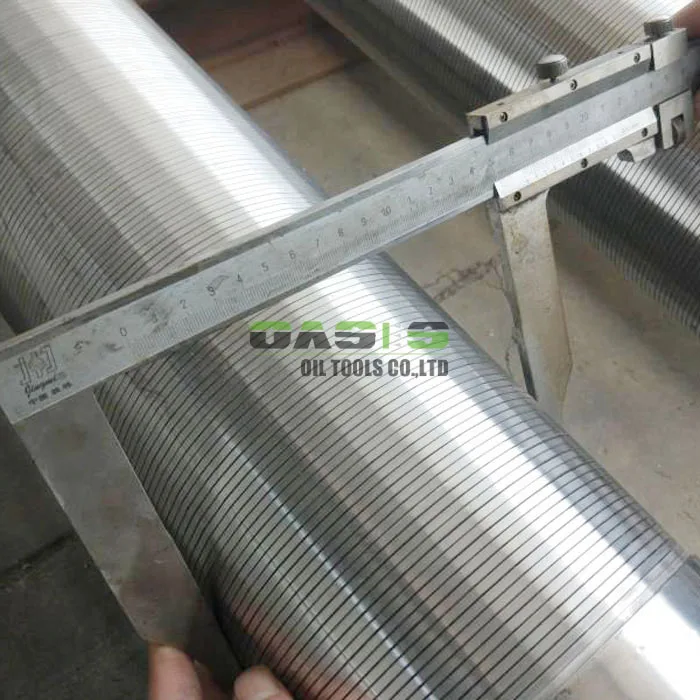

Quality Control of Water Well Strainer Filter Screen:including diameter, slot size, length, thread sizes and chemical composition.

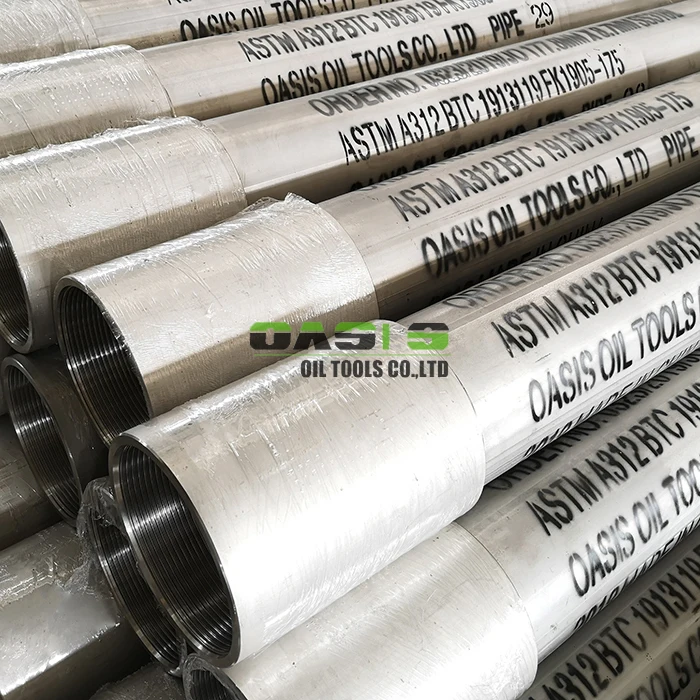

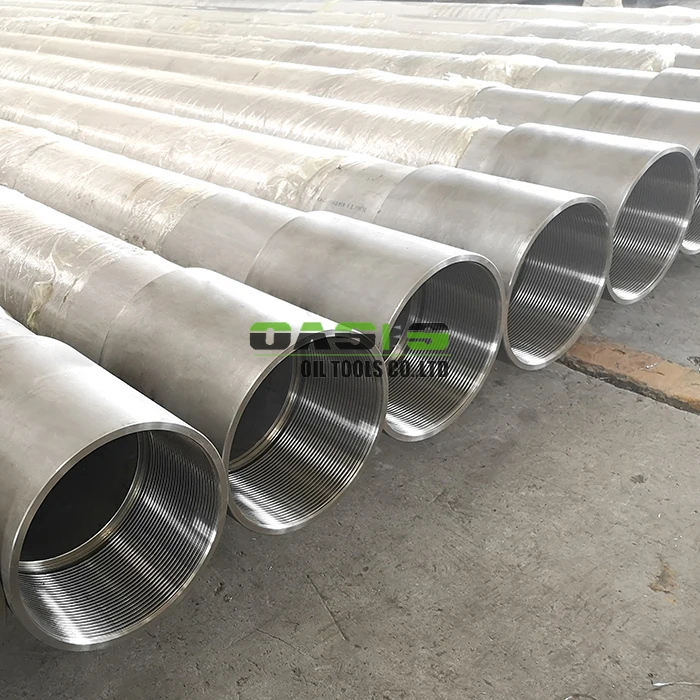

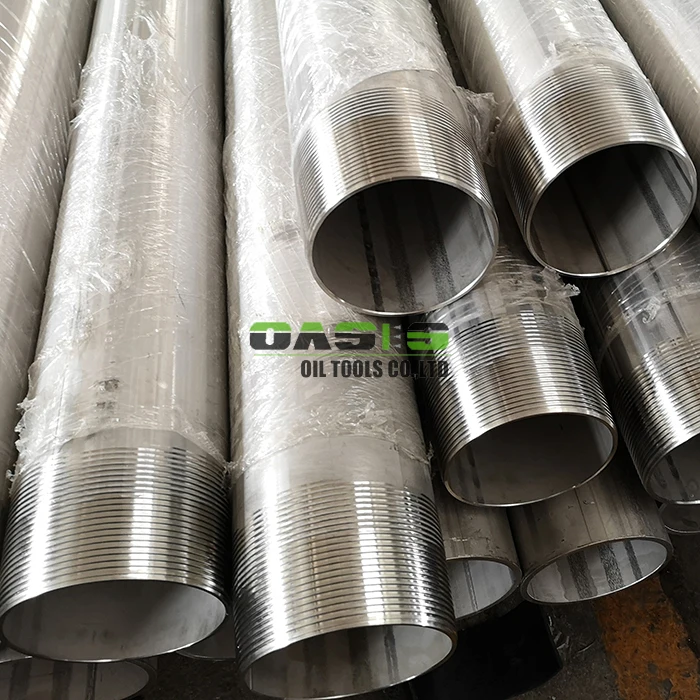

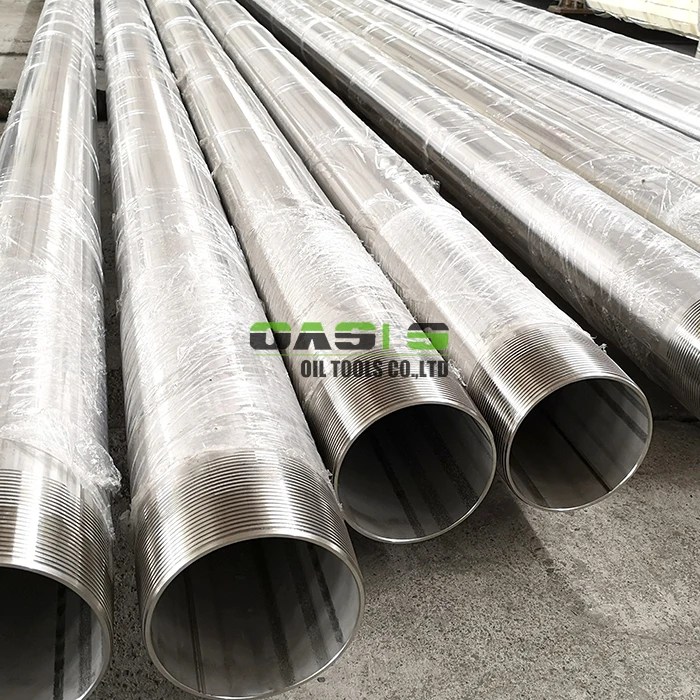

Related stainless steel screen well casings are also available

Valid ISO Certificate for continuous slot water well strainer screen:
